Noctua NM-I17XX-MP83 Chromax Black Mounting Kit for Intel LGA1700
In stock at Computer Lounge
Couldn't load pickup availability
Warranty and Support
Warranty and Support
Warranty: 6 Years Return to Base Warranty
Returns: 14-day hassle-free exchanges and store credits, subject to terms and conditions outlined in our Returns Policy.
Delivery and Shipping
Delivery and Shipping
All deliveries are signature required.
North Island: 1 – 2 working days
South Island: 2 – 3 working days
Please allow an additional 1 – 2 working days for delivery to rural addresses.
Buy Now, Pay Later & Finance Options:
Description
Description
Description

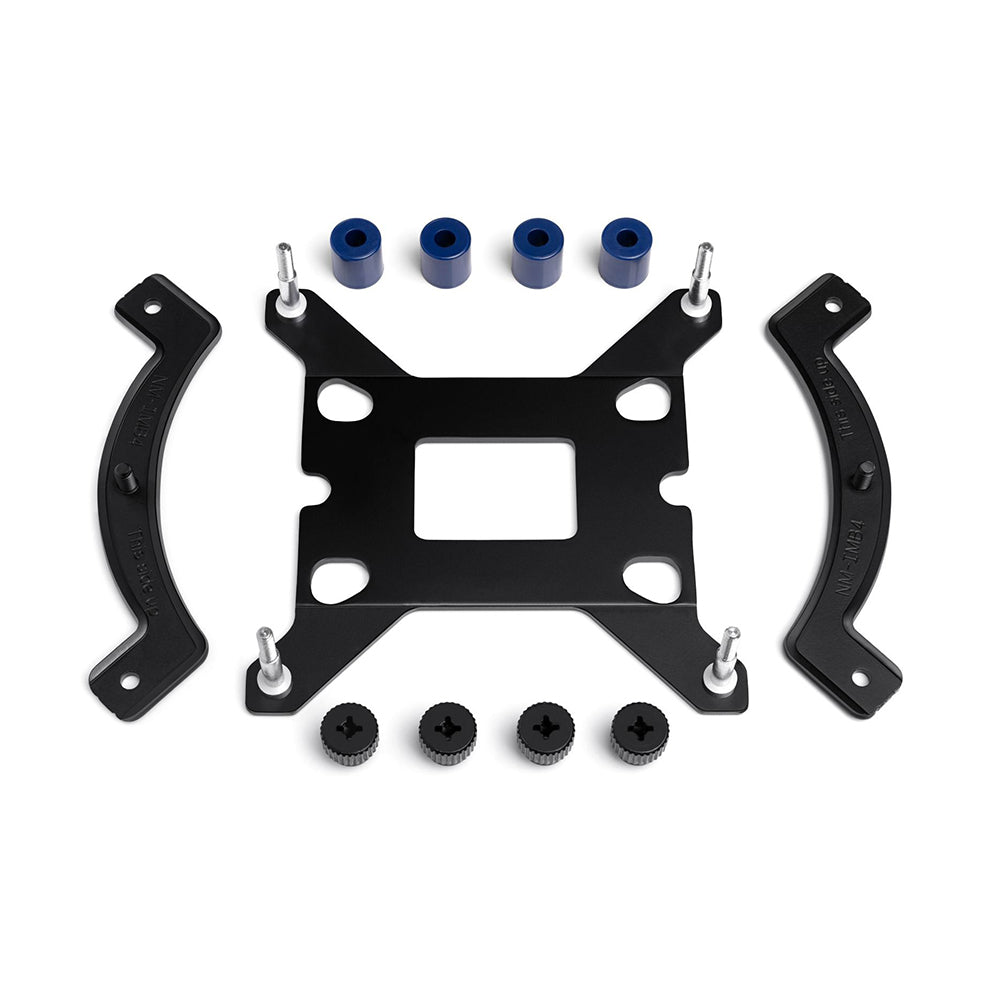

The NM-i17xx-MP83 is a SecuFirm2™ mounting upgrade kit that allows Noctua CPU coolers with 83mm mounting pitch (see detailed compatibility information) to be upgraded to Intel’s latest LGA1700 (LGA17xx family) platform. True to the SecuFirm2™ tradition, it combines outstanding reliability, optimal contact pressure and easy, straightforward installation in order to enable Noctua users to continue using their heatsinks on Intel’s latest Core series processors.
For Noctua coolers with 83mm mounting pitch
The NM-i17xx-MP83 kit is compatible with a wide range of Noctua CPU coolers that use 83mm mounting pitch, whereas heatsinks with 78mm mounting pitch must use the MP78 version. Please refer to our detailed compatibility information to check which kit is right for your cooler.
Trusted SecuFirm2™ quality
Over the years, SecuFirm2™ has become synonymous with impeccable long-term stability and flawless craftsmanship. Enthusiast users and industry clients alike trust the time-tested quality of Noctua's professional mounting systems.
Perfect contact pressure
SecuFirm2™ mounting systems use high-grade coil springs to achieve perfect contact pressure. No guesswork regarding how far to tighten the mounting screws, no risk of damaging the socket with excessive pressure!
One-piece backplate with fixed struts
The NM-i17xx kits feature a sturdy one-piece backplate with fixed struts that doesn’t require any pre-assembly or adjustment. Due to the fixed struts, aligning the backplate and attaching it to your motherboard is a breeze!
Tailor-made for LGA1700 (LGA17xx family)
Aiming to cut costs, many manufacturers use cross-platform parts for both Intel and AMD, which can cause compatibility issues. Noctua’s SecuFirm2™ mounting system for LGA1700 (LGA17xx family) has been tailor-made for this socket in order to ensure optimal compatibility and ease of installation.
Cooler can be installed turned by 90°
Installing a cooler turned by 90° can be desirable for airflow or compatibility reasons. Thanks to the square layout of the hole pattern on the LGA1700 (LGA17xx family) platform, this is easily possible with the NM-i17xx kits if space and other components permit.
Backwards compatibility
Noctua CPU coolers are renowned for being safe, long-term investments that can be used for several CPU generations. Accordingly, even coolers that are 15 years or older can be upgraded to the latest Intel Core platform using this mounting kit.
Sustainability
Using a CPU cooler across several platform generations instead of buying a new heatsink for each generation is not only economical, it also helps to reduce unnecessary waste and save precious resources. By upgrading rather than replacing your cooler, you’re actively contributing to a more sustainable PC industry.
Caution: This mounting upgrade kit makes it possible to install a Noctua heatsink, which has originally been designed for other sockets according to their specifications, on LGA1700 (LGA17xx family) hardware. As the clearance specifications for LGA17xx differ from other sockets, it is crucial to verify that your heatsink is fully compatible with your LGA17xx motherboard before installation. Please consult our compatibility database (LGA1700 motherboards will be added when available) in order to make sure that your motherboard is fully compatible with your heatsink. Noctua cannot be held responsible for any damage or losses caused by compatibility issues.
Please note that the NM-i17xx-MP83 is only compatible with heatsinks that have 83mm mounting pitch (see detailed compatibility information) and that the NM-i17xx-MP78 kit must be used for heatsinks with 78mm mounting pitch.
In line with Noctua’s policy of supplying customers with its premium-class SecuFirm2™ mountings free of charge, owners of eligible Noctua heatsink models will also be able to order the NM-i17xx-MP83 for free as soon as LGA1700 motherboards and CPUs become available in stores. A proof of purchase (electronic version, photo or scan of the invoice) of both an eligible Noctua CPU cooler and either a LGA1700 motherboard or LGA1700 CPU are required. Depending on the country, express shipping options may be available but are subject to service charges.
The NM-i17xx-MP83 SecuFirm2™ mounting kit is also available for purchase at some of our resellers at a suggested service charge of EUR/USD 7.90 starting in mid-October. If you need the kit urgently, please consider ordering it via a local reseller or using the paid express shipping option.
Specifications
Specifications
| Socket compatibility | Intel LGA1851, LGA1700 |
| Cooler compatibility | Noctua NH-D15, NH-D15 chromax.black, NH-D15 SE-AM4, NH-D15S, NH-D15S chromax.black, NH-D14, NH-D14 SE2011, NH-D9L, NH-C14, NH-C14S, NH-C12P, NH-C12P SE14, NH-L12, NH-U12, NH-U12F, NH-U12P, NH-U12P SE1366, NH-U12P SE2, NH-U9, NH-U9F, NH-U9B, NH-U9B SE2, NH-L9x65, NH-L9x65 SE-AM4, NH-P1 |
