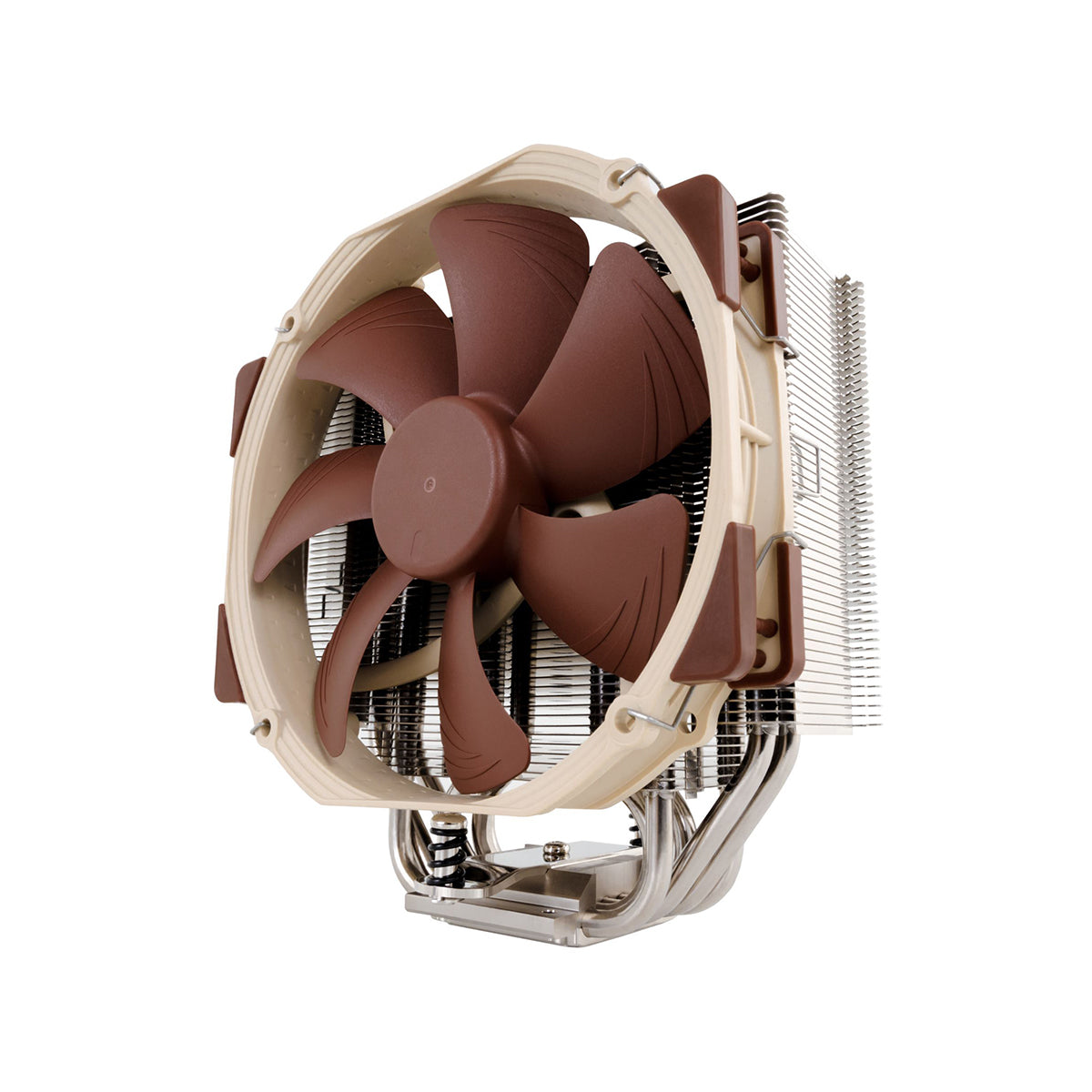

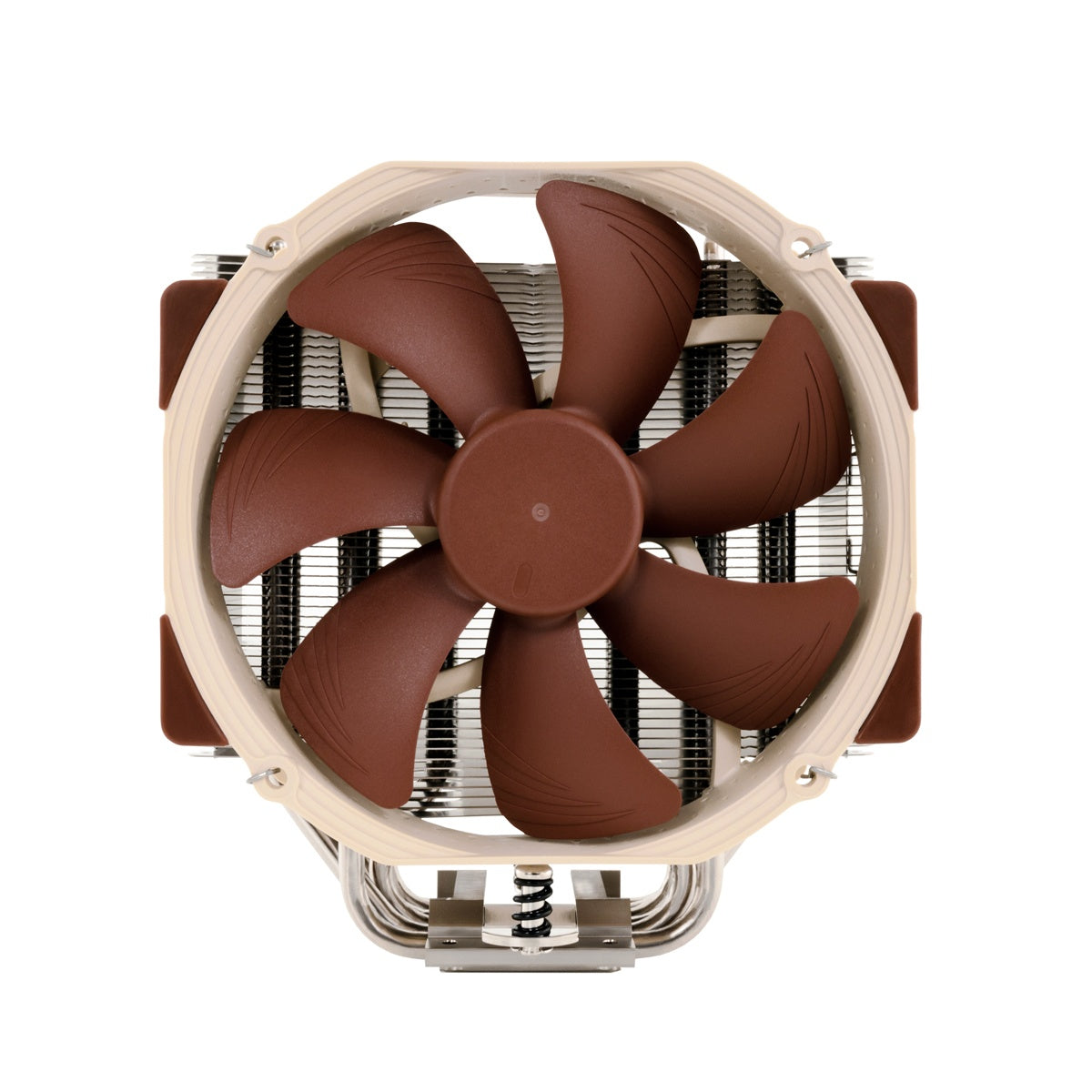

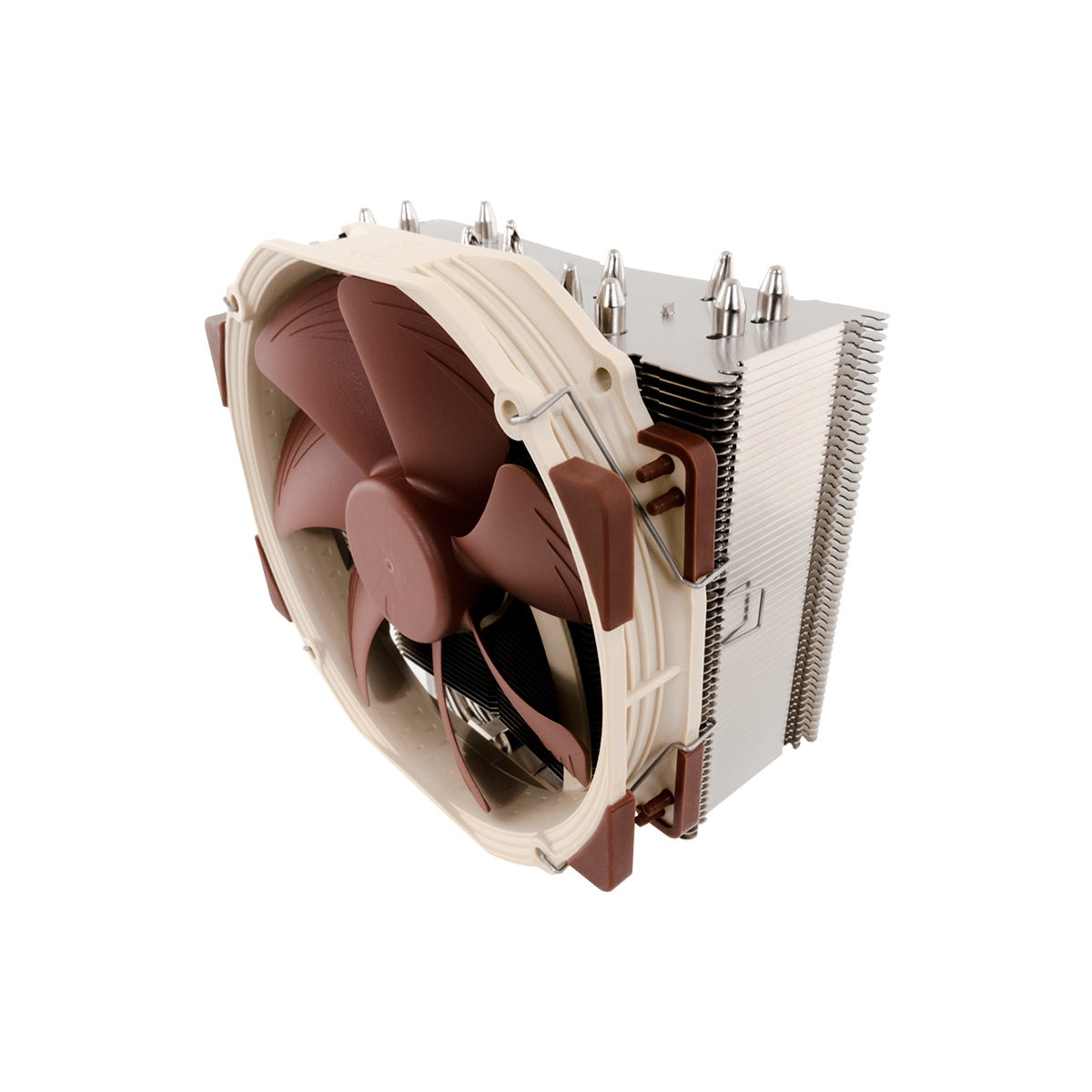

Noctua NH-U14S CPU Cooler with NF-A15 PWM Fan

Noctua  |  SKU 19146  |  MPN NH-U14S
$149.00

In stock at Computer Lounge

Warranty and Support

Warranty: 6 Years Return to Base Warranty

Returns: 14-day hassle-free exchanges and store credits, subject to terms and conditions outlined in our Returns Policy.

Delivery and Shipping

All deliveries are signature required.

North Island: 1 – 2 working days
South Island: 2 – 3 working days

Please allow an additional 1 – 2 working days for delivery to rural addresses.

Buy Now, Pay Later & Finance Options:

SHOP STORE:

Description

Award-Winning NH-U Series

The NH-U14S is the first 140mm model in Noctua's award-winning NH-U series. First introduced in 2005, the NH-U series has become a standard choice for premium quality quiet CPU coolers and won more than 400 awards and recommendations from leading international hardware websites and magazines.


Full RAM compatibility on LGA20xx

With its 52mm slim design tailor-made for LGA20xx (LGA2066 & LGA2011), the NH-U14S will not overhang the RAM slots on this platform, thus guaranteeing full compatibility with tall memory modules. On some LGA115x and AMD motherboards, the front fan may overhang the first RAM slot, so standard height RAM (up to 32mm) should be chosen when using the first slot.*


Reasonable size for better overall compatibility

Standing 165mm tall, the NH-U14S is short enough to fit most modern high-end cases. Measuring 150mm wide (including fan and fan clips), the NH-U14S provides better compatibility with SLI and CrossFire setups as compared to tower coolers that are wider than 150mm or use fans wider than 150mm.


NF-A15 140mm PWM Fan

The NF-A15 is a premium quality quiet 140mm fan with a round frame that complies with Noctua's AAO standard. Featuring sophisticated aerodynamic design measures such as Flow Acceleration Channels, the NF-A15 further improves the renowned quiet cooling performance of the award-winning NF-P14.

PWM support and Low-Noise Adaptor

The NF-A15 140mm fan supplied with the NH-U14S supports PWM for convenient automatic speed control through the mainboard. In addition, the maximum fan speed can be reduced from 1500 to 1200rpm using the supplied Low-Noise Adaptor for even quieter operation.


Anti-vibration pads and fan-clips for second NF-A15 (optional)

For users who want to achieve even better performance by adding a second, optional NF-A15 fan to create a push/pull setup, the NH-U14S includes fan clips and an extra set of custom-designed anti-vibration pads that allow to off-set the rear fan by 5mm to improve acoustics in dual-fan mode.*


SecuFirm2™ mounting system

Noctua's SecuFirm2™ mounting systems have become synonymous with quality, safety and easy installation. Supporting Intel LGA1851, LGA1700 (since 2021), LGA1200, LGA115x (LGA1150, LGA1151, LGA1155, LGA1156) as well as AMD AM4 and AM5 (since 2019), the SecuFirm2™ mounting included with the NH-U14S is straightforward to install, provides perfect contact pressure and will stand the test of time even under heavy use.


Compatibility with past and future sockets

Complying with the open SecuFirm™ standard, the NH-U14S can be made compatible with the older LGA1366 and LGA775 sockets using the optional NM-I3 mounting kit, which is provided by Noctua free of charge. If technically possible, Noctua will also provide upgrade kits for future sockets.

NT-H1 thermal compound

Having received more than 100 awards and recommendations from hardware journalists around the world, Noctua's NT-H1 is a proven professional grade TIM solution that provides minimum thermal resistance, excellent ease of use and outstanding reliability.


6-year manufacturer’s warranty

Noctua products are renowned for their impeccable quality and outstanding longevity. Like all Noctua fans, the supplied NF-A15 features an MTTF rating of more than 150.000 hours and the entire NH-U14S package comes with a full 6-year manufacturer's warranty.


*In cases with more than 165mm CPU cooler clearance, the fan can be moved upwards to make room for memory modules taller than 32mm. If the rear fan is off-set, it may overhang the first left hand side RAM slot on LGA20xx.


!

Note: There are some clearance issues with some heatsinks on some Motherboards. Please check your Motherboard that you will be using against the official Noctua compatibility list before purchasing.

Specifications

Socket CompatibilityIntel LGA1851, LGA1700, LGA1200, LGA1156, LGA1155, LGA1151, LGA1150 and AMD AM5, AM4
(Current socket compatibility applies to all coolers purchased since Q2 2022. For older coolers, please refer to this chart.)
Height (without fan)165 mm
Width (without fan)150 mm
Depth (without fan)52 mm
Height (with fan)165 mm
Width (with fan)150 mm
Depth (with fan)78 mm
Weight (with fan)935 g
MaterialCopper (base and heat-pipes), aluminium (cooling fins), soldered joints & nickel plating
NSPR162
Max. TDPsee NSPR
Fan Compatibility140x150x25 (with 120mm mounting holes), 140x140x25 (with 120mm mounting holes), 120x120x25

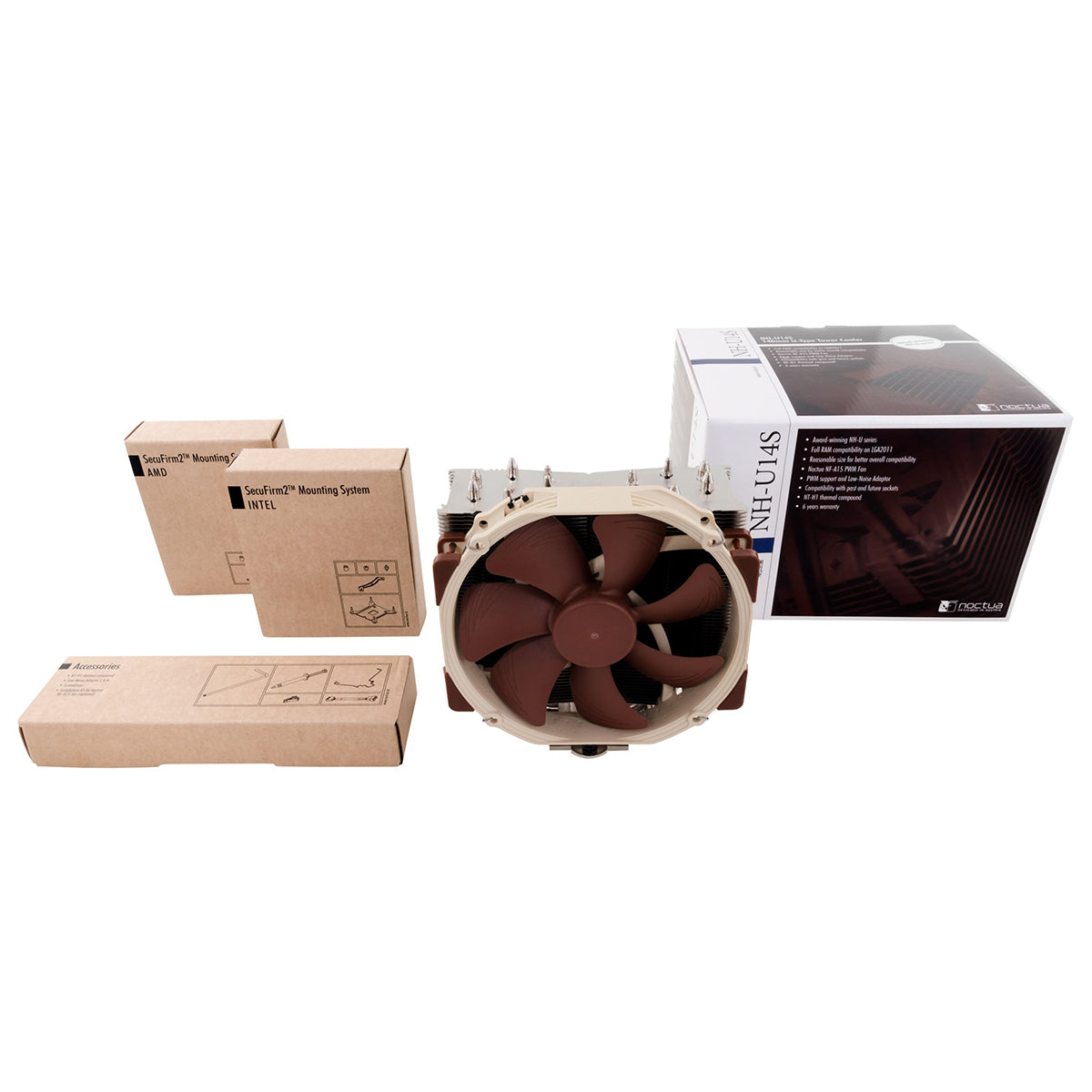

Scope of Delivery NF-A15 PWM premium fan
NA-RC7 Low-Noise Adaptor (L.N.A.)
NT-H1 high-grade thermal compound
SecuFirm2™ mounting kit
Anti-vibration pads and fan-clips for second NF-A15
Noctua Metal Case-Badge
Warranty 6 Years
Fan Specification
ModelNoctua NF-A15 PWM
BearingSSO2
Max. Rotational Speed (+/- 10%)1500 RPM
Max. Rotational Speed with L.N.A. (+/- 10%)1200 RPM
Min. Rotational Speed @ 20% PWM (+/-20%)300 RPM
Max. Airflow140,2 m³/h
Max. Airflow with L.N.A.115,5 m³/h
Max. Acoustical Noise24,6 dB(A)
Max. Acoustical Noise with L.N.A.19,2 dB(A)
Input Power (Max.)1,56 W
Voltage Range12 V
MTTF> 150.000 h
