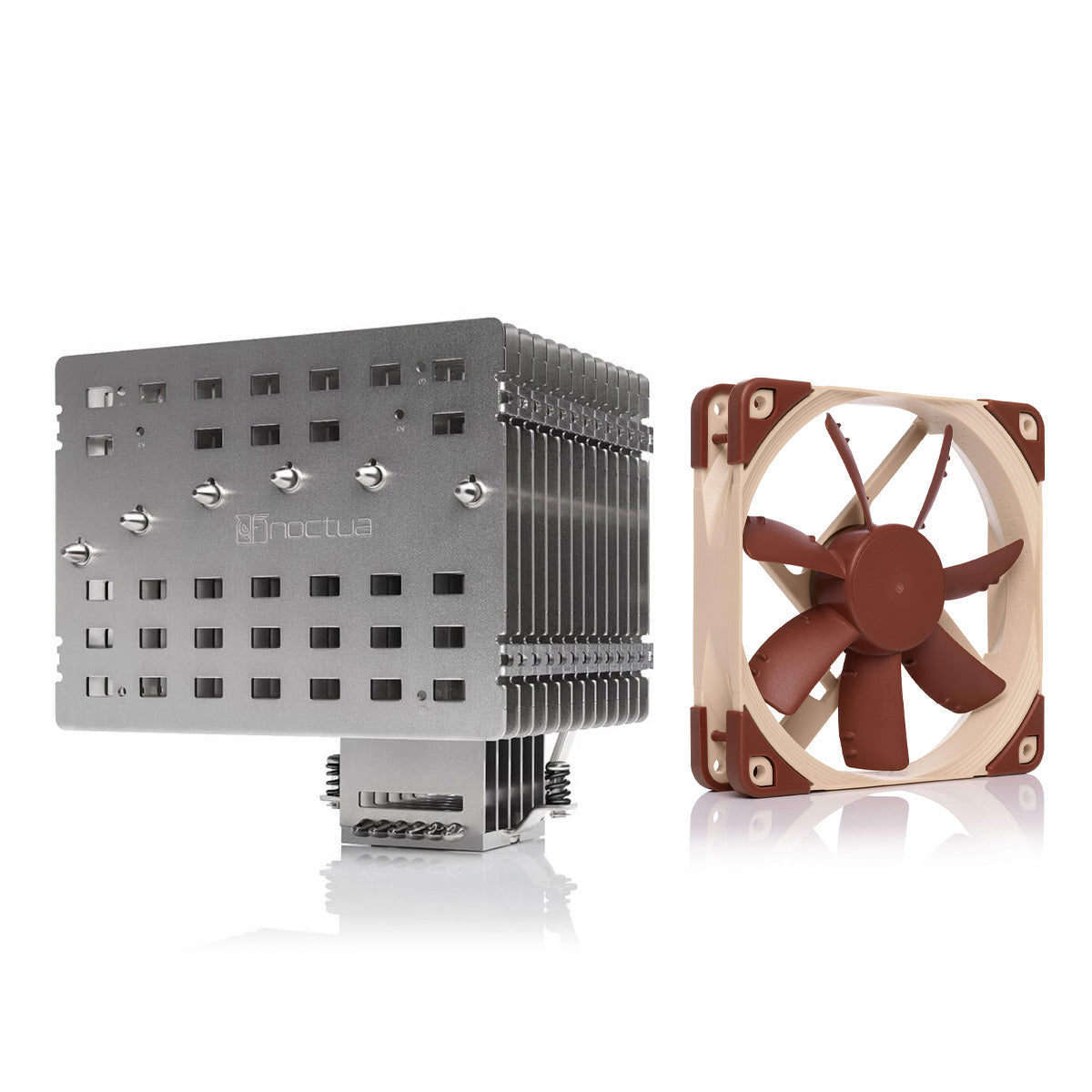

Noctua NH-P1 Fanless Passive CPU Cooler + Noctua NF-S12A PWM 120mm Fan

NH-P1 Fanless Passive CPU Cooler

The NH-P1 is Noctua’s first passive CPU cooler and has been custom-designed for fanless operation from the ground up: in enclosures with good natural convection, its six heatpipes and thick, widely spaced heatsink fins enable it to cool modern high-end CPUs with low to moderate heat dissipation completely passively (see setup guidelines and list of recommended cases). For further enhanced performance or semi-passive setups that only spin up their fans when necessary, the NH-P1 can be outfitted with a low-speed, ultra-quiet 120mm fan such as the NF-S12A PWM. Topped off with the professional Torx-based    SecuFirm2+ mounting system, Noctua’s award-winning NT-H2 thermal compound and a 6-year manufacturer’s warranty, the NH-P1 is the ideal cornerstone for premium-grade fanless or semi-passive builds.

Fanless cooling for high-end CPUs

In fully optimised fanless systems, the NH-P1 is capable of cooling high-end CPUs with low to moderate heat dissipation using natural convection only (see setup guidelines and CPU compatibility list). This makes it ideal for powerful builds that have no moving parts and run absolutely silent.

Increased performance headroom with extra fan

The NH-P1 can be fitted with an extra 120mm fan such as the near inaudible NF-S12A PWM in order to increase its maximum dissipation capacity significantly (see setup guidelines and CPU compatibility list): ideal for short spikes of higher heat loads or semi-passive systems that only start their fans when necessary!

No noise, less dust, 100% fail-proof

Fanless cooling doesn’t only have the advantage of being completely silent: if you’re relying on natural convection only and don’t have case fans pushing air through a case, less dust will accumulate in filters or inside the system. Last but not least, with no moving parts such as fans or pumps that could possibly fail, the NH-P1 is as fail-proof as it can be.

Asymmetrical layout for optimal PCIe compatibility

As many current motherboards have the top PCIe x16 slot sitting close to the socket, bigger heatsinks tend to block it. Due to its asymmetrical layout, the fin-stack of the NH-P1 is offset towards the upper edge of the motherboard when installed in standard orientation. This allows it to clear the top PCIe x16 slot on most current µATX and ATX motherboards (see motherboards compatibility list).

100% RAM clearance on LGA1200 and AM4

Due to its asymmetric design, the NH-P1 does not overhang the RAM slots on Intel LGA1200, LGA115x and AMD AM4 based motherboards, which ensures easy access to the modules and 100% compatibility with tall heat-spreaders. On LGA2066, it overhangs the RAM slots on the left-hand side of the socket, so RAM modules should not exceed 45mm in height.

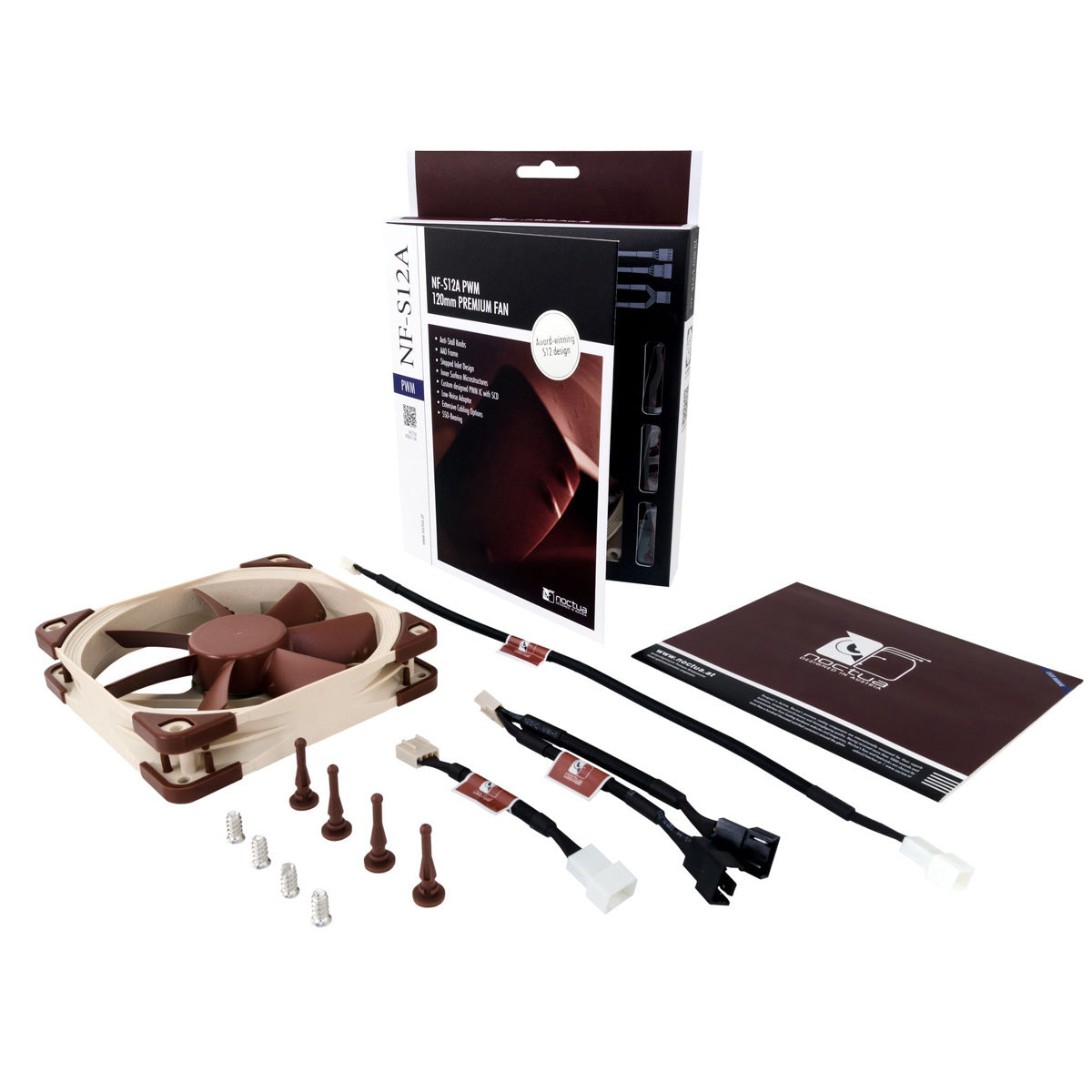

Noctua NF-S12A 120mm PWM Fan

The NF-S12A features the third evolution of Noctua's classic Straight Blade Design that has earned its S12 series countless recommendations from hardware journalists and enthusiasts around the world. Further optimised for even better airflow/noise efficiency, it makes the NF-S12A an ideal quiet case fan.

Anti-Stall Knobs

The NF-S12A's Anti-Stall Knobs reduce flow separation phenomena in medium to high impedance situations and thereby increase the fan's stall margin. This means that the NF-S12A is even more versatile than its renowned predecessor and can achieve better performance on heatsinks and radiators.

AAO frame

Noctua's AAO (Advanced Acoustic Optimisation) frames feature integrated anti-vibration pads as well as Noctua's proprietary Stepped Inlet Design and Inner Surface Microstructures, both of which further refine the fan's performance/noise efficiency.

Stepped Inlet Design

Noctua's Stepped Inlet Design adds turbulence to the influx in order to facilitate the transition from laminar flow to turbulent flow, which reduces tonal intake noise, improves flow attachment and increases suction capacity, especially in space-restricted environments.

Inner Surface Microstructures

With the tips of the fan blades ploughing through the boundary layer created by the Inner Surface Microstructures, flow separation from the suction side of the blades is significantly suppressed, which results in reduced blade passing noise and improved airflow and pressure efficiency.

Integrated anti-vibration pads

Integrated anti-vibration pads made from extra-soft silicone minimise the transmission of minute vibrations while maintaining full compatibility with all standard screws and other mounting systems.

Custom-designed PWM IC with SCD

Supporting fully automatic PWM speed control, the NF-S12A PWM uses Noctua's novel, custom-designed NE-FD1 PWM IC that integrates Smooth Commutation Drive (SCD) technology. By providing smoother torque impulses, SCD suppresses PWM switching noises and thus makes the fan quieter at low speeds.

Low-Noise Adaptor

The NF-S12A PWM is supplied with a (L.N.A.) that reduces the maximum fan speed from 1200 to 900rpm. The L.N.A. can be used either to run the fan at a fixed speed of 900rpm or to cap the maximum speed when using automatic PWM control.
