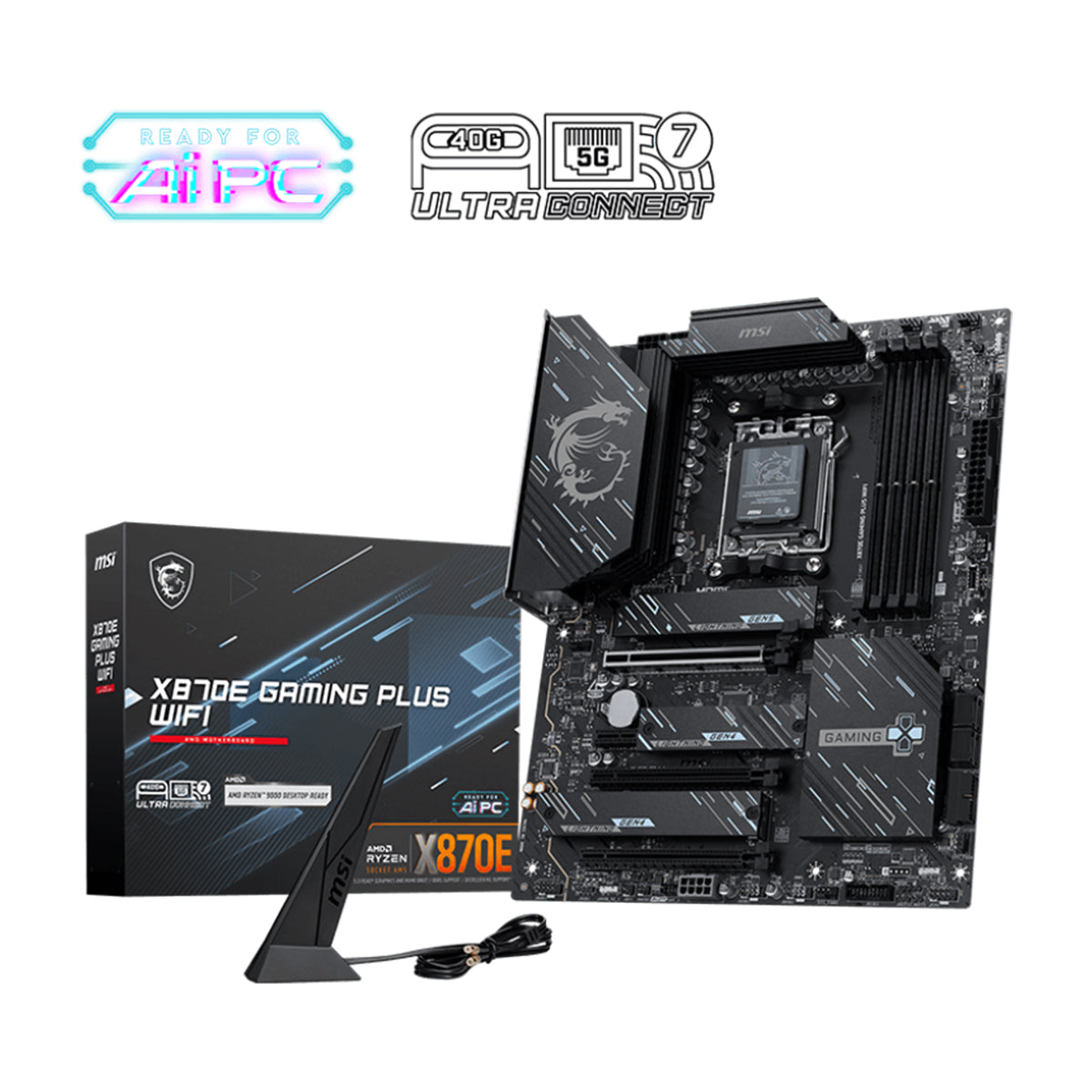

MSI X870E GAMING PLUS WIFI Motherboard
Warranty and Support
Warranty and Support
Warranty: 3 Years Return to Base Warranty
Returns: 14-day hassle-free exchanges and store credits, subject to terms and conditions outlined in our Returns Policy.
Delivery and Shipping
Delivery and Shipping
All deliveries are signature required.
North Island: 1 – 2 working days
South Island: 2 – 3 working days
Please allow an additional 1 – 2 working days for delivery to rural addresses.
Buy Now, Pay Later & Finance Options:
Description
Description

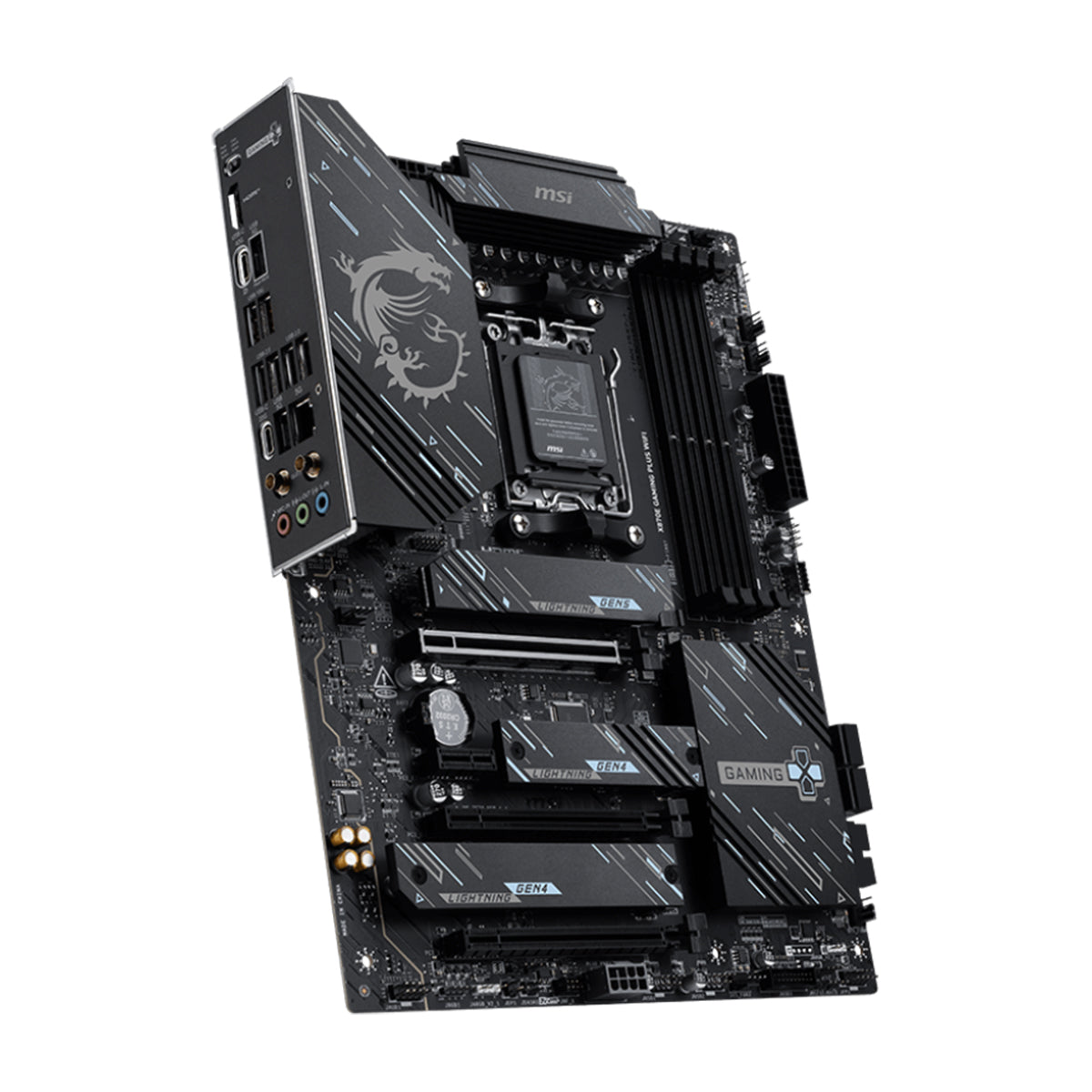

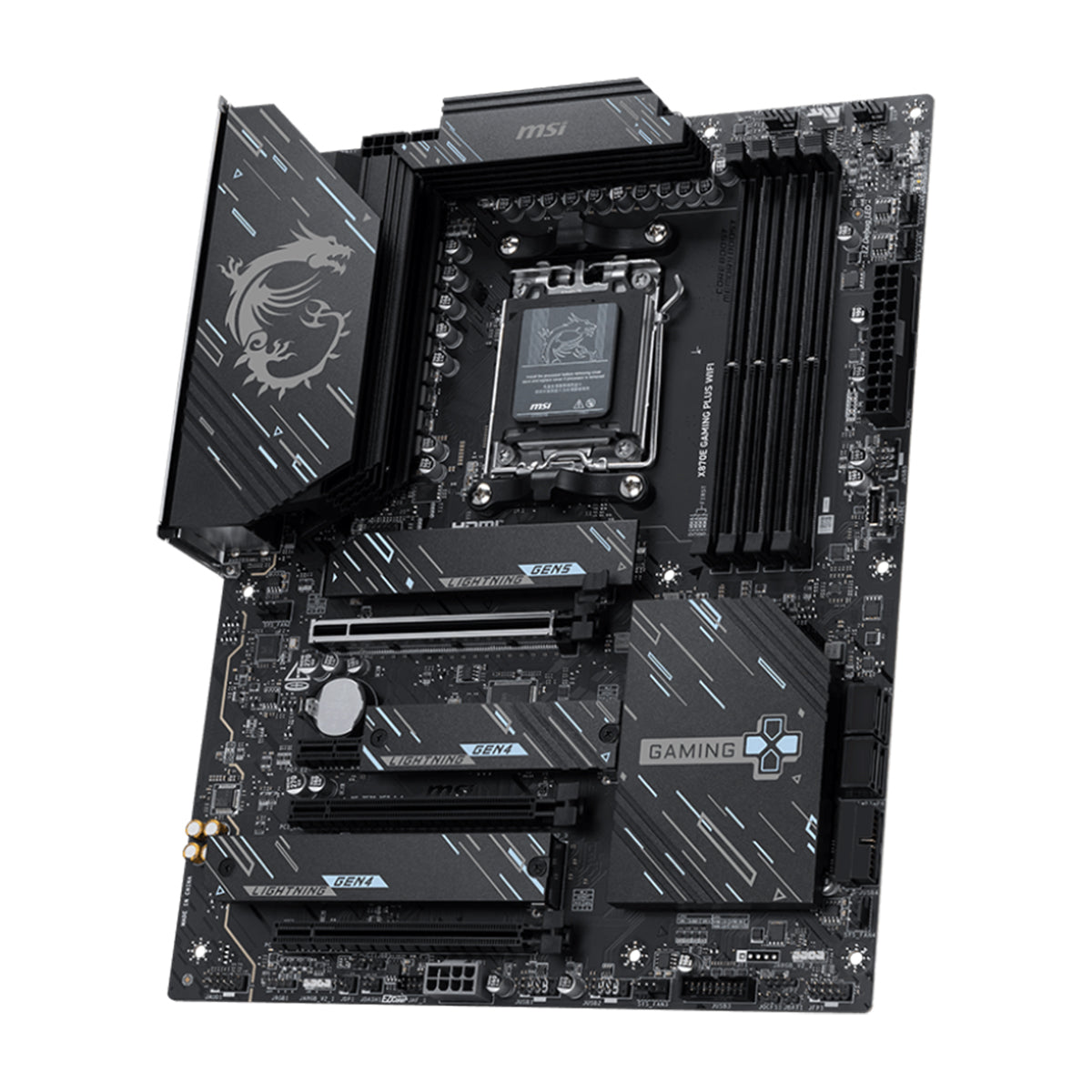

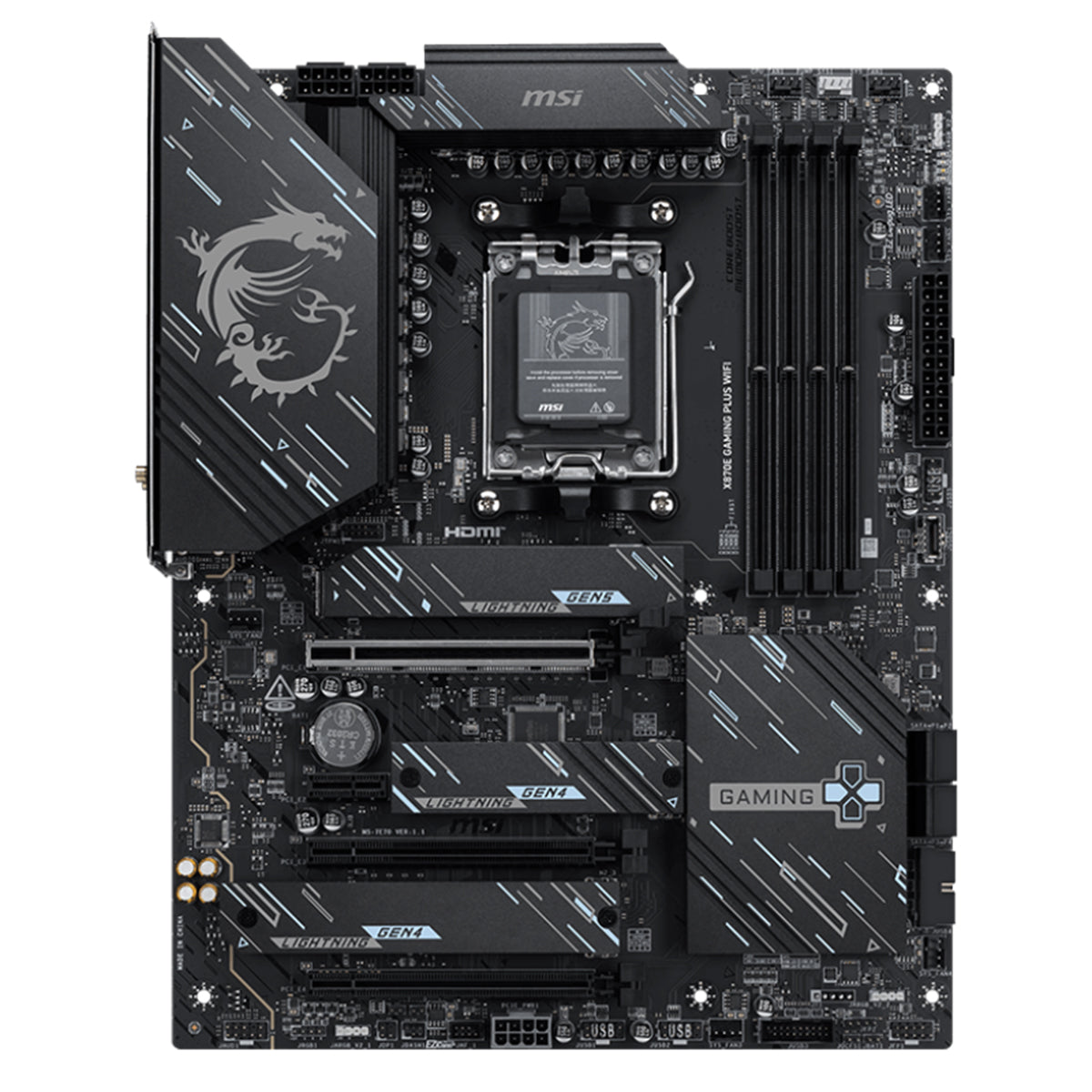

X870E GAMING PLUS WIFI
X870E GAMING PLUS WIFI is designed with durable components to provide great gaming experience. Designed with Wi-Fi 7 and 5G LAN, high-speed USB4, PCIe 5.0 solutions, Supplemental PCIe Power and exclusive EZ DIY features, it's ready for 24/7 non-stop gaming of AMD Ryzen™ 9000 series processors.
- Supports AMD Ryzen™ 9000 / 8000 / 7000 Series Desktop Processors
- Supports DDR5 Memory, Dual Channel DDR5 8200+ MT/s (OC)
- Ultra Performance: 14+2+1 Duet Rail Power System, dual 8-pin CPU power connectors, Core Boost, Memory Boost, 8-layer PCB made by 2oz thickened copper and server-grade level material
- Frozr Guard: Extended Heatsink, MOSFET thermal pads rated for 7W/mK, additional choke thermal pads and EZ M.2 Shield Frozr II are built for high performance system and non-stop experience
- EZ DIY: EZ M.2 Shield Frozr II, EZ M.2 Clip II, EZ PCIe Clip II and EZ Antenna
- Lightning Fast Game experience: PCIe 5.0 slot, Lightning Gen 5 x4 M.2
- Ultra Connect: USB4 and 5G LAN with Wi-Fi 7 Solution - the latest solution for professional and multimedia use, delivering secure, stable, and high-speed networking and data transmission
- Audio Boost : Reward your ears with studio-grade sound quality for the most immersive gaming experience
14+2+1 DRPS POWER DESIGN
Unleash and sustain maximum performance with a flagship VRM design built with a total of 14+2+1 digital power phases. Combining dual power connectors and 60A Smart Power Stage, X870E GAMING PLUS WIFI is ready for the challenge of high-end processors.
- 8 PCB layers
- 2oz Thickened Copper
Ready For AI PC
MSI motherboards are designed with advanced hardware and technology, well-supporting the demanding computing usage of gaming and AI. Moreover, we also introduce AI to MSI Center and BIOS, making everything more effortless than before.
DDR5 MEMORY SUPPORT WITH HIGH PERFORMANCE
A huge step of DDR performance enhancement with the latest DDR5 memory. Combines with dedicated SMT welding process and MSI Memory Boost technology, X870E GAMING PLUS WIFI is ready to deliver the world-class memory performance.
Specifications
Specifications
| Chipset | AMD X870E |
| CPU | Supports AMD Ryzen™ 9000 / 8000 / 7000 Series Desktop Processors |
| Socket | AM5 |
| Memory | 4x DDR5 UDIMM, Maximum 256GB Supports DDR5 8200 - 5600 (OC) MT/s / 5600 - 4800 (JEDEC) MT/s Ryzen™ 9000 Series Max Overclock: • 1DPC 1R up to 8200+ MT/s • 1DPC 2R up to 6400+ MT/s • 2DPC 1R up to 6400+ MT/s • 2DPC 2R up to 6000+ MT/s Supports AMD POR / JEDEC Speed, Memory Overclocking, AMD EXPO™, Dual-Channel Mode, Non-ECC Un-buffered Memory, and CUDIMM (Clock Driver bypass mode only) |
| Onboard Graphics | 1x HDMI™ 2.1 (4K 60Hz) 1x USB4® Type-C DisplayPort 1.4 (4K 120Hz)* *Available only on processors featuring integrated graphics |
| Slots | 3x PCI-E x16 1x PCI-E x1 PCI_E1: PCIe 5.0 x16 (From CPU) PCI_E2: PCIe 3.0 x1 (From Chipset) PCI_E3: PCIe 4.0 x4 (From Chipset) PCI_E4: PCIe 3.0 x1 (From Chipset) |
| Audio | Realtek® ALC897, 7.1-Channel High Definition Audio |
| Storage | 3x M.2 Slots M.2_1: PCIe 5.0 x4 (CPU, 2280/2260) M.2_2: PCIe 4.0 x4 (Chipset, 2280/2260) M.2_3: PCIe 4.0 x4 (Chipset, 22110/2280) 4x SATA 6G |
| RAID | Supports RAID 0/1/10 for SATA Supports RAID 0/1/5 for M.2 NVMe (RAID 5 only on Ryzen™ 9000 Series) |
| USB | Rear: 4x USB 2.0, 2x USB 5Gbps Type-A, 2x USB 10Gbps Type-A, 1x USB 20Gbps Type-C, 1x USB 40Gbps Type-C Front: 6x USB 2.0, 4x USB 5Gbps Type-A, 1x USB 10Gbps Type-C |
| LAN | Realtek® 8126VB 5G LAN |
| Internal I/O | 1x ATX_PWR, 2x CPU_PWR, 1x PCIE_PWR (8-pin) 1x CPU Fan, 1x Combo Fan (Pump/Sys), 6x System Fan 1x EZ Conn-header (JAF_1), 2x Front Panel (JFP) 1x Chassis Intrusion (JCI), 1x Front Audio (JAUD), 1x JDASH 3x Addressable V2 RGB (JARGB_V2), 1x RGB (JRGB), 1x TPM (2.0) 6x USB 2.0 Ports, 4x USB 5Gbps Type-A Ports, 1x USB 10Gbps Type-C Port |
| Wireless LAN & Bluetooth | Wi-Fi 7 (Pre-installed M.2 Key-E) Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz (320MHz) up to 5.8Gbps 802.11 a/b/g/n/ac/ax/be Bluetooth® 5.4, MLO, 4KQAM |
| LED Features | 4x EZ Debug LED 1x EZ Memory Detection LED |

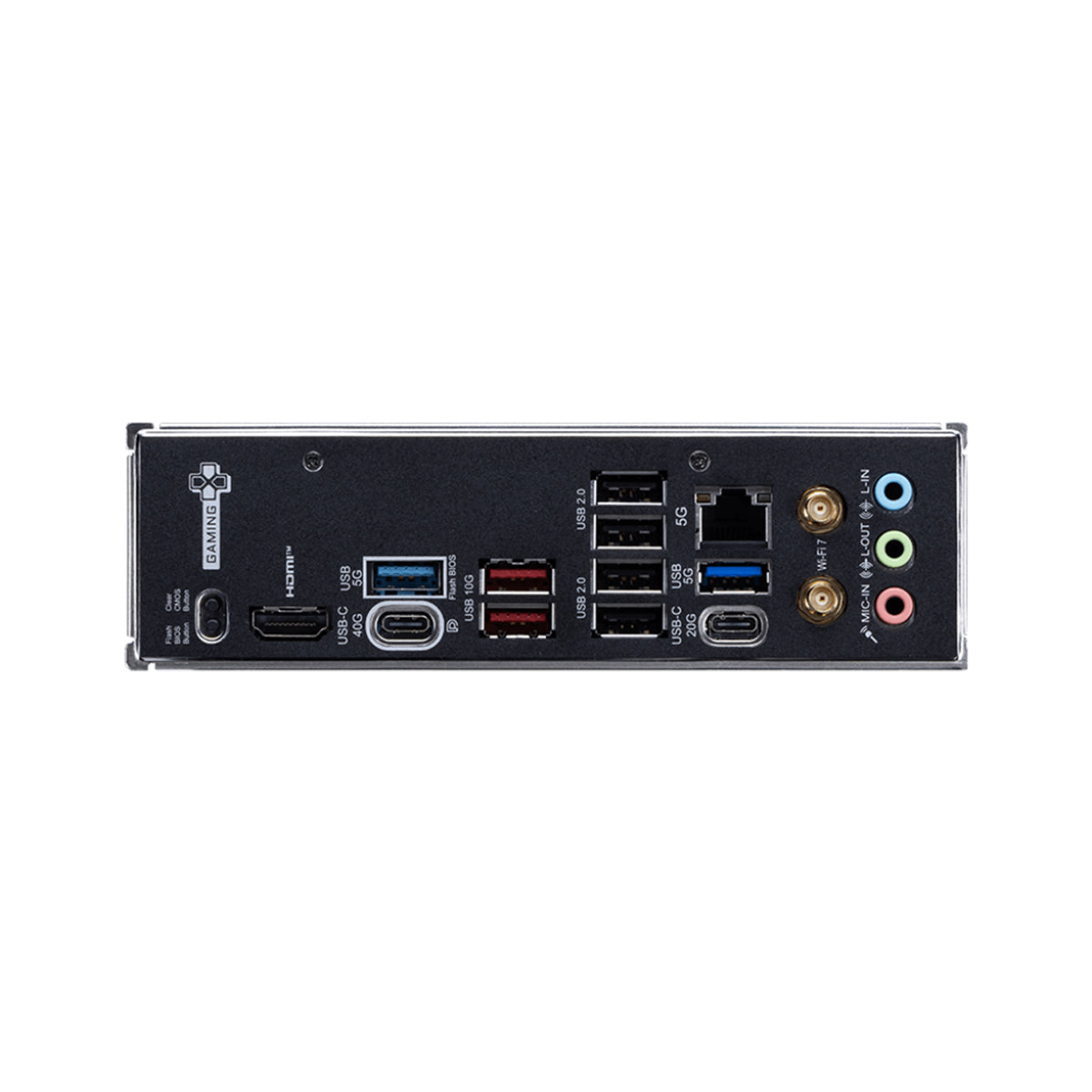

| Back Panel Ports | Clear CMOS Button, Flash BIOS Button USB 2.0, USB 5Gbps Type-A, USB 10Gbps Type-A USB 20Gbps Type-C, USB 40Gbps Type-C HDMI™, 5G LAN, Wi-Fi / Bluetooth, Audio Connectors |
