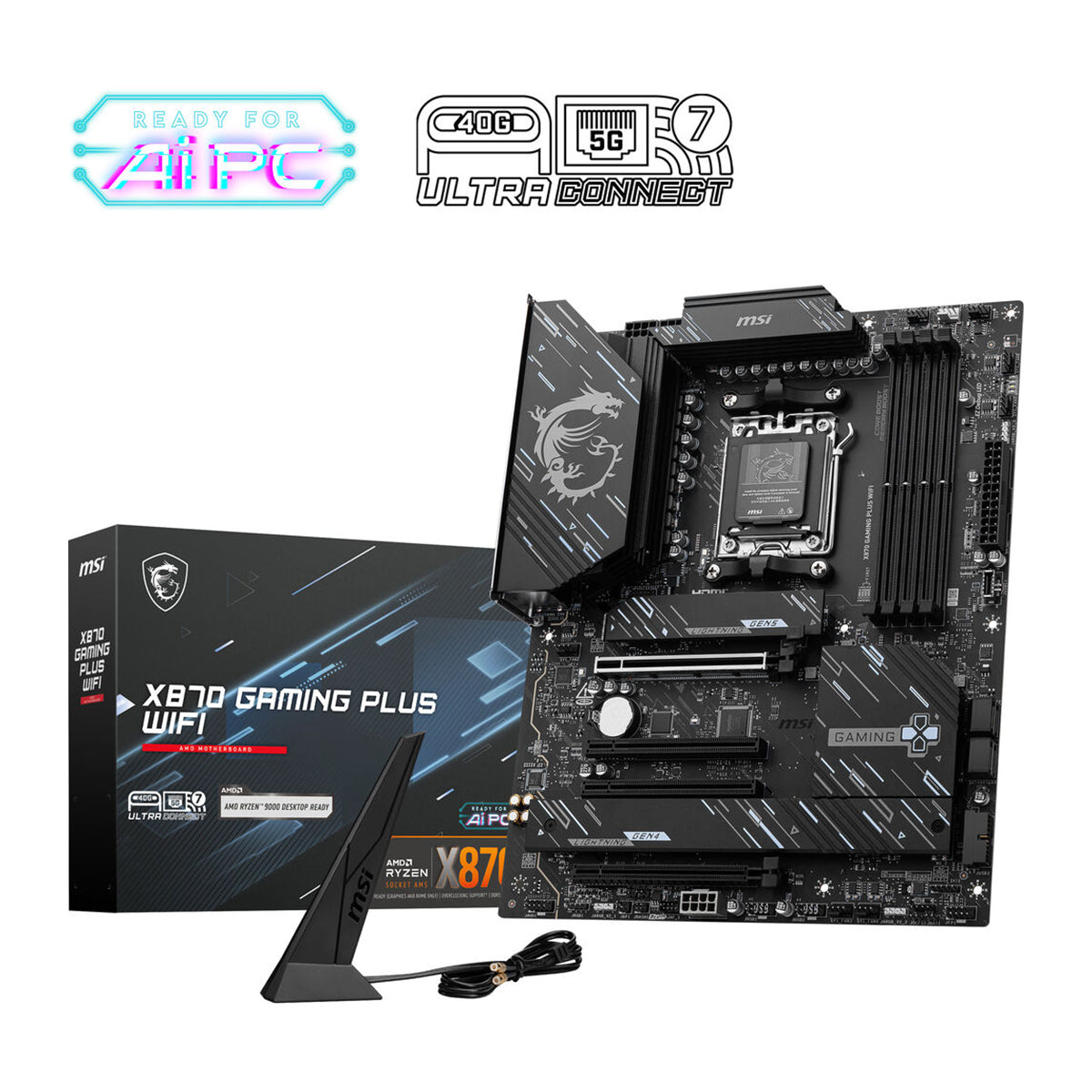

MSI X870 GAMING PLUS WIFI Motherboard
Warranty and Support
Warranty and Support
Warranty: 3 Years Return to Base Warranty
Returns: 14-day hassle-free exchanges and store credits, subject to terms and conditions outlined in our Returns Policy.
Delivery and Shipping
Delivery and Shipping
All deliveries are signature required.
North Island: 1 – 2 working days
South Island: 2 – 3 working days
Please allow an additional 1 – 2 working days for delivery to rural addresses.
Buy Now, Pay Later & Finance Options:
Description
Description

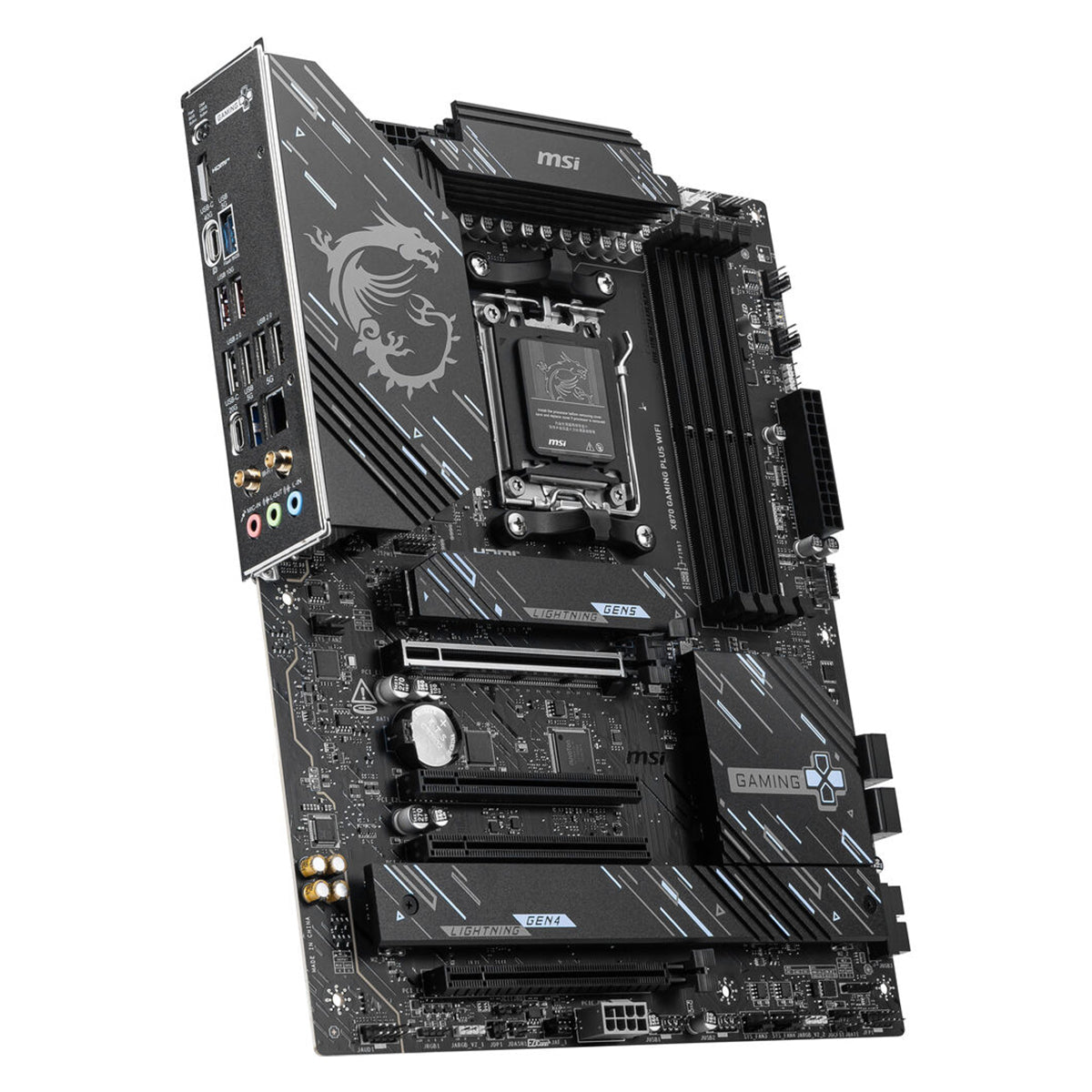

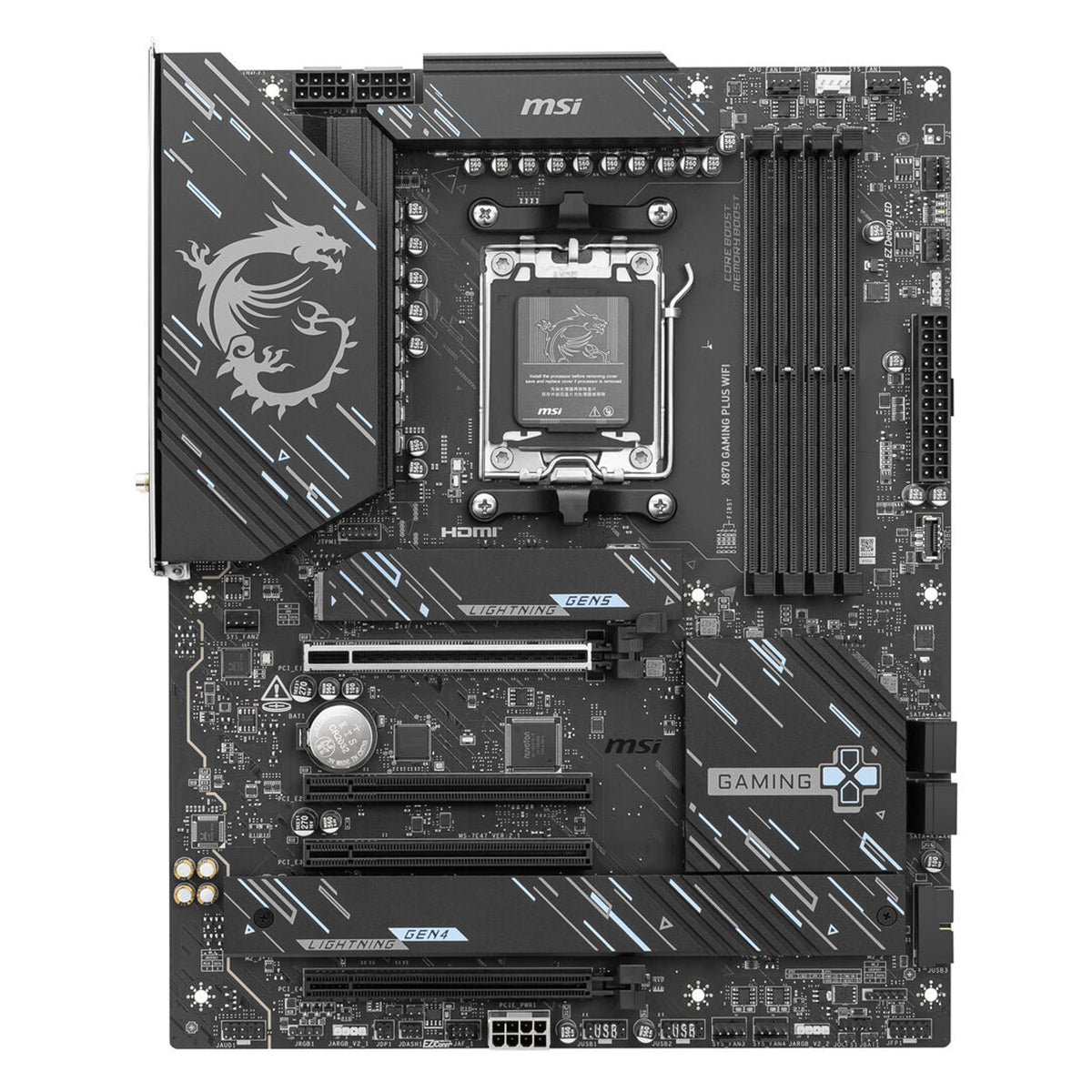

X870 GAMING PLUS WIFI
X870 GAMING PLUS WIFI is designed with durable components to provide a great gaming experience. Featuring Wi-Fi 7 and 5G LAN, high-speed USB4, PCIe 5.0 solutions, Supplemental PCIe Power, and exclusive EZ DIY features, it's ready for 24/7 non-stop gaming with AMD Ryzen™ 9000 series processors.
14+2+1 DRPS Power Design
Unleash and sustain maximum performance with a flagship VRM design built with a total of 14+2+1 digital power phases. Combining dual power connectors and 60A Smart Power Stage, X870 GAMING PLUS WIFI is ready for the challenge of high-end processors.
Optimized PCB Solution
- 8 PCB layers
- NPG-170D server-grade PCB material
- 2oz thickened copper
DDR5 Memory Support with High Performance
DDR5 memory support brings a huge performance boost. With dedicated SMT welding and MSI Memory Boost technology, X870 GAMING PLUS WIFI delivers world-class performance.
MSI BIOS now includes the Latency Killer feature, which reduces memory latency by up to 12% at high frequencies. It's compatible with Memory Try It!!, EXPO, A-XMP, High-Efficiency Mode, and more.
Enhanced Cooling Design
- Extended Heatsink: Enlarged surface for improved heat dissipation under heavy loads
- M.2 Shield Frozr: Reinforced thermal solution for SSD performance and safety
- Heavy Plated VRM Heatsink: Covers upper MOS for effective heat dispersion
- 7W/mK Thermal Pad & Choke Pad: High-grade materials ensure thermal efficiency during full load
- Enlarged Chipset Heatsink: Designed to reduce dust, noise, and maintain thermal performance
High-Bandwidth and Low-Latency Network
MSI’s premium network solution offers incredible transfer speeds for demanding applications.
The Next Gen Wi-Fi Solution – Wi-Fi 7
Wi-Fi 7 delivers dramatic performance gains to meet the growing demand for high-traffic wireless environments.
*Windows 11 compatibility only
Fast and Future-Ready Storage
Support for the latest storage standards allows users to connect ultra-fast devices, ensuring quicker game launches and level loads.
Lightning Gen 5 PCI-E with Steel Armor
- Lightning Gen 5 PCI-E: x16 interface bandwidth reaches 128GB/s—double the previous generation
- SMT PCIe 5.0 Slot: Surface-mount technology reduces interference and noise
- MSI Steel Armor: Extra solder points for heavy GPUs and EMI shielding for reliable performance
Glow Your PC
Customize RGB effects using Mystic Light in MSI Center. Enjoy millions of colors and LED effects like Wave, Steady, Flame, and Breathing—all controlled through a single interface.
Click BIOS X
MSI’s new CLICK BIOS X delivers a clean, intuitive interface that makes system configuration easy for users of all experience levels.
Isolated Analogy Structure for Audio Connectors
MSI uses a unique structure where the external metal framework of the audio jacks is isolated from the internal PCB layout, ensuring crisp, clear audio output.
Specifications
Specifications
| Chipset | AMD X870 |
| CPU | Supports AMD Ryzen™ 9000/8000/7000 Series Desktop Processors Socket AM5 |
| Memory |
4x DDR5 UDIMM, up to 256GB DDR5 8200 - 5600 (OC) MT/s / 5600 - 4800 (JEDEC) MT/s Ryzen™ 9000 Series Max OC Frequency: • 1DPC 1R: up to 8200+ MT/s • 1DPC 2R: up to 6400+ MT/s • 2DPC 1R: up to 6400+ MT/s • 2DPC 2R: up to 4800+ MT/s Supports AMD POR & JEDEC Speed Supports AMD EXPO™ & Memory Overclocking Dual-Channel, Non-ECC, Un-buffered Supports CUDIMM (Clock Driver bypass mode only) * CUDIMM & POR boot frequency depend on CPU, manual OC may be needed * DIMM slots have double-sided latches * Compatibility varies by CPU/memory. Check MSI support for QVL. |
| Onboard Graphics |
1x HDMI™ 2.1 (max 4K@60Hz) 1x USB4® Type-C (DisplayPort 1.4, max 4K@60Hz) * Only available on CPUs with integrated graphics. Specs vary by CPU. |
| Slots |
4x PCI-E x16 Slots: - PCI_E1: PCIe 5.0 x16 (Ryzen™ 9000/7000), PCIe 4.0 x8 (8700/8600/8400), PCIe 4.0 x4 (8500/8300) - PCI_E2: PCIe 3.0 x1 (Chipset) - PCI_E3: PCIe 3.0 x1 (Chipset) - PCI_E4: PCIe 4.0 x4 (Chipset) * PCI_E4 runs at x2 when M2_3 is populated |
| Audio | Realtek® ALC897 7.1-Channel High Definition Audio |
| Storage |
3x M.2 Slots: - M2_1 (CPU): PCIe 5.0 x4, 2280/2260 (9000/7000), PCIe 4.0 x4 (8000) - M2_2 (Chipset): PCIe 4.0 x4, 22110/2280 - M2_3 (Chipset): PCIe 4.0 x2, 2280/2260 4x SATA 6Gb/s * See manual for M.2 heatsink restrictions |
| RAID |
RAID 0, 1, 5 for M.2 NVMe * SATA ports do not support RAID * RAID 5 only with Ryzen™ 9000 |
| USB |
Rear: - 4x USB 2.0 - 2x USB 5Gbps Type-A - 2x USB 10Gbps Type-A - 1x USB 20Gbps Type-C - 1x USB 40Gbps Type-C Front: - 4x USB 2.0 - 2x USB 5Gbps Type-A - 1x USB 10Gbps Type-C |
| LAN | Realtek® 8126VB 5G LAN |
| Internal I/O |
- 1x 24-pin ATX, 2x 8-pin CPU_PWR, 1x 8-pin PCIE_PWR - 1x CPU fan, 1x Combo (Pump/SYS), 6x SYS fans - 1x EZ Conn (JAF_1), 2x Front Panel (JFP), 1x Chassis Intrusion (JCI) - 1x Front Audio (JAUD), 1x Tuning (JDASH) - 3x ARGB V2 (JARGB_V2), 1x RGB (JRGB) - 1x TPM header (TPM 2.0) - 4x USB 2.0, 2x USB 5Gbps Type-A, 1x USB 10Gbps Type-C |
| Wireless LAN & Bluetooth |
Wi-Fi 7 (pre-installed in M.2 Key-E slot) - Supports MU-MIMO, 2.4/5/6GHz (320MHz), up to 5.8Gbps - 802.11 a/b/g/n/ac/ax/be Bluetooth® 5.4**, MLO, 4KQAM * 6GHz depends on regional regulations ** Requires Windows 11 24H2 |
| LED Feature | 4x EZ Debug LED |
| Form Factor | ATX 243.84mm x 304.8mm |
