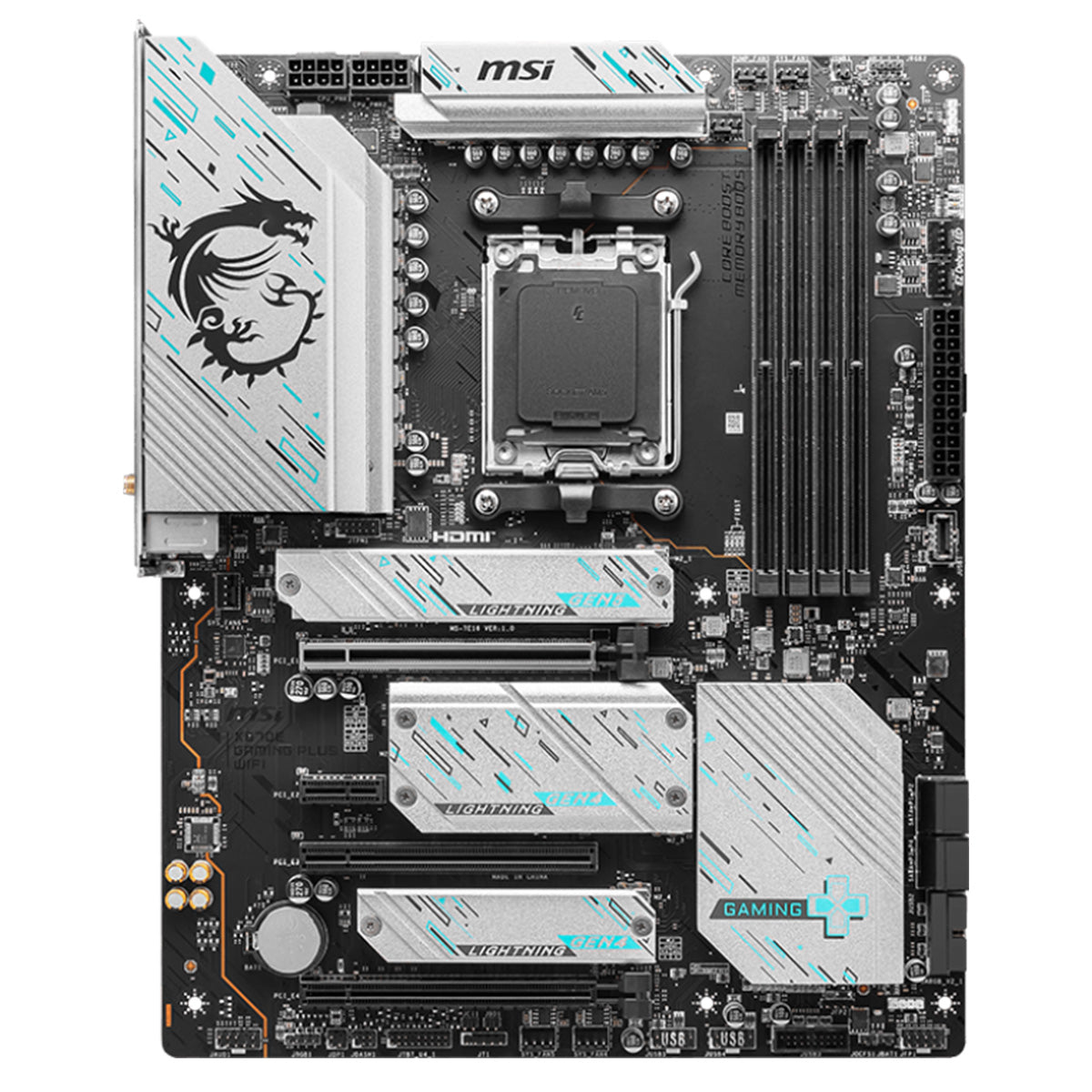

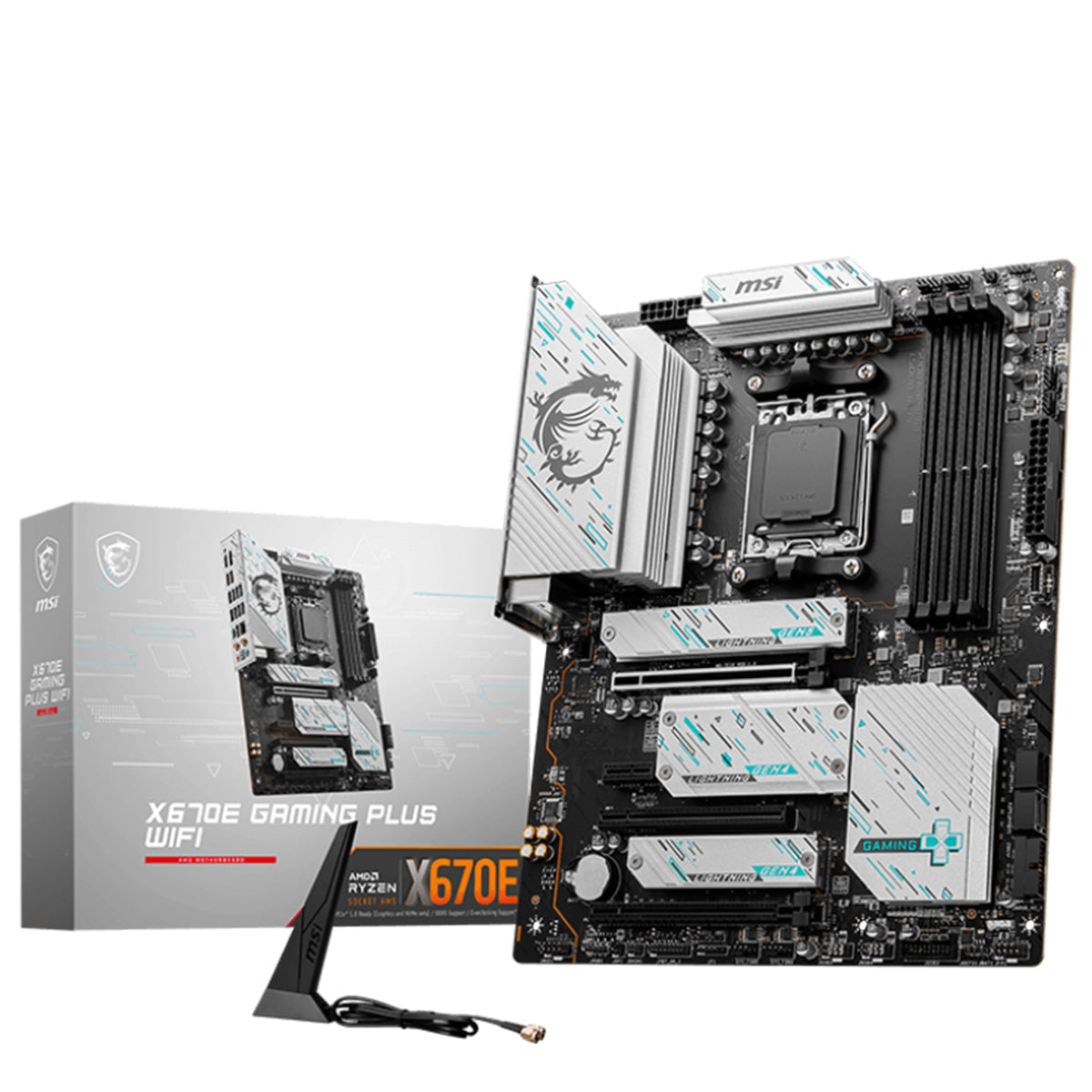

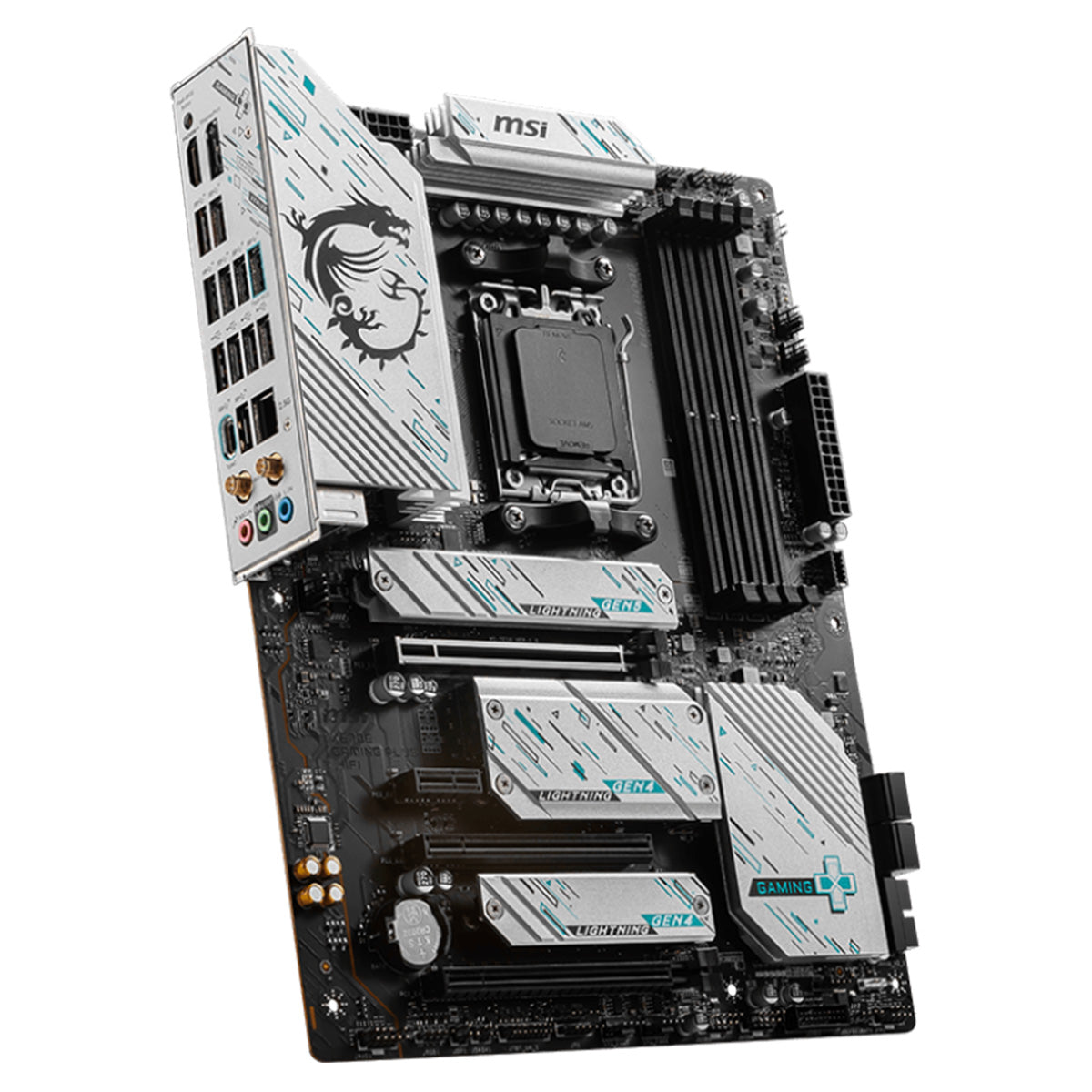

MSI X670E GAMING PLUS WIFI Motherboard

COOLING OVERVIEW

• Extended Heatsink

  Extended Heatsink enlarges the surface of heat dissipation and maintain the performance at heavy loads.

• M.2 Shield Frozr

  Strengthened M.2 thermal solution helps M.2 SSD safe and ensures incredible performance.

• Heavy Plated VRM Heatsink

  The VRM heatsink covers the upper MOS and helps dissipate the heat.

• 7W/mK Thermal Pad & Additional Choke Pad

  High-quality 7W/mK MOSFET thermal pads and additional choke thermal pads ensure stable performance when all cores are running at high speed.

• CONTROL IN ONE CLICK

  MSI motherboards let you manage speeds and temperatures for all your system and CPU fans in BIOS and software with a simplified graphical interface. You can also set up to 4 temperature targets, which will adjust the fan speeds automatically.

• FROZR AI COOLING

  Detecting CPU & GPU temperatures and automatically adjusting fan duty of system fans to a proper value by adopting MSI AI ENGINE.
• DIY 2.0 INTEGRATING WITH THE SYSTEM ENVIRONMENT
  Connect and synchronize with MSI coolers and cases with strategically positioned pin-header locations including a dedicated pump-fan header.



14+2+1 DUET RAIL POWER SYSTEM

Unleash and sustain maximum performance with an aggressive VRM design built with digital CPU power system. Combining 8 + 8-pin power connectors and exclusive Core Boost technology, MSI X670E GAMING PLUS WIFI motherboard is ready to sustain heavy gaming loadings.

• CORE BOOST

  Premium layout not only support the multi-core CPU, also create the perfect conditions for your CPU overclocking.

• DIGITALL POWER DESIGN

  A fully digital power design allows for faster and undistorted current delivery to the CPU at pin-point precision.

• DOUBLE POWER CONNECTORS

  The 8-pin and 8-pin connectors deliver adequate power even for an overclocked multi-core CPU.



OPTIMIZED PCB SOLUTION

The PCB design has been optimized for higher bandwidth and faster transfer speeds, which is also beneficial for reliable circuit transmission.

PROTECTION

• SOLID PIN DESIGN

  The 4-pin, 8-pin, and 24-pin power connectors of MSI motherboards are all designed with solid pins. The solid pin design allows for a more stable transmission of 12V power to the CPU, even when handling high current loads.

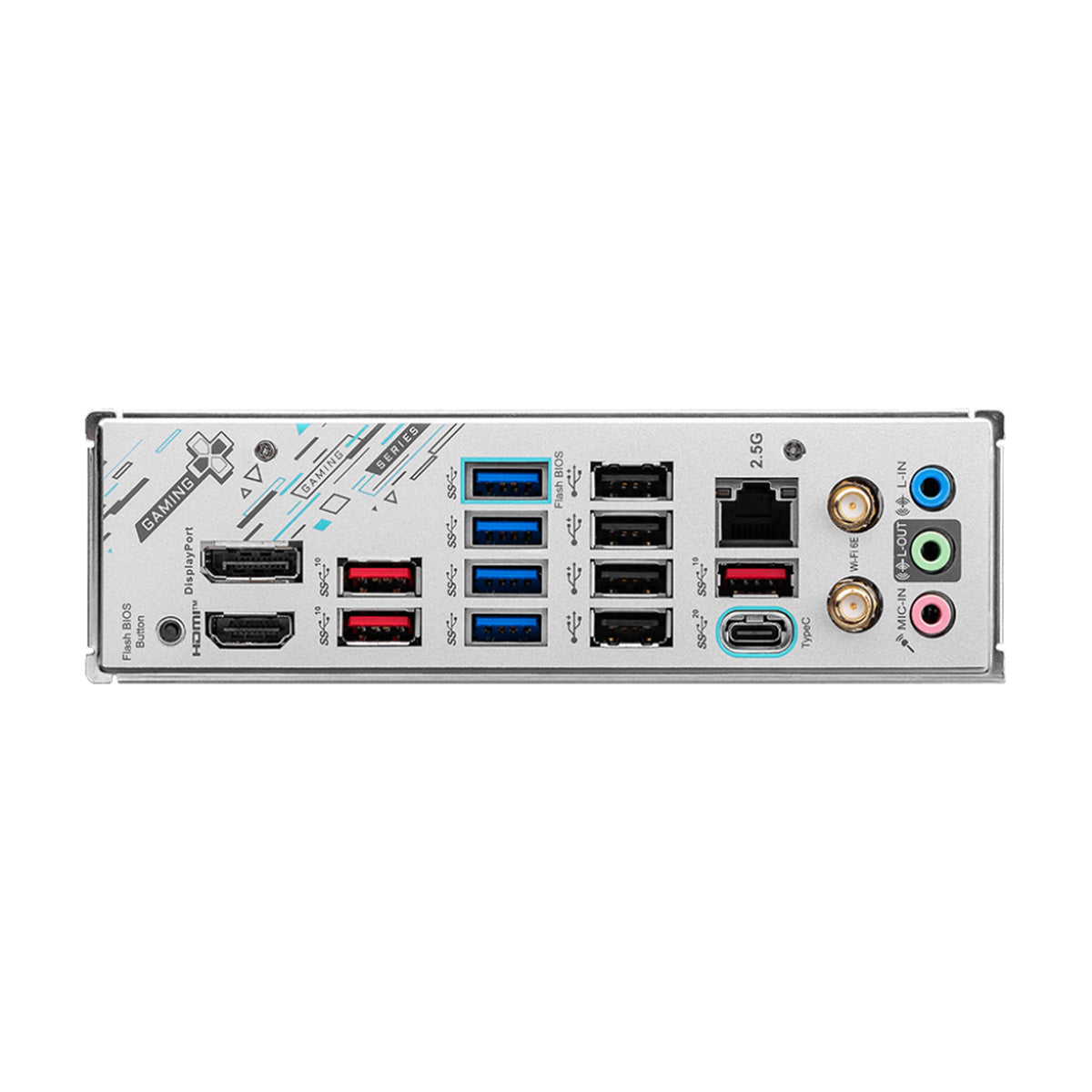

• ANTI-CORROSIVE STAINLESS STEEL IO SHIELD

  Corrosive resistance IO Shield to help improve static electricity and reduce electromagnetic radiation noise from the system as well as more durable compare to traditional IO Shields.

• THE GROUNDING STRUCTURE OF POWER PHASES

  The grounding structure of power phases is the MSI's exclusive design. This patented design enables to suppress the electromagnetic interference (EMI) generated by the power phases and helps to efficiently conduct heat to the copper plane with grounding properties.

• OVER CURRENT PROTECTION

  MSI motherboards prioritize safety with the embedded Overcurrent Protection (OCP), ensuring crucial components such as the USB ports, DDR memory, PWM IC, and CPU are shielded from excessive current. This proactive defense mechanism curtails the risk of damage or malfunction due to power surges, promoting long-term system stability. This commitment to safeguarding your hardware underscores MSI's dedication to producing motherboards that prioritize durability and stability.

LIGHTNING GEN 4 PCI-E WITH STEEL ARMOR

• LIGHTNING GEN 4 PCI-E

  Doubling over the previous generation, the bandwidth of a x16 interface can reach 64GB/s.

• REINFORCED, HEAVY SOLDERED CONNECTIONS

  Secure to the motherboard with extra solder points and support the weight of heavy graphics cards.

FAST AND FUTURE-READY STORAGE

X670E GAMING PLUS WIFI motherboard supports all the latest storage standards, which allows users to connect any ultra-fast storage device. Start games faster, load levels faster and have a real advantage over your enemies.

USB FRONT TYPE-C

• MSI gaming motherboards support USB Front Type-C that allows gamers to connect with the latest USB devices. Built up a system with MSI PC case to have the most convenient experience.

• DOUBLE BANDWIDTH WITH LIGHTNING USB 3.2 GEN 2x2 20G

  Using USB 3.2 devices has never been faster! MSI X670E GAMING PLUS WIFI motherboards offer a wide variety of options to connect and boost your USB devices, offering never before seen USB speeds up to 20Gb/s when connecting the Rear USB Type-C.

MEMORY

• LATEST DDR5 MEMORY WITH SMT SLOT

  A huge step of DDR performance enhancement with the latest DDR5 memory. Combines with dedicated SMT welding process and MSI Memory Boost technology, B760M GAMING PLUS WIFI motherboards are ready to deliver the world class memory performance.

• EASY OVERCLOCKING WITH XMP PROFILE

  The XMP (Extreme Memory Profiles) in MSI BIOS are tested and certified by MSI OC LAB. It is easy to enable with auto power settings to get the best memory speed and stability.

BIOS &

• CLICK BIOS 5

  Get more from a loaded BIOS designed for ease of use. Fine-tune the motherboard for gaming performance, efficiency, or overclocking world records!

• MSI CENTER

  MSI brand new MSI Center unifies a suite of MSI software utilities into a single centralized application. Take control of advanced motherboards features and unleash endless possibilities.

• RESIZABLE BAR

  Resizable BAR (Re-Size BAR) is an advanced PCI Express feature that enables the CPU to access the entire GPU frame buffer at once and improve performance.

EXTEND YOUR RGB EXPERIENCE WITH EASE

Add more color if you want! Mystic Light Extension pin header provides an intuitive way to control additional RGB strips and other RGB peripherals added to a system, without needing a separate RGB controller.

HIGH-BANDWIDTH AND LOW-LATENCY NETWORK

MSI's premium network solution provides incredible data transfer speed for demanding users.
