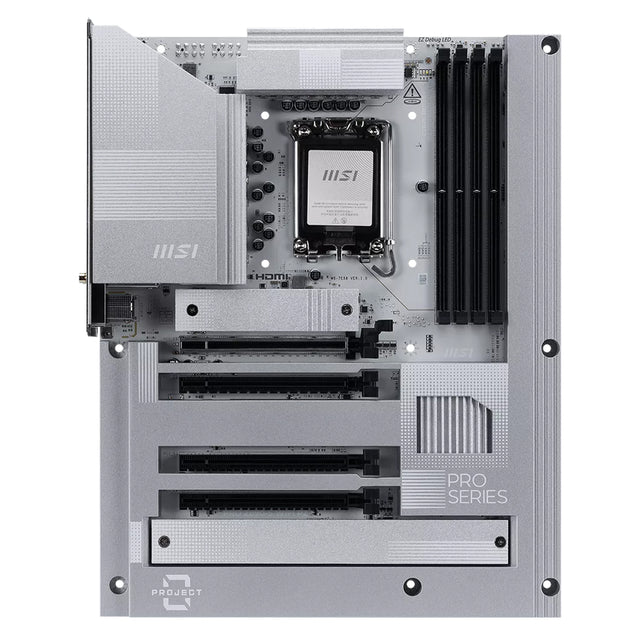

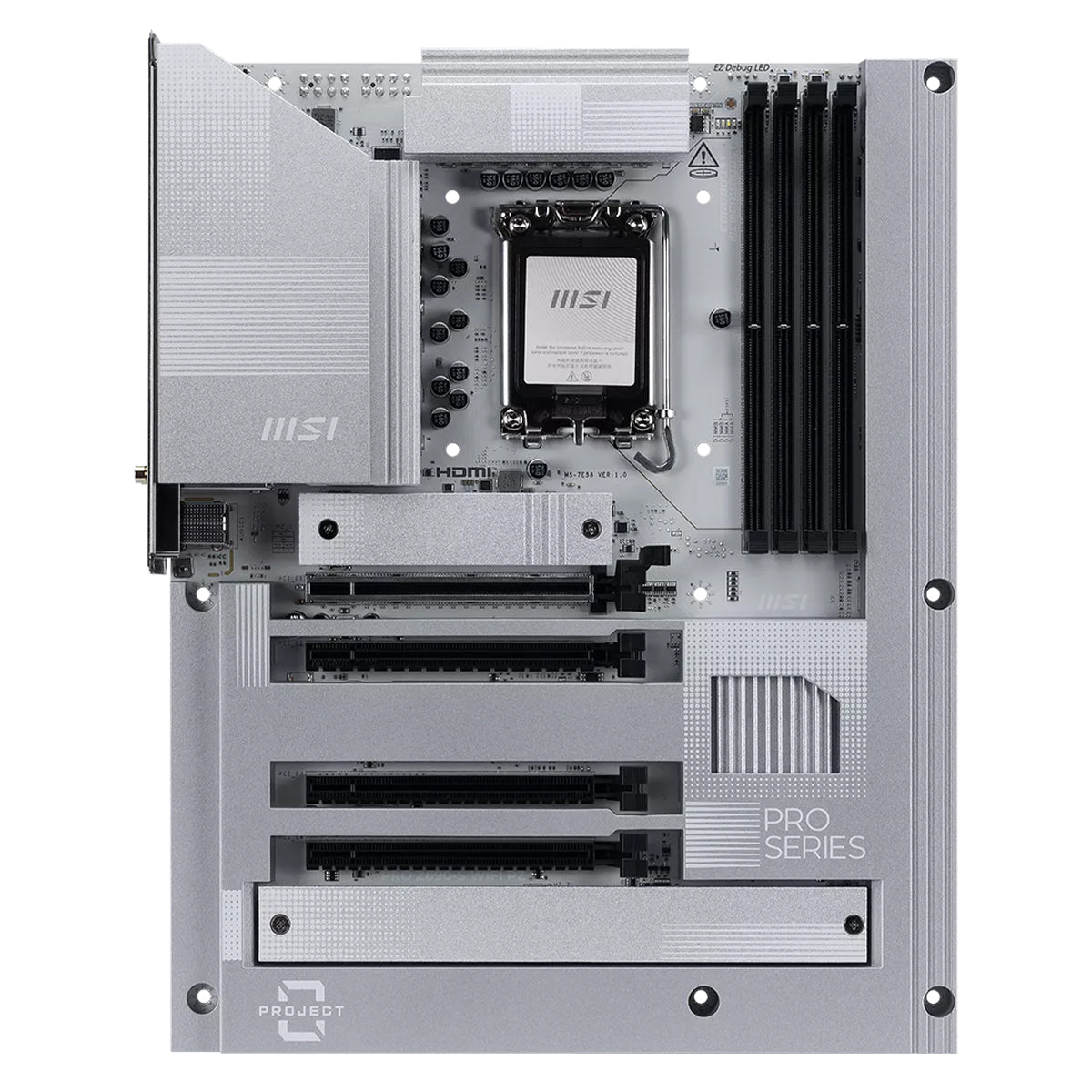

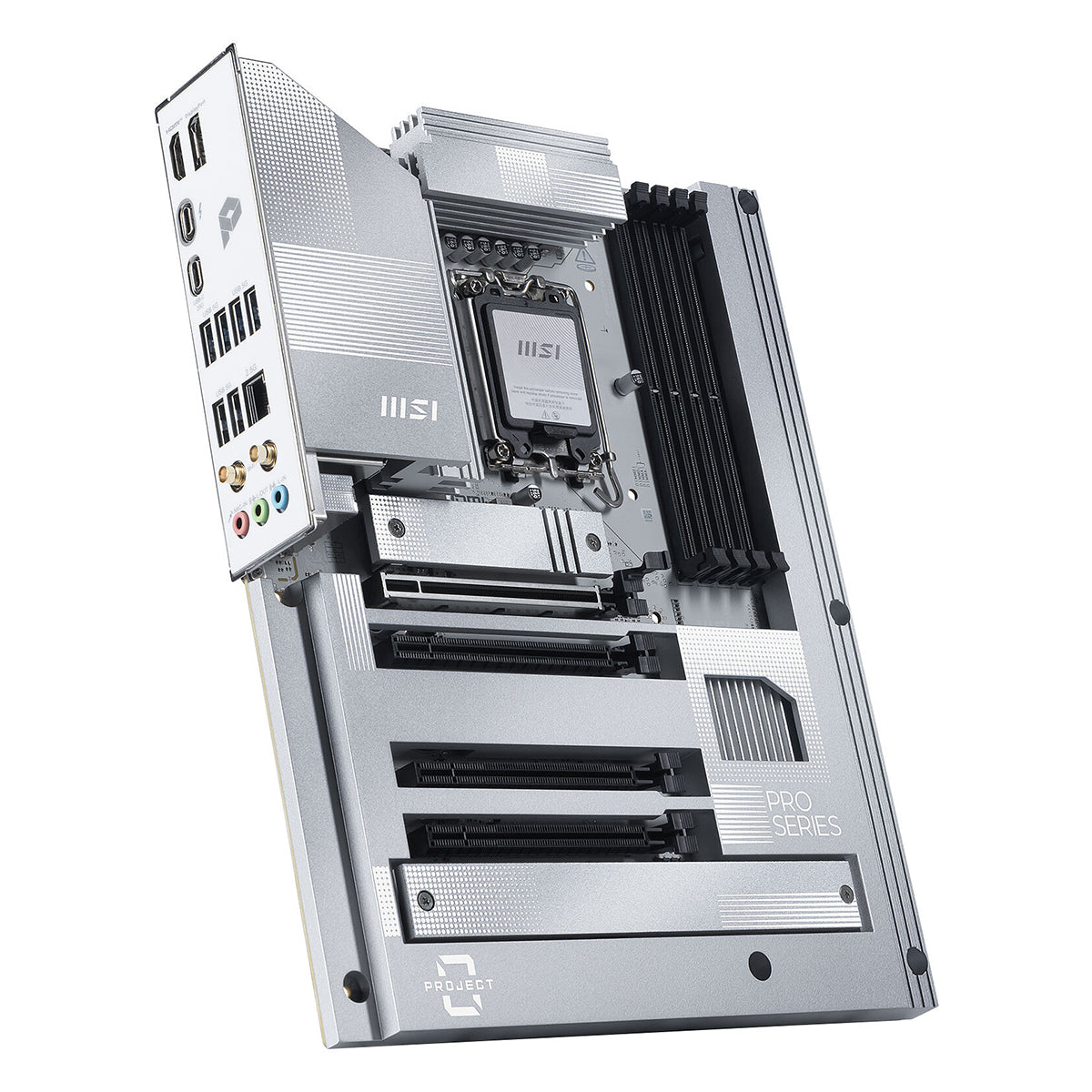

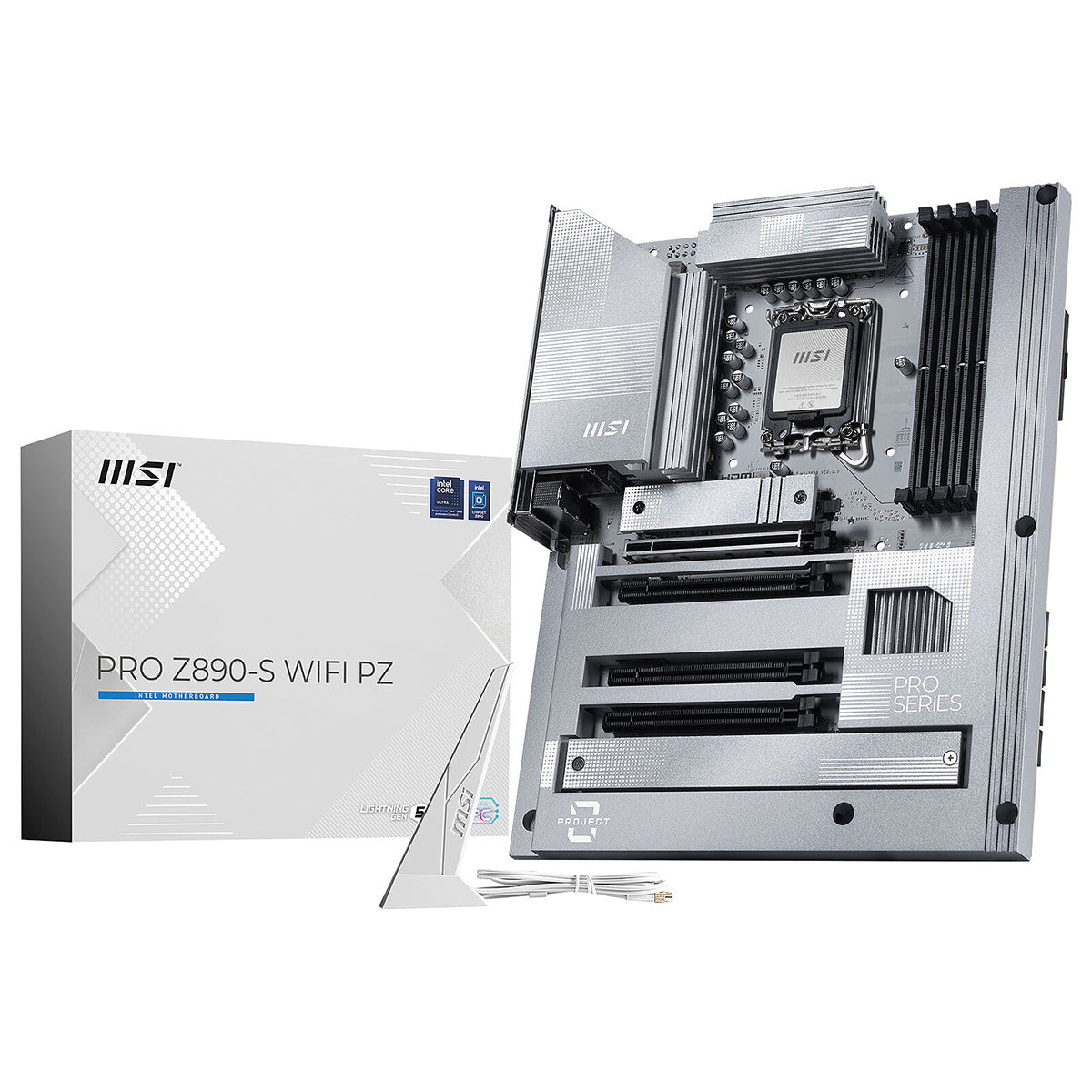

MSI PRO Z890-S WIFI PZ Motherboard

ABSOLUTE SIMPLICITY

PRO Z890-S WIFI PZ moves the power connectors, fan connectors, and other pin headers to the back of the motherboard. This provides a cleaner and neater front view, allowing the motherboard, liquid cooler, and graphics card's aesthetic design to be fully displayed.

PRO Z890-S WIFI PZ

PRO Z890-S WIFI PZ offers a sleek design with a harmonious silver-white color scheme that perfectly matches white PC builds. Its innovative back-connect design reduces the complexity of cable management, resulting in an aesthetically pleasing appearance for the system. It is engineered with many exclusive features of MSI, a true Wi-Fi 7 with EZ Antenna, 2.5G LAN, Thunderbolt 4, PCIe 5.0 M.2, and Supplemental PCIe Power, ready for the Intel® Core™ Ultra processors.

Overview

• Support Intel® Core™ Ultra Processors (Series 2) for LGA 1851 socket
• Supports DDR5 Memory, Dual Channel DDR5 8800+ MT/s (OC)
• Enhanced Power Design: 12+1+1+1 Duet Rail Power System with P-PAK, dual 8-pin CPU power connectors, Core Boost, Memory Boost, 6-layer server-grade PCB
• Frozr Guard: Extended Heatsink, MOSFET thermal pads rated for 7W/mK, additional choke thermal pads and M.2 Shield Frozr are built for high performance system and non-stop experience
• EZ DIY: EZ M.2 Clip II, EZ PCIe Clip II and EZ Antenna
• Lightning Fast Game experience: PCIe 5.0 slot and Lightning Gen 5 x4 M.2
• Thunderbolt™ 4: brings Thunderbolt to USB-C at true 40 Gb/s speeds, 8K display support, Daisy-Chain, Multi-Port Accessory Architecture and USB 4.0 compliant
• 2.5G LAN with Intel Wi-Fi 7 Solution: upgraded network solution for professional and multimedia use, delivering secure, stable, and high-speed networking
• Audio Boost: Reward your ears with studio grade sound quality for the most immersive gaming experience



BUSINESS ELEGANCE

The PRO Series is tailored to professionals from all walks of life. The lineup features impressive performance and high quality, while aiming to provide users incredible experience. Users who care about productivity and efficiency can definitely count on the MSI PRO Series to assist you with multitasking and increasing efficiency.

Back-Connect Design

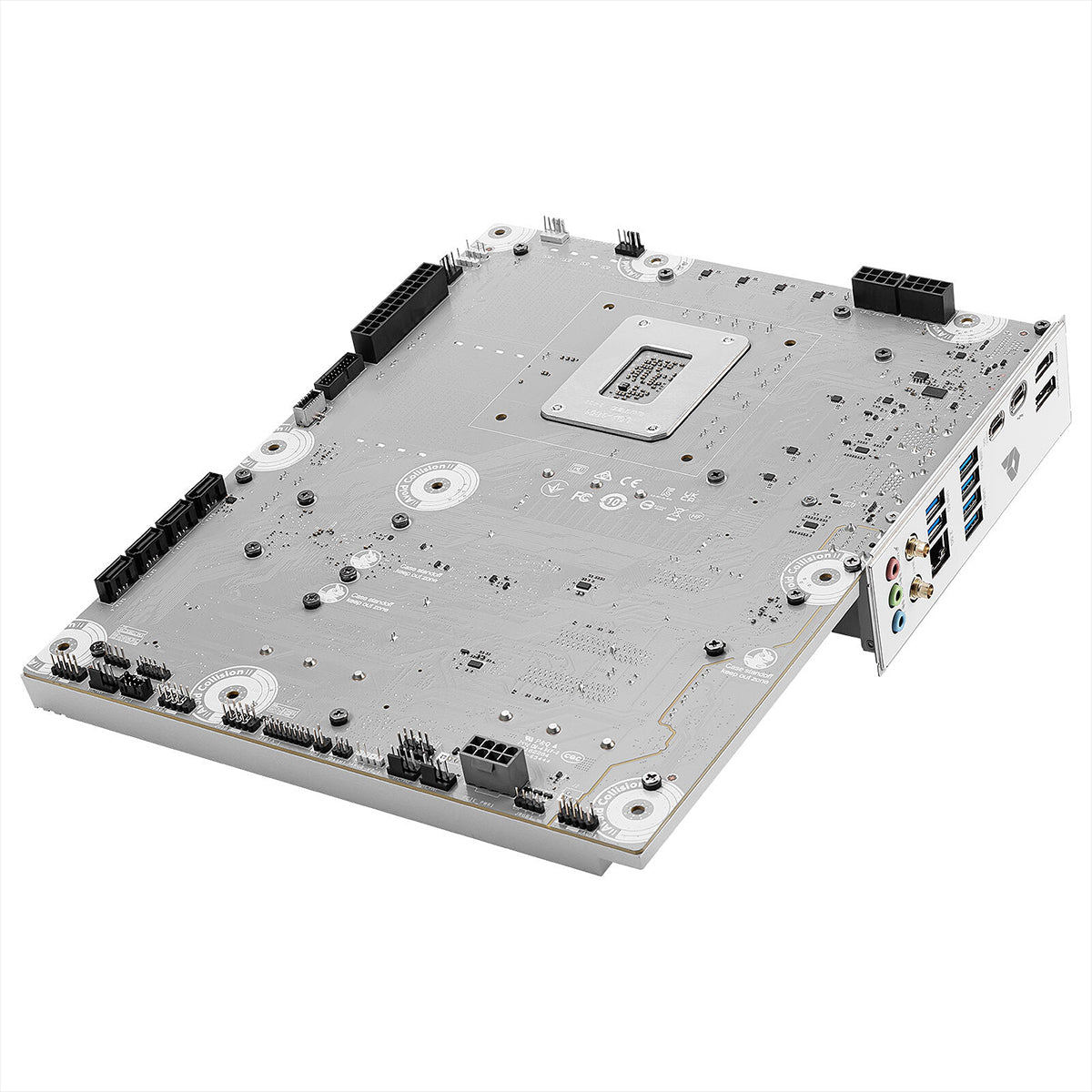

The PRO Z890-S WIFI PZ features a back-connect design, which relocates the motherboard power, CPU power, fan pins, SATA, and other interfaces to the back of the motherboard. This allows for simpler cable management, while also providing a cleaner and more aesthetically pleasing appearance for the system.

OPTIMIZED PCB SOLUTION

The PCB design has been optimized for higher bandwidth and faster transfer speeds, which is also beneficial for reliable circuit transmission.

6 PCB layers
NPG-150D Server-grade PCB material

12+1+1+1 DRPS POWER DESIGN

Unleash and sustain the maximum performance with a flagship VRM design built with a total of 12+1+1+1 digital power phases. With dual power connectors, PRO Z890-S WIFI PZ is ready for the challenge of high-end processors.

• Extended Heatsink enlarges the surface of heat dissipation and maintains performance under heavy loads.
• Strengthened M.2 thermal solution helps keep M.2 SSD safe and ensures incredible performance.
• The VRM heatsink covers the upper MOS and helps dissipate the heat.
• High-quality 7W/mK MOSFET thermal pads and additional choke thermal pads ensure stable performance when all cores are running at high speed.
• The chipset heatsink maintains high efficiency of heat dissipation.
