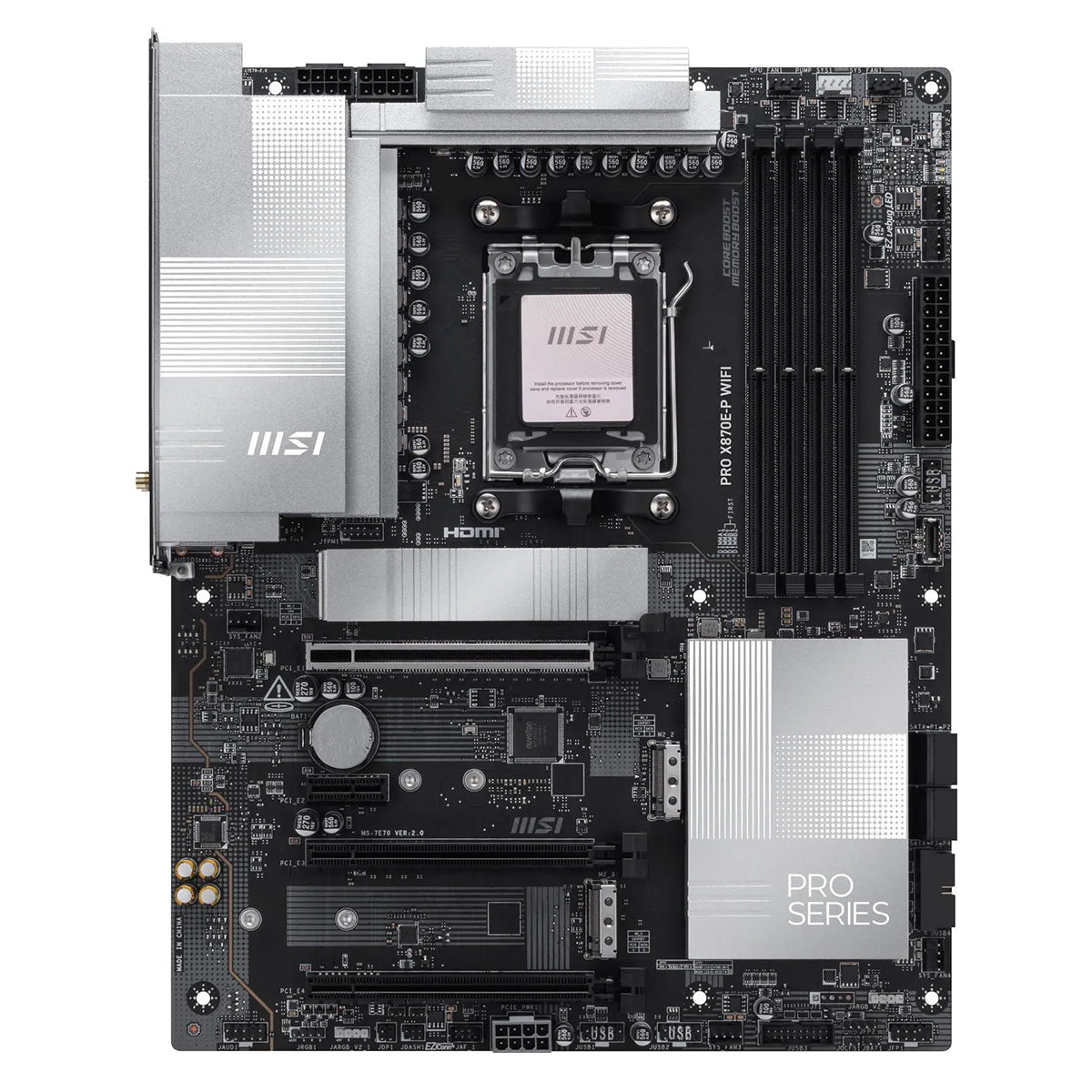

MSI PRO X870E-P WIFI Motherboard
Warranty and Support
Warranty and Support
Warranty: 3 Years Return to Base Warranty
Returns: 14-day hassle-free exchanges and store credits, subject to terms and conditions outlined in our Returns Policy.
Delivery and Shipping
Delivery and Shipping
All deliveries are signature required.
North Island: 1 – 2 working days
South Island: 2 – 3 working days
Please allow an additional 1 – 2 working days for delivery to rural addresses.
Buy Now, Pay Later & Finance Options:
Description
Description

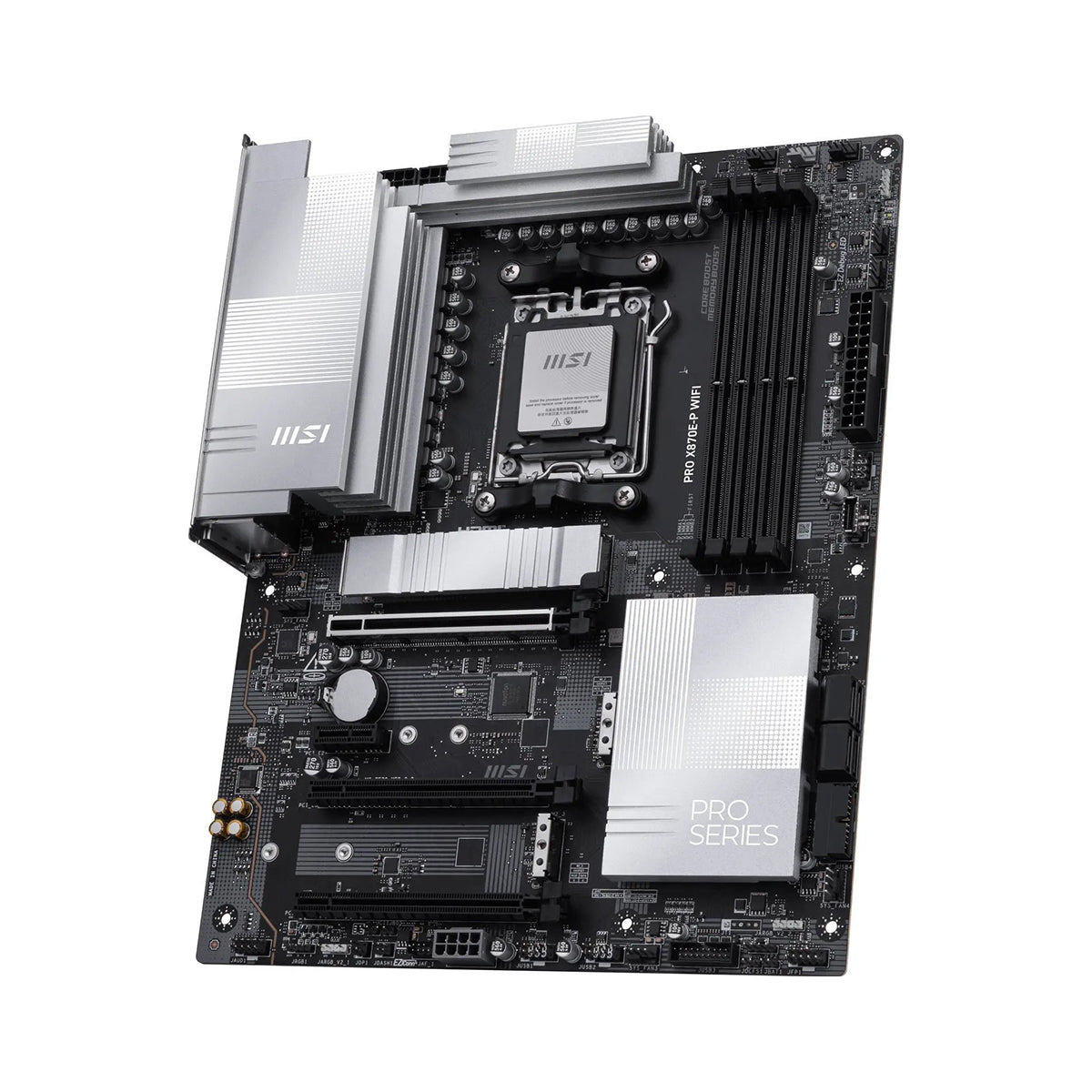

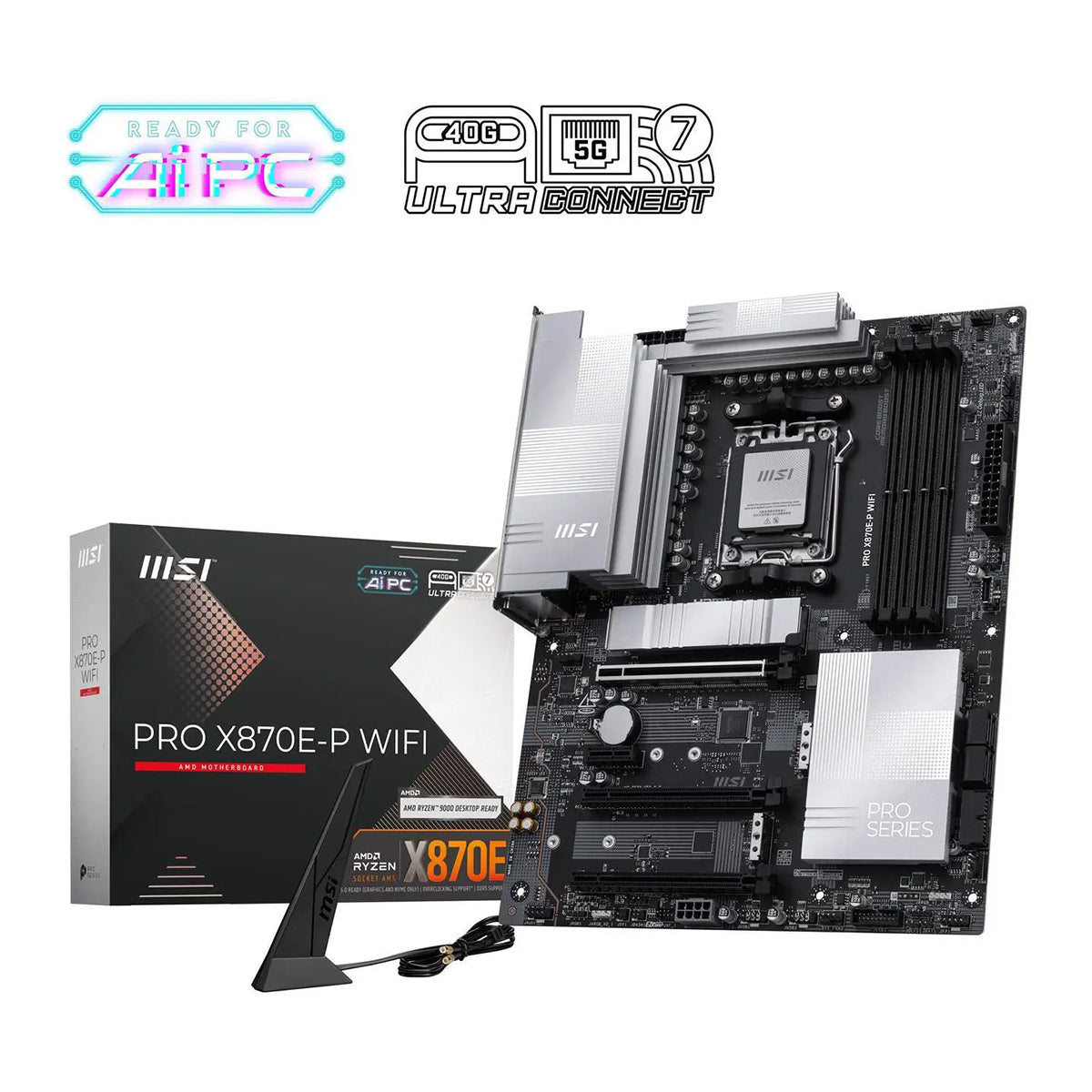

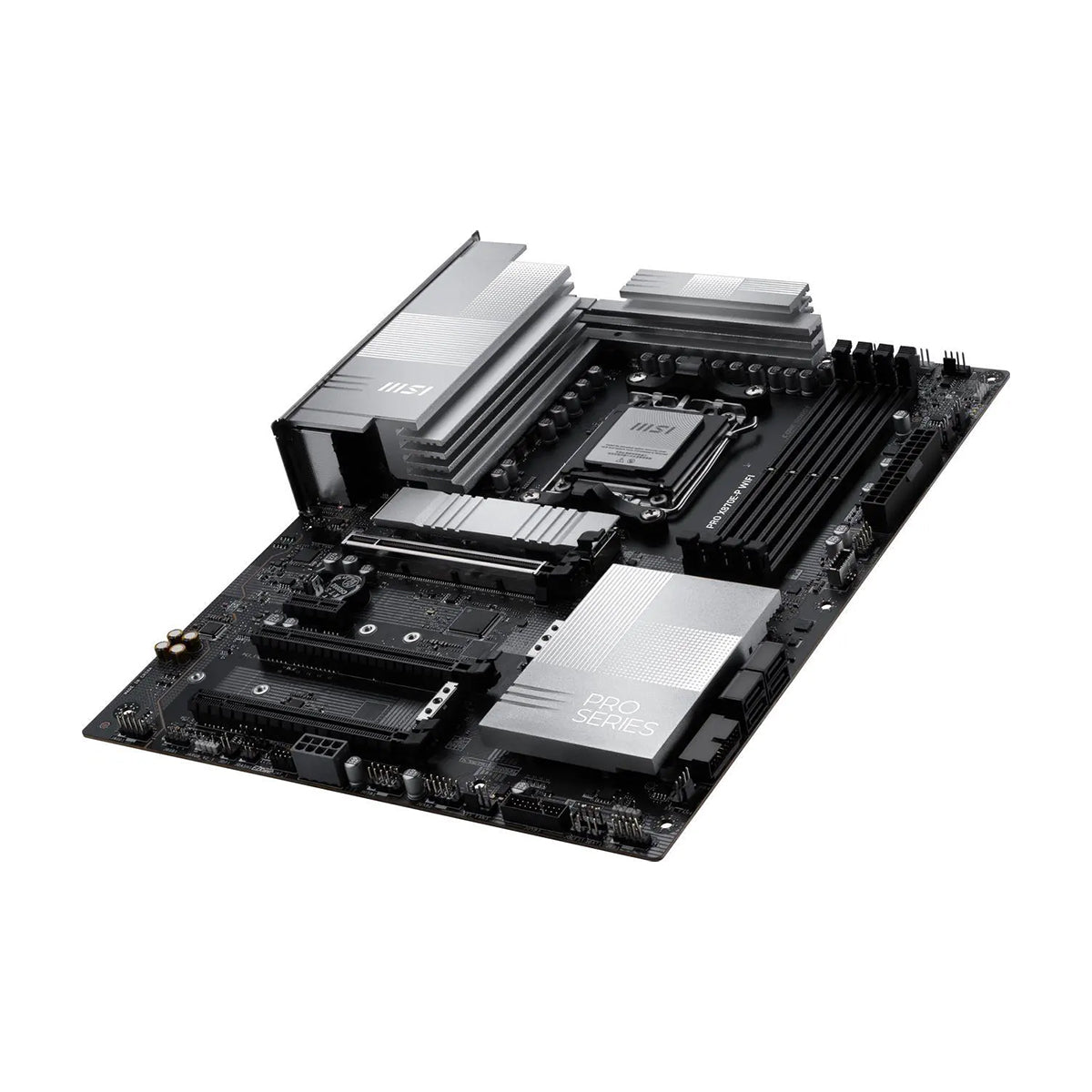

PRO X870E-P WIFI
PRO X870E-P WIFI offers a simple design with a harmonious silver color scheme that perfectly matches both white and black PC builds. It is engineered with many exclusive features of MSI, a true Wi-Fi 7 with EZ Antenna, 5G LAN, PCIe 5.0 M.2 with EZ M.2 Shield Frozr II, and Supplemental PCIe Power, ready for the AMD Ryzen™ 9000 series processors.
BUSINESS ELEGANCE
The PRO Series is tailored to professionals from all walks of life. The lineup features impressive performance and high quality, while aiming to provide users incredible experience. Users who care about productivity and efficiency can definitely count on the MSI PRO Series to assist you with multitasking and increasing efficiency.
Ready For AI PC
MSI motherboards are designed with advanced hardware and technology, well-supporting the demanding computing usage of gaming and AI. Moreover, we also introduce AI to MSI Center and BIOS, making everything more effortless than before.
14+2+1 DRPS POWER DESIGN
Unleash and sustain the maximum performance with a flagship VRM design built with a total of 14+2+1 digital power phases. Combining dual power connectors and 60A Smart Power Stage, PRO X870E-P WIFI is ready for the challenge of high-end processors.
DDR5 MEMORY SUPPORT WITH HIGH PERFORMANCE
A huge step of DDR performance enhancement with the latest DDR5 memory. Combines with dedicated SMT welding process and MSI Memory Boost technology, PRO X870-P WIFI is ready to deliver the world-class memory performance.
- Supports AMD Ryzen™ 9000 / 8000 / 7000 Series Desktop Processors
- Supports DDR5 Memory, Dual Channel DDR5 8200+ MT/s (OC)
- Ultra Performance: 14+2+1 Duet Rail Power System, dual 8-pin CPU power connectors, Core Boost, Memory Boost, 8-layer PCB made by 2oz thickened copper and server-grade level material
- Frozr Guard: Extended Heatsink, MOSFET thermal pads rated for 7W/mK, additional choke thermal pads and EZ M.2 Shield Frozr II are built for high performance system and non-stop experience
- EZ DIY: EZ M.2 Shield Frozr II, EZ M.2 Clip II, EZ PCIe Clip II and EZ Antenna
- Lightning Fast Game experience: PCIe 5.0 slot, Lightning Gen 5 x4 M.2
- Ultra Connect: USB4 and 5G LAN with Wi-Fi 7 Solution - the latest solution for professional and multimedia use, delivering secure, stable, and high-speed networking and data transmission
- Audio Boost: Reward your ears with studio grade sound quality for the most immersive gaming experience
Specifications
Specifications
| Chipset | AMD X870E |
| CPU | Supports AMD Ryzen™ 9000/8000/7000 Series Desktop Processors |
| Socket | AM5 |
| Memory | 4x DDR5 UDIMM, Maximum Memory Capacity 256GB Memory Support DDR5 8200 - 5600 (OC) MT/s / 5600 - 4800 (JEDEC) MT/s Ryzen™ 9000 Series Processors max. overclocking frequency: • 1DPC 1R Max speed up to 8200+ MT/s • 1DPC 2R Max speed up to 6400+ MT/s • 2DPC 1R Max speed up to 6400+ MT/s • 2DPC 2R Max speed up to 6000+ MT/s Supports AMD POR Speed and JEDEC Speed Supports Memory Overclocking and AMD EXPOTM Supports Dual-Channel mode Supports Non-ECC, Un-buffered memory Supports CUDIMM, Clock Driver bypass mode only* |
| Onboard Graphics | 1x HDMI™ (HDMI™ 2.1, 4K 60Hz) 1x Type-C DisplayPort (USB4® supporting DisplayPort 1.4, 4K 60Hz) *Available only on processors featuring integrated graphics. |
| Slots | 3x PCI-E x16 1x PCI-E x1 PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU) PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset) PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset) PCI_E4 Gen PCIe 3.0 supports up to x1 (From Chipset) |
| Audio | Realtek® ALC897 7.1-Channel High Definition Audio |
| Storage | 3x M.2 Slots M.2_1: PCIe 5.0 x4 (From CPU), supports 2280/2260 M.2_2: PCIe 4.0 x4 (From Chipset), supports 2280/2260 M.2_3: PCIe 4.0 x4 (From Chipset), supports 22110/2280 4x SATA 6G |
| RAID | Supports RAID 0, 1, 10 for SATA Supports RAID 0, 1, 5 for M.2 NVMe *RAID 5 supported only by Ryzen™ 9000 series processors. |
| USB | Rear: 4x USB 2.0, 2x USB 5Gbps Type-A, 2x USB 10Gbps Type-A, 1x USB 20Gbps Type-C, 1x USB 40Gbps Type-C Front: 6x USB 2.0, 4x USB 5Gbps Type-A, 1x USB 10Gbps Type-C |
| LAN | Realtek® 8126VB 5G LAN |
| Internal I/O | 1x ATX Power Connector 2x CPU Power Connectors 1x PCIE_PWR 8-pin 1x CPU Fan 1x Combo Fan (Pump_Sys Fan) 6x System Fan 1x EZ Conn-header (JAF_1) 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 1x Tuning Controller (JDASH) 3x Addressable V2 RGB LED (JARGB_V2) 1x RGB LED (JRGB) 1x TPM Header (Support TPM 2.0) 6x USB 2.0 Ports 4x USB 5Gbps Type-A Ports 1x USB 10Gbps Type-C Port |
| Wireless LAN & Bluetooth | Wi-Fi 7 (pre-installed in M.2 Key-E slot) Supports MU-MIMO TX/RX, 2.4GHz/5GHz/6GHz (320MHz) up to 5.8Gbps Supports 802.11 a/b/g/n/ac/ax/be Supports Bluetooth® 5.4, MLO, 4KQAM *6GHz band and Wi-Fi 7 support depend on regional regulations. **Bluetooth 5.4 available in Windows 11 version 24H2. |
| LED Features | 4x EZ Debug LED 1x EZ Memory Detection LED |

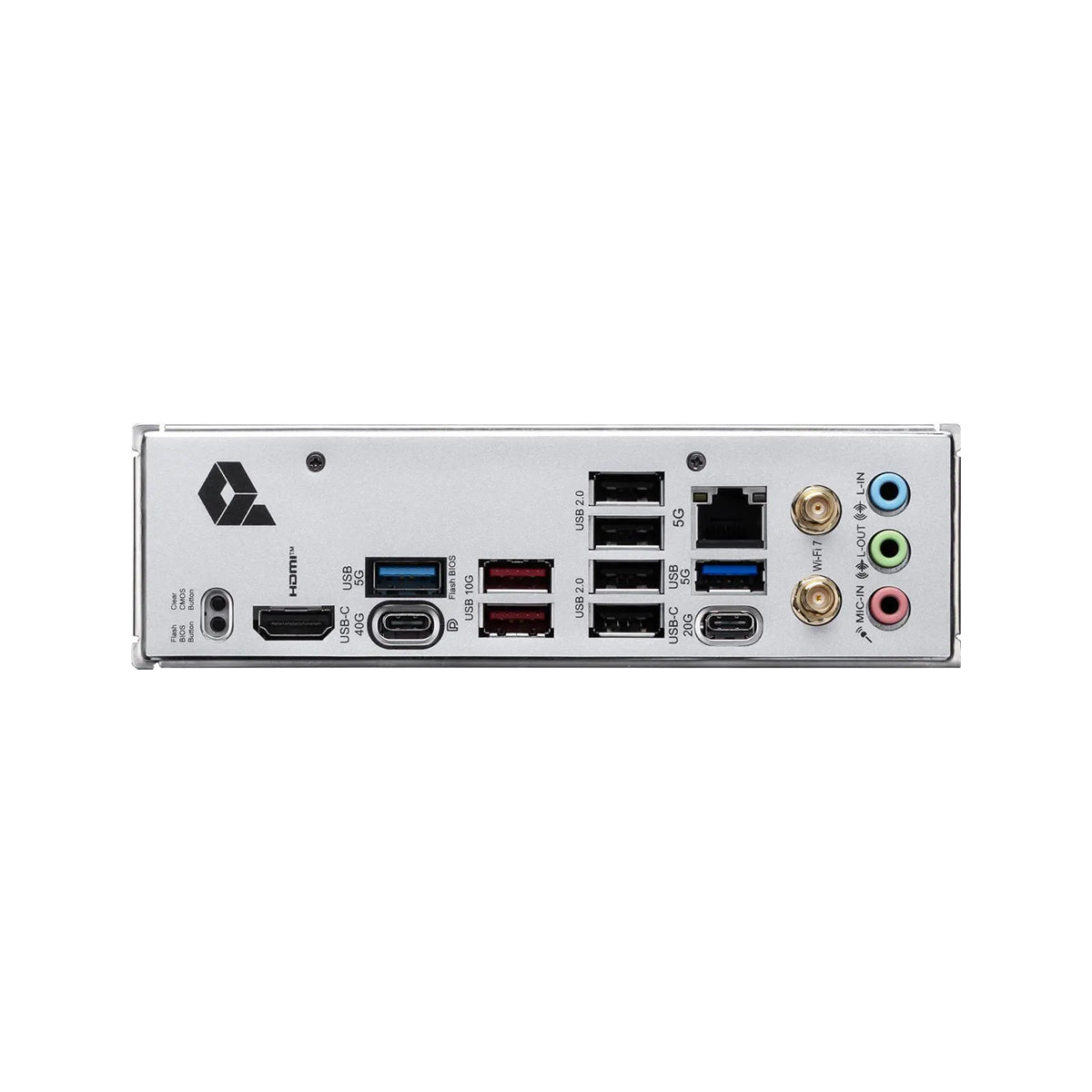

| Back Panel Ports | Clear CMOS Button USB 5Gbps Type-A USB 2.0 5G LAN Wi-Fi / Bluetooth Audio Connectors Flash BIOS Button HDMI™ USB 40Gbps Type-C USB 10Gbps Type-A USB 20Gbps Type-C USB 5Gbps Type-A |
| Operating System | Support for Windows® 11 64-bit |
| PCB Info | ATX, 243.84mm x 304.8mm |
