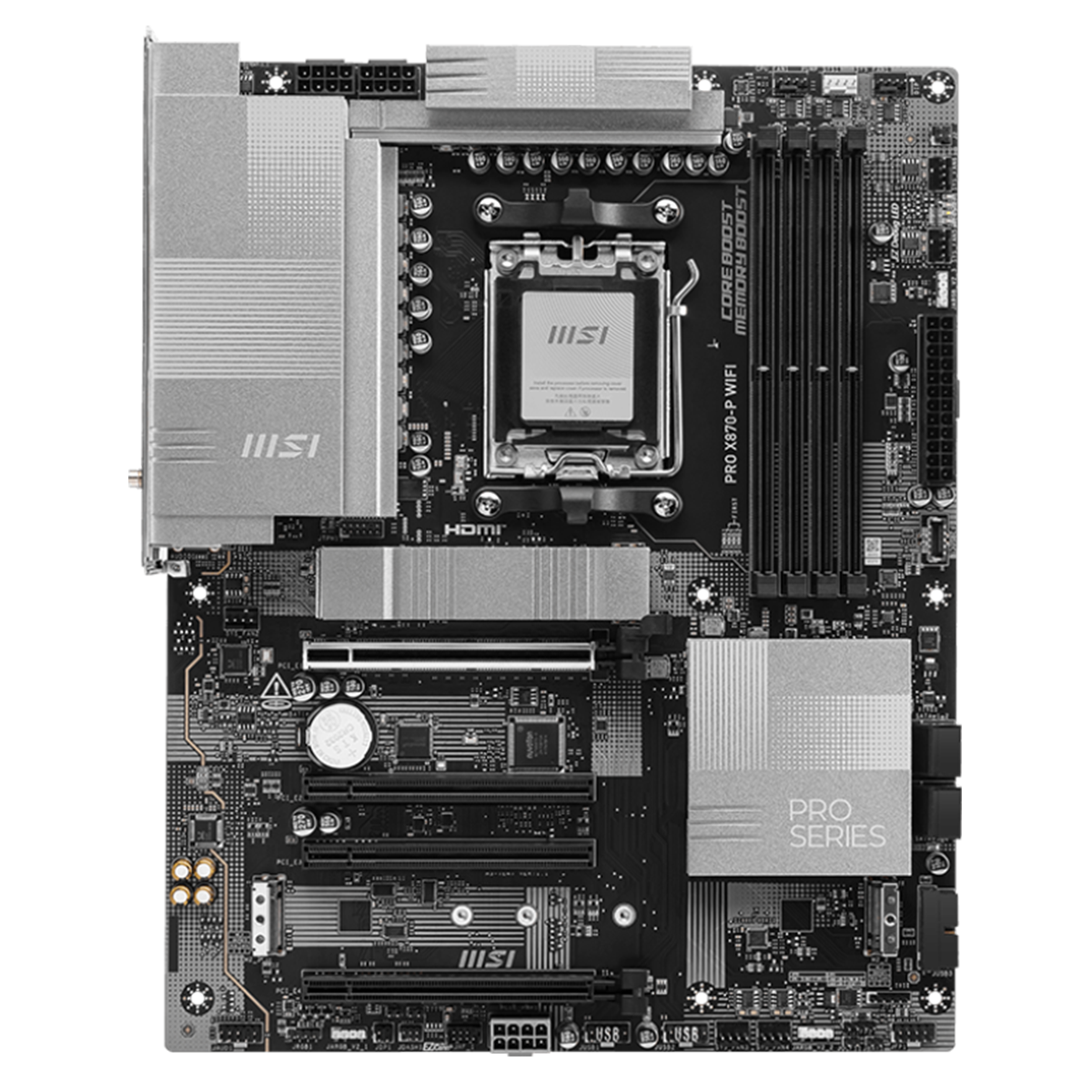

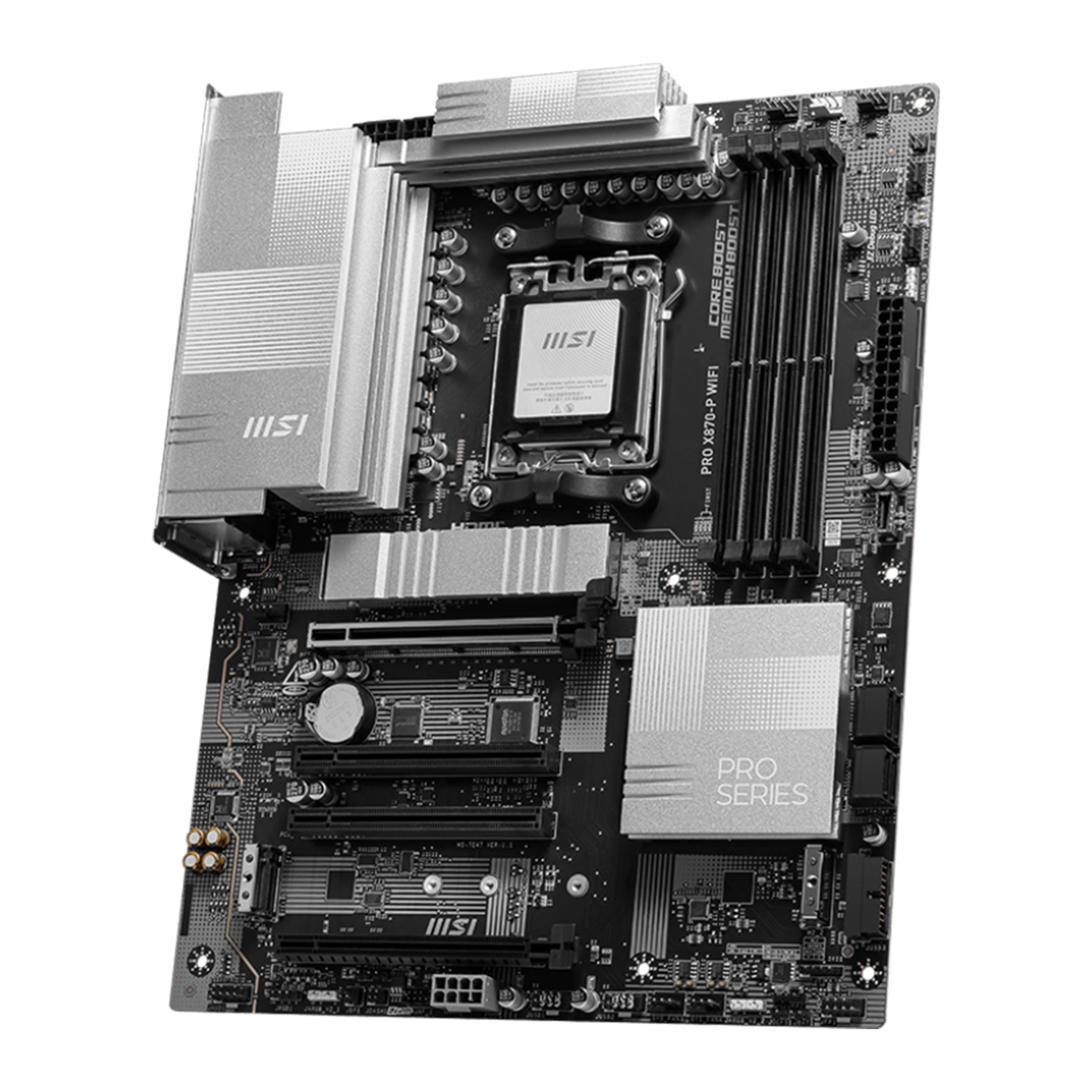

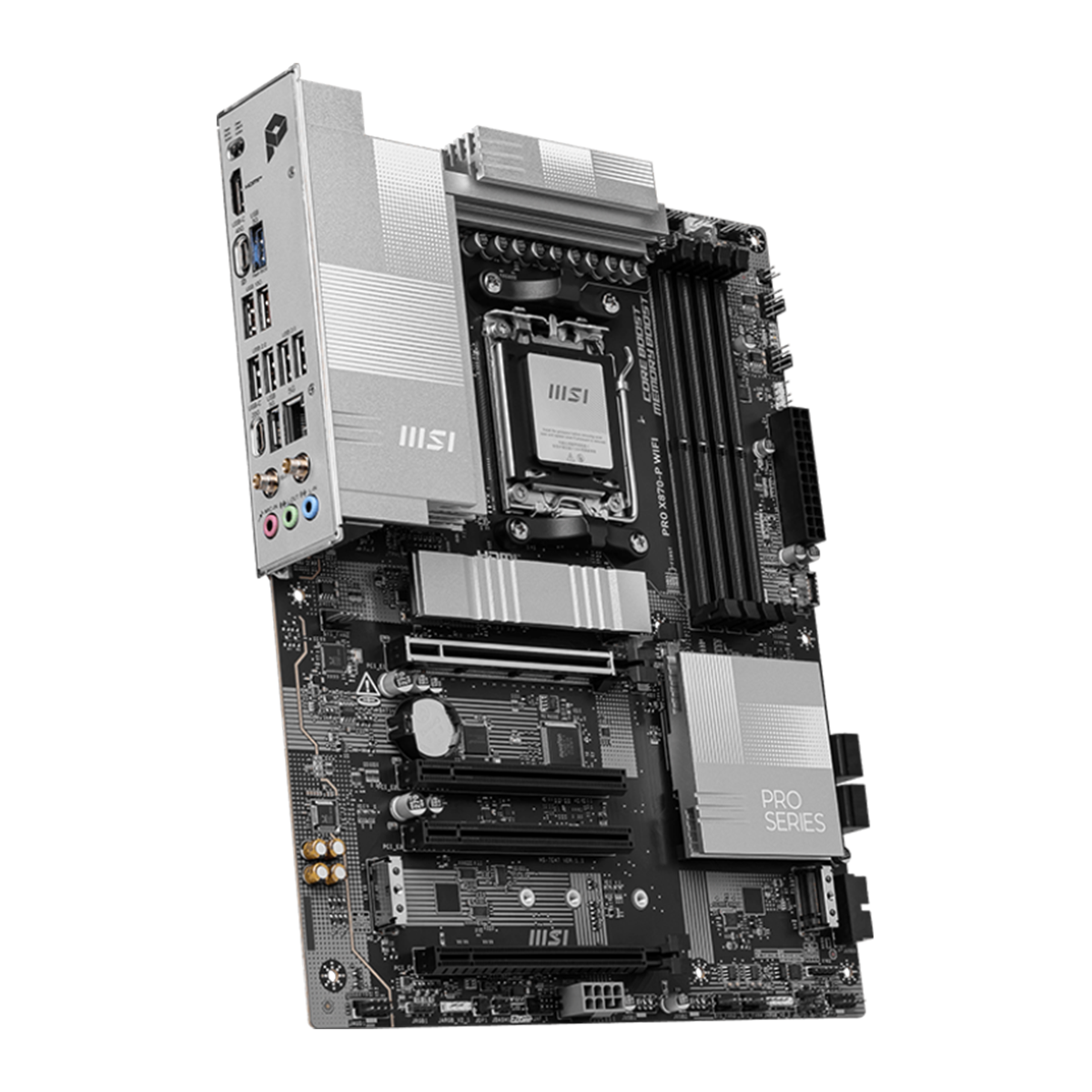

MSI PRO X870-P WIFI Motherboard

PRO X870-P WIFI
PRO X870-P WIFI offers a simple design with a harmonious silver color scheme that perfectly matches both white and black PC builds. It is engineered with many exclusive features of MSI, including true Wi-Fi 7 with EZ Antenna, 5G LAN, PCIe 5.0 M.2 with EZ M.2 Shield Frozr II, and Supplemental PCIe Power, ready for the AMD Ryzen™ 9000 series processors.

BUSINESS ELEGANCE
The PRO Series is tailored to professionals from all walks of life. The lineup features impressive performance and high quality, while aiming to provide users incredible experience. Users who care about productivity and efficiency can definitely count on the MSI PRO Series to assist you with multitasking and increasing efficiency.

One Finger for EZ GPU Installation
The new EZ PCIe Clip II, located on the first slot, features a rebounding force mechanism that allows for easy removal of the graphics card by pressing the tail-like lock with one finger. Due to this exquisite design, users can uninstall the graphics cards effortlessly, even in cramped case spaces.

While overclocking can be overly complex for some, MSI Click BIOS X made it more accessible with multiple one-click overclock features for both processor and memory, allowing users to easily enhance system performance without delving into intricate settings.

CREATION BOOST
One-click CPU overclock automatically optimizes your CPU performance, instantly tuning it to the best possible level.

AI BOOST
An intelligent algorithm boosts NPU performance to get the best possible AI performance when you need additional horsepower. (*Enabled with compatible processors.)

Memory
EXPO / A-XMP: Choose from preset EXPO and A-XMP profiles to automatically overclock compatible DDR memory for optimal performance.

14+2+1 DRPS POWER DESIGN
Unleash and sustain maximum performance with a flagship VRM design built with a total of 14+2+1 digital power phases. Combining dual power connectors and 60A Smart Power Stage, PRO X870-P WIFI is ready for the challenge of high-end processors.

OPTIMIZED PCB SOLUTION
The PCB design has been optimized for higher bandwidth and faster transfer speeds, which is also beneficial for reliable circuit transmission.

• 8 PCB layers
• NPG-170D Server-grade PCB material
• 2oz Thickened Copper

DDR5 MEMORY SUPPORT WITH HIGH PERFORMANCE
A huge step of DDR performance enhancement with the latest DDR5 memory. Combines with dedicated SMT welding process and MSI Memory Boost technology, PRO X870-P WIFI is ready to deliver world-class memory performance.

PROTECTION

• Transient Voltage Suppressors (TVS)
  Transient Voltage Suppressors (TVS) are safety devices used to protect against excessive voltage. All motherboard models of MSI are equipped with TVS. When the voltage abnormally rises, the TVS switches from a high-resistance state to a low-resistance state, diverting the excessive voltage to ground. This helps prevent circuit damage caused by high voltage.
• Solid Pin Design
  The 4-pin, 8-pin, and 24-pin power connectors of MSI motherboards are all designed with solid pins. The solid pin design allows for a more stable transmission of 12V power to the CPU, even when handling high current loads.

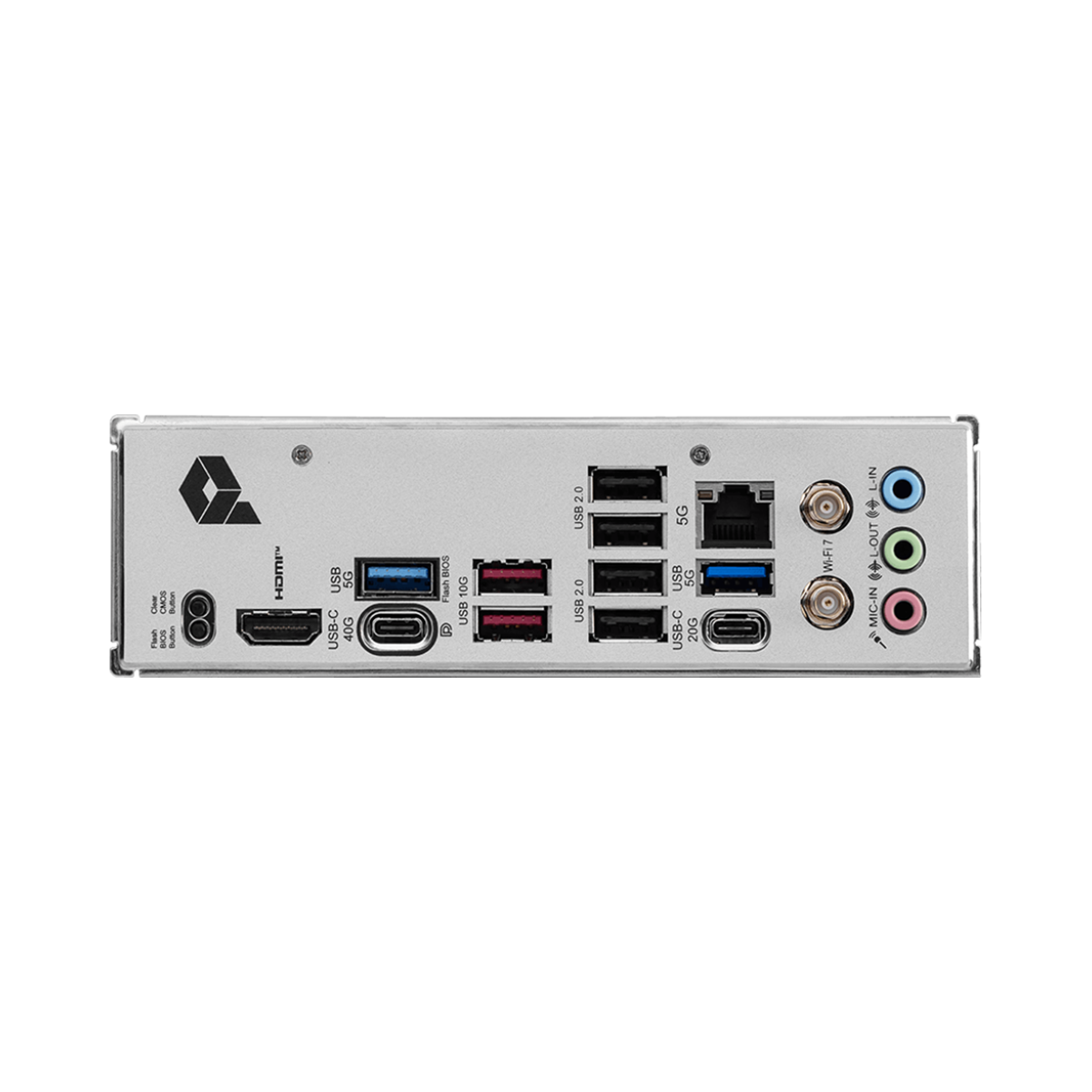

• Anti-Corrosive Stainless Steel IO Shield
  An extra layer of sponge materials along with corrosive-resistant IO Shield helps improve static electricity and reduce electromagnetic radiation noise from the system, while being much more durable compared to traditional IO Shields.

FROZR GUARD

• Extended Heatsink
  Extended Heatsink enlarges the surface of heat dissipation and maintains performance under heavy loads.
• M.2 Shield Frozr
  Strengthened M.2 thermal solution helps keep M.2 SSDs safe and ensures incredible performance.
• Heavy Plated VRM Heatsink
  The VRM heatsink covers the upper MOS and helps dissipate the heat.
• 7W/mK Thermal Pad & Additional Choke Pad
  High-quality 7W/mK MOSFET thermal pads and additional choke thermal pads ensure stable performance when all cores are running at high speed.
• Enlarged Chipset Heatsink
  The enlarged heatsink is designed to reduce dust and noise while maintaining high efficiency of heat dissipation.

NETWORKING

• HIGH-BANDWIDTH AND LOW-LATENCY NETWORK
  MSI's premium network solution provides incredible data transfer speed for demanding users.
• THE NEXT GEN WI-FI SOLUTION – WI-FI 7
  Wi-Fi 7 is the latest wireless solution that takes a huge leap forward with multiple improvements to meet the traffic demand brought by the growing number of wireless devices.
• AI LAN Manager
  MSI AI LAN Manager automatically classifies and prioritizes the latency-sensitive applications for online games, giving you the best online gaming experience with low latency.

FAST AND FUTURE-READY STORAGE
MSI PRO series motherboards support all the latest storage standards, allowing users to connect any ultra-fast storage device. Start games faster, load levels faster, and have a real advantage over your enemies.

LIGHTNING GEN 5 PCI-E WITH STEEL ARMOR II

• LIGHTNING GEN 5 PCI-E
  Doubling over the previous generation, the bandwidth of a x16 interface can reach 128GB/s.
• SMT PCIe 5.0 SLOT
  The advanced SMT (Surface Mount Technology) PCIe slot diminishes interference and electrical noise, fully supporting the PCI-E 5.0 signal.
• REINFORCED, HEAVY SOLDERED CONNECTIONS
  MSI PCI Express Steel Armor slots are secured to the motherboard with extra solder points and support the weight of heavy graphics cards. When every advantage in games counts, Steel Armor shields the point of contact from electromagnetic interference.

The Isolated Analogy Structure for Audio Connectors
To provide clear voice, MSI develops a unique structure – Isolated Analogy Structure. The external metal framework of the audio connectors is separated from the internal layout, which ensures the sound quality is crisp.

Audio Boost

• HIGH DEFINITION AUDIO PROCESSOR
• HIGH QUALITY AUDIO CAPACITORS
• HIGH QUALITY AUDIO JACKS
• ISOLATED AUDIO SIGNAL
• DE-POP PROTECTION
