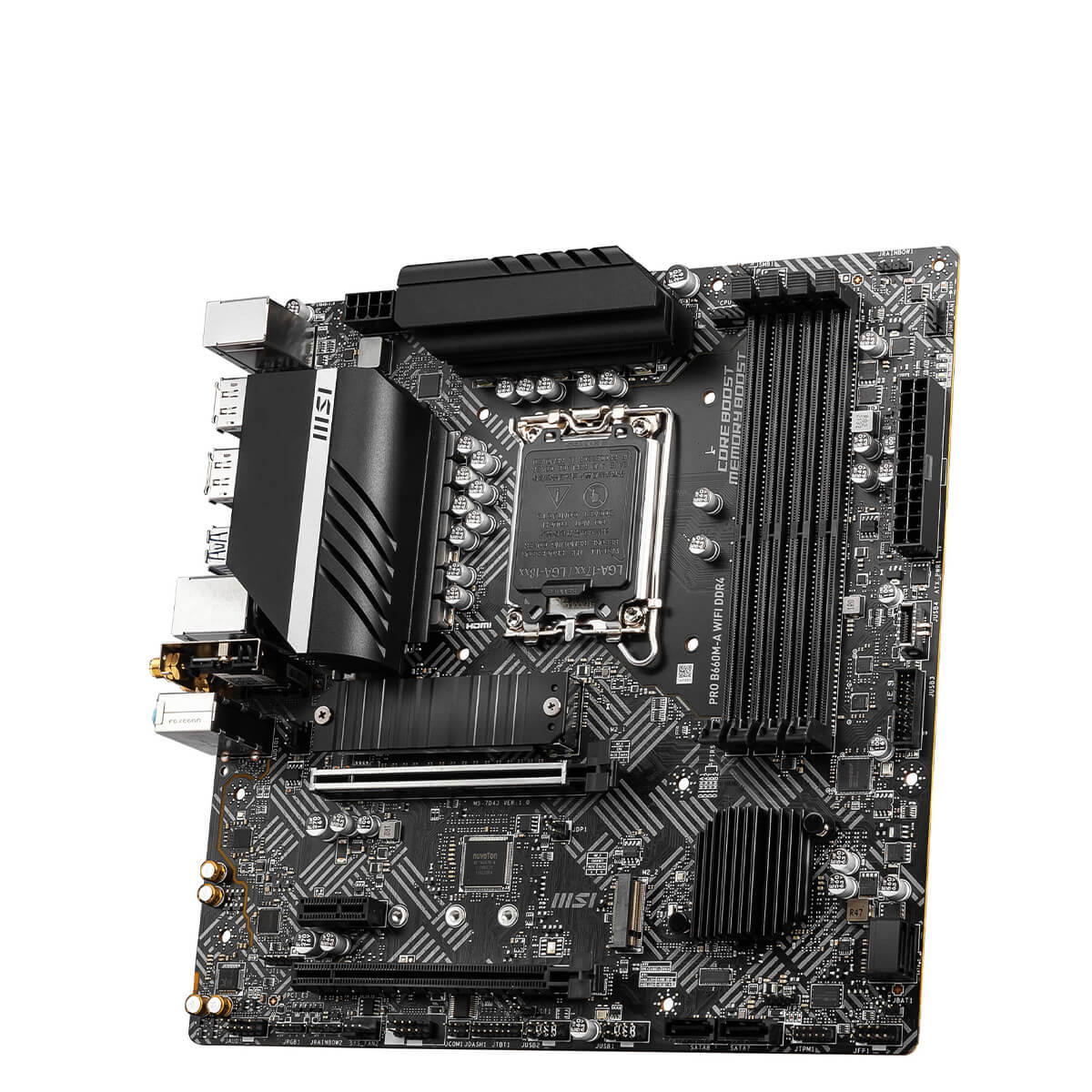

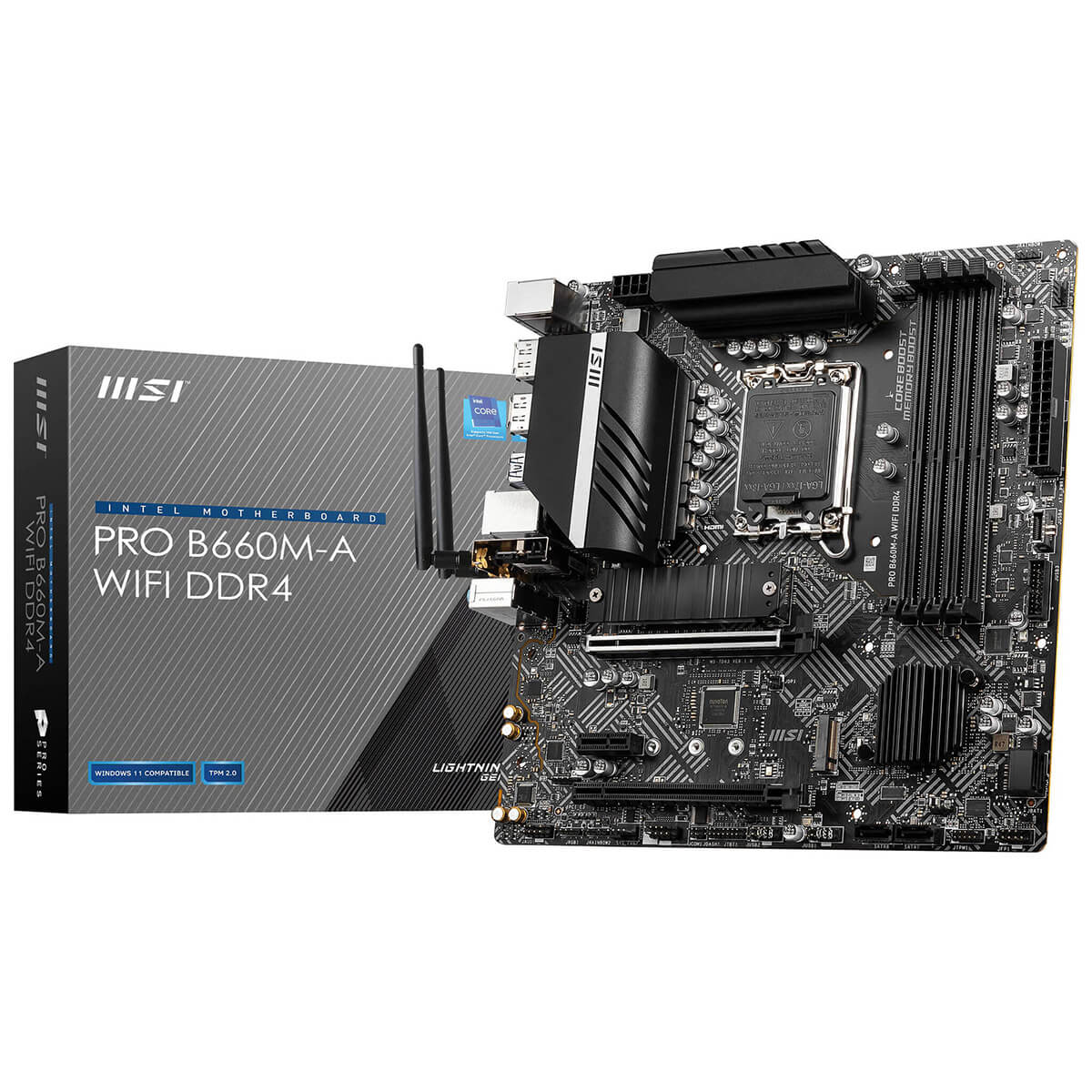

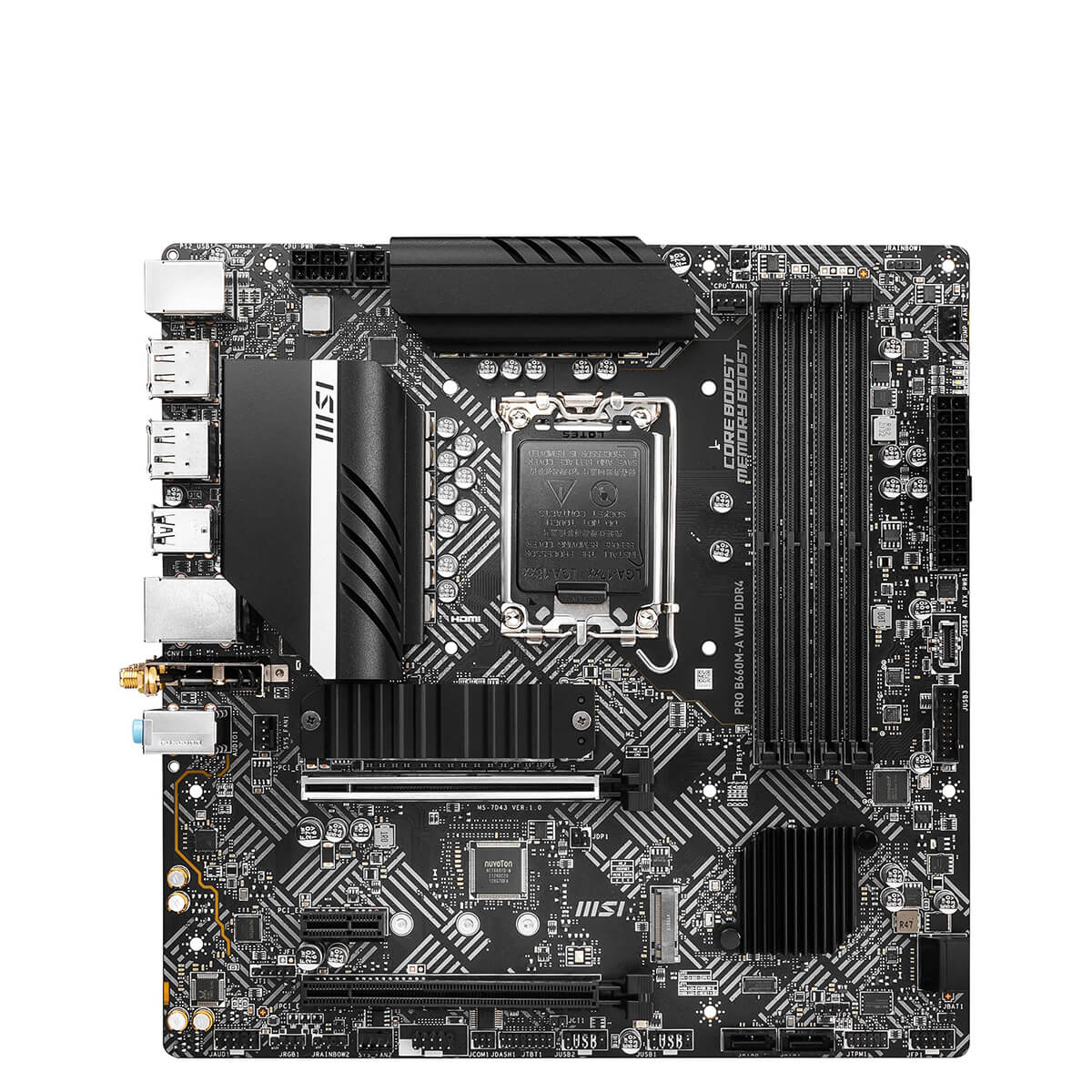

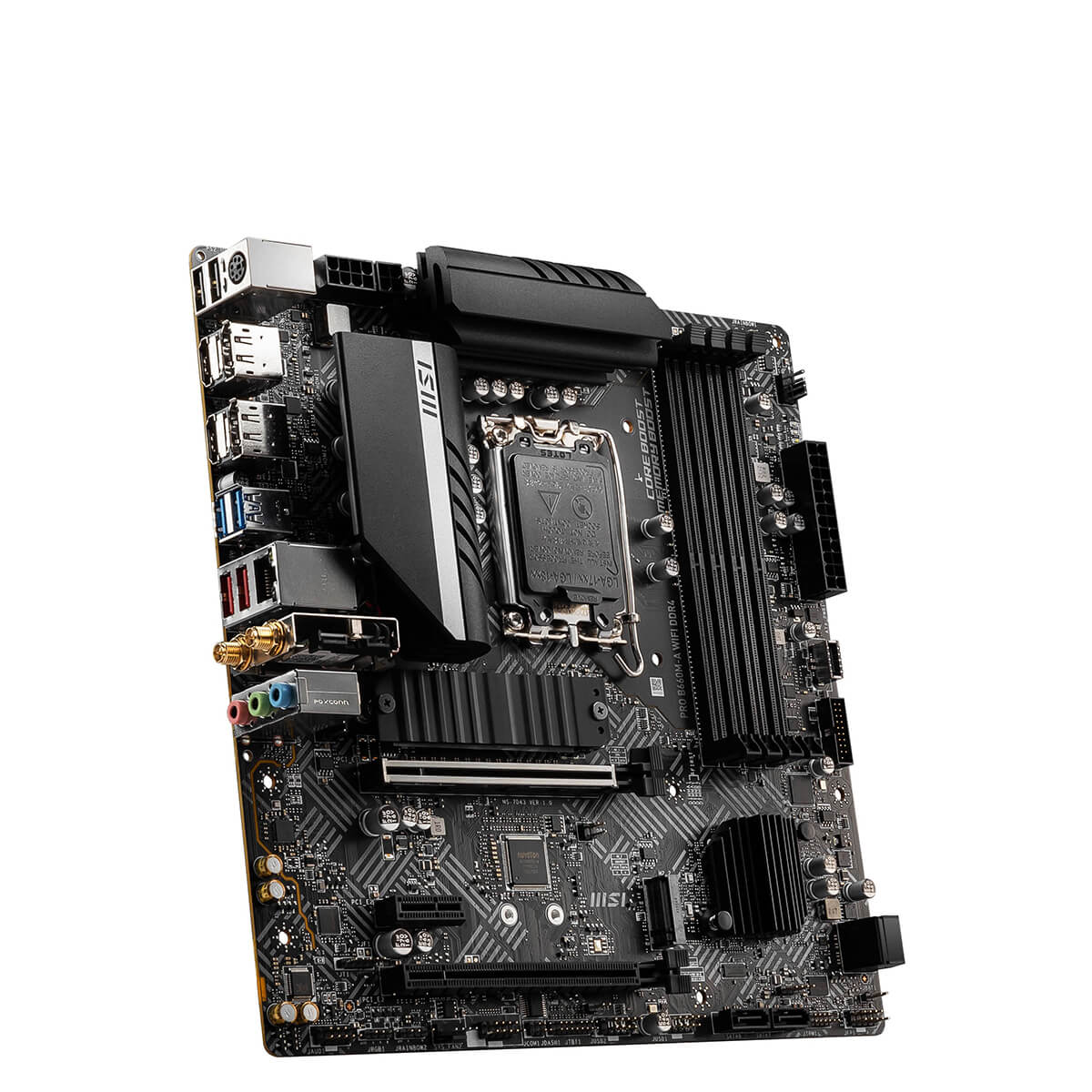

MSI PRO B660M-A WIFI DDR4 mATX Motherboard

This is an Open Box Item

M.2 SHIELD FROZR

World’s fastest SSDs can start to lower performance when getting hot. Part of the motherboards heatsink design, M.2 SHIELD FROZR is the next generation M.2 thermal solution to avoid this by offering the best thermal protection to make sure that SSD maintains maximum performance.

FROZR AI COOLING

Detecting CPU & GPU temperatures and automatically adjusting fan duty of system fans to a proper value by adopting MSI AI ENGINE.

OPTIMIZED FOR WATER COOLING

Designed to support the most popular All-In-One & customized water cooling solutions on the market. A dedicated water pump PIN header supports up to 3 amp, giving you full control of the water pump speed. A clearly marked ‘keep-out-zone’ allows for easy and safe installation and a perfect fit.

FULLY CONTROLLABLE IN BIOS AND SOFTWARE

MSI motherboards let you manage speeds and temperatures for all your system and CPU fans. Total Fan Control allows you check your primary system characteristics in a simplified graphical interface. You can also set up to 4 temperature targets for CPU and motherboard, which will adjust the fan speeds automatically.

EZ DEBUG LED

Ran into trouble? Onboard LEDs for key components will indicate the source of the problem so you know exactly where to look to get it up and running again.

XL CLIP

The enlarged PCI-E clip helps you swap or remove your devices easier. Keep the PCI-E slot stronger and safer.

FORTIFY YOUR SYSTEM WITH PCI-E STEEL ARMOR

MSI PCI Express Steel Armor slots are secured to the motherboard with extra solder points and support the weight of heavy graphics cards. When every advantage in games counts, Steel Armor shields the point of contact from electromagnetic interference.

ULTIMATE MOTHERBOARD PROTECTION

Double ESD protection doubles up the grounding layer around the mounting holes, preventing static discharge surges from damaging the motherboard.

HIGH-BANDWIDTH AND LOW-LATENCY NETWORK

2.5Gbps LAN provides incredible data transfer speed faster than general Gigabit LAN. This is a premium solution for demanding users.

SURFACING WITH THE REAL MU-MIMO TECHNOLOGY

The WIFI 6 adopts the latest OFDMA and two-way MU-MIMO technologies and could provide up to 4X network capacity and efficiency in the high signal density environment. Comparing to the WIFI 5, which can only send the data packet to one device at a time on each channel, the WIFI 6 could combine the packet, separate to several devices and allow signals from the different devices bundled together. This new technology provides all the devices in the same network environment with same and harmonious traffic bandwidth in an efficient way.

LIGHTNING GEN 4 PCI-E

MSI lightning Gen 4 PCI-E is the latest and the fastest PCI-E data transfer solution with 64GB/s of transfer bandwidth that has doubled compared to its previous generation. PCIe 4.0 maintains both backward and forward compatibility with older and newer specifications.

LIGHTNING GEN 4 M.2

Utilizing 12th Gen Intel Core processors, MSI B660 PRO motherboards feature latest Lightning Gen 4 M.2 which is the fastest onboard storage solution on the market with up to 64 Gb/s transfer speed.

OPTANE: BOOST YOUR HDD TO PERFORM LIKE AN SSD

PC Enthusiasts can now enjoy the performance of an SSD on their HDD by coupling it with the new Intel® Optane™ Memory device. Intel® Optane™ technology provides an unparalleled combination of high throughput, low latency, high quality of service, and high endurance.

USB FRONT TYPE-C

MSI motherboards support USB Front Type-C that allows gamers to connect with the latest USB devices. Built up a system with MSI PC case to have the most convenient experience.

EXTEND YOUR RGB EXPERIENCE WITH EASE

Add more color if you want! Mystic Light Extension pin header provides an intuitive way to control additional RGB strips and other RGB peripherals added to a system, without needing a separate RGB controller.

DEDICATED HIGH DEFINITION AUDIO PROCESSOR

Make sure you enjoy the purest sound quality in both stereo and surround sound.

HIGH QUALITY AUDIO CAPACITORS

A high fidelity sound experience with exceptional acoustics and realism for studio level headphones is ensured.

HD AUDIO CONNECTORS

Keep you sound perfect by transmit your aduio with pure digital signal.

ISOLATED AUDIO DESIGN

Like a dedicated sound card, audio components and circuits have been laid on a reserved motherboard section and electrically isolated.

SEPARATED AUDIO LAYERS FOR CLEAN LEFT & RIGHT CHANNELS

Using separated layers in the PCB ensures equally pristine sound quality for both left and right audio channels.

MSI CENTER

MSI brand new MSI Center unifies a suite of MSI software utilities into a single centralized application. Take control of advanced motherboards features and unleash endless possibilities.

CLICK BIOS 5

Get more from a loaded BIOS designed for ease of use. Fine-tune the motherboard for gaming performance, efficiency, or overclocking world records!

• CREATOR GENIE - Quickly overclock your CPU with a single button for more performance.
• XMP - Choose from a preset XMP profile and automatically overclock compatible DDR memory.
• M-FLASH - Conveniently flash or upgrade the BIOS in a few minutes from the CMOS Setup Utility.
• HARDWARE MONITOR - Get immediate access to your critical hardware information in real-time including temperature, memory capacity, clock speed, and voltage.
• MEMORY TRY IT - Get extreme speed out of your system memory and get more performance.
• SEARCH & FAVORITES - A permanent search & favorite option in the top right corner moves you through the BIOS menus quickly.

RESIZABLE BAR (RE-SIZE BAR)

Resizable BAR (Re-Size BAR) is an advanced PCI Express feature that enables the CPU to access the entire GPU frame buffer at once and improve performance.
