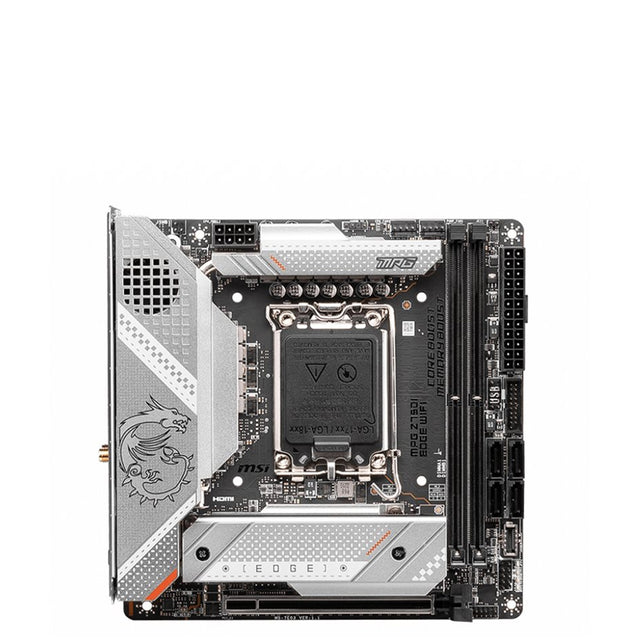

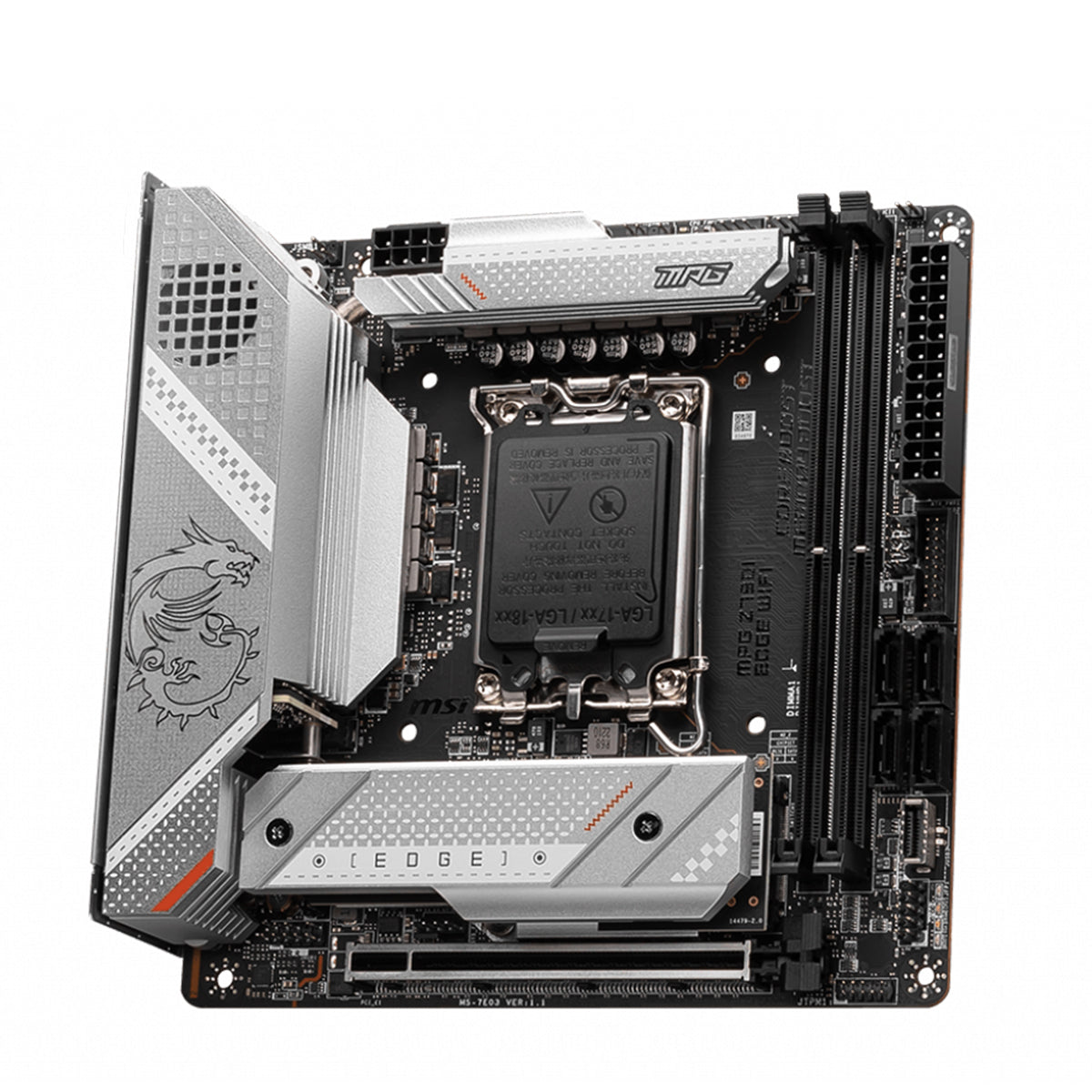

MSI MPG Z790I EDGE WIFI DDR5 Mini-ITX Motherboard
Order now and it ships in 2-3 working days.
In-stock at Supplier
Pickup available at Computer Lounge
Usually ready in 2-3 working days.
Warranty and Support
Warranty and Support
Warranty: 3 Years Return to Base Warranty
Returns: 14-day hassle-free exchanges and store credits, subject to terms and conditions outlined in our Returns Policy.
Delivery and Shipping
Delivery and Shipping
All deliveries are signature required.
North Island: 1 – 2 working days
South Island: 2 – 3 working days
Please allow an additional 1 – 2 working days for delivery to rural addresses.
Buy Now, Pay Later & Finance Options:
Description
Description
DIRECT 10+1+1 PHASES POWER DESIGN
Unleash and sustain the maximum performance with a robust VRM design built with a total of direct 10+1+1 digital power phases. Combining Core Boost and 105A Smart Power Stage, MPG Z790I EDGE WIFI is ready for the challenge of high-end processors.
OPTIMIZED PCB SOLUTION
The PCB design has been optimized for higher bandwidth and faster transfer speeds, which is also beneficial for reliable circuit transmission.
Extended Heatsink
Extended Heatsink enlarges the surface of heat dissipation, ensuring even high-end processors to run in full speed.
Frozr Heatsink
The active cooling solution is ready to release the maximum performance.
Heat-pipe
Connecting two MOS heatsinks to enlarge the surface of heat dissipation.
LATEST DDR5 MEMORY WITH SMT SLOT
A huge step of DDR performance enhancement with the latest DDR5 memory. Combines with dedicated SMT welding process and MSI Memory Boost technology, MPG Z790I EDGE WIFI is ready to deliver the world class memory performance.
EASY OVERCLOCKING WITH XMP PROFILE
The XMP (Extreme Memory Profiles) in MSI BIOS are tested and certified by MSI OC LAB. It is easy to enable with auto power settings to get the best memory speed and stability.
LIGHTNING GEN 5 PCI-E
Doubling over the previous generation, the bandwidth of a x16 interface can reach 128GB/s.
SMT PCIE 5.0 SLOT
The advanced SMT(Surface Mount Technology) PCIE slot diminish interference and electrical noise, fully support the PCI-E 5.0 signal.
HEAVY SOLDERED CONNECTIONS
Secure to the motherboard with extra solder points and support the weight of heavy graphics cards.
FAST AND FUTURE-READY STORAGE
MSI MPG series motherboards support all the latest storage standards, which allows users to connect any ultra-fast storage device. Start games faster, load levels faster and have a real advantage over your enemies.
EXTEND YOUR RGB EXPERIENCE WITH EASE
Add more color if you want! Mystic Light Extension pin header provides an intuitive way to control additional RGB strips and other RGB peripherals added to a system, without needing a separate RGB controller.
MOSFET Baseplate
Baseplate on the back to keep MOSFET in lower temparature, ensuring better heat dissipation effect.
7W/mK Thermal Pad
High quality 7W/mK MOSFET thermal pads and extra choke thermal pads ensure all cores running in high performance.
M.2 Shield Frozr with Chipset Heatsink
Keeps M.2 SSDs safe while preventing throttling, making them run faster.
OPTIMIZED FOR WATER COOLING
Designed to support the most popular All-In-One & customized water cooling solutions on the market. A dedicated water pump PIN header supports up to 3 amp, giving you full control of the water pump speed. A clearly marked ‘keep-out-zone’ allows for easy and safe installation and a perfect fit.
DOUBLE BANDWIDTH WITH LIGHTNING USB 3.2 GEN 2X2 20G
Using USB 3.2 devices has never been faster! MPG Z790I EDGE WIFI offer a wide variety of options to connect and boost your USB devices, offering never before seen USB speeds up to 20Gb/s when connecting the Rear USB Type-C.
USB FRONT TYPE-C
MSI gaming motherboards support USB Front Type-C that allows gamers to connect with the latest USB devices. Built up a system with MSI PC case to have the most convenient experience.
HIGH-BANDWIDTH AND LOW-LATENCY NETWORK
MSI's premium network solution provides incredible data transfer speed for demanding users.
MPG Z790I EDGE WIFI
- Supports 13th /12th Gen Intel® Core™ / Pentium® / Celeron® processors for LGA 1700 socket
- Supports DDR5 Memory, up to 8000+(OC) MHz
- Lightning Fast Game experience: PCIe 5.0 slots, Lightning Gen 4 x4 M.2, USB 3.2 Gen 2x2
- Enhanced Power Design: Direct 10+1+1 phases power, Core Boost, Memory Boost
- Premium Thermal Solution: Enlarged heatsink with heat-pipe, MOSFET thermal pads rated for 7W/mk, additional choke thermal pads and M.2 Shield Frozr are built for high performance system and non-stop gaming experience
- 2.5G LAN and Intel Wi-Fi 6E Solution: Upgraded network solution for professional and multimedia use. Delivers a secure, stable and fast network connection
- AUDIO BOOST 5: Reward your ears with studio grade sound quality for the most immersive gaming experience
- High Quality PCB: 12-layer PCB made by server grade level material

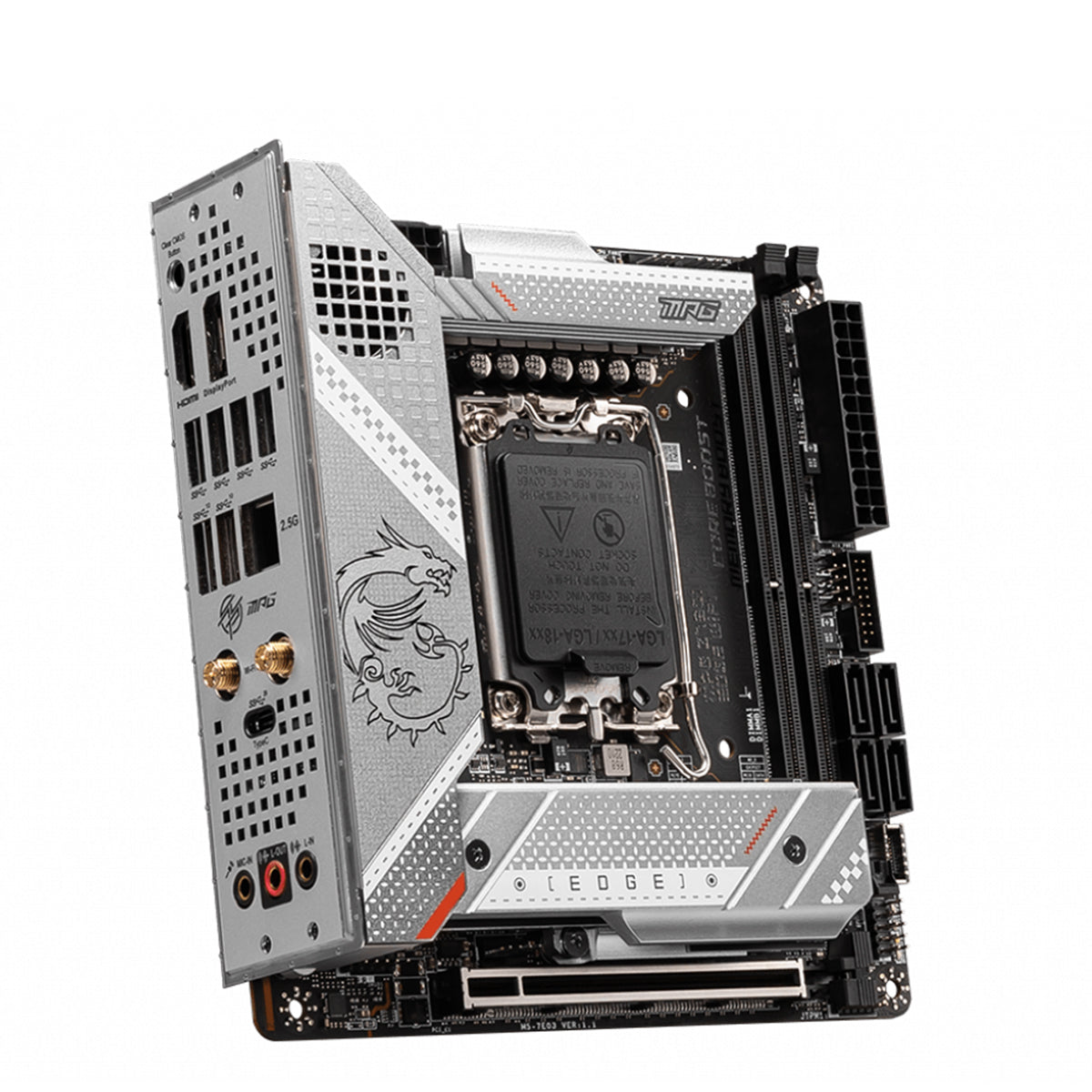

- Pre-installed I/O Shield: Better EMI protection and more convenience for installation
Specifications
Specifications
| Chipset | INTEL Z790 |
| CPU | Support Intel® Core™ 14th/ 13th/ 12th Gen Processors, Intel® Pentium® Gold and Celeron® Processors LGA 1700 |
| Memory | 2x DDR5, Maximum Memory Capacity 128GB. Memory Support 8000+(OC)/ 7800(OC)/ 7600(OC)/ 7400(OC)/ 7200(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(JEDEC)/ 5400(JEDEC)/ 5200(JEDEC)/ 5000(JEDEC)/ 4800(JEDEC) MHz. Max. overclocking frequency: • 1DPC 1R Max speed up to 8000+ MHz • 1DPC 2R Max speed up to 7200+ MHz. Supports Intel® XMP3.0 OC, Dual-Controller Dual-Channel mode, non-ECC, un-buffered memory |
| Onboard Graphics | 1x HDMI™: Supports HDMI™ 2.1 with HDR, maximum resolution of 4K 60Hz. 1x DisplayPort: Supports DP 1.4, maximum resolution of 4K 60Hz. *Available only on processors featuring integrated graphics. **Graphics specifications may vary depending on the CPU installed. |
| Slot | 1x PCI-E x16 slot: PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU) |
| Audio | Realtek® ALC4080 Codec, 7.1-Channel USB High Performance Audio. Supports up to 32-Bit/384 kHz playback on the front panel |
| Storage | 1x M.2: M.2_1 Source (From CPU) supports up to PCIe 4.0 x4, supports 2280 devices. M.2_2 Source (From Chipset) supports up to PCIe 3.0 x4 / SATA mode, supports 2280 devices. M.2_3 Source (From Chipset) supports up to PCIe 4.0 x4, supports 2280 devices. 4x SATA 6G |
| RAID | Supports RAID 0, RAID 1, RAID 5, and RAID 10 for SATA storage devices. Supports RAID 0, RAID 1, RAID 5 for M.2 NVMe storage devices |
| USB | 2x USB 2.0 (Front). 4x USB 5Gbps Type A (Rear). 2x USB 5Gbps Type A (Front). 2x USB 10Gbps Type A (Rear). 1x USB 20Gbps Type C (Rear). 1x USB 20Gbps Type C (Front) |
| LAN | Intel® 2.5Gbps LAN |
| Internal IO | 1x Power Connector(ATX_PWR). 1x Power Connector(CPU_PWR). 1x CPU Fan. 1x Pump Fan. 1x System Fan. 1x Front Panel (JFP). 1x Chassis Intrusion (JCI). 1x Front Audio (JAUD). 1x Addressable V2 RGB LED connector (JARGB_V2). 1x TPM pin header(Support TPM 2.0). 2x USB 2.0 ports. 2x USB 5Gbps Type A ports. 1x USB 20Gbps Type C port |
| WIRELESS LAN & BLUETOOTH | Intel® Wi-Fi 6E: The Wireless module is pre-installed in the M.2 (Key-E) slot. Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz* (160MHz) up to 2.4Gbps. Supports 802.11 a/b/g/n/ac/ax. Supports Bluetooth® 5.3**, FIPS, FISMA. *Wi-Fi 6E 6GHz may depend on every country’s regulations and will be ready in Windows 11. **Bluetooth 5.3 will be ready in Windows 10 build 21H1 and Windows 11. |
| LED Feature | 4x EZ Debug LED |

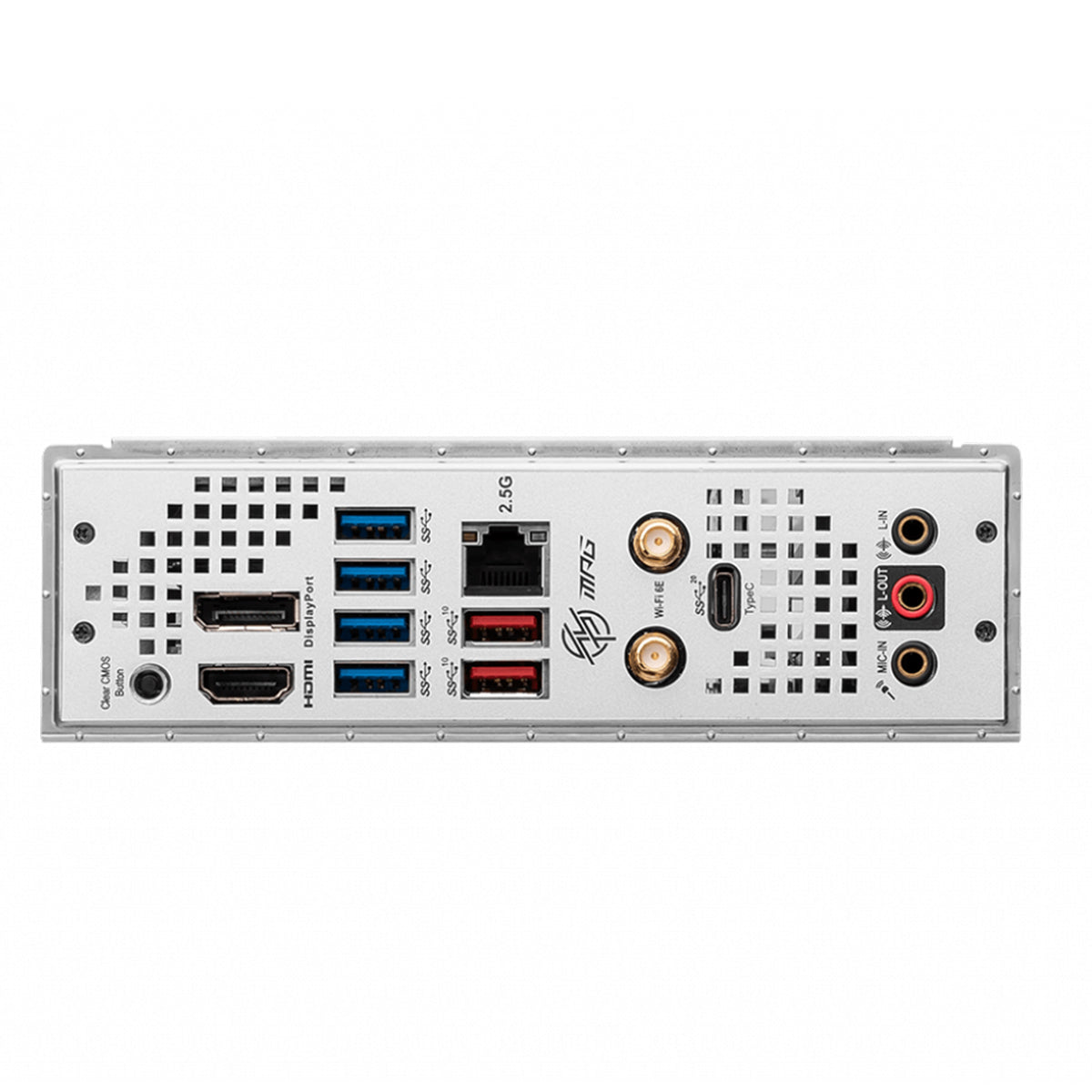

| Back Panel Ports | Display Port. 2.5G LAN. USB 20Gbps (Type-C). Audio Connectors. Clear CMOS. HDMI™. USB 5Gbps (Type-A). USB 10Gbps (Type-A). Wi-Fi / Bluetooth |
| Operating System | Support for Windows® 11 64-bit, Windows® 10 64-bit |
