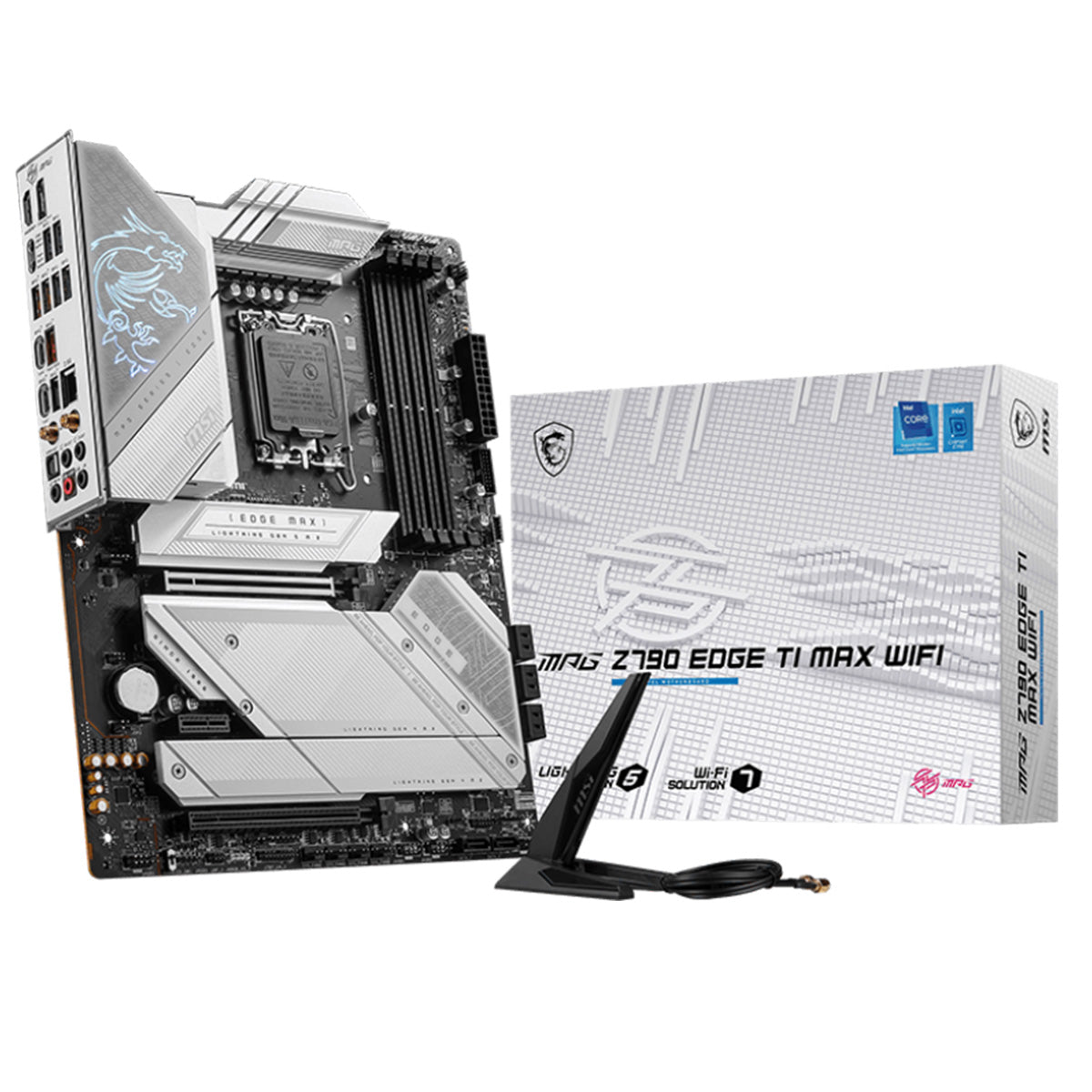

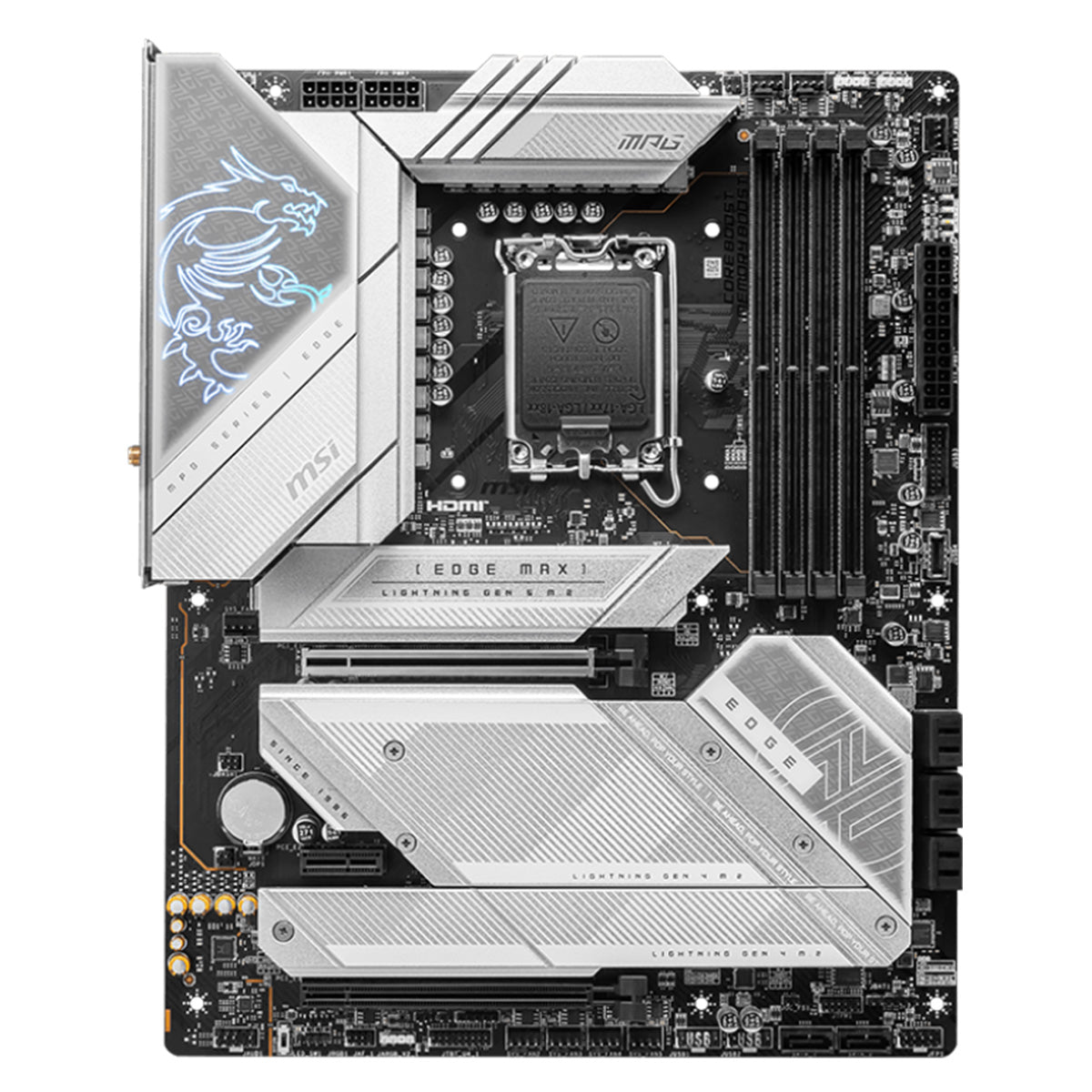

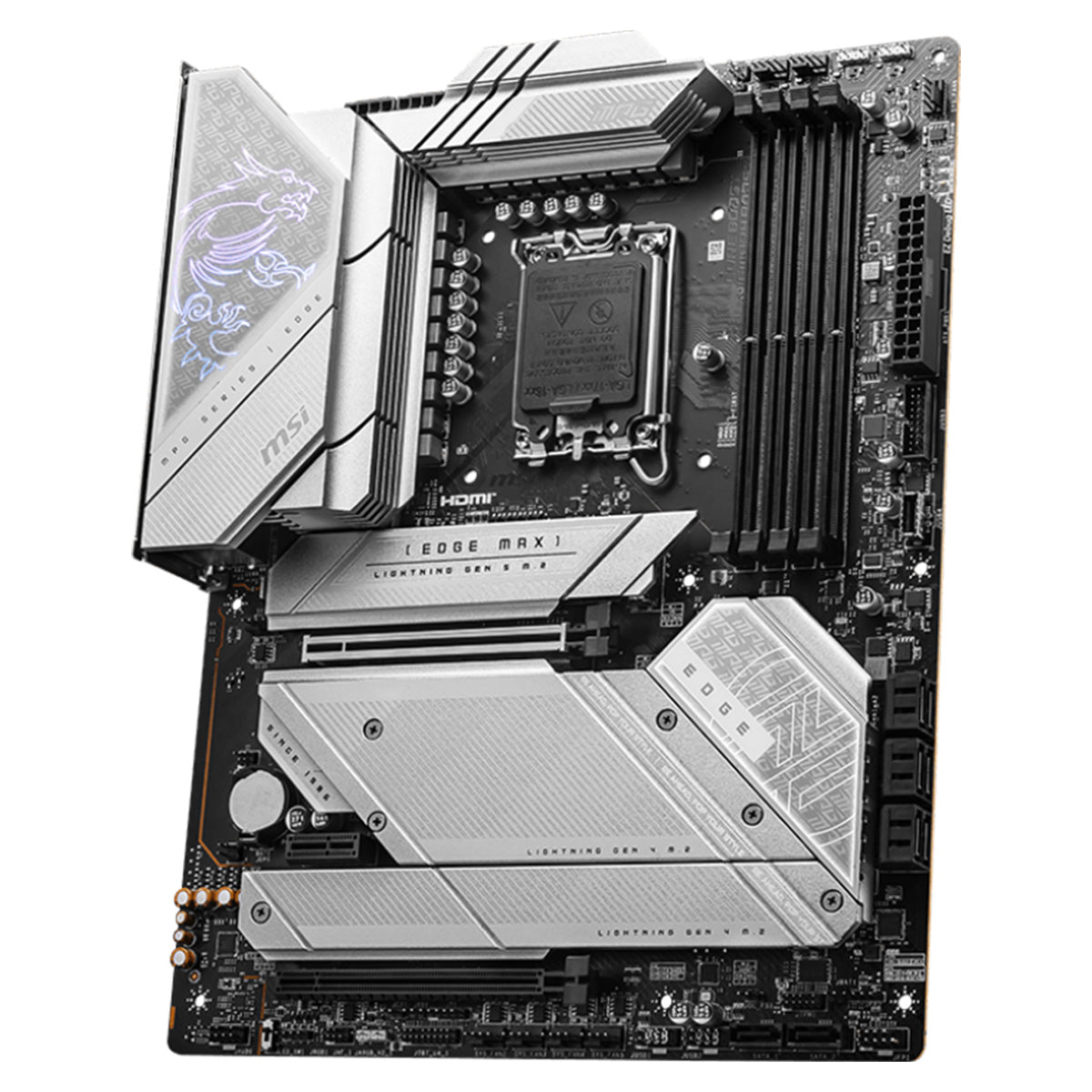

MSI MPG Z790 EDGE TI MAX WIFI Gaming Motherboard

BE AHEAD, POP YOUR STYLE

The MPG series brings out fashionable products by showing extremely unique styles and expressing a conceited attitude towards the challenge of the gaming world. With extraordinary performance and style, the MPG series defines the future of gaming fashion.

COOLING OVERVIEW

• Extended Heatsink

  Extended Heatsink enlarges the surface of heat dissipation and maintain the performance at heavy loads.

• M.2 Shield Frozr

  Strengthened M.2 thermal solution helps M.2 SSD safe and ensures incredible performance.

• Direct Touch Heat-pipe

  Connecting two MOS heatsinks to enlarge the surface of heat dissipation.

• 7W/mK Thermal Pad & Additional Choke Pad

  High-quality 7W/mK MOSFET thermal pads and additional choke thermal pads ensure stable performance when all cores are running at high speed.

• Enhanced M.2 Thermal

  Double-sided M.2 Shield Frozr and Enlarged heatsink desing keep PCIe 5.0 M.2 SSD safe while preventing throttling.

• Enlarged PCH Heatsink

  The enlarged heatsink design to reduce dust and noise as well as maintain high heat dissipation efficiency.

OPTIMIZED PCB SOLUTION

The PCB design has been optimized for higher bandwidth and faster transfer speeds, which is also beneficial for reliable circuit transmission.

16 PHASES MIRRORED POWER ARANGEMENT

Unleash and sustain the maximum performance with a premium VRM design built with a total of 16 Phases Mirrored Power Arrangement with 90A SPS. Combining dual power connectors and Power Stage, MPG Z790 EDGE TI MAX WIFI is ready for the challenge of high-end processors.

• DOUBLE POWER CONNECTORS

  The 8-pin and 4-pin connectors deliver adequate power even for an overclocked multi-core CPU.

• CORE BOOST

  Premium layout not only support the multi-core CPU, also create the perfect conditions for your CPU overclocking.

• DIGITALL POWER DESIGN

  A fully digital power design allows for faster and undistorted current delivery to the CPU at pin-point precision.

P-CORE BEYOND 6GHz+

To unleash the exceptional performance of Core i9-14900K processor, MSI P-Core Beyond 6GHz+ function enables effortless 1-core / 2-core Turbo Boost beyond 6GHz with a single click, delivering extreme performance effortlessly.

SOLID PIN DESIGN

The 4-pin, 8-pin, and 24-pin power connectors of MSI motherboards are all designed with solid pins. The solid pin design allows for a more stable transmission of 12V power to the CPU, even when handling high current loads.

LIGHTNING GEN 5 PCI-E WITH STEEL ARMOR

Doubling over the previous generation, the bandwidth of a x16 interface can reach 128GB/s.

• SMT PCIE 5.0 SLOT

  The advanced SMT(Surface Mount Technology) PCIE slot diminish interference and electrical noise, fully support the PCI-E 5.0 signal.

• REINFORCED, HEAVY SOLDERED CONNECTIONS

  Secure to the motherboard with extra solder points and support the weight of heavy graphics cards.

FAST AND FUTURE-READY STORAGE

MSI MPG series motherboards support all the latest storage standards, which allows users to connect any ultra-fast storage device. Start games faster, load levels faster and have a real advantage over your enemies.

LATEST DDR5 MEMORY WITH SMT SLOT

A huge step of DDR performance enhancement with the latest DDR5 memory. Combines with dedicated SMT welding process and MSI Memory Boost technology, MPG Z790 EDGE TI MAX WIFI is ready to deliver the world class memory performance.

MEMORY EXTENSION MODE

Memory Extension Mode provides optimized memory parameters for enhanced capability at the same frequency, achieving lower latency and higher performance. Furthermore, Memory Extension Mode can combine XMP profiles to maximize memory frequency, enabling users to effortlessly discover the best configuration based on their requirements.

THE NEXT GEN WI-FI SOLUTION – WI-FI 7

Wi-Fi 7 is the latest wireless solution that takes a huge leap forward with multiple improvements to meet the traffic demand brought and the growing number of wireless devices.

HIGH-BANDWIDTH AND LOW-LATENCY NETWORK

THE NEXT GEN WI-FI SOLUTION – WI-FI 7

• Wi-Fi 7

• Bluetooth 5.4

• 2.5G LAN

• Exclusive magnetic antenna

GLOW YOUR PC

Splash on some color and vibrant RGB lighting effects using MSI Mystic Light with 16.8 million colors and fancy LED effects. MSI Mystic Light provides you complete control of RGB lighting of your PC in one software.

AUDIO BOOST 5

• HIGH PERFORMANCE ALC4080 AUDIO PROCESSOR

• HIGH QUALITY AUDIO CAPACITORS

• HIGH QUALITY AUDIO JACKS WITH S/PDIF

• DEDICATED HEADPHONE AMPLIFIER

• ISOLATED AUDIO SIGNAL

• DE-POP PROTECTION
