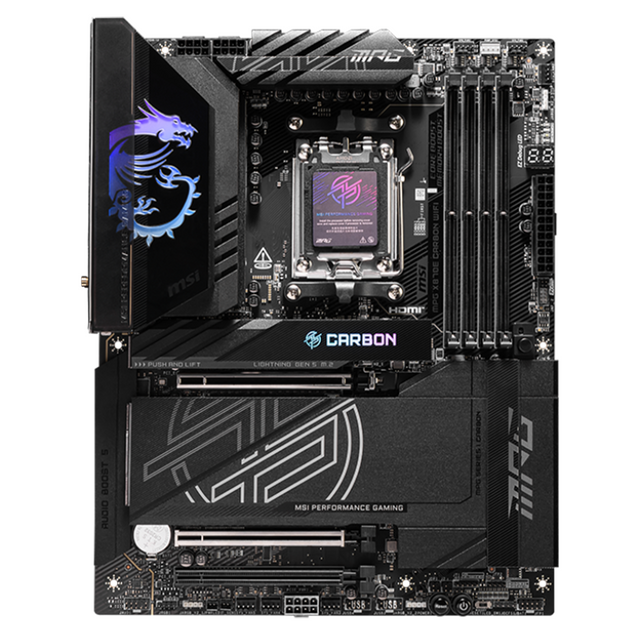

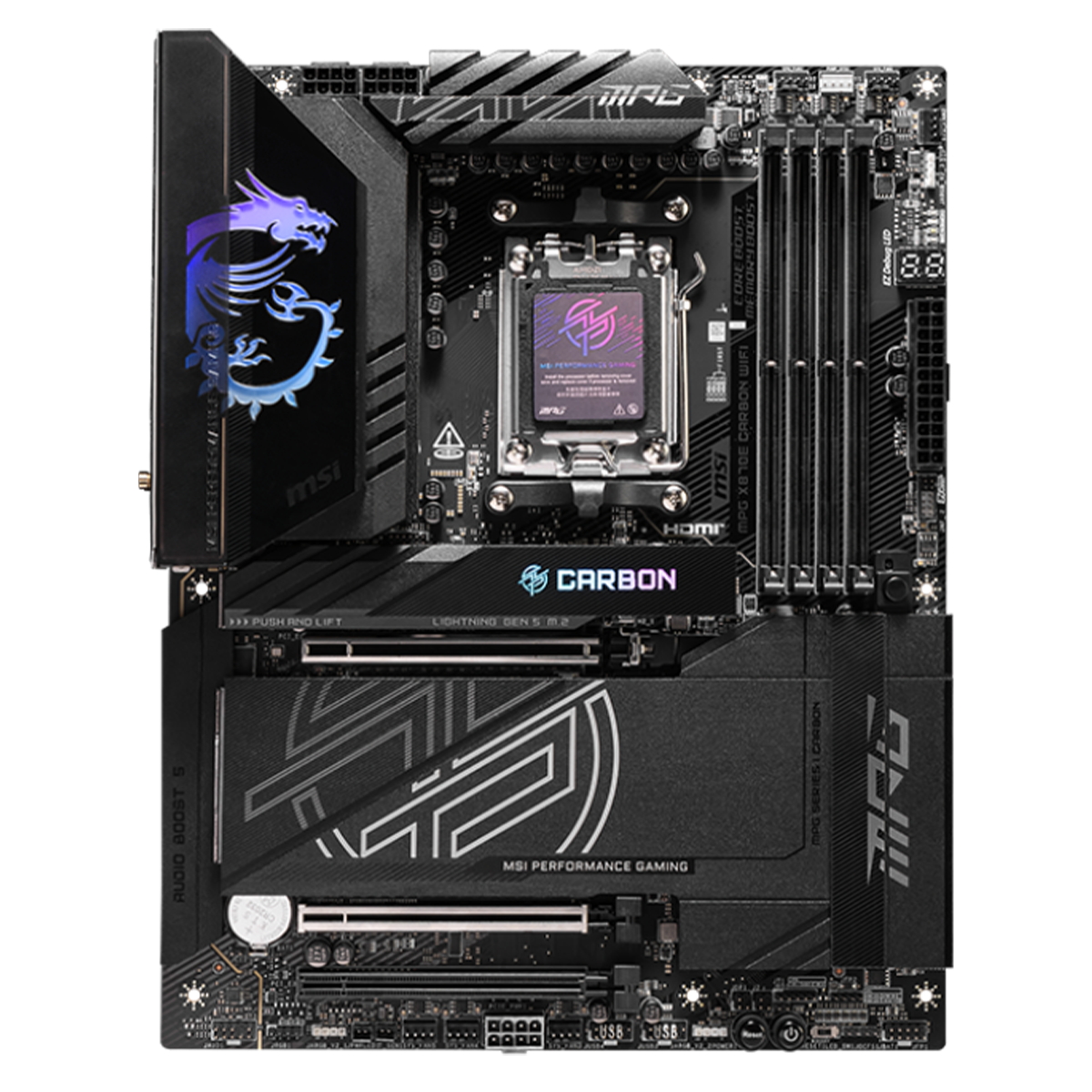

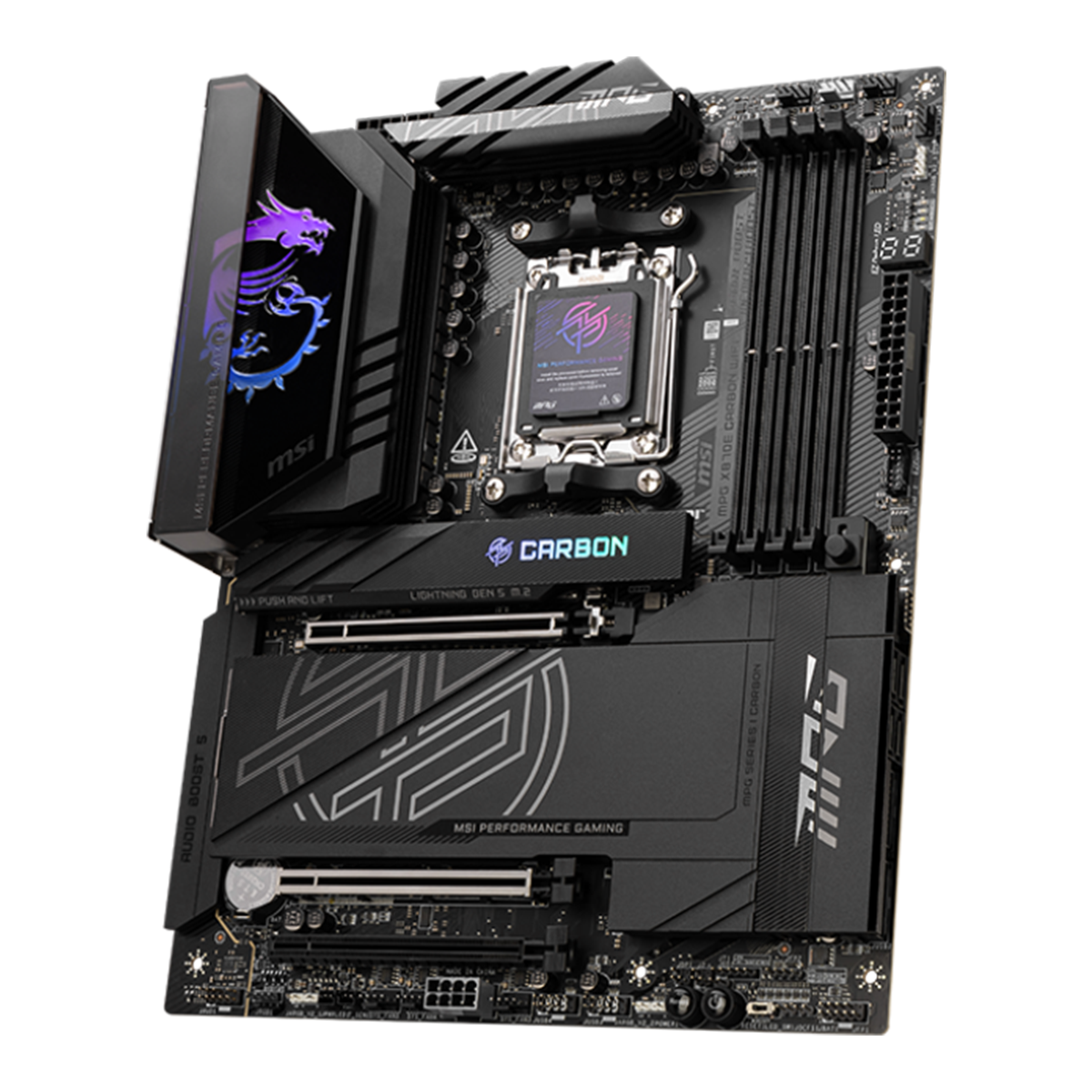

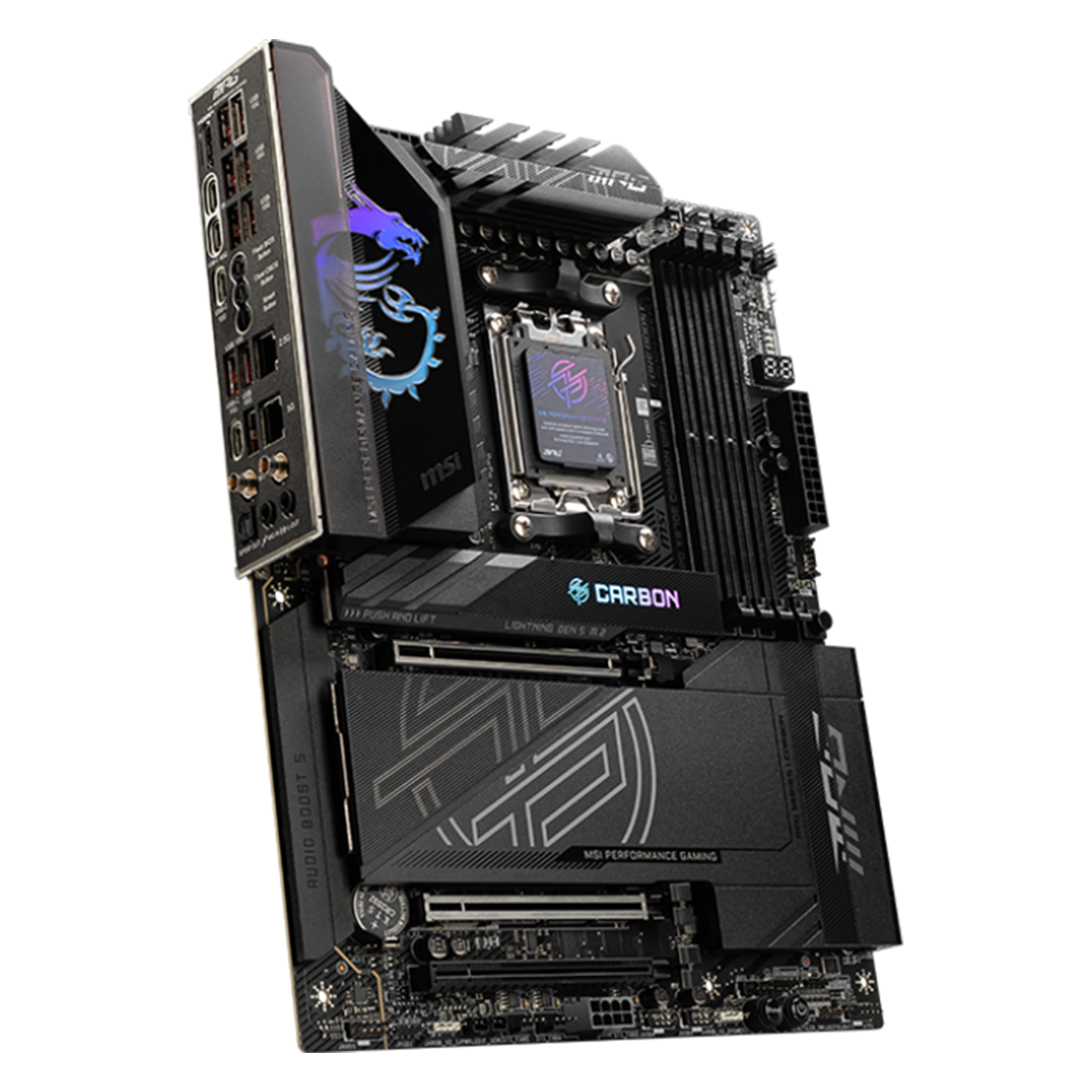

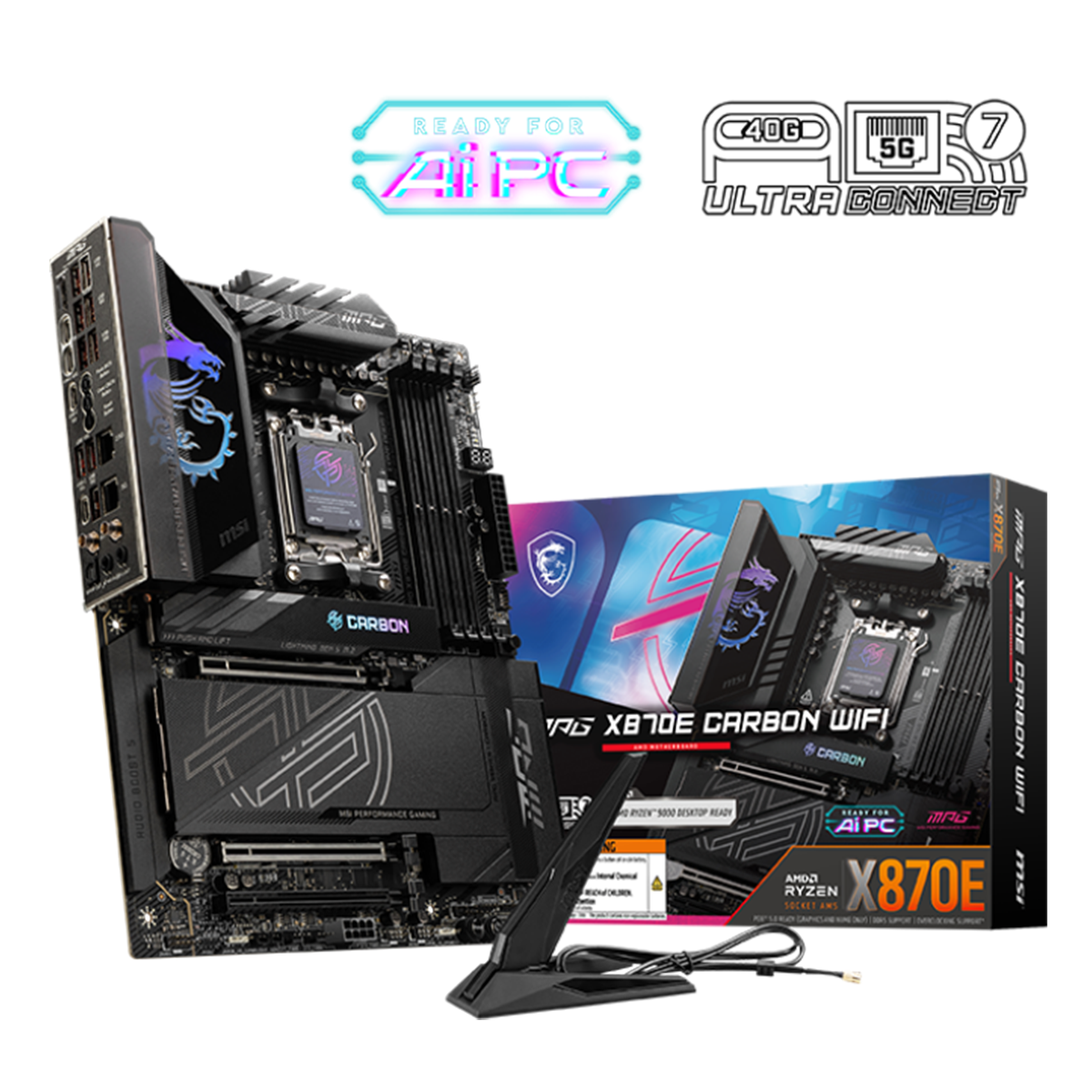

MSI MPG X870E CARBON WIFI Motherboard

MPG X870E CARBON WIFI
MPG X870E CARBON WIFI employs a carbon black color scheme and stylish pattern over Mystic light RGB lighting to show a different identity. It is also powerful inside by featuring 5G LAN, true Wi-Fi 7 solution, USB 40Gbps, Supplemental PCIe Power, and the latest EZ DIY designs, making this motherboard one of the best X870E ATX motherboards for Ryzen 9000 series processors.

MSI's premium MPG (MSI PERFORMANCE GAMING) series is engineered for gamers who demand strong performance and sleek design. Each product showcases cutting-edge aesthetics and vibrant colors, reflecting MPG's commitment to exceptional design. With optimized configurations, MPG creates a visually striking and powerful gaming experience that leads the trends.

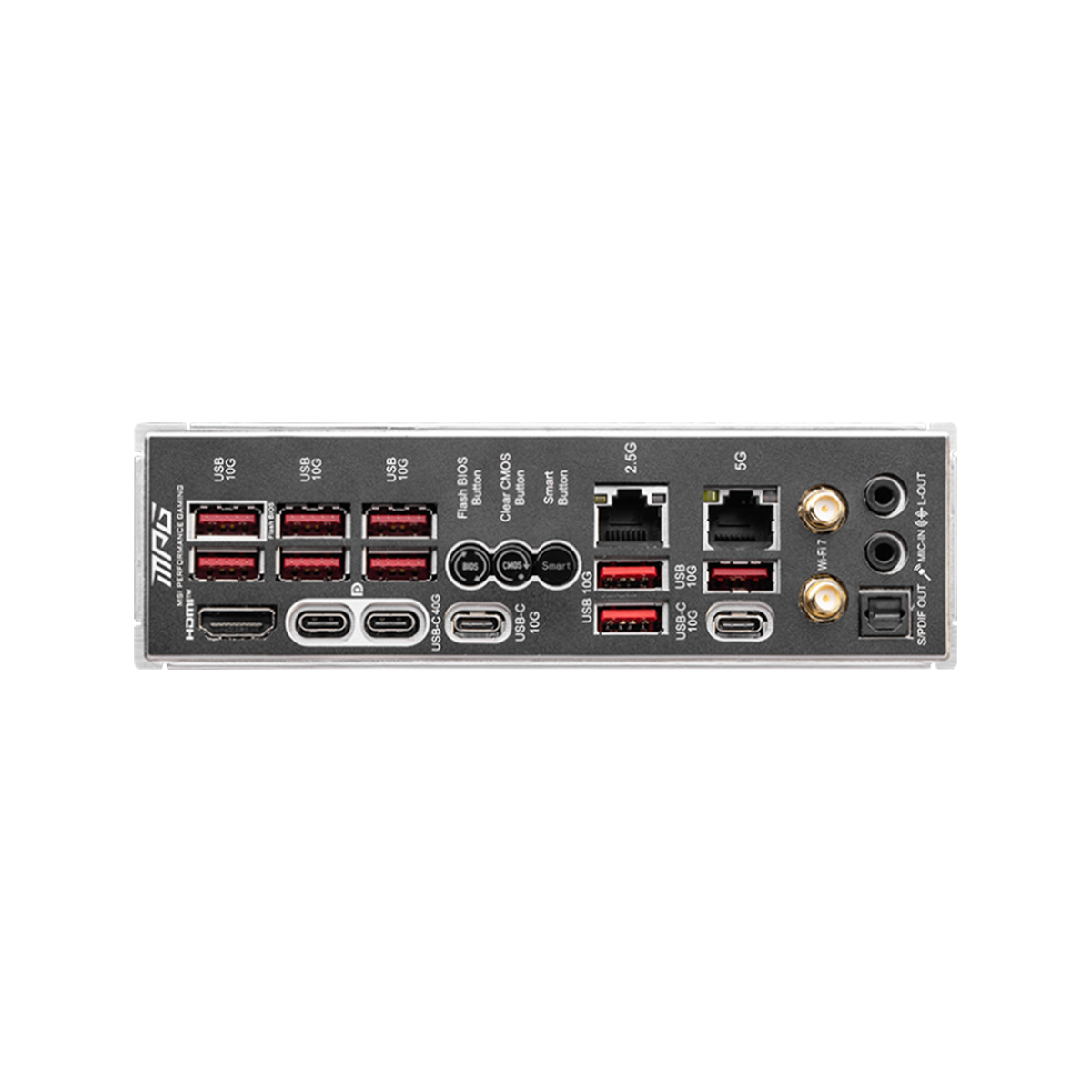

Pre-Installed I/O
The Pre-Installed I/O Shield offers a streamlined and hassle-free installation experience by eliminating the need to manually fit the I/O shield during motherboard setup. With its built-in design, it ensures proper alignment and a secure fit, providing both protection and convenience while enhancing the overall durability of your build.

EZ Conn Header (JAF_2)
MSI's EZ Conn header (JAF_2) allows users to easily connect MSI EZ series fans (7 pin) or MSI liquid cooling (11 pin). If you don't have the above products, we also provide a 1 to 3 EZ Conn-Cable, enabling you to connect ARGB light, system fan, and USB device.

GAME BOOST
One-click CPU overclock automatically optimizes your CPU performance, instantly tuning it to the best possible level.

AI BOOST
An intelligent algorithm boosts NPU performance to get the best possible AI performance when you need additional horsepower. (*Enabled with compatible processors.)

18+2+1 Duet Rail Power System
Unleash and sustain the maximum performance with a flagship VRM design built with a total of 18+2+1 Duet Rail Power System. Combining dual power connectors and 110A Smart Power Stage, MPG X870E CARBON WIFI is ready for the challenge of high-end processors.

Optimized PCB Solution
The PCB design has been optimized for higher bandwidth and faster transfer speeds, which is also beneficial for reliable circuit transmission.

• 8 PCB layers
• NPG-170D Server-grade PCB material
• 2oz Thickened Copper

DDR5 Memory Support with High Performance
A huge step of DDR performance enhancement with the latest DDR5 memory. Combined with a dedicated SMT welding process and MSI Memory Boost technology, MPG X870E CARBON WIFI is ready to deliver world-class memory performance.

Transient Voltage Suppressors (TVS)
Transient Voltage Suppressors (TVS) are safety devices used to protect against excessive voltage. When the voltage abnormally rises, the TVS switches from a high-resistance state to a low-resistance state, diverting the excessive voltage to ground, preventing circuit damage caused by high voltage.

Solid Pin Design
The 4-pin, 8-pin, and 24-pin power connectors of MSI motherboards are all designed with solid pins. The solid pin design allows for more stable transmission of 12V power to the CPU, even when handling high current loads.

Anti-Corrosive Stainless Steel IO Shield
An extra layer of sponge materials along with corrosive-resistant IO Shield helps improve static electricity and reduces electromagnetic radiation noise from the system, while being more durable than traditional IO Shields.

FROZR GUARD

• Extended Heatsink – Enlarges the surface of heat dissipation, ensuring even high-end processors run at full speed.
• Heat-pipe – Connects two MOS heatsinks to enlarge the surface of heat dissipation.
• M.2 Shield Frozr – Keeps M.2 SSDs safe while preventing throttling, allowing them to run faster.
• 7W/mK Thermal Pad – High-quality 7W/mK MOSFET thermal pads and extra choke thermal pads ensure all cores run at high performance.
• Enhanced M.2 Thermal – Double-sided M.2 Shield Frozr and Enlarged heatsink design keep M.2 SSDs safe while preventing throttling.
• Enlarged PCH Heatsink – Designed to reduce dust and noise while maintaining high heat dissipation efficiency.

High-Bandwidth and Low-Latency Network

• THE NEXT GEN WI-FI SOLUTION – WI-FI 7 – Wi-Fi 7 is the latest wireless solution, with multiple improvements to meet the growing demand for wireless devices.
• AI LAN Manager – Automatically classifies and prioritizes latency-sensitive applications for online games, providing a low-latency gaming experience.

Fast and Future-Ready Storage
MSI MPG series motherboards support all the latest storage standards, allowing users to connect any ultra-fast storage device. Start games faster, load levels faster, and have a real advantage over your enemies.

LIGHTNING GEN 5 PCI-E WITH STEEL ARMOR II

• LIGHTNING GEN 5 PCI-E – Doubling over the previous generation, the bandwidth of a x16 interface can reach 128GB/s.
• SMT PCIE 5.0 Slot – Advanced SMT (Surface Mount Technology) PCI-E slot diminishes interference and electrical noise, fully supporting the PCI-E 5.0 signal.
• Steel Armor II – Compared to the previous generation, Steel Armor II's weight endurance has increased by 21%, ensuring excellent signal transmission quality.

Glow Your PC
Splash on some color and vibrant RGB lighting effects using Mystic Light utility from MSI Center, which has millions of colors and fancy LED effects. Enjoy full control and creativity of your PC's lighting with one software.

Audio Boost 5

• HIGH-PERFORMANCE ALC4080 AUDIO PROCESSOR
• HIGH-QUALITY AUDIO CAPACITORS
• HIGH-QUALITY AUDIO JACKS WITH S/PDIF
• DEDICATED HEADPHONE AMPLIFIER
• ISOLATED AUDIO SIGNAL
• DE-POP PROTECTION

MSI’s newly designed CLICK BIOS X offers an aesthetically pleasing and user-friendly experience. The new design ensures that users of all experience levels can quickly access and adjust system configurations with ease.
