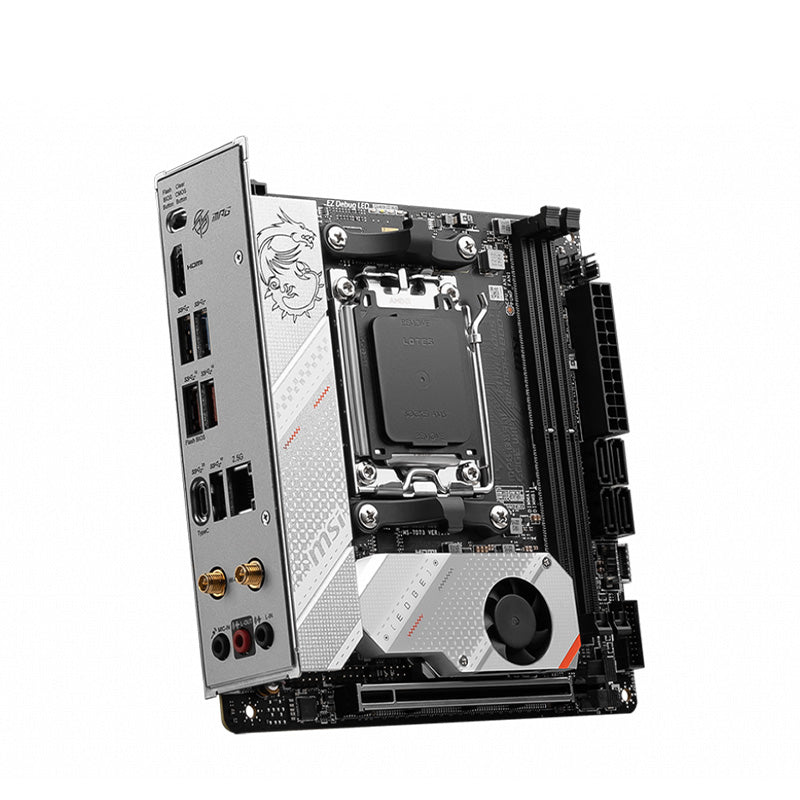

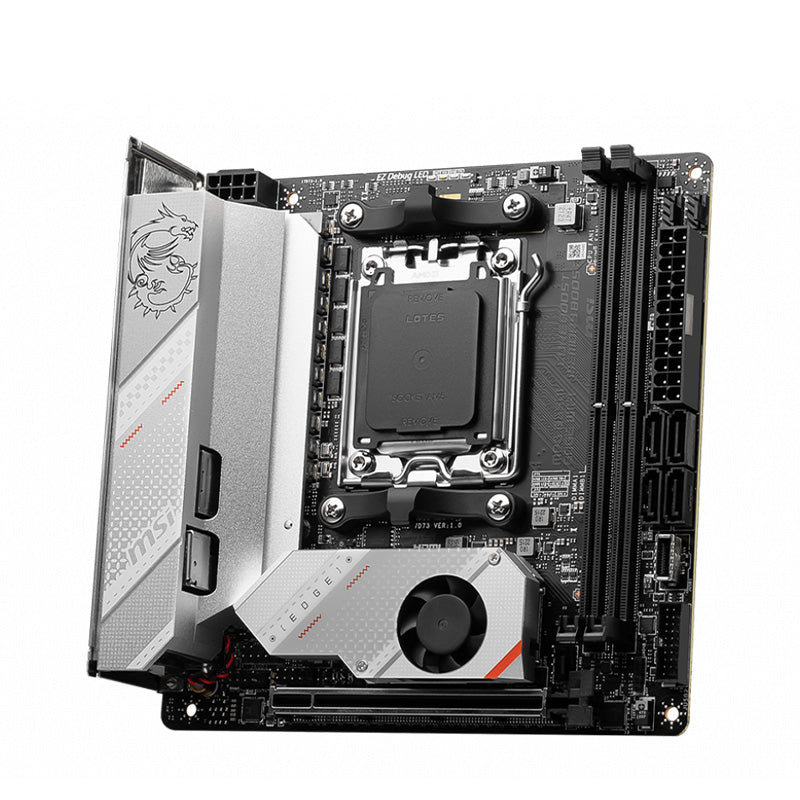

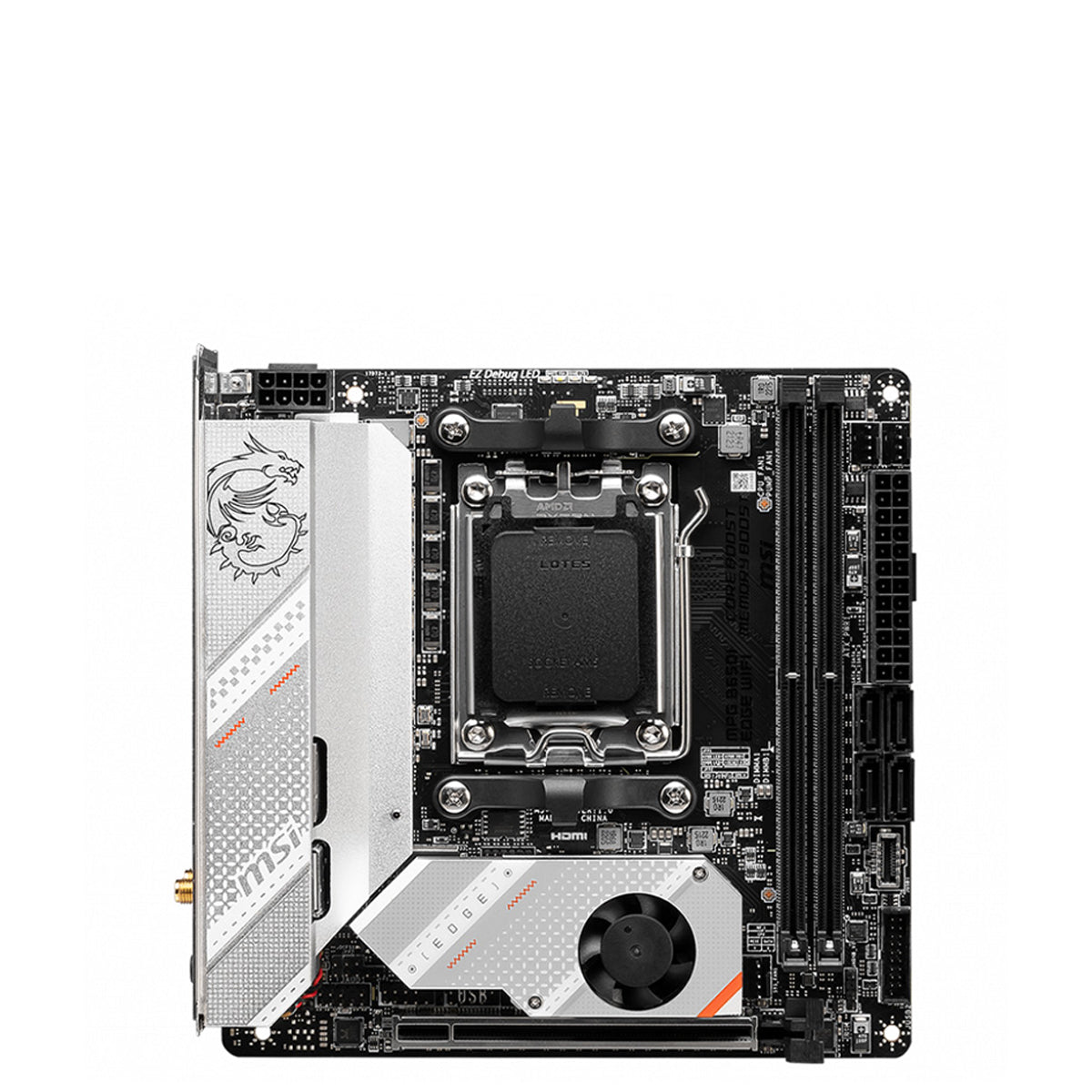

MSI MPG B650I EDGE WIFI Mini-ITX Motherboard
In stock at Computer Lounge
Couldn't load pickup availability
Warranty and Support
Warranty and Support
Warranty: 3 Years Return to Base Warranty
Returns: 14-day hassle-free exchanges and store credits, subject to terms and conditions outlined in our Returns Policy.
Delivery and Shipping
Delivery and Shipping
All deliveries are signature required.
North Island: 1 – 2 working days
South Island: 2 – 3 working days
Please allow an additional 1 – 2 working days for delivery to rural addresses.
Buy Now, Pay Later & Finance Options:
Description
Description
DERIECT 8+2+1 CPU POWER DESIGN
Unleash and sustain the maximum performance with a strong VRM design built with a total of 8+2+1 phases. Combining 80A Smart Power Stage, the MPG B650I EDGE WIFI is ready for high-end AM5 processors.
OPTIMIZED PCB SOLUTION
The PCB design has been optimized for higher bandwidth and faster transfer speeds, which is also beneficial for reliable circuit transmission.
PERFORMANCE SWITCH
Performance Switch combines the benefits of AMD default PBO(Precision Boost Overdrive) and MSI’s own OC settings, provides higher CPU performance in both status of single-core and multi-core. This is for users who dare for the maximum performance.
OPTIMIZED FOR WATER COOLING
Designed to support the most popular All-In-One & customized water cooling solutions on the market. A dedicated water pump PIN header supports up to 3 amp, giving you full control of the water pump speed. A clearly marked ‘keep-out-zone’ allows for easy and safe installation and a perfect fit.
LATEST DDR5 MEMORY WITH SMT SLOT
A huge step of DDR performance enhancement with the latest DDR5 memory. Combines with dedicated SMT welding process and MSI Memory Boost technology, MPG B650I EDGE WIFI is ready to deliver the world class memory performance.
EASY OVERCLOCKING WITH EXPO PROFILE
MSI conducts thorough memory testing with the most popular memory brands under extreme conditions to ensure your system runs stable no matter what. Easy to enable EXPO profile with auto power settings to get the best memory speed and stability.
FAST AND FUTURE-READY STORAGE
MSI MPG series motherboards support all the latest storage standards, which allows users to connect any ultra-fast storage device. Start games faster, load levels faster and have a real advantage over your enemies.
FLASH BIOS BUTTON
Run into trouble when updating your BIOS or somehow corrupted it? Don’t worry, MSI motherboards offer multiple options to successfully boot your system again
DOUBLE BANDWIDTH WITH LIGHTNING USB 3.2 GEN 2X2 20G
Using USB 3.2 devices has never been faster! MPG B650I EDGE WIFI offer a wide variety of options to connect and boost your USB devices, offering never before seen USB speeds up to 20Gb/s when connecting the Rear USB Type-C.
USB FRONT TYPE-C
MSI gaming motherboards support USB Front Type-C that allows gamers to connect with the latest USB devices. Built up a system with MSI PC case to have the most convenient experience.
LIGHTNING GEN 4 PCI-E WITH STEEL ARMOR
MSI lightning Gen 4 PCI-E represents the bandwidth of a x16 interface to 64GB/s that has doubled compared to its previous generation.
CLICK BIOS 5
Get more from a loaded BIOS designed for ease of use. Fine-tune the motherboard for gaming performance, efficiency, or overclocking world records!
Extended Heatsink
Extended Heatsink enlarges the surface of heat dissipation, ensuring even high- end processors to run in full speed.
7W/mK Thermal Pad
High quality 7W/mK MOSFET thermal pads and extra choke thermal pads ensure all cores running in high performance.
M.2 Shield Frozr
With double ball bearings fan to keeps M.2 SSDs safe while preventing throttling, making them run faster.
Pump Fan Support
Control watercooling pump speeds for best flow and noise control.

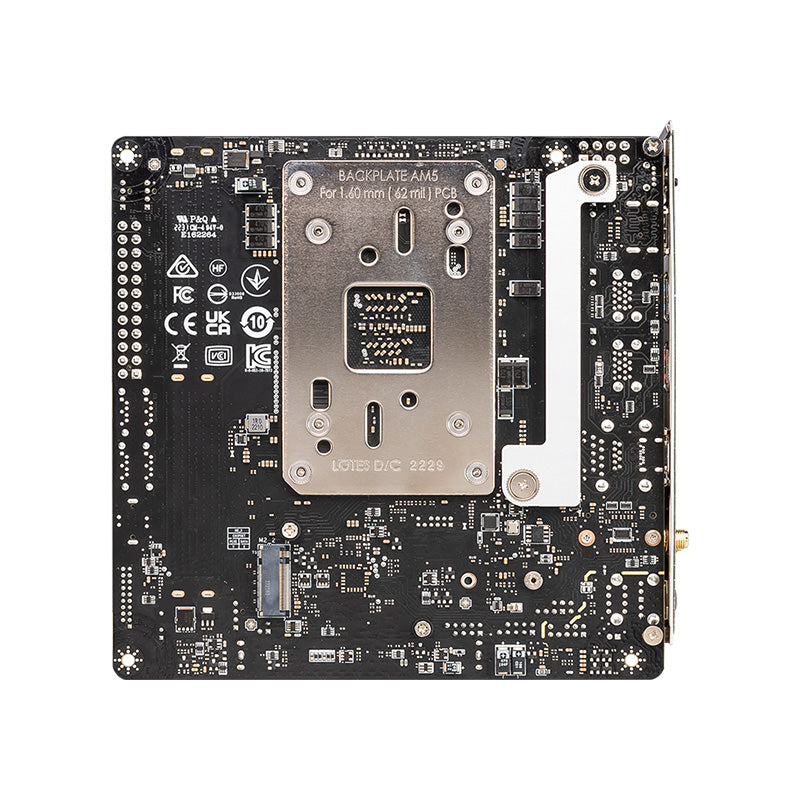

MOSFET Baseplate
Baseplate on the back to keep MOSFET in lower temparature, ensuring better heat dissipation effect.
10-Layer Server Grade PCB
10-layer PCB with 2oz thickened copper provides higher performance and long-lasting system stability without any compromise.
Specifications
Specifications
Chipset | AMD B650 |
CPU | Supports AMD Ryzen™ 9000/ 8000/ 7000 Series Desktop Processors Socket AM5 |
Memory | 2x DDR5, Maximum Memory Capacity 128GB Memory Support DDR5 7200+(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200(OC)/ 5000(OC)/ 4800(JEDEC) MHz Max. overclocking frequency: • 1DPC 1R Max speed up to 7200+ MHz • 1DPC 2R Max speed up to 6400+ MHz Supports Dual-Channel mode Supports non-ECC, un-buffered memory Supports AMD EXPO™ |
Onboard Graphics | 1x HDMI™ Support HDMI™ 2.1 FRL, maximum resolution of 4K 120Hz* *Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed. |
Slot | 1x PCI-E x16 slot • Supports x16 (For Ryzen™ 9000 and 7000 Series processors) • Supports x8 (For Ryzen™ 7 8700G and Ryzen™ 5 8600G processors) • Supports x4 (For Ryzen™ 5 8500G processor) PCI_E1 Gen PCIe 4.0 supports up to x16 (From CPU) |
Audio | Realtek® ALC4080 Codec 7.1-Channel USB High Performance Audio Supports up to 32-Bit/384 kHz playback on front panel |
Storage | 2x M.2 M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260 devices M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices 4x SATA 6G |
RAID | Supports RAID 0 , RAID 1 and RAID 10 for SATA storage devices Supports RAID 0 and RAID 1 for M.2 NVMe storage devices |
USB | 2x USB 2.0 (Front) 2x USB 5Gbps Type A (Rear) 2x USB 5Gbps Type A (Front) 3x USB 10Gbps Type A (Rear) 1x USB 10Gbps Type C (Front) 1x USB 20Gbps Type C (Rear) |
LAN | Realtek® RTL8125BG 2.5Gbps LAN |
WIRELESS LAN & BLUETOOTH | AMD Wi-Fi 6E The Wireless module is pre-installed in the M.2 (Key-E) slot Supports MU-MIMO TX/RX Supports 20MHz, 40MHz, 80MHz,160MHz bandwidth in 2.4GHz/ 5GHz or 6GHz* bands Supports 802.11 a/ b/ g/ n/ ac/ ax Supports Bluetooth® 5.3** * Wi-Fi 6E 6GHz may depend on every country’s regulations and will be ready in Windows 11. ** Bluetooth 5.3 will be ready in Windows 10 build 21H1 and Windows 11. |
Internal IO | 1x Power Connector(ATX_PWR) 1x Power Connector(CPU_PWR) 1x CPU Fan 1x Pump Fan 1x System Fan 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 1x Addressable V2 RGB LED connector (JARGB_V2) 1x TPM pin header(Support TPM 2.0) 2x USB 2.0 ports 2x USB 5Gbps Type A ports 1x USB 10Gbps Type C ports |
LED FEATURE | 4x EZ Debug LED |

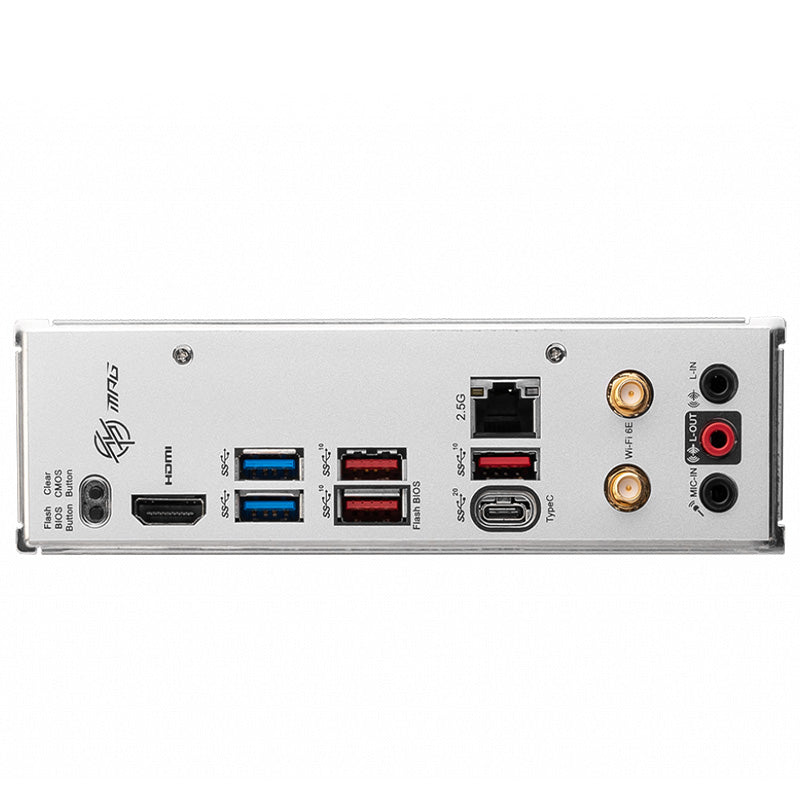

BACK PANEL PORTS | Clear CMOS Button USB 5Gbps (Type-A) 2.5G LAN Wireless / Bluetooth Audio Connectors Flash BIOS Button HDMI™ USB 10Gbps (Type-A) USB 10Gbps (Type-A) USB 20Gbps (Type-C) |
OPERATING SYSTEM | Support for Windows® 11 64-bit, Windows® 10 64-bit |
BOX CONTENT | PCB Info Mini-ITX 170mmx170mm |
