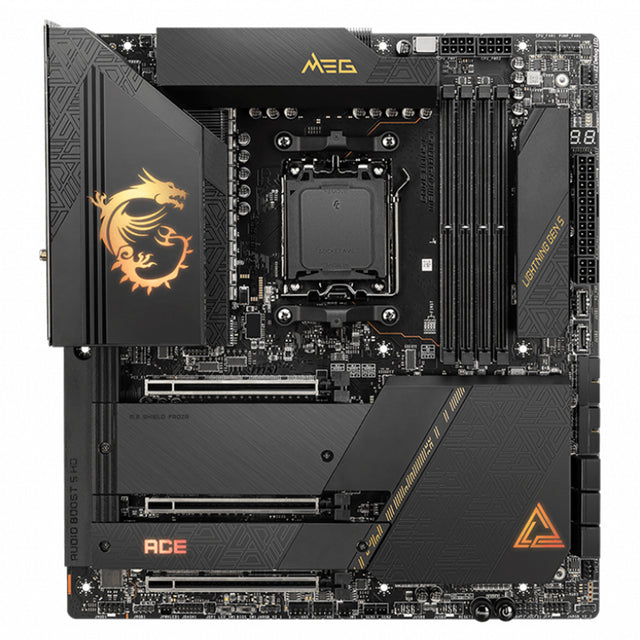

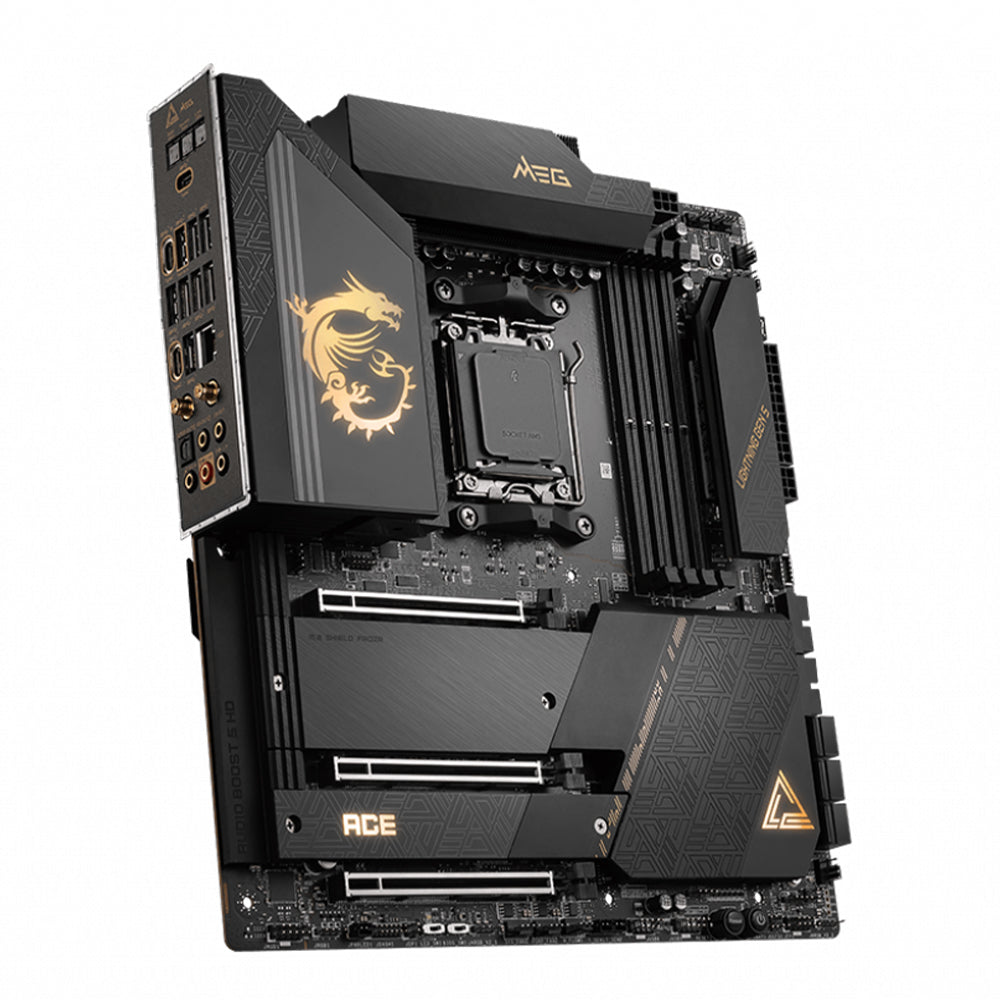

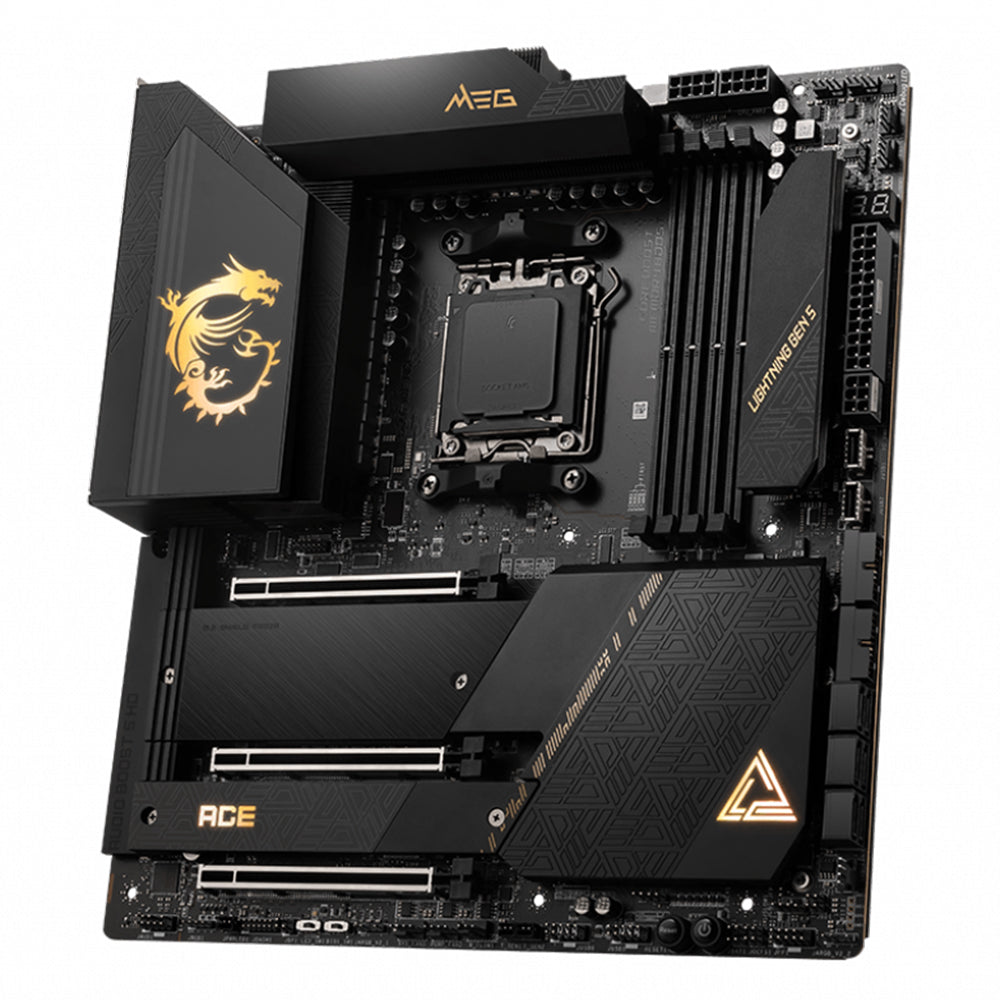

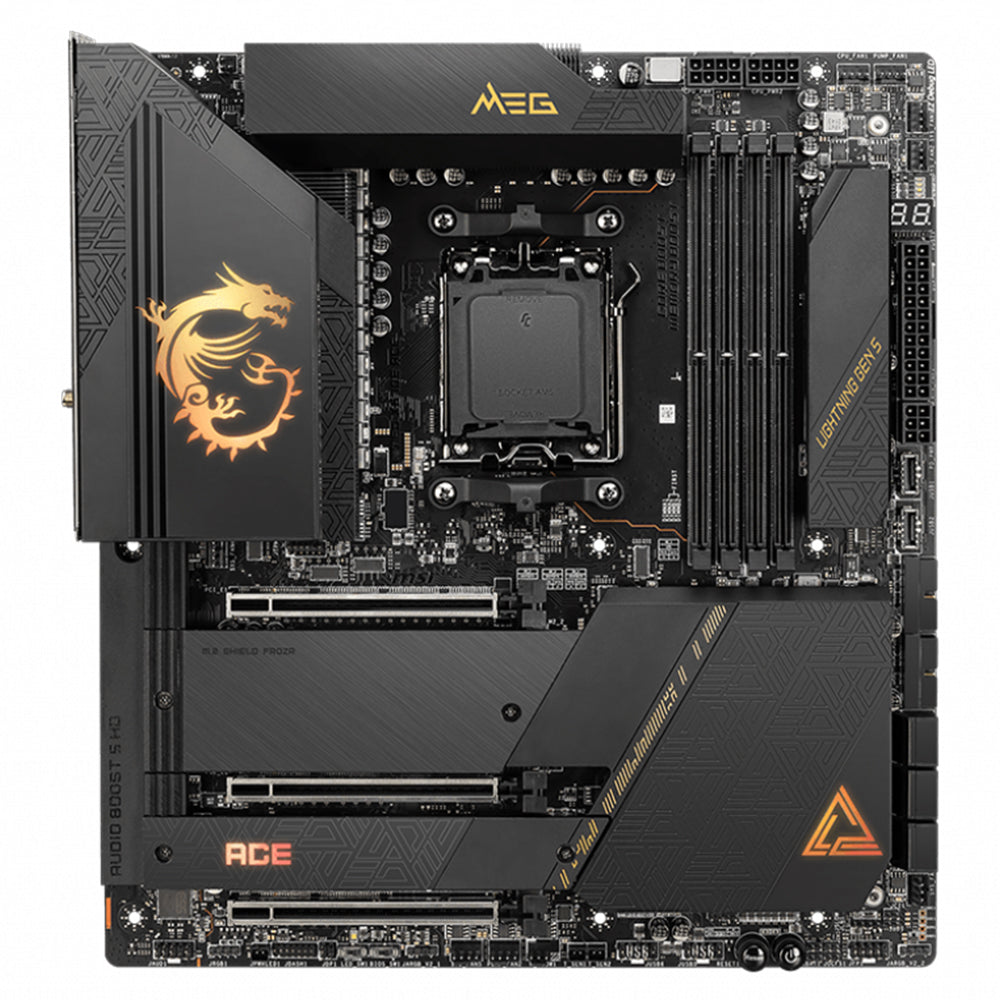

MSI MEG X670E ACE Gaming Motherboard

22+2+1 DUET RAIL POWER SYSTEM

Unleash and sustain the maximum performance with a flagship VRM design built with a total of 22+2+1 Duet Rail Power System(DRPS). Combining dual power connectors and 90A Power Stage, the MEG X670E ACE is ready for breaking the world record.

OPTIMIZED PCB SOLUTION

The PCB design has been optimized for higher bandwidth and faster transfer speeds, which is also beneficial for reliable circuit transmission.

Smart Button

One button with multiple hardware control. You can set up the different functions in the BIOS. Reset Computer, Safe Boot, Turbo Fan and EZ LED control with just one click.

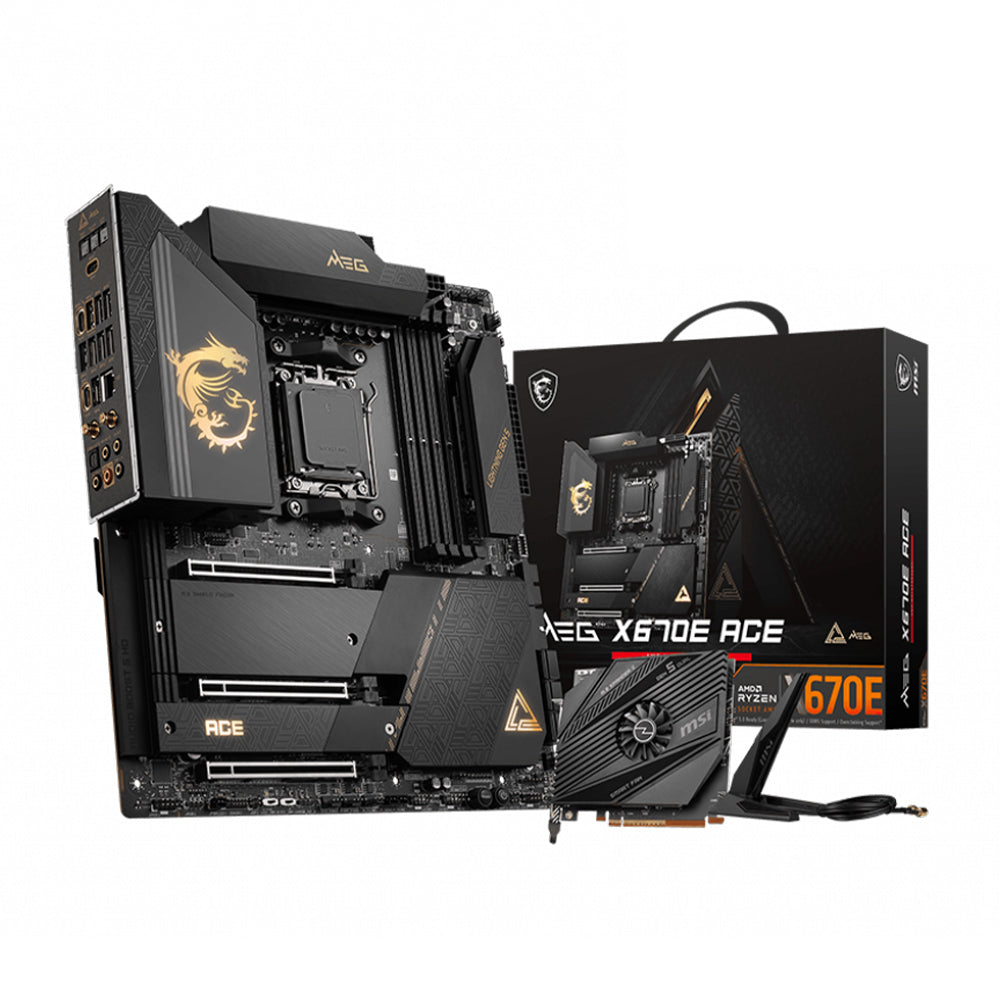

M.2 XPANDER-Z GEN5 DUAL

This PCI-Express card offers two extra M.2 slots with smart fan cooling solution to increase your storage capacity at maximum speed, features auto detect function for the M.2 access and the M.2 temperature for easy checking.

FAST AND FUTURE-READY STORAGE

MSI MEG series motherboards support all the latest storage standards, which allows users to connect any ultra-fast storage device. Start games faster, load levels faster and have a real advantage over your enemies.

LIGHTNING GEN 5 PCI-E

Doubling over the previous generation, the bandwidth of a x16 interface can reach 128GB/s.

SMT PCIE 5.0 SLOT

The advanced SMT(Surface Mount Technology) PCIE slot diminish interference and electrical noise, fully support the PCI-E 5.0 signal.

HEAVY SOLDERED CONNECTIONS

Secure to the motherboard with extra solder points and support the weight of heavy graphics cards.

LIGHTNING USB 3.2 GEN 2X2 20G TYPE-C

Featuring the Lighting USB 3.2 Gen2x2 controller, offering USB speeds up to 20Gb/s transmission speed, 4X faster than USB 3.2 Gen 1 when connecting the Rear USB Type-C.

FRONT USB 3.2 GEN 2X2 20G TYPE-C

Front USB devices has never been faster! MEG X670E series motherboards offer a wide variety of options to connect and boost your USB devices, offering never before seen USB speeds up to 20Gb/s when connecting the front USB Type-C.

EXTRA PD POWER CONNECTOR

The extra 6-pin PD power connector provides more power to make the normal front USB type-C port to 60W PD port.

LATEST DDR5 MEMORY WITH SMT SLOT

A huge step of DDR performance enhancement with the latest DDR5 memory. Combines with dedicated SMT welding process and MSI Memory Boost technology, MEG X670E ACE is ready to deliver the world class memory performance.

10G SUPER LAN WITH WIFI 6E

• 10G Super LAN

• Wi-Fi 6E
• Bluetooth 5.2
• Exclusive magnetic antenna

GLOW YOUR PC

Splash on some color and vibrant RGB lighting effects using MSI Mystic Light with 16.8 million colors and fancy LED effects. MSI Mystic Light provides you complete control of RGB lighting of your PC in one software.

HIGH QUALITY AUDIO CAPACITORS

A high fidelity sound experience with exceptional acoustics and realism for studio level headphones is ensured.

Stacked Fin Array Design

Stacked fin array design enlarges up to 50% heat dissipation, provides the maximum surface of heat dissipation.

Direct Touch Heat-pipe

Connecting two MOS heatsinks to enlarge the surface of heat dissipation.

Double-sided M.2 Shield Frozr

Double-sided M.2 thermal solution keep M.2 SSDs safe while preventing throttling, making them run cooler and faster.

MOSFET Baseplate

These backplate cool down the MOSFET temperature with solid metal design.

7W/mK Thermal Pad

High quality 7W/mK MOSFET thermal pads and extra choke thermal pads ensure all cores running in high performance.

Enlarged PCH Heatsink

MSI replaced the PCH fan with enlarged heatsink design to reduce dust and noise as well as maintain high heat dissipation efficiency.
