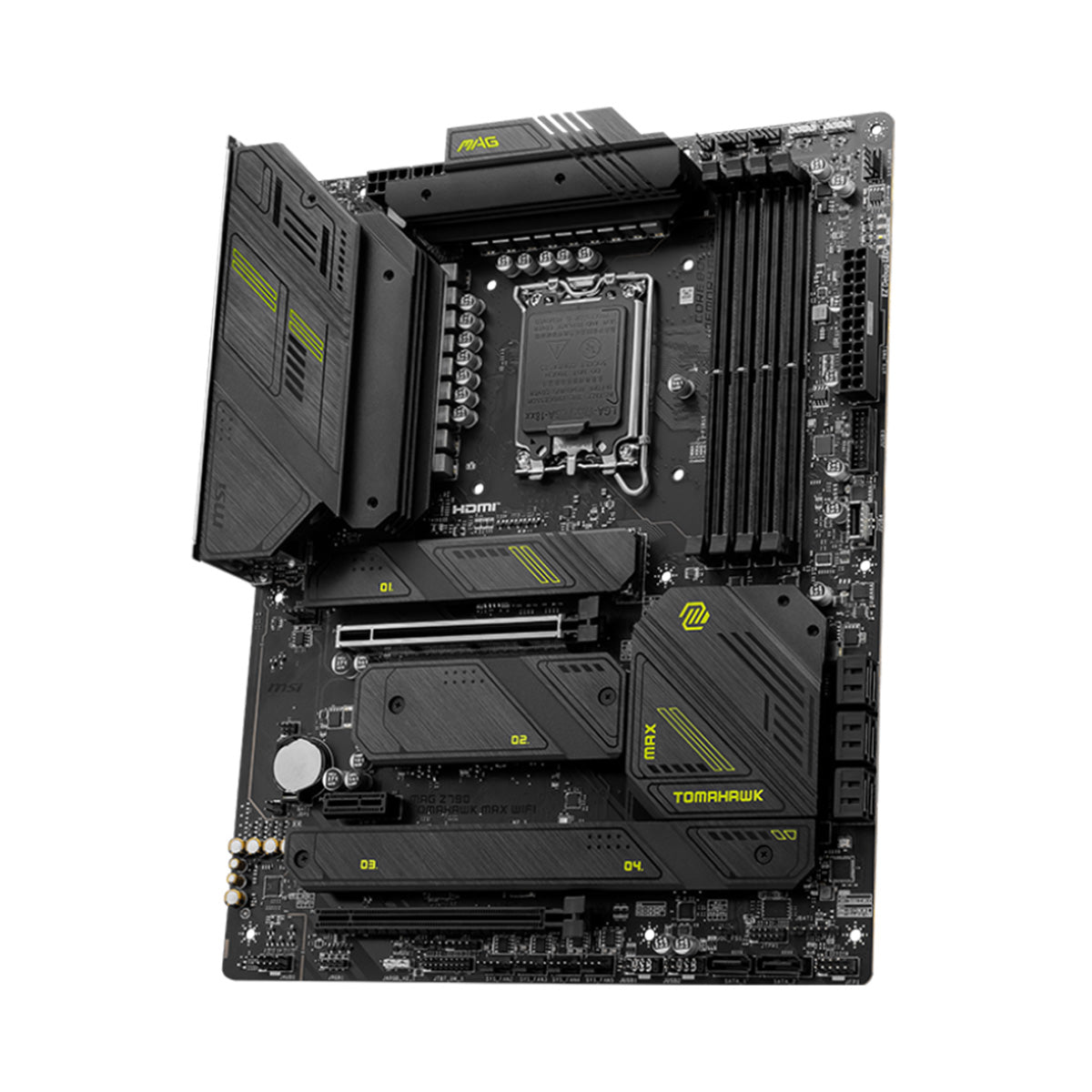

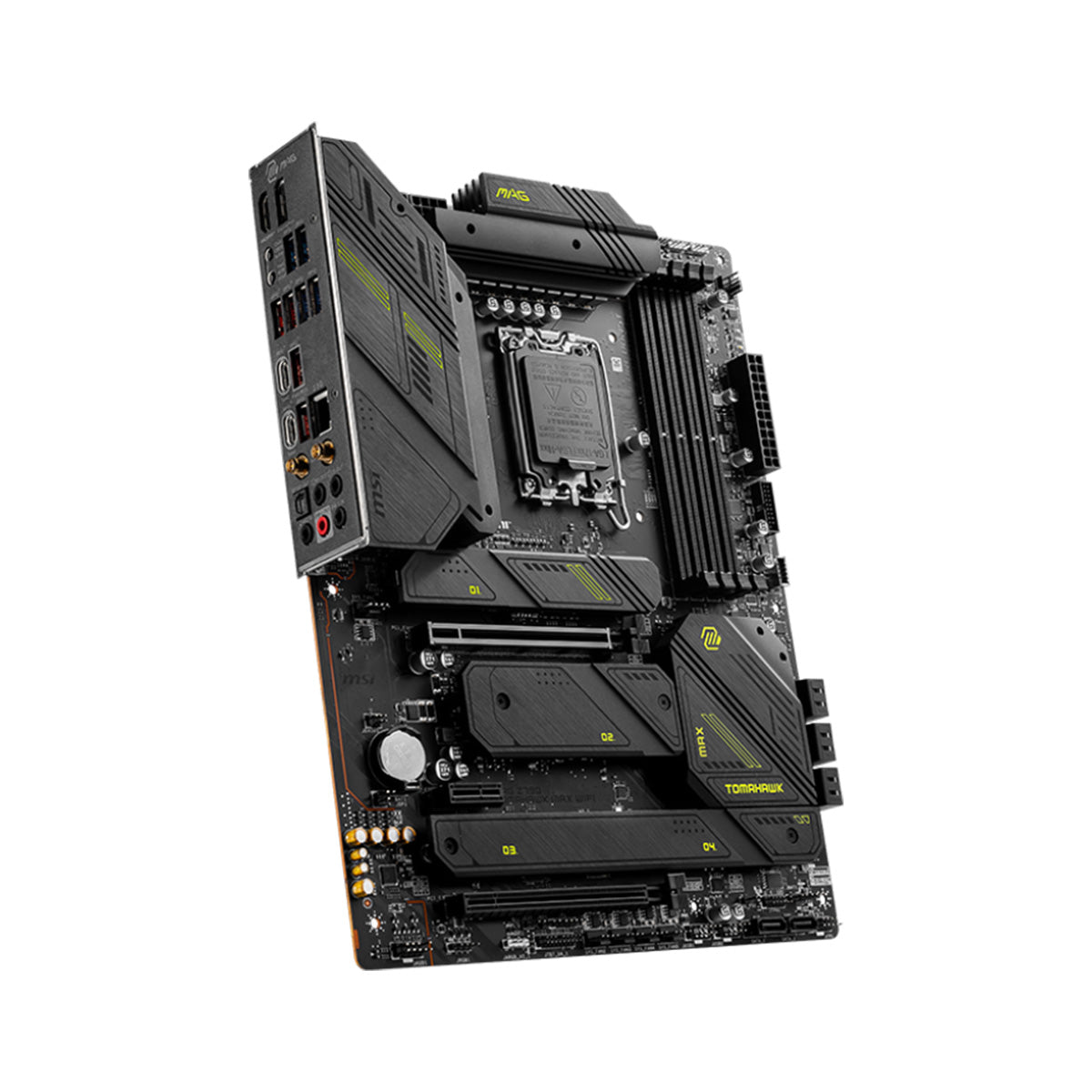

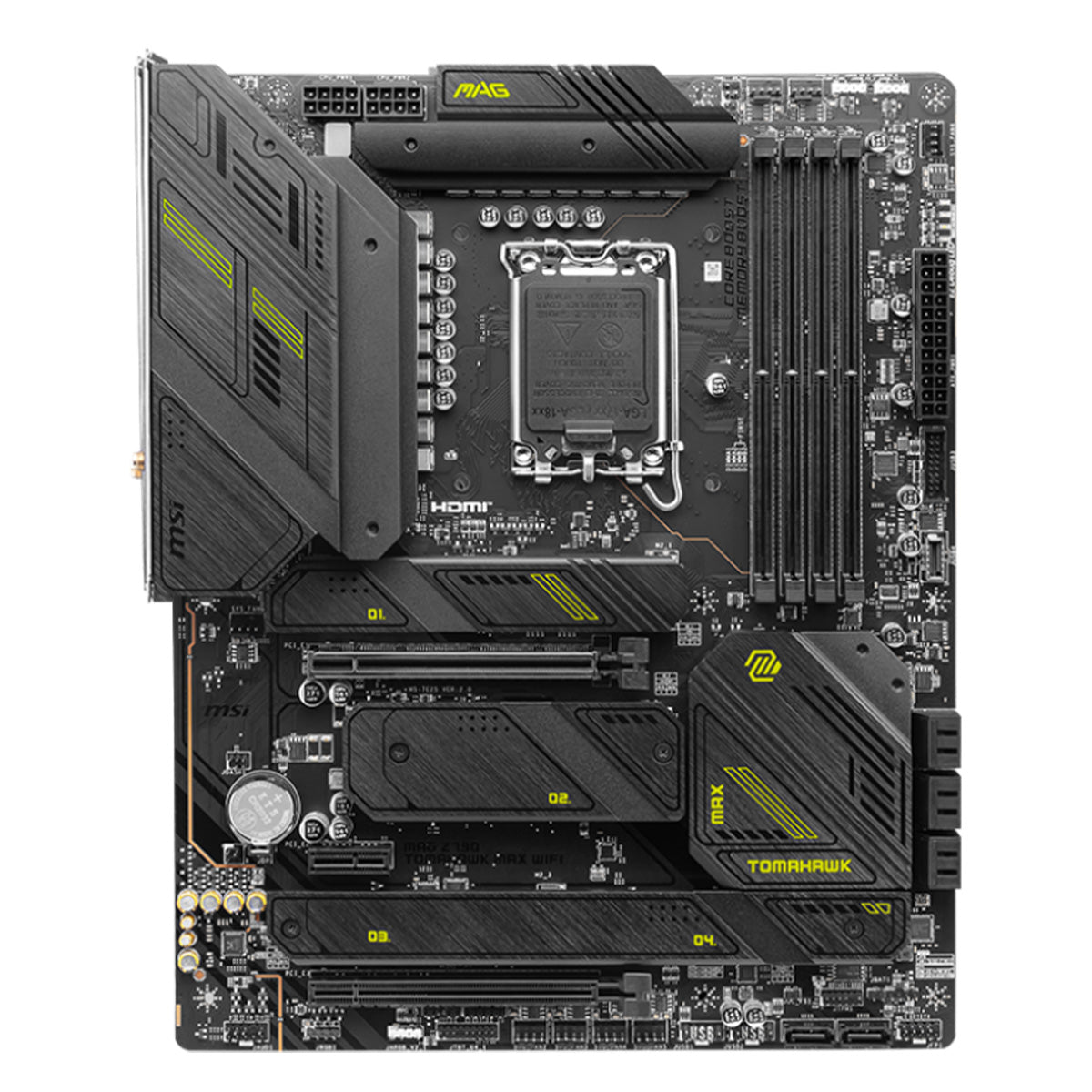

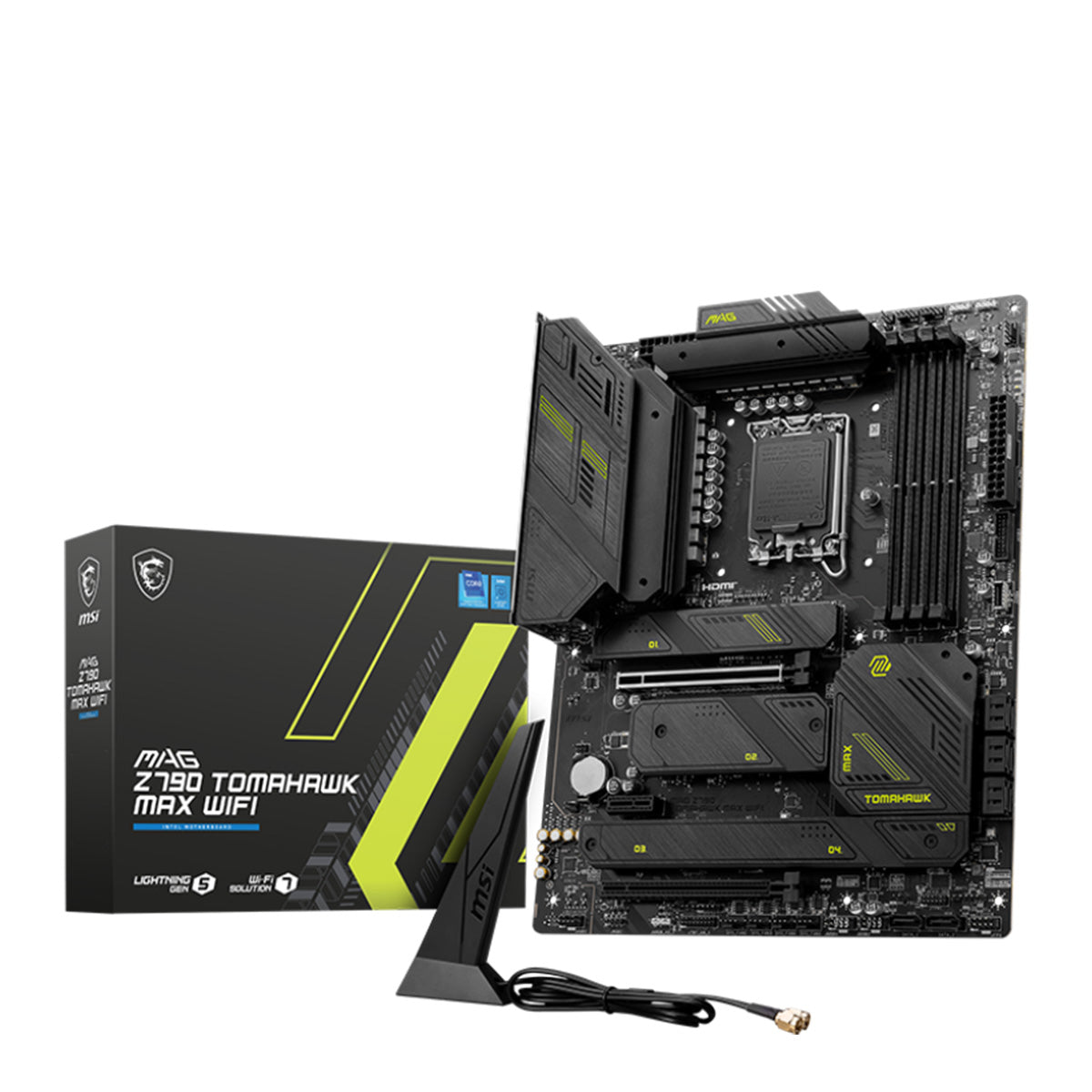

MSI MAG Z790 TOMAHAWK WIFI MAX DDR5 Gaming Motherboard

MAG Z790 TOMAHAWK MAX WIFI

MAG Z790 TOMAHAWK MAX WIFI is designed for gamers, providing a stable, solid, and durable foundation for their PC builds. Coming up with Wi-Fi 7 solution, 2.5G LAN, DDR5, PCIe 5.0 solutions, and exclusive M.2 Shield Frozr, it's ready for Intel® next Gen and 13th Gen Core processors.

LIGHTNING GEN 5 PCI-E WITH STEEL ARMOR

Doubling over the previous generation, the bandwidth of a x16 interface can reach 128GB/s.

SMT PCIE 5.0 SLOT

The advanced SMT(Surface Mount Technology) PCIE slot diminish interference and electrical noise, fully support the PCI-E 5.0 signal.

REINFORCED,HEAVY SOLDERED CONNECTIONS

Secure to the motherboard with extra solder points and support the weight of heavy graphics cards.

FAST AND FUTURE-READY STORAGE

MSI MAG series motherboards support all the latest storage standards, which allows users to connect any ultra-fast storage device. Start games faster, load levels faster and have a real advantage over your enemies.

DOUBLE BANDWIDTH WITH LIGHTNING USB 3.2 GEN 2x2 20G

Using USB 3.2 devices has never been faster! MAG Z790 series motherboards offer a wide variety of options to connect and boost your USB devices, offering never before seen USB speeds up to 20Gb/s when connecting the Rear USB Type-C.

LATEST DDR5 MEMORY WITH SMT SLOT

A huge step of DDR performance enhancement with the latest DDR5 memory. Combines with dedicated SMT welding process and MSI Memory Boost technology, MAG Z790 TOMAHAWK MAX WIFI is ready to deliver the world class memory performance.

EASY OVERCLOCKING WITH XMP PROFILE

The XMP (Extreme Memory Profiles) in MSI BIOS are tested and certified by MSI OC LAB. It is easy to enable with auto power settings to get the best memory speed and stability.

MSI CENTER

MSI brand new MSI Center unifies a suite of MSI software utilities into a single centralized application. Take control of advanced motherboards features and unleash endless possibilities.

COOLING OVERVIEW

• Optimized For Water Cooling

  Designed to support the most popular All-In-One & customized water cooling solutions on the market. A dedicated water pump PIN header supports up to 3 amp, giving you full control of the water pump speed. A clearly marked ‘keep-out-zone’ allows for easy and safe installation and a perfect fit.

• Extended Heatsink

  Extended Heatsink enlarges the surface of heat dissipation, ensuring even high-end processors to run in full speed.

• M.2 Shield Frozr

  Keeps M.2 SSDs safe while preventing throttling, making them run faster.

• Heavy Plated VRM Heatsink

  The VRM heatsink covers the upper MOS and helps dissipate the heat.

• 7W/mK Thermal Pad &Additional Choke Pad

  High quality 7W/mK MOSFET thermal pads and extra choke thermal pads ensure all cores running in high performcance.

CONTROL IN ONE CLICK

MSI motherboards let you manage speeds and temperatures for all your system and CPU fans in BIOS and software with a simplified graphical interface. You can also set up to 4 temperature targets, which will adjust the fan speeds automatically.

DIY 2.0 – INTEGRATING WITH THE SYSTEM ENVIRONMENT

Connect and synchronize with MSI coolers and cases with strategically positioned pin-header locations including a dedicated pump-fan header.

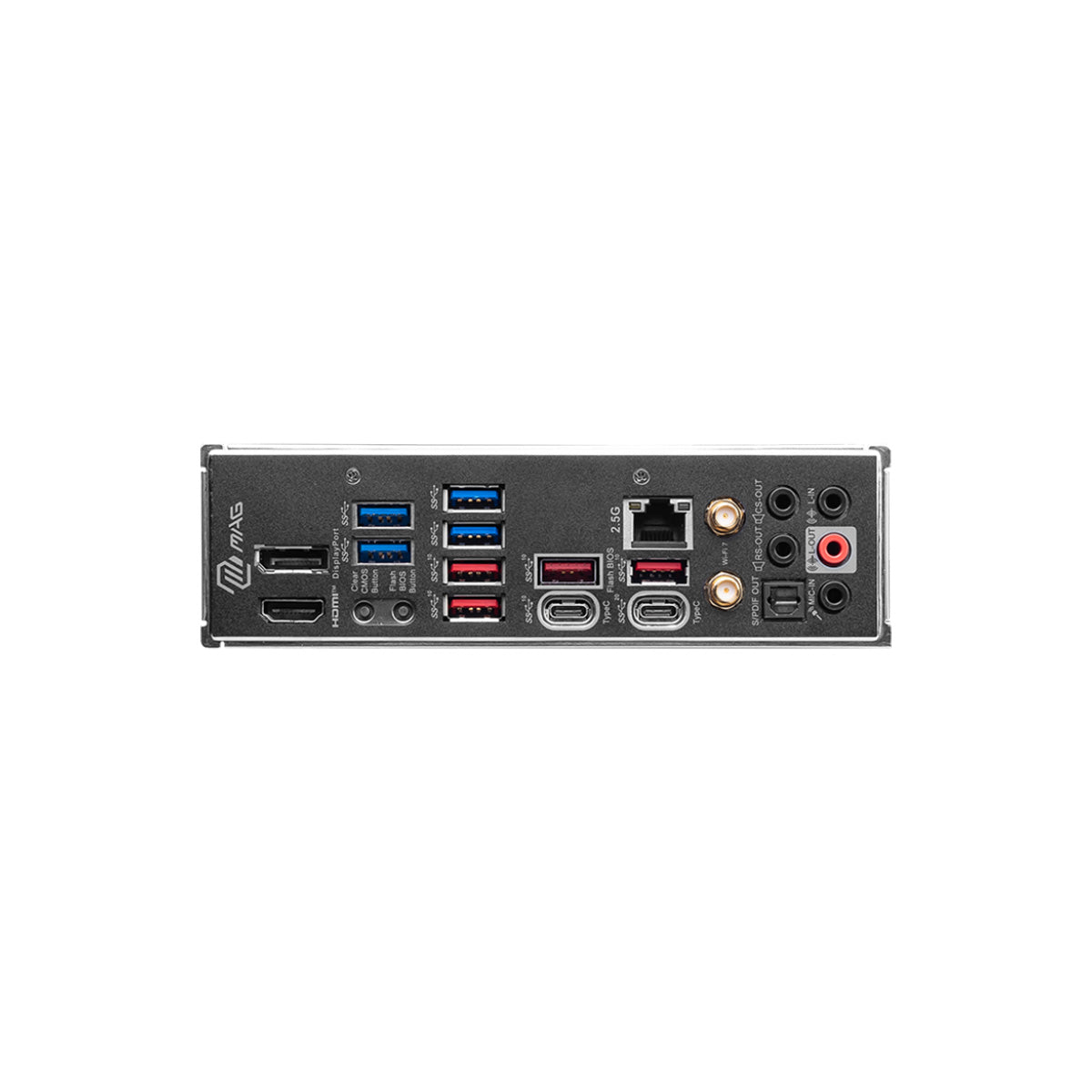

ANTI-CORROSIVE STAINLESS STEEL IO SHIELD

An extra layer of sponge materials along with corrosive resistance IO Shield to help improve static electricity and reduce electromagnetic radiation noise from the system as well as much more durable compare to traditional IO Shields.

16 PHASES MIRRORED POWER ARRANGEMENT WITH 90A SPS

Unleash and sustain the maximum performance with a premium VRM design built with a total of 16 Phases Mirrored Power Arrangement with 90A SPS. Combining dual power connectors and Power Stage, MAG Z790 MAX Series are ready for the challenge of high-end processors.

OPTIMIZED PCB SOLUTION

The PCB design has been optimized for higher bandwidth and faster transfer speeds, which is also beneficial for reliable circuit transmission.

SOLID PIN DESIGN

The 4-pin, 8-pin, and 24-pin power connectors of MSI motherboards are all designed with solid pins. The solid pin design allows for a more stable transmission of 12V power to the CPU, even when handling high current loads.

THE GROUNDING STRUCTURE OF POWER PHASES

The grounding structure of power phases is the MSI's exclusive design. This patented design enables to suppress the electromagnetic interference (EMI) generated by the power phases and helps to efficiently conduct heat to the copper plane with grounding properties.

THE ISOLATED ANALOGY STRUCTURE FOR AUDIO CONNECTORS

To provide clear voice, MSI develops a unique structure – Isolated Analogy Structure. The external metal framework of the audio connectors is separated from the internal layout, which ensures the sound quality crisp.

EXTEND YOUR RGB EXPERIENCE WITH EASE

Add more color if you want! Mystic Light Extension pin header provides an intuitive way to control additional RGB strips and other RGB peripherals added to a system, without needing a separate RGB controller.

AUDIO BOOST 5

• HIGH PERFORMANCE ALC4080 AUDIO PROCESSOR

• HIGH QUALITY AUDIO CAPACITORS

• HIGH QUALITY AUDIO JACKS WITH S/PDIF

• ISOLATED AUDIO SIGNAL

• DE-POP PROTECTION
