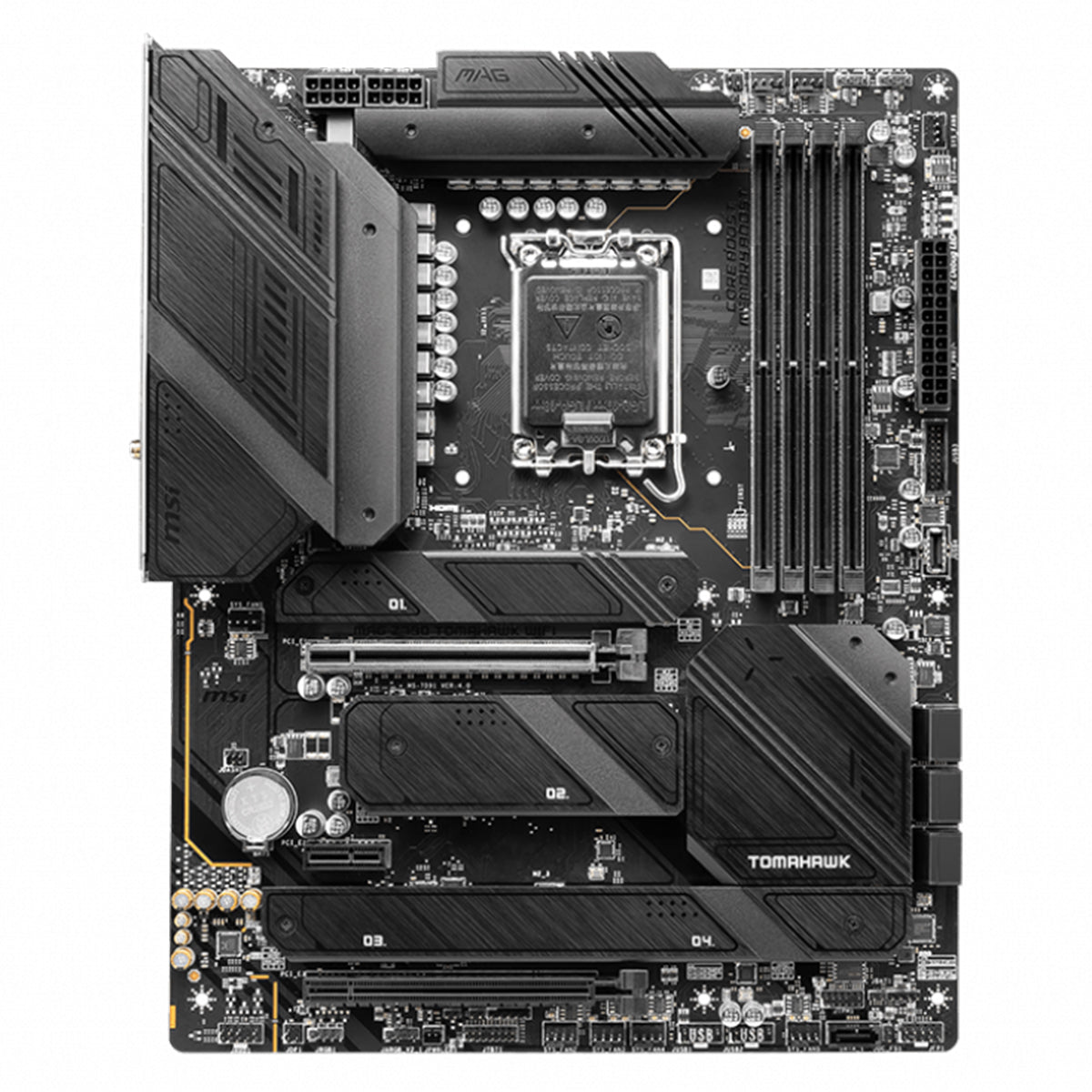

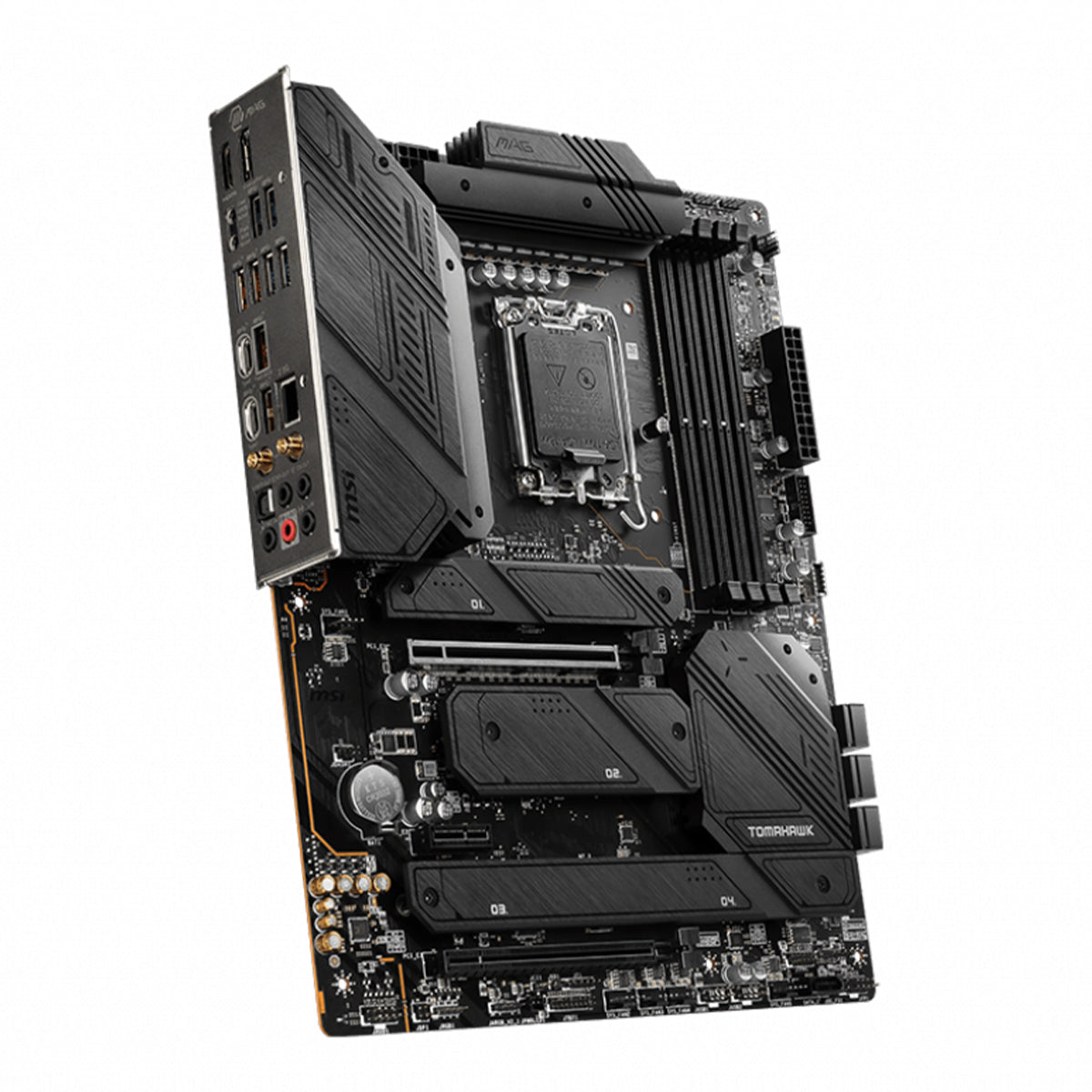

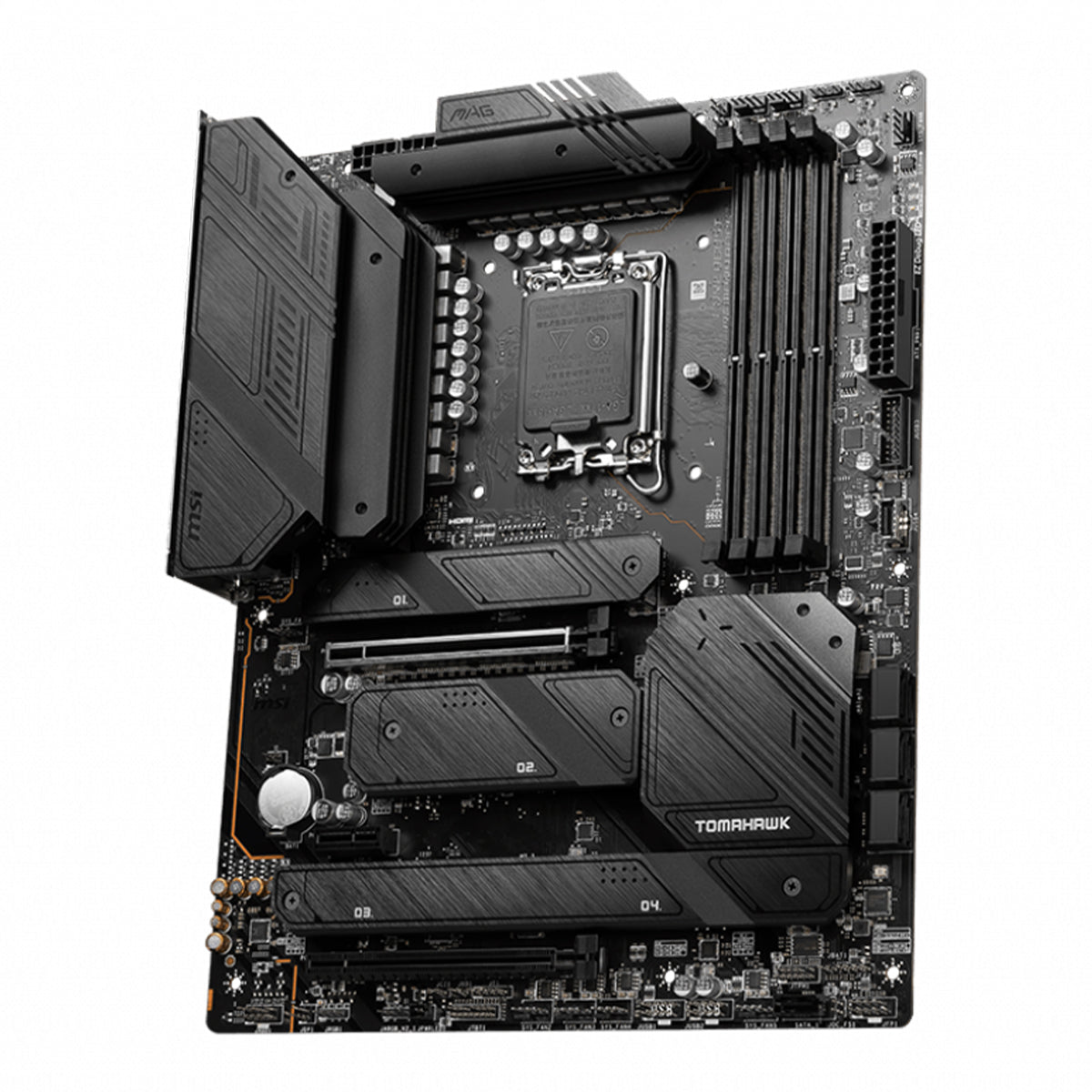

MSI MAG Z790 TOMAHAWK WIFI DDR5 Gaming Motherboard
Order now and it ships in 2-3 working days.
In-stock at Supplier
Pickup available at Computer Lounge
Usually ready in 2-3 working days.
Warranty and Support
Warranty and Support
Warranty: 3 Years Return to Base Warranty
Returns: 14-day hassle-free exchanges and store credits, subject to terms and conditions outlined in our Returns Policy.
Delivery and Shipping
Delivery and Shipping
All deliveries are signature required.
North Island: 1 – 2 working days
South Island: 2 – 3 working days
Please allow an additional 1 – 2 working days for delivery to rural addresses.
Buy Now, Pay Later & Finance Options:
Description
Description
16+1+1 DUET RAIL POWER SYSTEM
Unleash and sustain the maximum performance with a premium VRM design built with a total of 16+1+1 Duet Rail Power System(DRPS). Combining dual power connectors and Power Stage, MAG Z790 TOMAHAWK WIFI DDR4 is ready for the challenge of high-end processors.
DIGITALL POWER DESIGN
A fully digital power design allows for faster and undistorted current delivery to the CPU at pin-point precision.
OPTIMIZED PCB SOLUTION
The PCB design has been optimized for higher bandwidth and faster transfer speeds, which is also beneficial for reliable circuit transmission.
OPTIMIZED FOR WATER COOLING
Designed to support the most popular All-In-One & customized water cooling solutions on the market. A dedicated water pump PIN header supports up to 3 amp, giving you full control of the water pump speed. A clearly marked ‘keep-out-zone’ allows for easy and safe installation and a perfect fit.
FAST AND FUTURE-READY STORAGE
MSI MPG series motherboards support all the latest storage standards, which allows users to connect any ultra-fast storage device. Start games faster, load levels faster and have a real advantage over your enemies.
LIGHTNING GEN 5 PCI-E
Doubling over the previous generation, the bandwidth of a x16 interface can reach 128GB/s.
SMT PCIE 5.0 SLOT
The advanced SMT(Surface Mount Technology) PCIE slot diminish interference and electrical noise, fully support the PCI-E 5.0 signal.
HEAVY SOLDERED CONNECTIONS
Secure to the motherboard with extra solder points and support the weight of heavy graphics cards.
HIGH-BANDWIDTH AND LOW-LATENCY NETWORK
MSI's premium network solution provides incredible data transfer speed for demanding users.
DOUBLE BANDWIDTH WITH LIGHTNING USB 3.2 GEN 2X2 20G
Using USB 3.2 devices has never been faster! MPG X670 series motherboards offer a wide variety of options to connect and boost your USB devices, offering never before seen USB speeds up to 20Gb/s when connecting the Rear USB Type-C.
USB FRONT TYPE-C
MSI gaming motherboards support USB Front Type-C that allows gamers to connect with the latest USB devices. Built up a system with MSI PC case to have the most convenient experience.
EXTEND YOUR RGB EXPERIENCE WITH EASE
Add more color if you want! Mystic Light Extension pin header provides an intuitive way to control additional RGB strips and other RGB peripherals added to a system, without needing a separate RGB controller.
Additional Choke Pad
High quality 7W/mK MOSFET thermal pads and extra choke thermal pads ensure all cores running in high performance.
LATEST DDR5 MEMORY WITH SMT SLOT
A huge step of DDR performance enhancement with the latest DDR5 memory. Combines with dedicated SMT welding process and MSI Memory Boost technology, MAG Z790 TOMAHAWK WIFI is ready to deliver the world class memory performance.
EASY OVERCLOCKING WITH XMP PROFILE
The XMP (Extreme Memory Profiles) in MSI BIOS are tested and certified by MSI OC LAB. It is easy to enable with auto power settings to get the best memory speed and stability.
Extended Heatsink
Extended Heatsink enlarges the surface of heat dissipation, ensuring even high-end processors to run in full speed.
M.2 Shield Frozr
Keeps M.2 SSDs safe while preventing throttling, making them run faster.
Specifications
Specifications
| Chipset | INTEL Z790 |
| CPU | Support Intel® Core™ 14th/ 13th/ 12th Gen Processors, Intel® Pentium® Gold and Celeron® Processors |
| Memory | 4x DDR5, Maximum Memory Capacity 256GB. Memory Support 7200+(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(JEDEC)/ 5400(JEDEC)/ 5200(JEDEC)/ 5000(JEDEC)/ 4800(JEDEC) MHz. Max. overclocking frequency: • 1DPC 1R Max speed up to 7200+ MHz • 1DPC 2R Max speed up to 6600+ MHz • 2DPC 1R Max speed up to 6400+ MHz • 2DPC 2R Max speed up to 5600+ MHz. Supports Intel® XMP3.0 OC, Dual-Controller Dual-Channel mode, non-ECC, un-buffered memory |
| Onboard Graphics | 1x HDMI™: Supports HDMI™ 2.1 with HDR, maximum resolution of 4K 60Hz. 1x DisplayPort: Supports DP 1.4, maximum resolution of 8K 60Hz. *Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed. |
| Slot | 2x PCI-E x16 slots: Supports x16/x4. 1x PCI-E x1 slot: PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU). PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset). PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset) |
| Audio | Realtek® ALC4080 Codec 7.1-Channel USB High Performance Audio. Supports S/PDIF output, up to 32-Bit/384 kHz playback on front panel |
| Storage | 4x M.2: M.2_1 Source (From CPU) supports up to PCIe 4.0 x4, supports 22110/2280/2260 devices. M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4, supports 2280/2260 devices. M.2_3 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices. M.2_4 Source (From Chipset) supports up to PCIe 4.0 x4, supports 2280/2260/2242 devices. 7x SATA 6G |
| RAID | Supports RAID 0, RAID 1, RAID 5, and RAID 10 for SATA storage devices. Supports RAID 0, RAID 1, RAID 5, and RAID 10 for M.2 NVMe storage devices. *SATA_A1_A2 do not support RAID function. |
| USB | 4x USB 2.0 (Front), 4x USB 5Gbps Type A (Rear), 2x USB 5Gbps Type A (Front), 4x USB 10Gbps Type A (Rear), 1x USB 10Gbps Type C (Rear), 1x USB 10Gbps Type C (Front), 1x USB 20Gbps Type C (Rear) |
| LAN | Intel® 2.5Gbps LAN |
| Internal IO | 1x Power Connector(ATX_PWR), 2x Power Connector(CPU_PWR), 1x CPU Fan, 1x Pump Fan, 6x System Fan, 2x Front Panel (JFP), 1x Chassis Intrusion (JCI), 1x Front Audio (JAUD), 1x Tuning Controller connector(JDASH), 3x Addressable V2 RGB LED connector (JARGB_V2), 1x RGB LED connector(JRGB), 1x TPM pin header(Support TPM 2.0), 4x USB 2.0 ports, 2x USB 5Gbps Type A ports, 1x USB 10Gbps Type C port |
| WIRELESS LAN & BLUETOOTH | Intel® Wi-Fi 6E: The Wireless module is pre-installed in the M.2 (Key-E) slot. Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz* (160MHz) up to 2.4Gbps. Supports 802.11 a/b/g/n/ac/ax. Supports Bluetooth® 5.3, FIPS, FISMA. *Wi-Fi 6E 6GHz may depend on every country’s regulations and will be ready in Windows 11. **Bluetooth 5.3 will be ready in Windows 10 build 21H1 and Windows 11. |
| LED Feature | 4x EZ Debug LED |

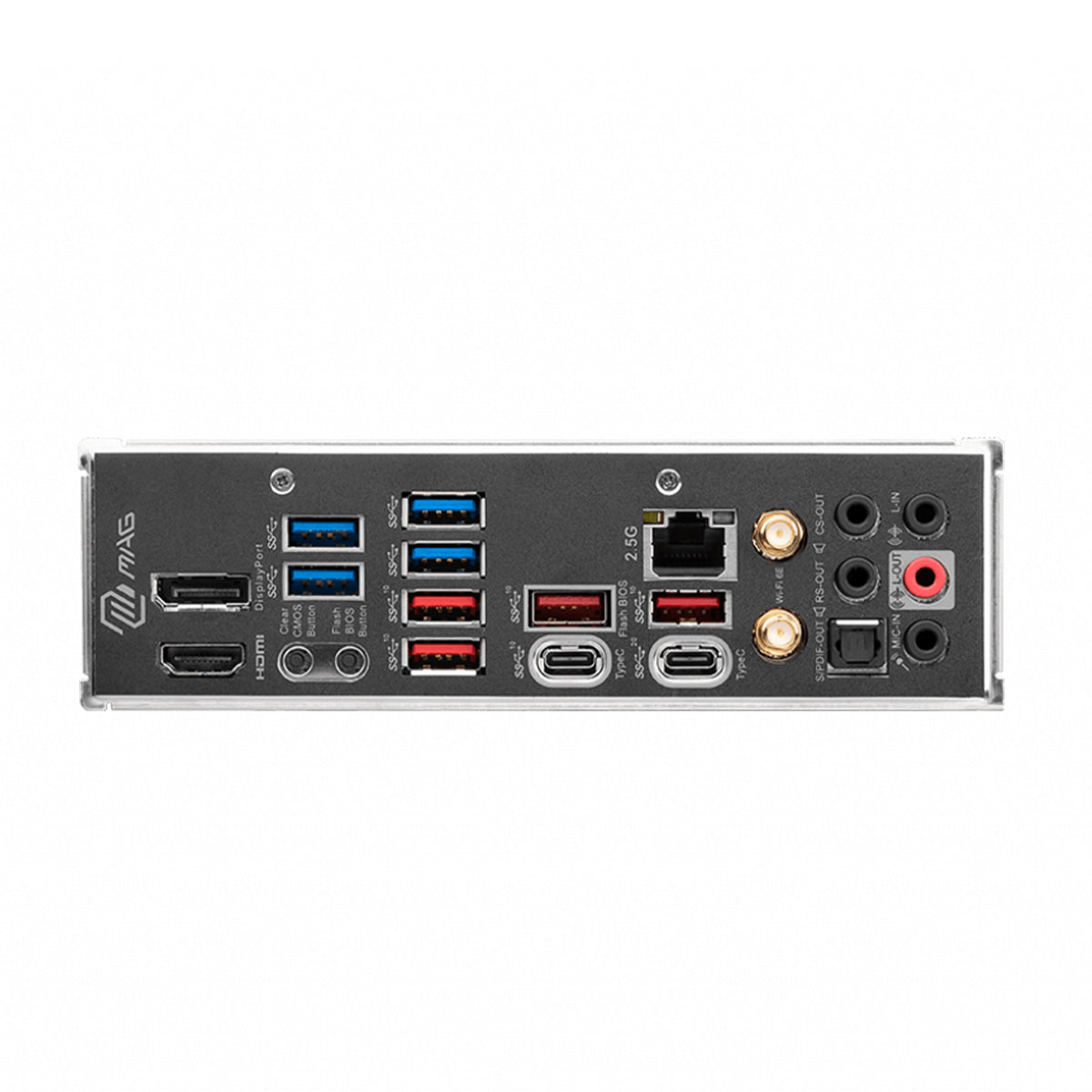

| Back Panel Ports | DisplayPort 1.4, USB 3.2 Gen 1 5Gbps Type-A, USB 3.2 Gen 2 10Gbps Type-A, 2.5G LAN Port, HD Audio Connectors, HDMI™ 2.1 Port, Clear CMOS Button, Flash BIOS Button, USB 3.2 Gen 2 10Gbps Type-C, USB 3.2 Gen 2x2 20Gbps Type-C, Wi-Fi/Bluetooth Antenna, Optical S/PDIF OUT |
| Operating System | Support for Windows® 11 64-bit, Windows® 10 64-bit |
