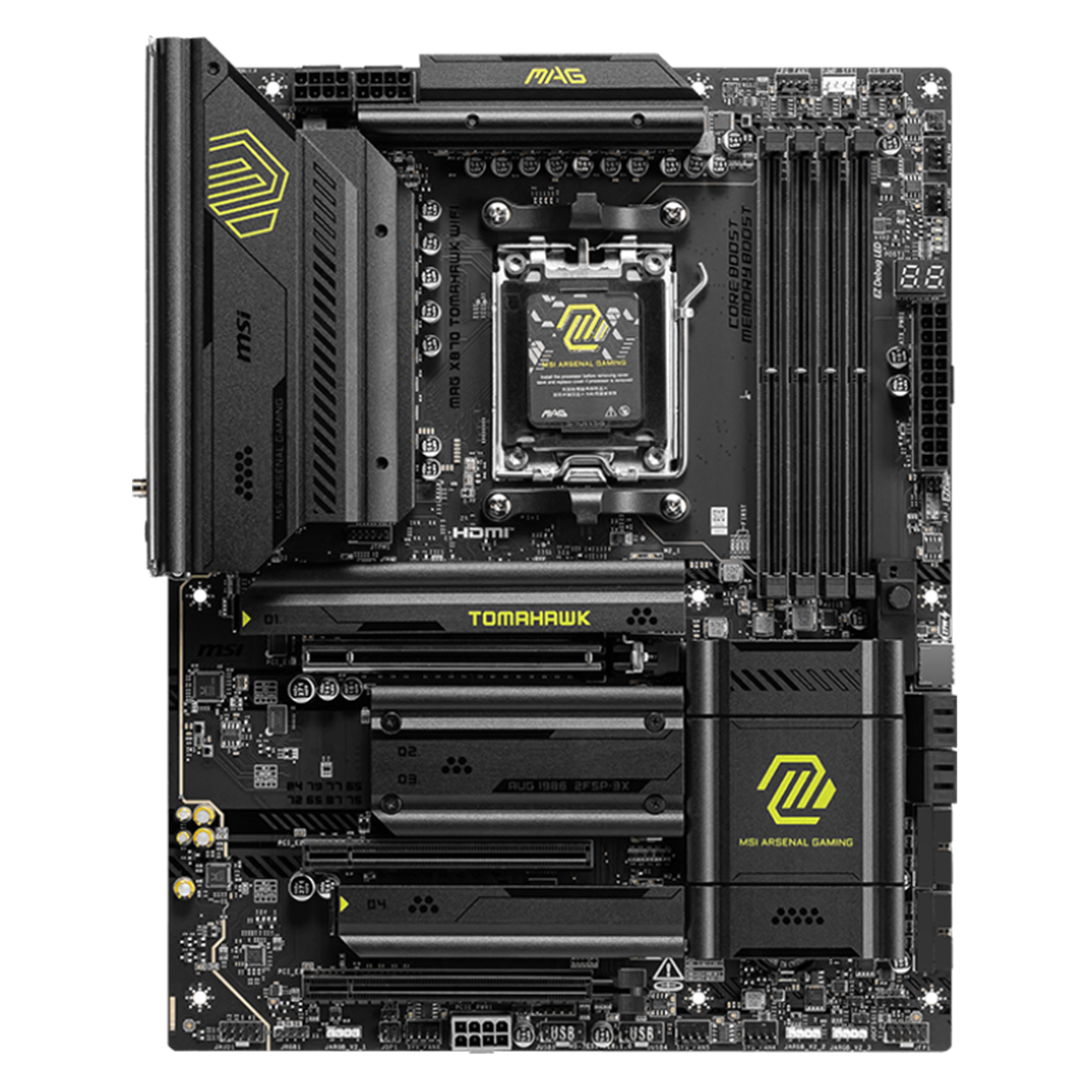

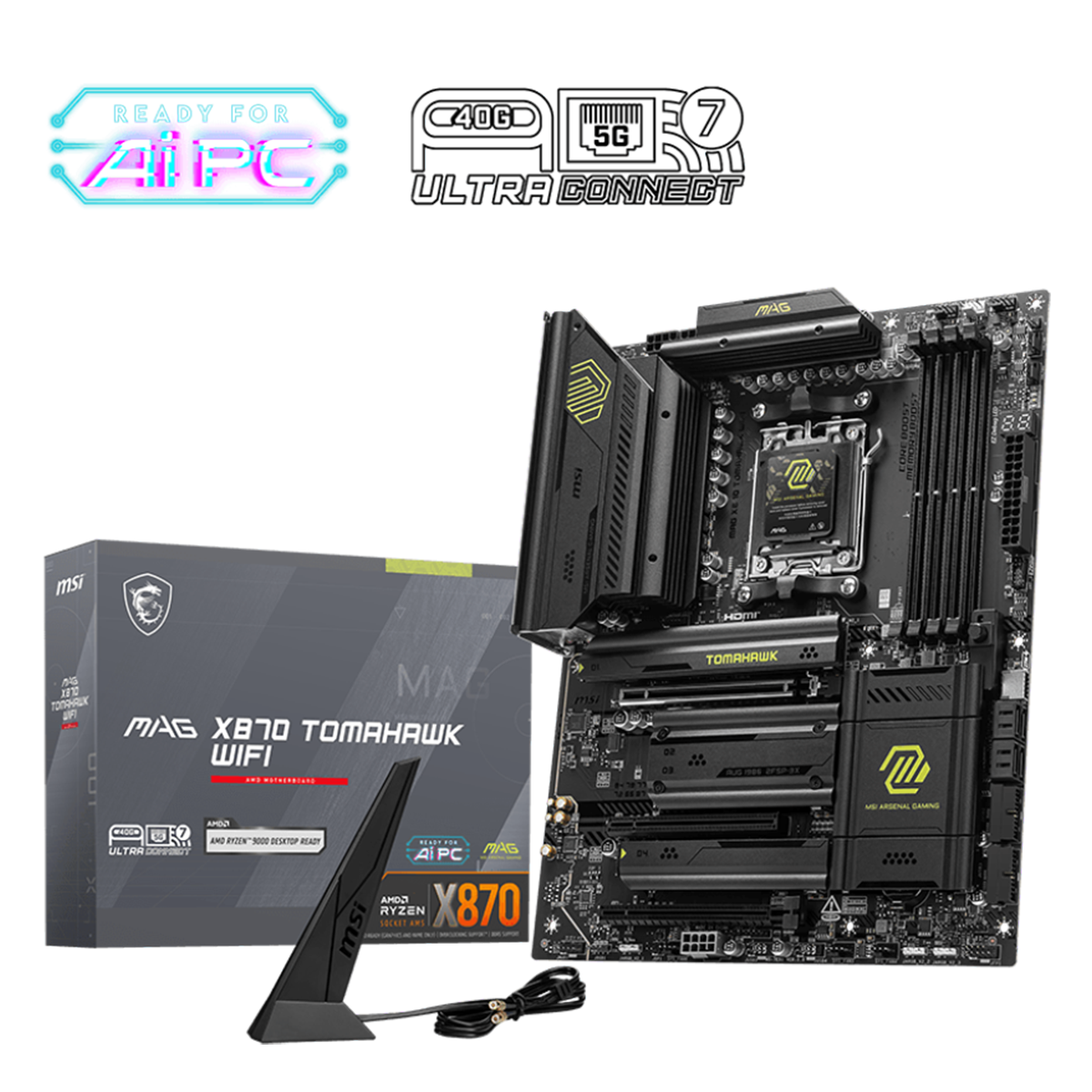

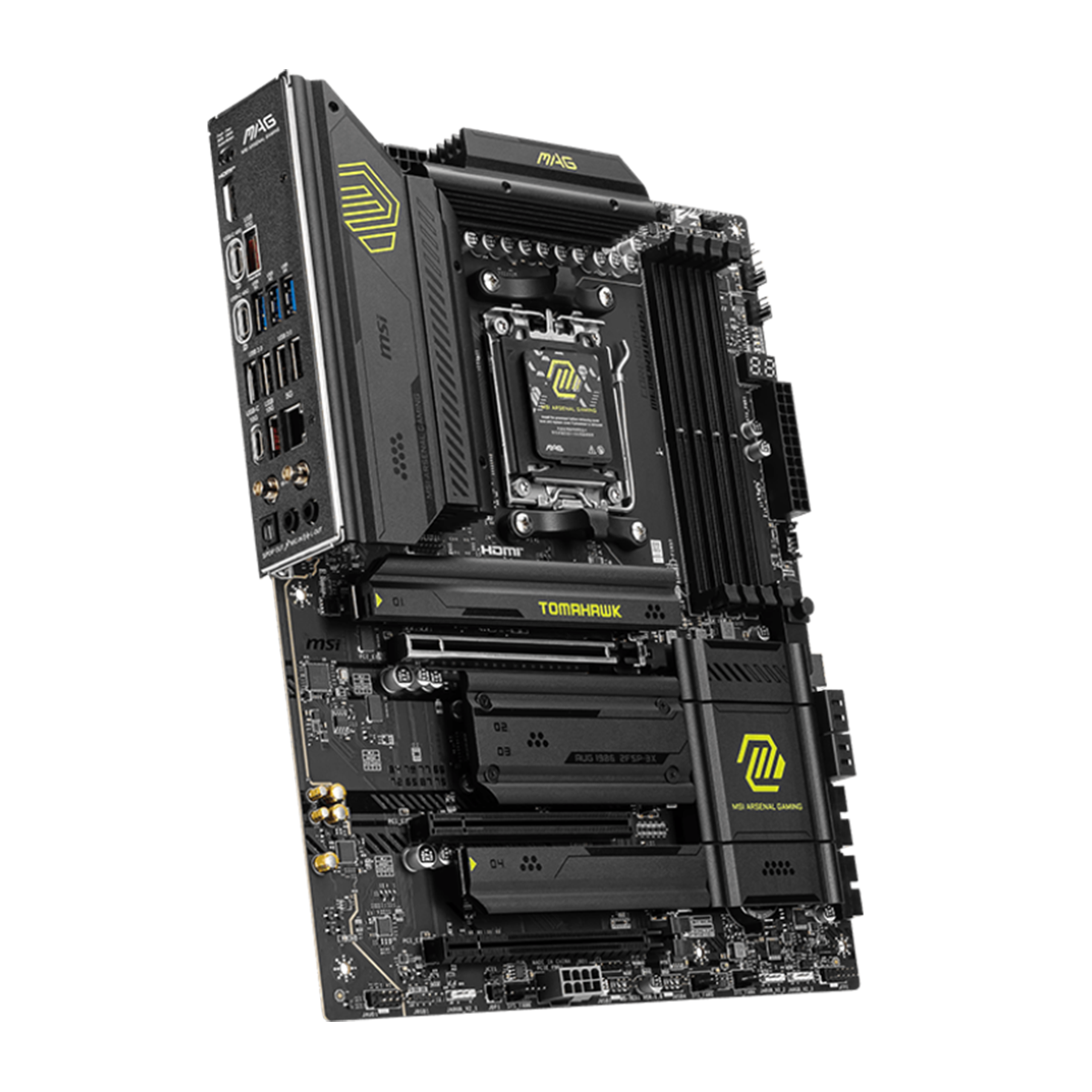

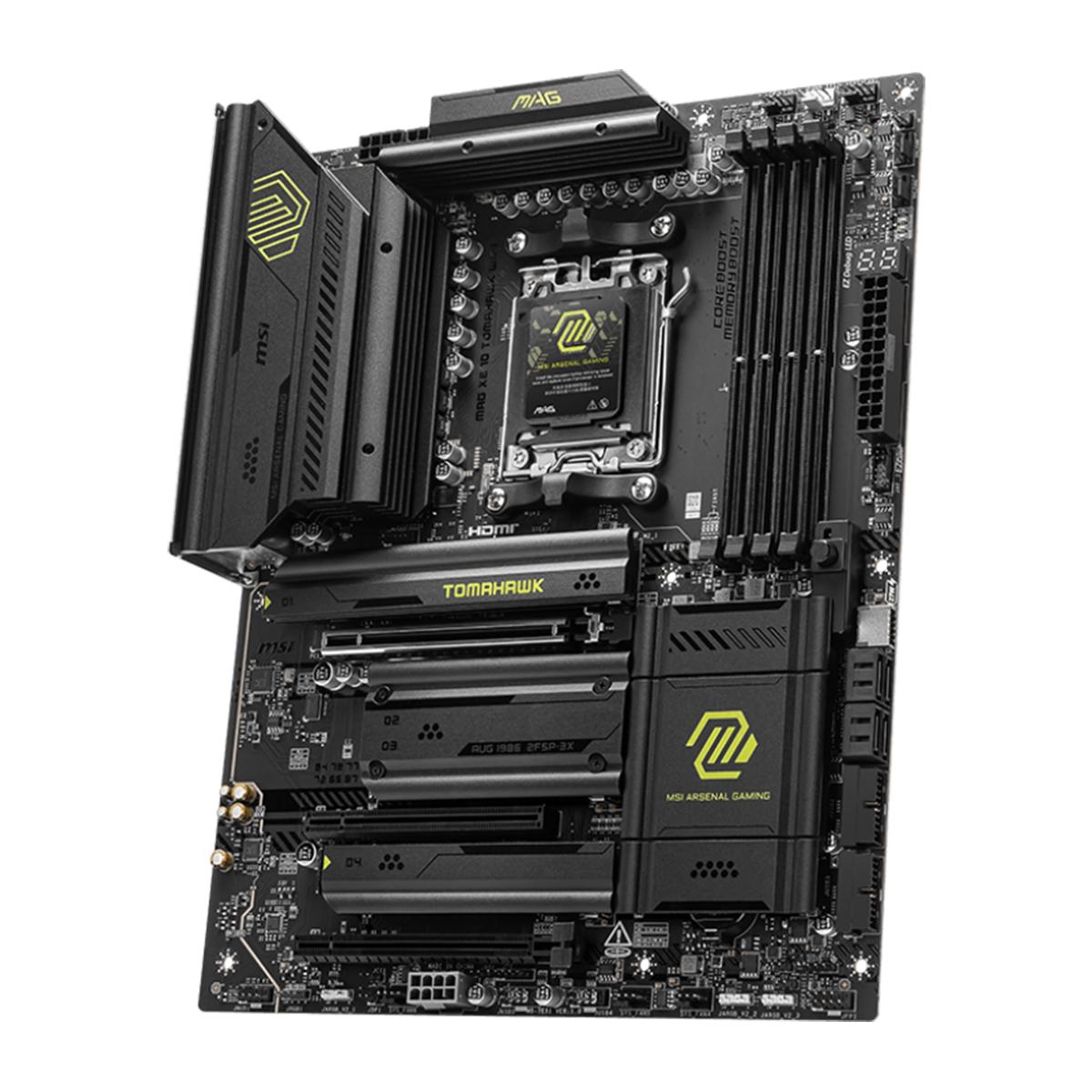

MAG X870 TOMAHAWK WIFI
MAG X870 TOMAHAWK WIFI is designed for gamers with a stable, durable, and DIY-friendly foundation for their PC builds. It features true Wi-Fi 7 solutions, 5G LAN, USB 40Gbps, PCIe 5.0 solutions, Supplemental PCIe Power, and exclusive EZ DIY features, making it ready for the battlefield of AMD Ryzen™ 9000 series processors.
While overclocking can be overly complex for some, MSI Click BIOS X made it more accessible with multiple one-click overclock features for both processor and memory, allowing users to easily enhance system performance without delving into intricate settings.
GAME BOOST
One-click CPU overclock automatically optimizes your CPU performance, instantly tuning it to the best possible level.
AI BOOST
An intelligent algorithm boosts NPU performance to get the best possible AI performance when you need additional horsepower. (*Enabled with compatible processors.)
Memory
EXPO / A-XMP: Choose from preset EXPO and A-XMP profiles to automatically overclock compatible DDR memory for optimal performance.
14+2+1 DRPS Power Design
Unleash and sustain maximum performance with a flagship VRM design built with a total of 14+2+1 digital power phases. Combining dual power connectors and 80A Smart Power Stage, MAG X870 TOMAHAWK WIFI is ready for the challenge of high-end processors.
Optimized PCB Solution
The PCB design has been optimized for higher bandwidth and faster transfer speeds, which is also beneficial for reliable circuit transmission.
- 8 PCB layers
- 2oz Thickened Copper
DDR5 Memory Support with High Performance
A huge step of DDR performance enhancement with the latest DDR5 memory. Combines with dedicated SMT welding process and MSI Memory Boost technology, MAG X870 TOMAHAWK WIFI is ready to deliver world-class memory performance.
Protection
Transient Voltage Suppressors (TVS)
Transient Voltage Suppressors (TVS) are safety devices used to protect against excessive voltage. When the voltage abnormally rises, the TVS switches from a high-resistance state to a low-resistance state, diverting the excessive voltage to ground, preventing circuit damage caused by high voltage.
Solid Pin Design
The 4-pin, 8-pin, and 24-pin power connectors of MSI motherboards are all designed with solid pins. The solid pin design allows for more stable transmission of 12V power to the CPU, even when handling high current loads.
Anti-Corrosive Stainless Steel IO Shield
An extra layer of sponge materials along with corrosive-resistant IO Shield helps improve static electricity and reduces electromagnetic radiation noise from the system, while being more durable than traditional IO Shields.
Cooling Overview
- Extended Heatsink – Enlarges the surface of heat dissipation and maintains performance under heavy loads.
- Double-sided M.2 Shield Frozr – Strengthened M.2 thermal solution helps keep M.2 SSDs safe and ensures incredible performance.
- Heavy Plated VRM Heatsink – The VRM heatsink covers the upper MOS and helps dissipate the heat.
- 7W/mK Thermal Pad & Additional Choke Pad – High-quality 7W/mK MOSFET thermal pads and additional choke thermal pads ensure stable performance when all cores are running at high speed.
- Enlarged Chipset Heatsink – Designed to reduce dust and noise while maintaining high efficiency of heat dissipation.
Networking
- THE NEXT GEN WI-FI SOLUTION – WI-FI 7 – Wi-Fi 7 is the latest wireless solution that takes a huge leap forward with multiple improvements to meet the growing demand for wireless devices.
- AI LAN Manager – Automatically classifies and prioritizes latency-sensitive applications for online games, giving you the best online gaming experience with low latency.
Fast and Future-Ready Storage
MSI MAG series motherboards support all the latest storage standards, which allows users to connect any ultra-fast storage device. Start games faster, load levels faster, and have a real advantage over your enemies.
Lightning Gen 5 PCI-E with Steel Armor II
- LIGHTNING GEN 5 PCI-E – Doubling over the previous generation, the bandwidth of an x16 interface can reach 128GB/s.
- SMT PCIe 5.0 Slot – The advanced SMT (Surface Mount Technology) PCIe slot diminishes interference and electrical noise, fully supporting the PCI-E 5.0 signal.
- Steel Armor II – Compared to the previous generation, Steel Armor II's weight endurance has increased by 21%, ensuring excellent signal transmission quality.
Audio Boost 5
- HIGH PERFORMANCE ALC4080 AUDIO PROCESSOR
- HIGH QUALITY AUDIO CAPACITORS
- HIGH QUALITY AUDIO JACKS WITH S/PDIF
- DEDICATED HEADPHONE AMPLIFIER
- ISOLATED AUDIO SIGNAL
- DE-POP PROTECTION
Glow Your PC
Splash on some color and vibrant RGB lighting effects using Mystic Light utility from MSI Center, which has millions of colors and fancy LED effects. Enjoy full control and creativity of your PC's lighting with one software.
MSI’s newly designed CLICK BIOS X offers an aesthetically pleasing and user-friendly experience. The new design ensures that users of all experience levels can quickly access and adjust system configurations with ease.
Specifications
Specifications
Chipset | AMD X870 |
CPU | Supports AMD Ryzen™ 9000/ 8000/ 7000 Series Desktop Processors |
Socket | AM5 |
Memory | 4x DDR5 UDIMM, Maximum Memory Capacity 256GB |
Memory Support | DDR5 8400+(OC)/ 8200+(OC)/ 8000+(OC) 7800(OC)/ 7600(OC)/ 7400(OC) 7200(OC)/ 7000(OC)/ 6800(OC) 6600(OC)/ 6400(OC)/ 6200(OC) 6000(OC)/ 5800(OC)/ 5600(JEDEC) 5400(JEDEC)/ 5200(JEDEC)/ 5000(JEDEC)/ 4800(JEDEC) MT/s |
Ryzen™ 9000 Series Max Overclocking Frequency | • 1DPC 1R: Max speed up to 8400+ MT/s • 1DPC 2R: Max speed up to 6400+ MT/s • 2DPC 1R: Max speed up to 6400+ MT/s • 2DPC 2R: Max speed up to 4800+ MT/s |
Memory Features | Supports AMD POR Speed, JEDEC Speed Supports AMD EXPO™ Dual-Channel mode Non-ECC Unbuffered memory CUDIMM, Clock Driver bypass mode |
Onboard Graphics | 1x HDMI™ 1.4 (FRL) supporting up to 8K 60Hz 2x Type-C DisplayPort 1.4 with HBR3 Supports up to 4K 60Hz (with CPUs featuring integrated graphics) |
Slots | 3x PCI-E x16 slots • PCI_E1 (CPU) PCIe 5.0 up to x16 • PCI_E2 (Chipset) PCIe 3.0 up to x1 • PCI_E3 (Chipset) PCIe 4.0 up to x4 |
Audio | Realtek® ALC4080 Codec 7.1-Channel USB High-Performance Audio Supports 32-Bit/384 kHz playback and S/PDIF output |
Storage | 4x M.2 • M.2_1 Source (From CPU) supports up to PCIe 5.0 x4 • M.2_2 Source (From CPU) supports up to PCIe 5.0 x4 • M.2_3 Source (From Chipset) supports up to PCIe 4.0 x2 • M.2_4 Source (From Chipset) supports up to PCIe 4.0 x4 4x SATA 6G |
RAID | Supports RAID 0, 1, 10 for both SATA and M.2 NVMe storage devices (RAID 10 for M.2 is supported on Ryzen™ 9000/7000 CPUs) |

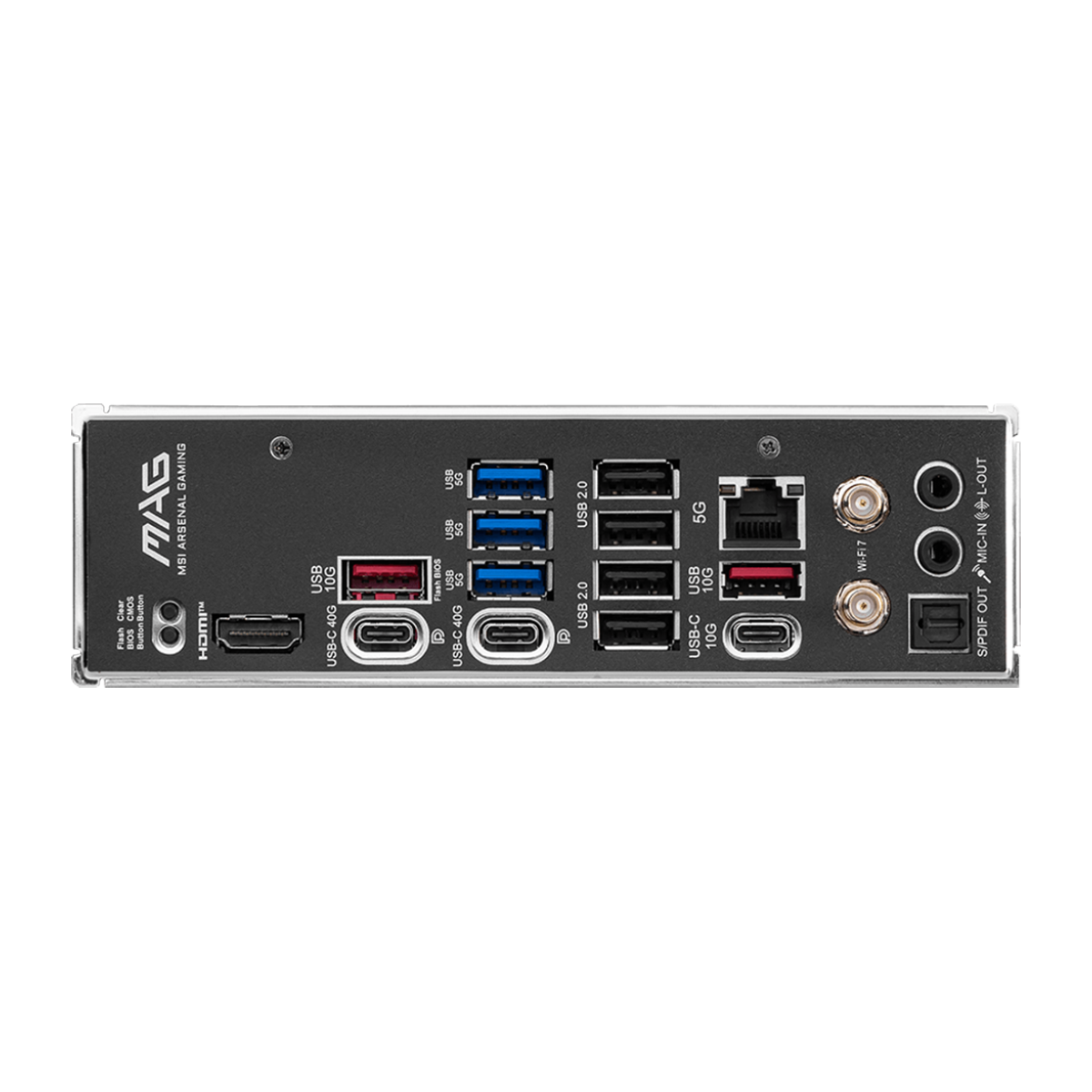

USB | 4x USB 2.0 (Rear) 4x USB 2.0 (Front) 3x USB 5Gbps Type A (Rear) 4x USB 5Gbps Type A (Front) 2x USB 10Gbps Type A (Rear) 1x USB 10Gbps Type C (Rear) 1x USB 20Gbps Type C (Front) 2x USB 40Gbps Type C (Rear) |
LAN | Realtek® 8126-CG 5G LAN |
Internal I/O | 1x Power Connector (ATX_PWR) 2x Power Connector (CPU_PWR) 1x Power Connector (PCIE_PWR 8pin) 1x CPU Fan 1x Combo Fan (Pump_Sys Fan) 6x System Fan 1x EZ Conn-header (JAF_2) 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 3x Addressable V2 RGB LED connectors (JARGB_V2) 1x RGB LED connector (JRGB) 4x USB 2.0 ports 4x USB 5Gbps Type A ports 1x USB 20Gbps Type C port |
Wireless LAN & Bluetooth | Wi-Fi 7 The Wireless module is pre-installed in the M.2 (Key-E) slot Supports MU-MIMO TX/RX, 2.4GHz/ 5GHz/ 6GHz (320MHz) up to 5.8Gbps Supports Bluetooth® 5.4, MLO, 4KQAM |
