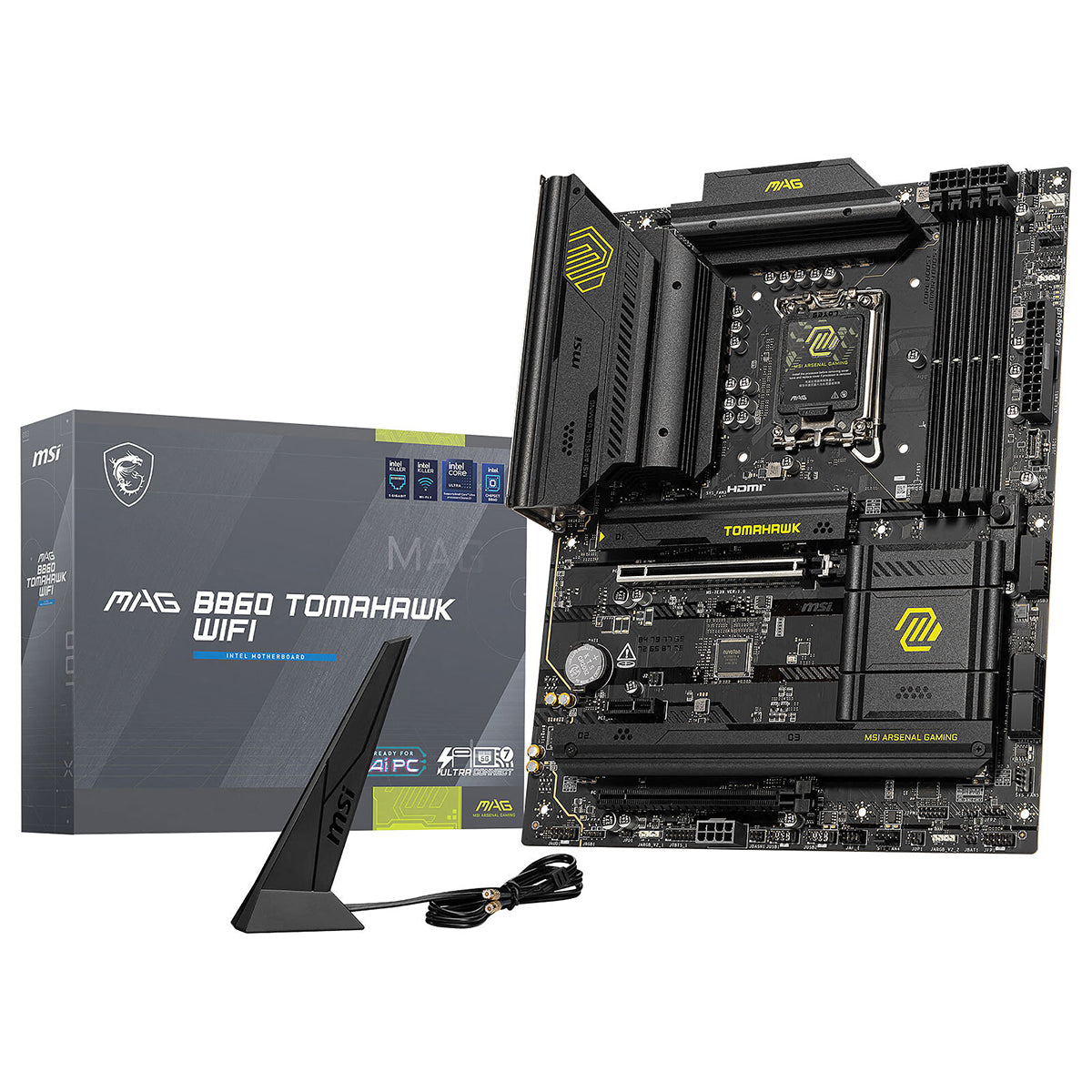

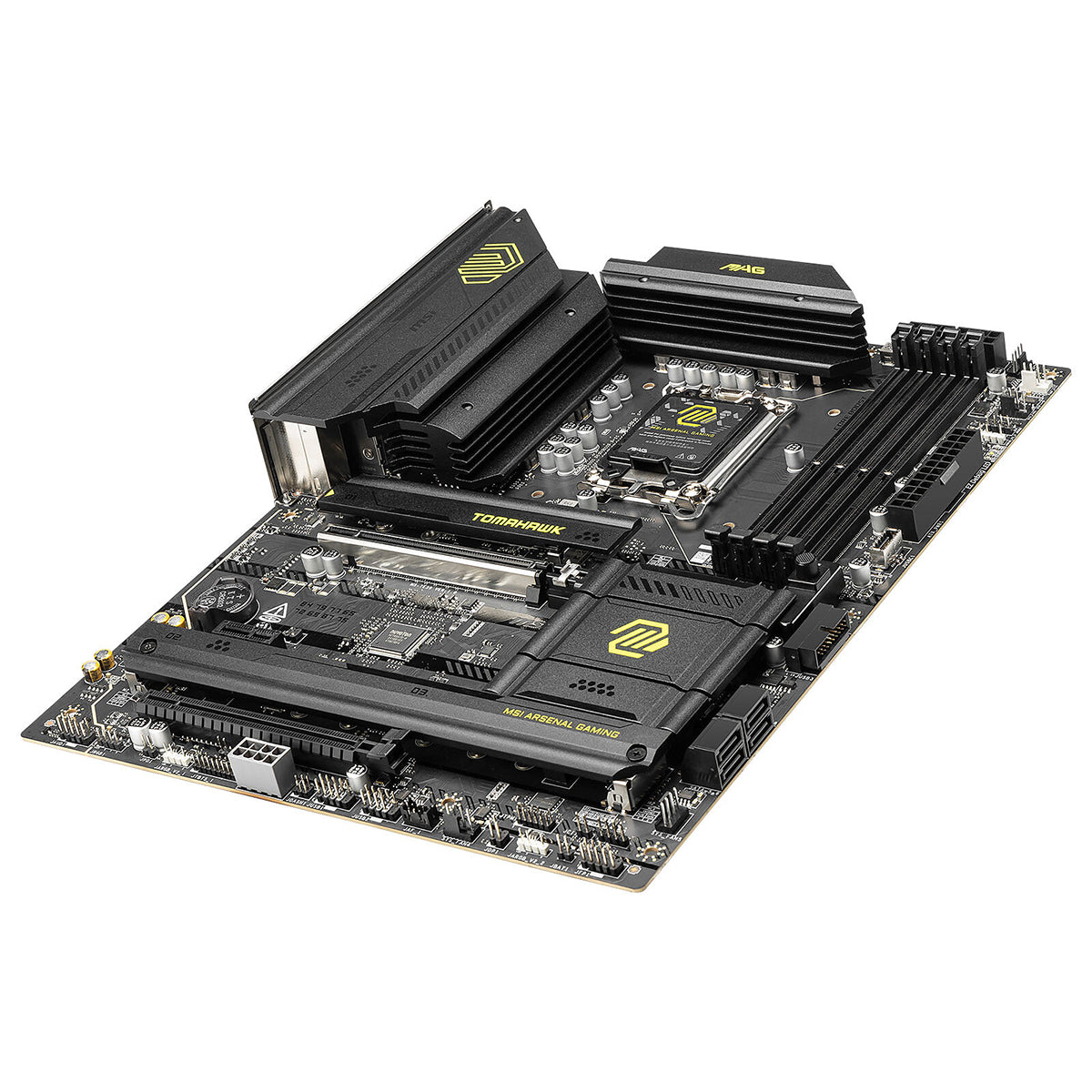

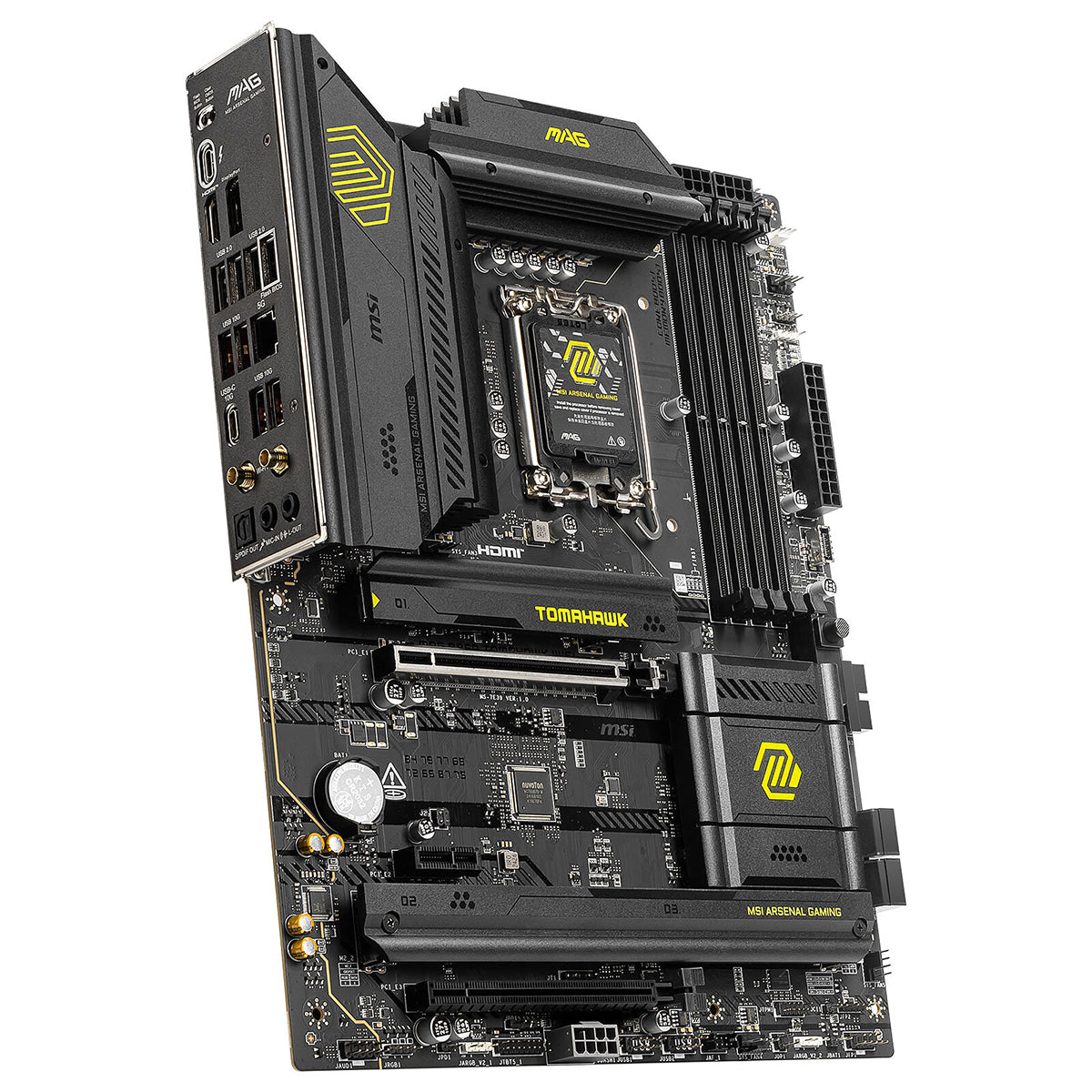

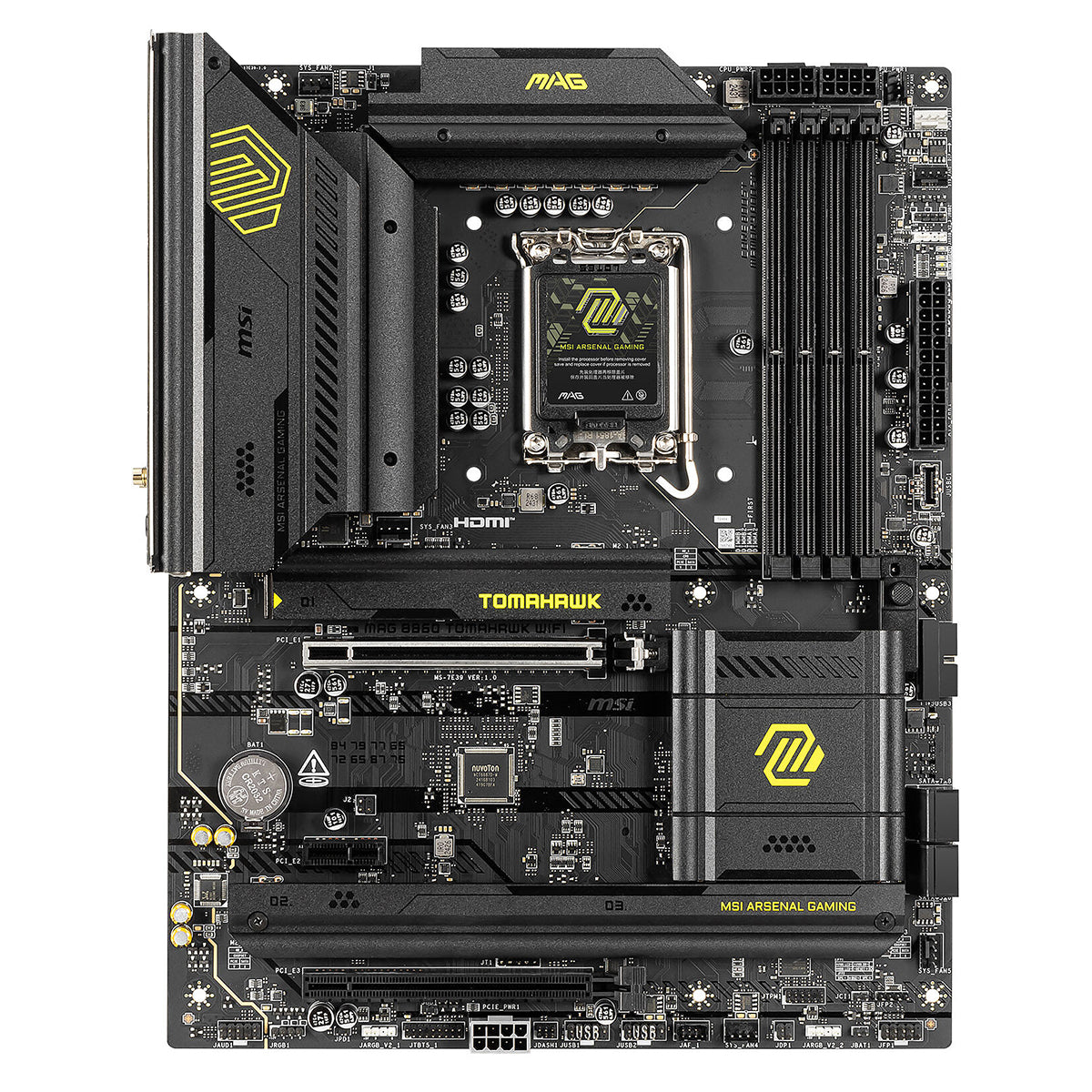

MSI MAG B860 TOMAHAWK WIFI Motherboard

MAG B860 TOMAHAWK WIFI

• Support Intel® Core™ Ultra Processors (Series 2) for LGA 1851 socket
• Supports DDR5 Memory, Dual Channel DDR5 9200+ MT/s (OC)
• Ultra Performance: 12+1+1+1 Duet Rail Power System 60A SPS, dual 8-pin CPU power connectors, Core Boost, Memory Boost, 6-layer PCB made by 2oz thickened copper and server-grade level material
• Frozr Guard: Extended Heatsink, MOSFET thermal pads rated for 7W/mK, additional choke thermal pads and EZ M.2 Shield Frozr II are built for high performance system and non-stop experience
• EZ DIY: EZ PCIe Release, EZ M.2 Shield Frozr II, EZ M.2 Clip II and EZ Antenna
• Lightning Fast Game experience: PCIe 5.0 slot, Lightning Gen 5 x4 M.2

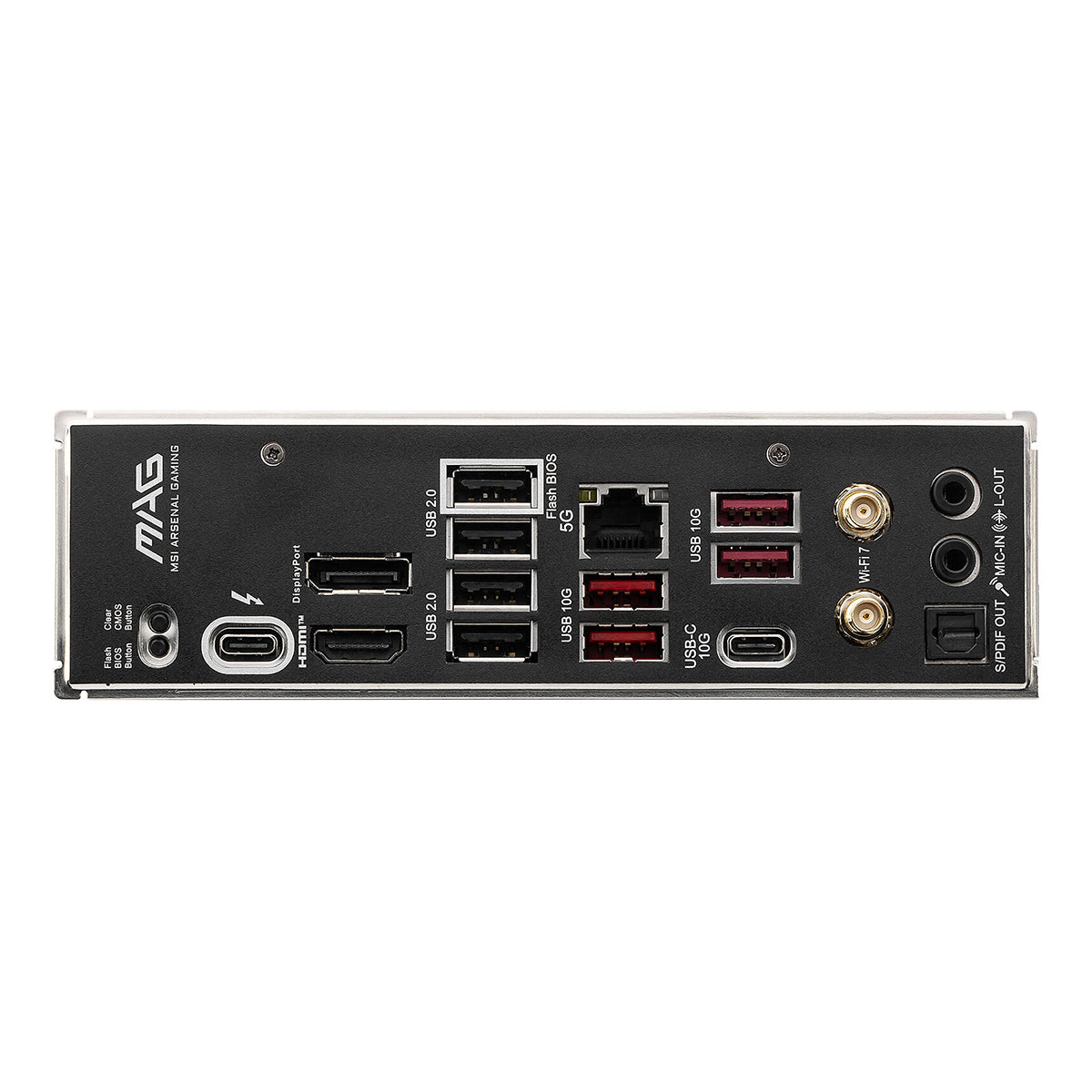

• Ultra Connect: Thunderbolt™ 4 port, Intel® Killer™ 5G LAN & Intel® Killer™ Wi-Fi 7 Solution - the latest solution for professional and multimedia use, delivering secure, stable, and high-speed networking and data transmission
• Audio Boost : Reward your ears with studio grade sound quality for the most immersive gaming experience

MSI MAG B860 Tomahawk Wifi

MAG B860 TOMAHAWK WIFI is designed for gamers with a stable, durable and DIY friendly foundation for their PC builds. Coming up with Killer Wi-Fi 7 solution and 5G LAN, Thunderbolt 4, PCIe 5.0 solutions, Supplemental PCIe Power and exclusive EZ DIY features, it's ready for the battlefield of Intel Core Ultra processors.

MSI's mainstream MAG series epitomizes stability and durability and is built to withstand the most intense gaming sessions. The entire lineup features robust construction with metallic-like hardness and excellent heat dissipation, ensuring stability for all critical gaming components.

MSI AI PC

MSI motherboards are designed with advanced hardware and technology, well-supporting the demanding computing usage of gaming and AI. Moreover, we also introduce AI to MSI Center and BIOS, making everything more effortless than before.

• AI Engine provides several categories for you to sync the applications you want to perform and automatically optimizing them to create a comfortable environment.
• AI LAN MANAGER optimizes networking performance and minimizes latency, providing a seamless online experience.
• Frozr AI Cooling automatically adjusts fan duty to make sure the system stays in cool, stable and high performance.
• AI Boost is an MSI exclusive feature. It overclocks NPU to improve higher AI performance.

12+1+1+1 Duet Rail Power System

Unleash and sustain maximum performance with an aggressive VRM design built with digital CPU power system. Combining 8 + 8-pin power connectors and exclusive Core Boost technology, MAG series motherboard is ready to sustain heavy gaming loadings.

OPTIMIZED PCB SOLUTION

The PCB design has been optimized for higher bandwidth and faster transfer speeds, which is also beneficial for reliable circuit transmission.

• 6 PCB layers
• NPG-170D Server-grade PCB material
• 2oz Thickened Copper

DDR5 MEMORY SUPPORT WITH HIGH PERFORMANCE

A huge step of DDR performance enhancement with the latest DDR5 memory. Combines with dedicated SMT welding process and MSI Memory Boost technology, MAG B860 TOMAHAWK WIFI is ready to deliver the world-class memory performance.

Cooling Overview

• Extended Heatsink Enlarges the surface of heat dissipation and maintains the performance at heavy loads.
• Double-sided M.2 Shield Frozr Strengthened M.2 thermal solution helps keep M.2 SSD safe and ensures incredible performance.
• Heavy Plated VRM Heatsink The VRM heatsink covers the upper MOS and helps dissipate the heat.
• 7W/mK Thermal Pad & Additional Choke Pad High-quality 7W/mK MOSFET thermal pads and additional choke thermal pads ensure stable performance when all cores are running at high speed.
• Enlarged Chipset Heatsink The enlarged heatsink is designed to reduce dust and noise and is capable of maintaining high efficiency of heat dissipation.

HIGH-BANDWIDTH AND LOW-LATENCY NETWORK

MSI's premium network solution provides incredible data transfer speed for demanding users.

THE NEXT GEN WI-FI SOLUTION – WI-FI 7

Wi-Fi 7 is the latest wireless solution that takes a huge leap forward with multiple improvements to meet the traffic demand brought and the growing number of wireless devices.

Intel KiLLER Performance Suite

Equipped with Intel Killer LAN / Killer Wi-Fi, you can use the Intel Killer Performance Suite. It not only prioritizes frequently used applications but also provides recommendations to optimize network quality.

FAST AND FUTURE-READY STORAGE

MSI MAG series motherboards support all the latest storage standards, which allows users to connect any ultra-fast storage device. Start games faster, load levels faster and have a real advantage over your enemies.

LIGHTNING GEN 5 PCI-E WITH STEEL ARMOR II

• LIGHTNING GEN 5 PCI-E Doubling over the previous generation, the bandwidth of a x16 interface can reach 128GB/s.
• SMT PCIE 5.0 SLOT The advanced SMT(Surface Mount Technology) PCIe slot diminishes interference and electrical noise, fully supports the PCI-E 5.0 signal.
• Steel Armor II Compared to the previous generation, Steel Armor II's weight endurance has increased by 21%, ensuring excellent signal transmission quality.
