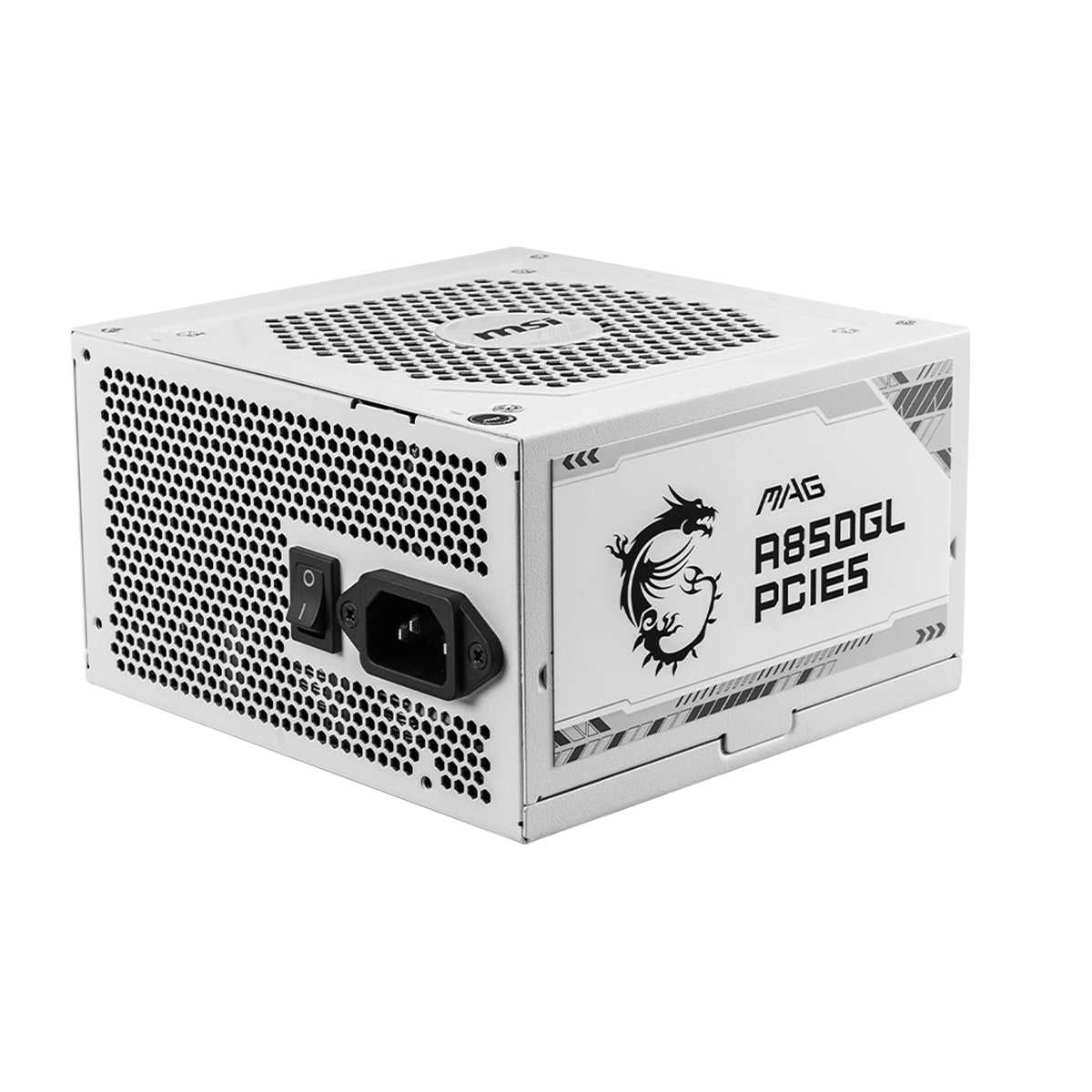

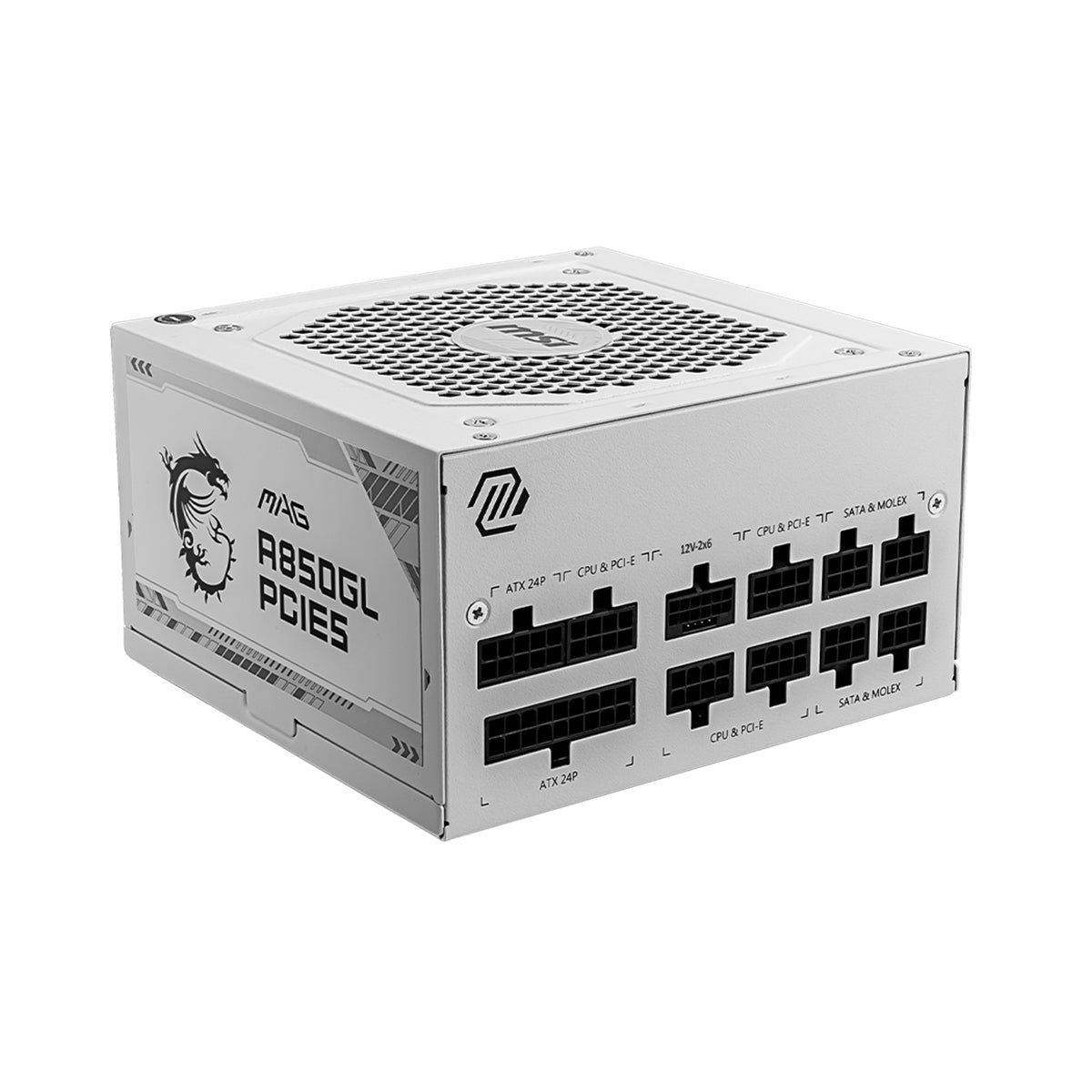

MSI MAG A850GL PCIE5 80Plus Gold Fully Modular Power Supply - White
Order now and it ships in 2-3 working days.
In-stock at Supplier
Pickup available at Computer Lounge
Usually ready in 2-3 working days.
Warranty and Support
Warranty and Support
Warranty: 1 Year Return to Base Warranty
Returns: 14-day hassle-free exchanges and store credits, subject to terms and conditions outlined in our Returns Policy.
Delivery and Shipping
Delivery and Shipping
All deliveries are signature required.
North Island: 1 – 2 working days
South Island: 2 – 3 working days
Please allow an additional 1 – 2 working days for delivery to rural addresses.
Buy Now, Pay Later & Finance Options:
Description
Description
MAG A850GL PCIE5 WHITE
- ATX 3.1 ready, native PCIe 5.1 dual-color 16-pin cable
- Supports NVIDIA® GeForce RTX™ 40 Series graphics cards
- Full modular design with flat cables
- 80 Plus Gold certified for high efficiency
- Active PFC design with industrial-level protection: OVP, OCP, OPP, OTP, SCP, UVP
- 120mm Fluid Dynamic Bearing Fan
- LLC Full Bridge Topology with DC-DC module design
ATX 3.1 Ready
Compliant with PCIe 5.1 and Intel PSDG ATX 3.1. Supports up to 2x total power excursion and 3x GPU power excursion.
MSI MAG A850GL WHITE 16 Pin
Native 16-pin PCIe connector ready for Nvidia® GeForce RTX™ 40 Series graphics cards, capable of delivering up to 600W to PCIe 5.1 GPUs.
80 PLUS Gold Certified
Energy-efficient with 80 PLUS Gold and Cybenetics Platinum certifications, ensuring lower power consumption and higher performance.
Compact Sizing
Smaller footprint for easier cable management and more room inside the case.
Only What You Need

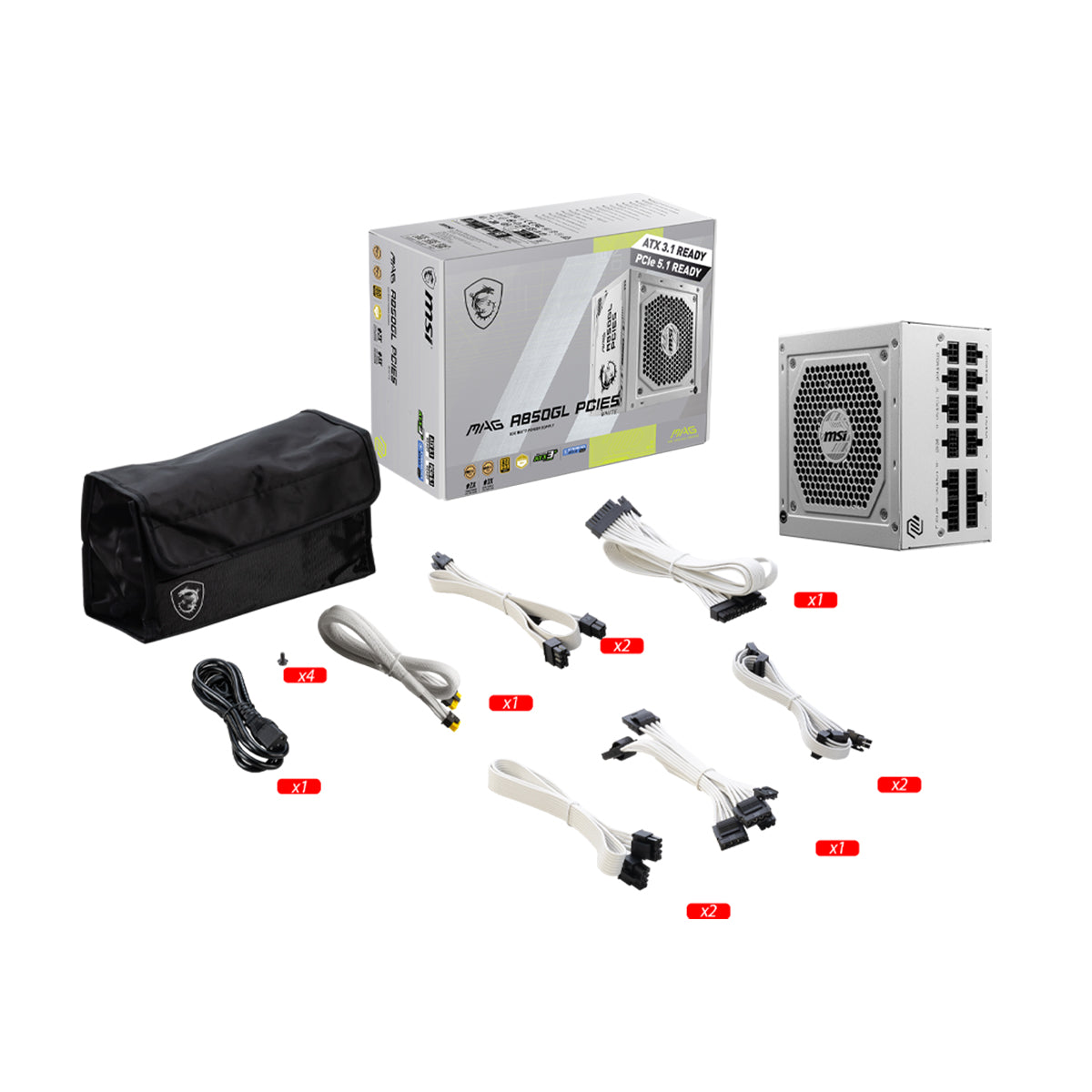

Use only the connectors required by your build to reduce cable clutter. Includes cable pack for unused cables storage.
Organized Cable Management
Flat cables simplify organization and improve unobstructed airflow throughout the system.

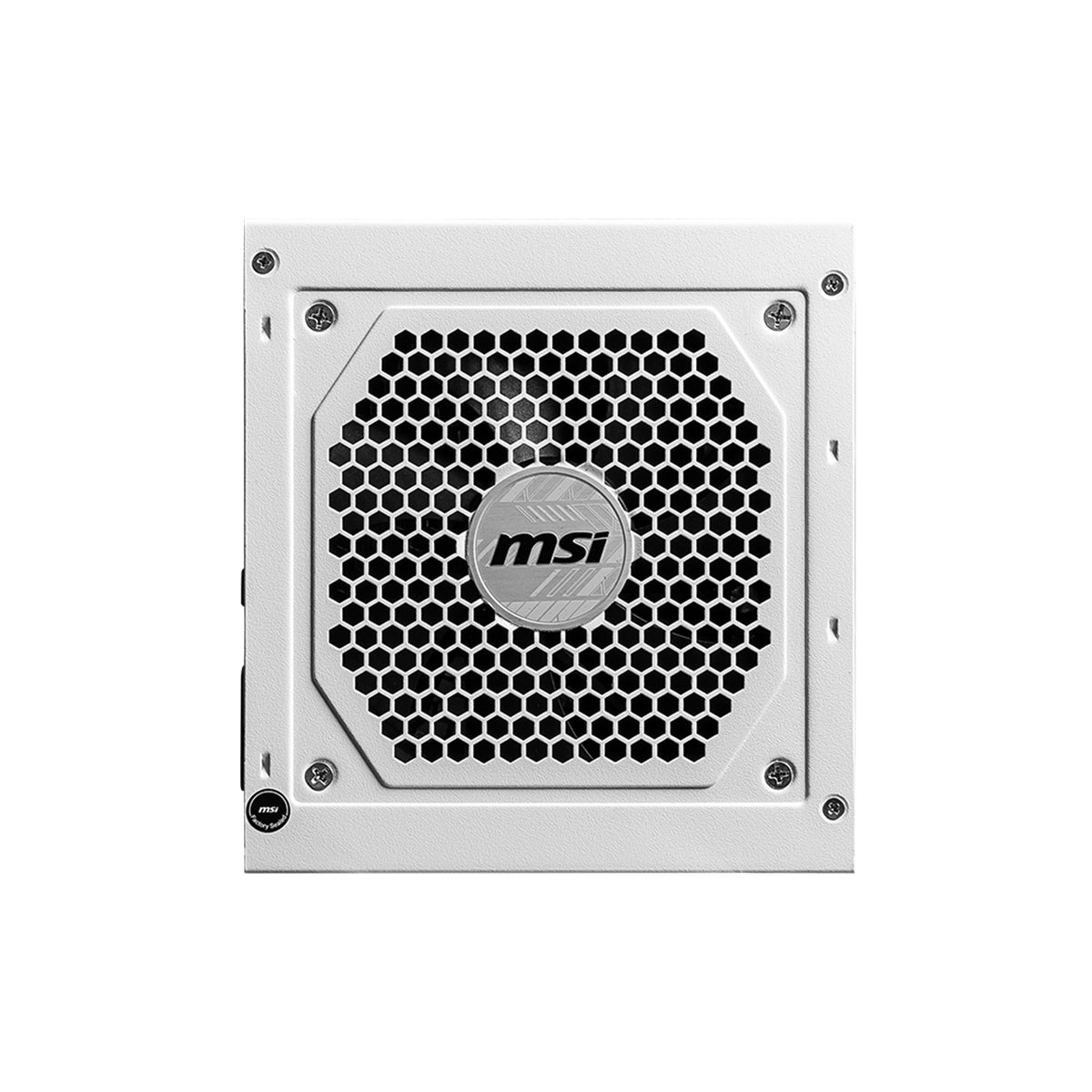

Fluid Dynamic Bearing
120mm fan balances cooling performance and low noise.
DC to DC & Full Bridge
Combines DC to DC and Full Bridge design for higher conversion efficiency, stable output voltage, and quick voltage adjustment in different usage scenarios.
The Power You Have
Single rail supply delivers reliable power. Includes 5 CPU & PCI-E slots to support high-performance CPUs and graphics cards.
Specifications
Specifications
| Efficiency Rating | 80 PLUS Gold (up to 90%) |
| Modular | Yes (full modular) |
| Fan Size | 120 mm |
| Fan Bearing | Fluid Dynamic Bearing |
| Dimensions (DxWxH) | 140 x 150 x 86 mm |
| PFC Type | Active PFC |
| Input Voltage Range | 100~240 VAC |
| Power Watt | 850W |
| Power Excursion | 1700W (*up to 200% of the PSU's rated power for 100μs) |
| Input Frequency Range | 47-63Hz |
| Protection | OCP / OVP / OPP / OTP / SCP / UVP |

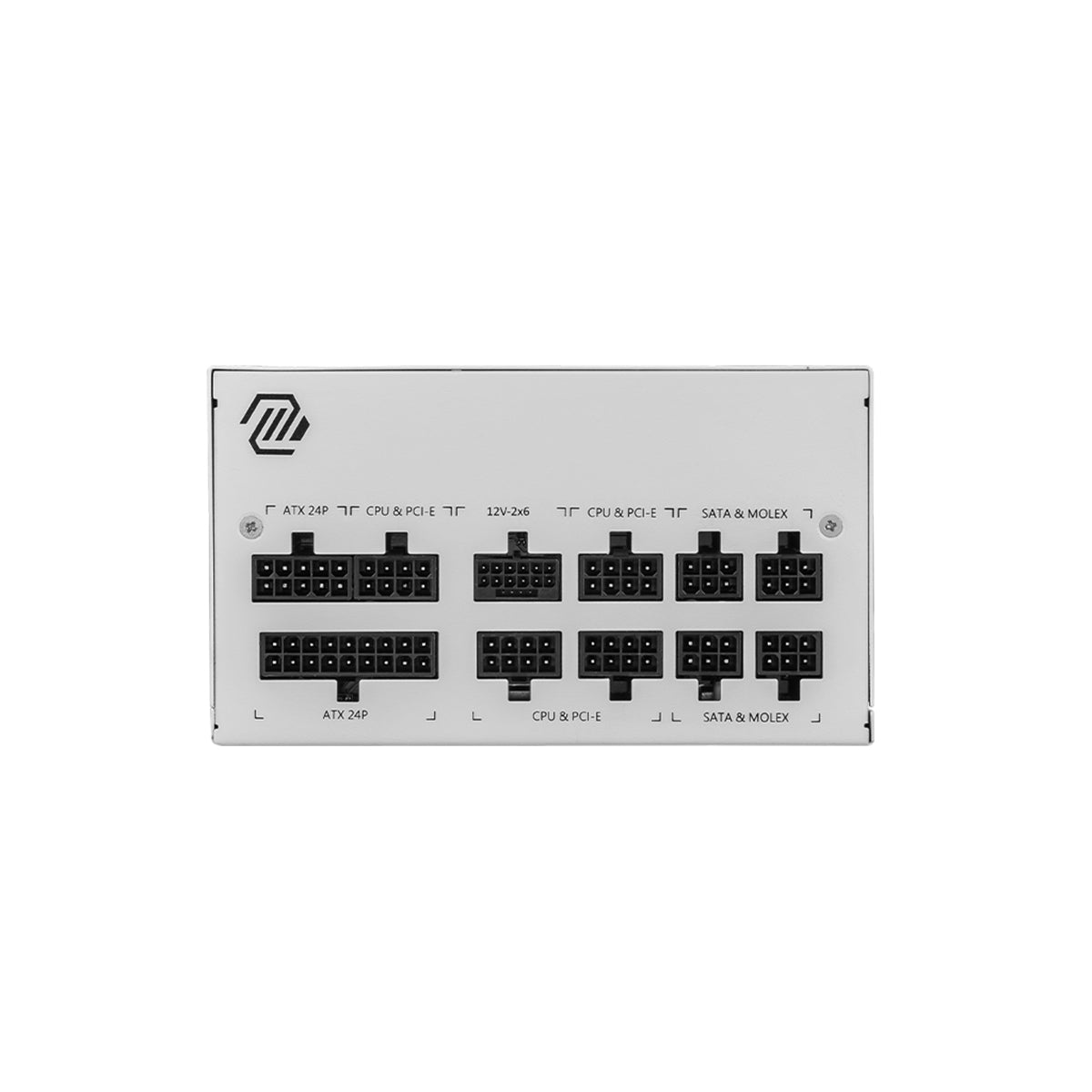

| ATX (24 pin) | 1 |
| EPS (4+4 pin) | 2 |
| PCI-E 5.0 (16 pin) | 1 (600W) |
| PCI-E (6+2 pin) | 4 |
| SATA (15 pin) | 8 |
| PERIPHERAL (4 pin) | 4 |
| FDD (4 pin) | 1 |
