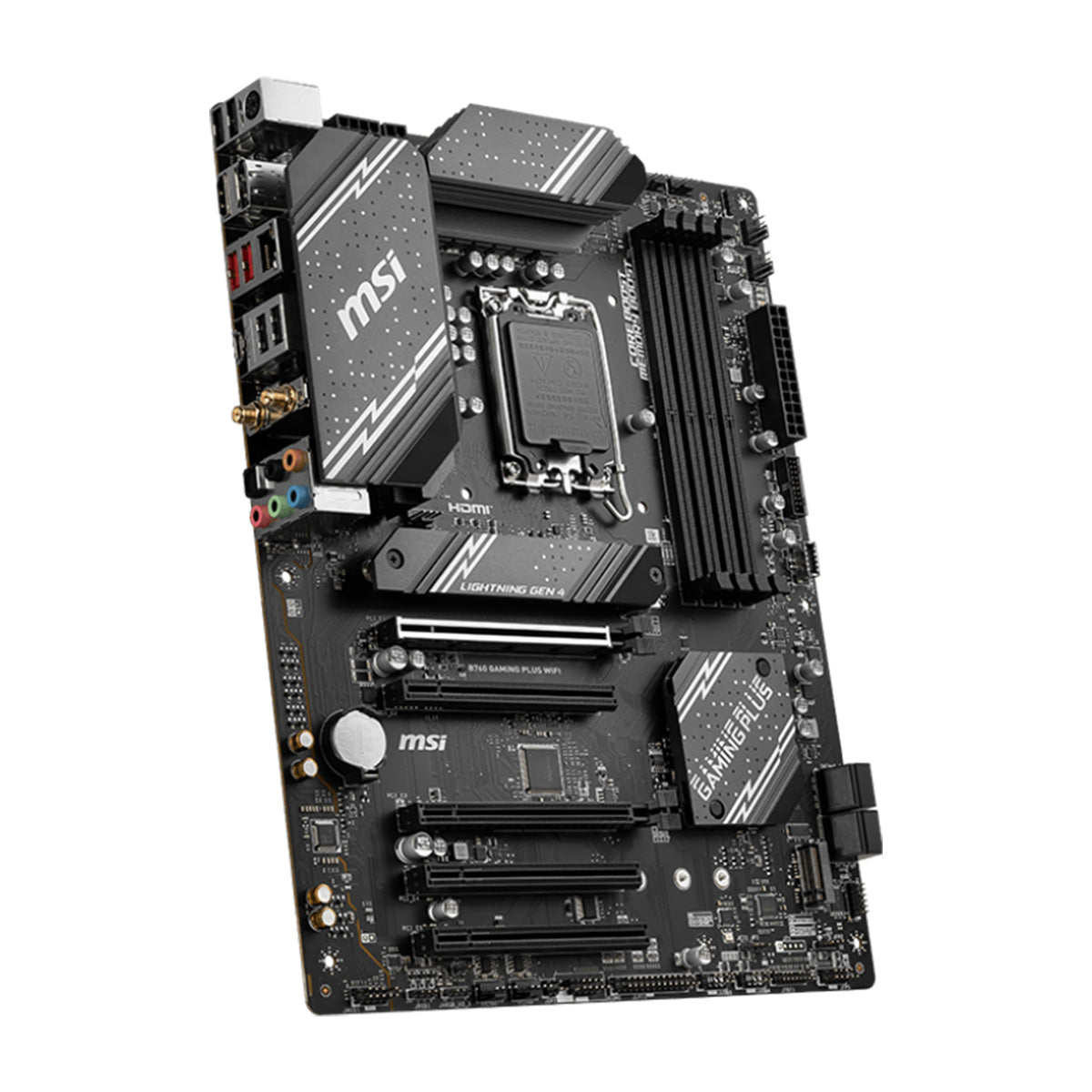

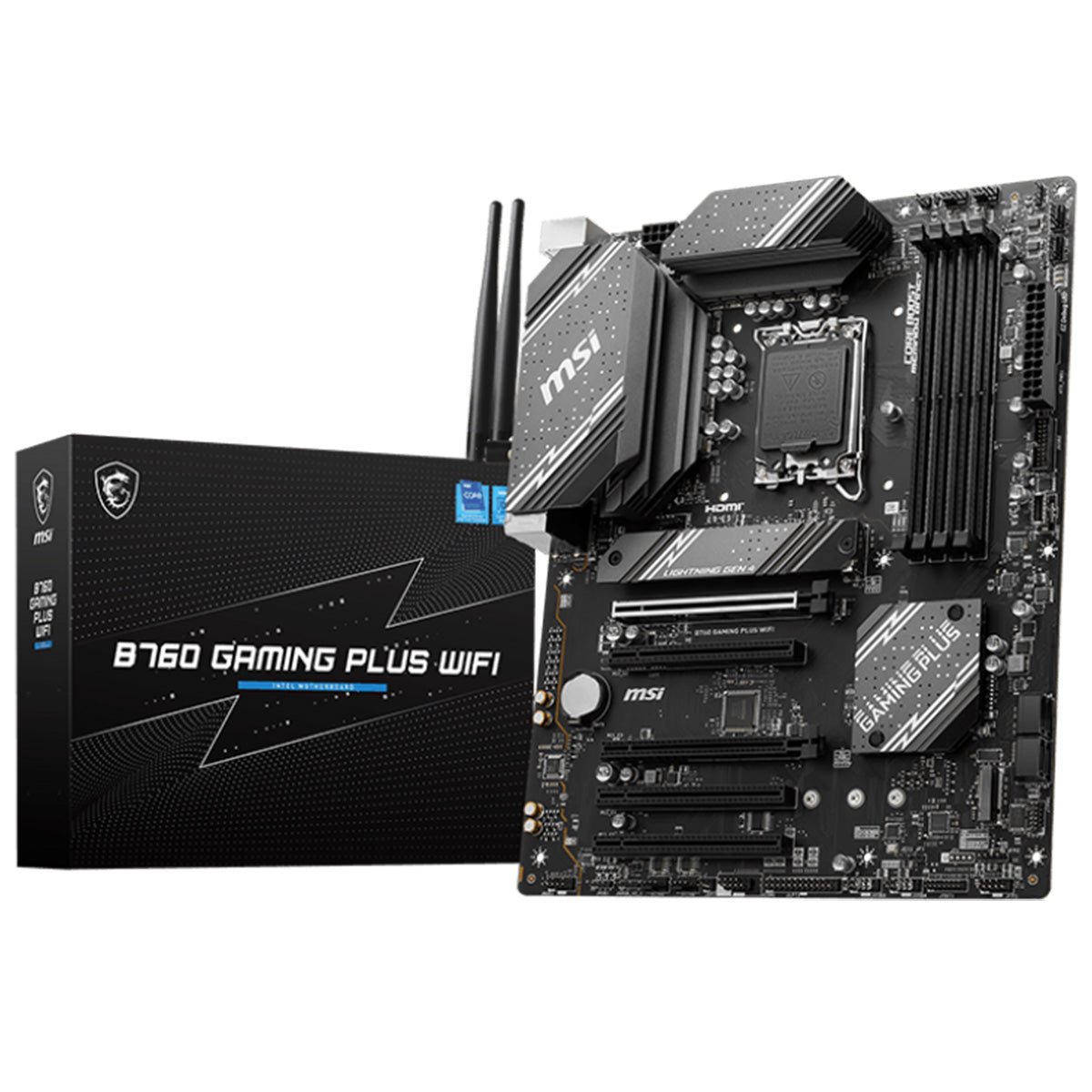

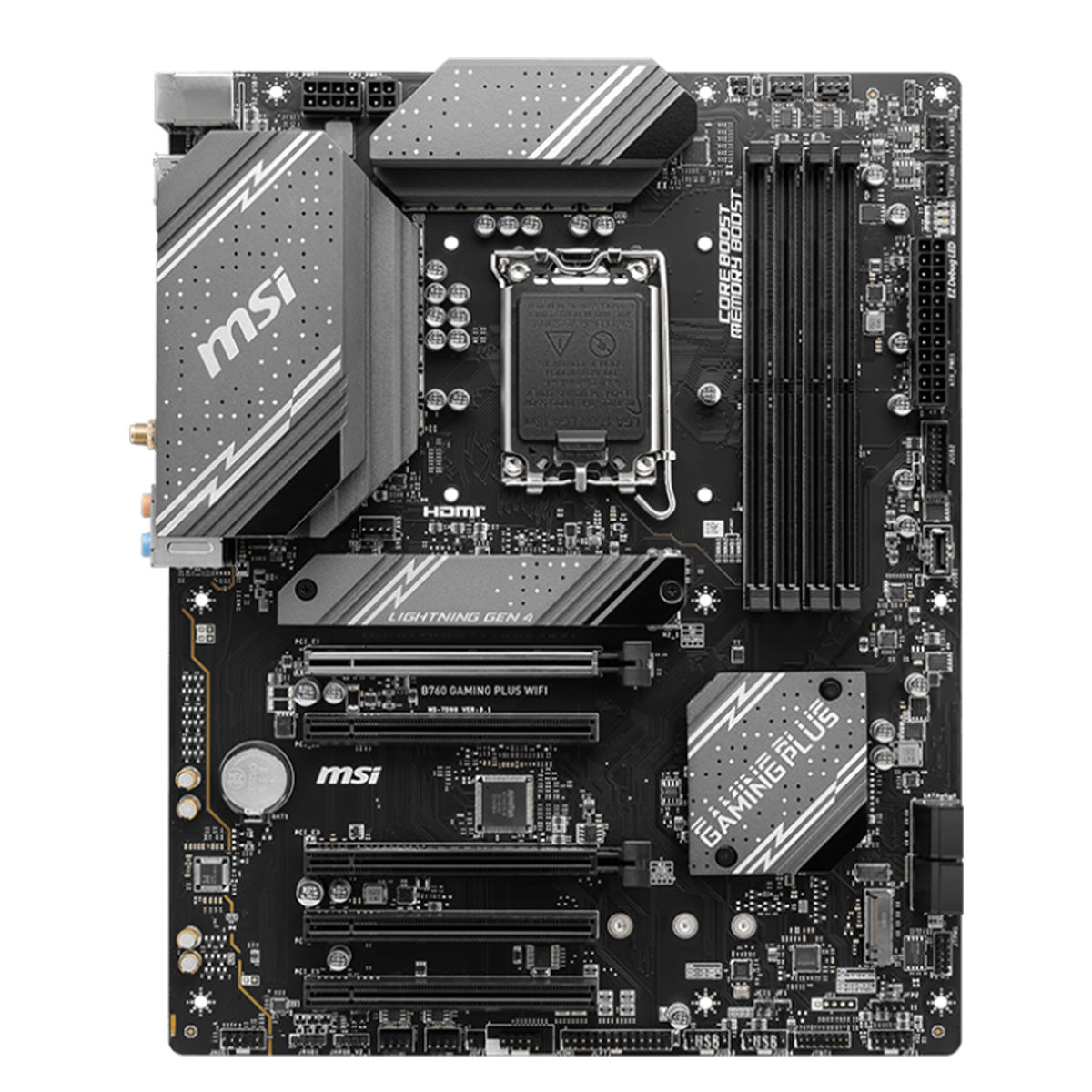

MSI B760 GAMING PLUS WIFI Motherboard
Order now and it ships in 2-3 working days.
In-stock at Supplier
Pickup available at Computer Lounge
Usually ready in 2-3 working days.
Warranty and Support
Warranty and Support
Warranty: 3 Years Return to Base Warranty
Returns: 14-day hassle-free exchanges and store credits, subject to terms and conditions outlined in our Returns Policy.
Delivery and Shipping
Delivery and Shipping
All deliveries are signature required.
North Island: 1 – 2 working days
South Island: 2 – 3 working days
Please allow an additional 1 – 2 working days for delivery to rural addresses.
Buy Now, Pay Later & Finance Options:
Description
Description
MSI MAG B760 GAMING PLUS WIFI
B760 GAMING PLUS WIFI is designed with tons of connectivity, flexible tools, and convenient Wi-Fi solution with DDR5 memory version for gamers who want all.
COOLING OVERVIEW
-
Extended Heatsink
Extended Heatsink enlarges the surface of heat dissipation and maintain the performance at heavy loads. -
M.2 Shield Frozr
Strengthened M.2 thermal solution helps M.2 SSD safe and ensures incredible performance. -
Heavy Plated VRM Heatsink
The VRM heatsink covers the upper MOS and helps dissipate the heat. -
7W/mK Thermal Pad & Additional Choke Pad
High-quality 7W/mK MOSFET thermal pads and additional choke thermal pads ensure stable performance when all cores are running at high speed. -
Chipset Heatsink
The chipset heatsink is designed to reduce dust and noise and also capable of maintaining high efficiency of PCH. -
DIY 2.0 – INTEGRATING WITH THE SYSTEM ENVIRONMENT
Connect and synchronize with MSI coolers and cases with strategically positioned pin-header locations including a dedicated pump-fan header.
OPTIMIZED PCB SOLUTION
The PCB design has been optimized for higher bandwidth and faster transfer speeds, which is also beneficial for reliable circuit transmission.
12+1+1 DUET RAIL POWER SYSTEM
Unleash and sustain the maximum performance with a VRM design built with a total of 12+1+1 power design. Combining dual power connectors and exclusive Core Boost technology, B760 GAMING PLUS WIFI is ready to sustain heavy daily work.
-
DOUBLE POWER CONNECTORS
The 8-pin and 4-pin connectors deliver adequate power even for an overclocked multi-core CPU. -
CORE BOOST
Premium layout not only support the multi-core CPU, also create the perfect conditions for your CPU overclocking. -
DIGITALL POWER DESIGN
A fully digital power design allows for faster and undistorted current delivery to the CPU at pin-point precision.
DIY FRIENDLY
Have trouble turning screws? MSI innovative EZ M.2 clip assist you install an M.2 SSD quickly and effortlessly.
Once connected to the internet, MSI Driver Utility Installer will detect and present suitable drivers and utilities automatically, you can download and install with just a few clicks
Run into trouble when updating your BIOS or somehow corrupted it? Don’t worry, MSI motherboards offer multiple options to successfully boot your system again.
USB
-
USB FRONT TYPE-C
MSI gaming motherboards support USB Front Type-C that allows gamers to connect with the latest USB devices. Built up a system with MSI PC case to have the most convenient experience. -
DOUBLE BANDWIDTH WITH LIGHTNING USB 3.2 GEN 2x2 20G
Using USB 3.2 devices has never been faster! B760 GAMING PLUS WIFI motherboards offer a wide variety of options to connect and boost your USB devices, offering never before seen USB speeds up to 20Gb/s when connecting the Rear USB Type-C.
LIGHTNING GEN 4 PCI-E WITH STEEL ARMOR
MSI lightning Gen 4 PCI-E represents the bandwidth of a x16 interface to 64GB/s that has doubled compared to its previous generation.
-
REINFORCED, HEAVY SOLDERED CONNECTIONS
Secure to the motherboard with extra solder points and support the weight of heavy graphics cards.
FAST AND FUTURE-READY STORAGE
B760 GAMING PLUS WIFI motherboard supports all the latest storage standards, which allows users to connect any ultra-fast storage device. Start games faster, load levels faster and have a real advantage over your enemies.
LATEST DDR5 MEMORY WITH SMT SLOT
A huge step of DDR performance enhancement with the latest DDR5 memory. Combines with dedicated SMT welding process and MSI Memory Boost technology, B760 GAMING PLUS WIFI is ready to deliver the world class memory performance.
CLICK BIOS 5
Get more from a loaded BIOS designed for ease of use. Fine-tune the motherboard for gaming performance, efficiency, or overclocking world records!
HIGH-BANDWIDTH AND LOW-LATENCY NETWORK
MSI's premium network solution provides incredible data transfer speed for demanding users.
GLOW YOUR PC
Splash on some color and vibrant RGB lighting effects using MSI Mystic Light with 16.8 million colors and fancy LED effects. MSI Mystic Light provides you complete control of RGB lighting of your PC in one software.
AUDIO BOOST
HIGH DEFINITION AUDIO PROCESSOR
HIGH QUALITY AUDIO CAPACITORS
HIGH QUALITY AUDIO JACKS
ISOLATED AUDIO SIGNAL
DE-POP PROTECTION
Specifications
Specifications
| Chipset | INTEL B760 |
| CPU | Support Intel® Core™ 14th/ 13th/ 12th Gen Processors, Intel® Pentium® Gold and Celeron® Processors LGA 1700 |
| Memory | 4x DDR5, Maximum Memory Capacity 256GB. Memory Support DDR5 6800+(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(JEDEC)/ 5400(JEDEC)/ 5200(JEDEC)/ 5000(JEDEC)/ 4800(JEDEC) MHz. Max. overclocking frequency: • 1DPC 1R Max speed up to 6800+ MHz • 1DPC 2R Max speed up to 6400+ MHz • 2DPC 1R Max speed up to 6000+ MHz • 2DPC 2R Max speed up to 5600+ MHz. Supports Intel® XMP 3.0 OC, Dual-Controller Dual-Channel mode, non-ECC, un-buffered memory |
| Onboard Graphics | 1x HDMI™: Supports HDMI™ 2.1 with HDR, maximum resolution of 4K 60Hz. 1x DisplayPort: Supports DP 1.4, maximum resolution of 4K 60Hz. *Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed. |
| Slot | 5x PCI-E x16 slots: PCI_E1 Gen PCIe 4.0 supports up to x16 (From CPU), PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset), PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset), PCI_E4 Gen PCIe 3.0 supports up to x1 (From Chipset), PCI_E5 Gen PCIe 3.0 supports up to x1 (From Chipset) |
| Audio | Realtek® ALC897 Codec 7.1-Channel High Definition Audio, Supports S/PDIF output |
| Storage | 2x M.2: M.2_1 Source (From CPU) supports up to PCIe 4.0 x4, supports 22110/2280/2260/2242 devices. M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices. 4x SATA 6G. *SATA8 will be unavailable when installing M.2 SATA SSD in the M.2_2 slot. |
| RAID | Supports RAID 0, RAID 1, RAID 5, and RAID 10 for SATA storage devices |
| USB | 4x USB 2.0 (Rear), 4x USB 2.0 (Front), 2x USB 5Gbps Type A (Front), 1x USB 5Gbps Type C (Front), 2x USB 10Gbps Type A (Rear), 1x USB 10Gbps Type C (Rear) |
| LAN | Realtek® RTL8125BG 2.5G LAN |
| Internal IO | 1x Power Connector(ATX_PWR), 2x Power Connector(CPU_PWR), 1x CPU Fan, 1x Pump Fan, 5x System Fan, 2x Front Panel (JFP), 1x Chassis Intrusion (JCI), 1x Front Audio (JAUD), 1x Printer Port (JLPT), 1x Com Port (JCOM), 2x Addressable V2 RGB LED connector (JARGB_V2), 1x RGB LED connector(JRGB), 1x TPM pin header(Support TPM 2.0), 4x USB 2.0 ports, 2x USB 5Gbps Type A ports, 1x USB 5Gbps Type C port |
| WIRELESS LAN & BLUETOOTH | Intel® Wi-Fi 6E: The Wireless module is pre-installed in the M.2 (Key-E) slot. Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz* (160MHz) up to 2.4Gbps. Supports 802.11 a/b/g/n/ac/ax. Supports Bluetooth® 5.3, FIPS, FISMA. *Wi-Fi 6E 6GHz may depend on every country’s regulations and will be ready in Windows 11. **Bluetooth 5.3 will be ready in Windows 10 build 21H1 and Windows 11. |
| LED Feature | 4x EZ Debug LED |

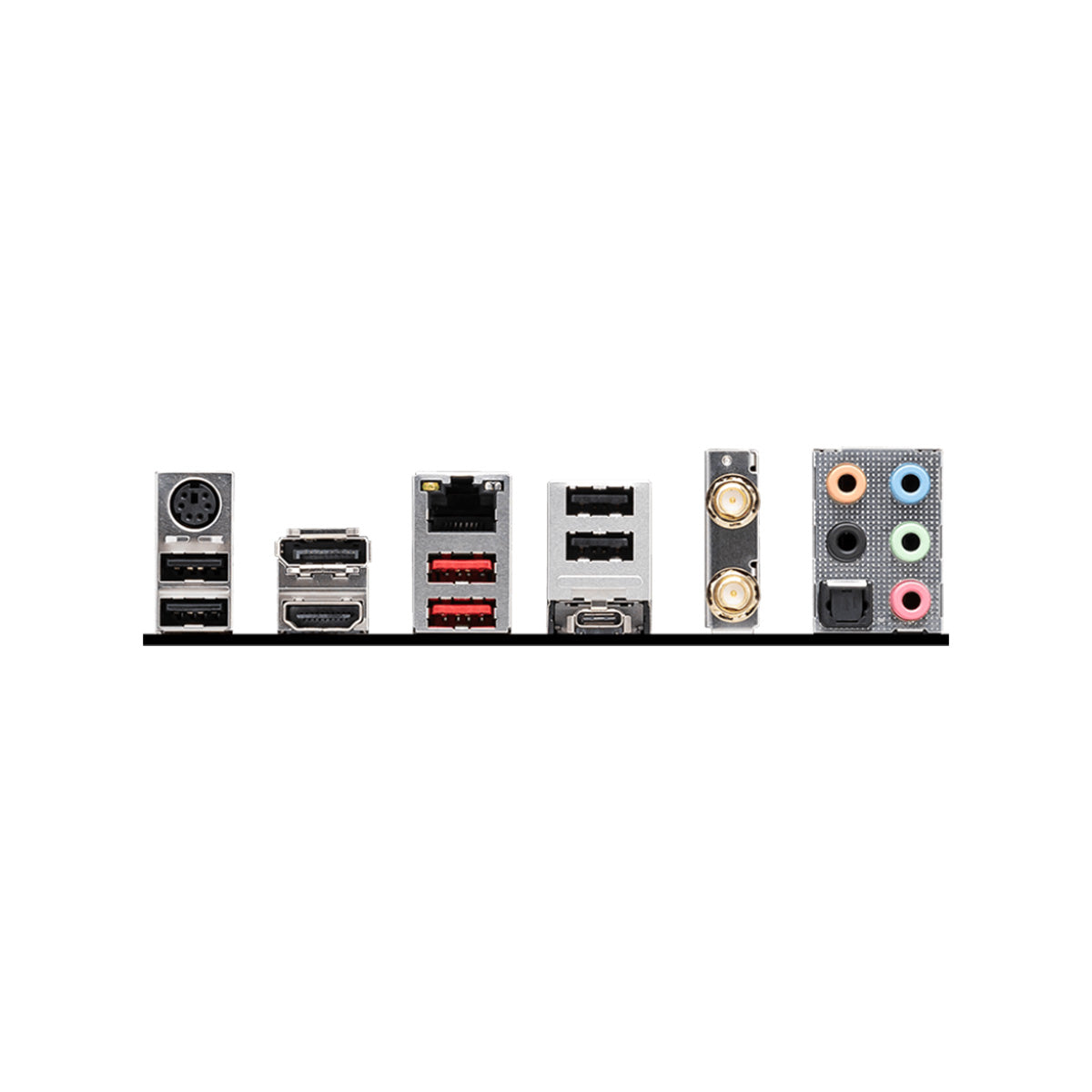

| Back Panel Ports | Keyboard/Mouse, DisplayPort, 2.5G LAN, USB 2.0, Wi-Fi/Bluetooth, Audio Connectors, USB 2.0, HDMI™, USB 3.2 Gen 2 10Gbps (Type-A), USB 3.2 Gen 2 10Gbps (Type-C), S/PDIF-OUT |
| Operating System | Support for Windows® 11 64-bit, Windows® 10 64-bit |
