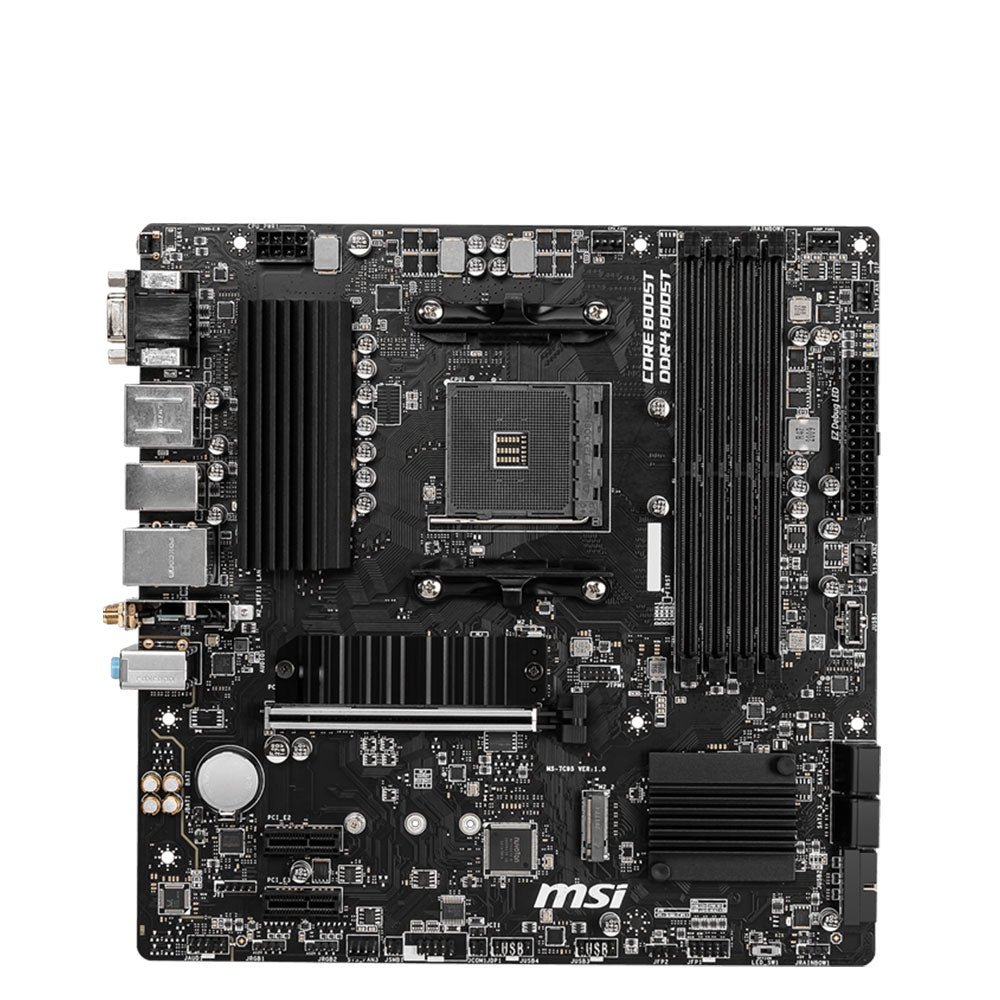

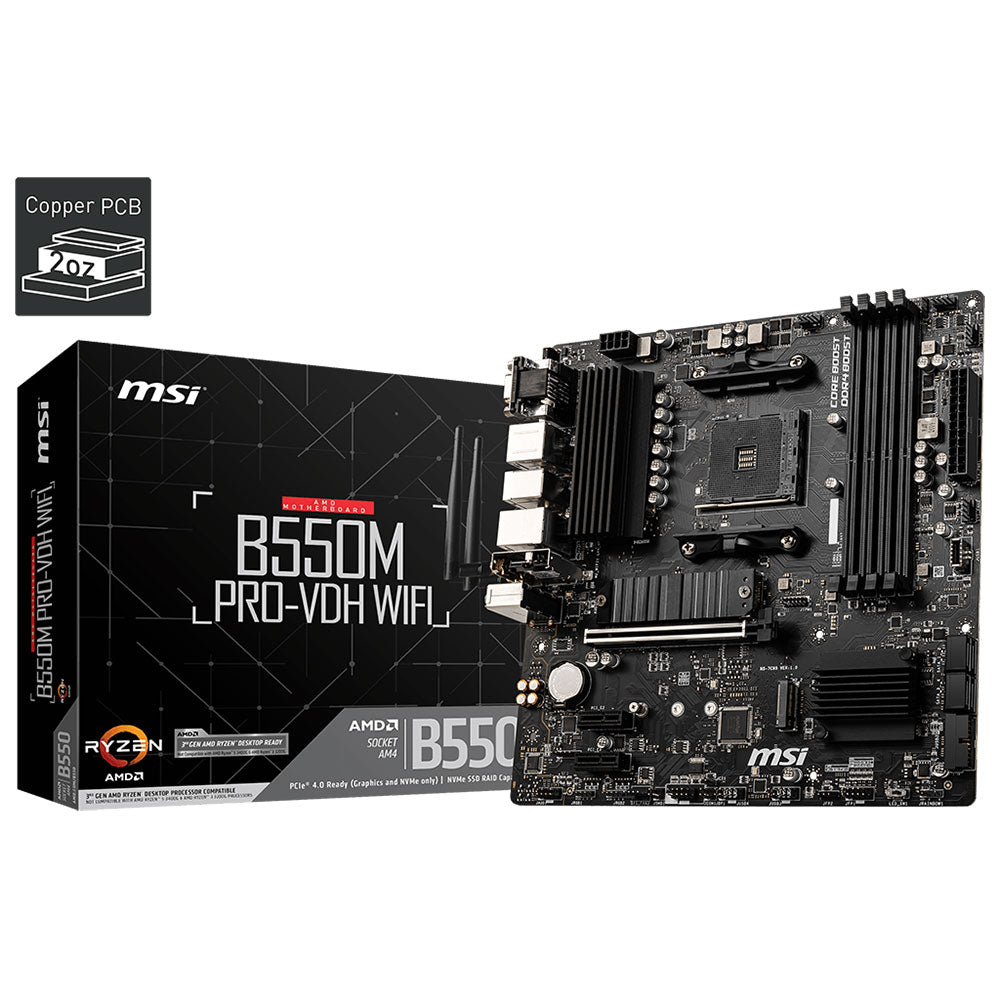

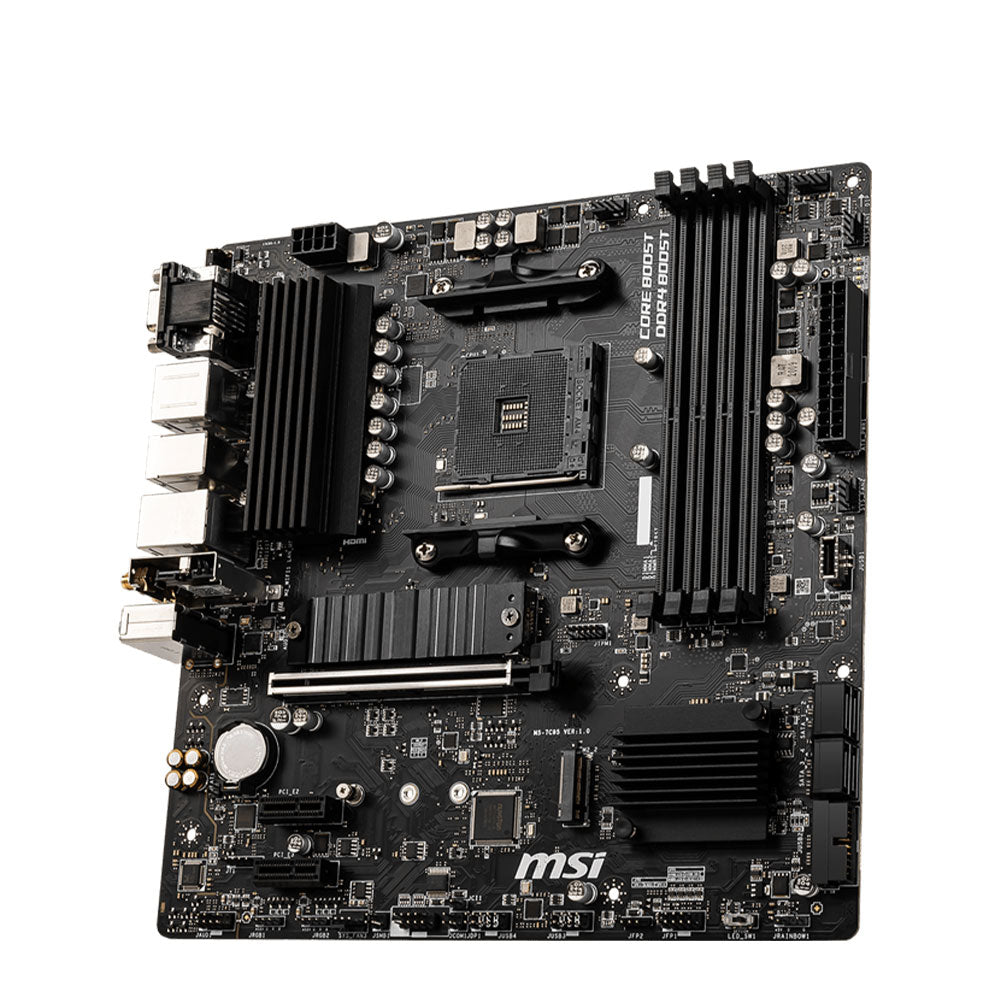

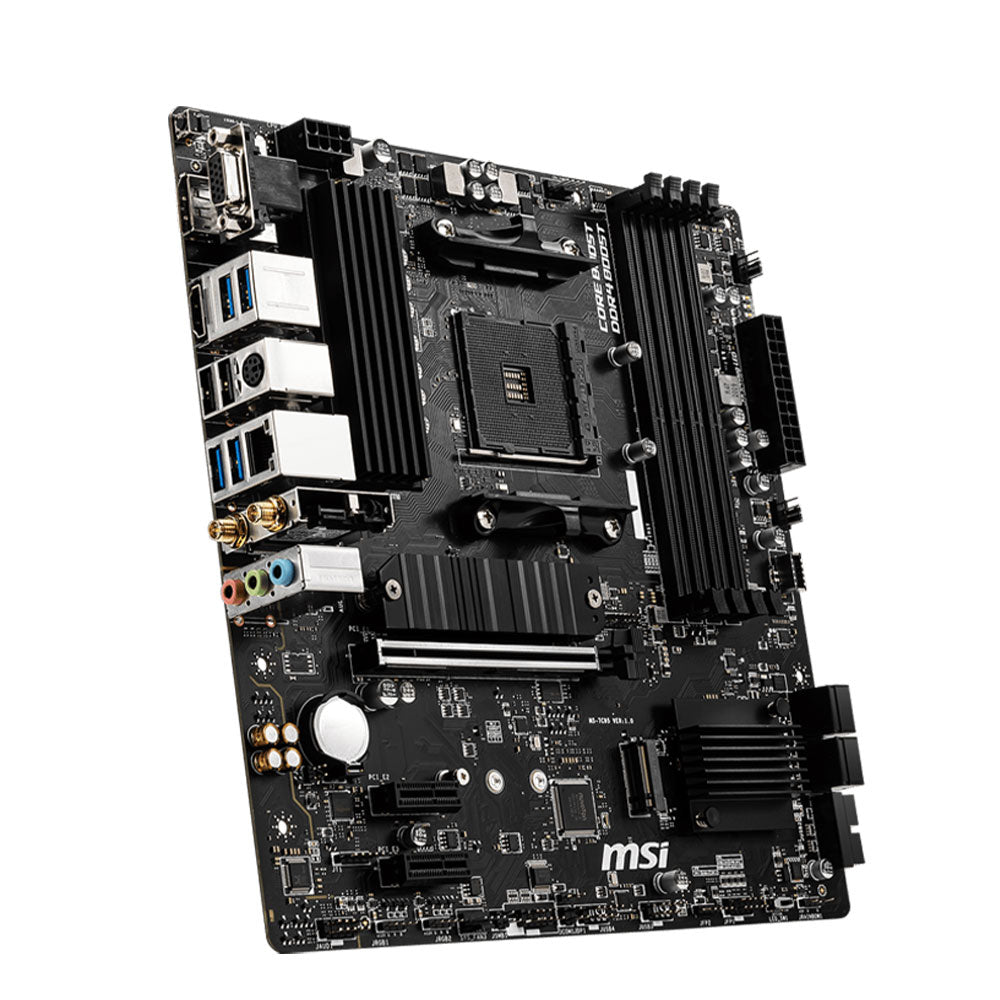

MSI B550M PRO-VDH WIFI mATX Motherboard

MSI  |  SKU 44582  |  MPN B550M PRO-VDH WIFI
$190.00

Warranty and Support

Warranty: 3 Years Return to Base Warranty

Returns: 14-day hassle-free exchanges and store credits, subject to terms and conditions outlined in our Returns Policy.

Delivery and Shipping

All deliveries are signature required.

North Island: 1 – 2 working days
South Island: 2 – 3 working days

Please allow an additional 1 – 2 working days for delivery to rural addresses.

Buy Now, Pay Later & Finance Options:

Description

USER FRIENDLY DESIGN

MSI motherboards feature tons of convenient and smart design for DIY users, countless system tuning and troubleshooting tools are at your disposal to push your system to new heights and satisfy even the most demanding tweaker. Makes it so easy to install your own motherboard without any issue.


Cooling

M.2 SHIELD FROZR

World's fastest SSDs can start to lower performance when getting hot. Part of the motherboards heatsink design, M.2 SHIELD FROZR is the next generation M.2 thermal solution to avoid this by offering the best thermal protection to make sure that SSD maintains maximum performance.

- Prevents throttling

- Maximizes drive performance

- Higher maximum SSD speeds


FULLY CONTROLLABLE IN BIOS AND SOFTWARE

MSI motherboards let you manage speeds and temperatures for all your system and CPU fans. Total Fan Control allows you check your primary system characteristics in a simplified graphical interface. You can also set up to 4 temperature targets for CPU and motherboard, which will adjust the fan speeds automatically.


OPTIMIZED FOR WATER COOLING

Designed to support the most popular All-In-One & customized water cooling solutions on the market. A dedicated water pump PIN header supports up to 3 amp, giving you full control of the water pump speed. A clearly marked ‘keep-out-zone’ allows for easy and safe installation and a perfect fit.

CONNECTIVITY

The most important thing of DIY is expandability. MSI PRO series motherboards feature plenty possibility for prosumers' need. Stable LAN, faster storage and USB transfer speed and other expandable connectors are ready to enlarge your flexibility.

  • WI-FI AC & BLUETOOTH: This Wi-Fi / Bluetooth solution delivers AC speeds up to 433Mbps without any cable limitation.
  • FAST AND FUTURE-READY STORAGE: MSI PRO series motherboards support all the latest storage standards, which allows users to connect any ultra-fast storage device. Higher efficiency makes your work easier.
  • LIGHTNING GEN 4 M.2Utilizing 3rd Gen Ryzen processors, MSI B550 motherboards feature latest Lightning Gen 4 M.2 which is the fastest onboard storage solution on the market with up to 64 Gb/s transfer speed.
  • USB FRONT TYPE-CMSI motherboards support USB Front Type-C that allows gamers to connect with the latest USB devices. Built up a system with MSI PC case to have the most convenient experience.
  • EXTEND YOUR RGB EXPERIENCE WITH EASE: Add your color if you want! Mystic Light Extension pin header provides an intuitive way to control additional RGB strips and other RGB peripherals added to a system, without needing a separate RGB controller.



B550M PRO-VDH WIFI

  • Supports AMD Ryzen™ 5000 & 3000 Series desktop processors (not compatible with AMD Ryzen™ 5 3400G & Ryzen™ 3 3200G) and AMD Ryzen™ 4000 G-Series desktop processors
  • Supports DDR4 Memory, up to 4400(OC) MHz
  • Lightning Fast Experience: PCIe 4.0, Lightning Gen4 x4 M.2 with M.2 Shield Frozr
  • Premium Thermal Solution: 7W/mK pad, additional choke thermal pad and M.2 Shield Frozr are built for high performance system and non-stop works
  • Powerful Design: Core Boost, Digital PWM IC, 2oz Thickened Copper PCB, Creator Genie, DDR4 Boost
  • Audio Boost: Reward your ears with studio grade sound quality
  • Dragon Center: A brand new software which integrates all MSI exclusive tools with user friendly user interface.

Specifications

CPU Supports AMD Ryzen™ 5000 & 3000 Series desktop processors (not compatible with AMD Ryzen™ 5 3400G & Ryzen™ 3 3200G) and AMD Ryzen™ 4000 G-Series desktop processors. See supported processors.
CHIPSET AMD B550 Chipset
MEMORY 4x DDR4 memory slots, support up to 128GB.
Supports DDR4 1866 / 2133 / 2400 / 2667 / 2800 / 2933 / 3000 / 3066 / 3200 MHz by JEDEC.
Supports DDR4 2667 / 2800 / 2933 / 3000 / 3066 / 3200 / 3466 / 3600 / 3733 / 3866 / 4000 / 4133 / 4266 / 4400+ MHz by A-XMP OC MODE.
• 1DPC 1R max speed 4400 MHz
• 1DPC 2R max speed 3733 MHz
• 2DPC 1R max speed 3866 MHz
• 2DPC 2R max speed 3466 MHz
Dual channel memory architecture.
Supports non-ECC UDIMM and ECC UDIMM memory.
Supports un-buffered memory.
Please refer to www.msi.com for more information on compatible memory. See supported memory.
EXPANSION SLOT 1x PCIe 4.0 / 3.0 x16 slot (PCI_E1).
2x PCIe 3.0 x1 slots. The supported specification depends on the installed processor.
ONBOARD GRAPHICS 1x VGA port, supports resolution of 2048x1536 @50Hz, 2048x1280 @60Hz, 1920x1200 @60Hz.
1x DisplayPort, supports a maximum resolution of 4096x2160 @60Hz.
1x HDMI™ 2.1 port, supports a maximum resolution of 4096x2160 @60Hz.
Supports HDCP 1.4 & 2.3. Maximum shared memory of 16 GB. Available for processors with integrated graphics. Graphics specifications may vary depending on the CPU installed.
STORAGE AMD B550 Chipset.
4x SATA 6Gb/s ports.
2x M.2 slots (Key M):
• M2_1 slot (from AMD Processor) supports PCIe 4.0 / 3.0 x4 and SATA 6Gb/s. Supports 2242 / 2260 / 2280 storage devices.
• M2_2 slot (from AMD B550 chipset) supports PCIe 3.0 x4. Supports 2242 / 2260 / 2280 storage devices.
The supported specification depends on the installed processor.
RAID Supports RAID 0, RAID 1, and RAID 10 for SATA storage devices. Supports RAID 0 and RAID 1 for M.2 NVMe storage devices.
USB AMD B550 Chipset:
• 3x USB 3.2 Gen 1 5Gbps ports (1 Type-C internal connector, and 2 ports through the internal USB 3.2 Gen 1 5Gbps connector).
• 6x USB 2.0 ports (2 Type-A ports on the back panel, 4 ports through the internal USB 2.0 connectors).
AMD Processor:
• 4x USB 3.2 Gen 1 5Gbps Type-A ports on the back panel.
AUDIO Realtek® ALC892 / ALC897 Codec. 7.1-Channel High Definition Audio.
LAN 1x Realtek® 8111HN Gigabit LAN controller.
WIRELESS LAN & BLUETOOTH® Wi-Fi AC. Supports Wi-Fi 802.11 a/b/g/n/ac, dual band (2.4GHz, 5GHz) up to 433 Mbps speed. Supports Dual Mode Bluetooth 2.1, 2.1+EDR, 3.0, 4.0, BLE, 4.2.
INTERNAL CONNECTORS 1x 24-pin ATX main power connector.
1x 8-pin ATX 12V power connector.
4x SATA 6Gb/s connectors.
2x M.2 slots (M-Key).
1x USB 3.2 Gen 1 5Gbps Type-C port.
1x USB 3.2 Gen 1 5Gbps connector (supports additional 2 USB 3.2 Gen 1 5Gbps ports).
2x USB 2.0 connectors (supports additional 4 USB 2.0 ports).
1x 4-pin CPU fan connector.
1x 4-pin water-pump fan connector.
3x 4-pin system fan connectors.
1x Front panel audio connector.
2x System panel connectors.
1x Serial port connector.
1x Chassis Intrusion connector.
2x 4-pin RGB LED connectors.
2x 3-pin RAINBOW LED connectors.
1x TPM module connector.
1x Clear CMOS jumper.

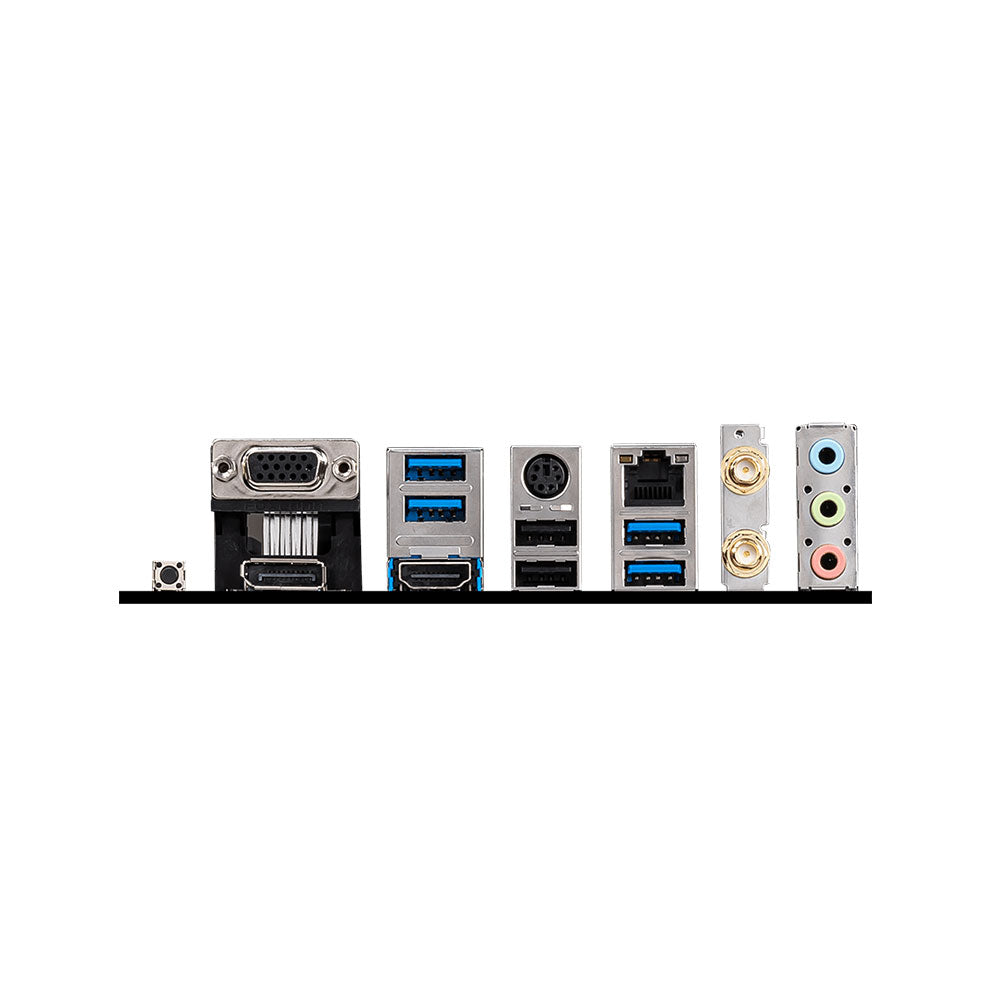

BACK PANEL PORTS VGA
USB 3.2 Gen 1 5Gbps Type-A
Keyboard / Mouse
LAN
Flash BIOS Button
DisplayPort
HDMI™
USB 2.0
USB 3.2 Gen 1 5Gbps Type-A
Wi-Fi Antenna connectors
3x Audio jacks.
DIMENSIONS Micro-ATX Form Factor 9.6 in. x 9.6 in. (24.4 cm x 24.4 cm).
MOUNTING 8 mounting holes.
