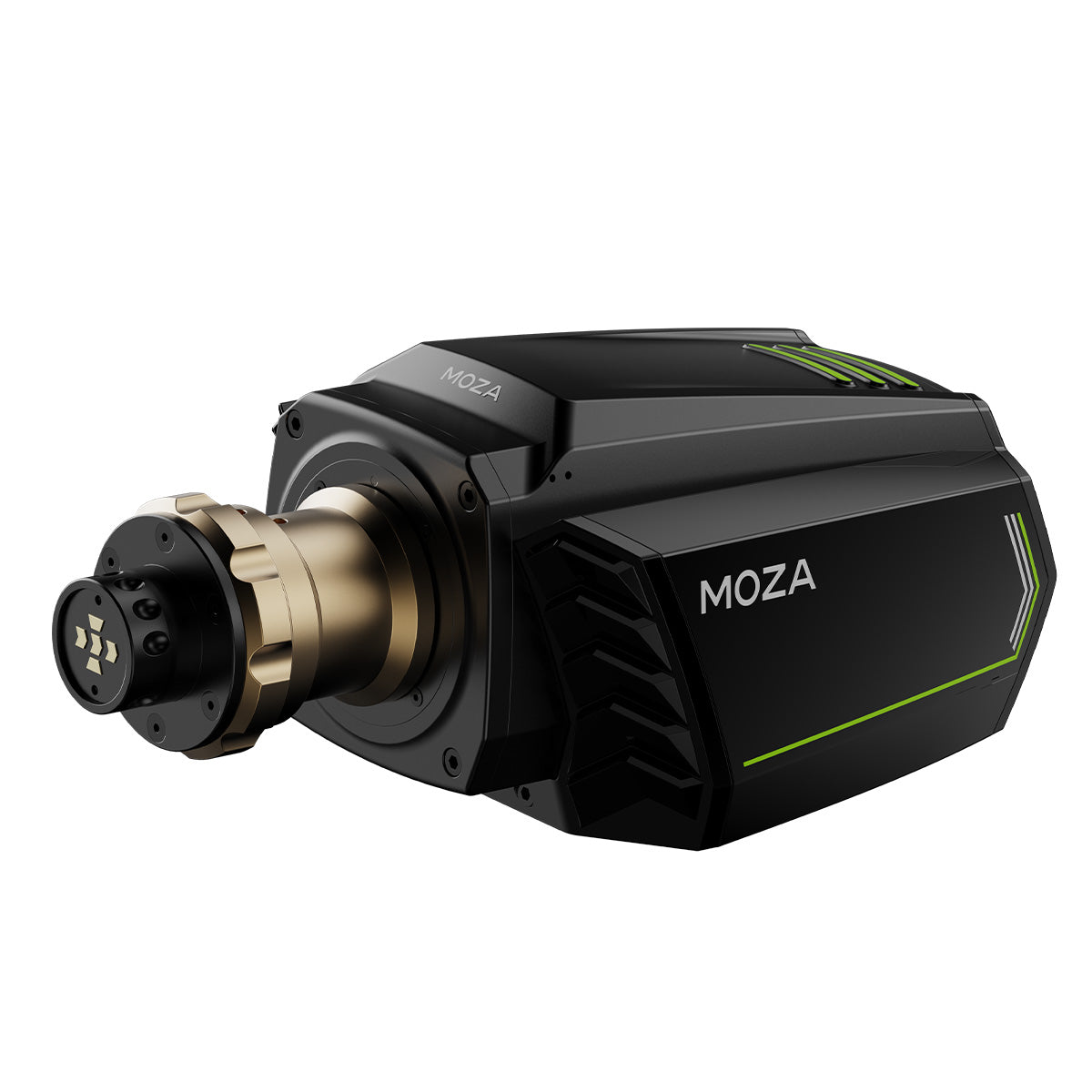

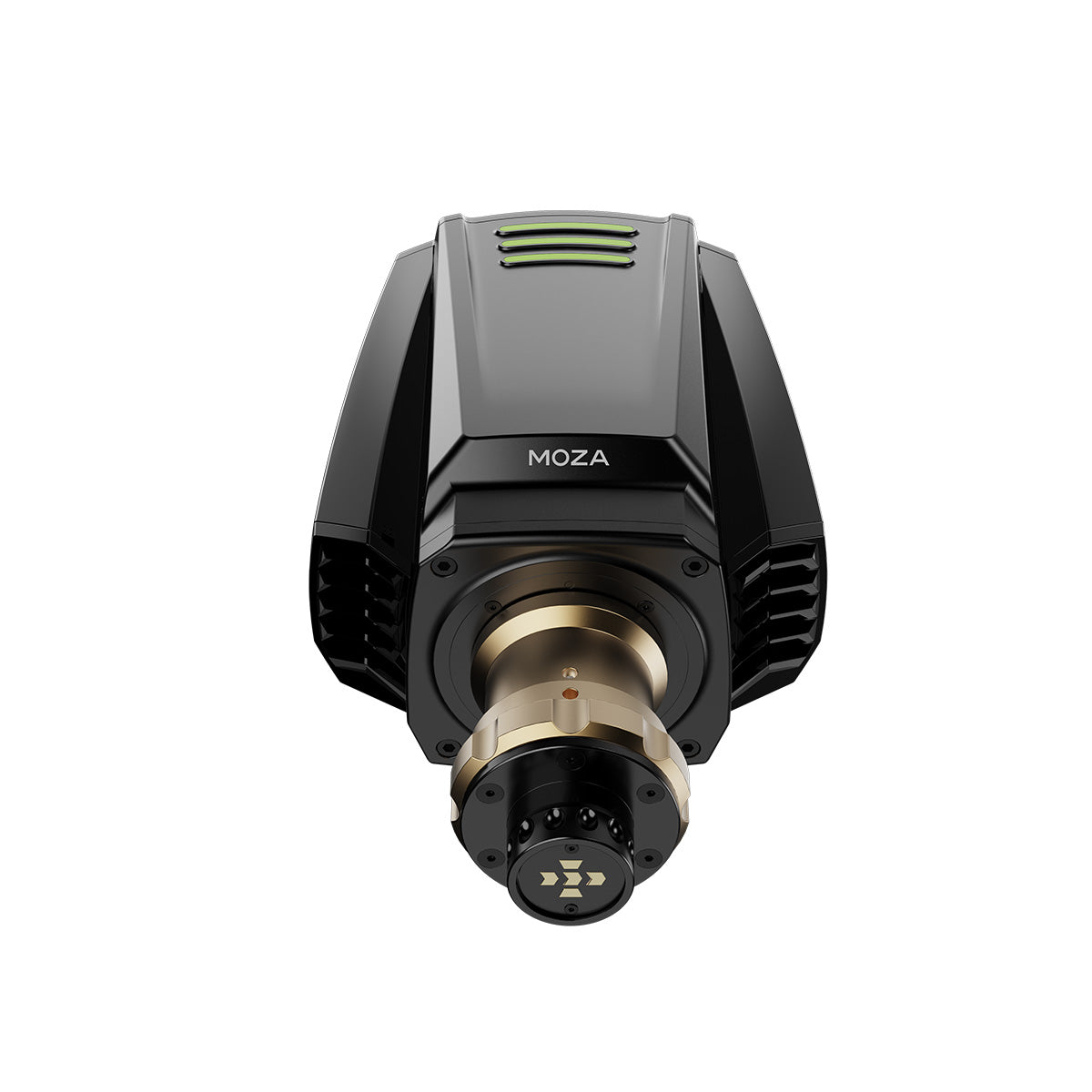

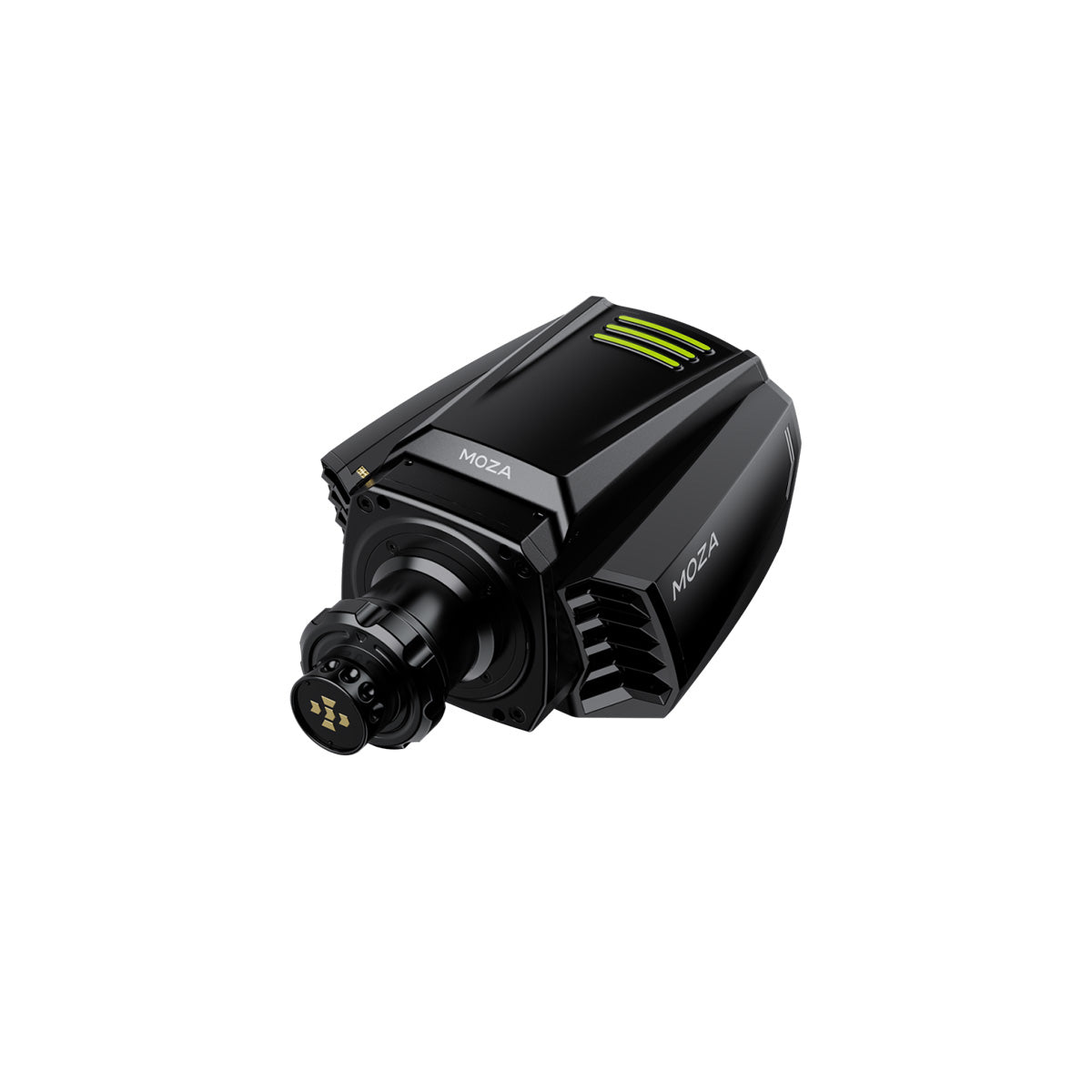

Moza R16 V2 Direct Drive Wheel Base
Warranty and Support
Warranty and Support
Warranty: 2 Years Return to Base Warranty
Returns: 14-day hassle-free exchanges and store credits, subject to terms and conditions outlined in our Returns Policy.
Delivery and Shipping
Delivery and Shipping
All deliveries are signature required.
North Island: 1 – 2 working days
South Island: 2 – 3 working days
Please allow an additional 1 – 2 working days for delivery to rural addresses.
Buy Now, Pay Later & Finance Options:
SHOP STORE:
Description
Description
16 N·M DIRECT DRIVE TORQUE FROM AN INDUSTRIAL-GRADE MOTOR
With 16Nm of torque on tap, the R16 can lay down an ultra-wide torque range that accurately reproduces the dynamic steering characteristics of top racing cars from F1 to IndyCar. Feel the road through the steering wheel.
BEAUTY IS POWER
Inspired by supercars, the R16 has a 3D sculpted body and a two-color automotive paint finish. It’s the Perfect Fusion of Design and Power.
ALL ALUMINUM ALLOY BODY
Enhancing the realism the R16 is made of aircraft-grade aluminum alloy. Giving the driver the right weight and feel.
ULTRA-LOW STATIC TORQUE
An optimized motor design that offers practically zero torque ripple and cogging. The R16 can smoothly recreate a wide band of precision steering wheel feedback. From the feeling of hard braking to the tires riding the curb around a corner.
SUPERIOR TEMPERATURE CONTROL PERFORMANCE
The R16 has excellent temperature performance. Even under the most strenuous endurance race the R16 will not reduce or attenuate torque output due to motor overheating. The temperature control system monitors the motor temperature in real-time, to avoid any possible temperature abnormalities.
262,144 POINTS OF RESOLUTION
The encoder of the R16 has 262,144 points of resolution. Giving the R16 exceptional ability to understand the position of the wheel to seamlessly reproduce the feeling of racing.
ZERO LATENCY WIRELESS TECHNOLOGY
Wirelessly transmit data and power between the steering wheel and the base.
QUAD-CORE ARCHITECTURE
No matter how complex the force feedback calculations get. The unique Quad CPUs can reliably process the task at maximum precision.
MOZA PIT HOUSE CONTROL SOFTWARE
The MOZA Pit House Control Software is the control center for the MOZA racing simulator. See the status of each device, set the maximum turning angle, force feedback, pedal travel, steering wheel shift indicator, instrument interface, and more. The MOZA Pit House is your exclusive Pit House.
The basic settings help beginners quickly match the right-hand feel, while the professional settings allow you to bring out amazing exclusive power feedback effects.
APP CLOUD CONTROL
The settings of the wheelbase, steering wheel, pedals, etc. can be modified through the MOZA APP. Settings can be imported with one click onto new simulators.
- Applicable Platform - PC
- Driving type - Direct Drive
- Maximum Turning Angle - Limitless
- Cover - Aluminum
- Color - Black/Cyber Green
- Maximum Torque - 16 N·m
- Maximum Power - 360W
- Input voltage - 110V~220V AC —>36V DC
- Encoder Resolution - 262144ppr
- USB Refresh Rate - 1000Hz
- Indicator - YES

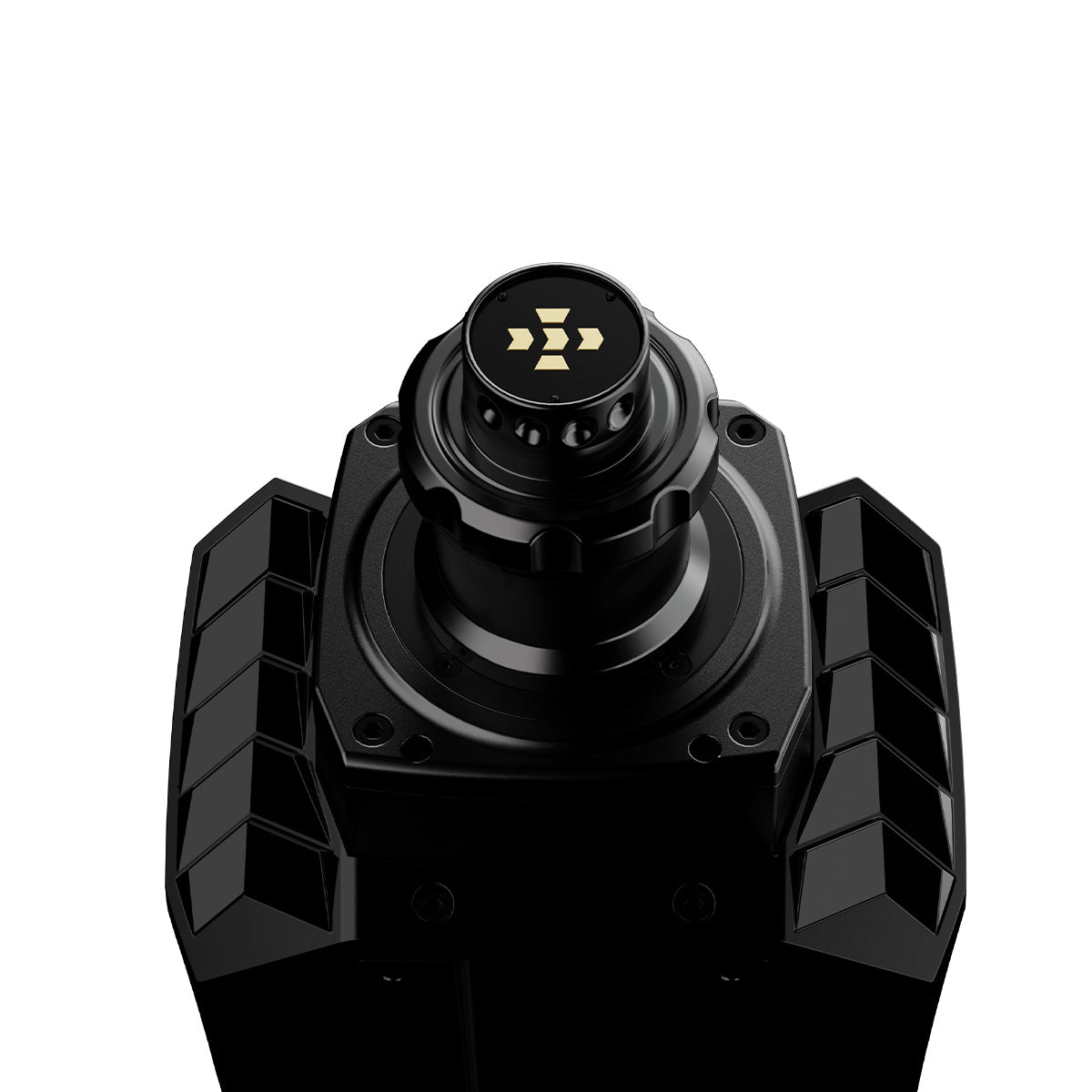

- Quick Release - Customized Quick Release
- Cooling - NONE
- Mode Button - NONE

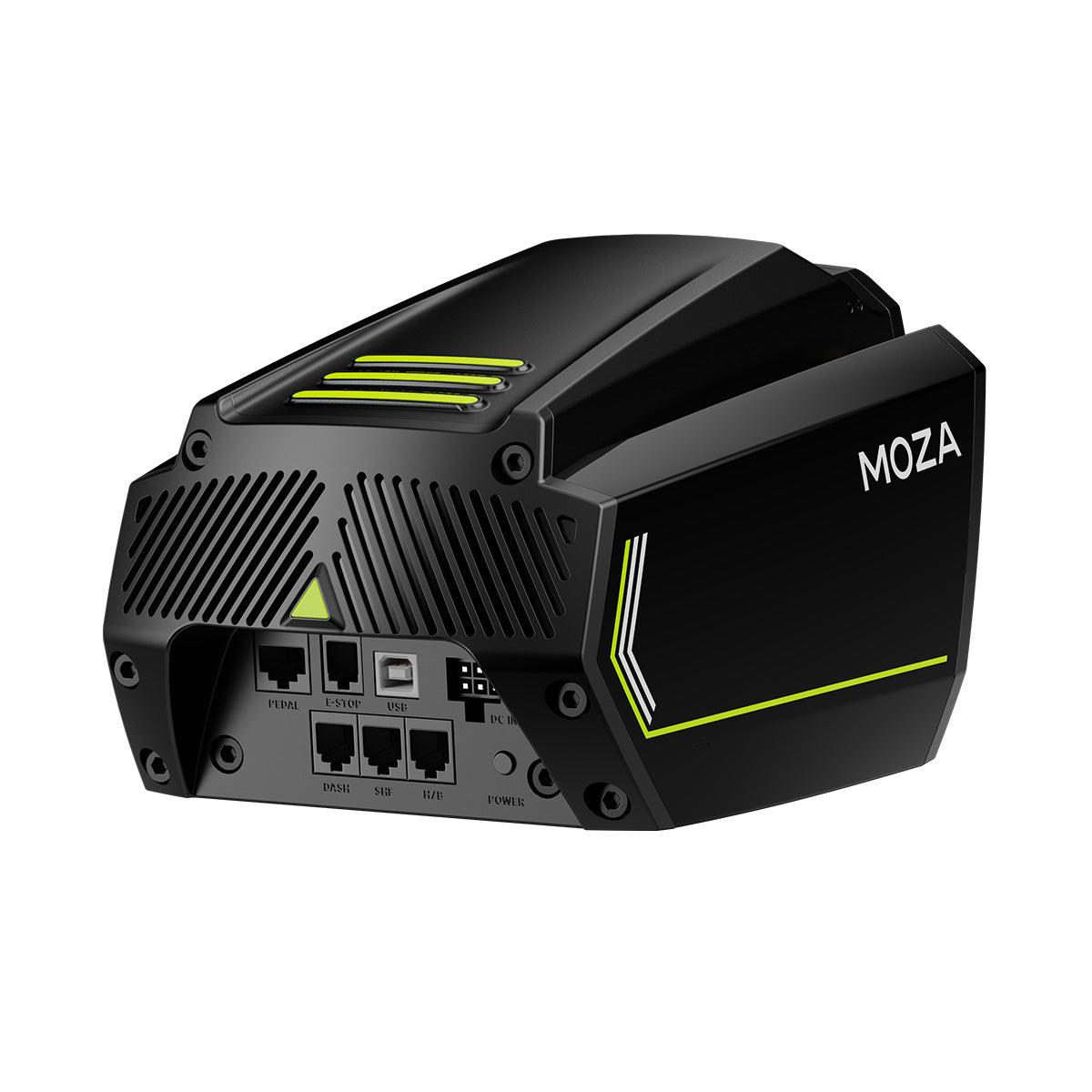

- Interface - Power Supply, Data, General Interface
- Accessories - Instructions, Power Supply, USB Cable, Warranty Card, Screw
- Mounting - 4-Hole Pattern on the Bottom, Side Mounting Support with Special BRKT(Sold Separately)
- Table Clamp - Optional
- Emergency Stop - Optional
- Firmware Update - YES
- L x W x H - 327mm x 170mm x 130mm
- Mass - 8.9kg
- APP Function - YES
