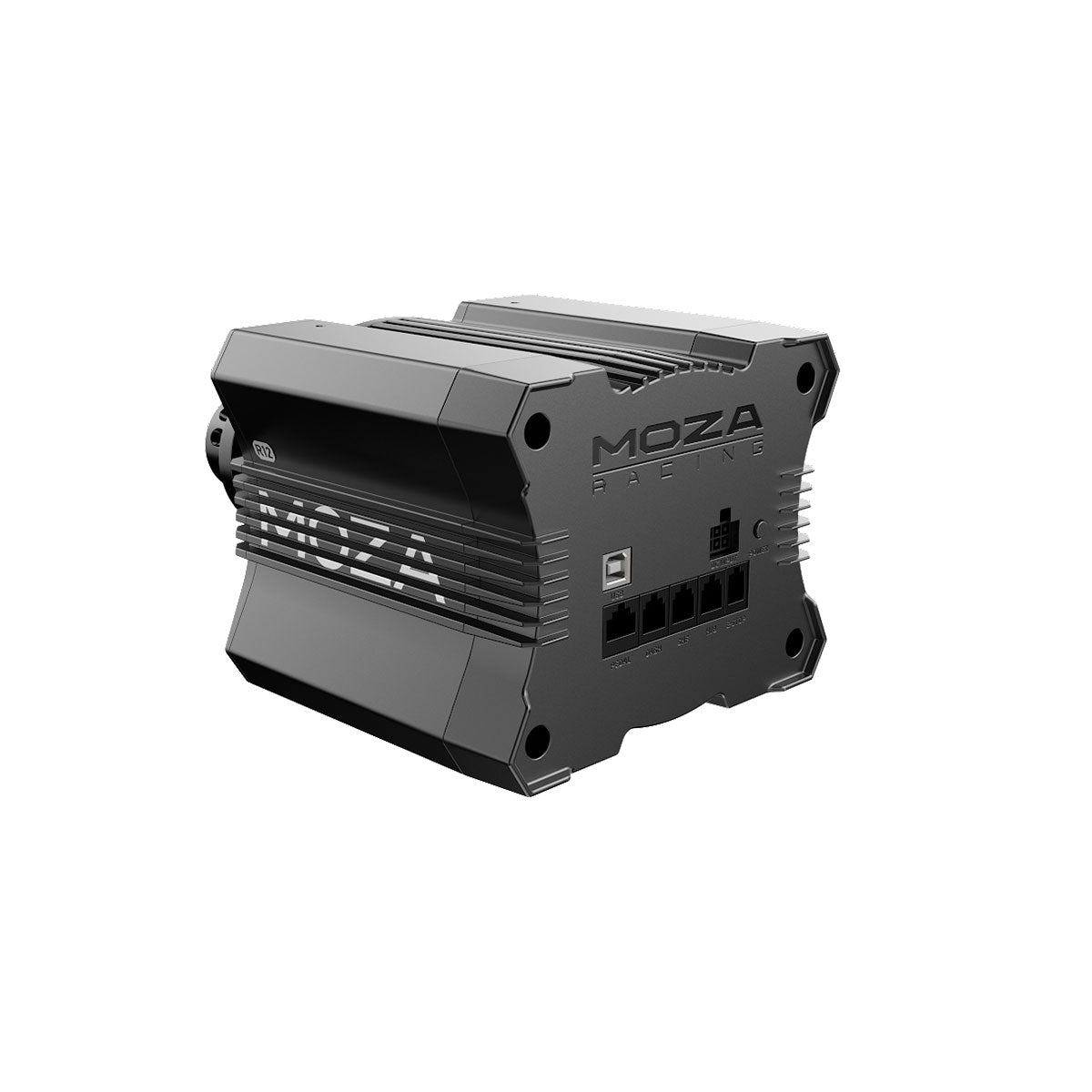

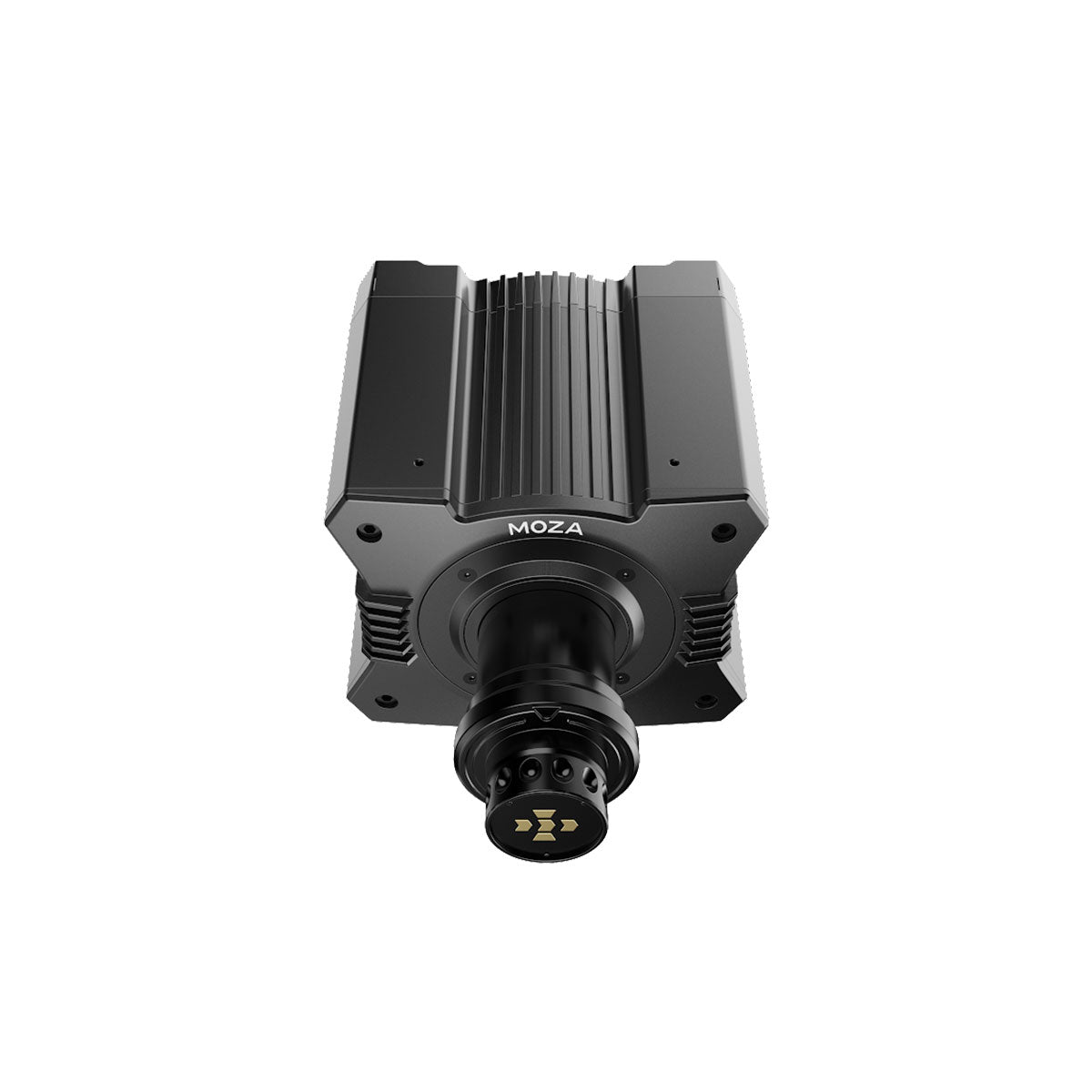

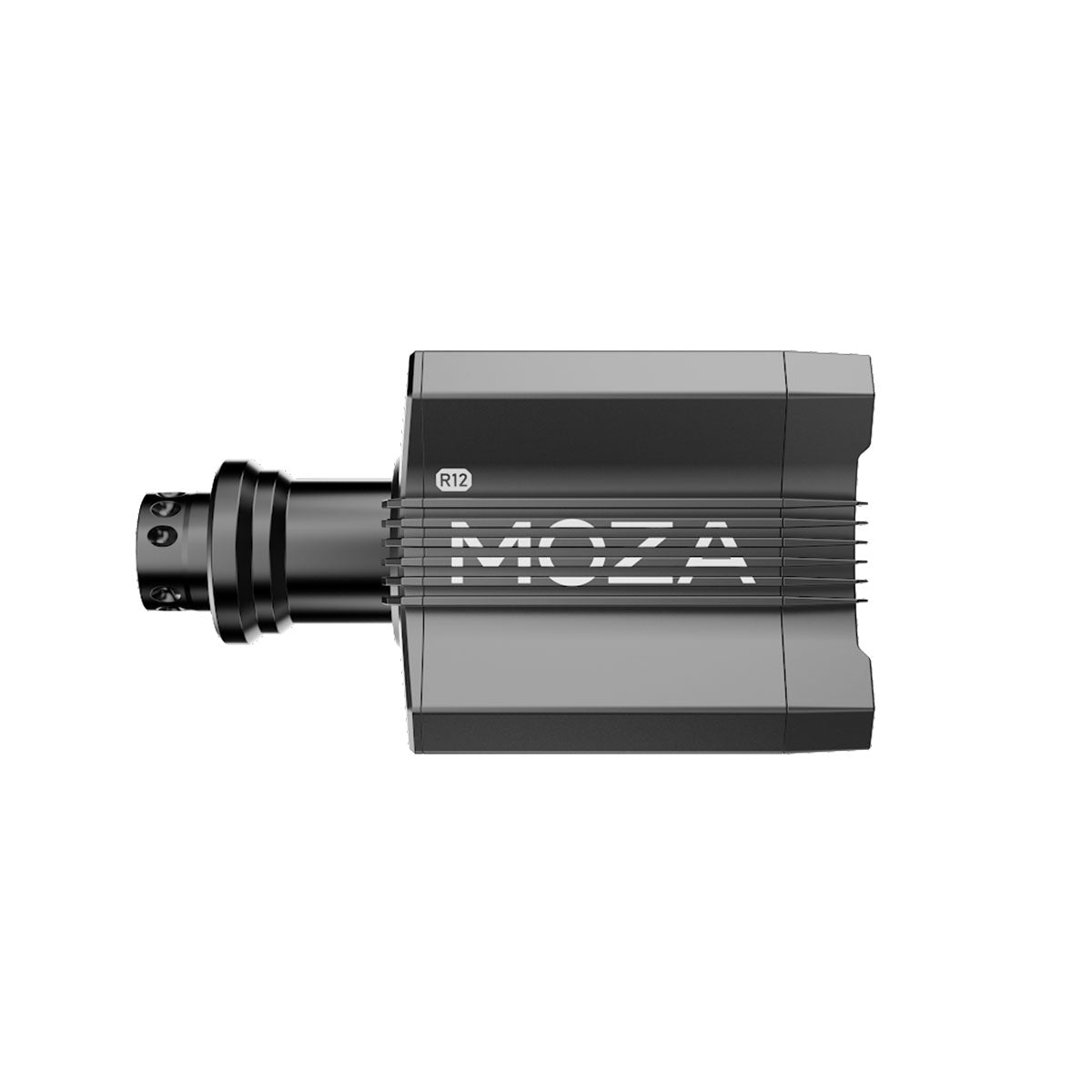

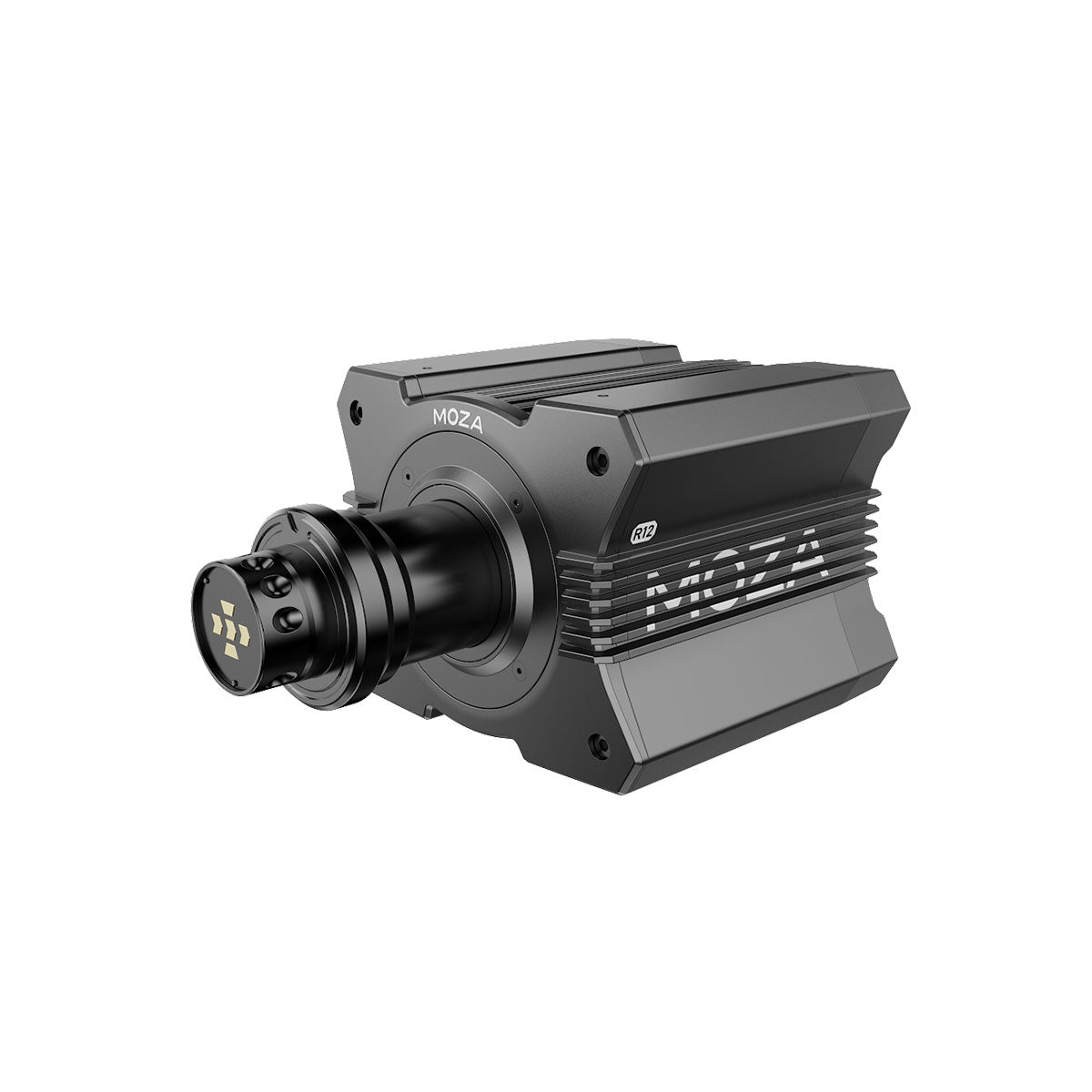

Moza R12 Direct Drive Wheel Base

12Nm DD Power

The 12 Nm servo direct drive system is tailor-made for simulating race cars, delivering a stable and realistic torque output of 12 Nm. It flawlessly replicates the steering force found in road and race cars, providing detailed and immersive feedback from the virtual vehicle and track surface directly to your hands.

Direct Drive Servo Motor

• Slanted-pole Design

  The R12 motor incorporates cutting-edge technology derived from the R21 base, utilizing a unique slanted-pole design. The rotor is intelligently segmented into three sections with precisely calculated angles, resulting in a revolutionary motor design that significantly reduces cogging torque, torque ripple, electromagnetic vibration, and noise levels compared to conventional motors. With its innovative design, the R12 motor runs seamlessly and quietly, offering unparalleled smoothness and minimal noise and vibration during operation.

• The Maximum & Minimum design philosophy

  The R12 DD base is designed with a high-slot fill rate, utilizing high-permeability magnetic cores and high-strength neodymium iron boron magnets to achieve high energy and low current density characteristics. With its compact body and low power consumption, it delivers maximum torque output, significantly enhancing convenience and temperature control performance.

• Ultra-low torque Ripple

  The motor in the R12 DD base utilizes a 18-slot, 16-pole high-slot design, which features the highest number of poles in its class. This design results in ultra-low torque ripple and exceptional shock absorption performance, delivering a smooth and seamless steering experience.

• Wide high-torque speed range

  The R12 DD base utilizes a low back-electromotive force design, which allows for a broad speed range even during high-torque operation. This feature enables high torque output at high speeds and eliminates torque dropouts when quickly correcting direction, ensuring a smooth and consistent steering experience.

Ultra-low FFB Latency & Steering Response

"Enjoy ultra-low force feedback latency and steering response with our system's 280MHz processor chip and optimized algorithms. This advanced technology makes it easy for drivers to control their vehicles with precision and ease, delivering an immersive and responsive driving experience. "

New Generation FFB Filtering Algorithm

The R12 DD base is powered by MOZA's latest force feedback filtering algorithm, providing enhanced dynamic feedback that renders oversteer and understeer with greater clarity and richness.

Aviation-grade Aluminium

"Experience unrivaled quality and durability with the MOZA R12. Its entire housing is constructed from aviation-grade aluminium alloy utilizing automotive-grade painting and laser etching, providing a long-lasting and extremely durable finish. "

Intelligent Temperature Control System

"Our advanced system continuously monitors the temperature of the motor and electronic components in real-time, employing intelligent temperature control strategies to deliver stable and reliable performance in all circumstances."

Industrial Conductive Slip Ring

"The base and the steering wheel are connected through a military-grade conductive slip ring with a life span of over 5 million revolutions. The unique patented design has extremely high stability and durability while achieving infinite high-speed rotation."

Compact Design

The integrated motor design results in a compact size that still retains a standard 4 hole bottom mount pattern. It can be easily installed onto the vast majority of dedicated rigs and floorstands. In smaller spaces the base can be assembled with a desktop clamp, saving space whilst providing a convenient and enjoyable driving experience anytime, anywhere.

Cloud-based Mobile App Control

"Enjoy on-the-fly changes using the MOZA app! Force feedback, pedal settings, and more can all be changed in real-time. One-click importing allows easy hassle free setup transfers to new devices."

Hand-off Protection

"This function can effectively avoid the risk of injury and quickly help restore control by detecting that hands are off the wheel. Once activated, it will quickly stop any oscillation and safely center the wheel."

MOZA Pit House Control Software

• Pit House is MOZA Racing's command center and allows full customization and fine tuning of your MOZA devices. With just a single click, you can launch the game directly from the Pit House software and seamlessly configure it to obtain telemetry data. The software also lets you synchronize the rpm lights and dash display effortlessly. The interface of MOZA Pit House is not only intuitive but also aesthetically pleasing, making it an excellent tool for any racing enthusiast.
• With presets and easy to understand settings recommended by Moza Racing, as well as numerous professional sim racers, beginners can enjoy a plug and play experience catered for many popular racing titles.
• To allow full customization and optimisation, we offer up to 15 force feedback-related adjustment options, such as mechanical friction and road feel sensitivity, etc. Furthermore, we provide explanations on the correlation between each parameter and the respective feeling next to each option.
• With MOZA's revolutionary force feedback curve adjustment feature, the relationship between force feedback input and output can now be made non-linear resulting in a much more dynamic force feedback output from the base. This means for example that during under or oversteer situations the force feedback can be intensified enabling the driver to easily perceive any loss of vehicle control and drive with greater confidence at the limit. This first-of-its-kind function by MOZA has completely transformed the way we experience force feedback in Direct Drive wheelbases.
• MOZA's FFB equalizer allows full customization and fine-tuning of the FFB effects spectrum for a perfect setup in any conditions.
• In MOZA Pit House, you can configure the double-clutch paddles, knobs, joysticks, rpm lights, etc. of the steering wheel including the clutch engagement point of the paddles, the rotary dial mode, the color of the rpm lights, the relationship between the rpm timing and engine speed, the brightness of buttons and rpm lights, etc.
• In the pedal settings page, adjust pedal travel, output curve, pressure sensing intervention point, and more, allowing you to quickly master the correct braking techniques and effectively improve lap times.
• With one-click updating, you can quickly and easily update Pit House and your devices to the latest versions and firmware, ensuring an optimum overall user experience.
