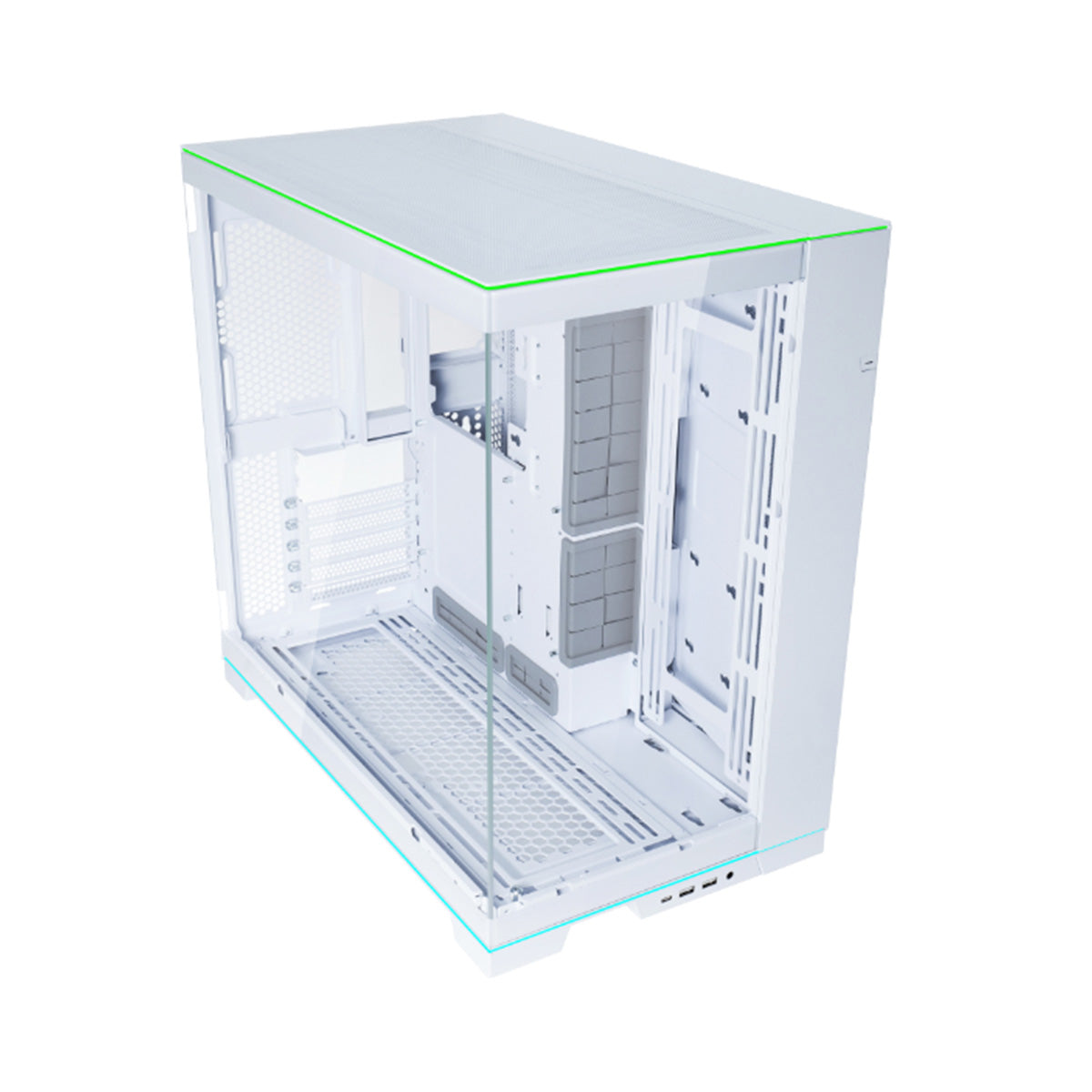

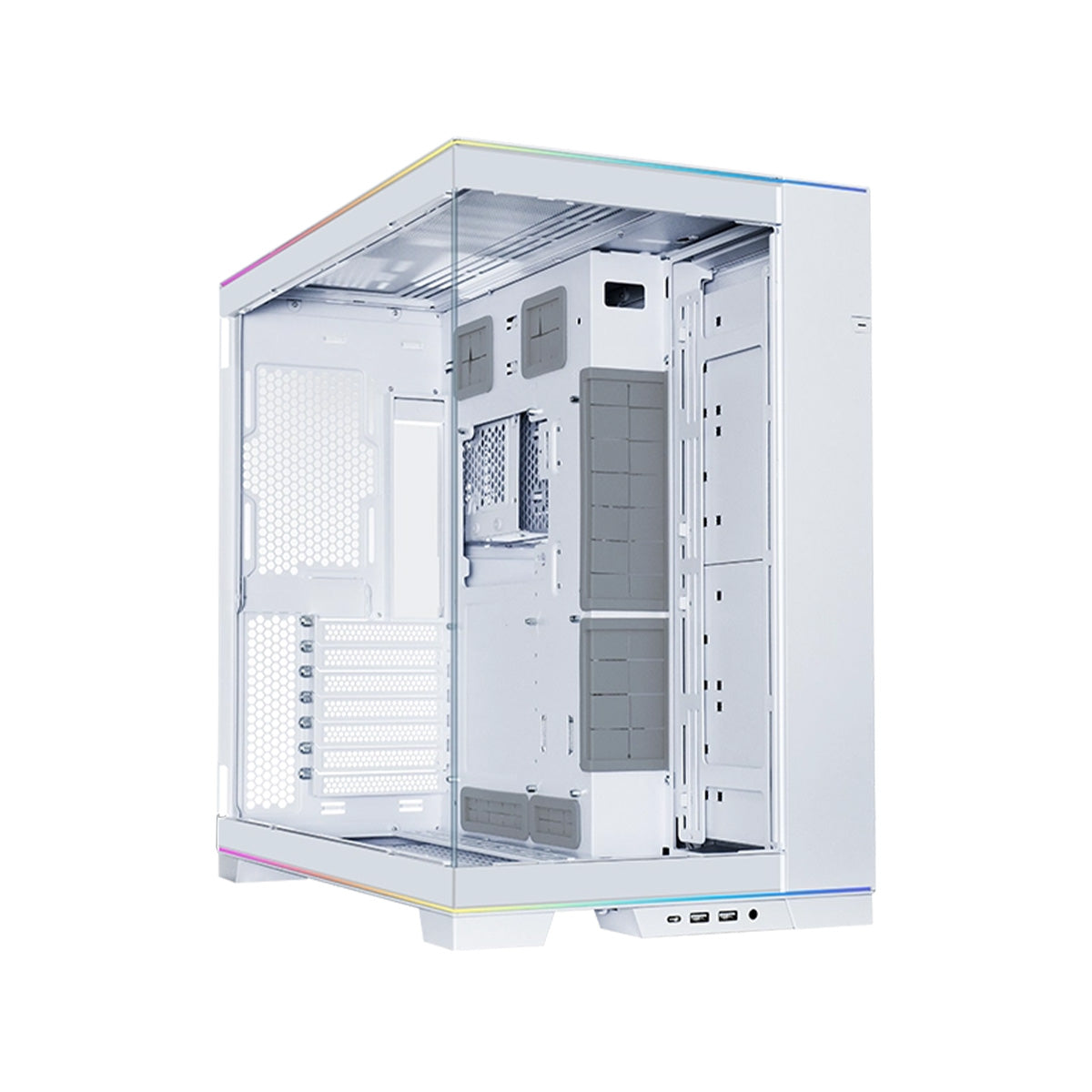

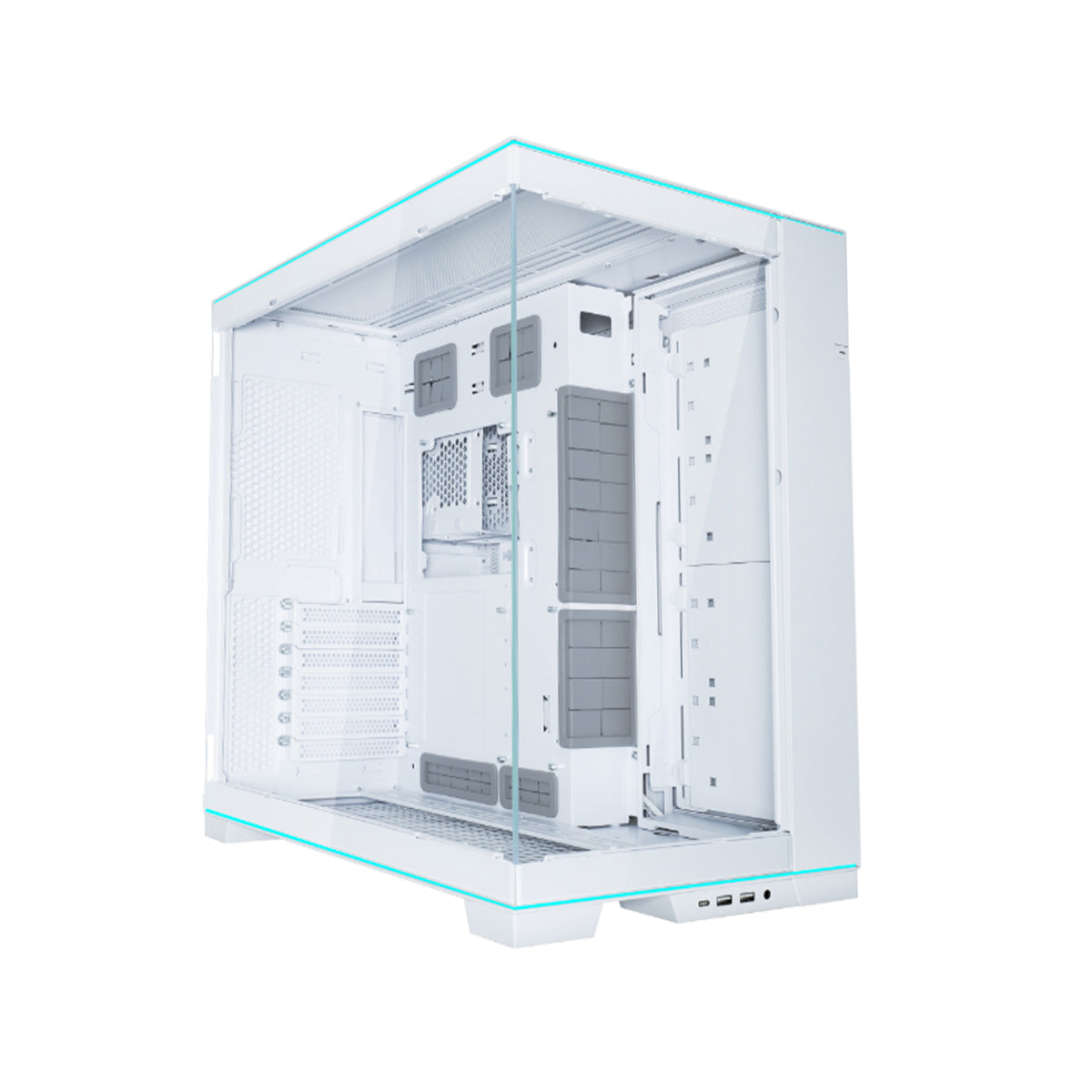

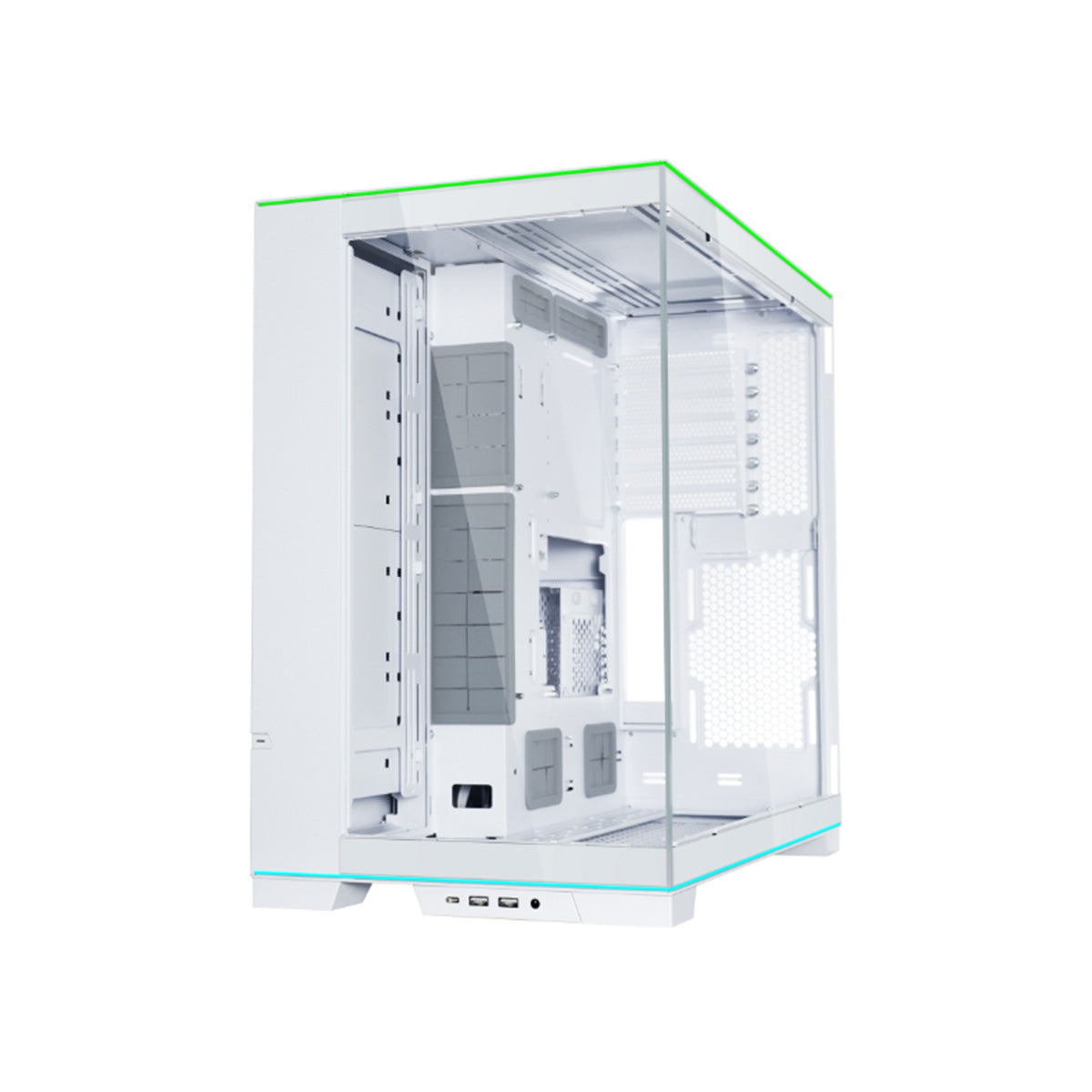

Lian Li O11D EVO RGB ATX Mid Tower Case - TG White
Lian-Li
| SKU
62902
$299.00
Unit price
/
Unavailable
Warranty and Support
Warranty and Support
Warranty: 1 Year Return to Base Warranty
Returns: 14-day hassle-free exchanges and store credits, subject to terms and conditions outlined in our Returns Policy.
Delivery and Shipping
Delivery and Shipping
All deliveries are signature required.
North Island: 1 – 2 working days
South Island: 2 – 3 working days
Please allow an additional 1 – 2 working days for delivery to rural addresses.
Buy Now, Pay Later & Finance Options:
Description
Description
O11D EVO RGB
• Two L-shaped light strips on top and bottom with befitting lighting effects.
• Front and side tempered glass panels with a removable pilar for a seamless view of components and RGB lighting.
• 2 heights adjustable motherboard rear I/O and mounting points.
• Supports up to 420mm radiator on top, and 360mm radiator on side and bottom.
• Supports 140mm fans x3 on top, side, and bottom.
• Cable management friendly with more space at the second chamber.
• Optional accessories for vertical GPU or upright GPU mounting.
Introducing the all-new O11D EVO RGB, featuring dual ARGB light strips running through the top and bottom of the chassis creating a stunning look. And the expanded internal space provides greater component compatibility, bringing an exceptional PC-building experience.
TWO COLORS/TWO MODES
Derived from the O11D EVO, the O11D EVO RGB can be displayed in two modes with just a few simple steps, allowing for a left or right view.
● Brushed Aluminum
● Black Coated Mesh Panel
● Tinted Tempered Glass
ARGB STRIPS ON THE TOP AND BOTTOM
The O11D EVO RGB features a 1.5mm thick L-shaped ARGB strip at both the top and bottom of the chassis that can switch between 14 different lighting effects, adjust brightness and color, and sync with the motherboard.
COMPLETELY UNOBSTRUCTED VIEW
The O11D EVO RGB’s front pillar can now be easily removed, providing a seamless view for showcasing hardware without affecting the case’s structure.
LARGER SIZE, HIGHER COMPATIBILITY
Compared to the O11D EVO, the O11D EVO RGB is slightly larger, which provides higher component compatibility: it supports a 420mm radiator at the top (requires a separate bracket, 360mm radiator at the side/bottom, and 3x140mm fans at all three sides.
MODULAR DESIGN FLEXIBLE CONFIGURATION
- Modularity has always been one of the design languages of the O11D EVO series, and the O11D EVO RGB is no exception.
- At the bottom of the chassis, the I/O module with a wealth of ports, can be relocated to 3 different locations without the use of any tools.
- In addition, we have a separate I/O module O11DE-3XV2/O11DE-3WV2 as an optional accessory to meet the needs of the users that require more I/O ports.
Struggle-Free Fan Brackets
Equipped with a quick-release design, the fan brackets of all three sides can be easily removed or installed.
The side bracket can be flipped vertically or horizontally, offering 4 different installation styles.
The distance between the left-sided and right-sided installation positions reaches 20mm, so users who use EATX motherboards can choose the right-sided installation to avoid the fans from being blocked by the motherboard while gaining more cable management space. Additionally, the O11D EVO RGB features a newly designed vertical corner grommet, making cable management friendlier even when using a large motherboard.
ADJUSTABLE MOTHERBOARD INSTALLATION
The O11D EVO RGB features two sets of pilot holes at different heights, allowing the users to adjust the installation position of the motherboard to accommodate different builds.
CUSTOMIZED CABLE MANAGEMENT
O11D EVO RGB features an improved cable management design, featuring large VELCRO straps near the PSU chamber, dual-layer cable clips that can hold both the bulky and thinner cables, and 15mm of extended space from the rear of the PSU chamber for more cable management room.
The PSU mounting bracket protrudes 15mm from the rear of the case, allowing extra space for cable management. Additionally, a cable tie point along the rear of the case helps with the management of rear I/O cables.
ELEVATE YOUR GPU
O11D EVO RGB comes with the new anti-sag bracket GB-003 with easy height adjustment to support heavy GPUs.
FRIENDLY STORAGE CAPACITY
O11D EVO RGB offers multiple easily accessible storage mounting locations that support up to 8 × SSDs or 4 × HDDs + 2 × SSDs.
OPTIONAL ACCESSORIES
Included 2 silicone covers for low mode configuration to provide a clean look for cable management.
Specifications
Specifications
| CASE TYPE | Tower Chassis |
| COLOR | White |
| DIMENSIONS | （D）478mm × （W）290mm ×（H）471mm |
| MATERIAL | 4.0mm tempered glass、Aluminum 、Steel |
| MOTHERBOARD SUPPORT | E-ATX (Under 280mm)/ATX /M-ATX/MINI-ITX |
| EXPANSION SLOT | 7 |
| STORAGE | Side Fan Bracket:2 × 3.5″ HDD or 4 × 2.5″ SSD Behind MB Tray: 2 × 2.5″ SSD Hard Drive Cage：2 × 3.5″ HDD or 2.5″ SSD |
| RADIATOR SUPPORT | Top: 240mm × 1 or 360mm × 1 or 420mm × 1 Side: 240mm × 1 or 280mm × 1 or 360mm × 1 Bottom: 240mm × 1 or 280mm × 1 or 360mm × 1 |
| FAN SUPPORT | Top: 120mm × 3 or 140mm × 3 Side: 120mm × 3 or 140mm × 3 Bottom: 120mm × 3 or 140mm × 3 Rear: 120mm × 1 |
| GPU LENGTH CLEARANCE | 455.7mm（Max） |
| CPU COOLER HEIGHT CLEARANCE | 167mm（MAX） |
| PSU SUPPORT | ATX (Under 220mm) |
| I/O PORTS | USB 3.0 × 2 USB 3.1 TYPE-C × 1 Audio × 1 Color Button × 1 Mode Button × Brightness Button × 1 Reset Button × 1 Power Button × 1 |
| DUST FILTER | 1 × Bottom |
