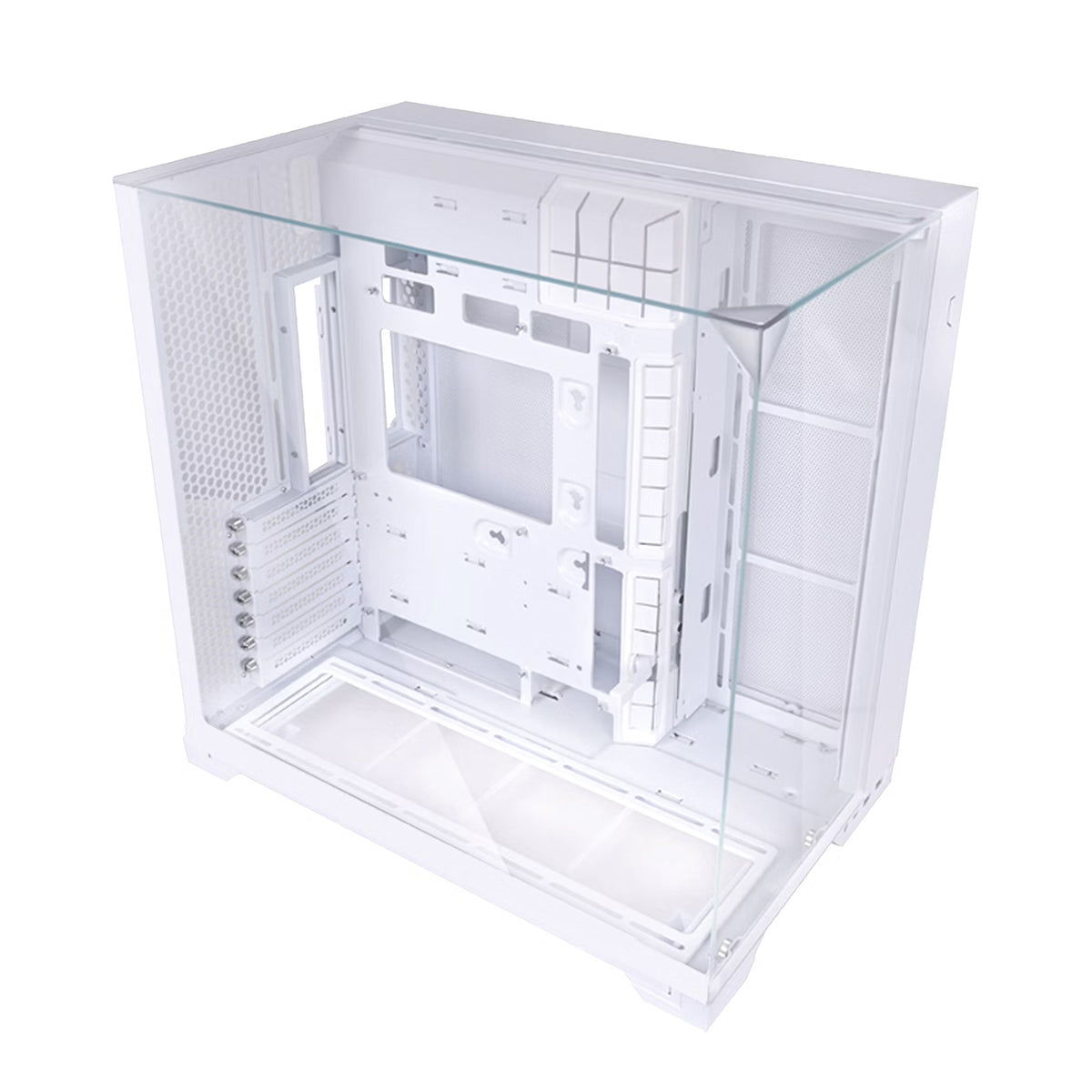

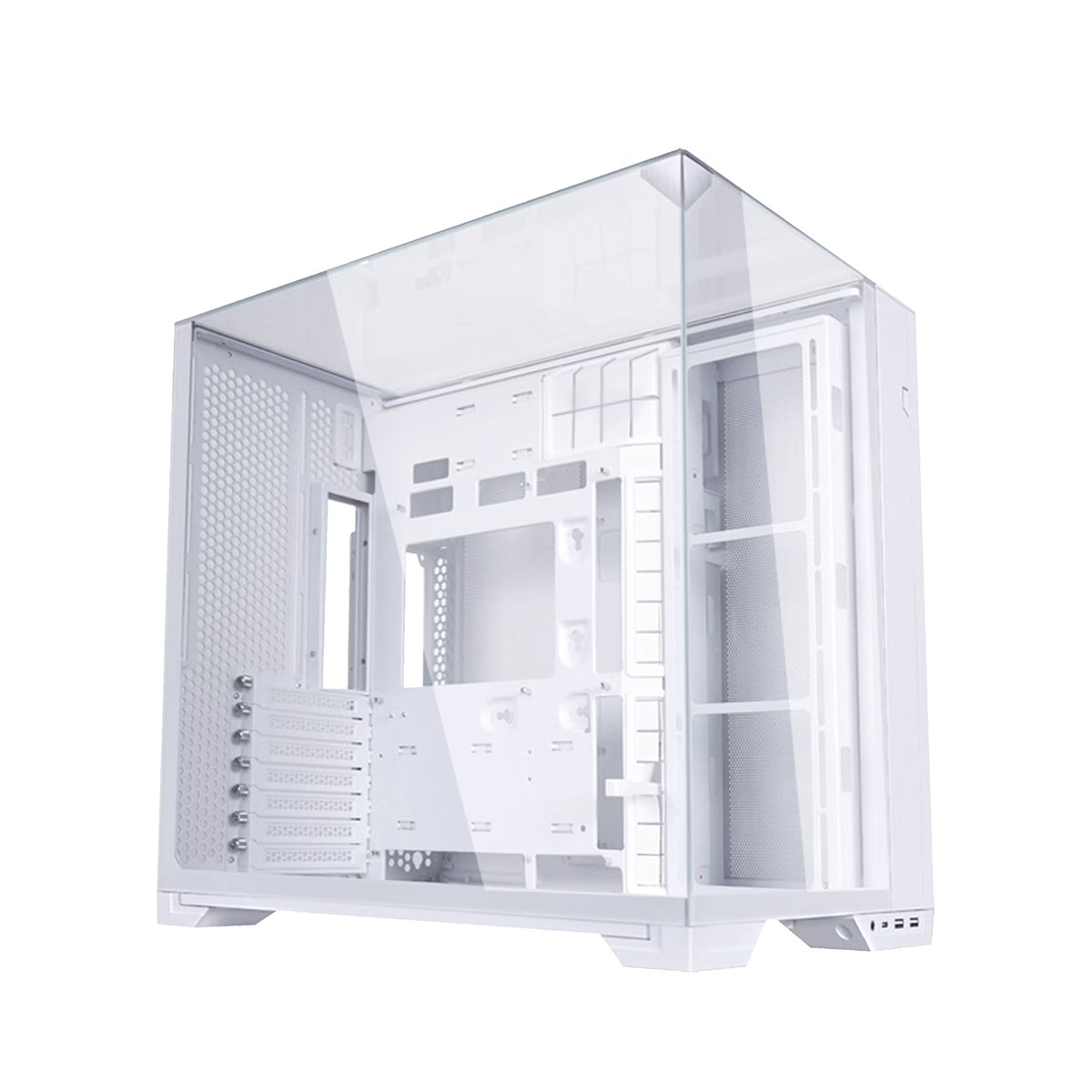

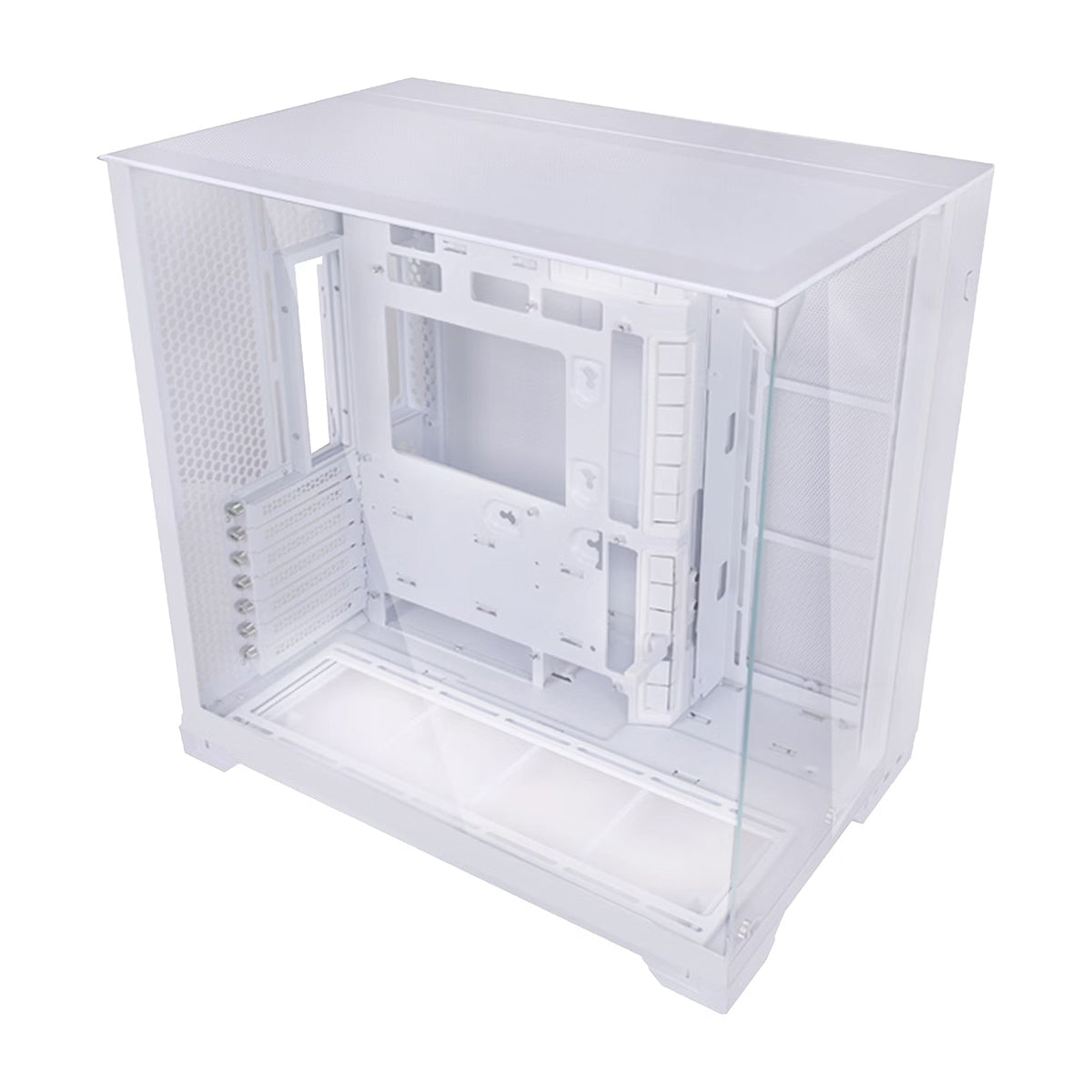

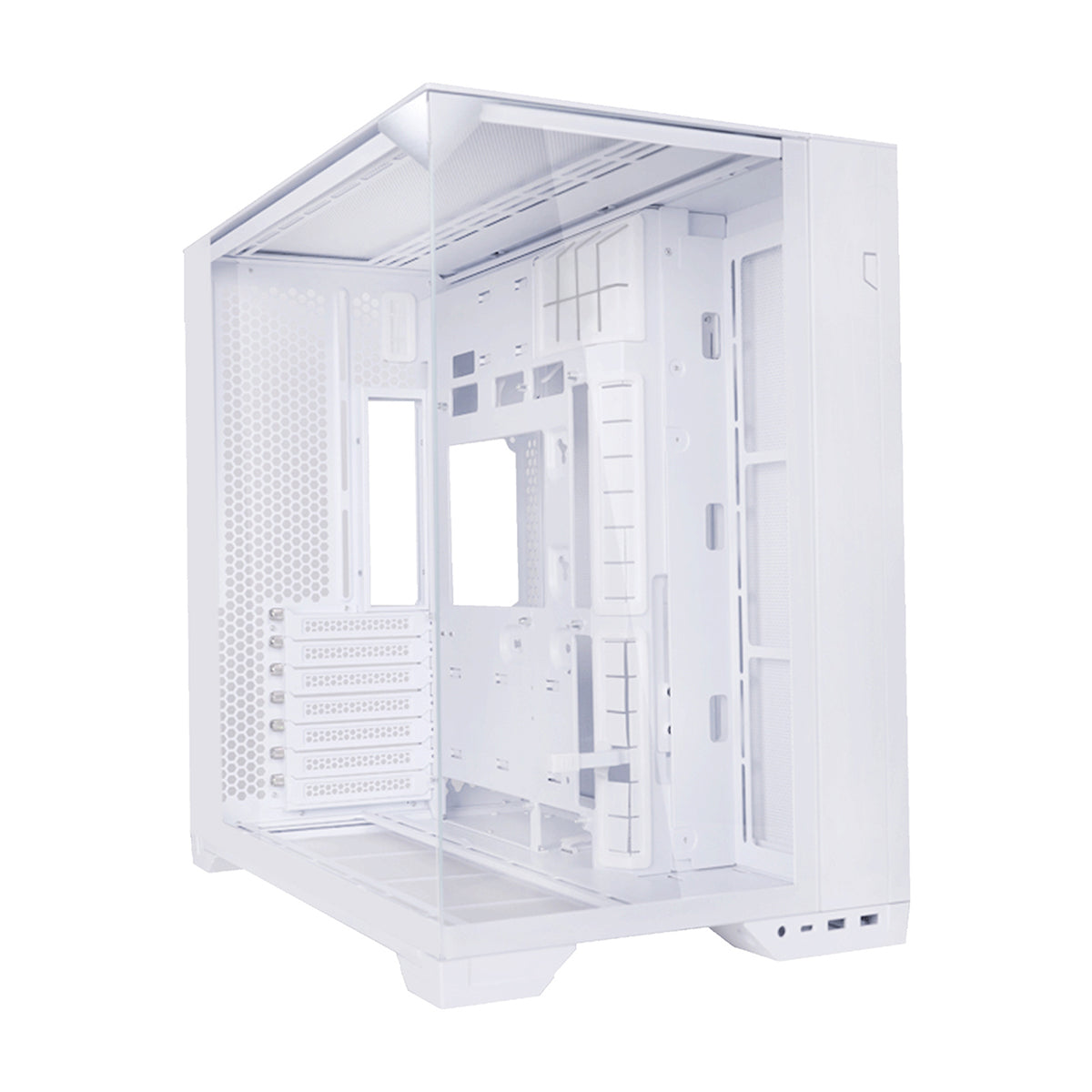

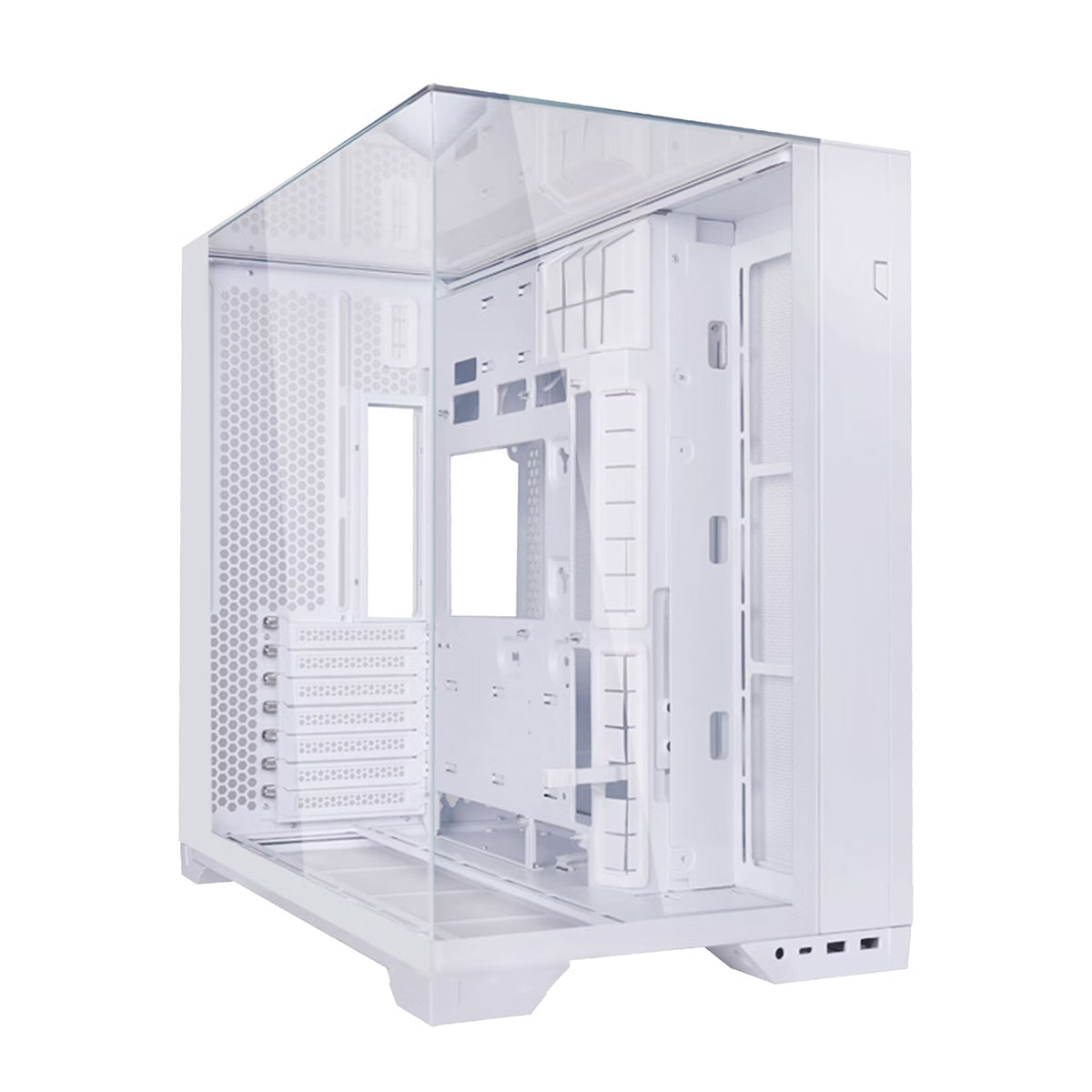

Lian Li O11 Vision Compact Mid Tower Case - White

O11 VISION COMPACT

• Two top panel options: mesh or tempered glass
• Vision mode with tempered glass for an uninterrupted view of components
• Mesh mode with fan bracket for additional radiator or fan support
• Supports up to 11 fans and a maximum of 360mm large radiator
• Compatible with back-connect ATX motherboards
• Hidden AIO tube design for a streamlined appearance
• Dual-chamber layout with cable management compartment and cable holders

IN COLLABORATION WITH PCMR

The O11 VISION COMPACT is a collaboration with PC Master Race (PCMR), which is a smaller iteration of the original O11 VISION. With a customizable mesh top panel and support for back-connect ATX motherboards, this case is designed for ultimate flexibility.

The main tenet of PCMR is freedom and customization, and the O11 VISION COMPACT enables it, by allowing the user to build the ultimate battlestation, tailored to their individual preferences. Enjoy enhanced stability with the removable GPU bracket and experience concealing cable management for the cleanest look. The unobstructed view for the optimal showcasing of the components without clutter sets a new benchmark in DIY aesthetics.

The O11 VISION COMPACT embodies the spirit of LIAN LI and PCMR, providing PC enthusiasts the opportunity to create their finest masterpiece.

SIZE COMPARISON

The size of the O11 VISION COMPACT is based on the original from the O11 Dynamic. Its volume has been reduced from 67.8 L (O11 Vision) to 57.4 L (O11 Vision Compact), making it 10.4 L more compact.

UNOBSTRUCTED HARDWARE SHOWCASE

O11 VISION COMPACT enhances your setup with its unique swappable top panels and concealed AIO tubing design, giving your chassis a standout and elegant look.

EXTREME VERSATILITY – VISION OR MESH

O11 VISION COMPACT offers two different top panel options: a mesh panel designed for top AIO installation, and a tempered glass panel that allows for 270-degree side visibility, showcasing your components beautifully.

THREE-SIDED GLASS MODE: SHOWCASE YOUR STYLE

The space above the motherboard can be used to install monitor accessories. There’s also an opening at the back to allow the monitor’s cable to be easily routed to the motherboard’s back IO. Additionally, the AIO tubing can be concealed in the second chamber, while the support for back-connect motherboards ensures a clean and beautiful layout in the main chamber.

The chassis supports up to a maximum of 14 fans (mesh mode push-pull setup) and up to 360mm radiator, ensuring excellent ventilation and cooling while maintaining a tidy appearance even with loads of components.

Concealed Cables: Simple and Elegant

Beside the rear pass-through grommet, an ATX EPS cover provides a clean BTF look. Long vertical grommets run the right side of the motherboard. The large top grommet can pass a CPU pump block, and can be removed/re-inserted for maximum clearance. Detaching the cable cover, AIO tubes slide into provided channels for a cleaner look.

IMPROVE INTAKE WITH REVERSIBLE BRACKET

• The side radiator bracket can be removed for easy radiator and fan installation.
• Remove the thumbscrew on the right-side interior, and the bracket can be removed.
• The bracket can also be reversely installed for different setup configurations.

PRE-INSTALLED GPU ANTI-SAG BRACKET

The O11 Vision Compact features a built-in removable GPU anti-sag bracket that holds GPUs ranging from 278mm to 408mm. The height is adjustable by turning the thumbscrew behind the motherboard tray to secure it.

EASY ACCESS FOR DUST FILTERS

The bottom of the O11 VISION COMPACT is equipped with a full-length dust filter that pulls out from the left side. There are four magnets that attach the filter tightly against the frame.

Front I/O

The power button features a white backlight to indicate the power status. The front I/O ports are located at the foot design, offering a variety of connections for convenience.

HIGH STORAGE CAPACITY

The removable cable management bar is secured by magnetic latches. Supports up to 2×2.5″ SSDs and can also accommodate a fan or ARGB hub.

DRIVE CAGE

2 x 2.5″ SSD or 2 x 3.5″ HDD. Each drive cage is independently removable, freeing up space for cable management.

EASY CABLE MANAGEMENT

Like the O11 VISION, the O11 VISION COMPACT also comes with 2 dual-layer cable clips that slide out of their SSD-style mounting points. The clip can hold the bulk of PSU cables, while the Velcro strap on top is ideal for fan cable management. Six additional Velcro straps, two above and four below, tidy up cables to the motherboard and storage.

EXTENDED ROOM

The PSU mounting bracket, carrying over the design from the O11 VISION, protrudes 15mm from the rear of the case, allowing extra space for cable management. Additionally, a cable tie point along the rear of the case helps keep the rear I/O cables tidy.
