Lian Li O11 VISION ATX Mid Tower Case - Chrome

IN COLLABORATION WITH PCMR

LIAN LI joins forces with PC Master Race (PCMR) to present the O11 Vision. By combining LIAN LI’s expertise in crafting high-quality, feature-rich cases with PCMR’s community of PC enthusiasts, we created a product that builders truly desire. The result is a dual-chamber case with three sides of borderless tempered glass panels that give the clearest view of the system. The O11 Vision embodies the spirit of LIAN LI and PCMR, providing PC enthusiasts the opportunity to create their finest masterpiece.

UNOBSTRUCTED HARDWARE SHOWCASE

Display your style and showcase the power of your PC with the 011 Vision, a chassis that features three sides of tempered glass panels without any columns or pillars for the ultimate unobstructed view of the system.

BEAUTY IN EVERY ANGLE

Just like the classic O11 series, O11 Vision is available in black and white, crafted from the finest materials, and looks stunning from every angle.

• Aluminum with White Powder Coating
• 3mm Clear Top Tempered Glass
• Outer Corner White Silkscreen
• 4mm Clear Side and Front Tempered Glass
• White Coated Mesh Panel

BALANCE BETWEEN COOL AND CLEAR

The O11 Vision not only boasts a striking appearance but also doesn’t compromise on cooling capabilities thanks to its 27mm tall feet and hollowed out bottom fan bracket with 13mm elevation, ensuring ample airflow intake within the chassis.Offers support for a maximum of 2 × 360 + 1 × 240 radiators, ensuring efficient thermal control.

SEAMLESS BUILD PROCESS

Every bracket and panels are designed for modular and toolless removal, simplifying the build process and allowing for customizable configuration.

• SOLID STRUCTURE: Strong structural support is designed with robust keys rated for 35kg of force, ensuring unwavering stability for all three side glass panels
• TWO-WAYS REVERSIBLE SIDE FAN BRACKET: Inner Scenario for 75mm space in the main chamber; Outer Scenario Optimized for a push-pull configuration
• REMOVABLE BOTTOM FAN BRACKET AND DUST FILTER: Able to remove the fan bracket to install the radiator or fan with ease and clean the dust filter.
• ADJUSTABLE MOTHERBOARD TRAY: Mount the motherboard, CPU pump, and graphics card outside the chassis first to make the installation process easier.

EASY TO ACCESS

The front I/O ports are strategically positioned at the bottom of the chassis, ensuring convenient access when the case is placed on a table, all while showcasing its aesthetic appeal.

THE CLEAN CABLE MANAGEMENT SOLUTION

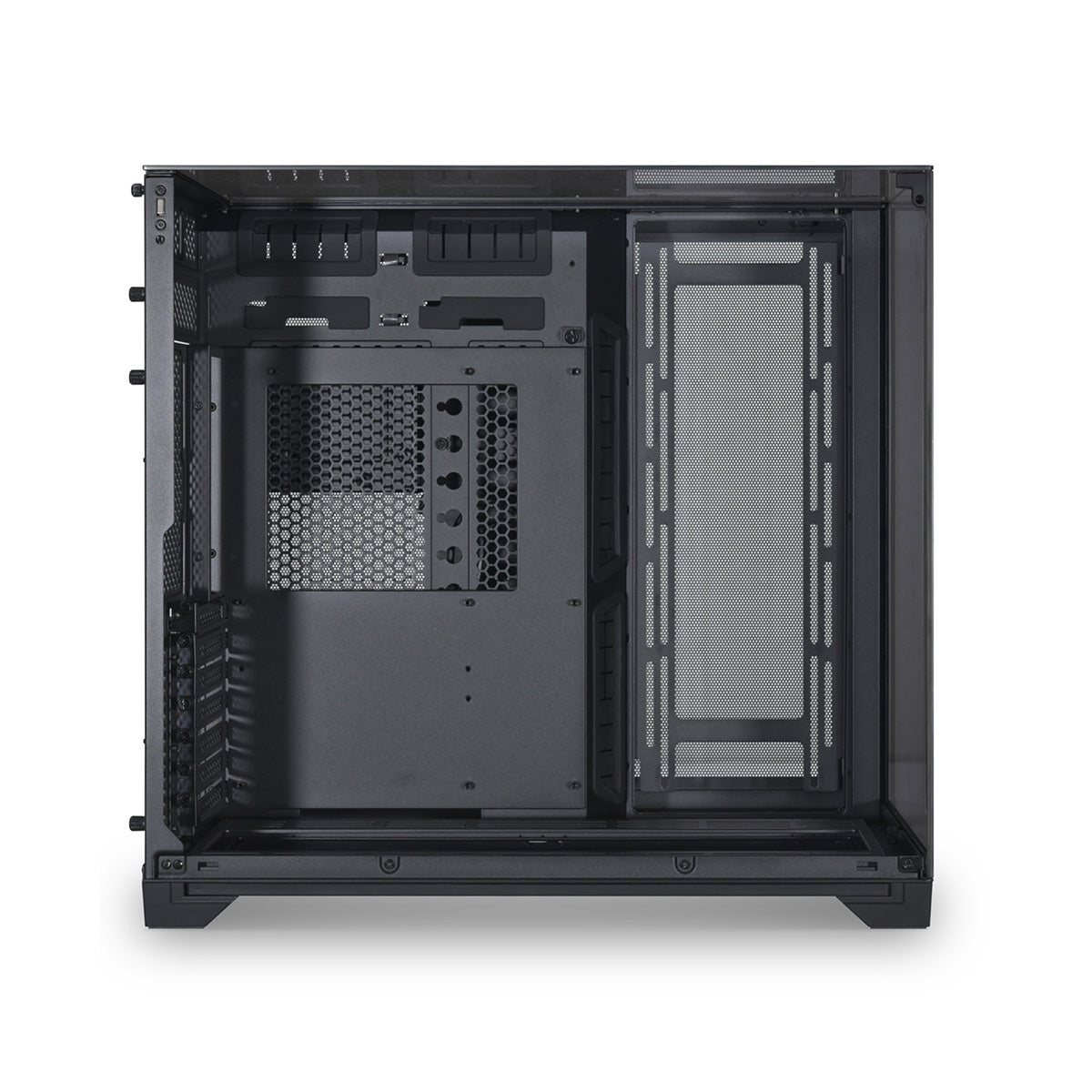

To maintain the most aesthetic view in the main chamber, O11 Vision is designed with cable management in mind in the second chamber.

• Flexible Cable Clips: Features 2 dual-layer cable clips that can be mounted anywhere along vertical grommets pass through, providing versatility for your cable routing plan.
• Extended Room: The PSU mounting bracket protrudes 15mm from the rear of the case, allowing extra space for cable management. Additionally, a cable tie point along the rear of the case helps keep the rear I/O cables tidy.

MULTI-FUNCTION STORAGE BRACKET

Offering the flexibility usage of the bracket for cable routing or a drive installation. Included 2 silicone covers for low mode configuration to provide a clean look for cable management.

DISPLAY OF YOUR GPU (Optional Accessory – VG4-4,VG4-4V2)

LIAN LI’s O11 Vision, compatible with its universal vertical GPU kit, offers a professional and attractive build aesthetic through vertical GPU mounting.

Note: Installing the vertical GPU kit in the low mode at the 1st expansion slot covers the GPU top output port with a bracket, and installing at the 2nd expansion slot, will lose the bottom fan mounting space.

MODEL NAME	O11 Vision
CASE TYPE	Tower Chassis
DIMENSION	(D) 480mm x ( W ) 304mm x (H) 464.5mm
MATERIAL	Steel 4.0mm Tempered Glass 3.0mm Tempered Glass Aluminum
MOTHERBOARD SUPPORT	E-ATX (Under 280mm)/ATX/Micro-ATX/Mini-ITX
EXPANSION SLOT	6+1
STORAGE	Behind MB Tray: 3 x 2.5” SSD Hard Drive Cage: 2 X 3.5′′ HDD or 2.5′′ SSD
GPU LENGTH CLEARANCE	430mm (Max.)
CPU COOLER HEIGHT CLEARANCE	174mm (Max.)
PSU SUPPORT	ATX (Under 232mm)
FAN SUPPORT	Side: 3 x 120mm / 2 x 140mm Bottom: 3 x 120mm / 3 x 140mm Rear:1 or 2 x 120mm
RADIATOR SUPPORT	Side: 360 / 240 / 280mm Bottom: 360 / 240 / 280mm Rear: 240/ 120mm
I/O PORTS	1 x Power Button 1 x Reset Button 2 x USB 3.0 1 x USB Type C 1 x Audio
DUST FILTER	Bottom × 1
