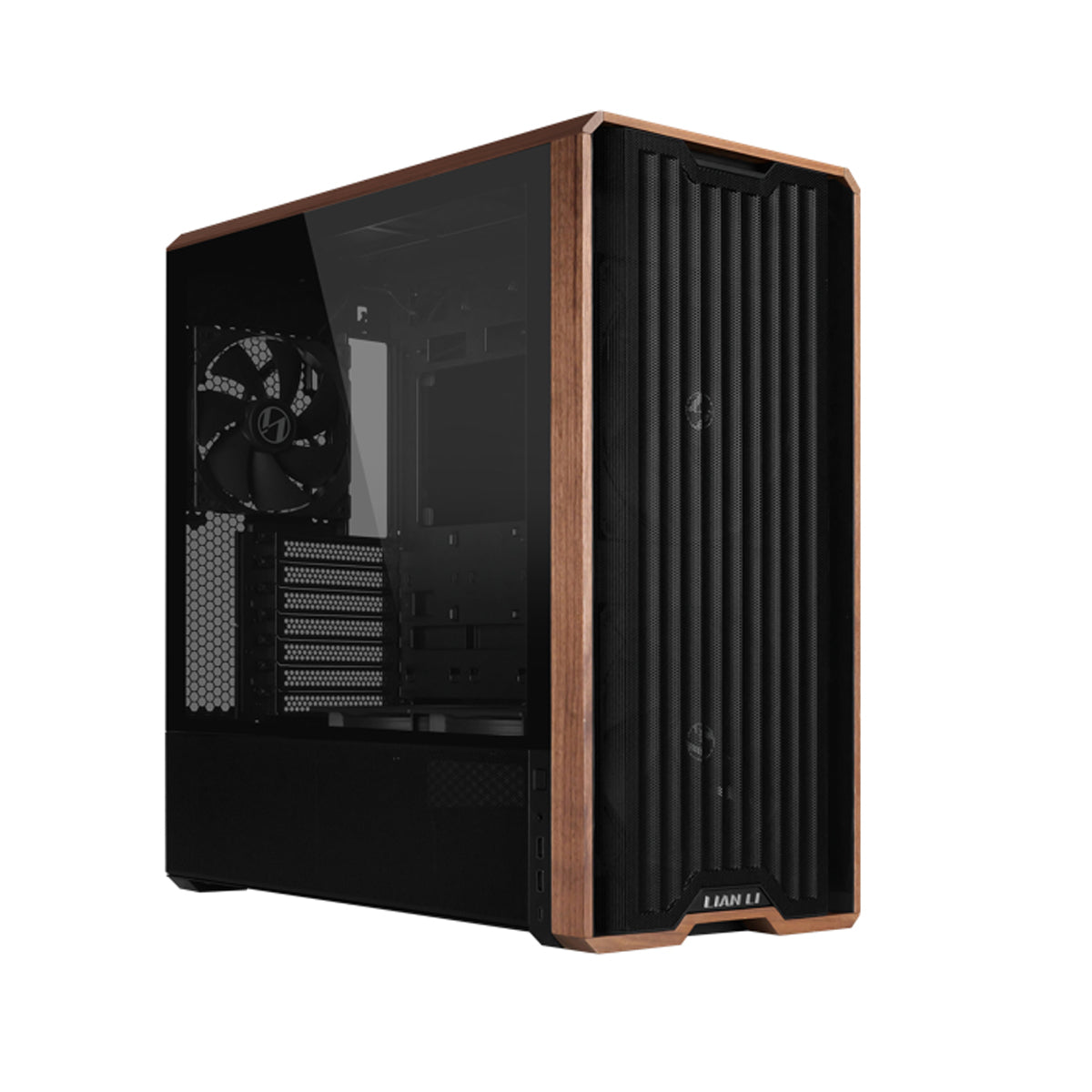

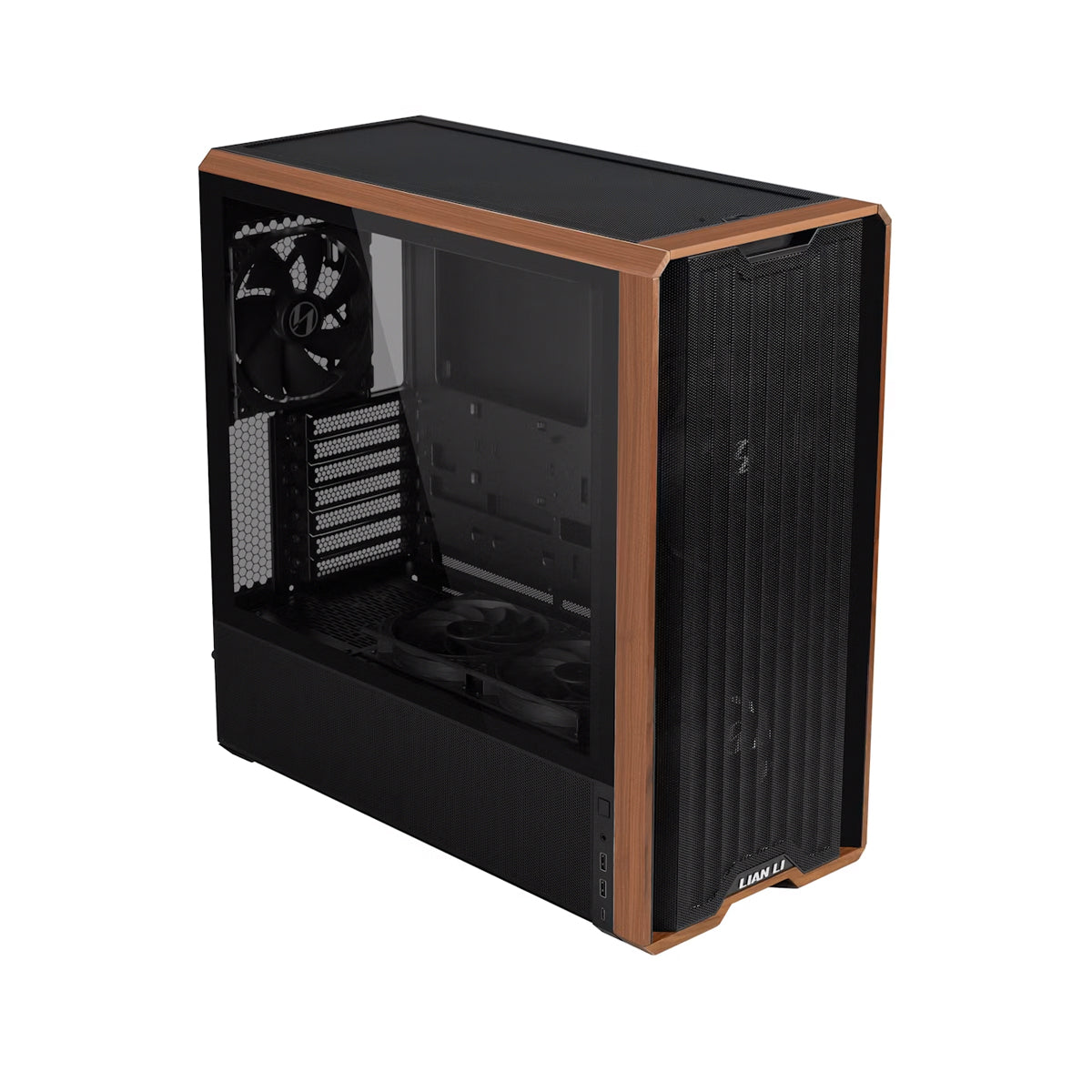

Lian Li Lancool 217 Wood ATX TG Mid Tower Case - Black

Timeless Elegance, Endless Performance

The LANCOOL 217 is a mid-tower case that combines innovative cooling design with real wood accents. It comes pre-installed with five fans, delivering optimized airflow right out of the box. A flexible PSU mounting design makes cable management easier. Available in Black with dark wood accents or White with light wood, it blends natural beauty with high-performance capability.

Where Wood Meets Airflow

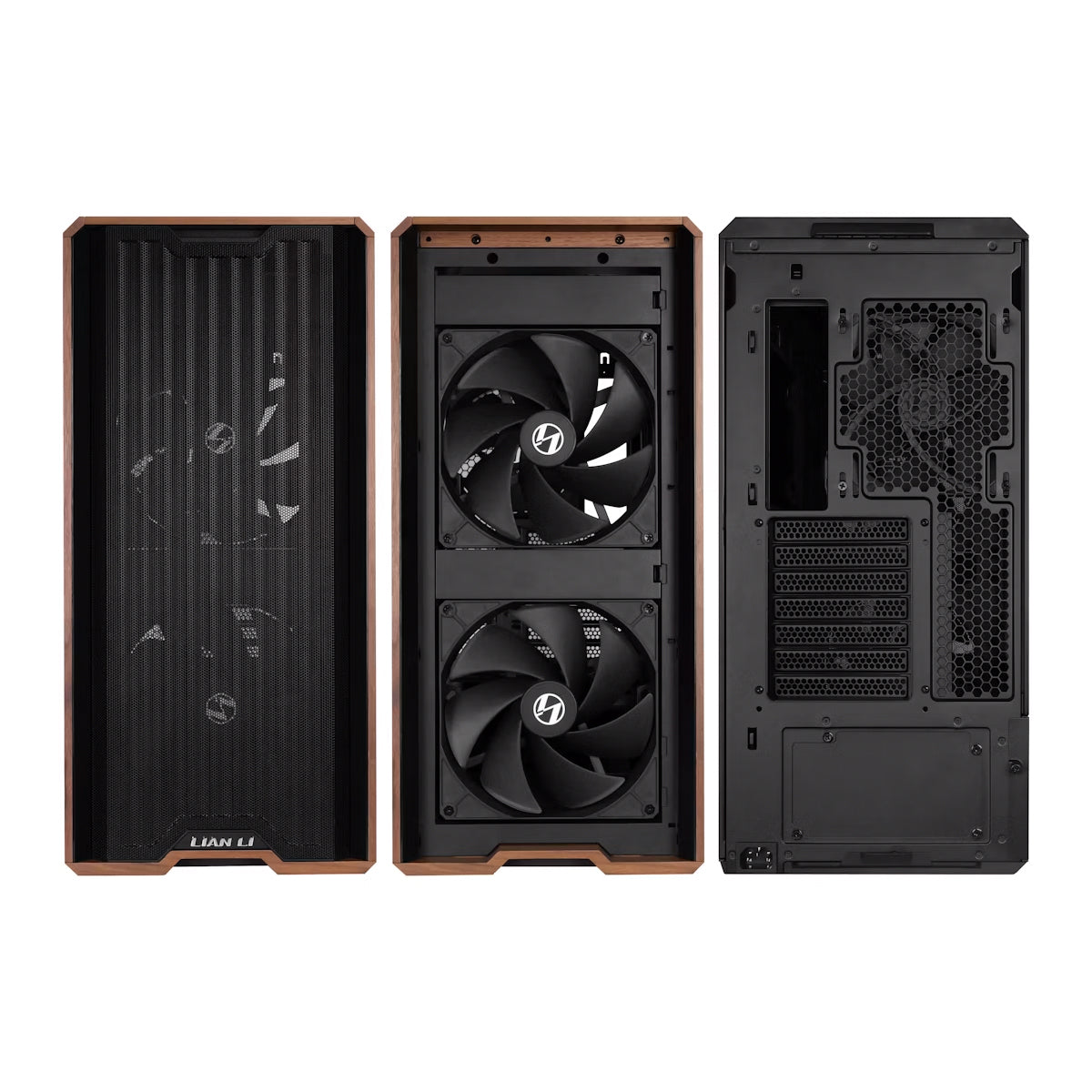

The LANCOOL 217 is thoughtfully engineered to blend natural wooden aesthetics with high-performance airflow. It features a front panel that pairs finely perforated mesh with a wooden frame to maintain an organic look while allowing for unrestricted airflow.

The black version is accented with rich walnut wood, delivering a bold and contemporary feel.

Ready-to-Go Cooling with 5 Pre-Installed Fans

The LANCOOL 217 chassis comes equipped with high-performance fans at the front, rear, and bottom, providing powerful airflow to keep internal components running smoothly and reliably.

The front fans utilize FDB bearings for quieter operation and extended lifespan. Designed for performance, they deliver powerful airflow and can be repositioned to better target the CPU or GPU.

Above the PSU shroud, the bottom fans are specifically positioned to direct cool air toward the GPU, helping to effectively manage its temperature.

At the rear, a 140mm fan effectively removes warm air, helping to maintain balanced airflow throughout the system.

Independent testing at the PPLP Lab confirmed that the LANCOOL 217 delivers top-tier thermal performance, placing it among the highest-ranked cases in its class. Its efficient airflow design and strong out-of-the-box cooling earned it the prestigious S-Tier Case Performance Award.

CPU Mode / GPU Mode – Quick Test Guide

CPU Mode

Best for CPU temperature. Use tower air coolers for thermal testing. When using tower air coolers, there is no need to install additional fans on top of the case. Keep the hard-drive cage uninstalled for optimal GPU cooling.

GPU Mode

Balanced cooling between GPU and CPU. Suitable for tower air coolers and AIO testing. No additional top fans are required when using tower air coolers. Keep the hard-drive cage uninstalled for optimal GPU cooling.

Flexible Installation, Tool-Less Design

The LANCOOL 217 uses a tool-less fan mounting system with rubber pads on the front and bottom fans, allowing users to easily switch between CPU-focused and GPU-focused cooling modes.

The PCIe slot bracket can be rotated 90 degrees to support vertical GPU mounting. In this configuration, the bottom fan can be repositioned under the PSU shroud for a cleaner, hidden appearance.

Flexible and Easy Installation

The LANCOOL 217 includes screws and washers for installing 120mm fans. Users can remove the screws on the two bottom fans to swap them with different ones. The PSU shroud cover is removable, allowing installation of up to three 120mm fans.

Dual PSU Mounting, Flexible Builds

The LANCOOL 217 supports two PSU mounting configurations, giving users more flexibility depending on PSU size, cable routing needs, and overall build layout.

Standard Mode

With PSU connectors facing the front, it supports ATX PSUs up to 220mm long, suitable for most standard installations.

Rotated Mode

With the PSU rotated 90 degrees and connectors facing the right side, it supports compact PSUs up to 180mm. This configuration improves cable routing and allows direct airflow to cool the PSU. The two included bottom fans can be relocated under the bracket for a cleaner build.

Back-Connect Motherboard Support

Compared to the LANCOOL 216, the LANCOOL 217 now supports back-connect motherboards. By removing the HDD cage behind the motherboard tray, it can accommodate M-ATX back-connect motherboards.

Large GPU, Exceptional Compatibility

The LANCOOL 217 supports GPUs up to 380mm in length and includes an adjustable anti-sag bracket to ensure secure installation.

Bracket for Fast and Easy Installation

The top radiator bracket can be fully removed from the chassis, creating more space for easier hardware installation.

User-Friendly Design

The LANCOOL 217 features two power buttons for flexible usage. The top button is convenient when the case is on the floor, while the front button is ideal for desk placement.

Both the front and bottom panels include removable magnetic dust filters to reduce dust buildup. All fans feature rubber anti-vibration mounts and low-noise optimization, keeping operation noise as low as 33.2 dBA.

Enhance Cooling with Anti-Pressure Leak Airflow Plates

For air cooler users, downloadable STP files are available for 3D-printing custom anti-pressure leak airflow plates. Designed for the top fan bracket of the LANCOOL 217, these plates help contain cool air and improve CPU cooling efficiency.

Internal testing shows that installing the airflow plates results in measurable thermal performance improvements.
