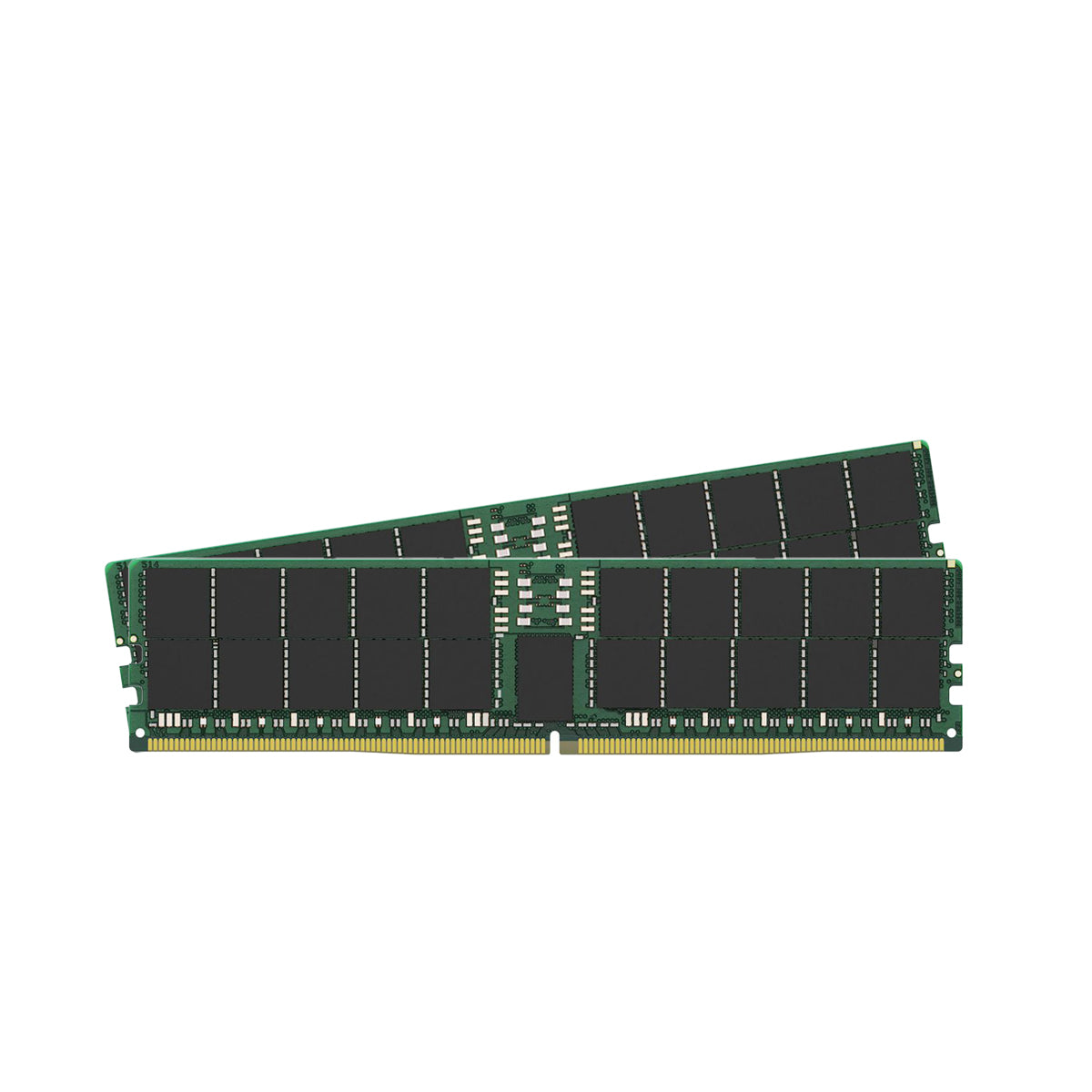

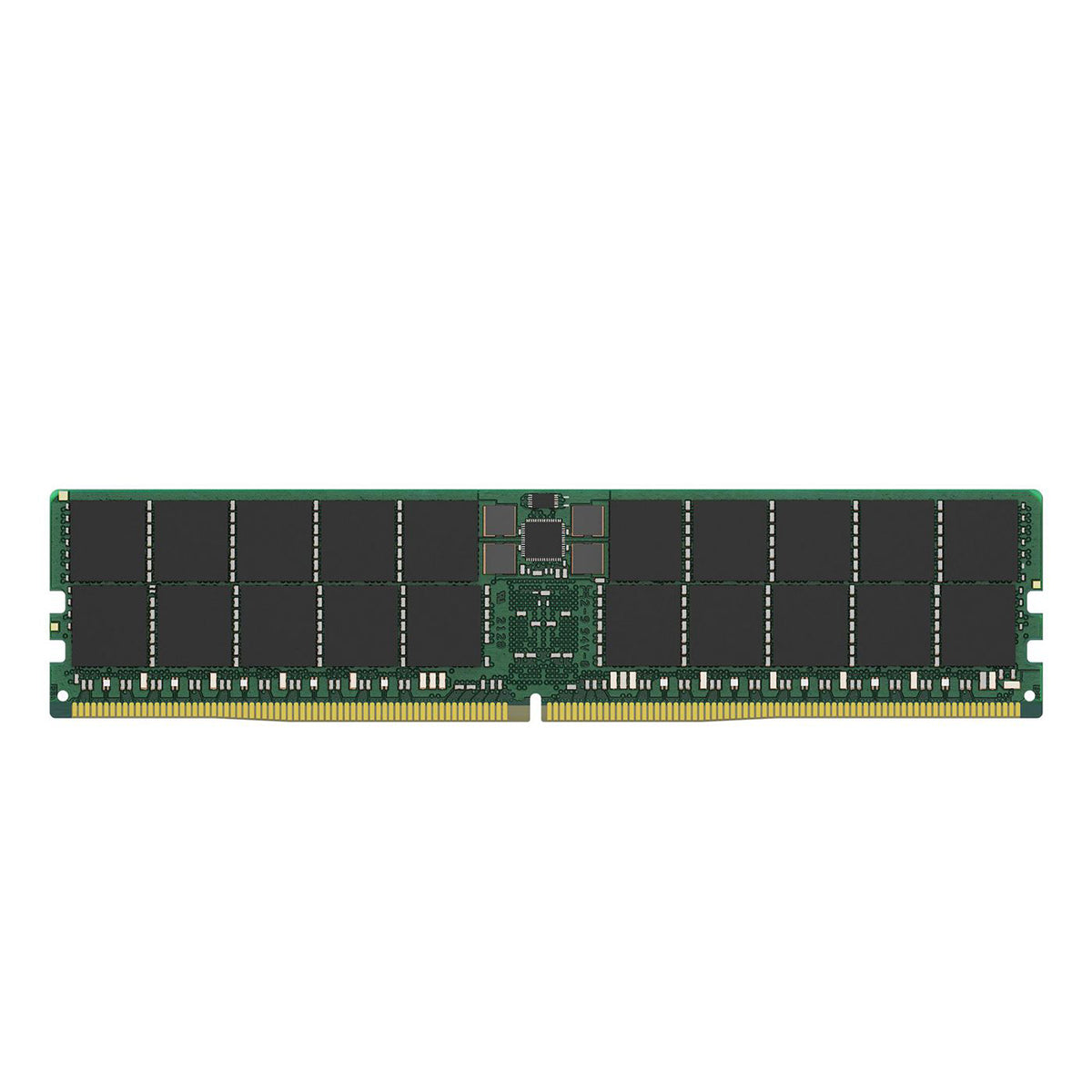

Kingston ECC Registered DIMM 64GB DDR5-6400 CL52 Server Memory

KSM64R52BD4-64MD – 64GB 2Rx4 8G x 80-Bit PC5-6400 CL52 Registered EC8 288-Pin DIMM

Kingston's KSM64R52BD4-64MD is an 8G x 80-bit (64GB) DDR5-6400 CL52 SDRAM, 2Rx4, ECC memory module based on forty 4G x 4-bit FBGA components. The SPD is programmed to JEDEC standard DDR5-6400 timings of 52-52-52 at 1.1V. Each 288-pin DIMM uses gold contact fingers.

Features

• Power supply: VDD 1.1V typical
• VDDQ 1.1V typical
• VPP 1.8V typical
• VDDSPD 1.8V to 2.0V
• On-die ECC
• x80 ECC (x40, 2 independent I/O sub-channels)
• 32 internal banks
• Hard and soft post package repair
• Sideband access via I3C/I2C

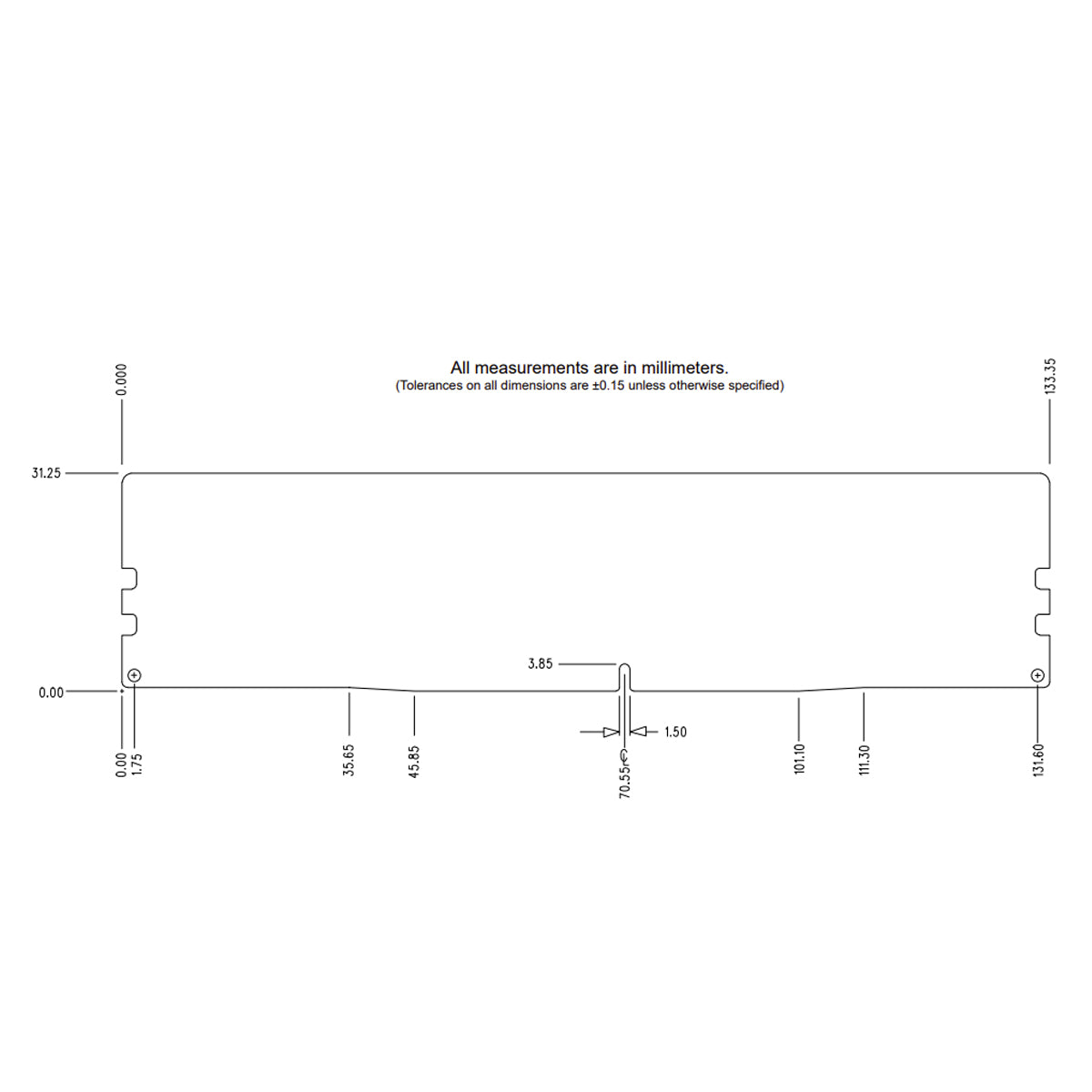

• PCB height: 31.25mm (1.23")
• RoHS compliant and halogen-free

Compatibility notes

This memory is intended for advanced platforms and high-capacity, multi-DIMM configurations. Compatibility is highly motherboard and CPU specific.

Before purchasing, you must verify this exact module against your motherboard’s QVL (Qualified Vendor List).

When checking the QVL, confirm all of the following match exactly:

• Full memory model number
• Per-DIMM capacity (for example 32GB, 48GB, 64GB)
• Total DIMM count (for example 4 DIMMs vs 8 DIMMs)
• Rated speed and primary timings
• CPU generation used for validation
• Validation method (single DIMM validation vs matched kits)



Some motherboards validate single DIMMs only, not full multi-DIMM kits. Mixing DIMMs or assuming kit-level support can result in reduced speeds or instability.

Returns are not accepted for compatibility, stability, or speed issues if this memory is not explicitly listed on the motherboard QVL for the intended configuration.
