Kingston ECC Registered DIMM 32GB DDR5-5600 CL46 Server Memory
For AMD Threadripper
Warranty and Support
Warranty and Support
Warranty: 5 Years Return to Base Warranty
Returns: 14-day hassle-free exchanges and store credits, subject to terms and conditions outlined in our Returns Policy.
Delivery and Shipping
Delivery and Shipping
All deliveries are signature required.
North Island: 1 – 2 working days
South Island: 2 – 3 working days
Please allow an additional 1 – 2 working days for delivery to rural addresses.
Buy Now, Pay Later & Finance Options:
Description
Description

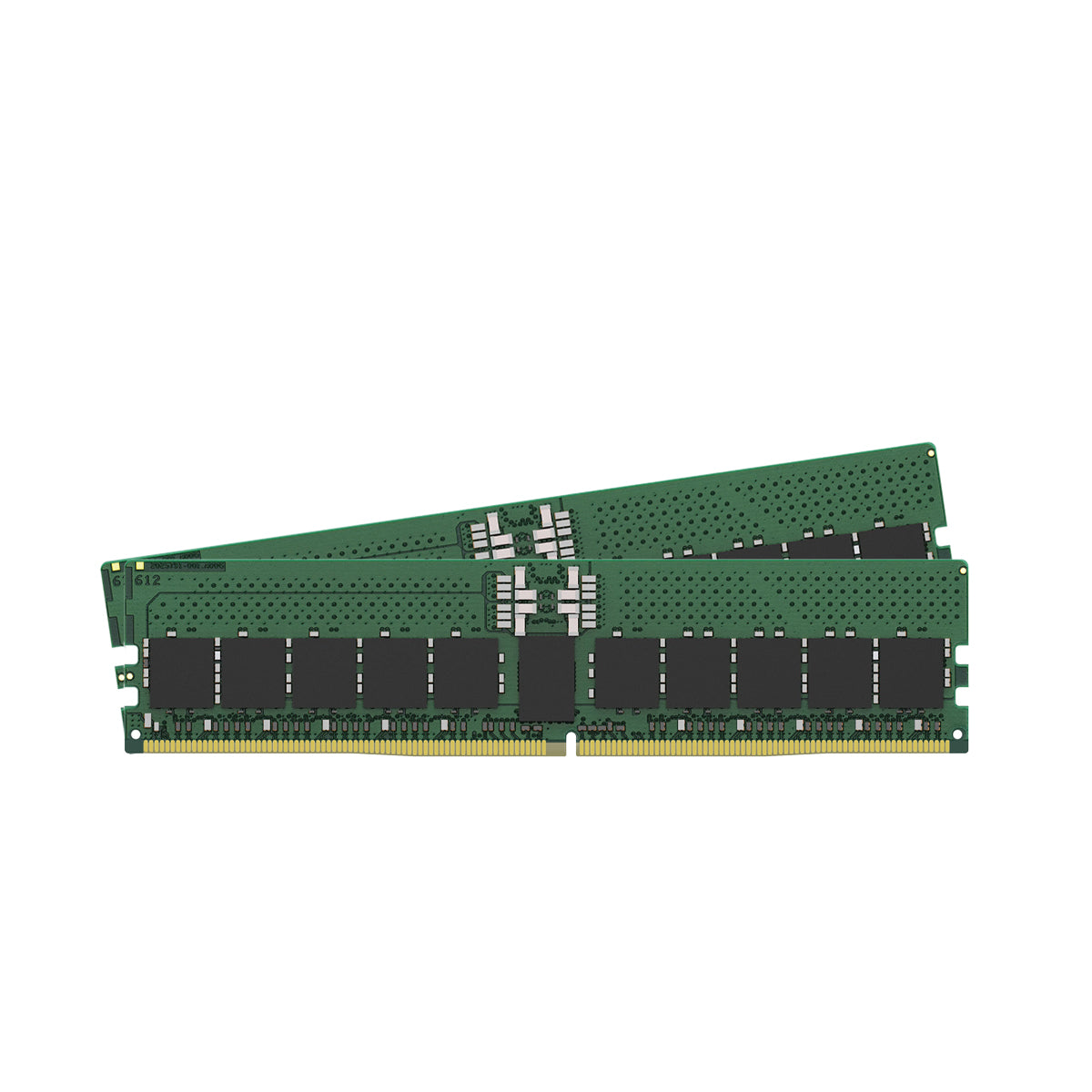

KSM56R46BS4PMI-32HAI 32GB 1Rx4 4G x 80-Bit PC5-5600 CL46 Registered EC8 288-Pin DIMM
Kingston's KSM56R46BS4PMI-32HAI is a 4G x 80-bit (32GB) DDR5-5600 CL46 SDRAM (Synchronous DRAM), 1Rx4, ECC, memory module, based on twenty 4G x 4-bit FBGA components. The SPD is programmed to JEDEC standard latency DDR5-5600 timing of 46-45-45 at 1.1V. Each 288-pin DIMM uses gold contact fingers.
- Power Supply: VDD = 1.1V Typical
- VDDQ = 1.1V Typical
- VPP = 1.8V Typical
- VDDSPD = 1.8V to 2.0V
- On-Die ECC
- x80 ECC (x40, 2 independent I/O sub channels)
- 32 internal banks
- Hard/Soft Post Package Repair
- Sideband access with I3C/I2C

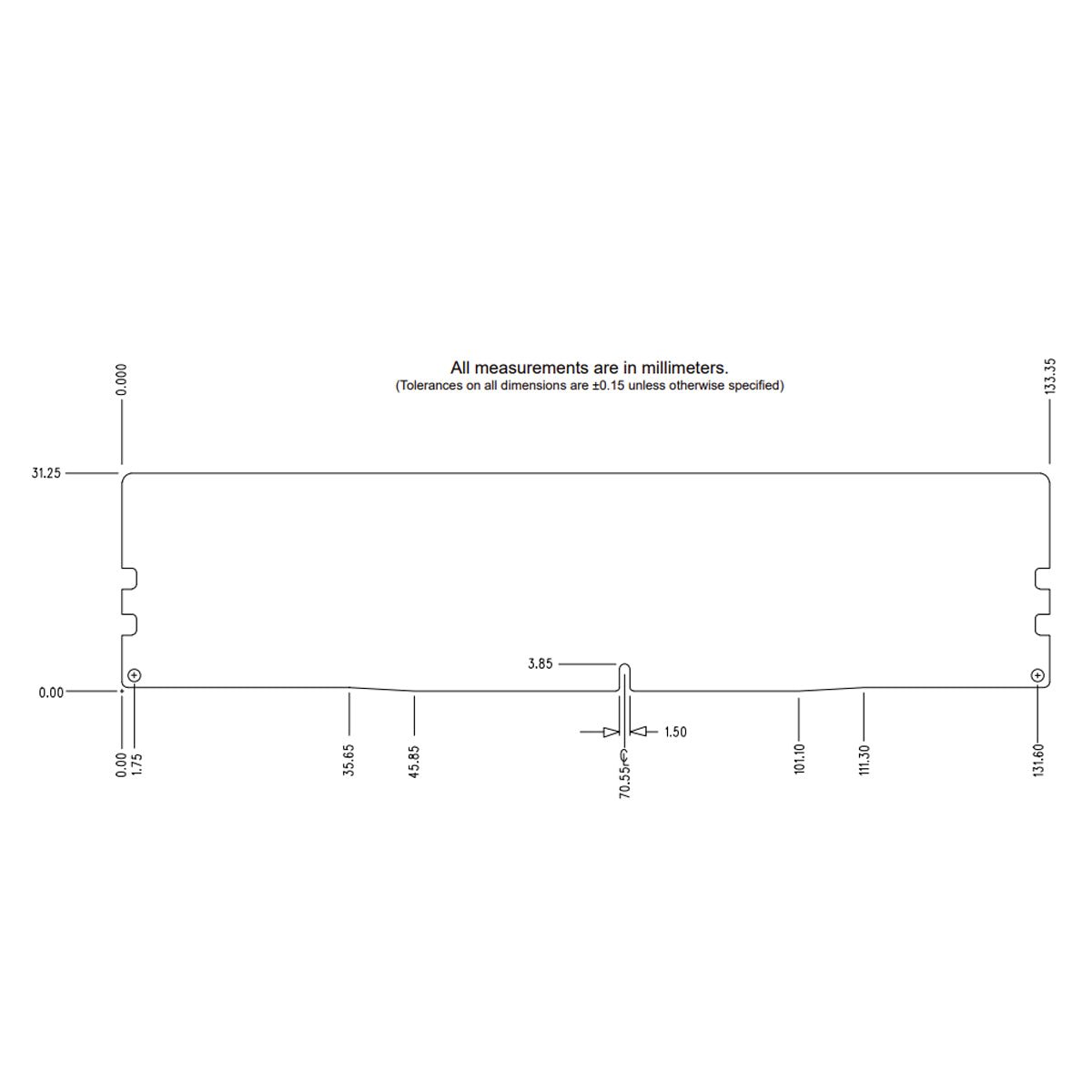

- PCB: Height 1.23" (31.25mm)
- RoHS Compliant and Halogen-Free
Specifications
Specifications
| CL(IDD) | 46 cycles |
| Row Cycle Time (tRCmin) | 48ns (min.) |
| Refresh to Active/Refresh Command Time (tRFCmin) | 295ns (min.) |
| Row Active Time (tRASmin) | 32ns (min.) |
| Row Precharge Time (tRPmin) | 16ns (min.) |
| UL Rating | 94 V - 0 |
| Operating Temperature | 0°C to +95°C |
| Storage Temperature | -55°C to +100°C |
