Kingston ECC Registered 64GB DDR5-4800 Server Dual-rank Memory

CL40-39-39

Kingston  |  SKU 57171  |  MPN KSM48R40BD4TMM-64HMR
$698.99

Warranty and Support

Warranty: LifeTime Warranty

Returns: 14-day hassle-free exchanges and store credits, subject to terms and conditions outlined in our Returns Policy.

Delivery and Shipping

All deliveries are signature required.

North Island: 1 – 2 working days
South Island: 2 – 3 working days

Please allow an additional 1 – 2 working days for delivery to rural addresses.

Buy Now, Pay Later & Finance Options:

Description

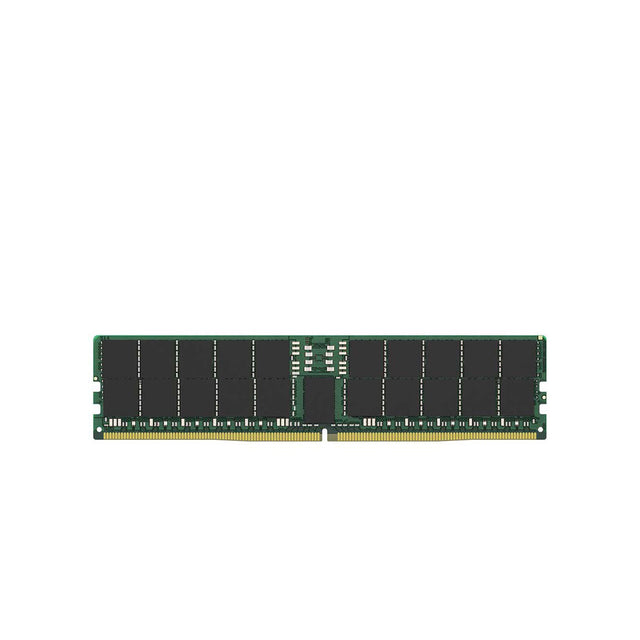

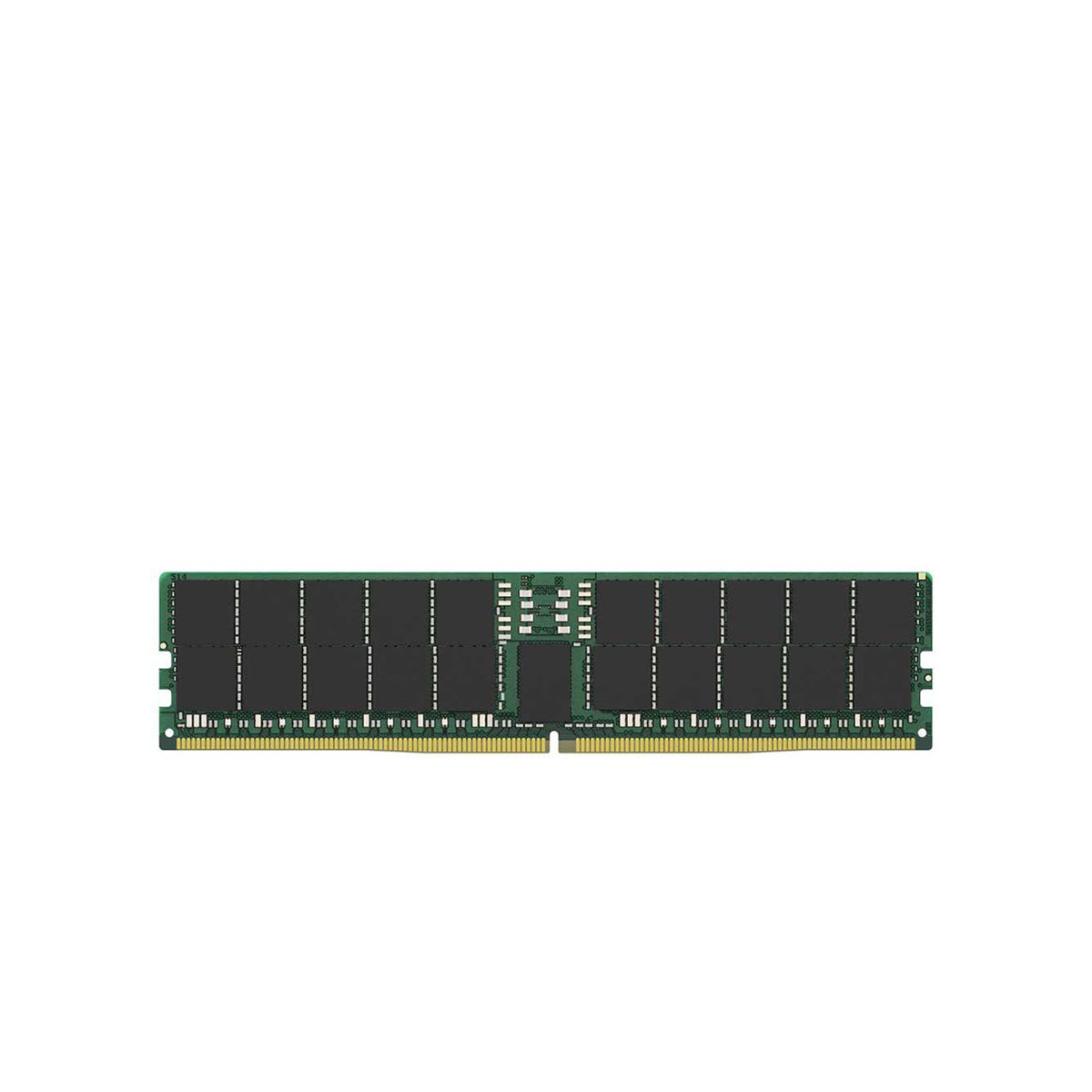

Kingston's KSM48R40BD4TMM-64HMR is a 8G x 80-bit (64GB) DDR5-4800 CL40 SDRAM (Synchronous DRAM), 2Rx4, ECC, memory module, based on forty 4G x 4-bit FBGA components. The SPD is programmed to JEDEC standard latency DDR5-4800 timing of 40-39-39 at 1.1V. Each 288-pin DIMM uses gold contact fingers. The electrical and mechanical specifications are as follows:


Feature:

  • Power Supply: VDD = 1.1V Typical
  • VDDQ = 1.1V Typical
  • VPP = 1.8V Typical •   VDDSPD = 1.8V to 2.0V
  • On-Die ECC
  • x80 ECC (x40, 2 independent I/O sub channels)
  • 32 internal banks
  • Hard/Soft Post Package Repair
  • Sideband access with I3C/I2C
  • PCB:  Height 1.23” (31.25mm)
  • RoHS Compliant and Halogen-Free

Specifications

Part Number:KSM48R40BD4TMM-64HMR
Total Capacity:64GB (1x64GB)
Memory Profile:4800MT/s 40-39-39 1.1V Spec Sheet
