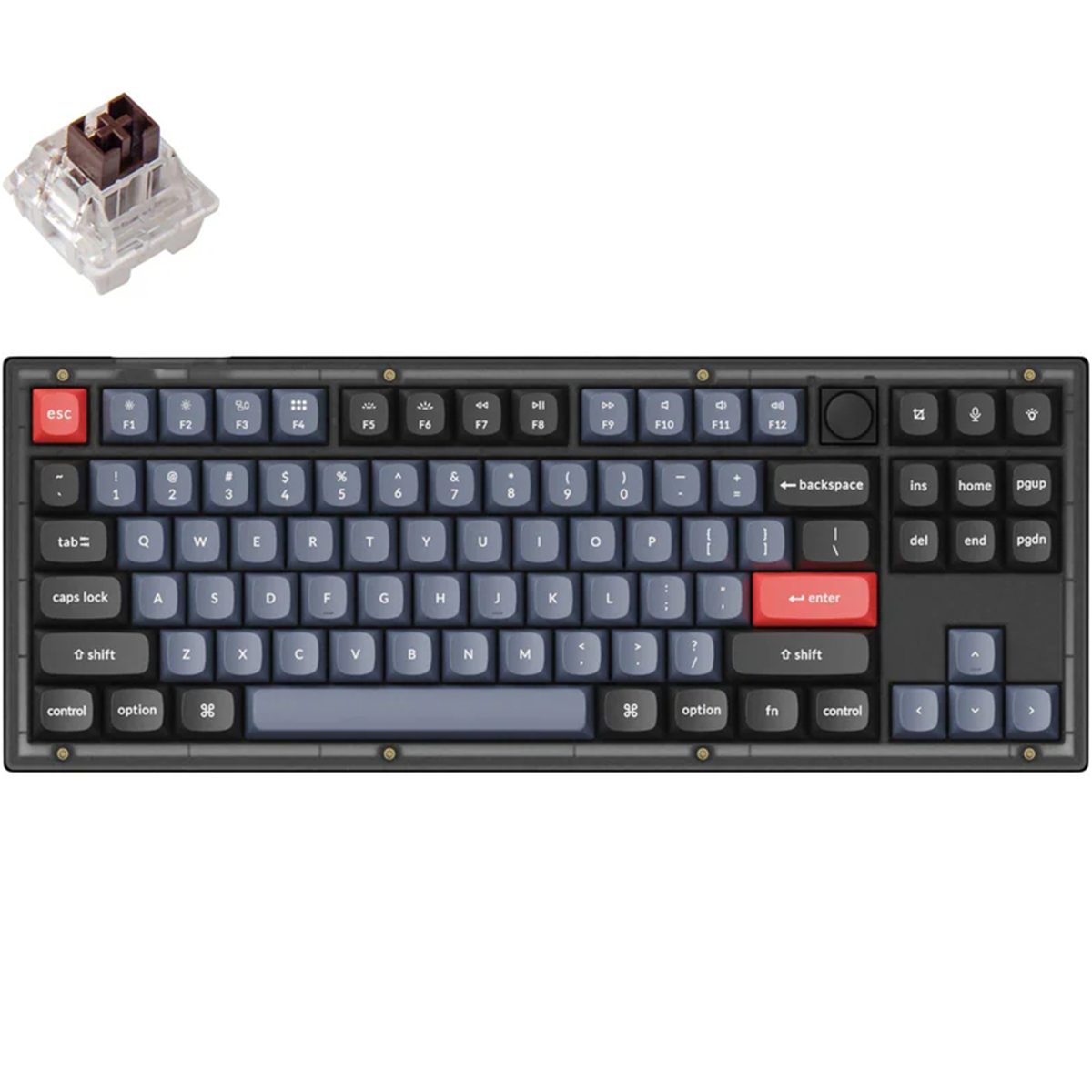

Keychron V3 TKL RGB Frosted Black Mechanical Keyboard - K Pro Brown Switch

RGB Backlight | Hot-Swappable | QMK/VIA Support | Keychron K Pro Brown Switches

Keychron  |  SKU 66739  |  MPN V3-C3
$169.00

Warranty and Support

Warranty: 1 Year Return to Base Warranty

Returns: 14-day hassle-free exchanges and store credits, subject to terms and conditions outlined in our Returns Policy.

Delivery and Shipping

All deliveries are signature required.

North Island: 1 – 2 working days
South Island: 2 – 3 working days

Please allow an additional 1 – 2 working days for delivery to rural addresses.

Buy Now, Pay Later & Finance Options:

Description

Keychron V3
The V3 is a classic TKL (80%) layout custom keyboard with many premium features like QMK support, PBT keycaps, screw-in stabs, etc., which provides endless possibilities and a comfortable typing experience!

All-around customizable keyboard

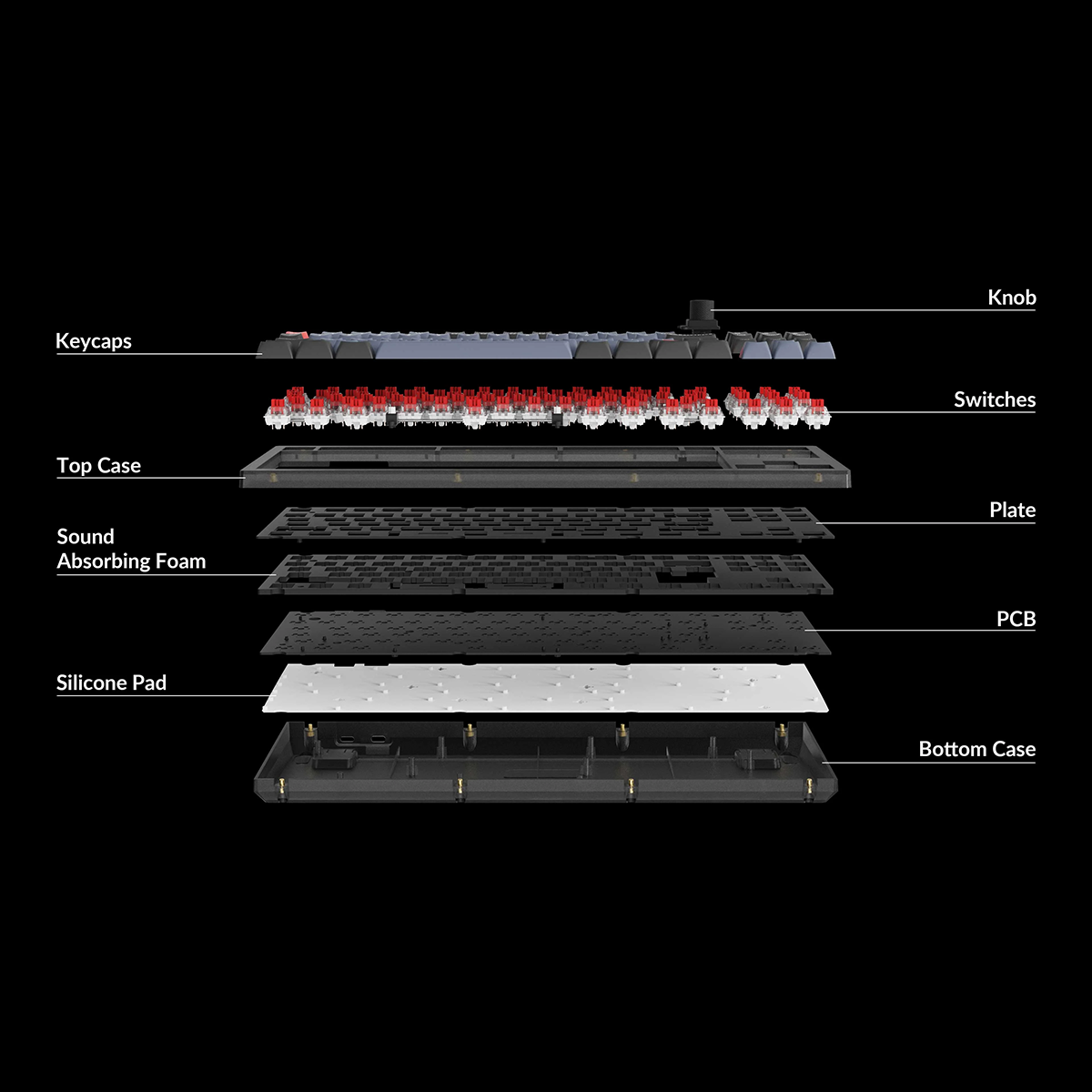

To build a fully customizable keyboard, we designed every component to be easily assembled so you can customize and adjust any or every part the way you want.

An Epic Core Inside The Keyboard
A powerful ultra-low-power ARM architecture MCU equipped with 128K Flash will provide more flexibility for developers. The polling rate is 1000 Hz right out of the box, which makes the latency hardly noticeable even in competitive games.

OSA Profile Double-shot PBT Keycaps
These double-shot PBT keycaps have a similar height to the OEM profile and have an SA-like shape. We named it the OSA (OEM spherical angled) keycap. The PBT keycaps will provide excellent oil resistance, enhance the type feel, and prevent the legends from fading out.

Switch Layouts Between macOS & Windows
Built with the Mac users’ experience in mind while still retaining compatibility for Windows devices, the Keychron V3 comes with a system toggle and an additional set of customized keycaps for both Windows and macOS systems. You can now save two different layouts on the keyboard, one for each system.

Program with QMK & Launcher
The open-source QMK firmware means endless possibilities for key remapping, macros, shortcuts, and more. Now you can easily customize each key with the Keychron Launcher web app.

Hot-swappable
The hot-swappable sockets are mounted on the PCB, so you can install or change the switches without soldering. The PCB supports both 3-pin and 5-pin MX mechanical switches.

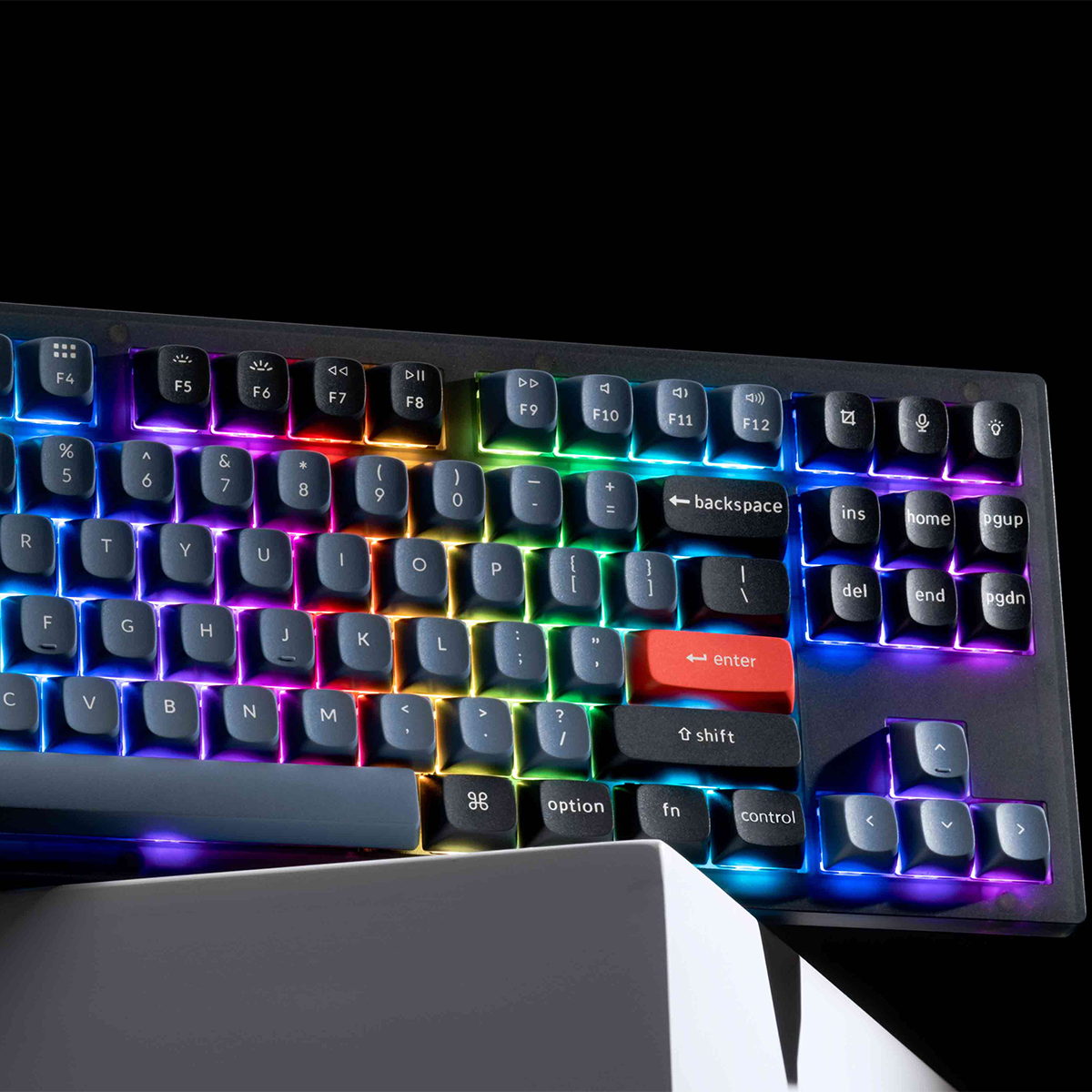

South-facing RGB LED Lights
The south-facing RGB LED is designed to better illuminate the keyboard backlight from the typist’s angle with the premium non-shine-through PBT keycaps installed. The south-facing RGB is also free from interference when users install OEM or Cherry-profile alternative keycaps on the keyboard.

Pre-lubed Keychron K Pro Switch
By optimizing the switch mold, the K Pro switch wobbles less than a standard mechanical switch and feels smoother on each hit. Plus, the factory pre-lubed process on all the K Pro switches (excluding the clicky ones) ensures the best smoothness at your fingertips when typing.

All New Screw-In PCB Stabilizers
The screw-in design increases stability and makes it easier for changes and upgrades. Precise craftsmanship makes the stabilizers more stable and less shaky. The big keys’ (space bar, shift, enter, backspace) typing experience is now more stable and smooth. The Keychron V3 also supports third-party screw-in PCB stabilizers.

Specifications

Width 140.56 mm
Length 366.70 mm
Front Height 19.44 mm (without keycaps)
Back Height 26.83 mm (without keycaps)
Feet Height 2.4 mm
Angle 3.5° / 7.26° / 9.69°
Weight 1120 ± 10 g (Fully Assembled Version)
Body Material ABS Plastic
Plate Material Steel
Polling Rate 1000 Hz
Mount Style Tray Mount Design
Keycaps Double-shot PBT keycaps, not shine-through, OSA Profile (OEM height, SA shape)
MCU Ultra-low-power ARM Cortex-M4 32-bit STM32L432 (128KB Flash)
Switches Keychron K Pro (Fully Assembled Version)
Backlight South-facing RGB LED
Switch Support Hot-swappable (5 pin & 3 pin)
Stabilizers Screw-in PCB stabs
Connectivity Type-C
Cable Type-C cable + Type-A to Type-C adapter
Operating Environment -10℃ to 50℃
