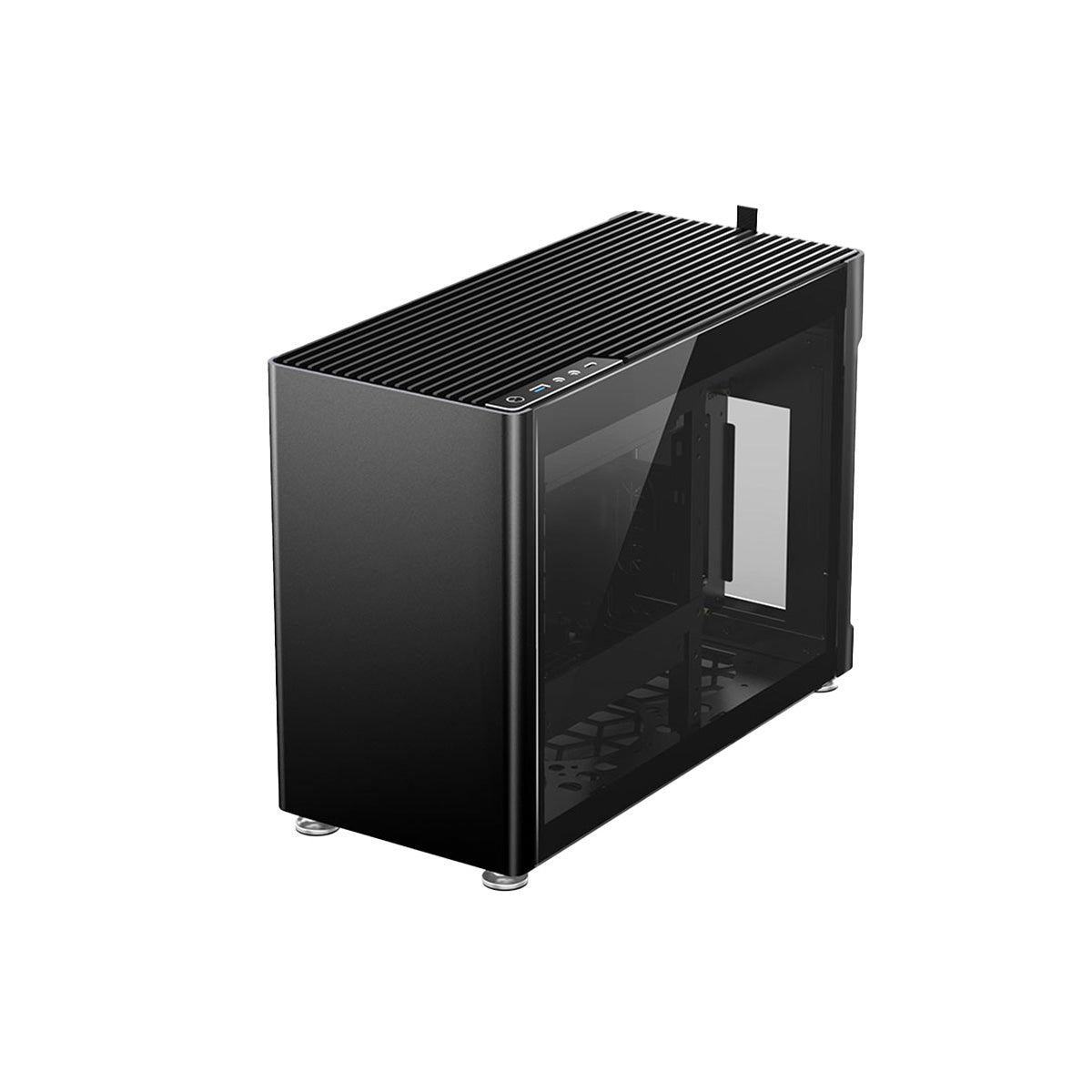

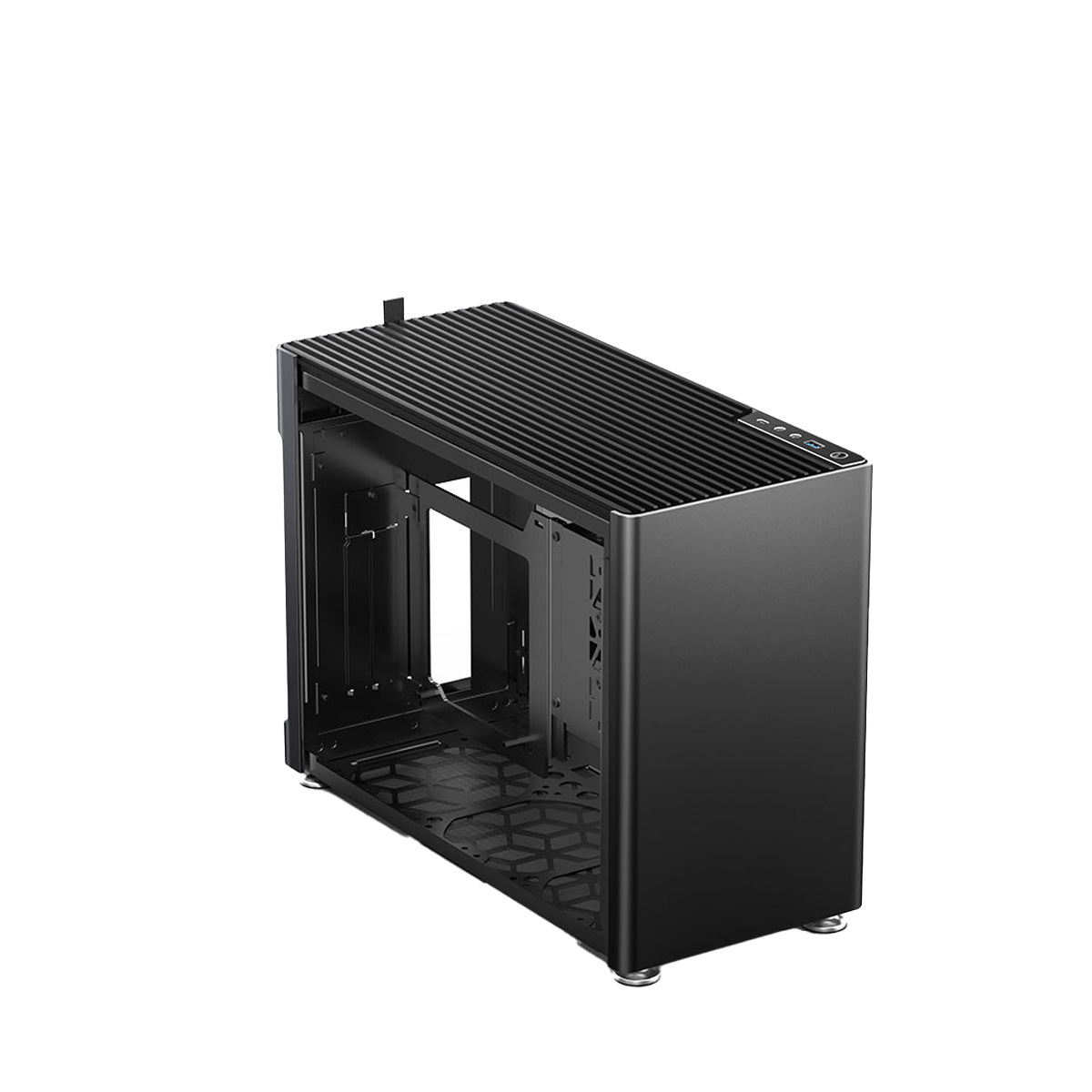

Jonsplus i 100 Pro Tempered Glass B/G Mini-ITX Case

i 100 Pro Tempered glass

The Primary purpose of designing i 100 is to try to push the cooling performance and hardware support capabilities to the limit of an ITX case, while keeping the volume within a reasonable size, and ensure the performance of the new generation of CPU/GPU is released. It also satisfies the users’ expectations, the need of compactness.

Compact. With Cable Management

For width control: we ensure the height supports flagship air cooler, by cancel the cable management space behind the motherboard, and using the space next to the fans at top or bottom for cable routing. A cable hole is designed between the power supply and the motherboard to form a better routing path. (The motherboard backplane cable routing design used in today’s ATX case may not suitable for reduced size ITX case)

GPU Vertical mounting + AIO

• Multi-chamber installation, CPU and GPU in different chambers ( PCI-E raiser cable included)

• GPU support: 345-373mm (L)*160mm(H) *62mm (W) max (Install side mounted dual SSD : 345mm (L), w/o SSD : 373mm(L))

• CPU cooler height : 77mm max

• Radiator support: 360/280/240/120 (fan +radiator max thickness : 55mm)

• Fan space: 6*12cm / 4*14cm cooling fan ( Optional)

• PSU support: w/o bottom fan: ATX PSII/SFX : 175mm max length

• W bottom fan: ATX PSII / SFX:150mm max length

GPU horizontal mounting + Air cooler

Single chamber installation, support flagship air cooler, long graphics card, and standard ATX PSII power supply.

• GPU support: 345-373mm (L)*160mm(H) *62mm (W) max (Install side mounted dual SSD : 345mm (L), w/o SSD : 373mm(L)

• CPU cooler height ：166MM max

• PSU support: ATX PSII/SFX : 140mm max length

• Fan space: 3*12cm / 2*14cm cooling fan ( Optional)

GPU horizontal mounting + AIO

Single chamber installation, support 360 AIO/radiator, long graphics card, and SFX power supply (115mm max).

• GPU support: 345-373mm (L)*160mm(H) *62mm (W) max (Install side mounted dual SSD : 345mm (L), w/o SSD : 373mm

• Radiator support: 360/280/240/120 (fan +radiator max thickness: 55mm)

• PSU support: SFX 115mm max length

• Fan space: 3*12cm / 2*14cm cooling fan (Optional)

Top Vent Design

The first issue cause heat dissipation cause by the glass side panel, due to there is no vent on the panel, i 100 Pro provide the solution through the six points below:

• Dual 3 x 12cm fan mounting points on top and bottom to form a vertical air circulation.

• Increase the gap between the side panel to the vertical mounted graphics card, based on the maximum thickness of the flagship graphics card RTX3090 (60mm), the space between graphics card to case side panel is about 20mm.

• Increase the gap between vertical mounted graphics card to PSU, the back panel of graphics card to ATX PSU is 12.5mm, to SFX PSU is 35mm.

• Offset the bottom fan to ensure it blow the air directly into the gap for ventilation.

• Low wind damping nylon 380 μm dust filter.

• Adjustable dual layers case stand design to increase the ventilation space under the bottom of the case.

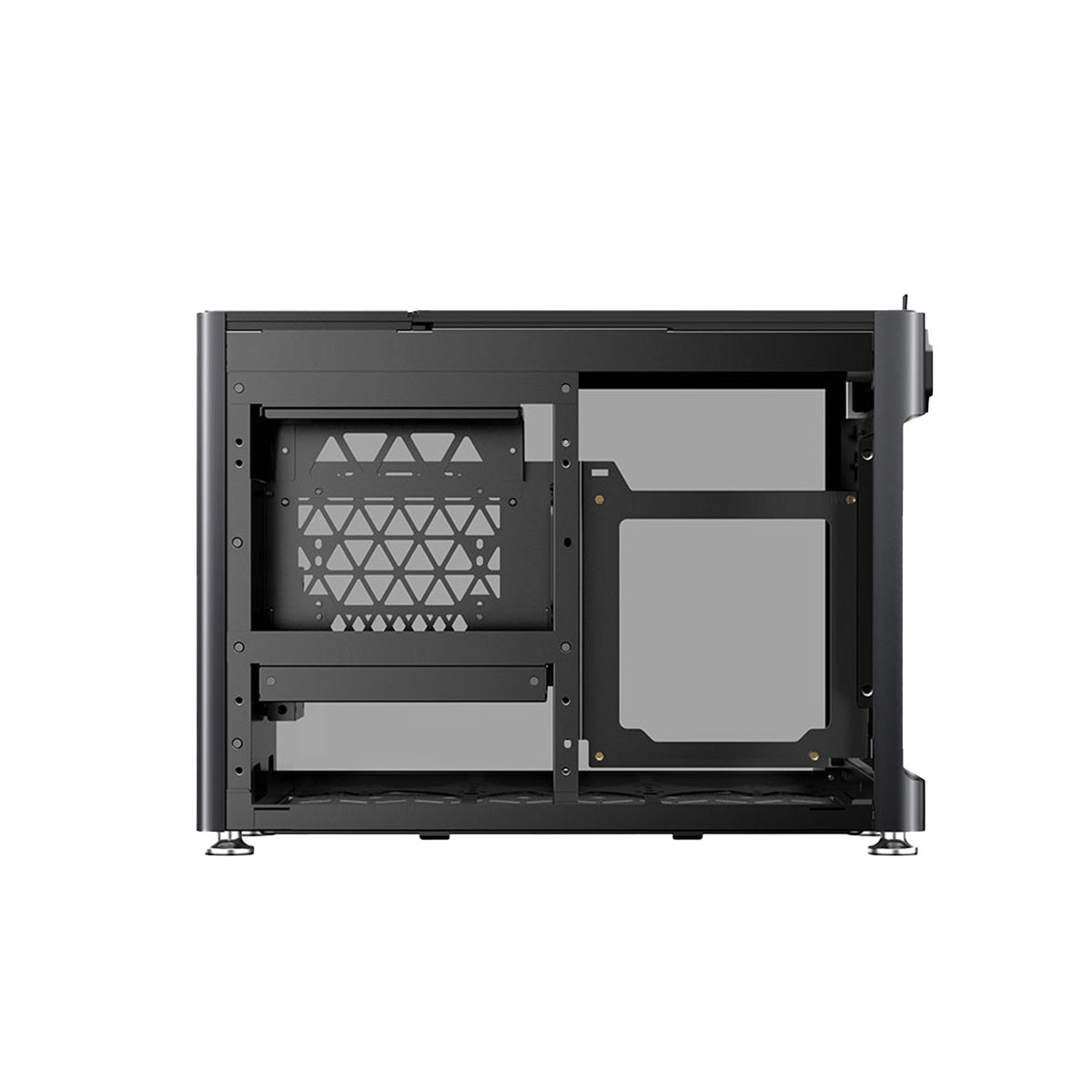

Adjustable single / multi-chamber design

By flip and shift the motherboard tray, and interchangeable rear panel part, i 100 Pro can realize two motherboard layouts in single or multi-chamber, capable to support air cooler with 166mm height.

PSU bracket/ cable management bracket with three mounting points design

In order to meet the requirement of different installation of liquid / air cooler and ATX PSU/SFX PSU, i 100 Pro’s power supply mounting bracket has three different mounting points.

To meet the need of dust-proof design.

Top, bottom, and graphics card’s rear panel all fitted with ultrasonic molded Low wind damping nylon 380 μm dust filter.

PCI-e 3.0 16 X 8Gs riser caber included

This adapter cable only support PCI-E 3.0 16X, if you would like to use PCI-E4.0 protocol hardware, please set the working status to PCI-E Gen3in the motherboard BIOS in advance.
(Currently the graphics card has not yet used the full bandwidth of PC-E 3.0, in theory using with PCI-E 3.0 riser card should not cause performance lose)

Interchangeable Rear Panel

The included interchangeable rear panel for realized graphics card vertical mounting.

3.5” / 2.5” shard hard drive space

It is not easy for an ITX case to have a 3.5” HDD in a reasonable space, but high performance rig may requires a lot of storage, we think it is necessary to keep one. Front panel is detachable and screw-free, to install HDD after pushing upward and releasing front panel.

2 X 2.5” HDD/SSD mounting position

Detachable 2.5” device bracket, after remove the bracket, the room for graphics card increase from 345mm to 373mm

Build up with 35 piece of parts

The seemingly simple structure layout uses 35 piece of parts to realize its various functions. To spared no expense to keep its product functional integrity.

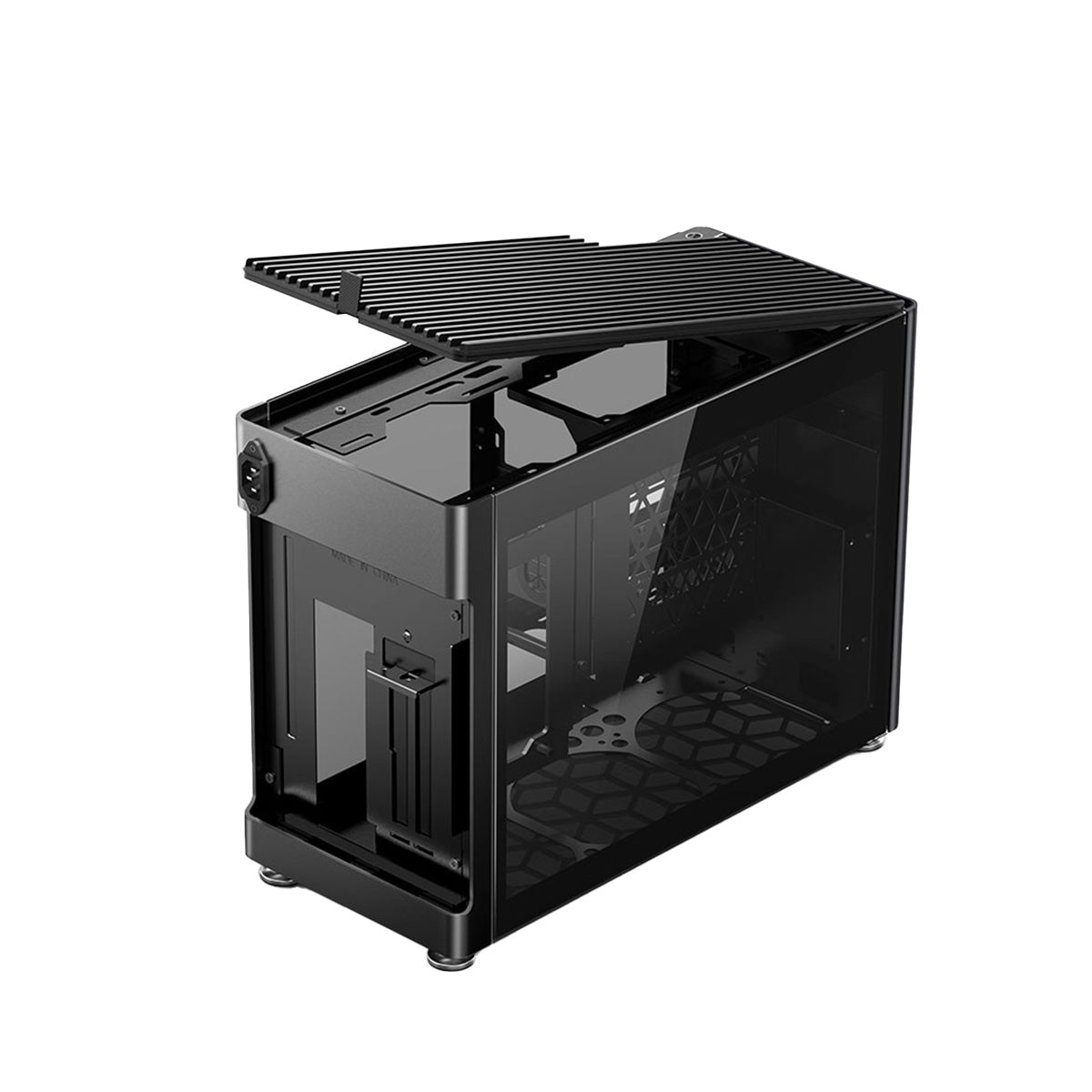

Tool-free Magnetic Top Cover

The handle is made of soft nylon material, commonly used in bags, which does not increase the height of the chassis. The top cover and the nylon filter are ultrasonically fused together, which is convenient for users to wash clean.
