JDS Labs Element III AMP DAC - Copper Ring

Auto Gain

We regularly hear from customers fretting over when to use gain. Element III eliminates this confusion by automatically toggling gain for you at exactly the right volume level. As you turn the knob beyond 0 dB, high gain activates and volume is compensated for a near-seamless transition to higher listening levels.

Perfect Channel Balance

Element III delivers audibly perfect channel balance all the way down to -127.5 dBFS. You'll immediately hear and appreciate soundstage accuracy.

OLED Display & Options

An OLED display momentarily presents status information while you interact, then powers down to minimize distractions. The Options menu further allows you to adjust OLED and backlighting LED behaviors, DAC filters, and more.

Exceptional Power

Element III's rail-to-rail gain stage provides extra headroom and no distortion penalty when listening at high gain versus low gain. With +/-15VDC rails and continuous max power of 1.3W, Element III drives all headphones on the market to extraordinary levels, from balanced armatures to planar magnetics.

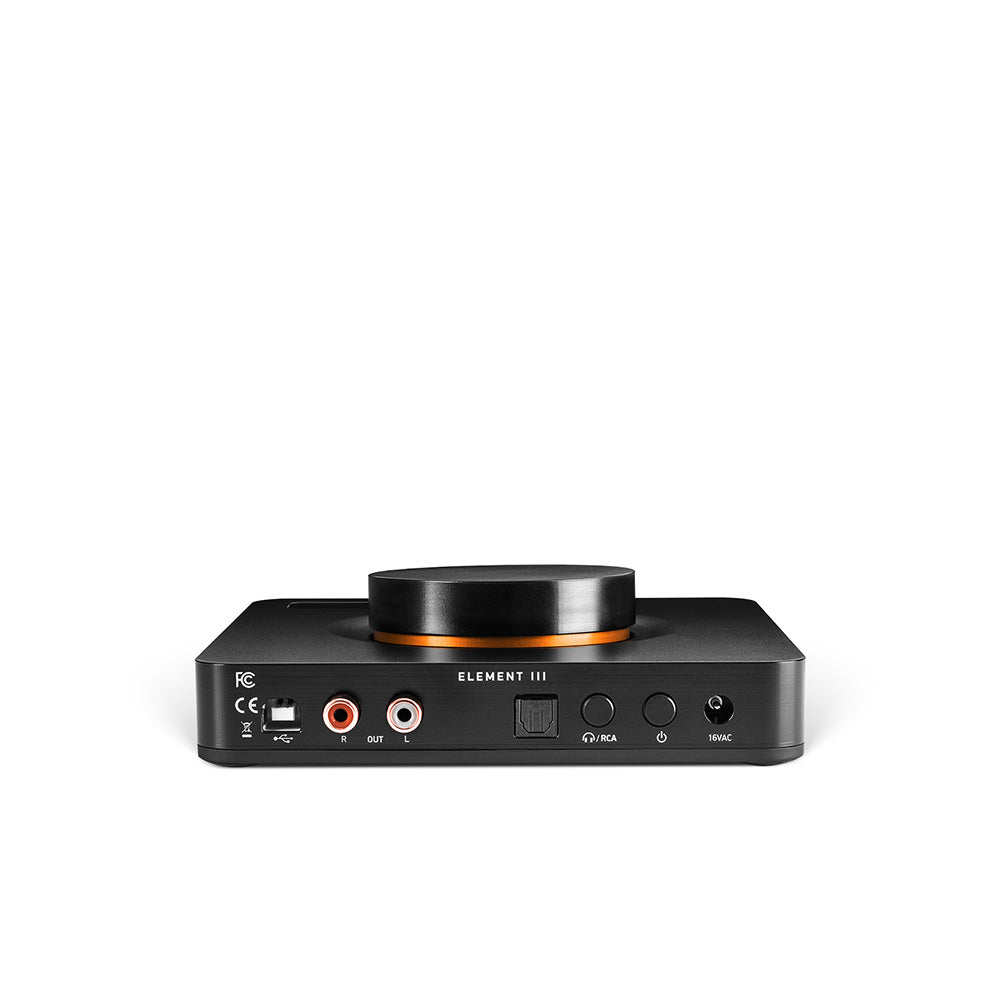

Preamp Outputs

Element III provides preamp RCA outputs so that you can control the volume of your powered speakers. The volume of the preamp output is managed separately from the headphone output for quick toggling.

Input and Output Selection

Press the tactile volume control to listen to USB or Optical Input, or press the Mode button to toggle between headphones and powered speakers. No need to disconnect cables!

USB Audio Class 2 - PCM & DSD

Element III supports up to 32/384kHz PCM and DSD128 through our second-generation XMOS XU208 engine. While we claim no measurable superiority of high sampling rates, UAC2 with an ASIO endpoint will satisfy your pursuit of high fidelity listening.

Relay Muting & Safety

Designed for desktop listening, Element III's full relay muting eliminates pops and thumps during startup through both its headphone and preamp outputs. And for extra safety, Element III's dual, independent processors continuously monitor internal communications and verify the volume of the ESS DAC.

MEMS Oscillators

Element III is clocked by MEMS oscillators for excellent frequency stability, delivering pristine jitter in both USB and Optical modes.

Mains Isolation

Element III's amplifier and DAC are 100% powered by its external AC transformer, with 13 regulators ensuring consistent rail voltage, super low ripple, and mains isolation.
