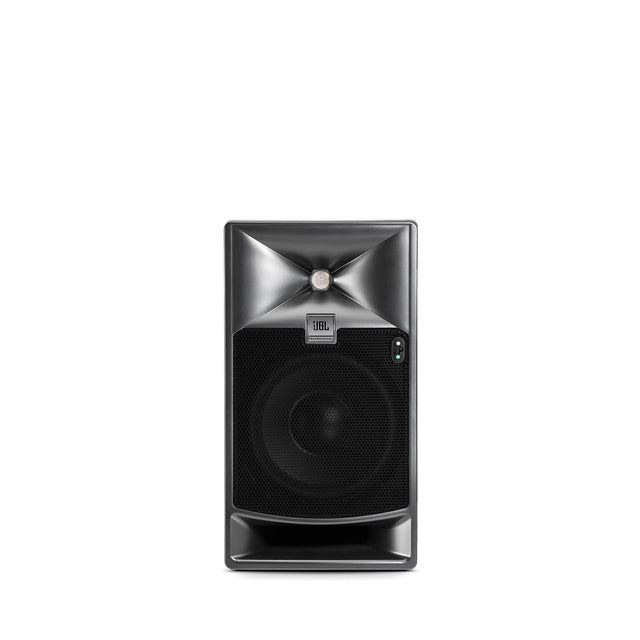

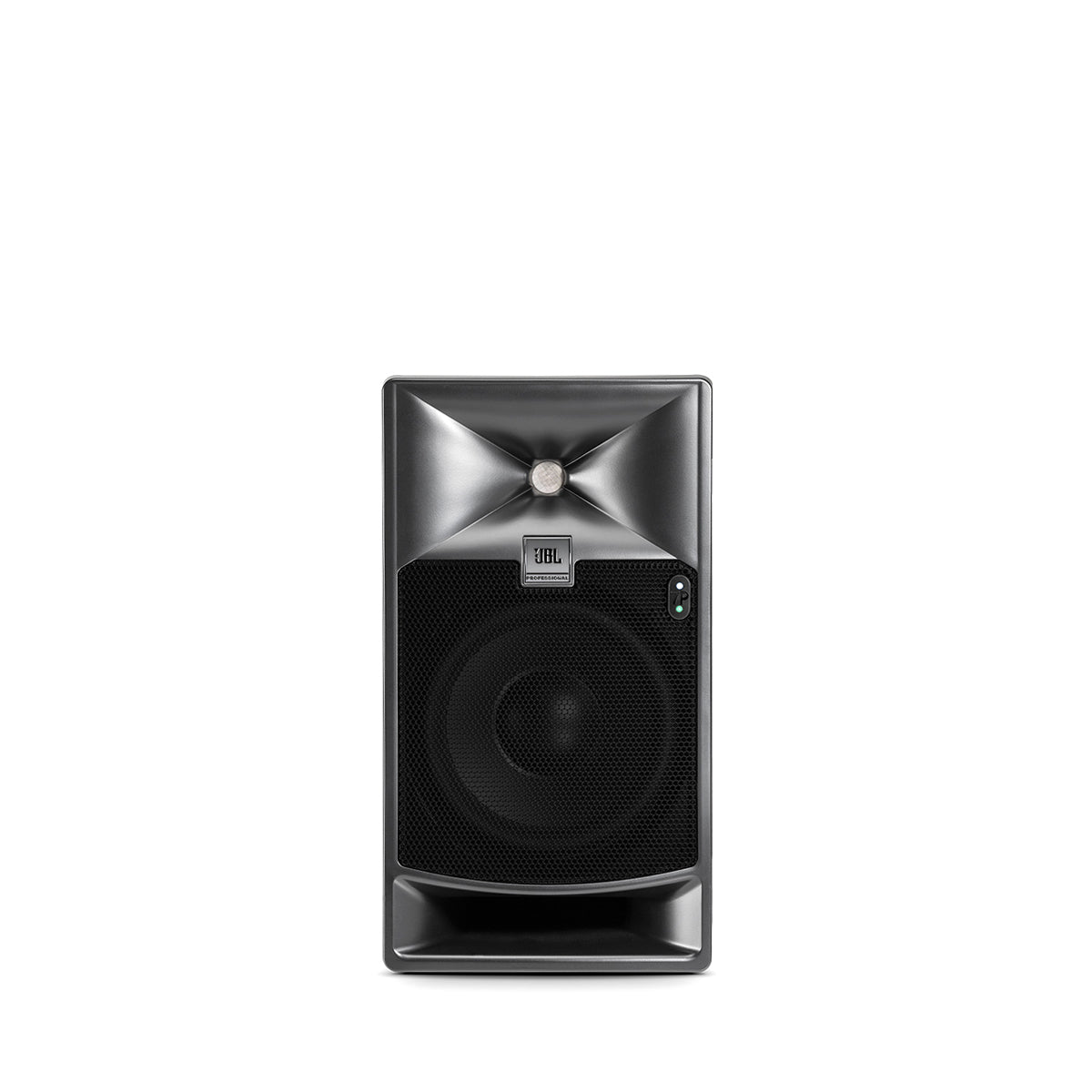

JBL 7 Series LSR705P 5" Bi-amplified 2-way Master Reference Monitor (Single Unit)

The JBL 705P is the self-powered reference monitor for critical music recording, film post and broadcast production applications. The JBL 705P leverages the same patent-pending driver technologies and JBL’s renowned Image Control Waveguide found in the 708P and the flagship M2, but with a smaller footprint. Despite its compact size, JBL 705P delivers an eye-opening level of output, well beyond that of existing, comparably-sized studio monitors, for greater dynamic range and greater working distances. The speakers deliver an expansive soundstage and pristine accuracy in a broad range of rooms.

Next Generation Driver Technology

JBL 705P leverages next-generation JBL driver technologies to deliver greater dynamic range and superior frequency response. The 2409H high-frequency compression driver incorporates an innovative low-mass annular diaphragm to deliver smooth response beyond 36 kHz, with very low distortion. The 725G low-frequency transducer provides 14mm peak-to-peak excursion with greater linearity, delivering exceptional low-frequency output below 39 Hz. These proprietary drivers allow the 705P to deliver two to three times the output of existing studio monitors.

Patent Pending Image Control Waveguide

First introduced in the JBL M2 Master Reference Monitor, the JBL patent-pending, Image Control Waveguide ensures accuracy and neutrality while providing a wide sweet spot with increased sonic detail. By enabling an acoustically seamless transition between the low- frequency and high-frequency transducers, the waveguide provides a detailed soundstage and accurate imaging across the entire frequency spectrum. The smooth, on- and off-axis frequency response allows the JBL 705P to deliver neutral response across a wide listening area in a broad range of rooms.

Integrated Dual Amplification System

JBL 705P features a built-in dual amplification system that’s optimized for its high-output drivers. A 250W amp powers the 2409H high-frequency transducer and a 250W amp is dedicated to the 725G low-frequency transducer. This combination provides exceptional output and allows for greater listening distances, making them ideal for post production or mastering environments.

Comprehensive EQ and Delay

Although the 705P design yields exceptional neutrality in any room, the speaker also features onboard room equalization, so you can compensate for the adverse effects of room acoustics and enjoy the most accurate sound reproduction in any listening environment. In addition to twelve bands of Room EQ, eight bands of User EQ allow for customized response curves such as the X-Curve, and compensation for “screen-loss” when placed behind a perforated cinema screen. User-enabled digital delay allows virtual alignment of speakers relative to the listening position, while additional AV Synchronization delay is available to compensate for latency in video displays

Compact Form Factor

7 Series Powered monitors were developed with the modern control room in mind. A compact two-way design minimizes interference with video displays and sight lines, while still providing output that is comparable to larger speakers. The reinforced enclosure includes bottom and rear mounting points, allowing wall and ceiling mounting in either vertical or horizontal orientations.

Digital Integration

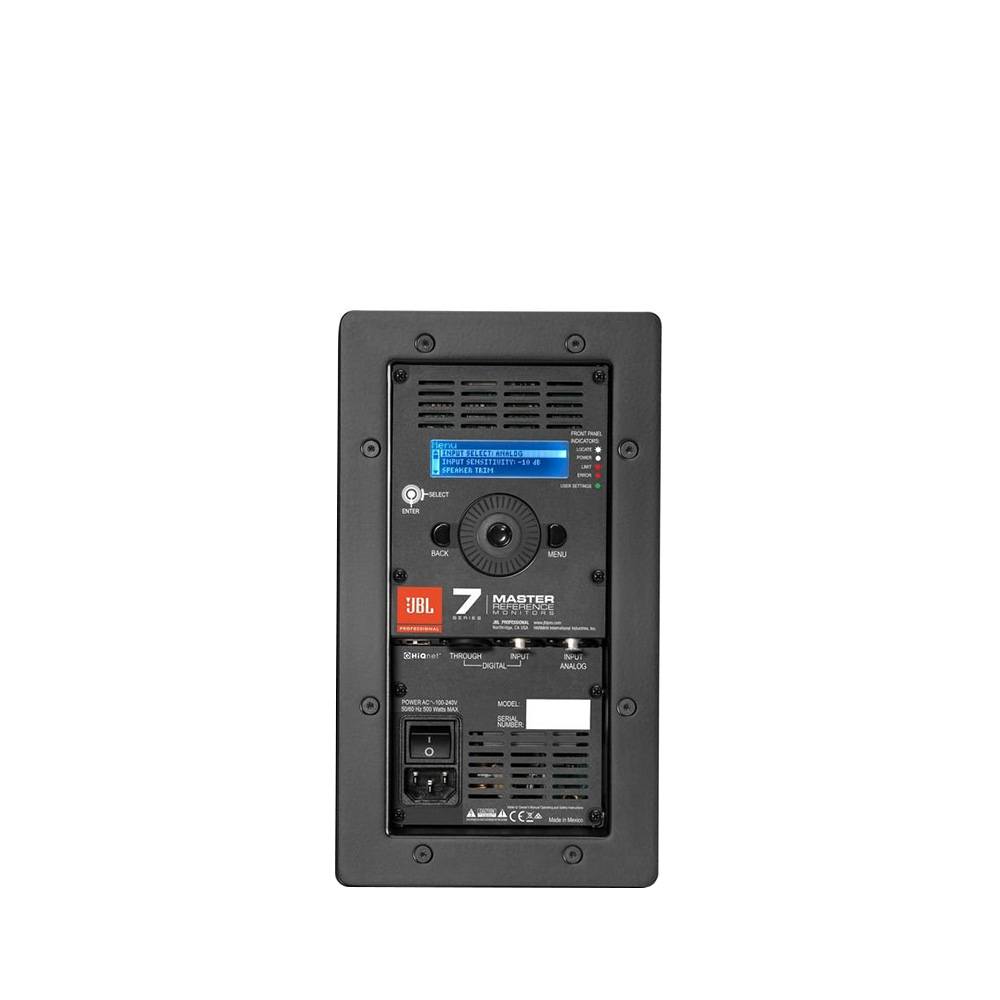

JBL 705P features analog and digital inputs and sample rate converters. AES/EBU digital inputs allow connectivity with a broad range of production hardware, including digital audio workstations (DAW), mixing consoles and digital playback hardware with sample rates of up to 192 kHz. Internal sample rate converters can be enabled to allow connection to digital signals with uncommon sample rates.
