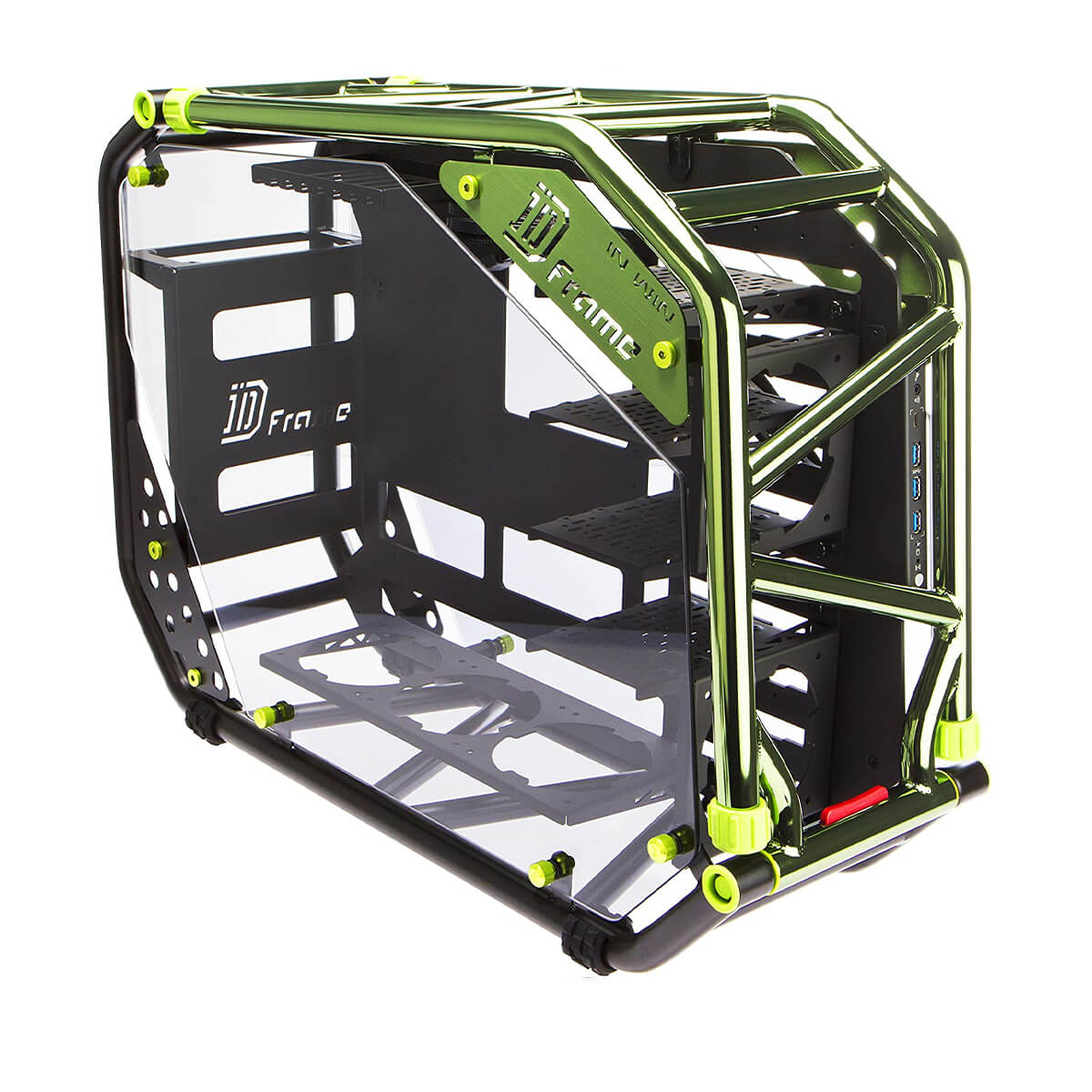

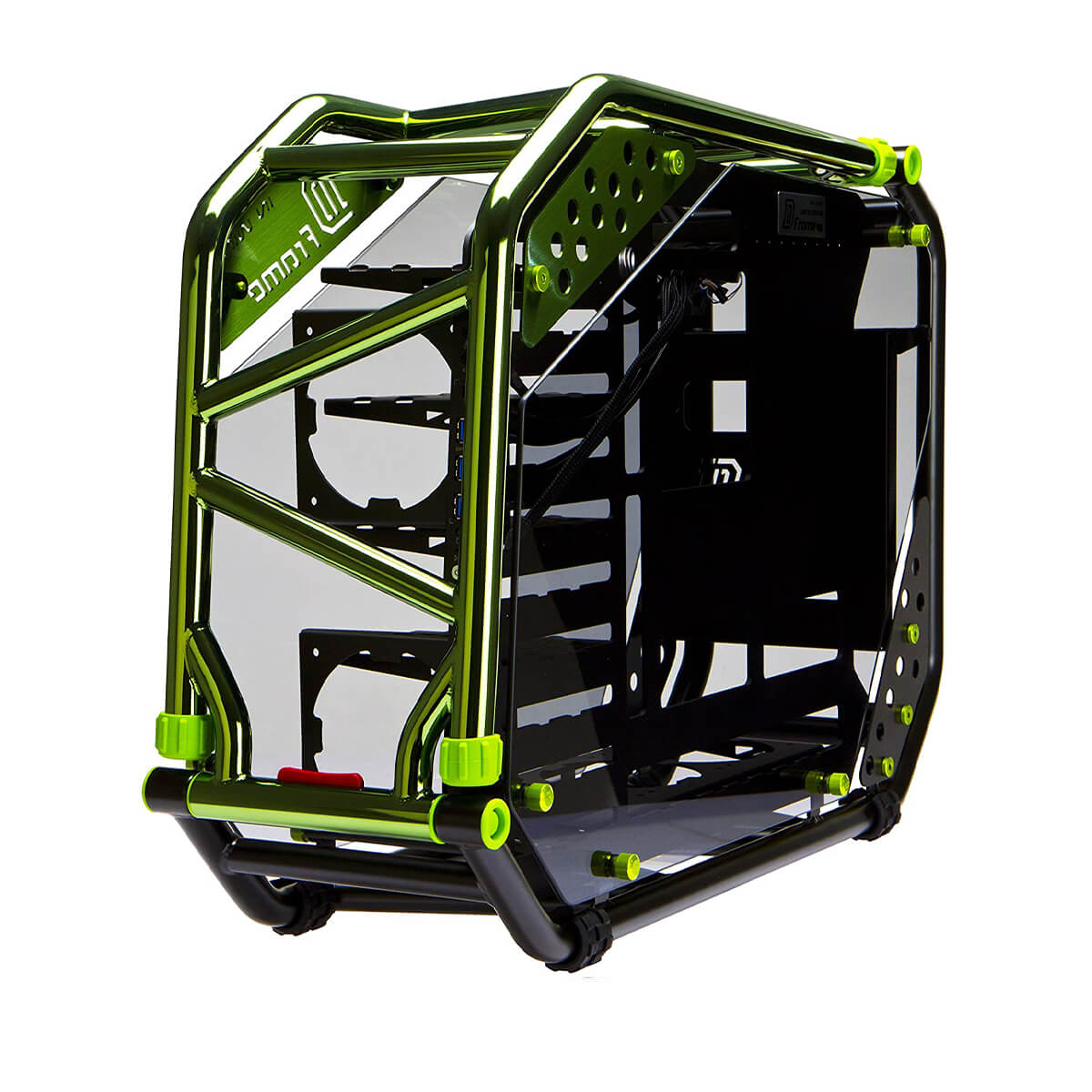

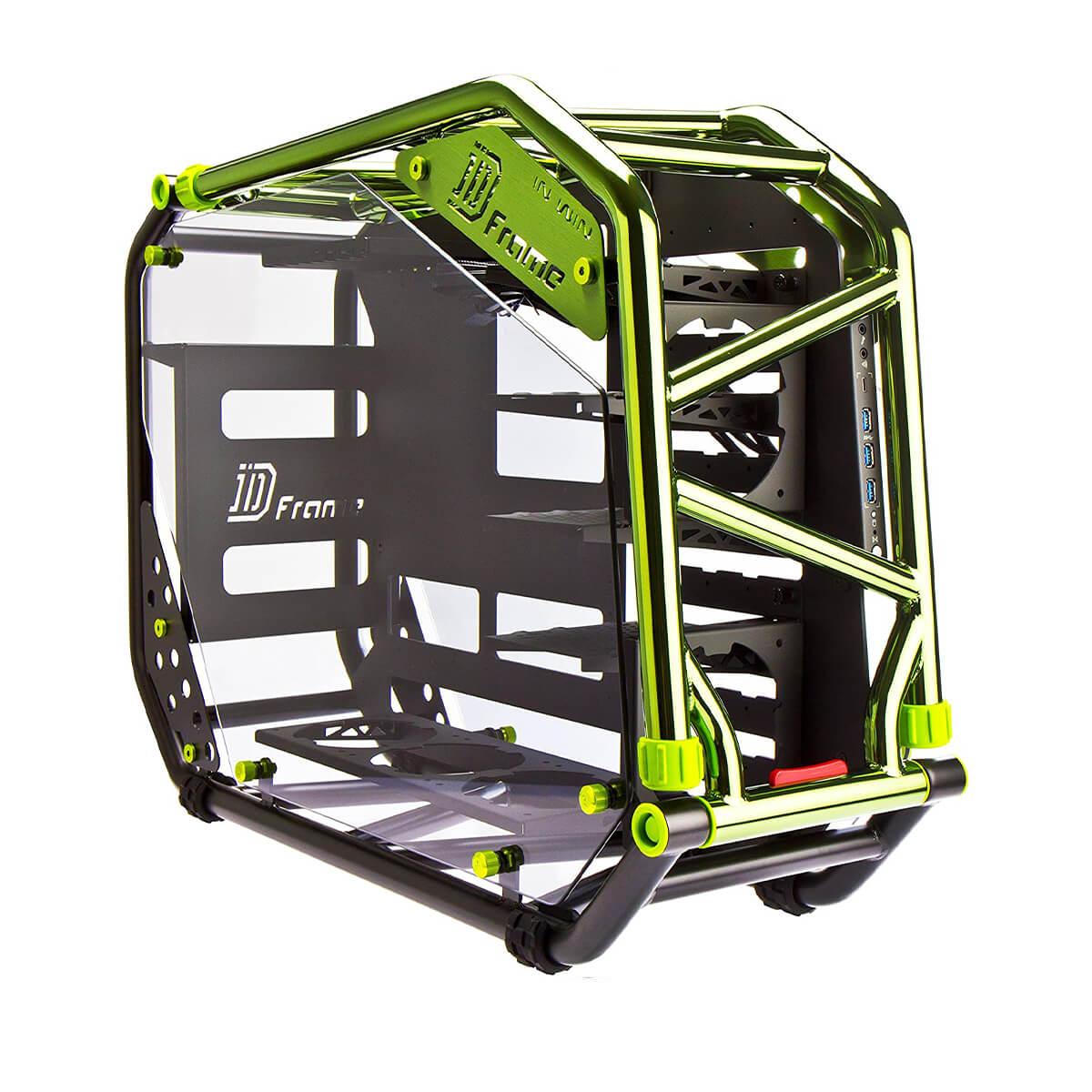

Inwin D-Frame 2.0 Open Tower Chassis w/1065 Watt PSU - Black/Green
In stock at Computer Lounge
Couldn't load pickup availability
Warranty and Support
Warranty and Support
Warranty: 2 Years Return to Base Warranty
Returns: 14-day hassle-free exchanges and store credits, subject to terms and conditions outlined in our Returns Policy.
Delivery and Shipping
Delivery and Shipping
All deliveries are signature required.
North Island: 1 – 2 working days
South Island: 2 – 3 working days
Please allow an additional 1 – 2 working days for delivery to rural addresses.
Buy Now, Pay Later & Finance Options:
Description
Description
Design Concept
The design concept for D-Frame 2.0 originates from the freedom, individuality and impulsive nature of off-road motorcycles. The combination of steel tubing, anti-flip foot pads with deep tire treads, a power supply in the shape of an air-cooled engine and tempered glass is perfect fusion of art and technology.
Handcrafted Metallic Tubing Structure
Expertly bent tubing is entirely crafted by human hands. TIG (Tungsten Inert Gas) welding is used to reinforced stability, and unique electrode position, which creates an ultra-smooth finish! The motherboard mounting tray is sandblasted to achieve a refined metallic texture.
Innovative Two-Way Open Design with Quick-Release Fasteners
The outer frame features a unique two-way open design. With its quick-release fasteners, D-Frame 2.0 allows for easier assembling and custom display platforms.
Open-Frame Structure with Excellent Thermal Solutions
Open-frame structure improves heat dissipation and airflow is effectively channeled, ensuring excellent ventilated performance.
Highly Expandable for Superb Performance
Supports the latest high-end graphics cards, CPU heatsink and E-ATX motherboards (12”x13”).
Customized, Flexible, Versatile Thermal and Hard Drive Modules
Flexible and versatile build options give gamers the freedom to customize their gaming rigs. The HDD and cooling fan can be installed at the front or bottom positions.
Supports the Latest USB 3.1 Gen1 Type-C
The newest USB 3.1 Gen1 Type-C is featured in D-Frame 2.0. Experience the rapid transfer speeds, and the convenience of the reversible Type-C connector.
SIII-1065W Transparent Power Supply
Each D-Frame 2.0 includes a SIII-1065W power supply, which is exclusively designed for D-Frame 2.0
Specifications
Specifications
| Model | D-Frame 2.0 |
| Color | Black/Green |
| Case Type | Open-Air Chassis |
| Case Material | Reinforced Steel Tube, Aluminium, Tempered Glass |
| M/B Compatibility | 12" x 13" E-ATX, ATX, Micro-ATX |
| Expansion Slots | 8 x PCI-E Slots |
| Maximum Compatibility | VGA Card Length: 350-415mm (Depends on Mounting Configuration) VGA Card Height: 173mm (Motherboard Die Surface to Side Panel) CPU Heatsink Height: 165mm (CPU Die Surface to Side Panel) |
| Front Ports | 1 x USB 3.1 Type-C 3 x USB 3.0 HD Audio |
| Internal Drive Bays | 4 x 2.5“/3.5” Multifunctional Brackets |
| Thermal Solution Compatibility | 2 x 120mm Fan Brackets (Supports 2 x 120mm Fans) 1 x 3-in-1 Fan Bracket (Supports 3 x 120mm Fans) Supports 1 x 360mm Radiator - Front: 90mm Maximum Height including Fans - Bottom: 65mm Maximum Height including Fans |
| Power Supply Compatibility | SIII-1065W Internal PSU Included ATX12V and EPS12V - Dimension(L x W x H): 210 x 180 x 96 mm |
| Product Dimension (H x W x D) | 548 x 264 x 726 mm 21.6” x 10.4” x 28.6” |
| Product Dimension (H x W x D) with screw height | 548 x 291 x 726 mm 21.6" x 11.5" x 28.6" |
| Package Dimension (H x W x D) | 760 x 346 x 842 mm 29.9" x 13.6" x 33.1" |
| Net Weight | 22.5kg/49.5lbs |
| Gross Weight | 25.5kg/56.1lbs |
