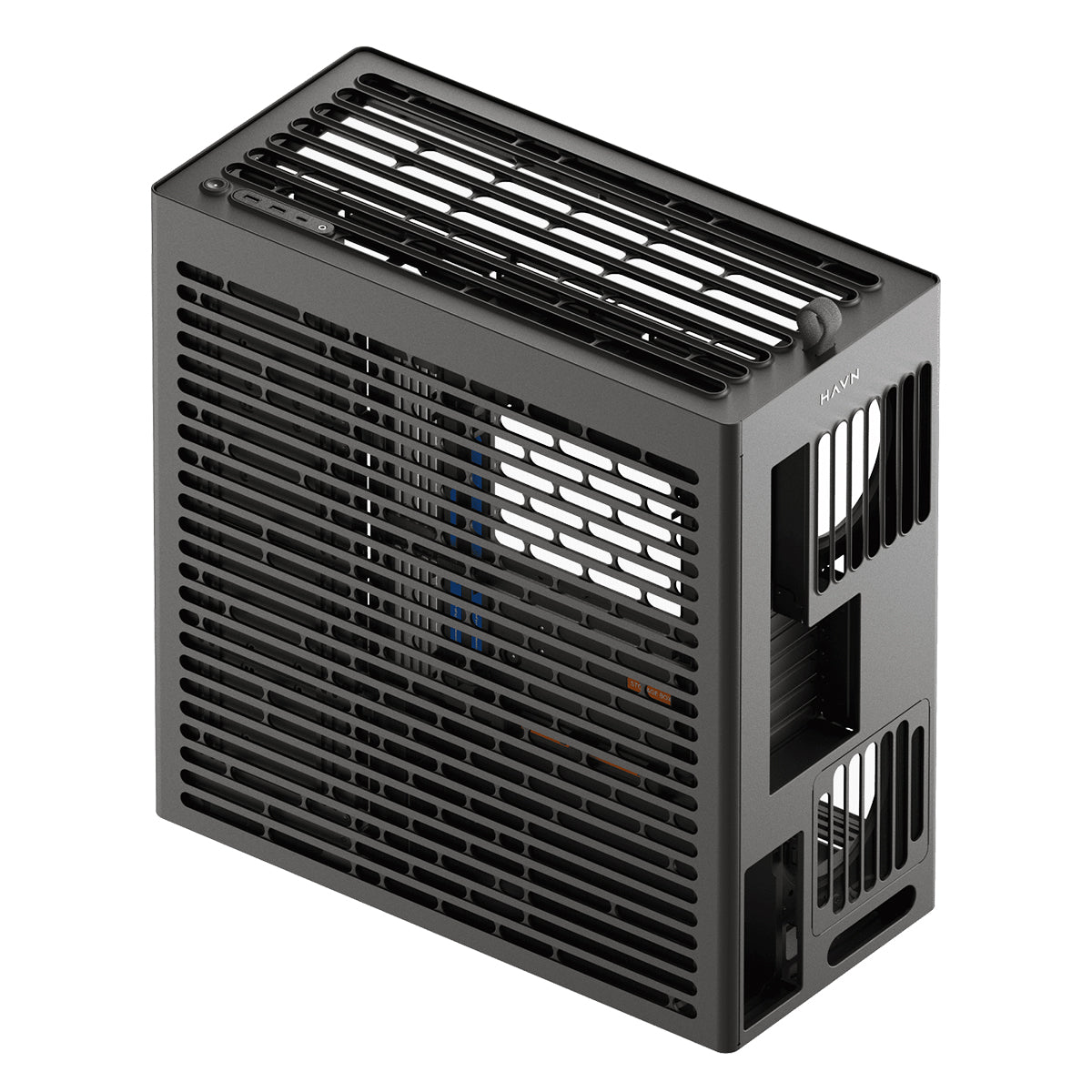

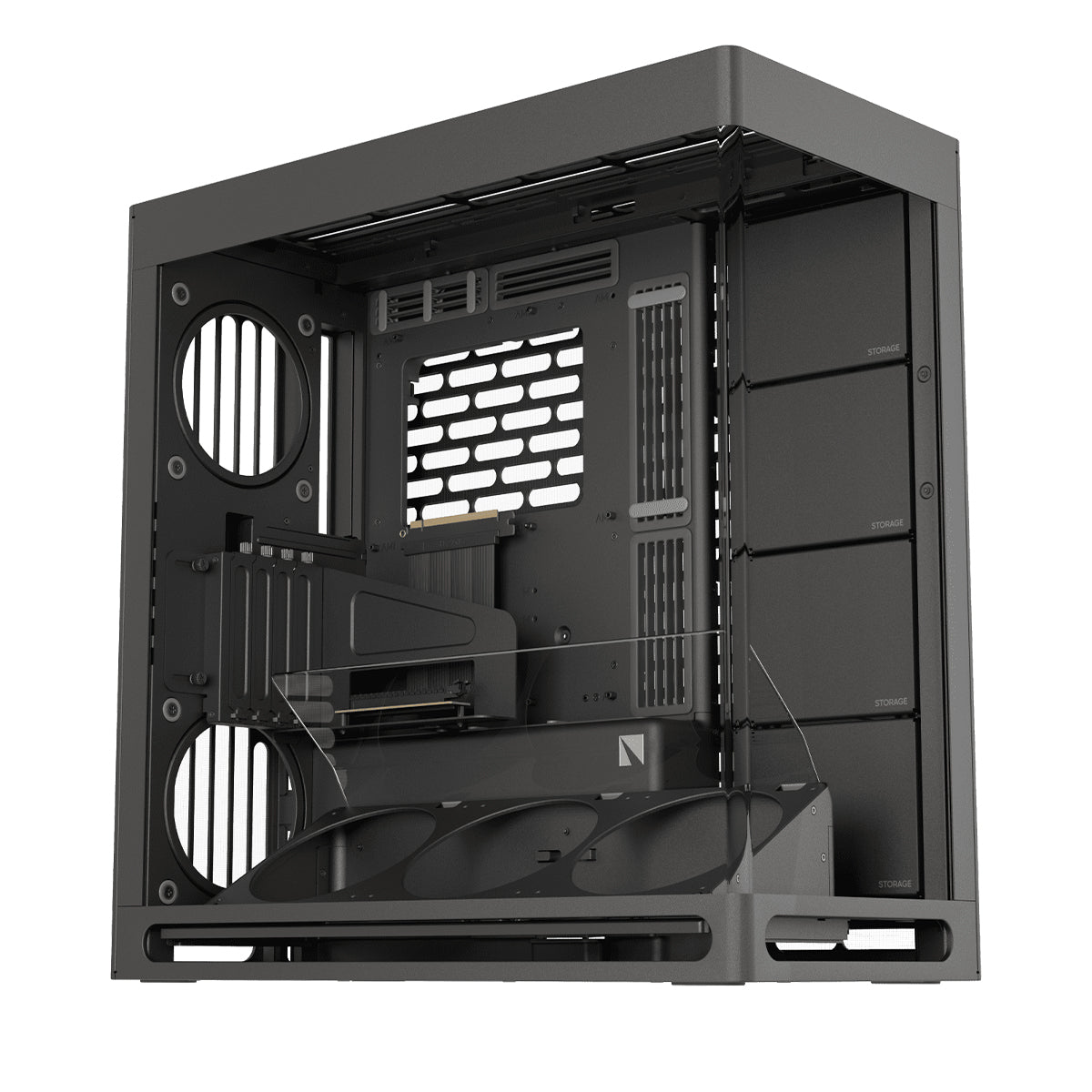

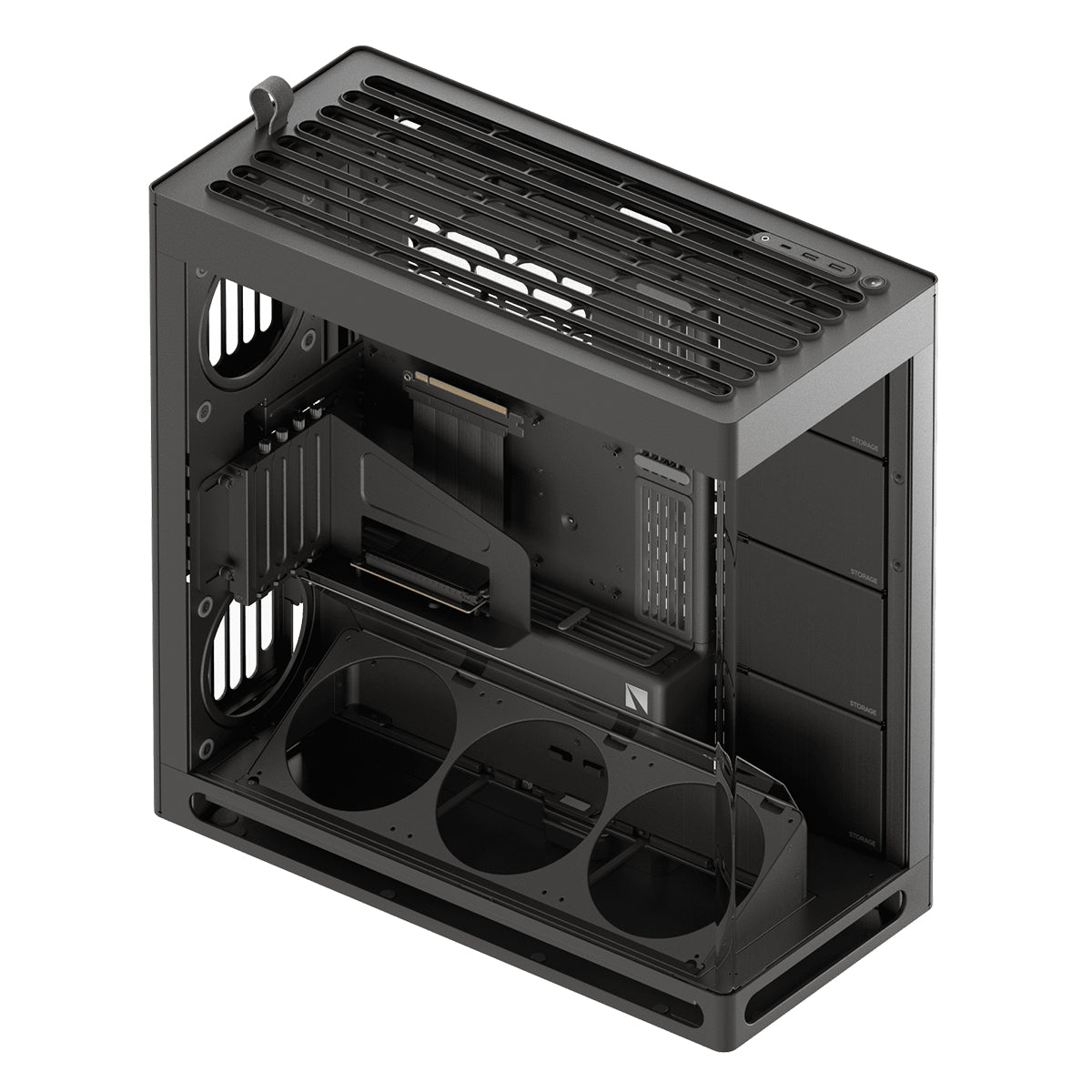

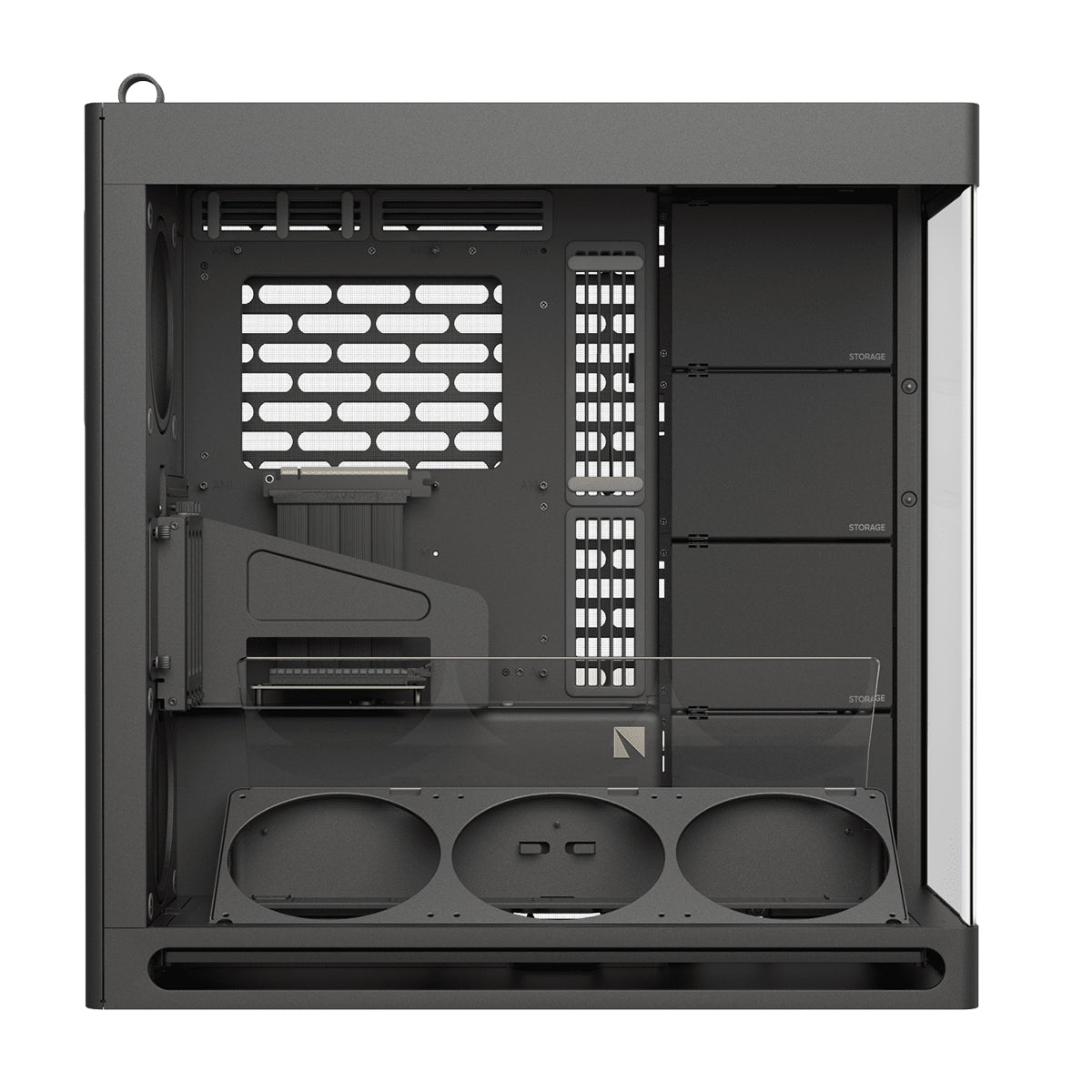

Havn HS 420 VGPU PCIE 5.0 ATX Mid Tower Case - Black
Designed for Vertical GPU Cooling | Includes PCIE 5.0 Riser Cable
Warranty and Support
Warranty and Support
Warranty: 1 Year Return to Base Warranty
Returns: 14-day hassle-free exchanges and store credits, subject to terms and conditions outlined in our Returns Policy.
Delivery and Shipping
Delivery and Shipping
All deliveries are signature required.
North Island: 1 – 2 working days
South Island: 2 – 3 working days
Please allow an additional 1 – 2 working days for delivery to rural addresses.
Buy Now, Pay Later & Finance Options:
Description
Description
HS 420 VGPU Mid-Tower Case
The HS 420 VGPU mid-tower case combines functional beauty with user-centric innovation. Designed by the HAVN team, this case is crafted to deliver superior GPU airflow, featuring a VGPU Mount Kit with a PCI Express® 5.0 riser cable. Its elegant panoramic housing, hybrid structure, optimized airflow, and smart cable management system make it the ultimate sanctuary for your gaming setup. This product does not include the flat, standard bottom fan bracket as featured on the Base Edition.
UniSheet Heat-Formed Panoramic Glass Panel
Engineered to be flatter with a smaller radius to minimize visual distortion for front and side panels.
Enhanced Thermal Performance
Supports up to 11 x 140mm fans and 420mm radiators on top and side for optimal cooling.
Intuitive SimpliCable Routing System
Fan hub and grooved cable guides keep cables neatly organized and discreetly hidden.
HAVN Hybrid Structure
Dual-chamber design channels cool air from bottom intake directly onto the centrally positioned GPU for optimal cooling.
GPU-Centric Design
GPU is front and center behind the panoramic Unisheet glass, emphasizing key components and improving airflow.
Mirrored Airflow
Additional rear-bottom fan intake channels cool air directly to the GPU, balancing intake and exhaust for peak performance.
Adjustable VGPU Bracket
Horizontally adjustable to accommodate different GPU thicknesses, optimizing distance to the glass air guide.
Cooling Power & Compatibility
Accommodates up to eleven 140mm fans and supports 420mm radiators on top and side.
Unique SimpliCable Routing System
Top-to-bottom grooved guides make cable management effortless and organized.
Cable Management Re-Invented
Silicon pass-throughs with stabilizing clips allow precise and tidy cable routing.
Lightning-Fast Riser Cable Included
VGPU Mount Kit with PCI Express® 5.0 X16 riser cable showcases hardware without compromising performance.
Vibration Isolation
Flexible rubber isolators on fan brackets reduce resonance for quieter operation.
Customization
Supports combinations of storage, fans, radiators, and portable displays with included VESA mounting bracket.
Specifications
Specifications
| Form Factor | Mid Tower |
| Material | SGCC sheet metal, tempered glass, ABS, Nylon, Silicon, Zinc alloy, NdFeB magnets |
| PC Case Dimensions (L x W x H) | 541 x 259.5 x 547 mm |
| Net Weight | 19 kg |

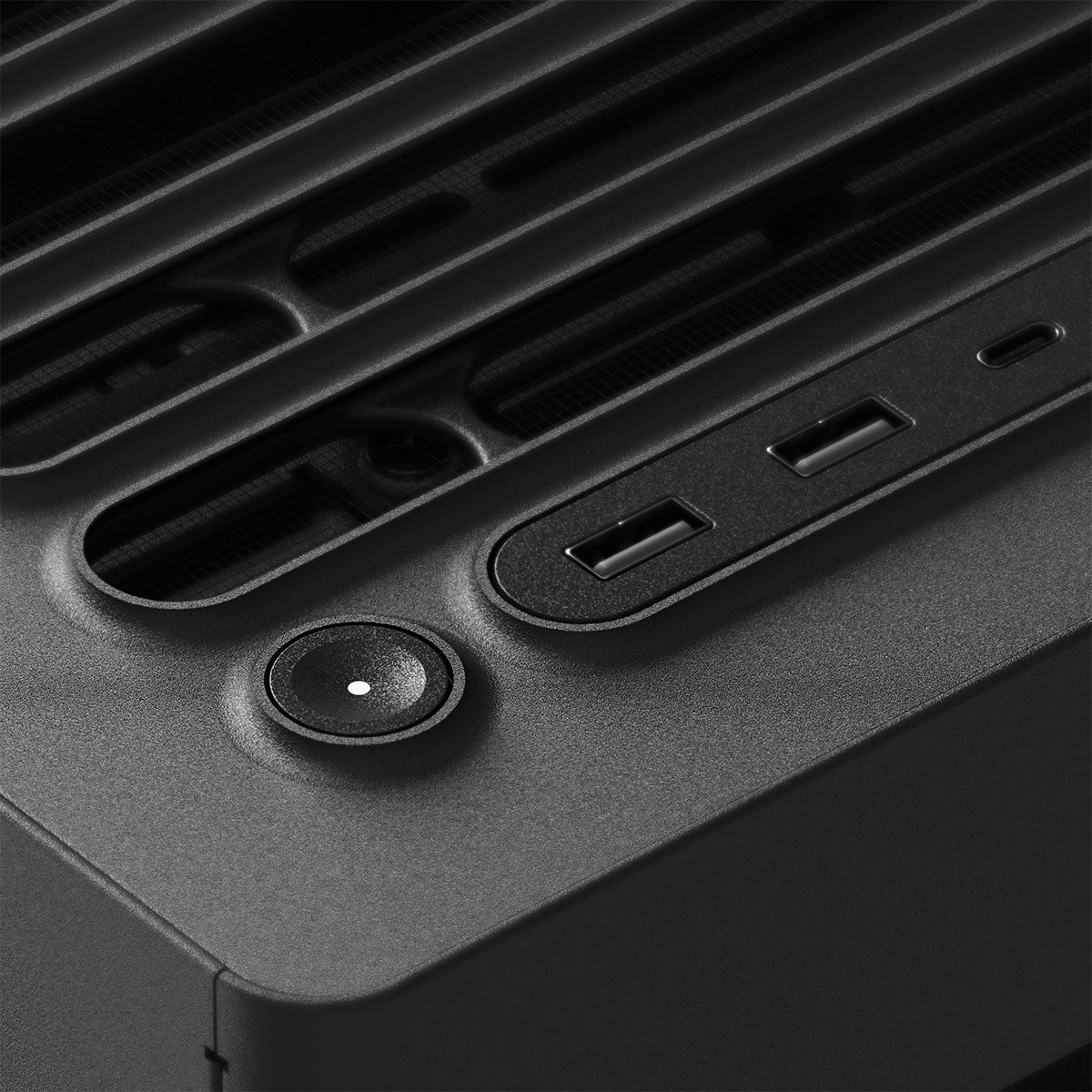

| Front I/O | USB 3.2 Gen 2 Type-C x1 USB 3.2 Gen 1 Type-A x2 Audio Jack x1 Power & Reset Button x1 |
| Motherboard Support | E-ATX (Max Width 277 mm) / ATX / M-ATX / Mini-ITX |
| Expansion Slots | 6 horizontal, 4 vertical |
| Fan Support | Maximum Amount: 11 Top: 3 x 120 / 3 x 140 mm Right: 3 x 120 / 3 x 140 mm Bottom: 3 x 140 mm Rear: 2 x 120 / 2 x 140 mm (Thickness Up to 30 mm) |
| Fan PWM Repeater | Fan Ports: 2 x PWM repeaters, 12 ports total Location: 1 x Cable Management Tray, 1 x PSU Shroud Fan Connectors: 6 ports per repeater x 4-pin PWM (Connect your primary fan to the white port to control PWM signal. All other ports mirror the white port's signal.) Fan Rated Voltage: 12V Fan Safety Current: Up to 2.6A across 6 ports Power Connector: 1 x SATA Power Power Safety Current: 1 x SATA connector power input, 12V → 2.6A (max) |
| CPU Tower Cooler Clearance | Height: Up to 185 mm. Tower cooler size depends on GPU width. CPU center to graphics card PCIe edge connector; ~199mm (varies by motherboard). Liquid cooling recommended. |
| Liquid Cooling Support | Top: 280 / 360 / 420 mm (Thickness: 65 mm, not overlapping with RAM) Right: 280 / 360 / 420 mm (Thickness: 60 mm w/ GPU >317mm, 80 mm w/ top AIO) |
| Graphics Card Clearance | Length: Up to 470 mm Width: Up to 195 mm. GPU width support depends on CPU cooler size. CPU center to graphics |
