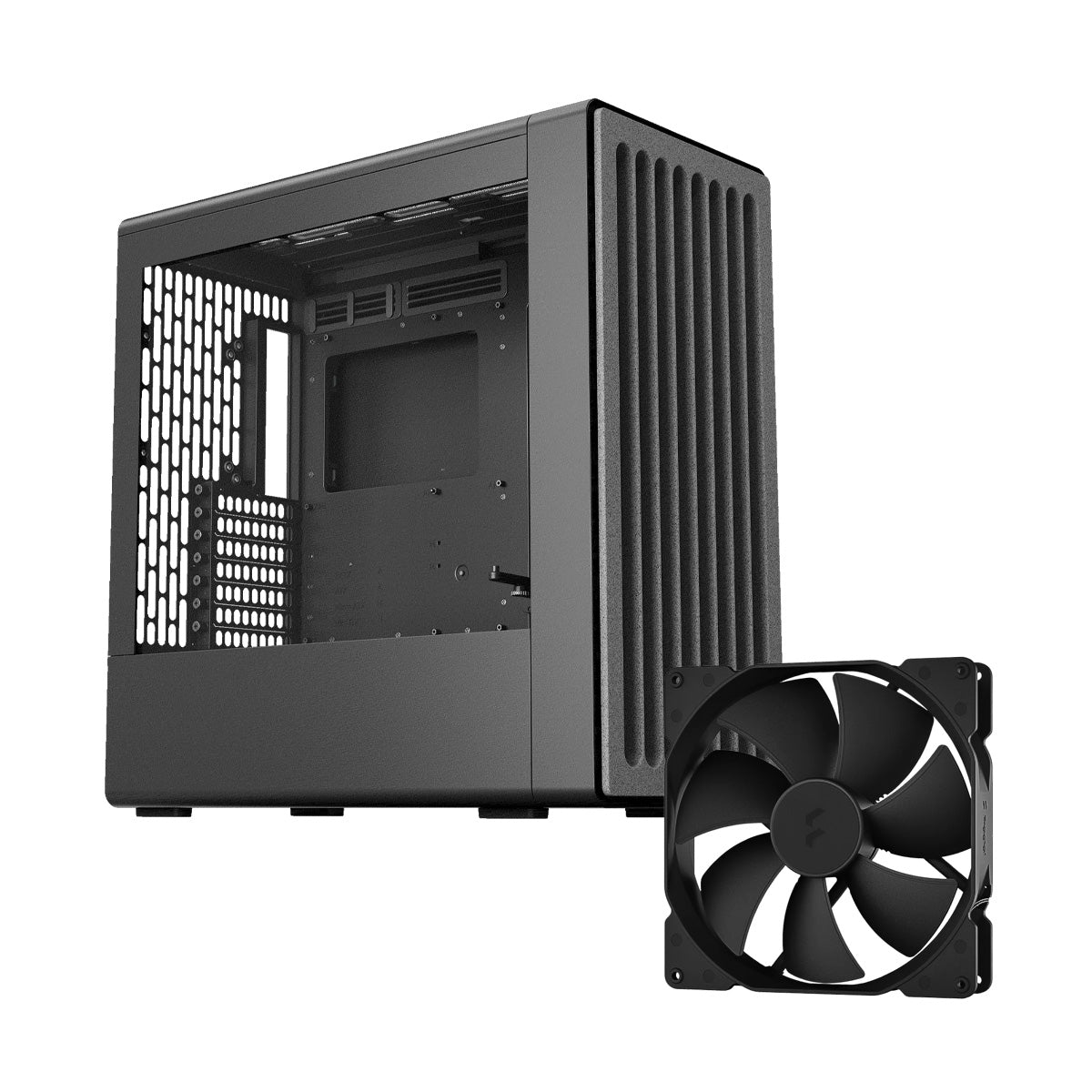

Havn BF 360 ATX Mid Tower Case + 2x Fractal Design Dynamic GP-18 180mm Fans - Black

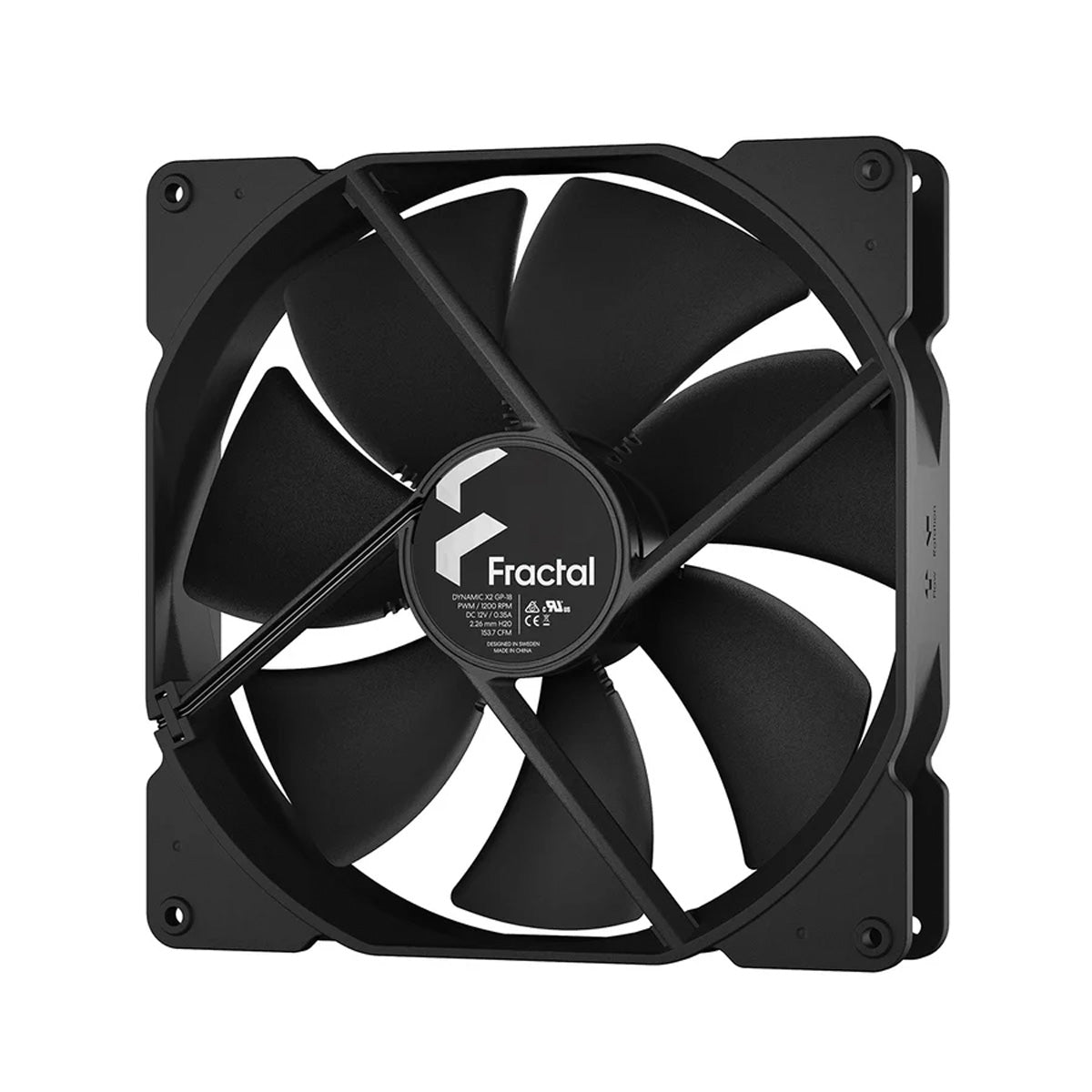

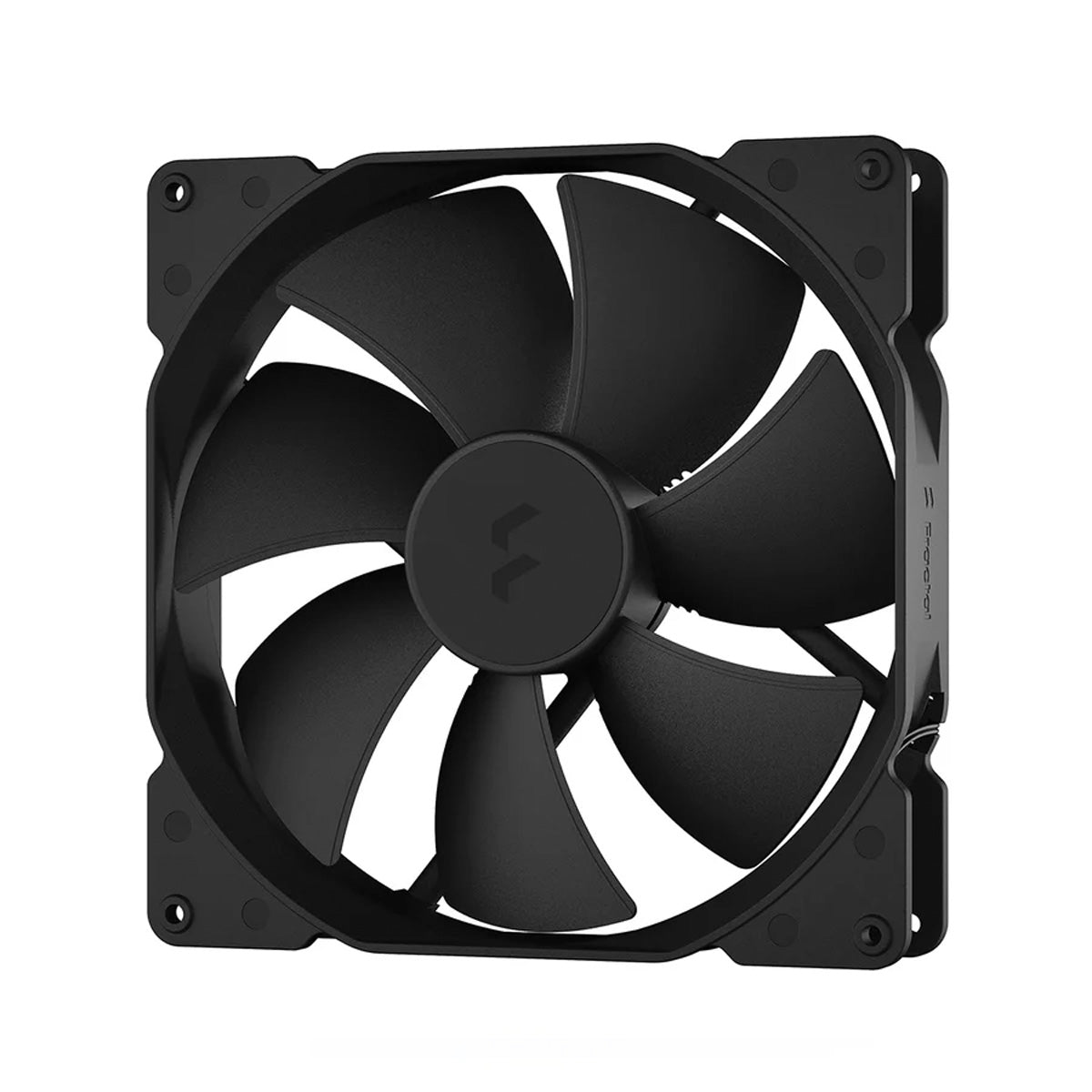

Dynamic X2 GP-18 High-Performance 180 mm Fan

Powerful 180 mm Cooling Performance

The Dynamic X2 GP-18 is a high-performance 180 mm PWM fan designed to deliver exceptional airflow while maintaining quiet operation. Featuring massive fan blades, a thick 38 mm frame, and a wide 300–1200 RPM PWM-controlled speed range, it provides efficient cooling performance for demanding gaming and high-performance PC systems.

Optimized Fan Geometry

The optimized fan blade geometry balances high airflow and strong static pressure for excellent cooling performance in various usage scenarios. Trip Wire technology introduces a micro-turbulent layer that improves airflow efficiency and reduces unwanted noise, creating a quieter and more effective cooling environment.

Quiet and Efficient Blade Design

Strategically placed notches near the fan hub on the trailing edge of the blades help minimize humming noise generated when the blades pass the stator struts. Aerodynamic stator struts with embedded wiring reduce turbulence and create a smoother and quieter noise profile.

High-Grade Long-Life Bearing

The fan utilizes a high-quality Long-Life Sleeve (LLS) bearing design that delivers smooth operation and long-lasting reliability, ensuring dependable cooling performance during extended use.

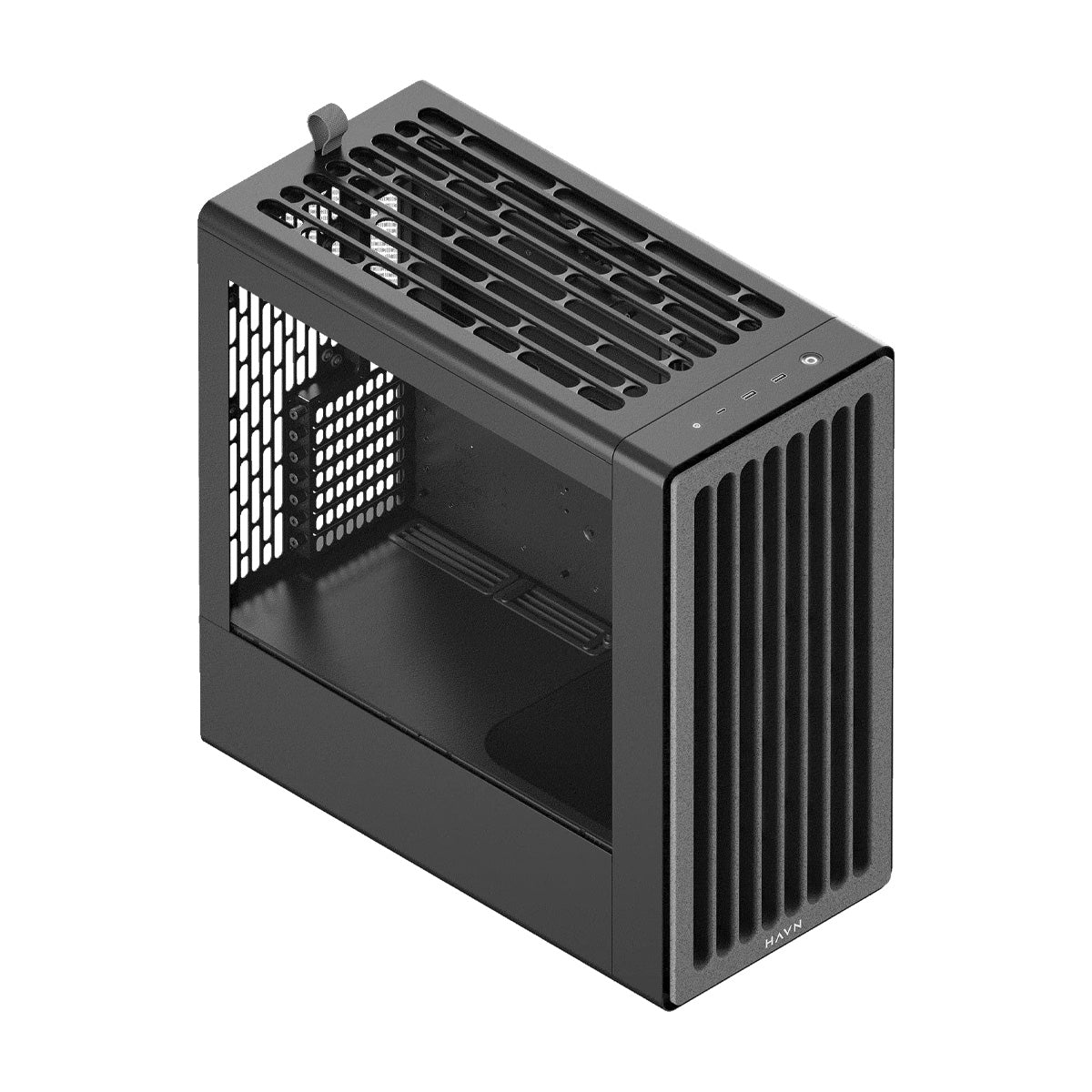

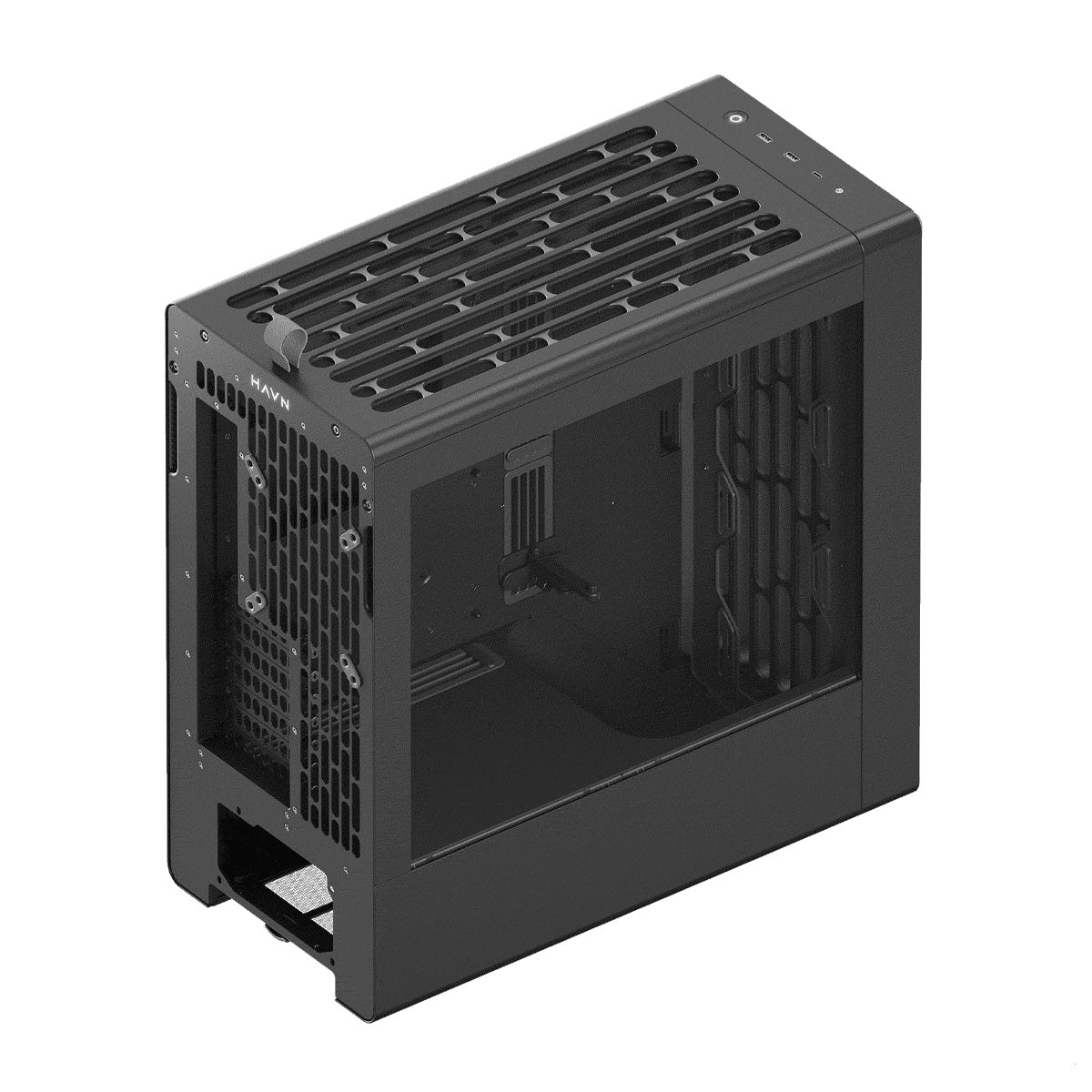

GPU-Focused Mid Tower Case

GPU-Focused Airflow Design

The chassis features a GPU-focused air guide ramp that channels airflow directly toward the graphics card intake for enhanced GPU cooling. Its precision aerodynamic internal design improves overall airflow efficiency, making it ideal for high-end graphics card setups.

Dual 180 mm Front Fan Support

Designed for maximum airflow capacity, the case supports dual 180 mm front fans to deliver powerful cooling for high-performance gaming systems. Additional top fan support accommodates 120 mm to 180 mm fans for expanded cooling flexibility.

Semi-Open Frame Structure

The semi-open frame design allows easier component upgrades while improving airflow efficiency throughout the system. A highly adjustable hidden GPU support bracket helps stabilize heavy graphics cards for a cleaner and more secure build.

Premium Minimalist Aesthetic

The front panel features a unique stone-textured finish that delivers a clean, modern, and premium appearance, making the system blend seamlessly into gaming or professional environments.

Fan Specifications

Size: 180 x 180 x 38 mm
Screw Hole Pattern: 165 x 165 mm
Power Connector: 4-pin
Bearing Type: LLS Bearing
Number of Blades: 7
Rotational Speed: 300 – 1200 RPM
Noise Level: 16 – 35.4 dB(A)
Maximum Airflow: 44.9 – 153.7 CFM
Maximum Airflow Volume: 76.33 – 261.29 m³/h
Maximum Air Pressure: 0.4 – 2.26 mmH2O
Input Power: 4.2W at 12VDC
Maximum Rated Input Current: 0.35A
Nominal Input Voltage: 12V
Minimum Startup Voltage: 6V
MTTF: 90,000 Hours
Fan Weight: 499 g
Cable Length: 1000 mm
Cable Type: Black Ribbon Cable

Case Specifications

Form Factor: Mid Tower
Materials: SGCC Sheet Metal, Tempered Glass, ABS, Nylon, Silicon, Zinc Alloy, NdFeB Magnets
Case Dimensions (L x W x H): 515 x 254 x 522.6 mm
Net Weight: 13.63 kg

Front I/O Ports

USB 3.2 Gen 2 Type-C x1
USB 3.2 Gen 1 Type-A x2
Audio Jack x1
Power & Reset Button x1

Motherboard Compatibility

Supports E-ATX (Max Width 277 mm), ATX, M-ATX, and Mini-ITX motherboards.

Expansion and Cooling Support

Expansion Slots: 7
Maximum Fan Support: 7 Fans
Top: 2 x 180 mm / 2 x 140 mm / 3 x 120 mm
Front: 2 x 180 mm / 2 x 140 mm / 3 x 120 mm
Rear: 1 x 140 mm / 1 x 120 mm

Fan PWM Repeater

1 x PWM repeater with 6 fan ports installed on the cable management tray.
Supports 4-pin PWM fan connectors.
Connect the primary fan to the white port for PWM signal control while all remaining ports mirror the same signal.
Fan Rated Voltage: 12V
Fan Safety Current: Up to 2.6A across 6 ports
Power Connector: SATA Power
Power Safety Current: 12V → 2.6A (Max)

Cooling Clearance

CPU Cooler Height Clearance: Up to 195 mm
Liquid Cooling Support:
Top: 240 / 280 / 360 mm
Front: 240 / 280 / 360 / 420 mm

GPU and RAM Clearance

Graphics Card Length: Up to 410 mm
Graphics Card Width: Up to 195 mm
GPU Support: 1 – 4.5 Slots
RAM Clearance:
280 mm Radiator – 40 mm
360 mm Radiator – 60 mm
(When radiator and fan thickness exceeds 80 mm)

Power Supply and Storage Support

Power Supply Support: ATX
PSU Length: Up to 200 mm (260 mm Clearance)
Storage Support:
Right Mount: 2 Storage Bays supporting 2 x 3.5'' or 8 x 2.5'' drives
Cable Management Tray: 1 Storage Bay supporting 1 x 3.5'' or 2 x 2.5'' drives
Included Storage Bays: 2x (2 x 3.5'' / 4 x 2.5'')

Dust Filter System

Front: Built-in Dust Filter
Top: Built-in Dust Filter
Rear Bottom: Removable Dust Filter
