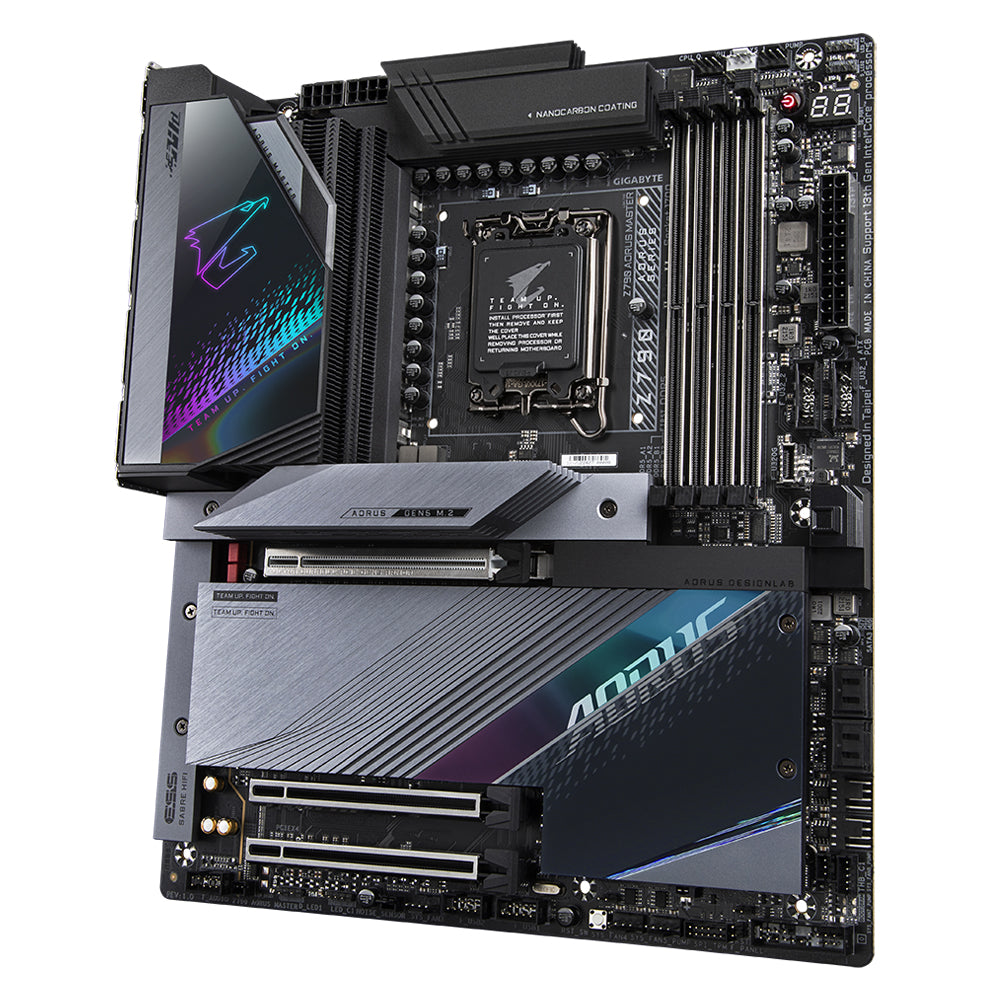

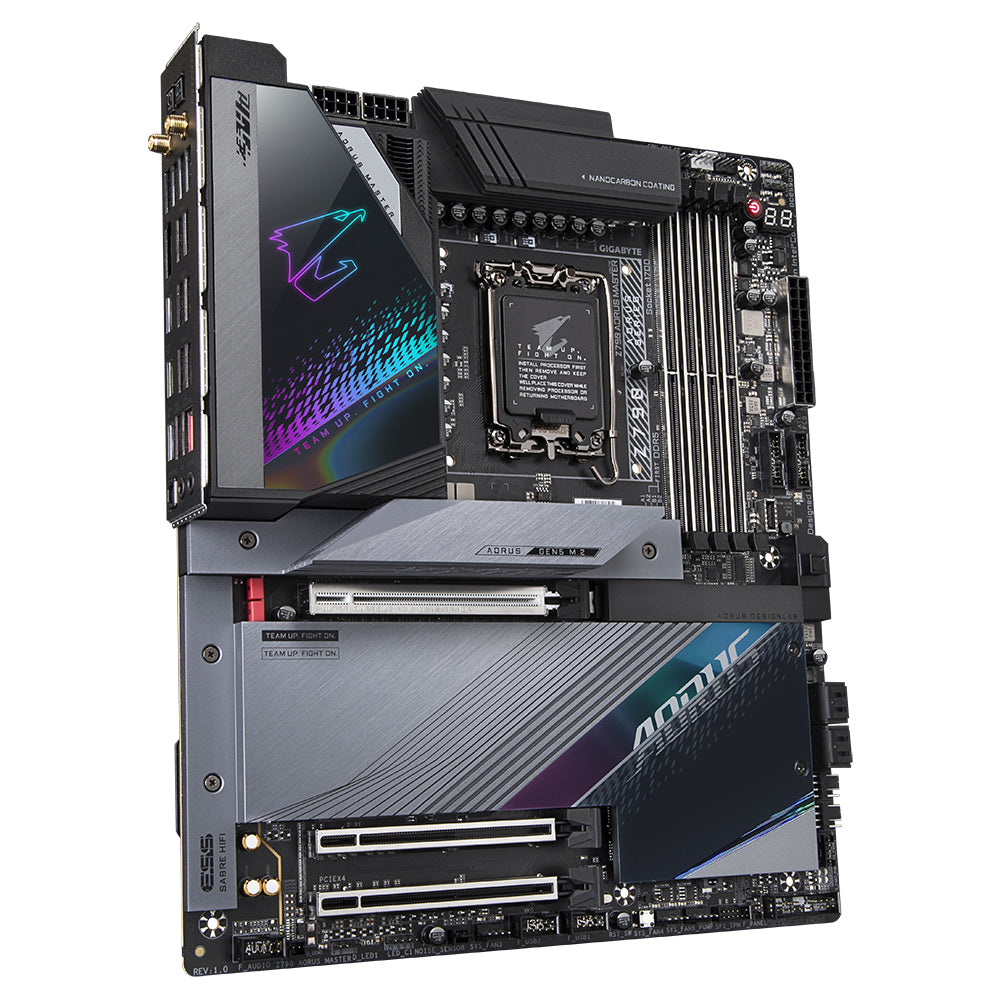

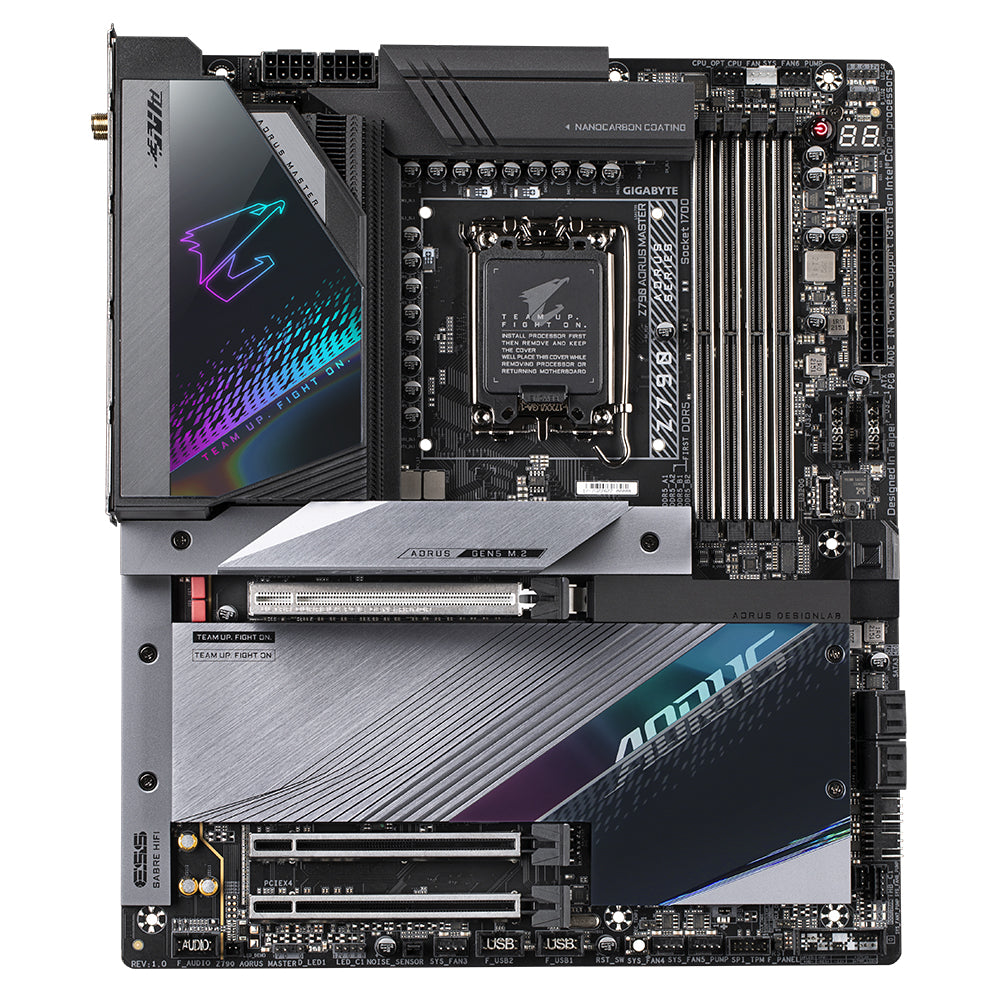

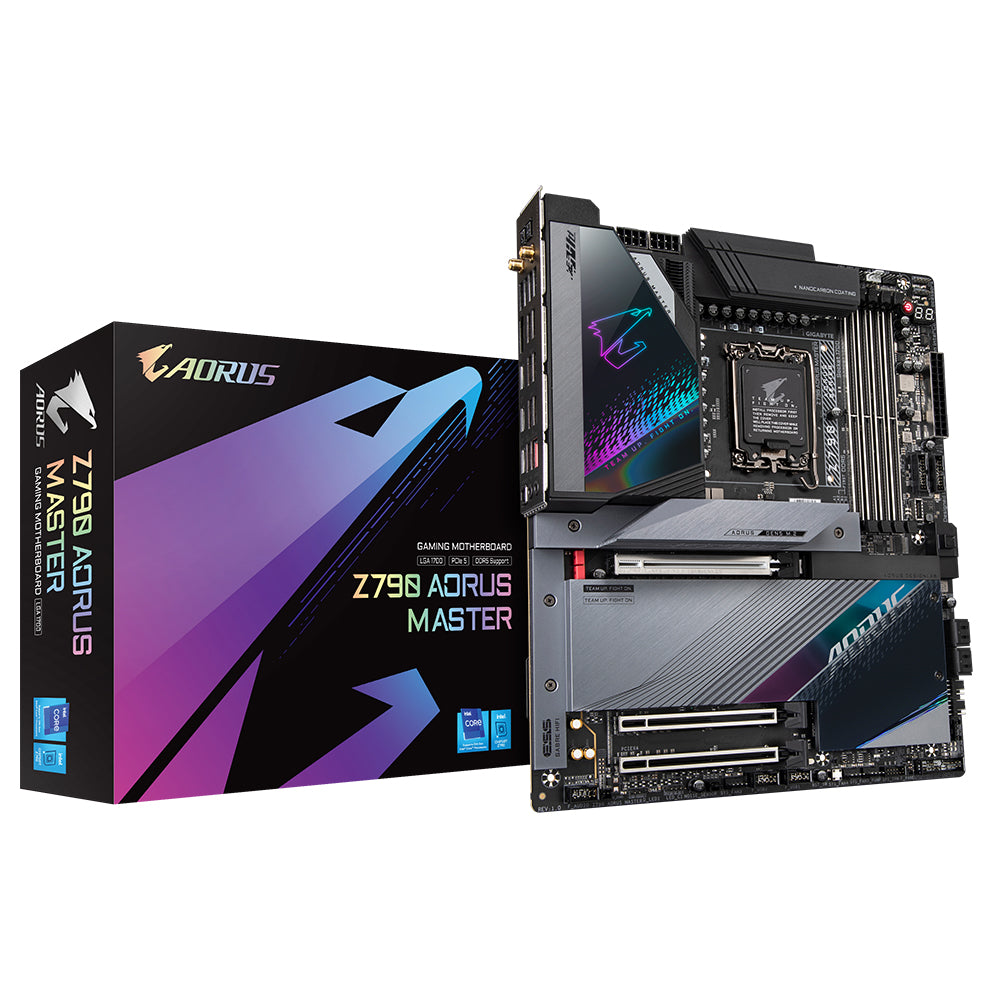

Gigabyte Z790 AORUS MASTER DDR5 Gaming Motherboard

PCIe 5.0 Design

PCIe 5.0 Design supports double the bandwidth of PCIe 4.0 and ensures that compatible with cutting-edge SSDs and GPUs released in the next few years to their full capability.

Direct Digital VRM Design

To ensure maximum Turbo Boost and overclocking performance of Intel's new generation CPU, GIGABYTE AORUS series motherboard equip the best VRM design ever built with the highest quality components.

Hybrid Cores Optimization

With new Intel Hybrid technology, GIGABYTE exclusively creates two new "CPU Upgrade" in BIOS profiles to meet different users’ scenarios by adjusting P-Core and E-Core activation and voltage policy.

Fins array lII

GIGABYTE new generation Fins-Array III delivers the ultimate thermal performance by using Extended Irregular fins to fill all available space and vastly increases surface area. A piece of Fins-Array III heatsink surface area is larger than 2 full size ATX motherboard PCB, therefore it tremendously boost thermal efficiency and heat exchange performance.

Overclocking Up to 8000 and Beyond*

AORUS is offering a tested and proven platform that has memory overclocking capability up to 8000 and beyond. For DDR5 XMP Memory, all users need to do to attain high memory performance boost is to ensure that their memory module is XMP capable and that the XMP function is activated and enabled on their AORUS motherboard.

Shielded Memory Routing

All memory routing is under the PCB inner layer shielded by a large ground layer to protect from external interference.

Impedance Optimized Topology

By optimizing memory trace width, length and style from HPC simulation to actual implementation, overall impedance is lowered between CPU memory controller and memory modules to achieve higher DDR5 speed.

Low Signal Loss PCB

Server grade mid-loss or low-loss PCB material is chosen to lower signal loss inside PCB and maintain DDR5 high speed signal transmission.

Connecting the Future - USB 3.2 Gen 2x2 Type-C®

Featuring the USB 3.2 Gen 2x2 design which is doubled the performance than previous generation of USB 3.2 Gen 2. It works up to 20Gbps ultra-fast data transfer while connecting to USB 3.2 compliant peripherals. Through the USB Type-C® connector, users can enjoy the flexibility of reversible connection to access and store massive amounts of data rapidly.

M.2 Thermal Guard III

M.2 Thermal Guard III constructed with 9X optimized heat dissipation surface to prevent throttling and bottleneck that high-speed/ large capacity of PCIe 5.0 M.2 SSDs may cause, especially under heavy workload.The special design of heatsink grooves in the direction of CPU further enhances the in-chassis air flow and optimizes the heat convection efficiency.

SMART FAN 6

Smart Fan 6 contains several unique cooling features that ensure gaming PC maintain its performance while staying cool and quiet. Multiple fan headers can support PWM/DC fan and pump, and users can easily define each fan curve based on different temperature sensors across the board via intuitive user interface.

Wi-Fi 6E

The latest Wireless solution 802.11ax Wi-Fi 6E with new dedicated 6GHz band, enables gigabit wireless performance, provides smooth video streaming, better gaming experience, few dropped connections and speeds up to 2.4Gbps. Moreover, Bluetooth 5 provides 4X range over BT 4.2 and with faster transmission.

Next Generation Multi-Gig Gaming

The Marvell® AQtion AQC113C is a high-performance, backward compatible with 10GBASE-T/ 5GBASE-T/ 2.5GBASE-T/ 1000BASE-T/ 100BASE-TX Ethernet Controller which is able to provide up to 10 GbE network connectivity, with 10 times faster transfer speeds compared to general 1GbE networking and is perfectly designed for media centers, workstations and gamers.

ESS SABRE reference DAC ES9118

• ESS SABRE reference DAC (ESS 9118)
• Hyperstream Dynamic Range (SNR 125dB)
• High-Res music (32bit, 192KHz PCM)
• Super low THD+N (THD+N -112db)

RGB Fusion Multi-Zone Light Show Design

Now offering more LED customizations than ever, users can truly adapt their PC to represent their lifestyle. With full RGB support and a redesigned RGB Fusion 2.0 application, the user has complete control over the LEDs which surround the motherboard

EZ-Latch Plus

With GIGABYTE EZ-Latch Plus, you can DIY your PC in no time, quick and easy.

Update the BIOS easily without installing the CPU, memory and graphics card.

With GIGABYTE Q-Flash Plus, you don't need to install the CPU, memory and graphics card nor enter the BIOS menu to flash the BIOS. Just download and save a new BIOS file (rename to gigabyte.bin) on the USB flash drive, then press the dedicated Q-Flash Plus button and you’re good to go!
