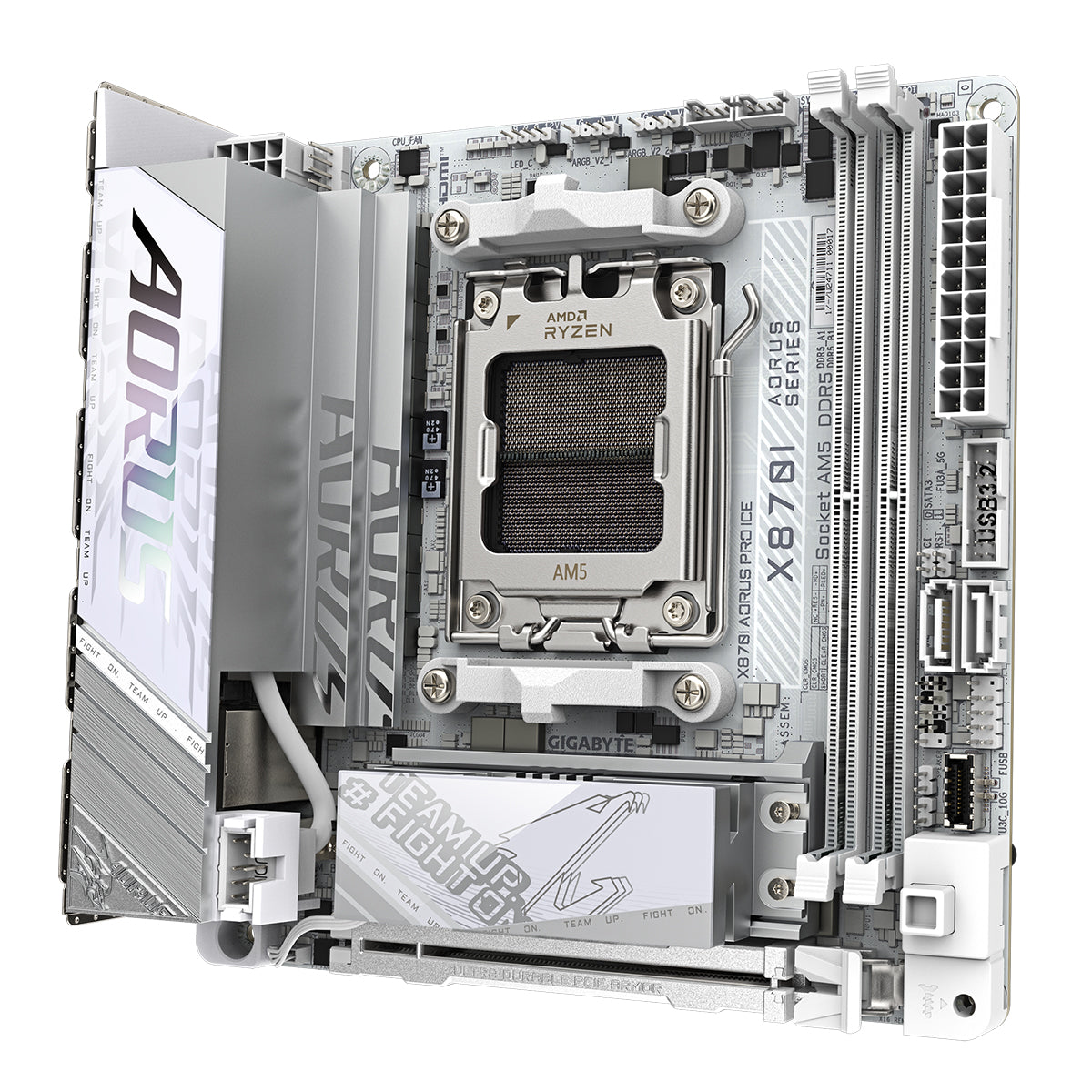

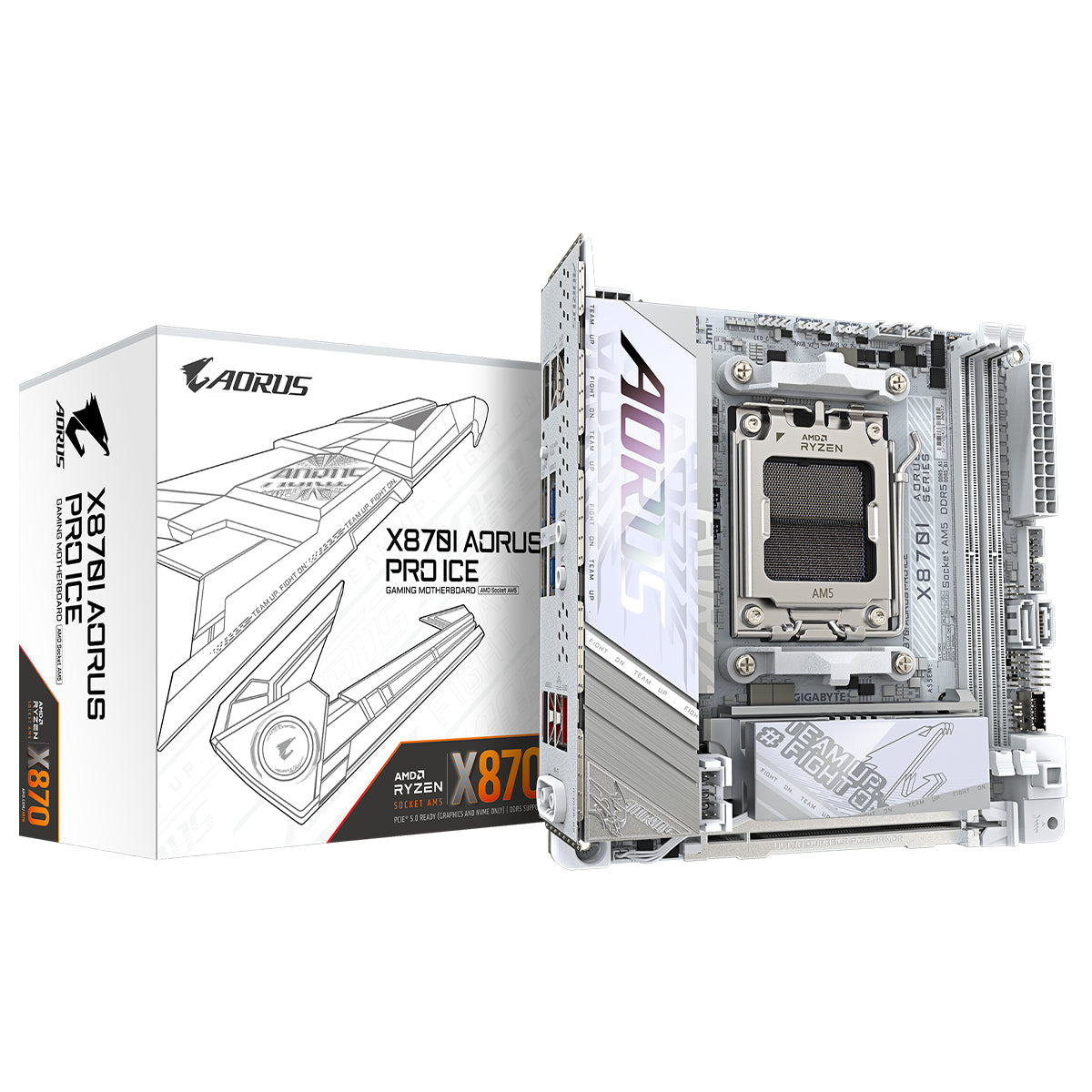

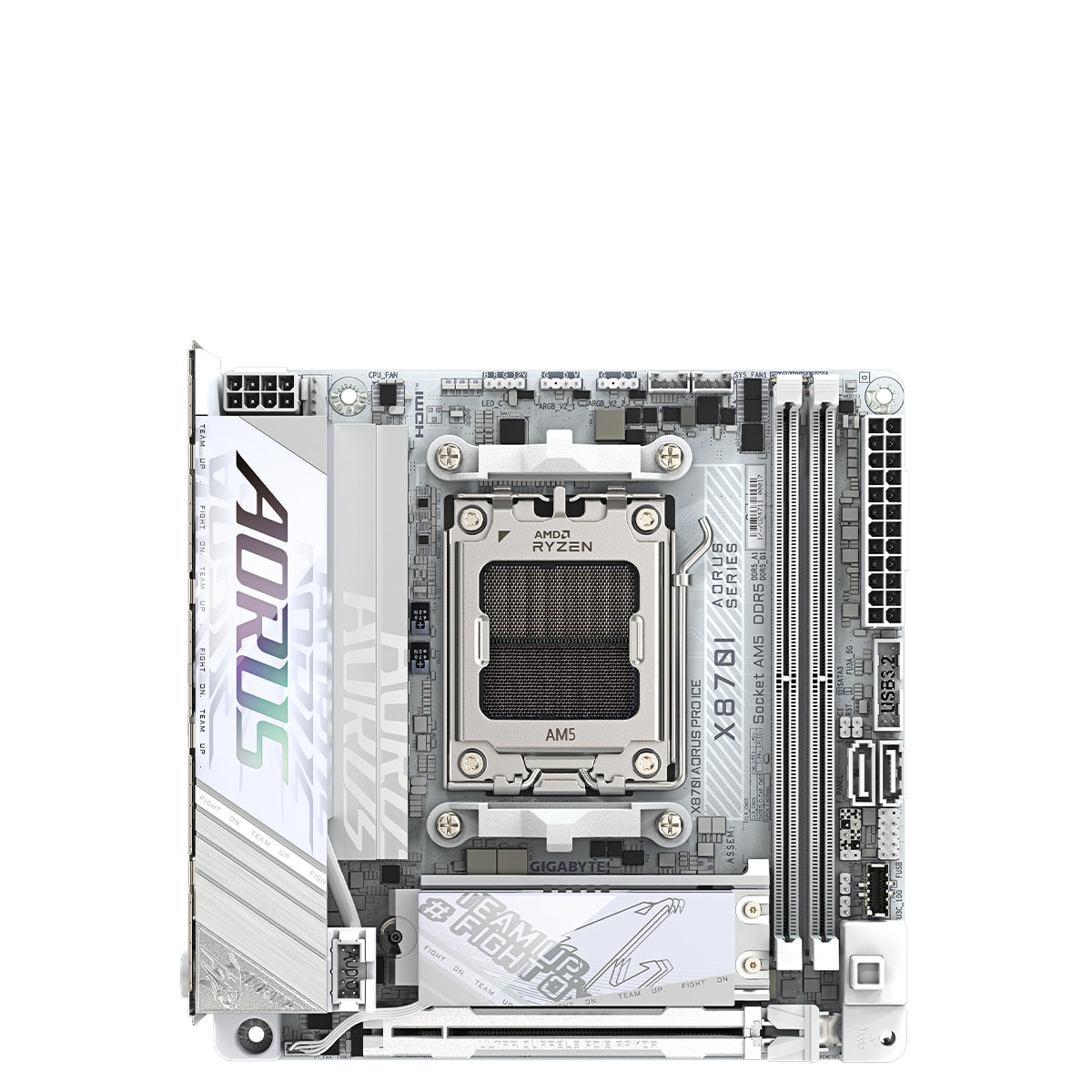

Gigabyte X870I AORUS PRO ICE Mini-ITX Motherboard
In stock at Computer Lounge
Couldn't load pickup availability
Warranty and Support
Warranty and Support
Warranty: 3 Years Return to Base Warranty
Returns: 14-day hassle-free exchanges and store credits, subject to terms and conditions outlined in our Returns Policy.
Delivery and Shipping
Delivery and Shipping
All deliveries are signature required.
North Island: 1 – 2 working days
South Island: 2 – 3 working days
Please allow an additional 1 – 2 working days for delivery to rural addresses.
Buy Now, Pay Later & Finance Options:
Description
Description
Key Features
- AMD Socket AM5: Supports AMD Ryzen™ 9000 / 8000 / 7000 Series Processors
- Digital 8+2+1 phases VRM solution
- Dual Channel DDR5: 2*DIMMs with AMD EXPO™ Memory Module Support
- WIFI EZ-Plug: Quick and easy design for Wi-Fi antenna installation
- EZ-Latch Plus: PCIe and M.2 slots with Quick Release & Screwless Design
- EZ-Latch Click: M.2 heatsinks with screwless design
- Friendly UI: Multi-Theme, AIO Fan Control, and Q-Flash Auto Scan in BIOS and SW.
- New Power Monitor in HWinfo: Real-time monitoring on CPU power phases
- Ultra-Fast Storage: 2*M.2 slots, including 1* PCIe 5.0 x4
- Efficient Thermal: VRM Thermal Armor Advanced & M.2 Thermal Guard Ext.
- Fast Networking: 2.5GbE LAN & Wi-Fi 7 with directional Ultra-high gain antenna
- Extended Connectivity: USB4 Type-C with DP-Alt, HDMI
- Reliable Audio: Realtek ALC4080 HD Audio & Audiophile Grade Capacitors
- PCIe UD Slot X: PCIe 5.0 x16 slot with 10X strength for graphics card
Zenith of the Memory
AORUS gaming motherboards boost DDR5 memory performance and offer top-notch compatibility using various advanced methods.
DDR5 Overclocking
Up to 8400 MT/s
Exclusive BIOS Design
Advanced BIOS functionality provides seamless optimization of industry-leading DDR5 memory performance.
Unleash Revolutionary DDR5 Technology
Maximize DDR5 performance with our groundbreaking technology for an unparalleled gaming experience.
- Shielded Memory Routing: Advanced shielding inside the PCB keeps your memory signals clean and interference-free.
- Daisy-Chained Routing: Innovative design removes signal bottlenecks, allowing for blazing-fast memory speeds and a superior gaming setup.
- 10-Layer Server-Grade PCB: Top-of-the-line server-grade PCB material minimizes signal loss, providing ultra-fast DDR5 data transmission.
Digital VRM Design
Delivers consistent, high-powered performance to elevate your overclocking to the next level.
Comprehensive Thermal
AORUS motherboards come with advanced full-metal thermal design and durable heatsinks to keep your system cool and efficient.
- High-coverage MOSFETs with integrated molded heatsinks
- 4x larger surface area for enhanced heat dissipation
- True one-piece heatsink design
- Multi-cut design with channels for improved airflow
- 12 W/mK thermal pad for efficient thermal conductivity
Hassle-free Assembly
Our cutting-edge motherboard is designed for the ultimate DIY experience.
WIFI EZ-Plug
The WIFI EZ-Plug design integrates Wi-Fi antenna plugs into one adapter, making it easy to install.
Enhanced PCB Design for Superior Gameplay
- 10L Server-grade PCB: Facilitates condensed integration, ensuring signal fidelity, power consistency, and diminished EMI for premium performance systems.
- 2X Copper Enhancement: Optimizes system efficiency through enhanced thermal management, improved power delivery, and comprehensive overclocking capabilities.
- 56% Lower Dissipation Factor: Our cutting-edge technology enhances signal integrity in high-frequency circuits, establishing a new level in high-speed electronic engineering.
All-round Connectivity
Experience ultimate connectivity with next-generation network, storage, and Wi-Fi solutions, delivering lightning-fast data transfer speeds.
40Gbps USB4 with DP-Alt
The latest USB4 Type-C ports provide blistering fast and reliable transfer speeds up to 40 Gbps each. Featuring extensive compatibility, efficient charging, and ultra-HD DisplayPort connectivity, USB4 is beneficial for video editing, large file transfers, and data-intensive tasks.
Wi-Fi 7 brings you the Ultimate VR experience
Wi-Fi 7 transforms the VR landscape with its exceptional bandwidth and minimal latency, delivering an unparalleled, seamless immersive VR experience.

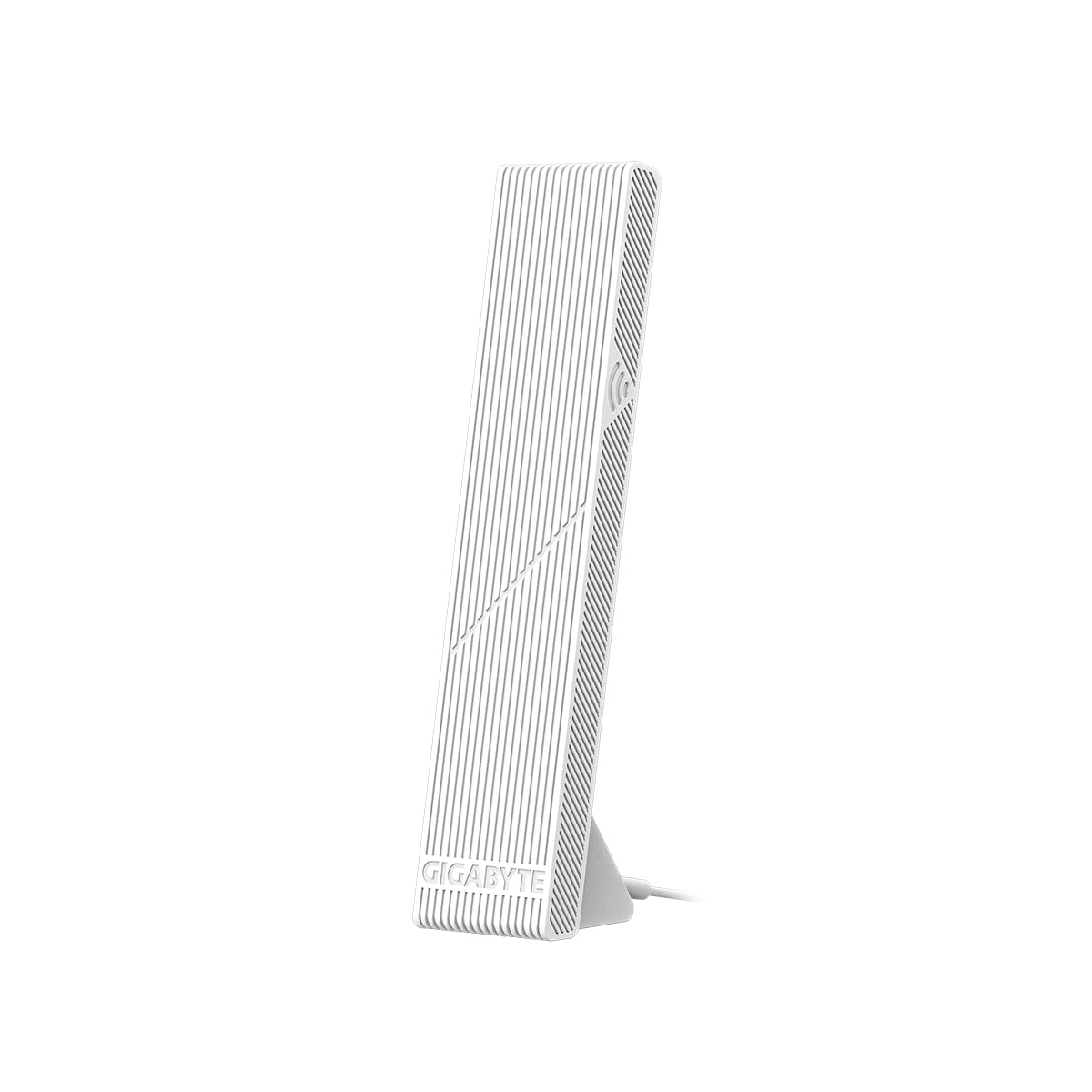

GIGABYTE Directional Ultra-high Gain Antenna
Boost your signal strength with GIGABYTE's Ultra-high gain Antenna, featuring smart antenna technology for optimized Wi-Fi signal transmission.
Born from Ultra Durable™
Technology embodies our commitment to excellence, providing gamers with a platform that's not only powerful but also built for longevity and reliability. AORUS series motherboards are engineered to endure and excel.
Specifications
Specifications
| CPU | AMD Socket AM5, support for: AMD Ryzen™ 9000 Series Processors / AMD Ryzen™ 8000 Series Processors / AMD Ryzen™ 7000 Series Processors (Go to GIGABYTE's website for the latest CPU support list.) |
| Chipset | AMD X870 |
| Memory | Support for DDR5 8400(OC) / 8200(OC) / 8000(OC) / 7800(OC) / 7600(OC) / 7200(OC) / 7000(OC) / 6800(OC) / 6666(OC) / 6600(OC) / 6400(OC) / 6200(OC) / 6000(OC) / 5600(OC) / 5200 / 4800 / 4400 MT/s memory modules 2 x DDR5 DIMM sockets supporting up to 128 GB (64 GB single DIMM capacity) of system memory Dual channel memory architecture Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for AMD EXtended Profiles for Overclocking (AMD EXPO™) and Extreme Memory Profile (XMP) memory modules |
| Onboard Graphics | Integrated Graphics Processor with AMD Radeon™ Graphics support + ASMedia USB4® Controller: - 1 x USB4® USB Type-C® port, supporting USB4 and DisplayPort video outputs (max resolution: 3840x2160@240 Hz) - 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz (HDMI 2.1, HDCP 2.3, HDR) * Graphics specifications may vary depending on CPU support. |
| Audio | Realtek® ALC4080 CODEC High Definition Audio 2-channel |
| LAN | Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps) |
| Wireless Communication Module | Realtek® Wi-Fi 7 RTL8922AE - 802.11a/b/g/n/ac/ax/be, supporting 2.4/5/6 GHz carrier frequency bands - Bluetooth 5.4 - Support for 11be 160MHz wireless standard |
| Expansion Slots | 1 x PCI Express x16 slot, integrated in the CPU: - AMD Ryzen™ 9000/7000 Series Processors support PCIe 5.0 x16 mode - AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x8 mode - AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4 mode |
| Storage Interface | 1 x M.2 connector (M2A_CPU), supporting PCIe 5.0 x4/x2 SSDs (9000/7000 Series) or PCIe 4.0 x4/x2 SSDs (8000 Series) 1 x M.2 connector on the back (M2C_SB), supporting PCIe 4.0 x4/x2 SSDs 2 x SATA 6Gb/s connectors RAID 0, RAID 1, RAID 5, and RAID 10 support for NVMe SSD storage devices (RAID 5 only on 9000 Series) |
| USB | CPU+ASMedia USB4® controller: - 1 x USB4® USB Type-C® port on the back panel CPU: - 1 x USB Type-C® port on the back panel (USB 3.2 Gen 2) - 2 x USB 3.2 Gen 2 Type-A ports (red) on the back panel Chipset: - 1 x USB Type-C® port with USB 3.2 Gen 2 support (internal header) - 4 x USB 3.2 Gen 1 ports (2 back panel, 2 internal) - 4 x USB 2.0/1.1 ports (2 back panel, 2 internal) |
| Internal I/O Connectors | 1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x CPU fan header 1 x CPU fan/water cooling pump header 1 x system fan header 2 x addressable RGB Gen2 LED strip headers 1 x RGB LED strip header 2 x M.2 Socket 3 connectors 2 x SATA 6Gb/s connectors 1 x front panel header 1 x speaker header 1 x front panel audio header 1 x USB Type-C® header (USB 3.2 Gen 2) 1 x USB 3.2 Gen 1 header 1 x USB 2.0/1.1 header 1 x reset jumper 1 x Clear CMOS jumper 1 x chassis intrusion header |

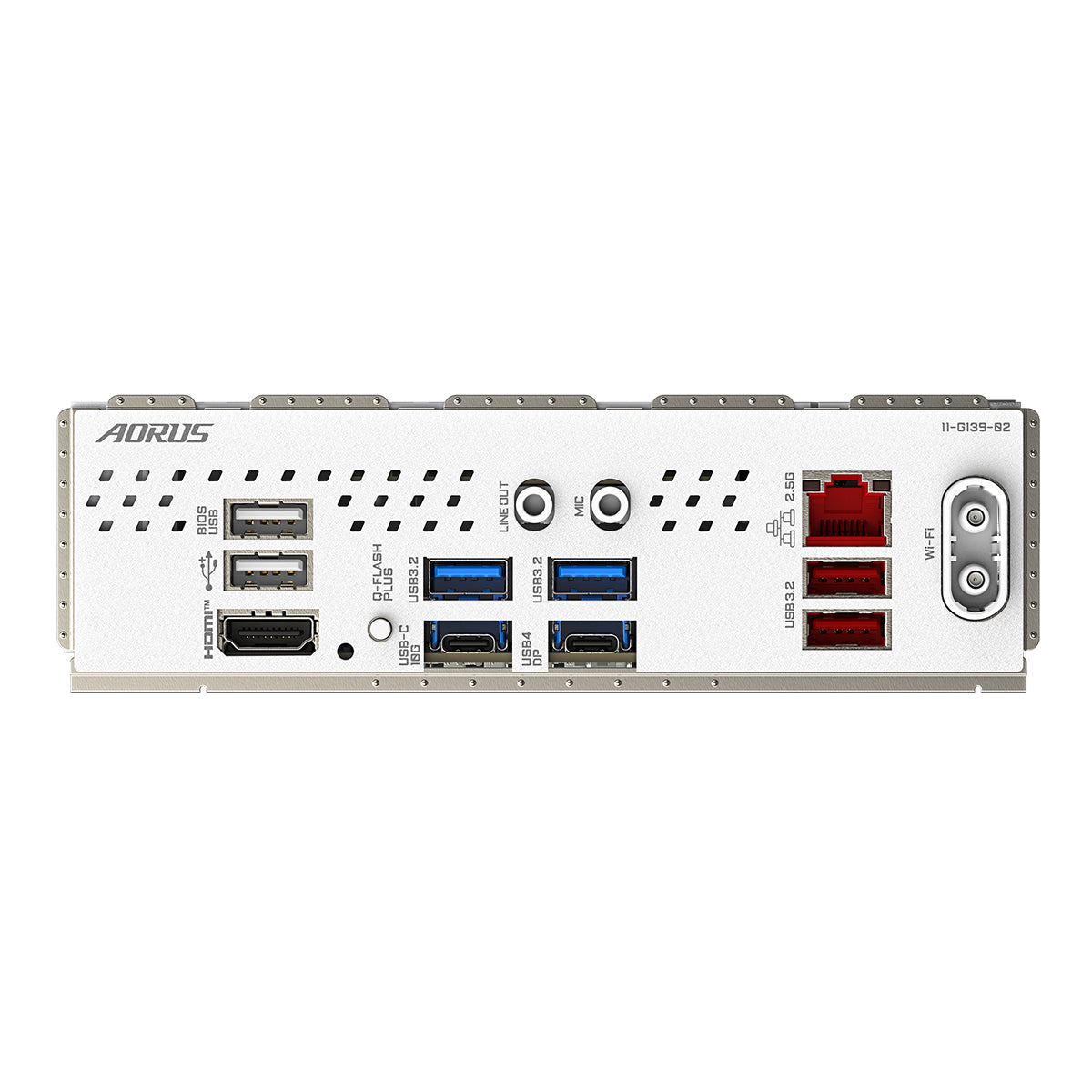

| Back Panel Connectors | 1 x Q-Flash Plus button 1 x HDMI port 2 x antenna connectors (2T2R) 1 x USB4® USB Type-C® port (DisplayPort) 1 x USB Type-C® port (USB 3.2 Gen 2) 2 x USB 3.2 Gen 2 Type-A ports (red) 2 x USB 3.2 Gen 1 ports 2 x USB 2.0/1.1 ports 1 x RJ-45 port 2 x audio jacks |
| I/O Controller | iTE® I/O Controller Chip |
| H/W Monitoring | Voltage detection Temperature detection Fan speed detection Water cooling flow rate detection Fan fail warning Fan speed control |
| BIOS | 1 x 256 Mbit flash Licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
| Unique Features | Support for GIGABYTE Control Center (GCC) Support for Q-Flash / Q-Flash Plus / Smart Backup |
| Operating System | Support for Windows 11 64-bit |
| Form Factor | Mini-ITX Form Factor; 17.0cm x 17.0cm |
