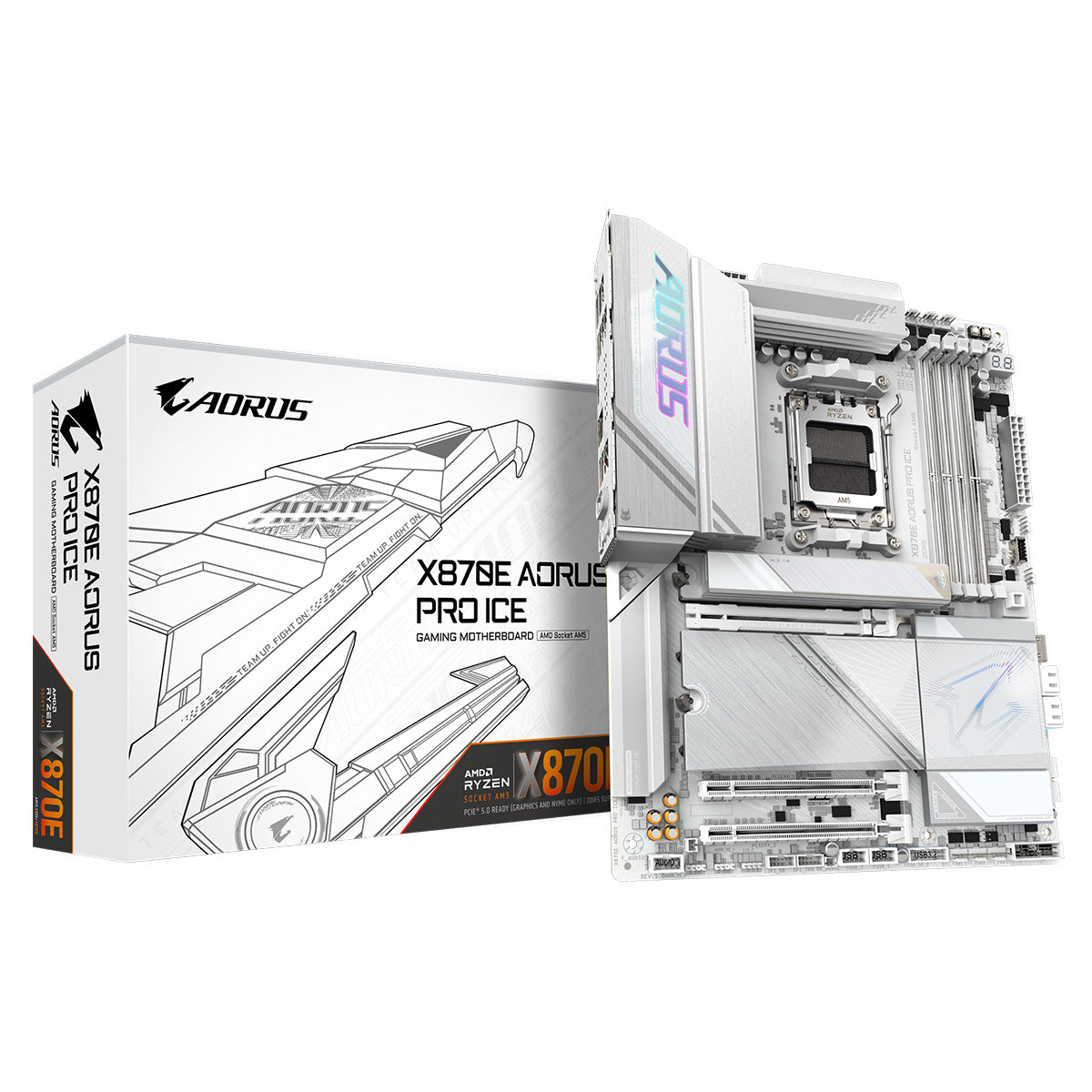

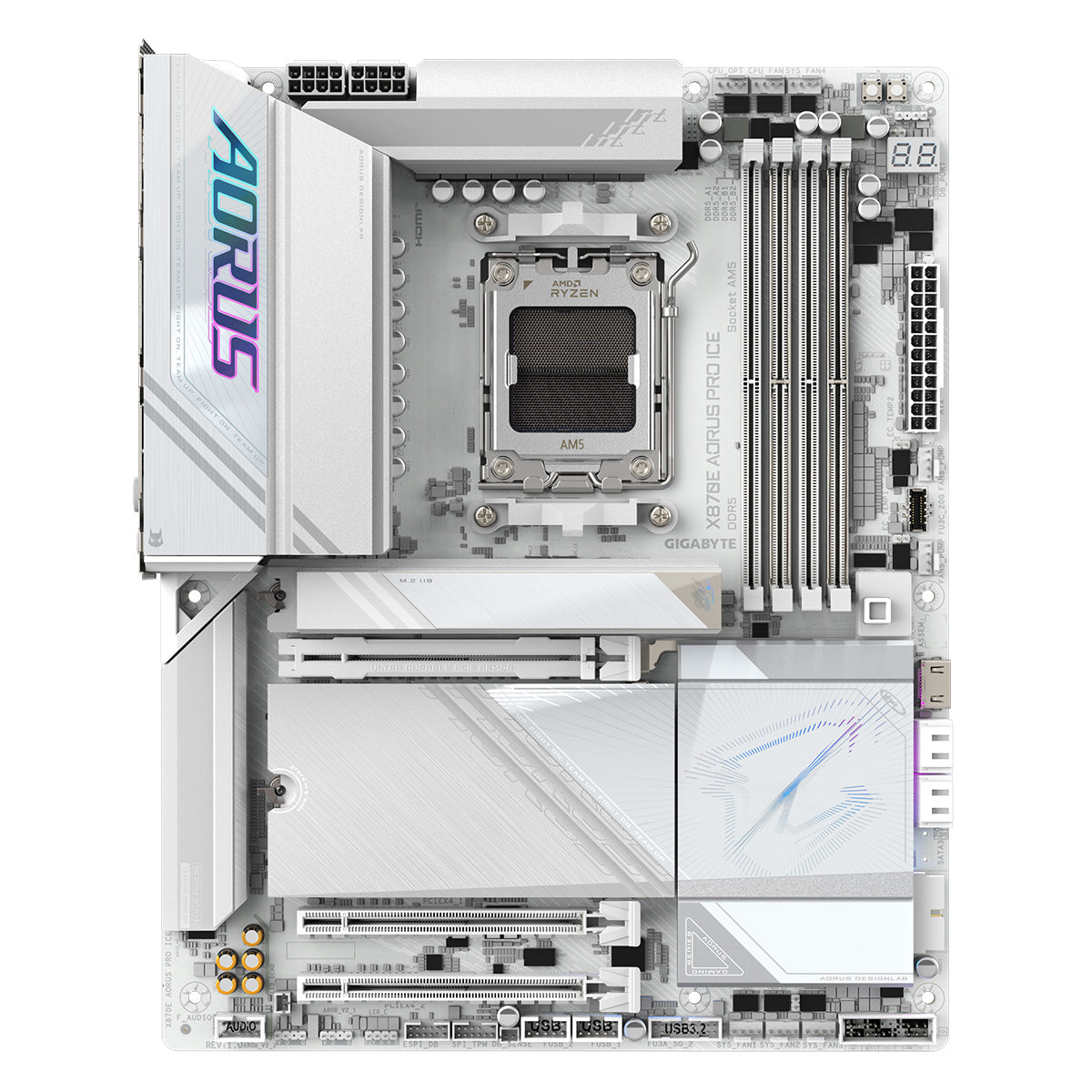

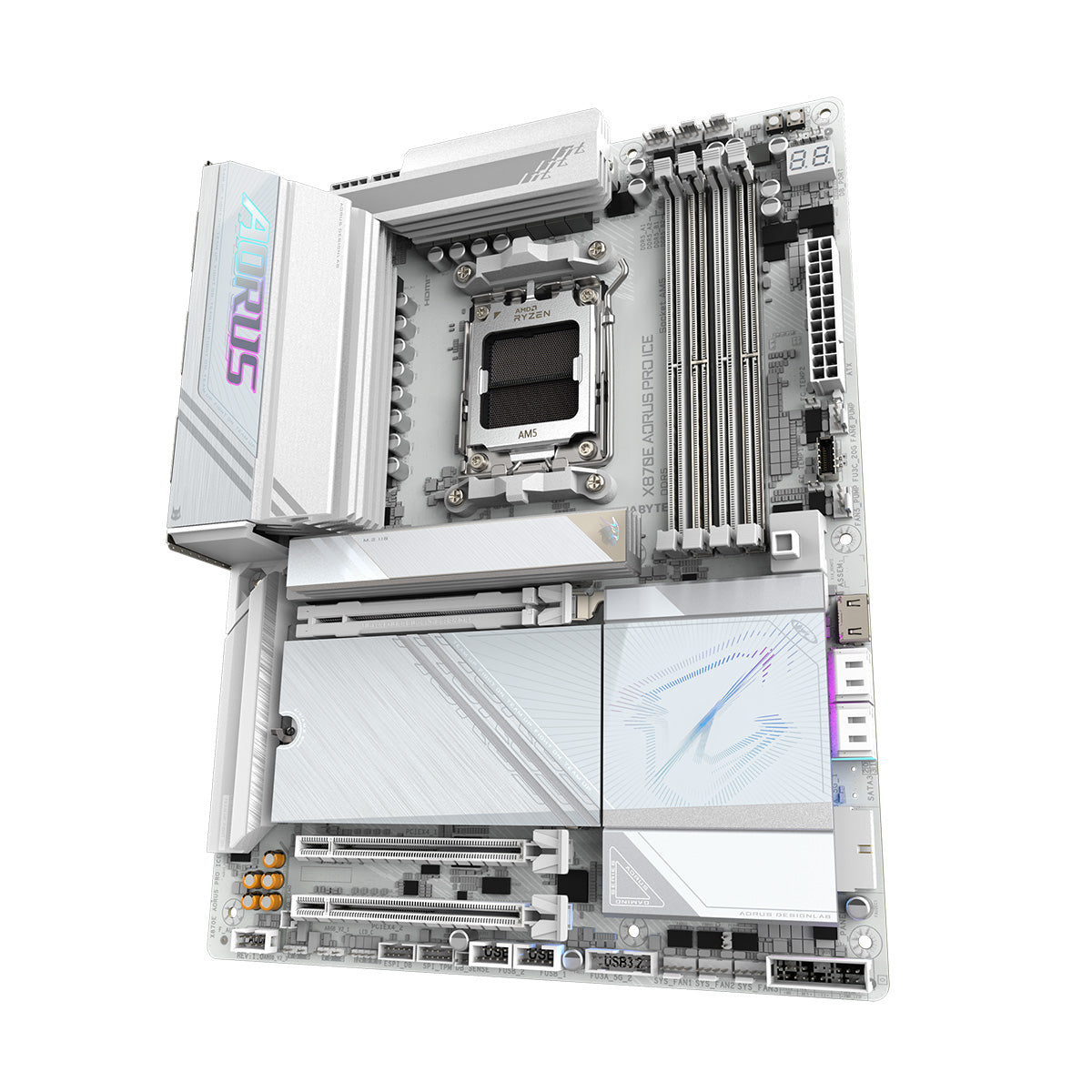

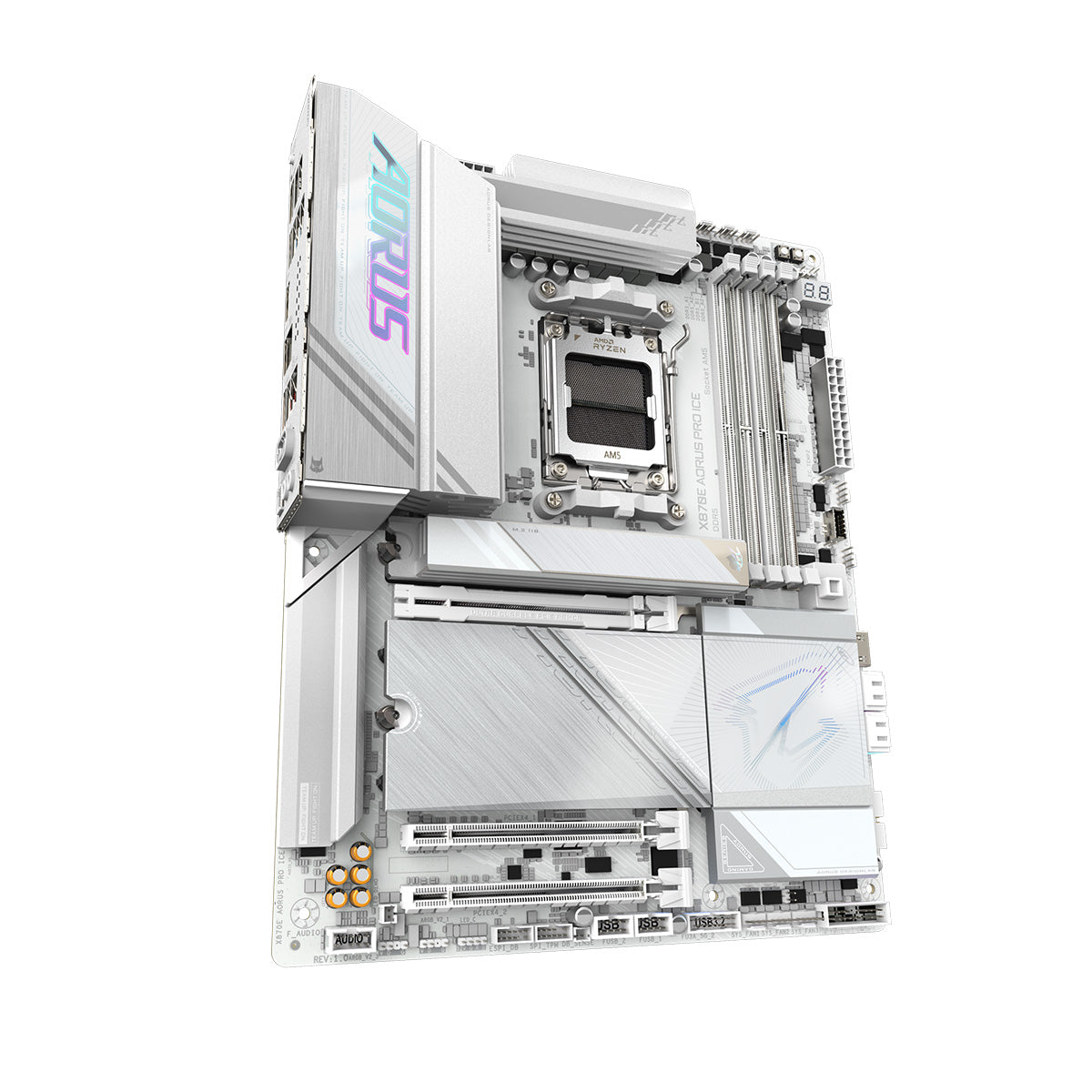

Gigabyte X870E AORUS PRO ICE Motherboard

Key Features

- AMD Socket AM5: Supports AMD Ryzen™ 9000 / 8000 / 7000 Series Processors
- Digital twin 16+2+2 phases VRM solution
- Dual Channel DDR5: 4*DIMMs with AMD EXPO™ Memory Module Support
- WIFI EZ-Plug: Quick and easy design for Wi-Fi antenna installation
- EZ-Latch Plus: PCIe and M.2 slots with Quick Release & Screwless Design
- EZ-Latch Click: M.2 heatsinks with screwless design
- Sensor Panel Link: Onboard video port for hassle-free in-chassis panel setup
- Friendly UI: Multi-Theme, AIO Fan Control, and Q-Flash Auto Scan in BIOS and SW
- New Power Monitor in HWinfo for real-time monitoring on CPU power phases
- Ultra-Fast Storage: 4*M.2 slots, including 3* PCIe 5.0 x4
- Efficient Thermal: VRM Thermal Armor Advanced & M.2 Thermal Guard L
- Fast Networking: 2.5GbE LAN & Wi-Fi 7 with directional Ultra-high gain antenna
- Extended Connectivity: Dual USB4 Type-C with DP-Alt, HDMI
- Reliable Audio: Realtek ALC1220 HD Audio & Audiophile Grade Capacitors
- Ultra Durable PCIe Armor: The metal back plate of PCIe x16 slot for enhanced durability
- PCIe UD Slot X: PCIe 5.0 x16 slot with 10X strength for graphics card

AORUS AI SNATCH Bullet Point
Unleash Ultimate Performance with One-Click Activation. Auto DDR5 Memory Boost
With just a single click, unleash the full potential of DDR5 memory, instantly boosting your gaming and work efficiency.

One-Click Acceleration
Enhance DDR5 speeds with a single click.

Fast AI Performance
Accelerate AI processing for greater performance

Up to
8% AI Performance*
- Accelerated AI decision-making
- Boosted reinforcement learning
- Streamlined language processing

Enhanced Computing Power
Let your system be faster and more performant.

Up to
9% Memory Performance*
- Increased data transfer rates
- Faster application loading times
- Improved multitasking performance

Maximize performance in a snap
Enable users to easily become overclocking experts through a simple interface.

EZ to Peak

Less Power Usage
Optimal power-efficiency

Enhance Up to
9% CP/Per Watt*
With faster computations, it also means reduced power consumption, making it more environmentally friendly and energy-efficient, continuously contributing to the well-being of our planet.

DDR5 Zenith-Memory
Zenith of the Memory
AORUS gaming motherboards boost DDR5 memory performance and offer top-notch compatibility using various advanced methods.

Top-tier Compatibility
DDR5 Overclocking Up to 8000 MT/s

Exclusive BIOS Design
Advanced BIOS functionality provides seamless optimization of industry-leading DDR5 memory performance.

Unmatched Hardware Excellence
Elevate your gaming with our state-of-the-art technology for a superior experience.

Sturdy VRM Design
Steady Power
Better Play AORUS Series, steady power keeps your gaming smooth

Digital Twin VRM Design
Delivers consistent, high-powered performance to elevate your overclocking to the next level.

- 16 VCORE Phases SPS 80A
Unlock the full power of your multi-core CPU for unmatched performance.

- 2 SOC Phases SPS 80A
Optimized for integrated GPU performance and memory management within the CPU.

- 2 MISC Phases Ppak
Deliver reliable power to your CPU-connected PCIe lanes for uninterrupted performance.

Cooling
Comprehensive Thermal
AORUS motherboards come with advanced full-metal thermal design and durable heatsinks to keep your system cool and efficient.

VRM Thermal Armor Fins-Array
These solid heatsinks are forged to keep your system cool.

4X more surface area

M.2 Thermal Guard L
with M.2 Thermal Guard Backplate

M.2 Thermal Guard Ext.
with M.2 Thermal Guard Backplate
PCB Mastery

Enhanced PCB Design for Superior Gameplay
Serving as the cornerstone of the motherboard, the PCB holds a fundamental and vital influence on system performance.

6L Server-grade PCB
Facilitates condensed integration, ensuring signal fidelity, power consistency, and diminished EMI for premium performance systems.

2X Copper Enhancement
Optimizes system efficiency through enhanced thermal management, improved power delivery, and comprehensive overclocking capabilities.

56% Lower Dissipation Factor
Our cutting-edge technology enhances signal integrity in high-frequency circuits, establishing a new level in high-speed electronic engineering.

All-round Connectivity
Experience ultimate connectivity with next-generation network, storage, and Wi-Fi solutions, delivering lightning-fast data transfer speeds.

Wi-Fi 7 brings you the Ultimate VR experience
Wi-Fi 7 transforms the VR landscape with its exceptional bandwidth and minimal latency, delivering an unparalleled, seamless immersive VR experience.

320 / 160 MHz channels
Wi-Fi 7 introduces support for expansive 320/160 MHz channels, dramatically increasing bandwidth for unprecedented data transfer speeds.

4K-QAM
Leveraging 4K-QAM technology, Wi-Fi 7 elevates data throughput, enabling lightning-fast file transfers and buffer-free streaming.

Multi-link Operation
Wi-Fi 7's MLO (Multi-Link Operation) technology allows strategic bandwidth allocation - dedicating 2.4GHz for streaming and 5/6GHz for gaming, resulting in a superior and interruption-free network experience.

Deterministic low latency
With its deterministic low latency, Wi-Fi 7 minimizes delays, making it the best choice for time-sensitive applications such as video conferencing and competitive online gaming.

CPU	AMD Socket AM5, support for: AMD Ryzen™ 9000 Series Processors/ AMD Ryzen™ 8000 Series Processors/ AMD Ryzen™ 7000 Series Processors (Go to GIGABYTE's website for the latest CPU support list.)
Chipset	AMD X870E
Memory	Support for DDR5 8000(OC) / 7800(OC) / 7600(OC) / 7200(OC) / 7000(OC) / 6800(OC) / 6666(OC) / 6600(OC) / 6400(OC) / 6200(OC) / 6000(OC) / 5600(OC) / 5200 / 4800 / 4400 MT/s memory modules 4 x DDR5 DIMM sockets supporting up to 256 GB (64 GB single DIMM capacity) of system memory Dual channel memory architecture Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for AMD EXtended Profiles for Overclocking (AMD EXPO™) and Extreme Memory Profile (XMP) memory modules (The CPU and memory configuration may affect the supported memory types, data rate (speed), and number of DRAM modules, please refer to "Memory Support List" on GIGABYTE's website for more information.)
Onboard Graphics	Integrated Graphics Processor with AMD Radeon™ Graphics support + ASMedia USB4® Controller: - 2 x USB4® USB Type-C® ports, supporting USB4 and DisplayPort video outputs and a maximum resolution of 3840x2160@240 Hz * Support for DisplayPort 1.4 version and HDR. Integrated Graphics Processor with AMD Radeon™ Graphics support: - 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz * Support for HDMI 2.1 version, HDCP 2.3, and HDR. ** Support for native HDMI 2.1 TMDS compatible ports. - 1 x front HDMI port, supporting a maximum resolution of 1920x1080@30 Hz * Support for HDMI 1.4 version (Graphics specifications may vary depending on CPU support.)
Audio	Realtek® ALC1220 CODEC * The back panel line out jack supports DSD audio. High Definition Audio 2/4/5.1/7.1-channel * You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings. Support for S/PDIF Out
LAN	Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps) Wireless Communication module Qualcomm® Wi-Fi 7 QCNCM865 - 802.11a, b, g, n, ac, ax, be, supporting 2.4/5/6 GHz carrier frequency bands - BLUETOOTH 5.3 - Support for 11be 320MHz wireless standard (Actual data rate may vary depending on environment and equipment.) * Wi-Fi 7 features require Windows 11 SV3 to function properly. (There is no support driver for Windows 10.) ** Wi-Fi 7 channels on 6 GHz band availability depends on individual country's regulations.
Expansion Slots	1 x PCI Express x16 slot (PCIEX16), integrated in the CPU: AMD Ryzen™ 9000/7000 Series Processors support PCIe 5.0 x16 mode * The M2B_CPU and M2C_CPU connectors share bandwidth with the PCIEX16 slot. When the M2B_CPU or M2C_CPU connector is populated, the PCIEX16 slot operates at up to x8 mode. AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x8 mode AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4 mode (The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot.) Chipset: - 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x4 (PCIEX4_1) - 1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x4 (PCIEX4_2)
Storage Interface	1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 25110/22110/2580/2280 SSDs: AMD Ryzen™ 9000/7000 Series Processors support PCIe 5.0 x4/x2 SSDs AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4/x2 SSDs 2 x M.2 connectors (M2B_CPU, M2C_CPU), integrated in the CPU, supporting Socket 3, M key, type 22110/2280 SSDs: AMD Ryzen™ 9000/7000 Series Processors support PCIe 5.0 x4/x2 SSDs * The M2B_CPU and M2C_CPU connectors will become unavailable when using the AMD Ryzen™ 8000 Series-Phoenix 1/Phoenix 2 Processors. 1 x M.2 connector (M2D_SB), integrated in the Chipset, supporting Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSDs 4 x SATA 6Gb/s connectors RAID 0, RAID 1, RAID 5, and RAID 10 support for NVMe SSD storage devices * RAID 5 is only available on AMD Ryzen™ 9000 Series Processors. RAID 0, RAID 1, and RAID 10 support for SATA storage devices

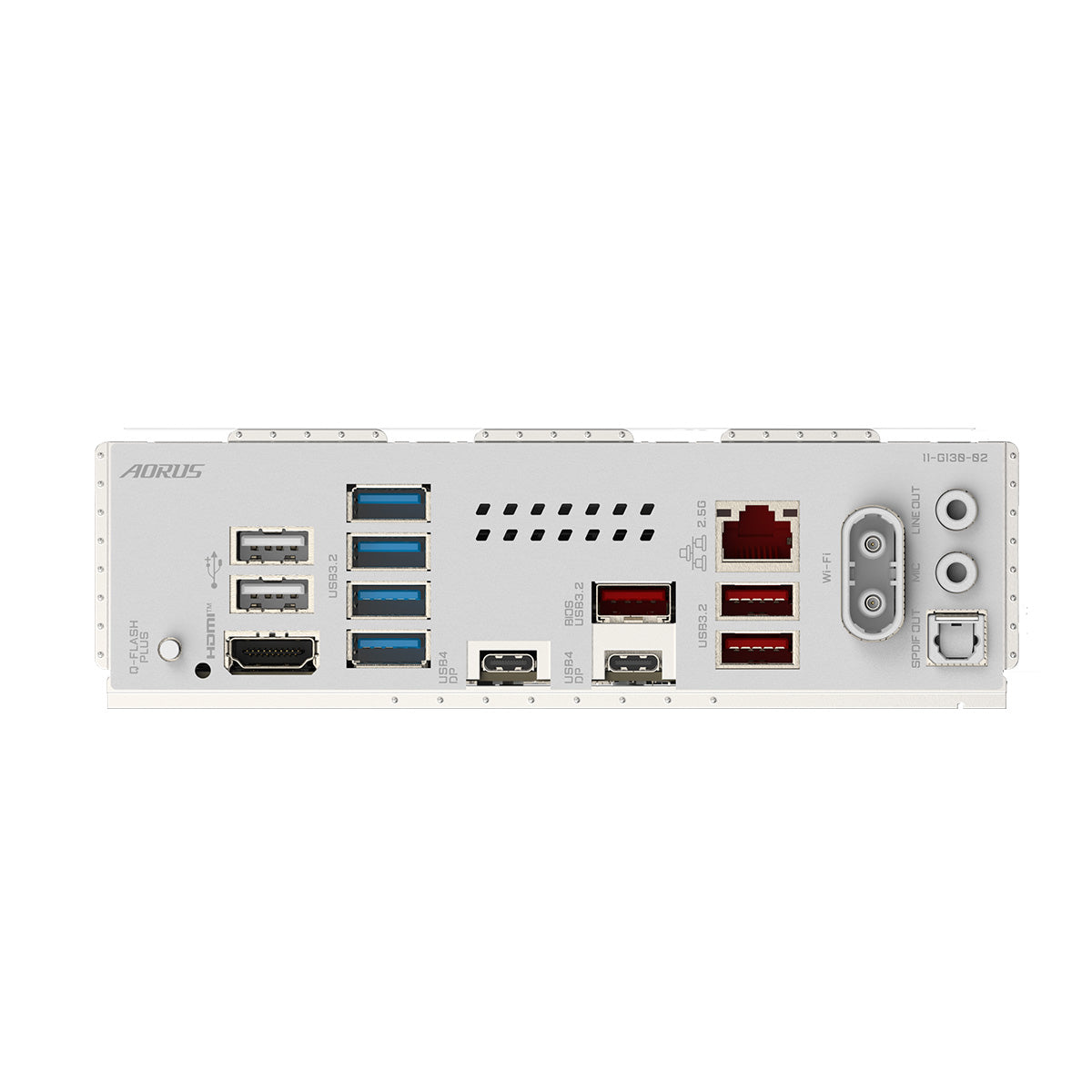

USB	CPU + ASMedia USB4® controller: - 2 x USB4® USB Type-C® ports on the back panel CPU: - 1 x USB 3.2 Gen 2 Type-A port (red) on the back panel Chipset: - 1 x USB Type-C® port with USB 3.2 Gen 2x2 support, available through the internal USB header - 2 x USB 3.2 Gen 2 Type-A ports (red) on the back panel - 8 x USB 3.2 Gen 1 ports (4 ports on the back panel, 4 ports available through the internal USB headers) - 6 x USB 2.0/1.1 ports (2 ports on the back panel, 4 ports available through the internal USB headers)
Internal I/O Connectors	1 x 24-pin ATX main power connector 2 x 8-pin ATX 12V power connectors 1 x CPU fan header 1 x CPU fan/water cooling pump header 4 x system fan headers 2 x system fan/water cooling pump headers 2 x RGB FUSION LED headers (RGBW) 1 x front panel header 1 x front USB Type-C® header 1 x front USB 3.2 Gen 1 header 1 x front USB 2.0/1.1 header 1 x Clear CMOS jumper 1 x system panel speaker header 1 x Trusted Platform Module header (TPM)
BIOS Features	1 x 256 Mbit flash memory Support for dual BIOS Q-Flash Plus Support for ACPI 5.0 Support for SMBIOS 3.0 Support for UEFI BIOS Support for Secure Boot
Form Factor	ATX Form Factor; 30.5 cm x 24.4 cm
