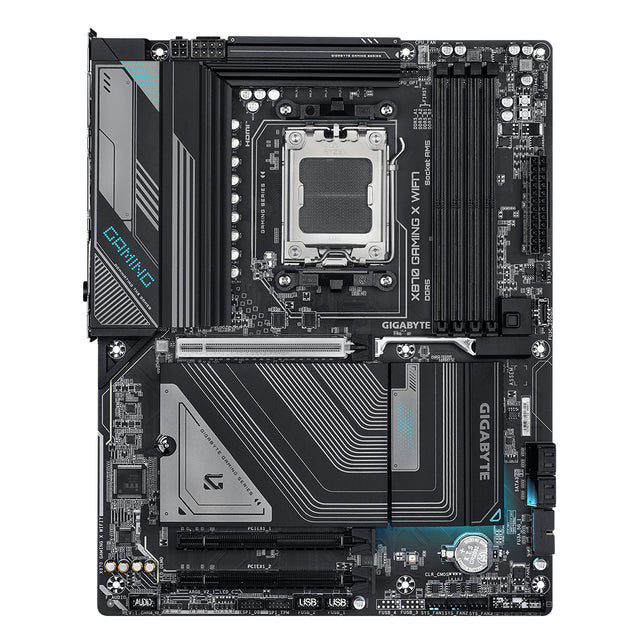

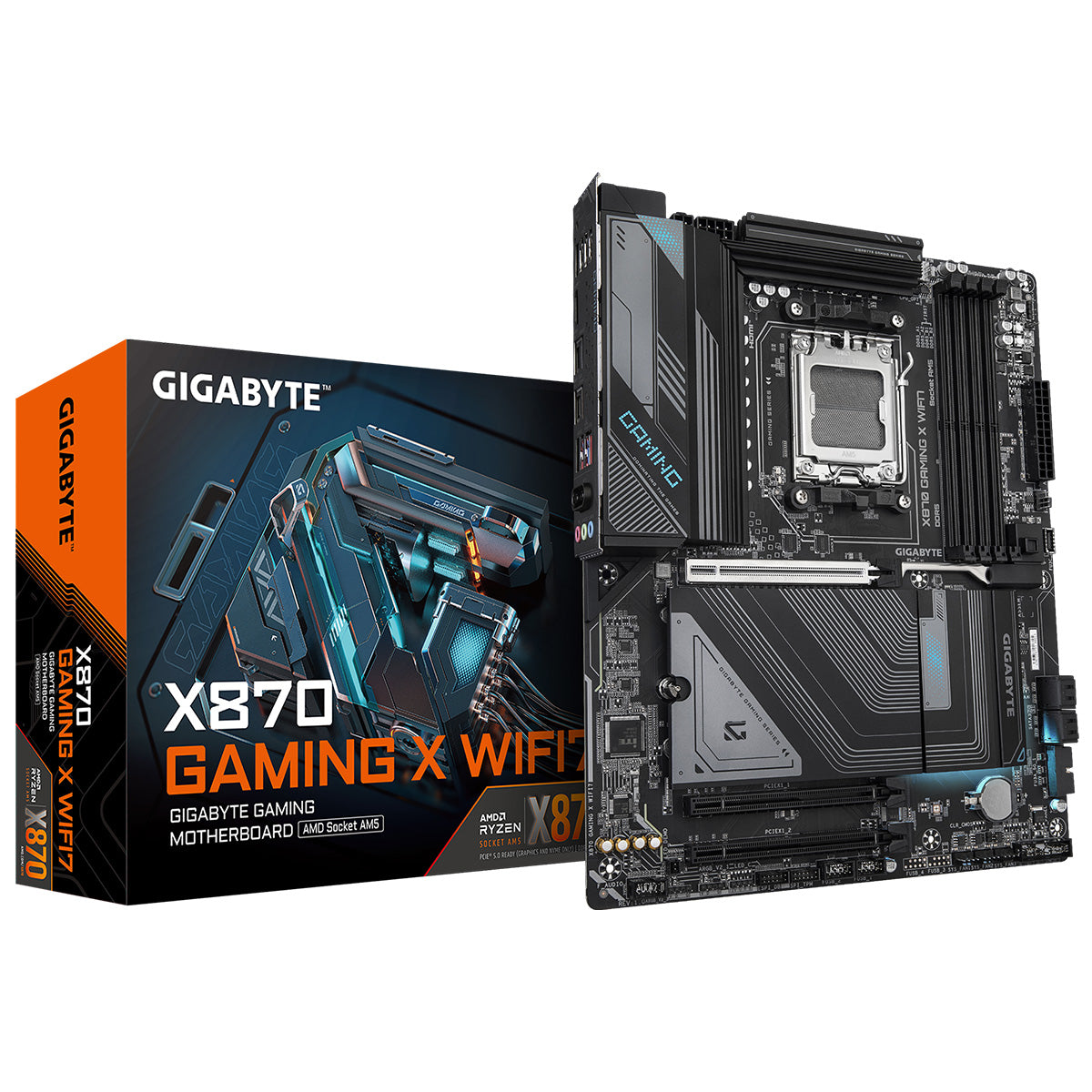

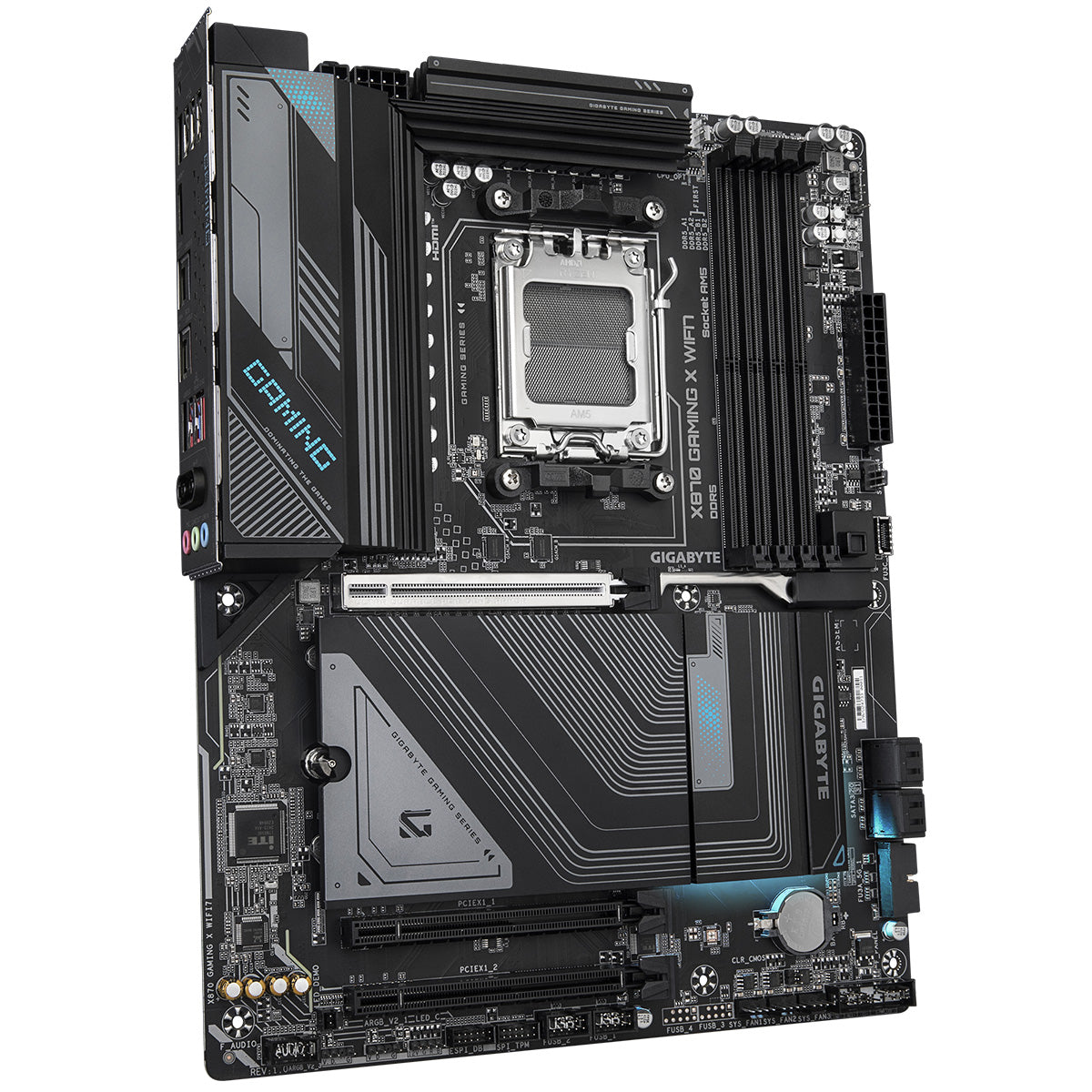

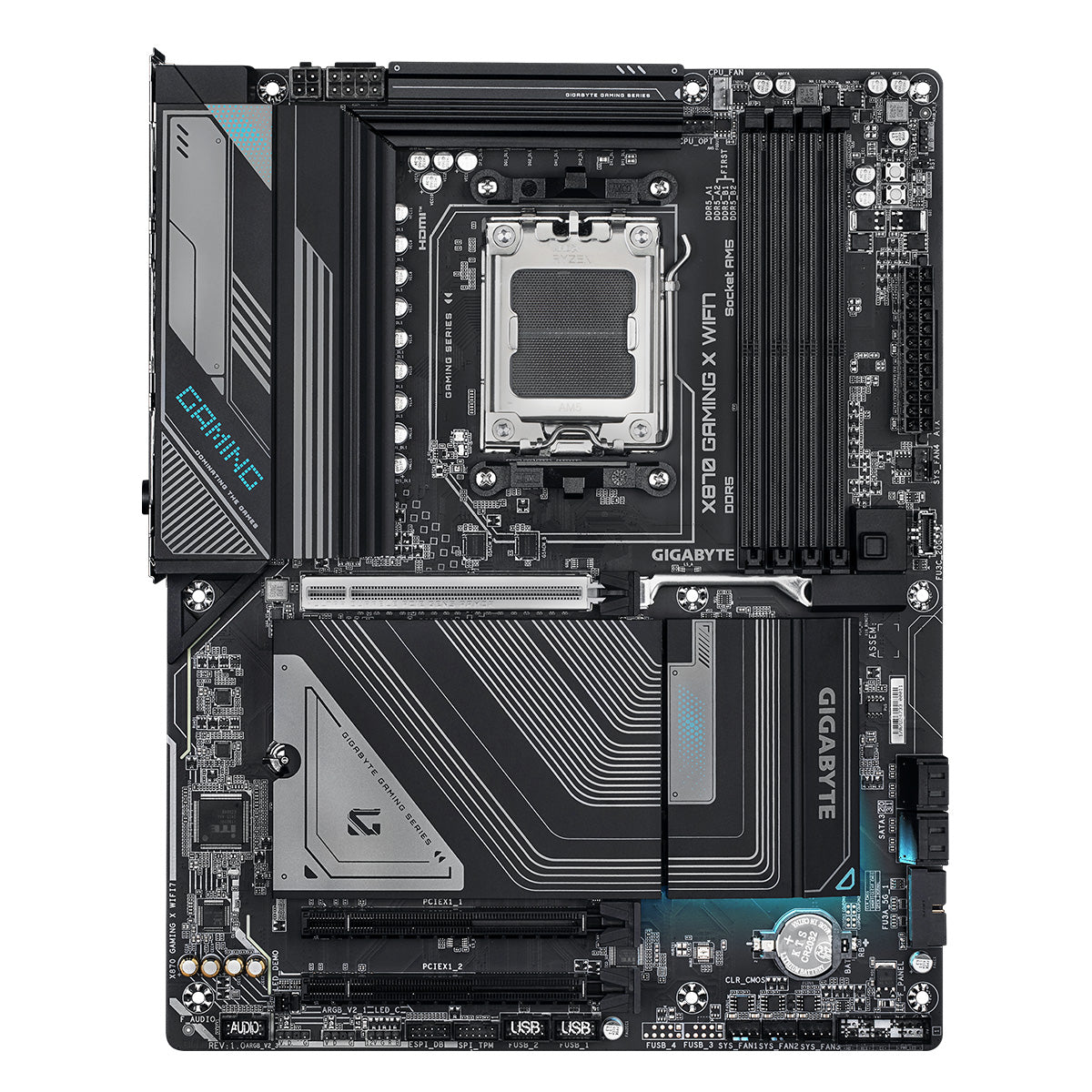

Gigabyte X870 GAMING X WIFI7 Motherboard

Key Features

- AMD Socket AM5: Supports AMD Ryzen™ 9000 / 8000 / 7000 Series Processors
- Digital twin 16+2+2 phases VRM solution
- Dual Channel DDR5: 4*DIMMs with AMD EXPO™ Memory Module Support
- WIFI EZ-Plug: Quick and easy design for Wi-Fi antenna installation
- EZ-Latch Plus: PCIe and M.2 slots with Quick Release & Screwless Design
- EZ-Latch Click: M.2 heatsinks with screwless design
- Friendly UI: Multi-Theme, AIO Fan Control, and Q-Flash Auto Scan in BIOS and SW.
- Ultra-Fast Storage: 3*M.2 slots, including 1* PCIe 5.0 x4
- Efficient Thermal: VRM Thermal Armor Advanced & M.2 Thermal Guard Ext.
- Fast Networking: 2.5GbE LAN & Wi-Fi 7 with Ultra-high gain antenna
- Extended Connectivity: Dual USB4 Type-C with DP-Alt, HDMI

AORUS AI SNATCH
- AORUS AI SNATCH Bullet Point
- Unleash Ultimate Performance with One-Click Activation.

Auto DDR5 Memory Boost
With just a single click, unleash the full potential of DDR5 memory, instantly boosting your gaming and work efficiency.

One-Click Acceleration
Enhance DDR5 speeds with a single click.

Durable Performance
GIGABYTE Ultra Durable™ motherboards built with optimal components inside out provide the prime performance and timeless platform.

Digital Twin VRM Design
Delivers consistent, high-powered performance to elevate your overclocking to the next level.

Zenith of the Memory
GIGABYTE Gaming motherboards boost DDR5 memory performance and offer top-notch compatibility using various advanced methods.

Comprehensive Thermal
GAMING motherboards come with advanced full-metal thermal design and durable heatsinks to keep your system cool and efficient.

Future Connectivity
The ultimate connectivity with blazing data-transfer speeds through the next generation network and storage.

Dual 40Gbps USB4 with DP-Alt
The dual latest USB4 Type-C ports provide blistering fast and reliable transfer speed up to 40 Gbps of each. Featuring extensive comparability, efficient charging, and ultra-HD displayport connectivity, USB4 is beneficial to video editing, large file transfers, and data-intensive tasks.

Wi-Fi 7 brings you the Ultimate VR experience
Wi-Fi 7 transforms the VR landscape with its exceptional bandwidth and minimal latency, delivering an unparalleled, seamless immersive VR experience.

2.5GbE LAN
Supercharge your gaming with 2.5GbE LAN. Achieve lightning-fast speeds, minimal lag, and unbeatable performance to elevate your gaming setup and dominate the competition.

PCIe 5.0/4.0 Hardware Design
Featuring PCIe 5.0 x16 slot and PCIe 5.0/4.0 M.2 slot support, GIGABYTE Motherboards are ready to work with the PCIe 5.0/ 4.0 devices to provide superior performance.

Hi-Fi Audio
- High-End Audio Capacitors
- Audio Noise Guard

CPU	AMD Socket AM5, support for: AMD Ryzen™ 9000 Series Processors / AMD Ryzen™ 8000 Series Processors / AMD Ryzen™ 7000 Series Processors. (Go to GIGABYTE's website for the latest CPU support list.)
Chipset	AMD X870
Memory	Support for DDR5 8200(OC) / 8000(OC) / 7800(OC) / 7600(OC) / 7200(OC) / 7000(OC) / 6800(OC) / 6666(OC) / 6600(OC) / 6400(OC) / 6200(OC) / 6000(OC) / 5600(OC) / 5200 / 4800 / 4400 MT/s memory modules. 4 x DDR5 DIMM sockets supporting up to 256 GB (64 GB single DIMM capacity) of system memory. Dual channel memory architecture. Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules. Support for AMD EXPO™ and Extreme Memory Profile (XMP) memory modules. (Refer to "Memory Support List" on GIGABYTE's website for more information.)
Onboard Graphics	Integrated Graphics Processor with AMD Radeon™ Graphics support + ASMedia USB4® Controller: 2 x USB4® USB Type-C® ports, supporting USB4 and DisplayPort video outputs (max resolution 3840x2160@240 Hz, DisplayPort 1.4, HDR). 1 x HDMI port (max resolution 4096x2160@60 Hz, HDMI 2.1, HDCP 2.3, HDR). (Graphics specifications may vary depending on CPU support.)
Audio	Realtek® Audio CODEC. High Definition Audio, 2/4/5.1/7.1-channel. *To configure 7.1-channel audio, access the audio software for audio settings.
LAN	Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
Wireless Communication module	MediaTek Wi-Fi 7 MT7925 (rev. 1.0): 802.11a/b/g/n/ac/ax/be, 2.4/5/6 GHz bands, Bluetooth 5.4, 11be 160MHz. Realtek® Wi-Fi 7 RTL8922AE (rev. 1.1): 802.11a/b/g/n/ac/ax/be, 2.4/5/6 GHz bands, Bluetooth 5.4, 11be 160MHz. (Wi-Fi 7 features require Windows 11 SV3.)
Expansion Slots	1 x PCI Express x16 (PCIEX16) integrated in CPU: PCIe 5.0/4.0/3.0 support. 2 x PCI Express x1 (Chipset).
Storage Interface	1 x M.2 (M2A_CPU), PCIe 5.0/4.0/3.0. 1 x M.2 (M2C_SB), PCIe 4.0. 1 x M.2 (M2B_SB), PCIe 4.0. 4 x SATA 6Gb/s connectors. RAID 0, RAID 1, RAID 5, RAID 10.
USB	2 x USB4® Type-C® ports, 1 x USB 3.2 Gen 2 Type-A, 1 x USB 3.2 Gen 1, 4 x USB 2.0/1.1 ports, 1 x USB Type-C® (USB 3.2 Gen 2x2), 4 x USB 3.2 Gen 1, 4 x USB 2.0/1.1.
Internal I/O Connectors	1 x 24-pin ATX power, 1 x 8-pin ATX 12V, 1 x 4-pin ATX 12V, 1 x CPU fan header, 1 x CPU fan/pump header, 4 x system fan headers, 3 x RGB Gen2 headers, 1 x RGB header, 4 x SATA 6Gb/s, 3 x M.2, front panel, front audio, USB Type-C® (USB 3.2 Gen 2x2), USB 3.2 Gen 1, USB 2.0/1.1, TPM, power button, reset button, Clear CMOS jumper.

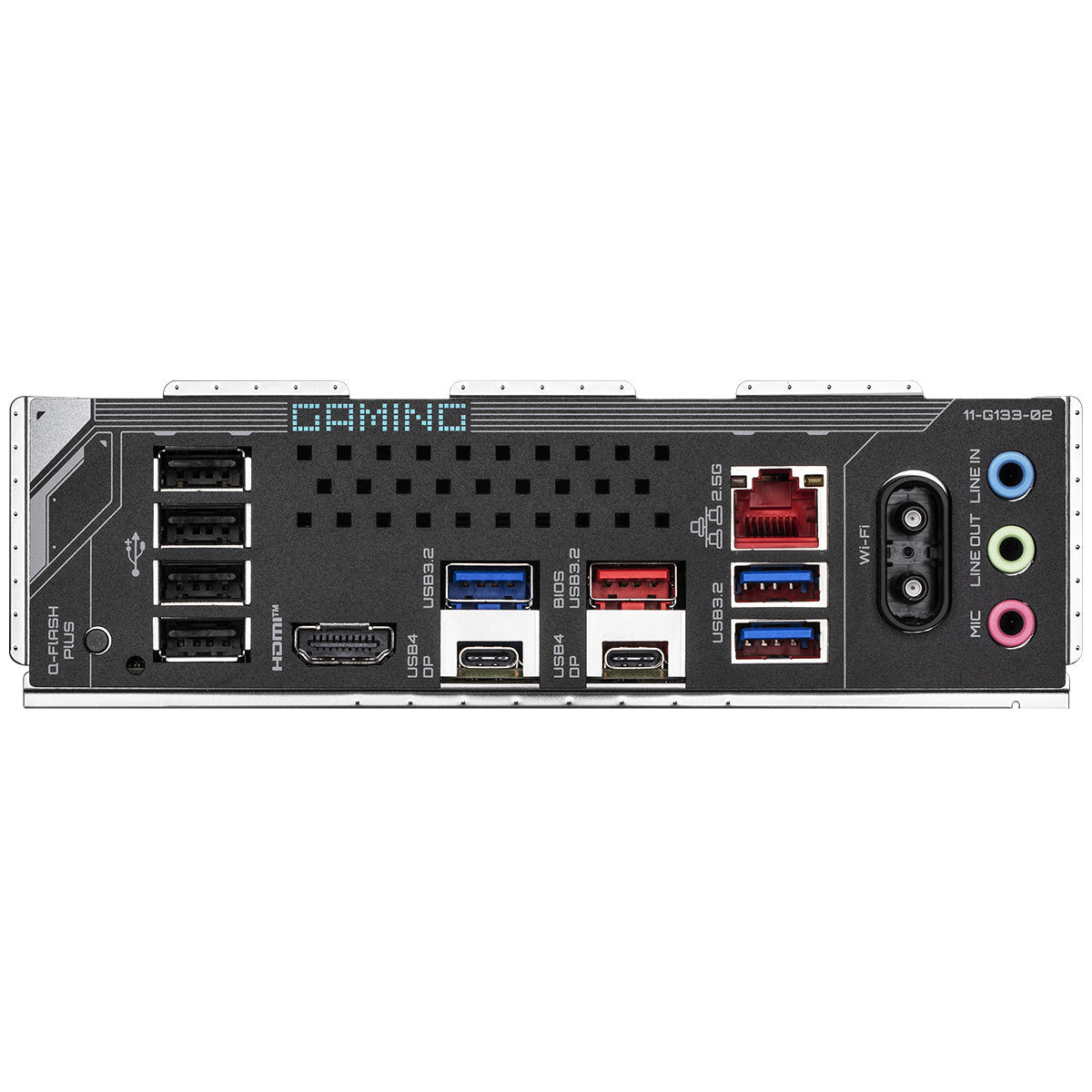

Back Panel Connectors	1 x Q-Flash Plus, 2 x antenna connectors, 1 x HDMI, 2 x USB4® Type-C® (DisplayPort), 1 x USB 3.2 Gen 2 Type-A, 3 x USB 3.2 Gen 1, 4 x USB 2.0/1.1, 1 x RJ-45, 3 x audio jacks.
I/O Controller	iTE® I/O Controller Chip
H/W Monitoring	Voltage, temperature, fan speed, water cooling flow rate, fan fail warning, fan speed control. *Fan/pump speed control depends on the installed fan/pump.
BIOS	1 x 256 Mbit flash, AMI UEFI BIOS, PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Unique Features	GIGABYTE Control Center (GCC). Q-Flash, Q-Flash Plus, Smart Backup.
Bundled Software	Norton® Internet Security (OEM version), LAN bandwidth management software.
Operating System	Windows 11 64-bit
Form Factor	ATX Form Factor; 30.5cm x 24.4cm
