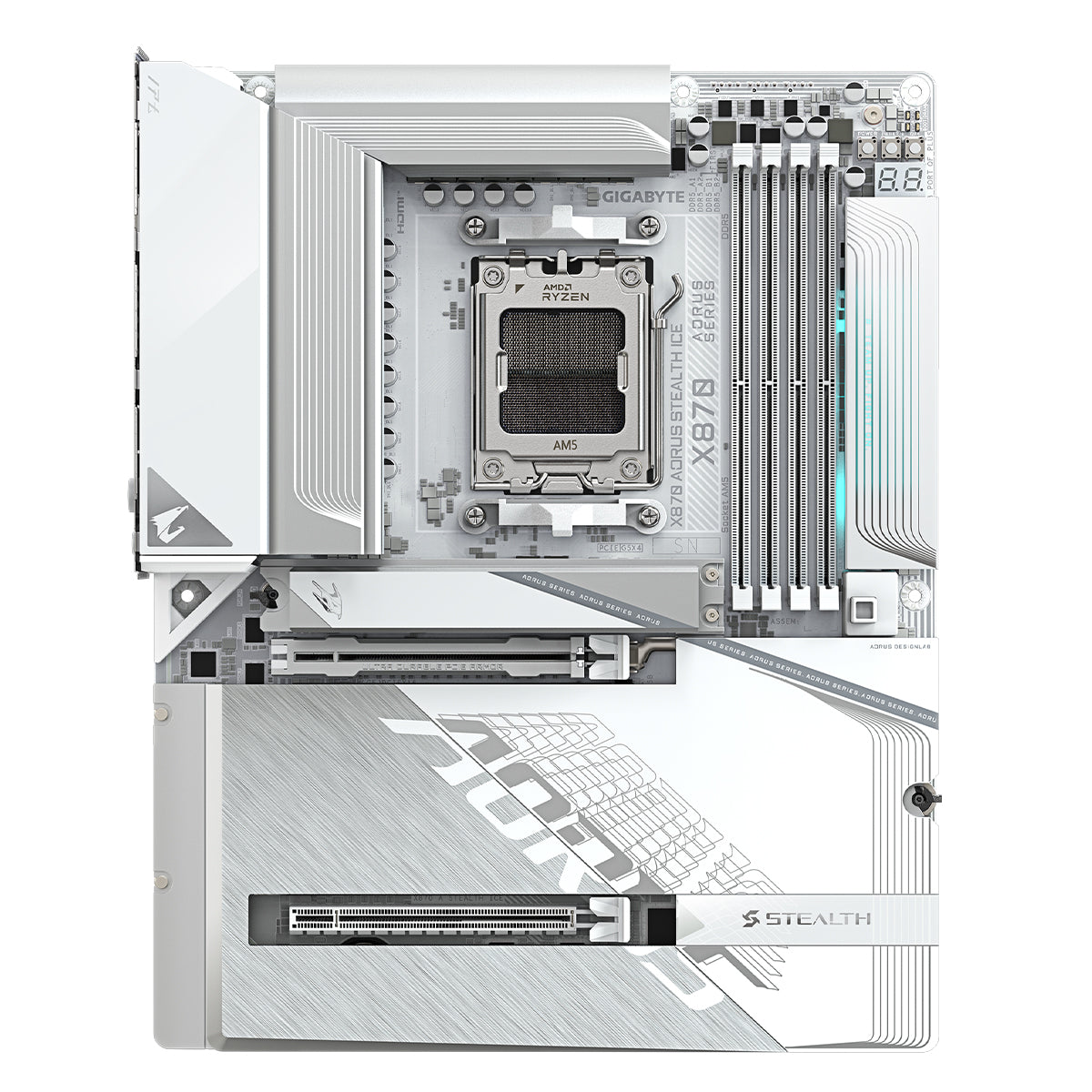

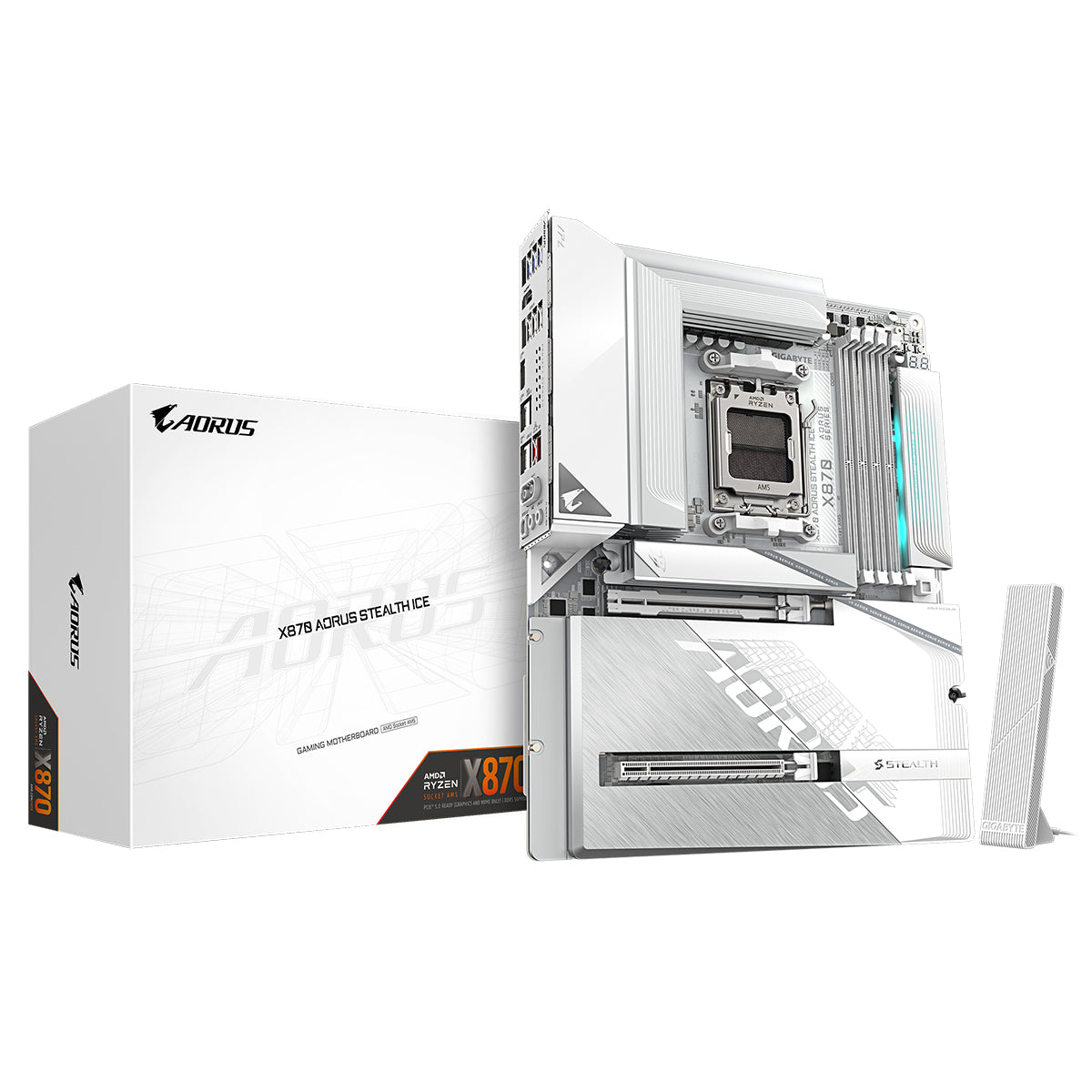

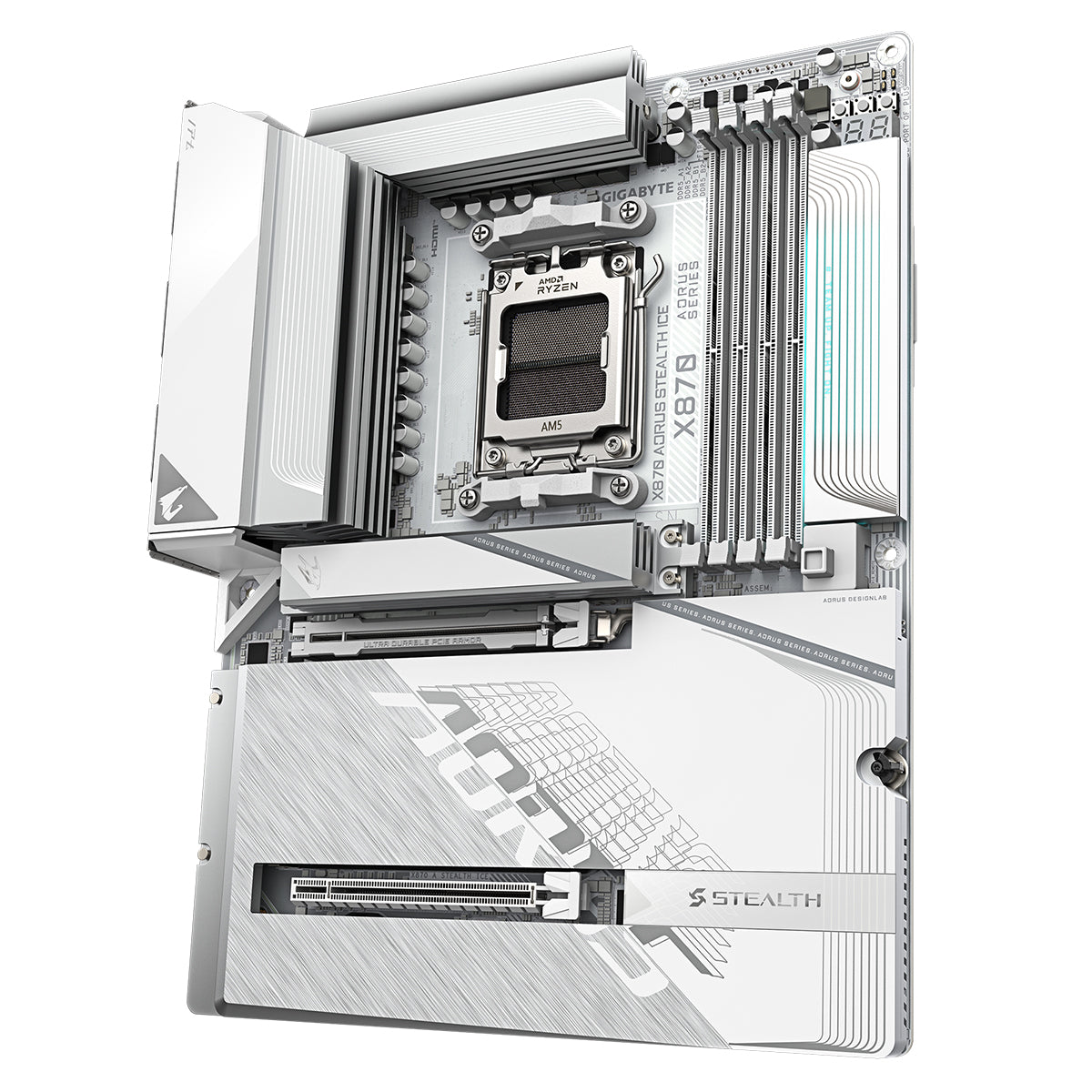

Gigabyte X870 AORUS STEALTH ICE Motherboard
Gigabyte
| SKU
83848
$699.00
Unit price
/
Unavailable
Warranty and Support
Warranty and Support
Warranty: 3 Years Return to Base Warranty
Returns: 14-day hassle-free exchanges and store credits, subject to terms and conditions outlined in our Returns Policy.
Delivery and Shipping
Delivery and Shipping
All deliveries are signature required.
North Island: 1 – 2 working days
South Island: 2 – 3 working days
Please allow an additional 1 – 2 working days for delivery to rural addresses.
Buy Now, Pay Later & Finance Options:
Description
Description
Key Features
- X3D Turbo Mode : Unleash new era gaming performance
- DDR5 OC up to 8200MT/s
- DriverBIOS : Wi-Fi Driver Pre-install, Power-On & EZ to Launch the Network.
- AMD Socket AM5 : Supports AMD Ryzen™ 9000 / 8000 / 7000 Series Processors
- Digital twin 16+2+2 phases VRM solution
- Dual Channel DDR5 : 4*DIMMs with AMD EXPO™Memory Module Support
- M.2 EZ-Flex : high-efficiency heat dissipation & flexible baseplate for M.2 SSD
- (Exclusive Patented Design)
- WIFI EZ-Plug : Quick and easy design for Wi-Fi antenna installation
- EZ-Latch Plus : PCIe and M.2 slots with Quick Release & Screwless Design
- EZ-Latch Click : M.2 heatsinks with screwless design
- Friendly UI : Multi-Theme, AIO Fan Control, and Q-Flash Auto Scan in BIOS and SW
- Ultra-Fast Storage : 4*M.2 slots, including PCIe 5.0 x4
- Efficient Thermal : VRM Thermal Armor Advanced & M.2 Thermal Guard L & M.2 Thermal Guard Ext.
- Fast Networking : 5GbE LAN & Wi-Fi 7 with directional Ultra-high gain antenna
- Extended Connectivity : HDMI, Dual USB4 Type-C with DP-Alt
- PCIe UD Slot : PCIe 5.0 x16 slots with 10X strength for graphics card & Better Heat dissipation effect

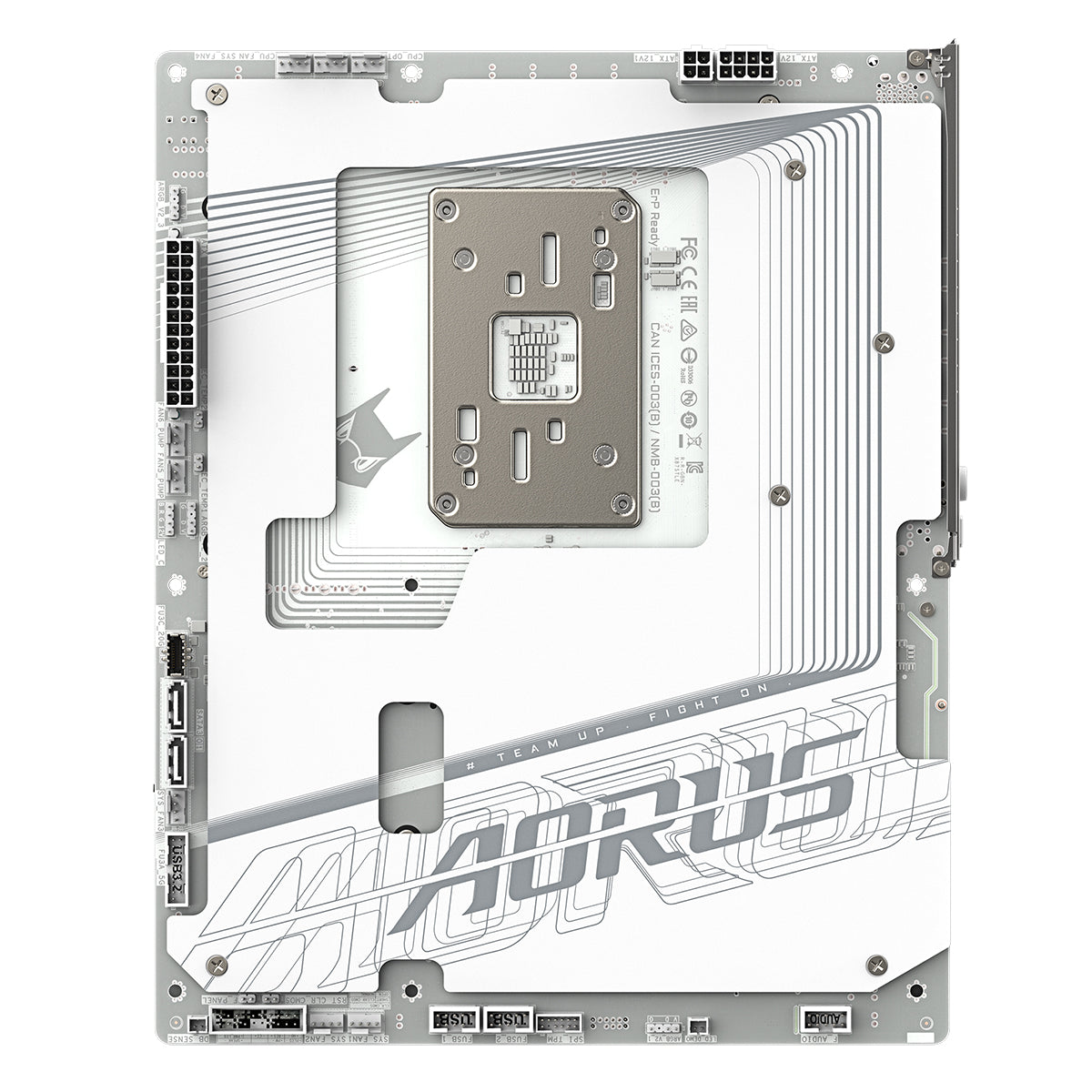

- UD Base Plate : Experience the protection and heat dissipation with the UD Base Plate.
Maximized Chassis Compatibility
The STEALTH series excels in high chassis compatibility, supporting numerous manufacturers. It enables PC DIY enthusiasts and gamers alike to effortlessly assemble personalized computer setups without constraints.
Zenith Memory Performance
STEALTH series gaming motherboards boost DDR5 memory performance and offer top-notch compatibility using various advanced methods.
Digital Twin VRM Design
Delivers consistent, high-powered performance to elevate your overclocking to the next level.
Comprehensive Thermal
Advanced full-metal thermal design and durable heatsinks to keep your system cool and efficient
Hassle-free Assembly
Our cutting-edge motherboard is designed for the ultimate DIY experience
Future Connectivity
Enable the ultimate connection experience with blazing data-transfer speeds through the next generation network, storage, and Wi-Fi connectivity.
Specifications
Specifications
| CPU | AMD Socket AM5, support for: AMD Ryzen™ 9000 Series Processors / AMD Ryzen™ 8000 Series Processors / AMD Ryzen™ 7000 Series Processors (Go to GIGABYTE's website for the latest CPU support list.) |
| Chipset | AMD X870 |
| Memory | Support for DDR5 8200(O.C) / 8000(O.C) / 7950(O.C) / 7900(O.C) / 7800(O.C) / 7600(O.C.) / 7400(O.C.) / 7200(O.C.) / 7000(O.C.) / 6800(O.C.) / 6600(O.C.) / 6400(O.C) / 6200(O.C) / 6000(O.C) / 5800(O.C) / 5600(O.C) / 5200 / 4800 / 4400 MT/s memory modules 4 x DDR5 DIMM sockets supporting up to 256 GB (64 GB single DIMM capacity) Dual channel memory architecture Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for AMD EXtended Profiles for Overclocking (AMD EXPO™) and Extreme Memory Profile (XMP) (The CPU and memory configuration may affect supported memory types, speeds, and number of DRAM modules. Refer to GIGABYTE's website for the "Memory Support List.") |
| Onboard Graphics | Integrated Graphics Processor with AMD Radeon™ Graphics support + ASMedia USB4® Controller: - 2 x USB4® USB Type-C® ports, supporting USB4 and DisplayPort video outputs, max resolution 3840x2160@240 Hz (DP 1.4 + HDR) Integrated Graphics Processor with AMD Radeon™ Graphics support: - 1 x HDMI port, max resolution 4096x2160@60 Hz (HDMI 2.1, HDCP 2.3, HDR) * Graphics specs may vary depending on CPU. |
| Audio | Realtek® ALC1220 CODEC (back panel line out supports DSD audio) High Definition Audio 2/4/5.1/7.1-channel Support for S/PDIF Out |
| LAN | Realtek® 5GbE LAN chip (5 Gbps/2.5 Gbps/1 Gbps/100 Mbps) |
| Wireless | Qualcomm® Wi-Fi 7 QCNCM865 - 802.11a/b/g/n/ac/ax/be, 2.4/5/6 GHz bands - Bluetooth® 5.4 - Supports 11be 320MHz wireless standard * Wi-Fi 7 requires Windows 11 SV3 ** 6GHz channel availability depends on country regulations *** Bluetooth version may change with updates |
| Expansion Slots | 1 x PCI Express x16 slot (PCIEX16), integrated in CPU: - Ryzen™ 9000/7000: PCIe 5.0 x16 - Ryzen™ 8000 Phoenix 1: PCIe 4.0 x8 - Ryzen™ 8000 Phoenix 2: PCIe 4.0 x4 * PCIEX16 slot supports GPU or NVMe SSD only Chipset: - 1 x PCI Express x16 slot (PCIEX4), PCIe 4.0 x4 * PCIEX4 shares bandwidth with M2D_SB; unavailable if M2D_SB is used |
| Storage | 1 x M.2 (M2A_CPU), PCIe 5.0/4.0 x4/x2 (Ryzen™ 9000/8000/7000) 1 x M.2 (M2B_CPU), PCIe 5.0/4.0 x4/x2 (disabled on Ryzen™ 8000 Phoenix 2) 2 x M.2 (M2C_SB, M2D_SB), PCIe 4.0 x4/x2 2 x SATA 6Gb/s connectors RAID 0/1/5/10 for NVMe SSDs (*RAID 5 only on Ryzen™ 9000) RAID 0/1 for SATA devices |
| USB | CPU + ASMedia USB4® Controller: - 2 x USB4® Type-C® (rear, DP output) CPU: - 1 x USB Type-C® (rear, USB 3.2 Gen 2) - 4 x USB 3.2 Gen 1 (rear) - 4 x USB 2.0/1.1 (rear) Chipset: - 1 x USB Type-C® (internal, USB 3.2 Gen 2x2) - 2 x USB 3.2 Gen 2 Type-A (rear, red) - 2 x USB 3.2 Gen 1 (internal) - 4 x USB 2.0/1.1 (internal) |
| Internal I/O | 1 x 24-pin ATX power 1 x 8-pin ATX 12V power 1 x 4-pin ATX 12V power 1 x CPU fan 1 x CPU fan/water pump 4 x system fan 2 x system fan/water pump 3 x ARGB Gen2 headers 1 x RGB LED header 4 x M.2 connectors 2 x SATA 6Gb/s 1 x front panel 1 x front panel audio 1 x USB Type-C® header (USB 3.2 Gen 2x2) 1 x USB 3.2 Gen 1 header 2 x USB 2.0/1.1 headers 1 x noise detection 1 x TPM header 1 x Q-Flash Plus button 1 x power button 1 x reset button 1 x reset jumper 2 x temp sensor headers 1 x Clear CMOS jumper |

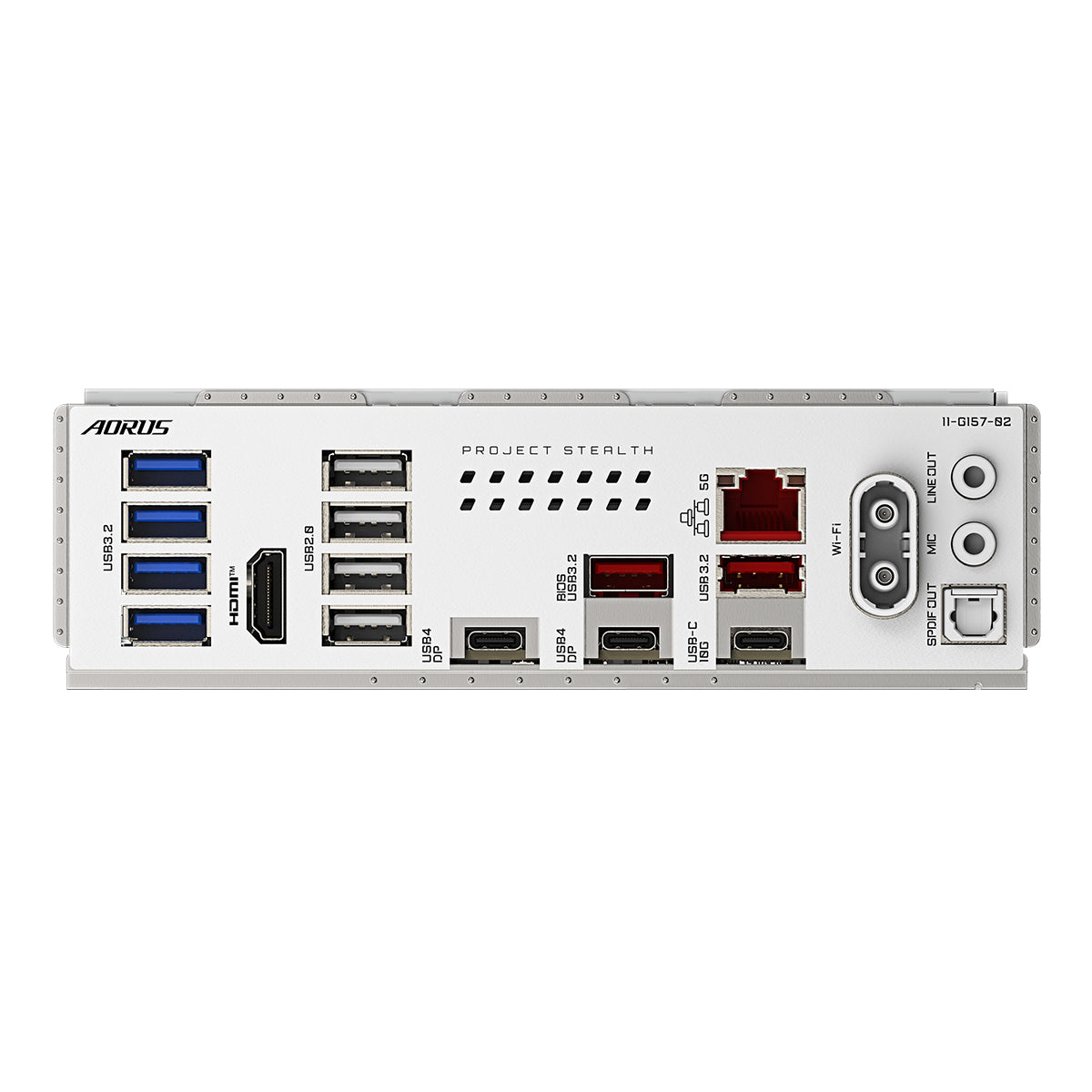

| Back Panel | 1 x HDMI 2 x antenna connectors (2T2R) 2 x USB4® Type-C® (DP output) 1 x USB Type-C® (USB 3.2 Gen 2) 2 x USB 3.2 Gen 2 Type-A (red) 4 x USB 3.2 Gen 1 4 x USB 2.0/1.1 1 x RJ-45 (5GbE) 1 x Optical S/PDIF Out 2 x audio jacks |
| I/O Controller | iTE® I/O Controller Chip |
| H/W Monitoring | Voltage, temperature, fan speed, water cooling flow rate detection Fan fail warning Fan/pump speed control (depends on installed fan/pump) |
| BIOS | 1 x 512 Mbit flash AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
| Unique Features | Support for GIGABYTE Control Center (GCC) Support for Q-Flash, Q-Flash Plus, Smart Backup |
| Bundled Software | Norton® Internet Security (OEM version) |
| Operating System | Support for Windows 11 64-bit |
| Form Factor | ATX Form Factor; 30.5cm x 24.4cm |
