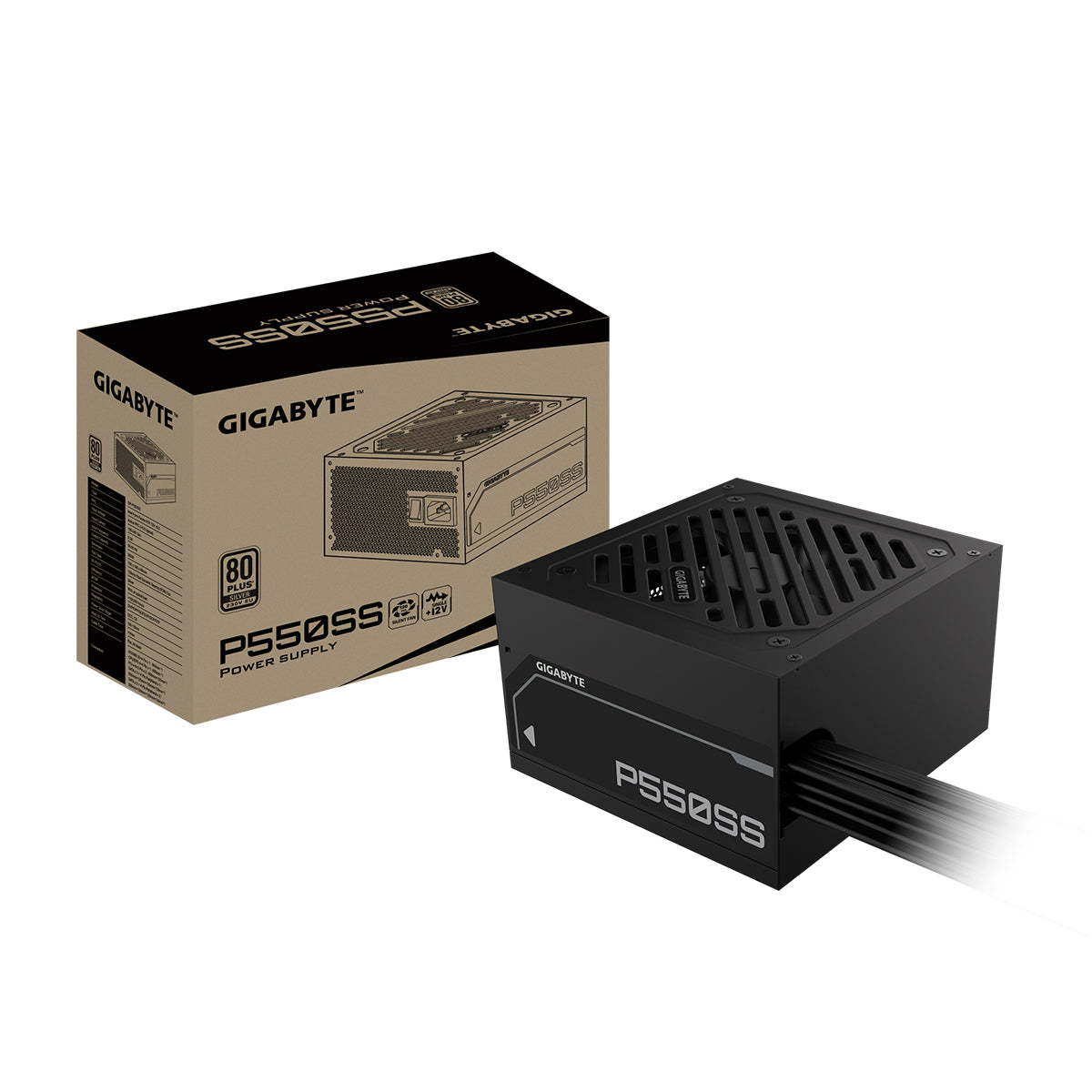

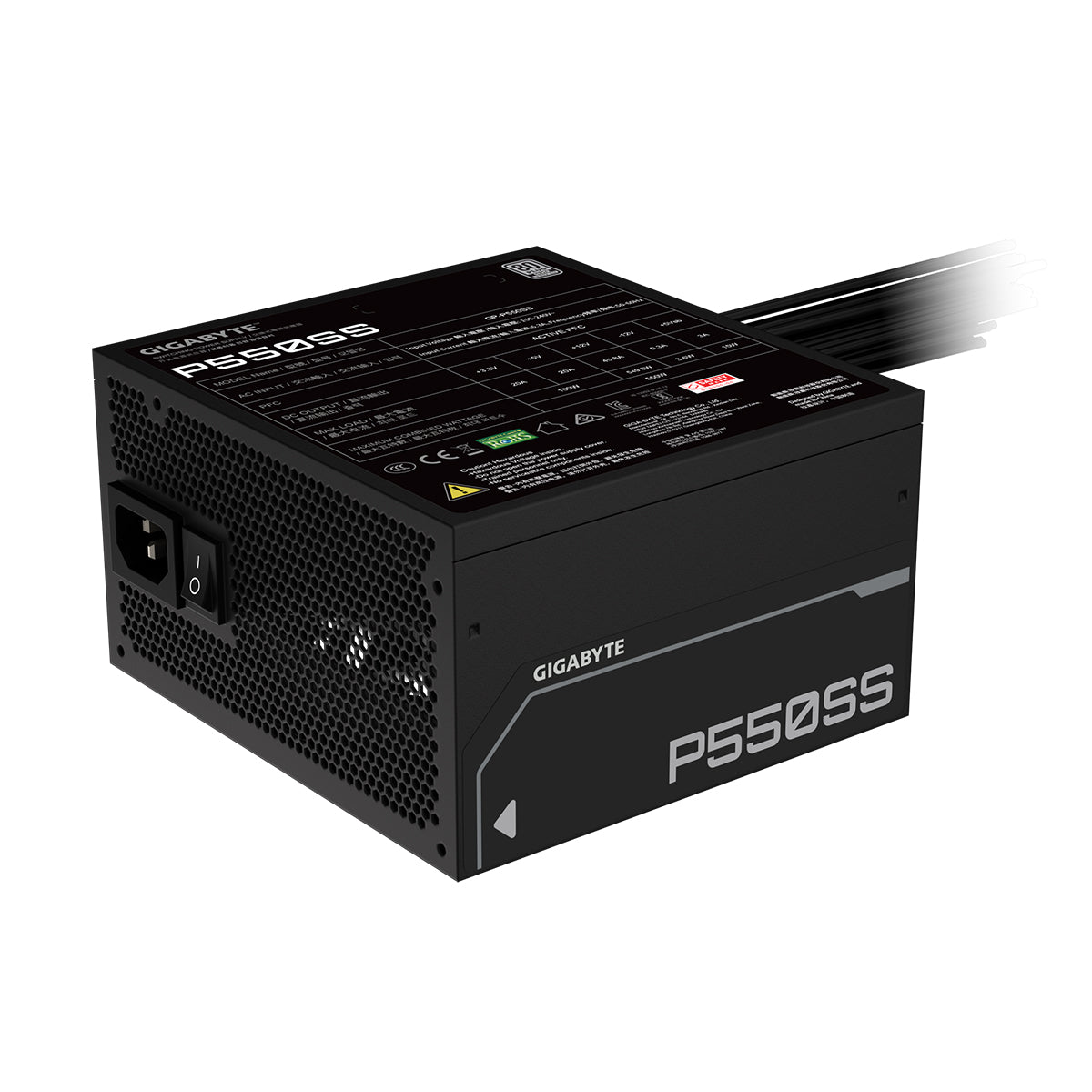

Gigabyte P550SS 550W 80Plus Silver Power Supply

Gigabyte  |  SKU 82711  |  MPN GP-P550SS
$99.00

Warranty and Support

Warranty: 3 Years Return to Base Warranty

Returns: 14-day hassle-free exchanges and store credits, subject to terms and conditions outlined in our Returns Policy.

Delivery and Shipping

All deliveries are signature required.

North Island: 1 – 2 working days
South Island: 2 – 3 working days

Please allow an additional 1 – 2 working days for delivery to rural addresses.

Buy Now, Pay Later & Finance Options:

Description

KEY FEATURE

  • 80 PLUS Silver certified (230V EU)
  • Support Intel ATX 3.0 standard (compatible with ATX 3.1)
  • 120mm Fluid Dynamic Bearing (FDB) Fan
  • Flat cable design
  • Powerful single +12V rail
  • OVP/OPP/SCP/UVP/OCP/OTP protection

80 PLUS SILVER CERTIFIED

The 80 Plus Silver certification (230V EU) guarantees a 90% efficiency rate at a 50% load, resulting in reduced power wastage, diminished heat generation, and minimized fan noise.

Support Intel ATX 3.0 standard (compatible with ATX 3.1)

The P550SS can sustain up to 2x total power excursion. It is fully compatible with Intel PSDG (Power Supply Design Guide) ATX 3.0 / ATX 3.1 standard which supports up to 200% power excursion, reaches 70% low load efficiency and complies with required power supply timing standards.

120MM FLUID DYNAMIC BEARING (FDB) FAN

High-performance Fluid Dynamic Bearing fan uses oil film shock absorption technology to effectively reduce noise, making it quieter than conventional sleeve fan and providing more than twice the lifespan. In addition, the fan will detect the current power usage and temperature, automatically adjust the fan speed to minimize the noise.

RELIABLE FLAT CABLE DESIGN

The utilization of flat cables minimizes clutter while enhancing the thermal performance of the chassis.

SINGLE +12V RAIL

The single +12V rail delivers optimal power output, stability, and hardware compatibility. This design not only simplifies power cable installation but also stands as the most effective choice for overclocking purposes.

PROTECTION

To guarantee the stable operation of your entire computer system under any circumstances, we have incorporated a range of protective features including OCP, OTP, OVP, OPP, UVP, and SCP. Moreover, we have obtained safety certifications from various countries to ensure the consistent and secure functioning of your system.

Specifications

Model GP-P550SS
Type Intel Form Factor ATX 12V v3.0 (compatible with ATX 3.1)
PFC Active PFC (>0.9 typical)
Input Voltage 155-240 Vac
Input Current 6.3A
Input Frequency 50-60 Hz
Output Capacity 550W
Dimensions 150 x 140 x 86 mm
Fan Type 120mm Fluid Dynamic Bearing (FDB) fan
80 PLUS Silver
Efficiency 90% at typical load (230V EU)
MTBF >100,000 hours
Protections OVP / OPP / SCP / UVP / OCP / OTP
Power Good Signal 100-150ms
Hold Up Time >16ms
Cable Type Flat, All black
Connectors ATX/MB 20+4 Pin x 1 : 600mm
CPU/EPS 4+4 Pin x 1 : 650mm
PCI-e 6+2 Pin x 2 : 600mm + 120mm
SATA x 3 + 4 Pin Peripheral x 1 : 500mm + 120mm + 120mm + 120mm
SATA x 2 + 4 Pin Peripheral x 2 : 500mm + 120mm + 120mm + 120mm
