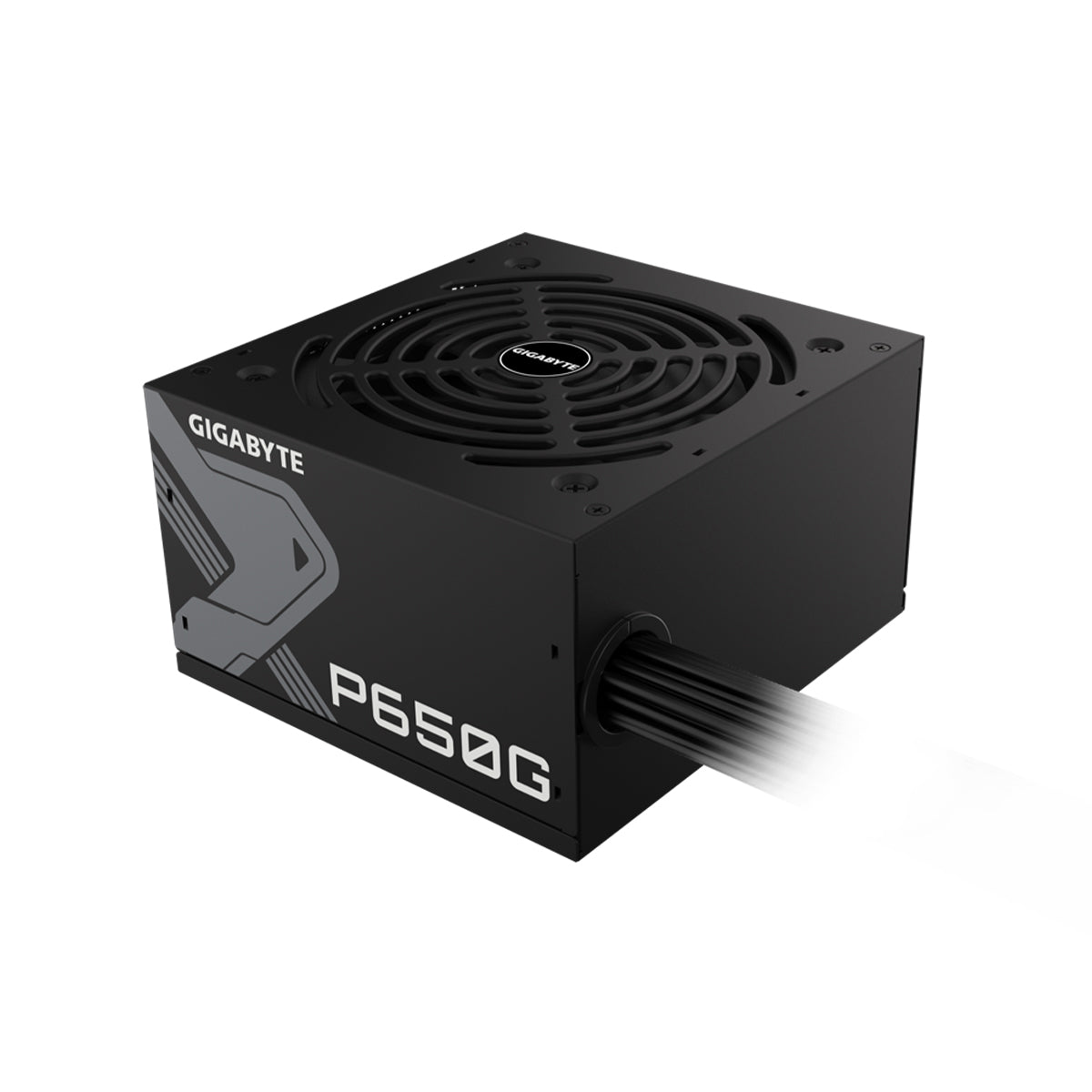

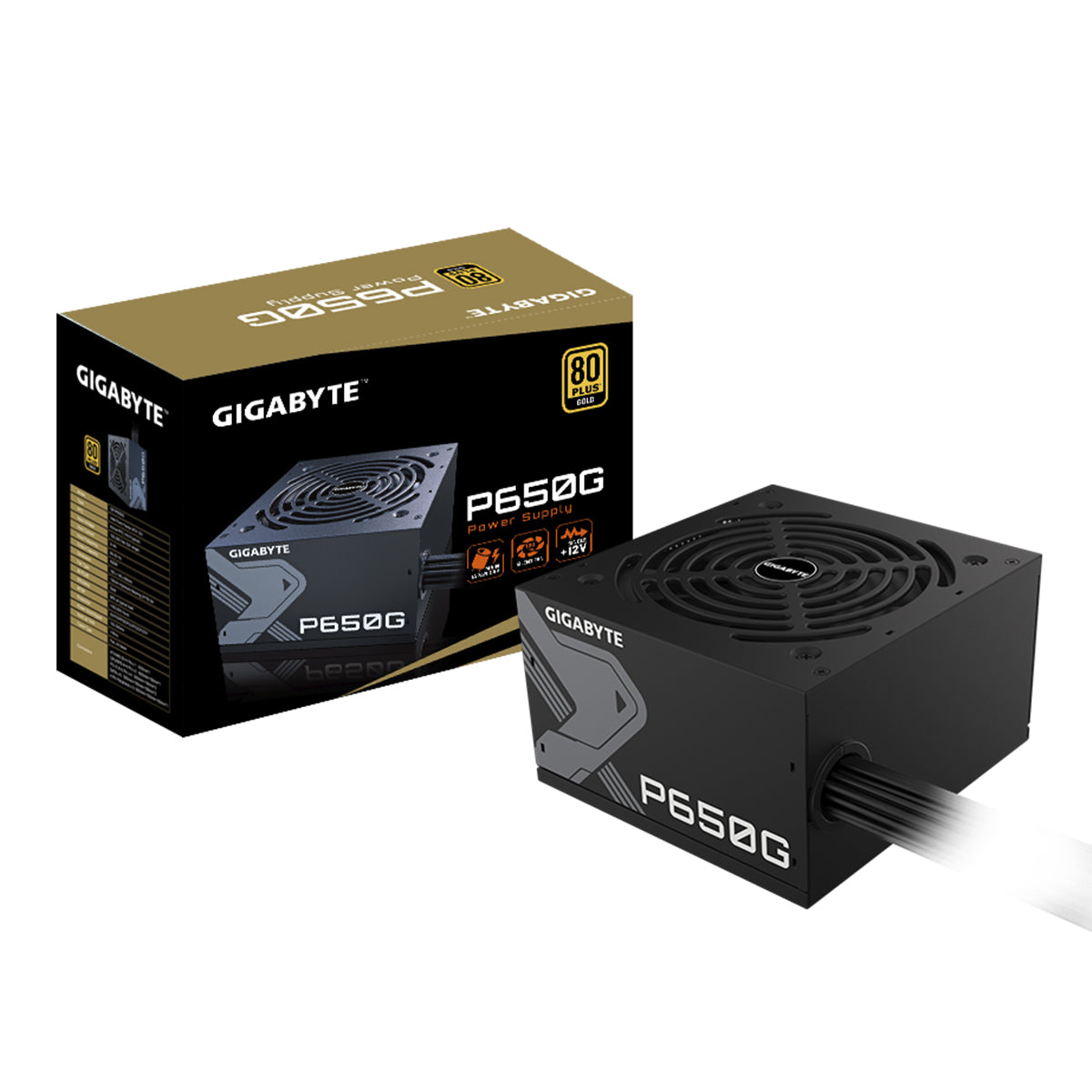

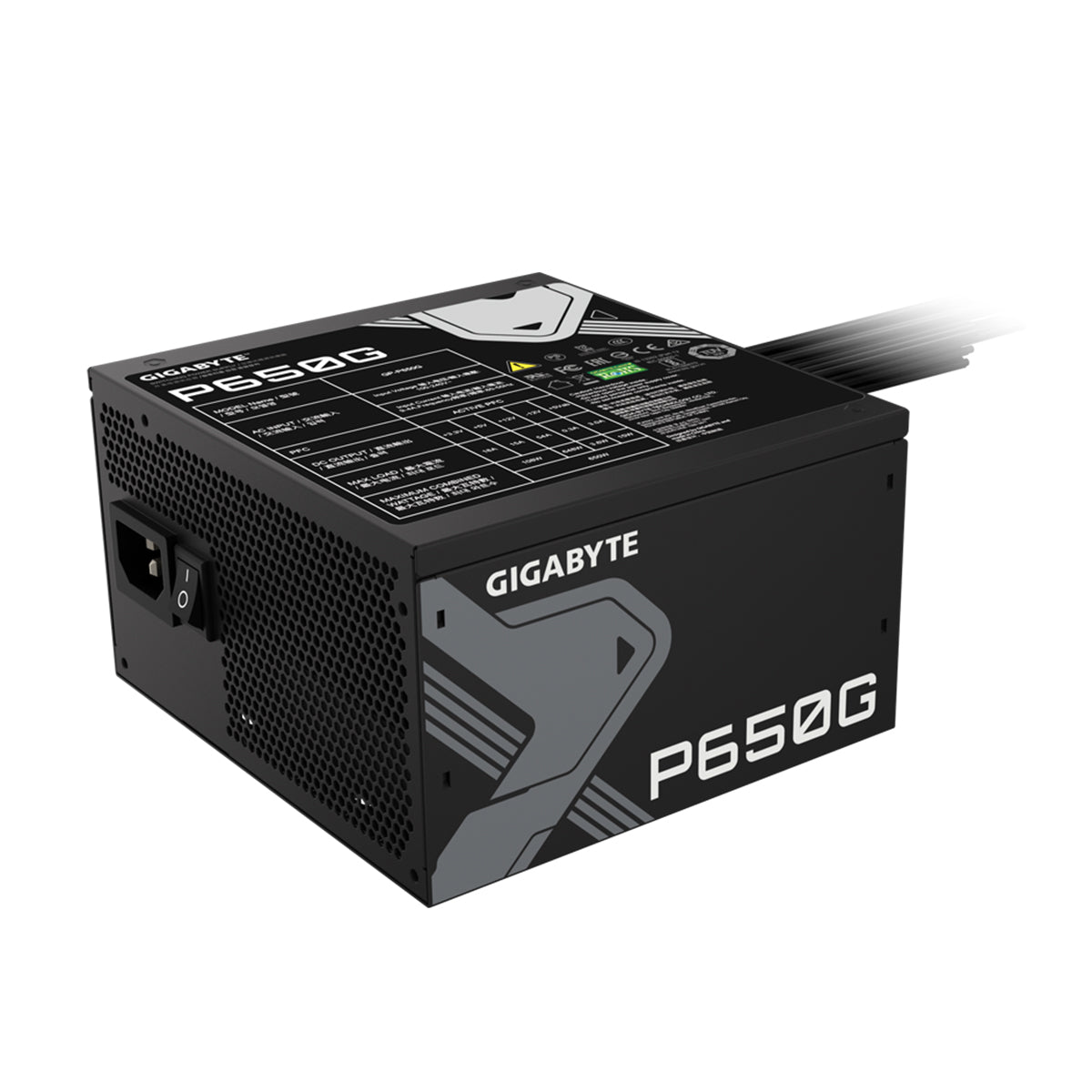

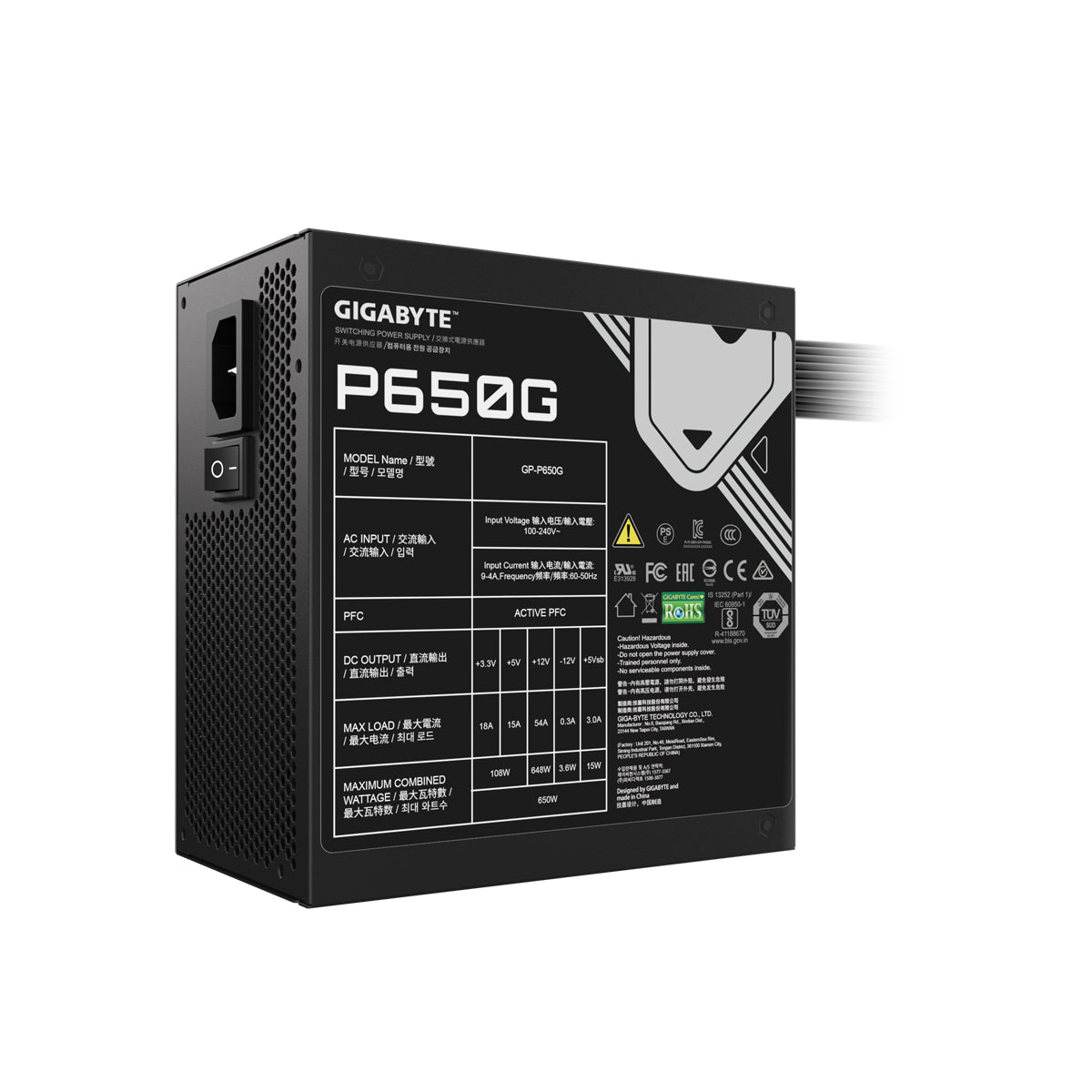

Gigabyte GP-P650G 650W 80Plus Gold Power Supply
Warranty and Support
Warranty and Support
Warranty: 3 Years Return to Base Warranty
Returns: 14-day hassle-free exchanges and store credits, subject to terms and conditions outlined in our Returns Policy.
Delivery and Shipping
Delivery and Shipping
All deliveries are signature required.
North Island: 1 – 2 working days
South Island: 2 – 3 working days
Please allow an additional 1 – 2 working days for delivery to rural addresses.
Buy Now, Pay Later & Finance Options:
Description
Description
Key Feature
80 PLUS Gold certified
Main Japanese capacitors
120mm Silent Hydraulic Bearing (HYB) Fan
Powerful single +12V rail
OVP/OPP/SCP/UVP/OCP/OTP protection
Compact design
High Quality
Japanese Capacitors
The primary capacitors are sourced from top-tier Japanese manufacturers, delivering a premium and stable power supply that effectively extends the product's lifespan.
The life of the main capacitor is over 20 years (Environment 25°C)

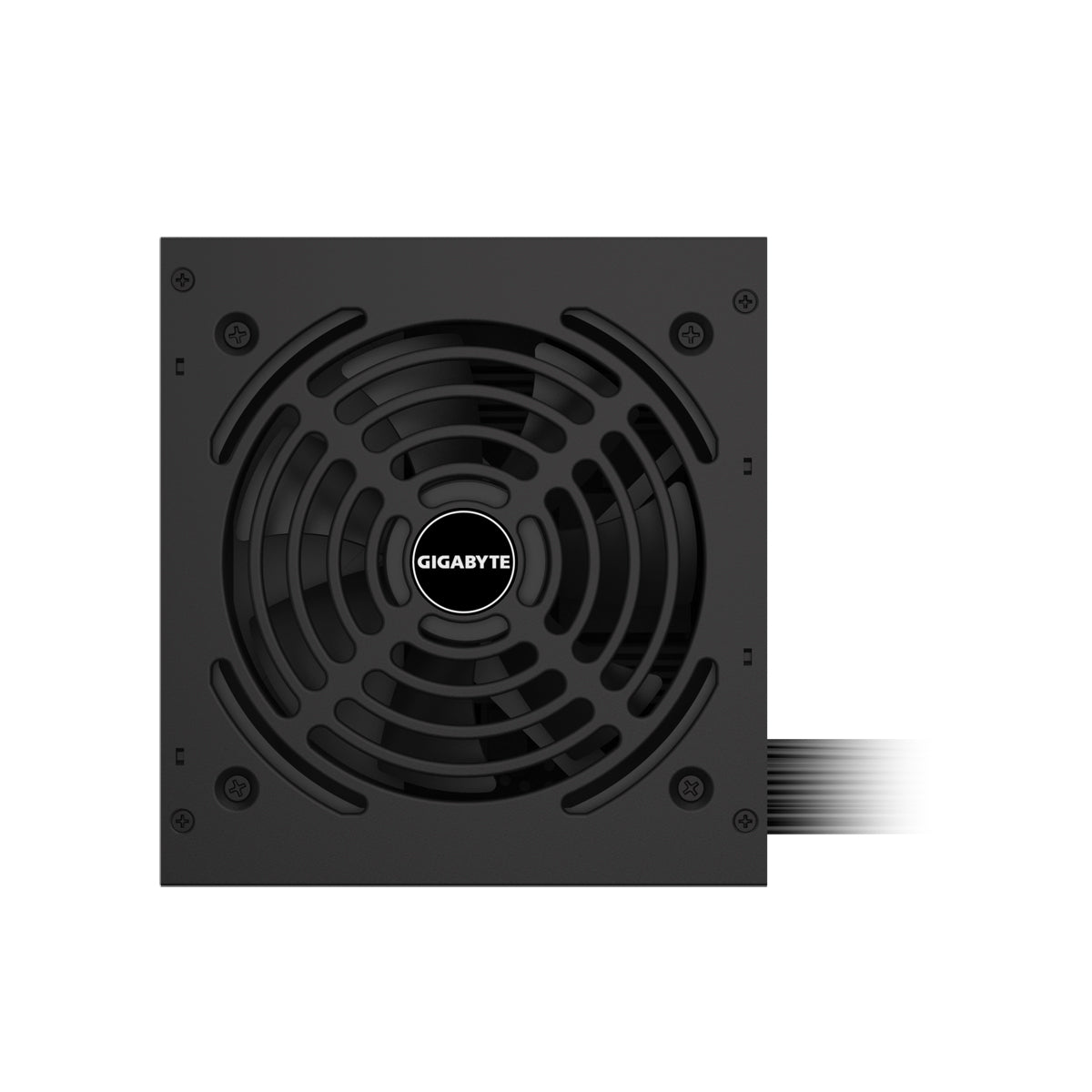

Fan
Acoustic
120mm Silent Hydraulic Bearing (HYB) Fan
The 120mm fan detects the current power utilization and temperature, automatically adjusting its rotational speed to minimize noise. The Hydraulic Bearing fan offers a longer and more stable lifespan in comparison to traditional sleeve fans.
Protection
To guarantee stable operation of your entire computer system under any circumstances, a range of protective features are incorporated including OCP, OTP, OVP, OPP, UVP, and SCP. Additionally, safety certifications from various countries ensure consistent and secure functioning of your system.
Reliable Black Flat Cable
The utilization of black flat cables minimizes clutter while enhancing the thermal performance of the chassis.
80 PLUS Gold Certified
The 80 Plus Gold certification guarantees a 90% efficiency rate at a 50% load, resulting in reduced power wastage, diminished heat generation, and minimized fan noise.
Single +12V Rail
The single +12V rail delivers optimal power output, stability, and hardware compatibility. This design simplifies power cable installation and is ideal for overclocking purposes.
Compact Design
Through GIGABYTE's exceptional design and high-quality materials, the size of the power supply unit has been reduced. This compact PSU facilitates easier installation in various chassis and enhances thermal efficiency within the case.
Specifications
Specifications
| Model | GP-P650G |
| Type | Intel Form Factor ATX 12V |
| PFC | Active PFC (>0.9 typical) |
| Input Voltage | 100-240 Vac (full range) |
| Input Current | 9-4A |
| Input Frequency | 60-50 Hz |
| Output Capacity | 650W |
| Dimensions | 150 x 140 x 86 mm |
| Fan Type | 120mm Hydraulic Bearing (HYB) Fan |
| 80 PLUS | Gold |
| Efficiency | 90% at typical load |
| MTBF | >100,000 hours |
| Protections | OVP / OPP / SCP / UVP / OCP / OTP |
| Power Good Signal | 100-500ms |
| Hold Up Time | >16ms |
| Cable Type | Flat, All black |
| Connectors | ATX/MB 20+4 Pin x1 : 600mm*1 CPU/EPS 4+4 Pin x2 : 600mm+150mm*1 PCI-e 6+2 Pin x4 : 500mm+150mm*2 SATA x6 : 500mm+150mm+150mm*2 4 Pin Peripheral x3 : 500mm+150mm+150mm*1 |
