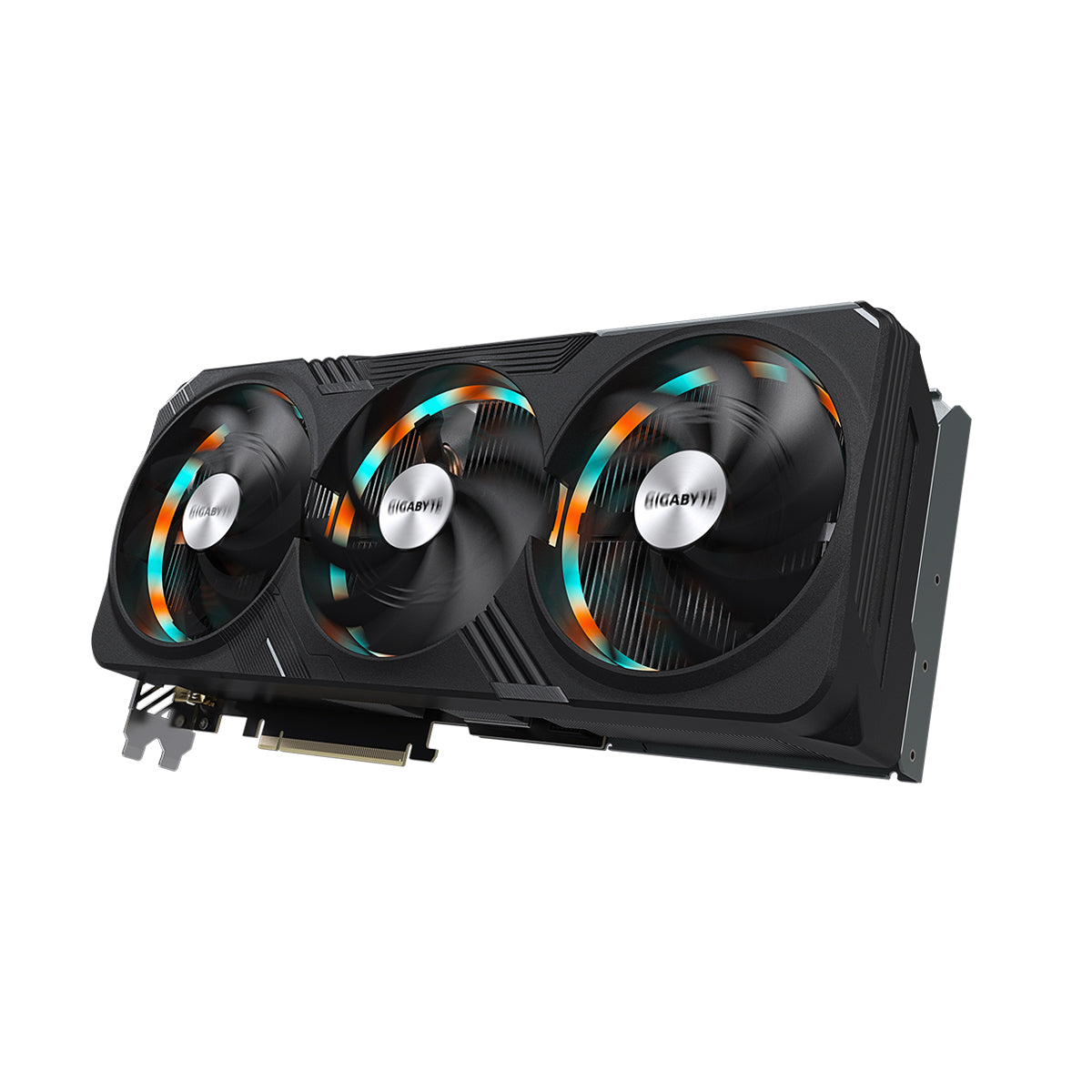

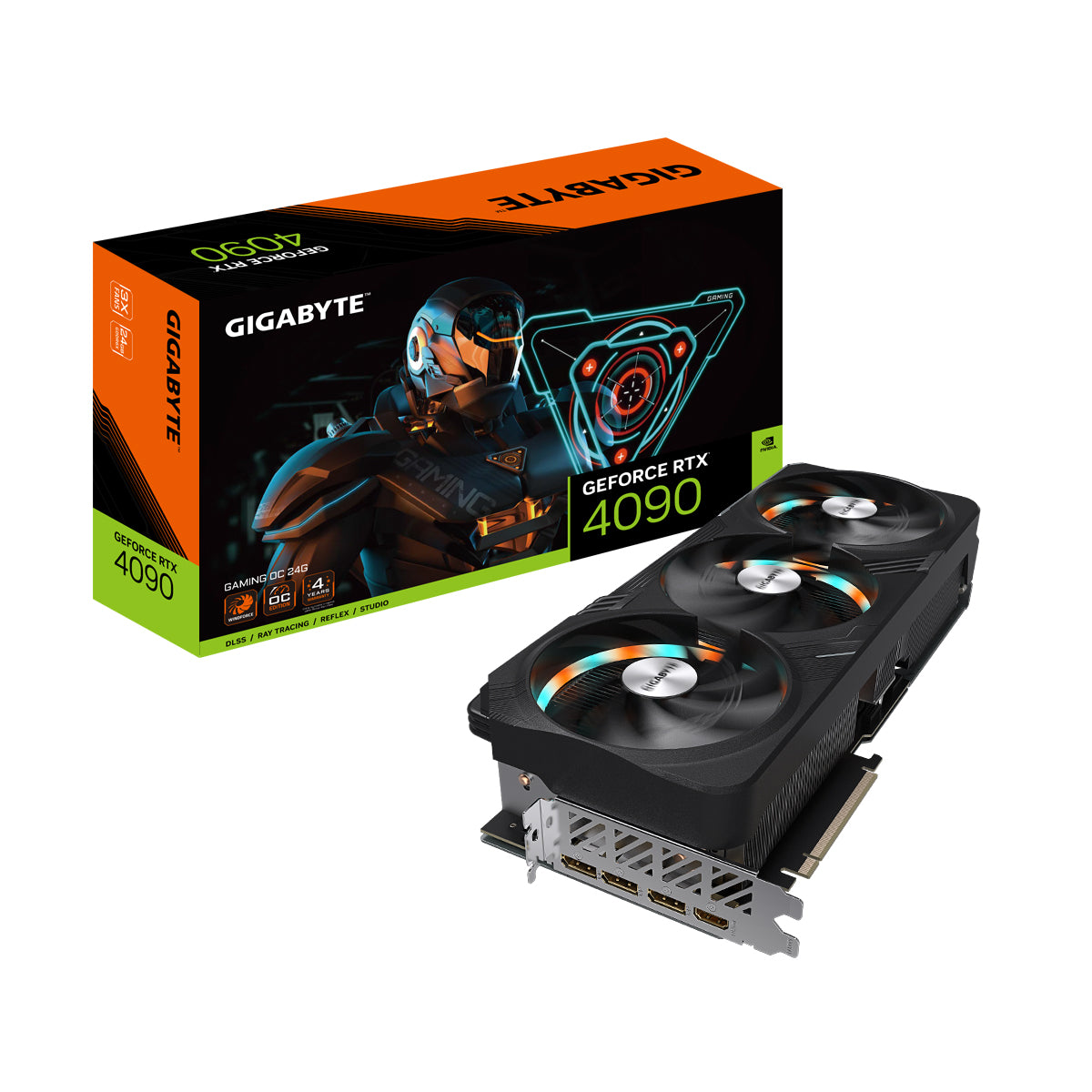

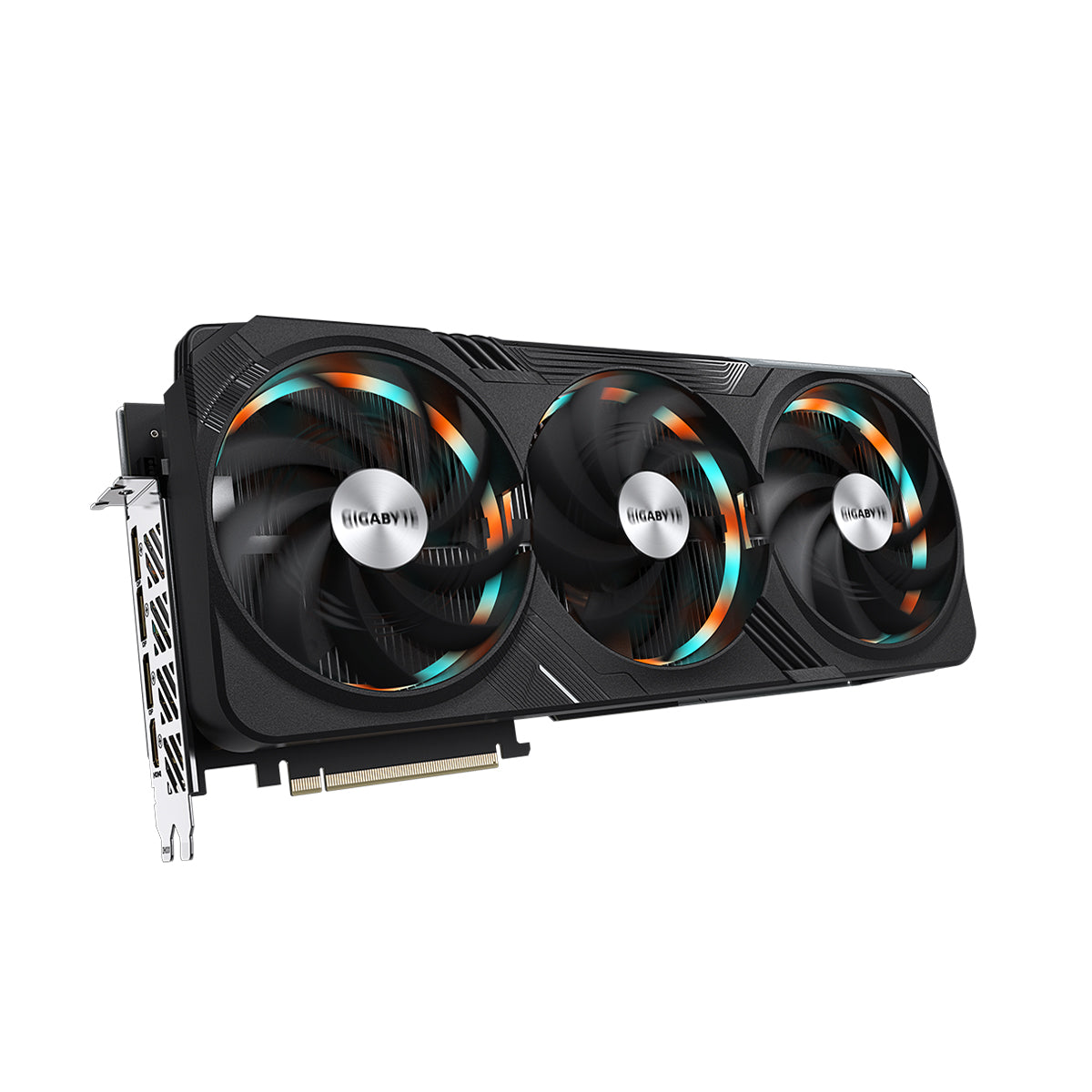

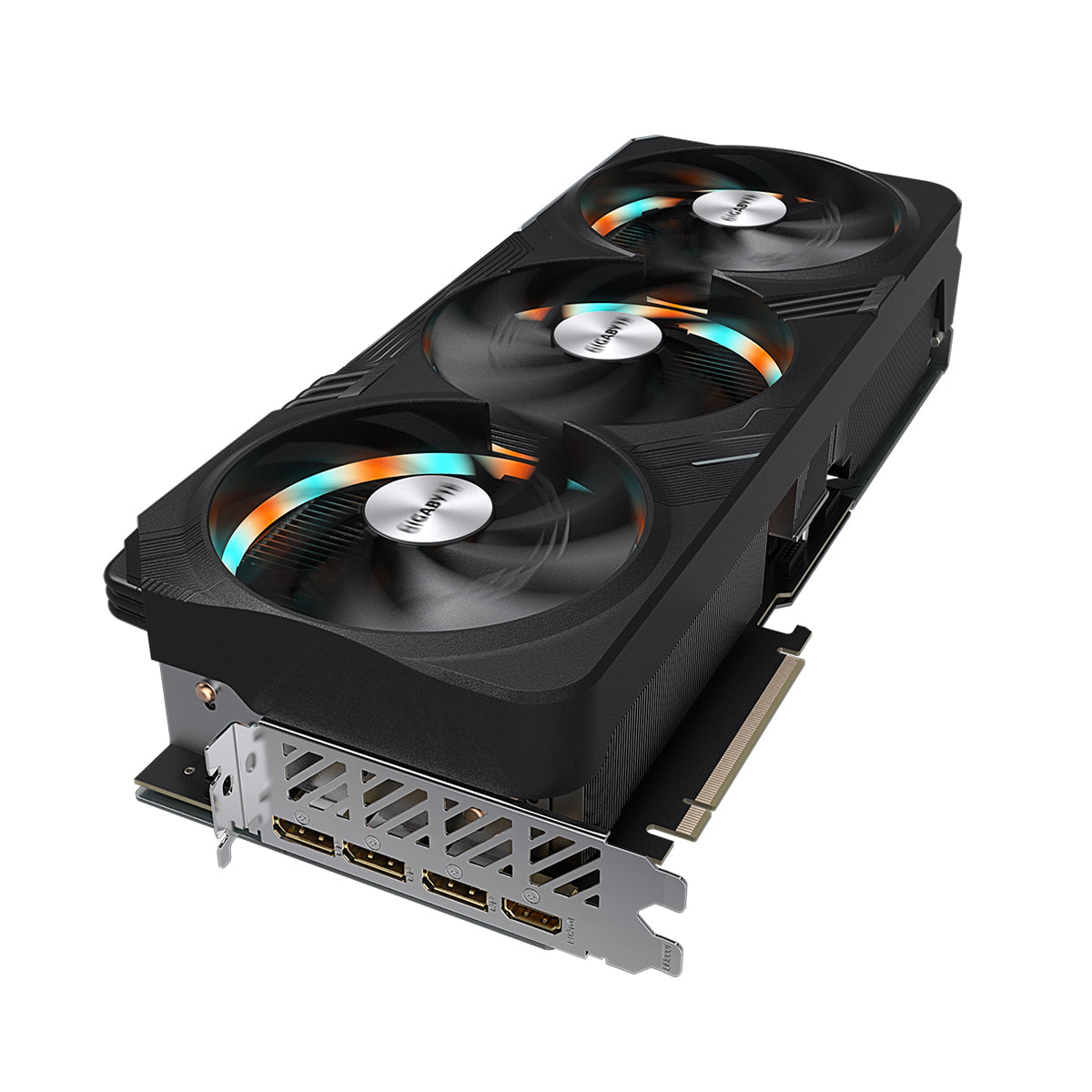

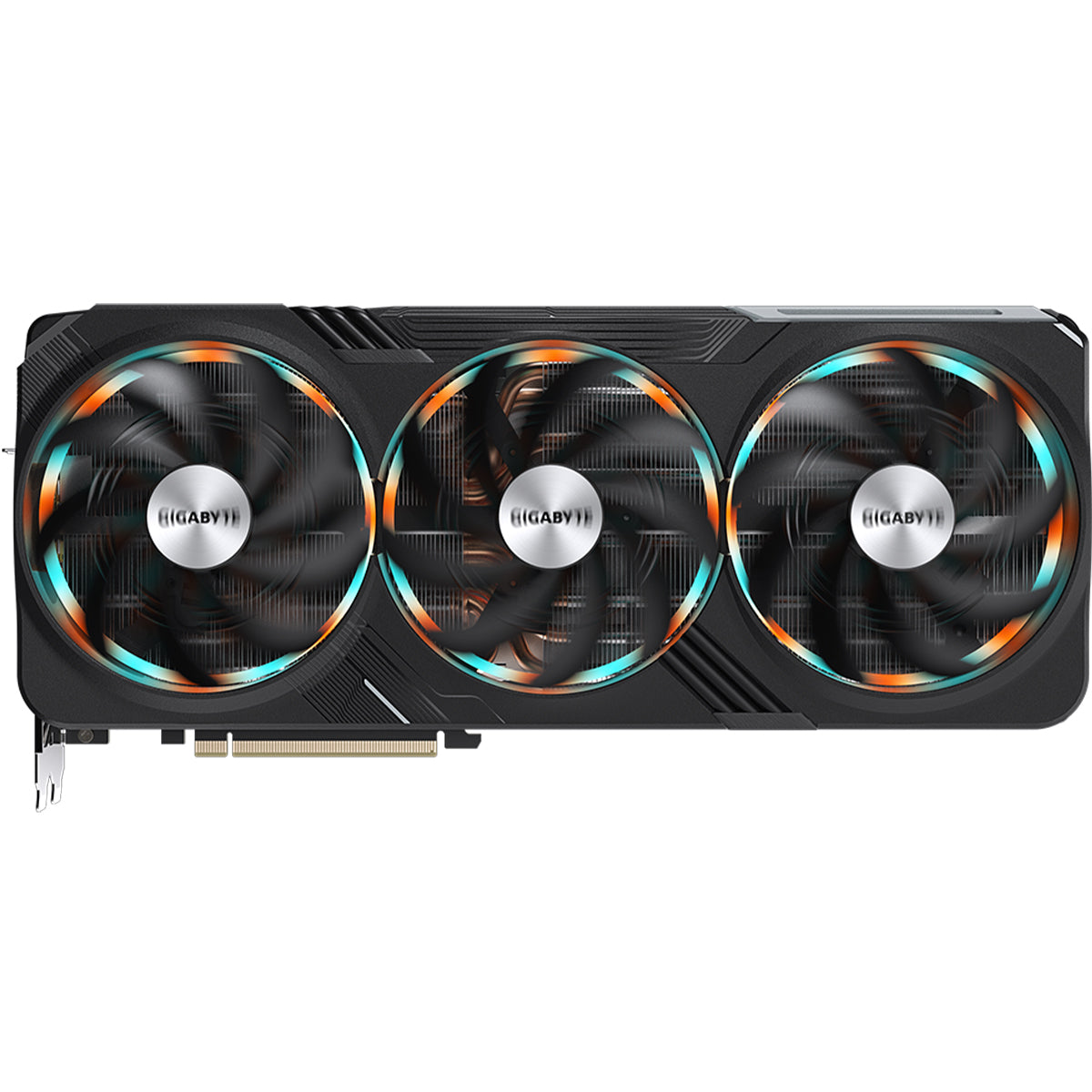

Gigabyte GeForce RTX 4090 Gaming OC 24GB Graphics Card
Warranty and Support
Warranty and Support
Warranty: 3 Years Return to Base Warranty
Returns: 14-day hassle-free exchanges and store credits, subject to terms and conditions outlined in our Returns Policy.
Delivery and Shipping
Delivery and Shipping
All deliveries are signature required.
North Island: 1 – 2 working days
South Island: 2 – 3 working days
Please allow an additional 1 – 2 working days for delivery to rural addresses.
Buy Now, Pay Later & Finance Options:
Description
Description
Ray Tracing Hyperrealistic. Hyperfast.
The Ada architecture unleashes the full glory of ray tracing, which simulates how light behaves in the real world. With the power of RTX 40 Series and third-gen RT Cores, you can experience incredibly detailed virtual worlds like never before.
The performance multiplier, powered by AI.
DLSS is a revolutionary breakthrough in AI-powered graphics that massively boosts performance. Powered by the new fourth-gen Tensor Cores and Optical Flow Accelerator on GeForce RTX 40 Series GPUs, DLSS 3 uses AI to create additional high-quality frames.
Victory measured in milliseconds.
NVIDIA Reflex and GeForce RTX 40 Series GPUs deliver the lowest latency and best responsiveness for the ultimate competitive advantage. Built to optimize and measure system latency, Reflex provides faster target acquisition, quicker reaction times, and the best aim precision for competitive games.
Your creativity AI.
Take your creative projects to the next level with NVIDIA Studio. Powered by new dedicated hardware, RTX 40 Series unlocks unmatched performance in 3D rendering, video editing, and graphic design. Experience feature-rich RTX accelerations in top creative apps, world-class NVIDIA Studio drivers engineered to provide maximum stability, and a suite of exclusive tools that harness the power of RTX for AI-assisted creative workflows.
WINDFORCE COOLING SYSTEM
The WINDFORCE cooling system features three 110mm unique blade fans, alternate spinning, 10 composite copper heat pipes, a large vapor chamber directly touches the GPU, 3D active fans and Screen cooling, which together provide high efficiency heat dissipation.
ALTERNATE SPINNING
Reduce the turbulence of adjacent fans and increase airflow pressure.
3D ACTIVE FAN
The 3D Active Fan provides semi-passive cooling, and the fans will remain off when the GPU is in a low load or low power game.
UNIQUE BLADE FAN
The airflow is spilt by the triangular fan edge, and guided smoothly through the 3D stripe curve on the fan surface.
LARGE VAPOR CHAMBER & HEAT-PIPE
The large vapor chamber directly contacts the GPU, coupled with the composite heat pipes, which quickly transfers the heat of the GPU and VRAM to the heatsink.
SCREEN COOLING
Extended heatsink allows air to pass through, providing better heat dissipation.
RGB FUSION
The legendary three-ring lighting provides excellent visual enjoyment. You can choose any lighting effect or synchronize with other devices in GIGABYTE CONTROL CENTER .
ULTRA DURABLE
Ultra Durable certified highest-grade metal chokes, lower ESR solid capacitors, 2oz copper PCB, and lower RDS(on) MOSFETs, plus over-temperature design to deliver superior performance and longer system life.
FRIENDLY PCB DESIGN
Fully automated production process ensures top quality of the circuit boards and eliminates sharp protrusions of the solder connectors seen on the conventional PCB surface. This friendly design prevents your hands from getting cut or inadvertently damaging components when making your build.
!
Note: The 4090 Graphics Cards utilize the new 12VHPWR cable, there are some precautionary measures that users should be aware of when installing one of these new connectors (Learn More)
Specifications
Specifications
| Graphics Processing | GeForce RTX™ 4090 |
| Core Clock | 2535 MHz (Reference Card: 2520 MHz) |
| CUDA® Cores | 16384 |
| Memory Clock | 21 Gbps |
| Memory Size | 24 GB |
| Memory Type | GDDR6X |
| Memory Bus | 384 bit |
| Card Bus | PCI-E 4.0 x 16 |
| Digital max resolution | 7680x4320 |
| Multi-view | 4 |
| Card size | L=340 W=150.2 H=75.2 mm |
| PCB Form | ATX |
| DirectX | 12 Ultimate |
| OpenGL | 4.6 |
| Recommended PSU | 1000W |
| Power Connectors | 16 pin*1 |
| Output | DisplayPort 1.4a *3 HDMI 2.1a *1 |
| Accessories | 1. Quick guide 2. Warranty registration 3. Anti-sag bracket 4. Anti-sag bracket installation guide 5. One 16-pin to four 8-pin power adaptor |
