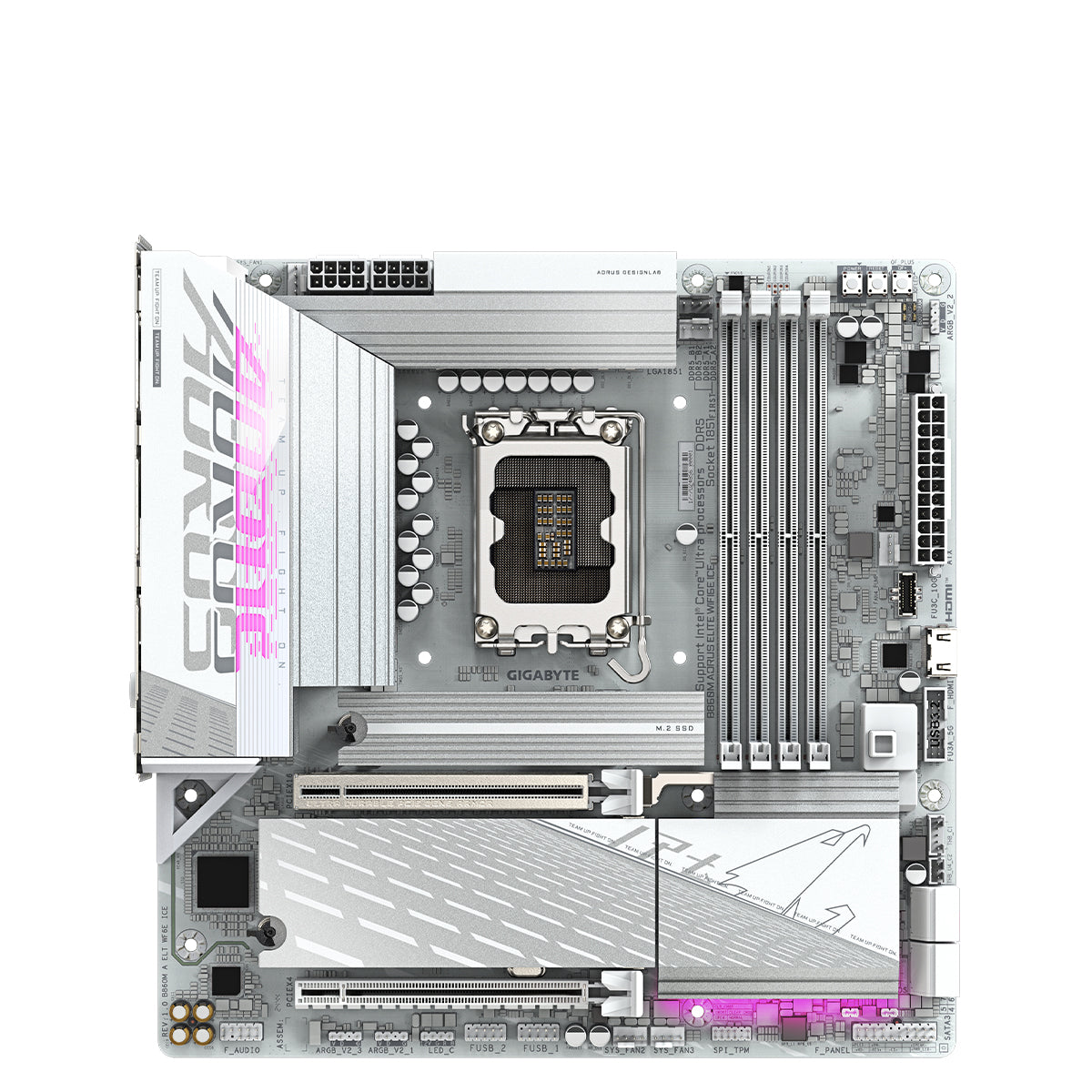

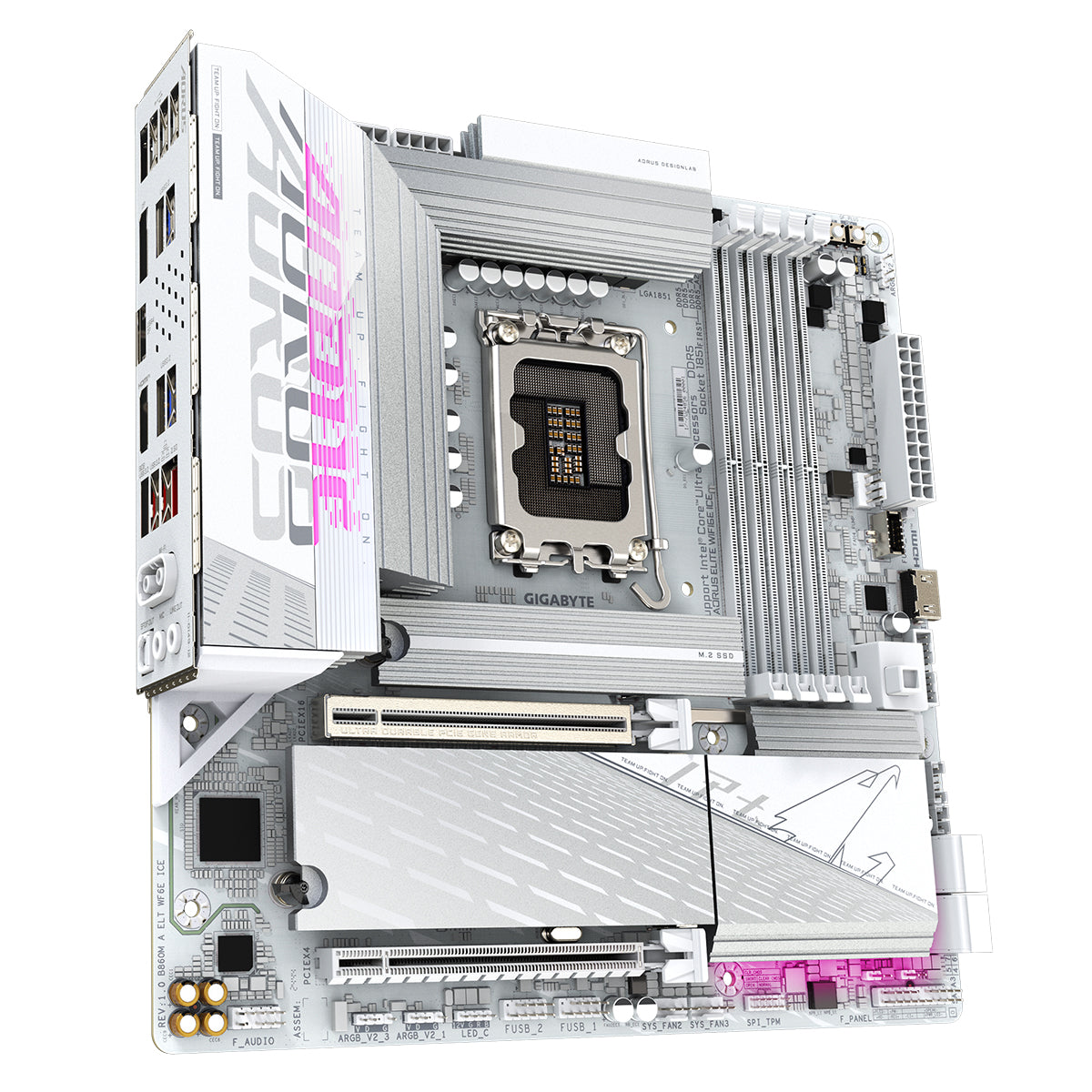

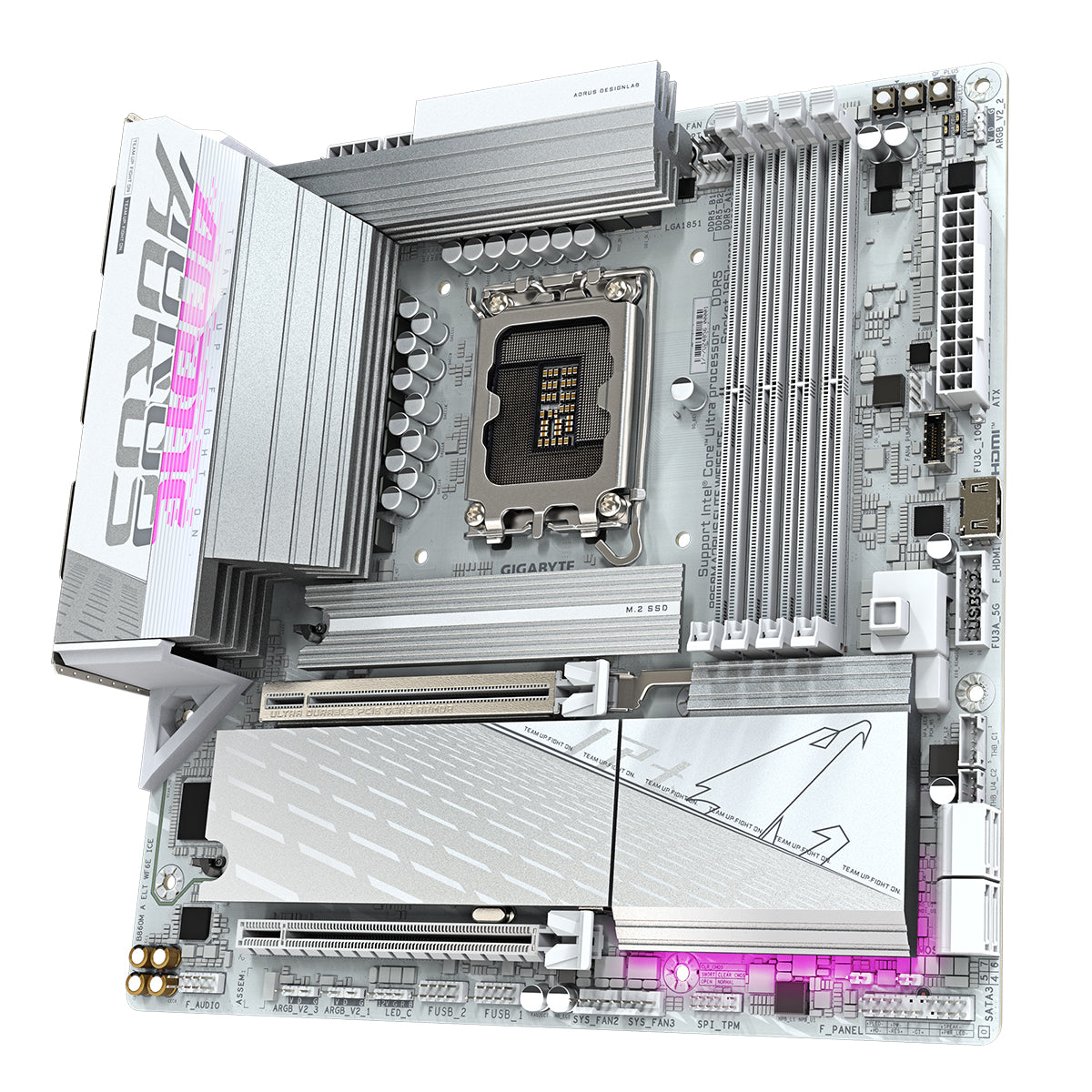

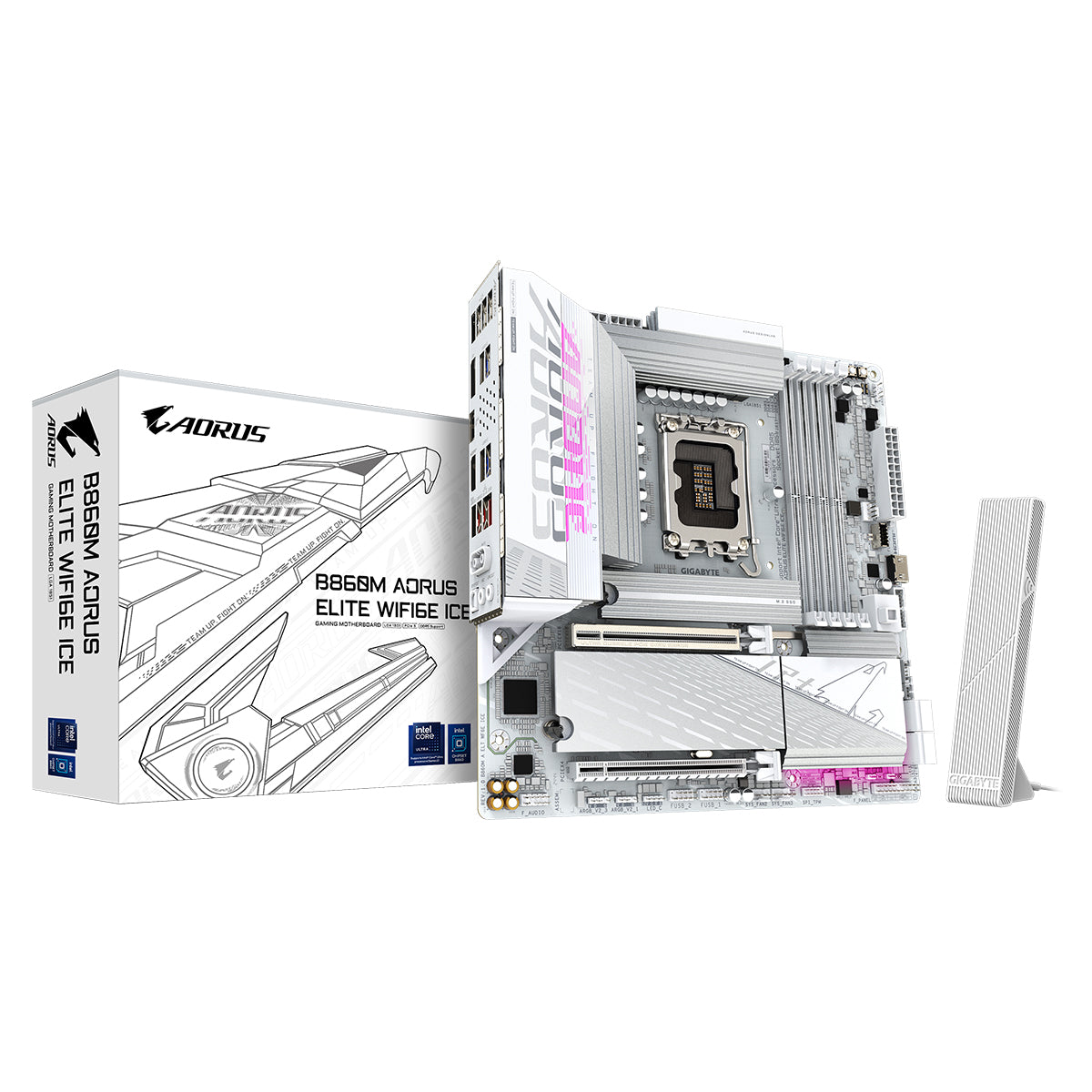

GIGABYTE B860M AORUS ELITE WIFI6E ICE mATX Motherboard

Gigabyte  |  SKU 71871  |  MPN B860M AORUS ELITE WIFI6E ICE
$479.00

Warranty and Support

Warranty: 3 Years Return to Base Warranty

Returns: 14-day hassle-free exchanges and store credits, subject to terms and conditions outlined in our Returns Policy.

Delivery and Shipping

All deliveries are signature required.

North Island: 1 – 2 working days
South Island: 2 – 3 working days

Please allow an additional 1 – 2 working days for delivery to rural addresses.

Buy Now, Pay Later & Finance Options:

Description

Key Features

  • Supports Intel® Core™ Ultra processors (Series 2)
  • Digital twin 12+1+2 phases VRM solution
  • Dual Channel DDR5: 4*DIMMs with XMP Memory Module Support
  • D5 Bionic Corsa for Infinite Memory Performance
  • AI Perfdrive: Provides optimal and customized BIOS preset profile for users
  • EZ-Latch Plus: PCIe and M.2 slots with Quick Release & Screwless Design
  • EZ-Latch Click: M.2 heatsinks with screwless design
  • Sensor Panel Link: Onboard video port for hassle-free in-chassis panel setup
  • Friendly UI: Multi-Theme, AIO Fan Control, and Q-Flash Auto Scan in BIOS and SW
  • Ultra-Fast Storage: 3*M.2 slots, including 1* PCIe 5.0 x4
  • Efficient Thermal: VRM Thermal Armor Advanced & M.2 Thermal Guard Ext.
  • Fast Networking: 2.5GbE LAN & Wi-Fi 6E with directional Ultra-high gain antenna
  • Extended Connectivity: USB4 Type-C with DP-Alt, HDMI, DisplayPort

Infinite Memory Performance

Elite motherboards boost DDR5 memory performance and offer top-notch compatibility using various advanced methods.

AI-Driven PCB Technology

AI-Driven PCB Technology employs AI algorithms to optimize vias, routing and stackups. It ensures peak performance and signal integrity across single and cross-layer throughout the design process.

Digital Twin VRM Design

Delivers consistent, high-powered performance to elevate your overclocking to the next level.

Comprehensive Thermal

Elite motherboards come with advanced full-metal thermal design and durable heatsinks to keep your system cool and efficient.

  • True one-piece heatsink design Multi-cut design with channels for improved airflow
  • 4X larger surface area for enhanced heat dissipation 5 W/mK thermal pad for efficient thermal conductivity

M.2 Thermal Guard

The M.2 Thermal Guard prevents throttling and bottlenecks from high speed M.2 SSDs as it helps to dissipate heat before it becomes an issue.

Smart Fan 6

Superior cooling performance and whisper-quiet operation for your gaming rig.

Hassle-free Assembly

Our cutting-edge motherboard is designed for the ultimate DIY experience. Creating your own PC becomes a delightful and smooth process.

Future Connectivity

Experience ultimate connectivity with next-generation network, storage, and Wi-Fi solutions, delivering lightning-fast data transfer speeds.

40Gbps USB4 with DP-Alt

The latest USB4 Type-C ports provide blistering fast and reliable transfer speed up to 40 Gbps. Featuring extensive compatibility, efficient charging, and ultra-HD displayport connectivity, USB4 is beneficial to video editing, large file transfers, and data-intensive tasks.

802.11ax Wi-Fi 6E

The latest Wireless solution 802.11ax Wi-Fi 6E with new dedicated 6GHz band, enables gigabit wireless performance, provides smooth video streaming, better gaming experience, few dropped connections and speeds up to 2.4Gbps. Moreover, Bluetooth 5 provides 4X range over BT 4.2 and with faster transmission.

Hi-Fi Audio

  • High-End Audio Capacitors These high quality capacitors help deliver high resolution and high fidelity audio to provide the most realistic sound effects.
  • Audio Noise Guard Essentially separates the board's sensitive analog audio components from potential noise pollution at the PCB level.

Born from Ultra Durable™

Technology embodies our commitment to excellence, providing gamers with a platform that's not only powerful but also built for longevity and reliability. AORUS series motherboards are engineered to endure and excel.

Specifications

CPU LGA1851 socket: Support for Intel ® Core™ Ultra Processors
(Go to GIGABYTE's website for the latest CPU support list.)
L3 cache varies with CPU
Chipset Intel ® B860 Express Chipset
Memory Support for DDR5 9200(O.C) / 8800(O.C) / 8600(O.C) / 8400(O.C) / 8266(O.C) / 8200(O.C) / 8000(O.C) / 7950(O.C) / 7900(O.C) / 7800(O.C) / 7600(O.C.) / 7400(O.C.) / 7200(O.C.) / 7000(O.C.) / 6800(O.C.) / 6600(O.C.) / 6400 / 5600 MT/s memory modules
4 x DDR5 DIMM sockets supporting up to 256 GB (64 GB single DIMM capacity) of system memory
Dual channel memory architecture
Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
Support for Extreme Memory Profile (XMP) memory modules
(The CPU and memory configuration may affect the supported memory types, data rate (speed), and number of DRAM modules, please refer to "Memory Support List" on GIGABYTE's website for more information.)
Onboard Graphics Integrated Graphics Processor-Intel® HD Graphics support:
1 x USB4® USB Type-C® port, supporting USB4 and DisplayPort video outputs and a maximum resolution of 3840x2160@144 Hz
Support for DisplayPort 2.1 version
1 x DisplayPort, supporting a maximum resolution of 3840x2160@144 Hz
1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz
Support for HDMI 2.1 version and HDCP 2.3
1 x front HDMI port, supporting a maximum resolution of 1920x1080@30 Hz
Support for up to quad-display at the same time
Audio Realtek® Audio CODEC
High Definition Audio
2/4/5.1/7.1-channel
You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.
Support for S/PDIF Out
LAN Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
Wireless Communication module Intel® Wi-Fi 6E AX211 (PCB rev. 1.0)
WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands
BLUETOOTH 5.3
Support for 11ax 160MHz wireless standard
Realtek® Wi-Fi 6E RTL8852CE (PCB rev. 1.1)
WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands
BLUETOOTH 5.3
Support for 11ax 160MHz wireless standard
(Actual data rate may vary depending on environment and equipment.)
Expansion Slots 1 x PCI Express x16 slot, supporting PCIe 5.0 and running at x16 (PCIEX16)
The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot.
1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x4 (PCIEX4)
Storage Interface 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 5.0 x4/x2 SSD support)(M2A_CPU)
1 x M.2 connector (Socket 3, M key, type 2580/2280 PCIe 4.0 x4/x2 SSD support) (M2Q_SB)
1 x M.2 connector (Socket 3, M key, type 25110/22110/2580/2280 PCIe 4.0x4/x2 SSD support) (M2N_SB)
4 x SATA 6Gb/s connectors
RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices
USB 1 x USB4® USB Type-C® port on the back panel
1 x USB Type-C® port with USB 3.2 Gen 2 support, available through the internal USB header
2 x USB 3.2 Gen 2 Type-A ports (red) on the back panel
2 x USB 3.2 Gen 1 ports available through the internal USB header
4 x USB 3.2 Gen 1 ports on the back panel
8 x USB 2.0/1.1 ports (4 ports on the back panel, 4 ports available through the internal USB headers)
Internal I/O Connectors 1 x 24-pin ATX main power connector
2 x 8-pin ATX 12V power connectors
1 x CPU fan header
1 x CPU fan/water cooling pump header
3 x system fan headers
3 x M.2 Socket 3 connectors
1 x front panel header
1 x USB Type-C® header, with USB 3.2 Gen 2 support
1 x USB 3.2 Gen 1 header
2 x USB 2.0/1.1 headers
1 x HDMI port*

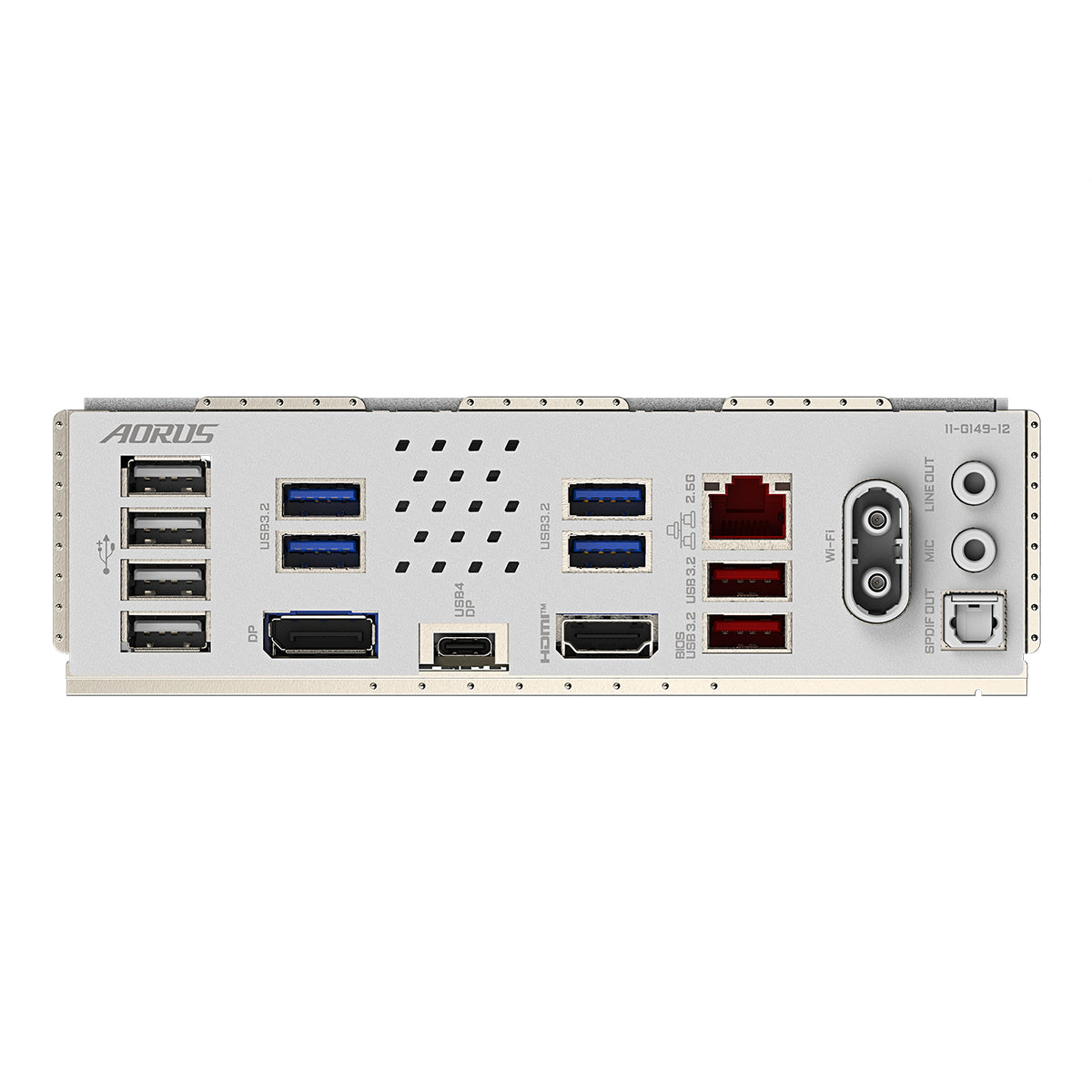

Back Panel Connectors 4 x USB 2.0/1.1 ports
4 x USB 3.2 Gen 1 ports
1 x DisplayPort*
1 x USB4® USB Type-C® port (DisplayPort*)
1 x HDMI port*
1 x RJ-45 port
