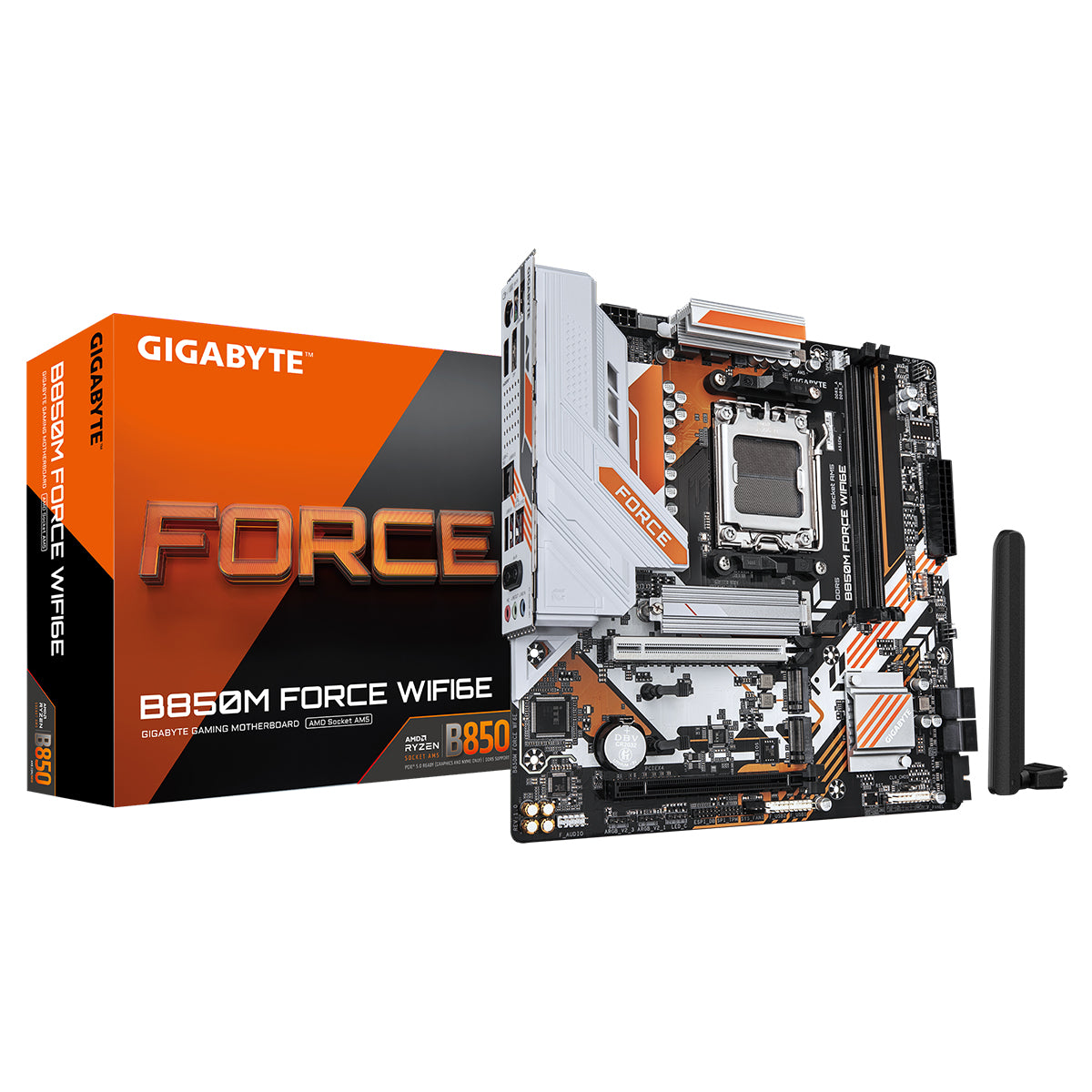

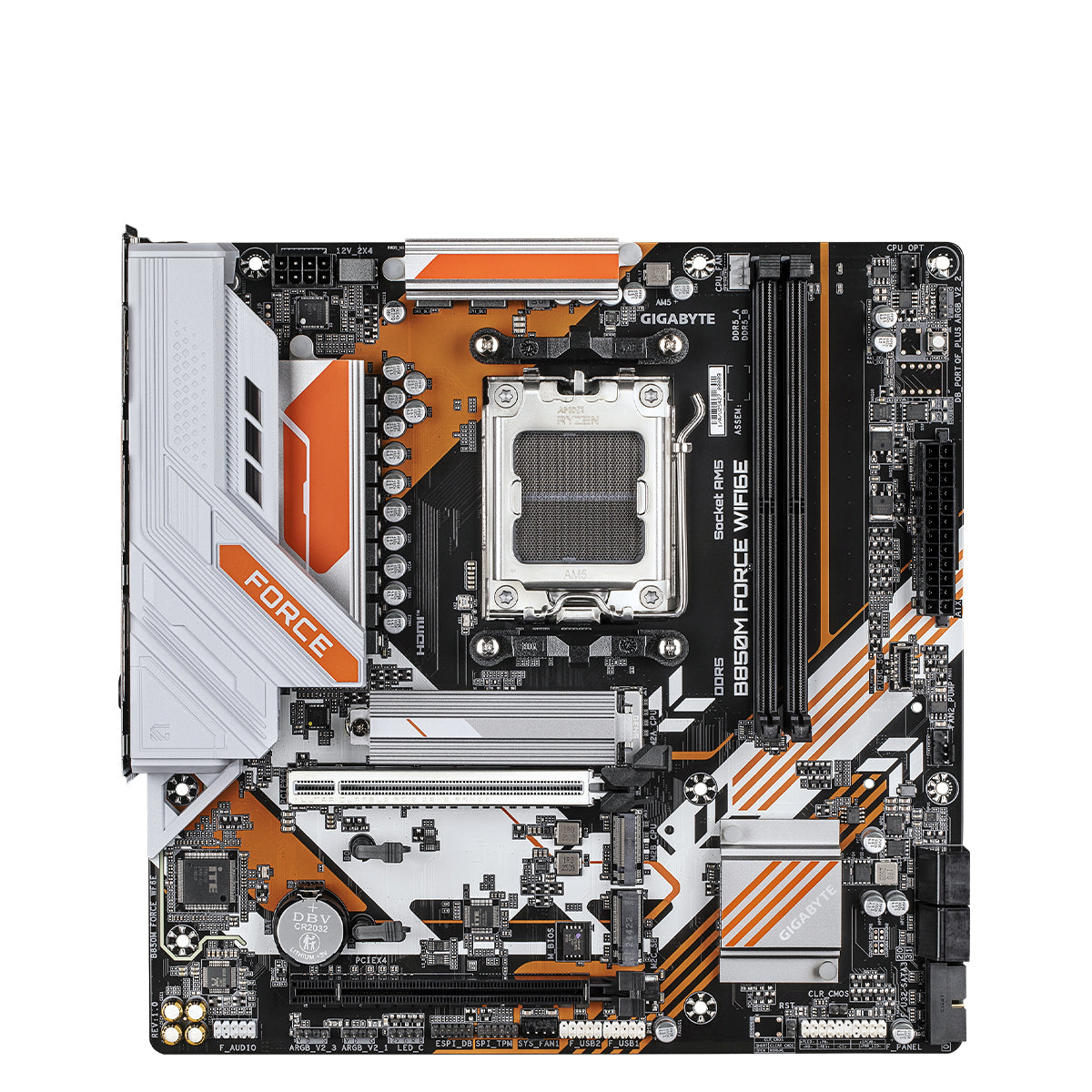

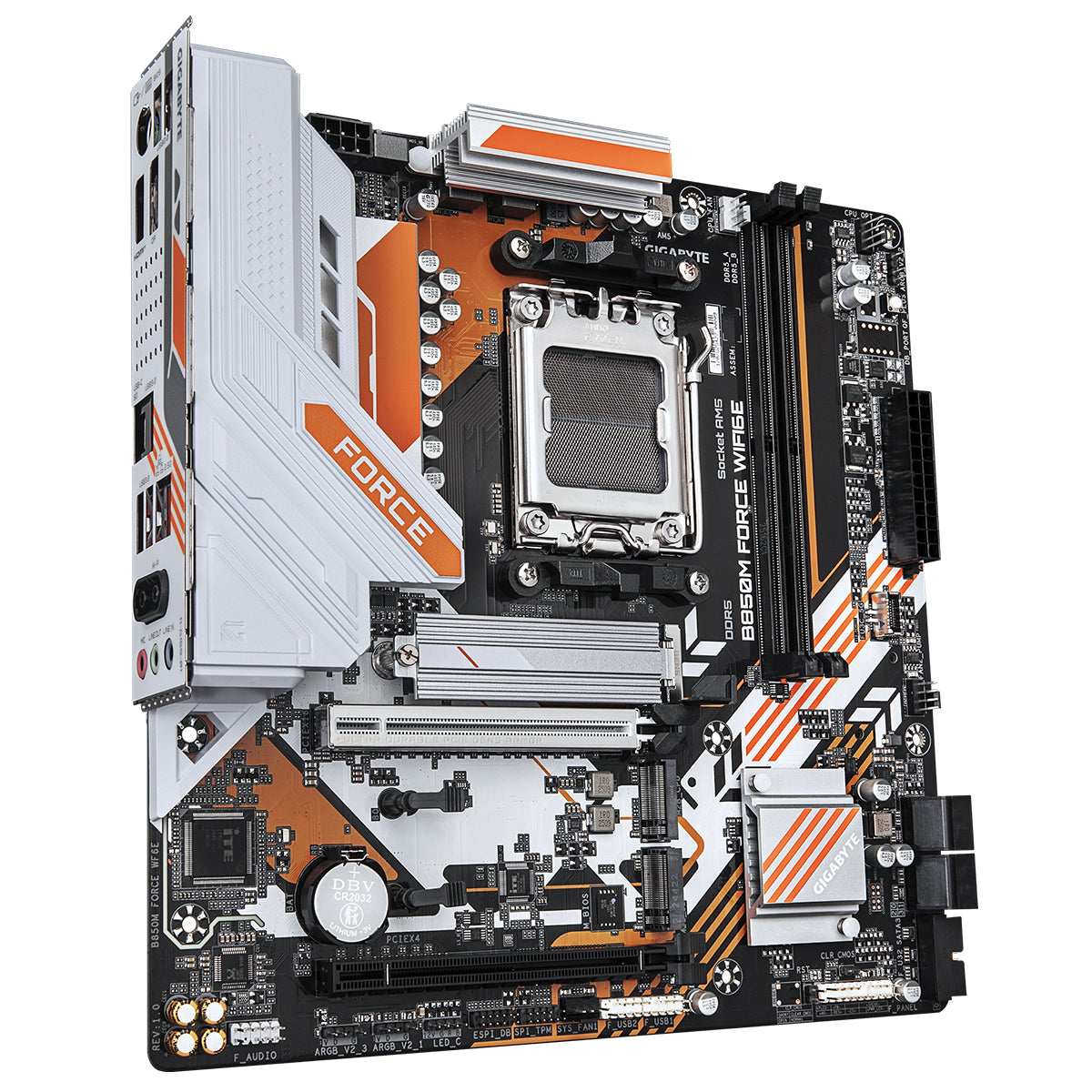

Gigabyte B850M FORCE WIFI6E mATX Motherboard

Gigabyte  |  SKU 83858  |  MPN B850M FORCE WIFI6E
$286.00

Warranty and Support

Warranty: 3 Years Return to Base Warranty

Returns: 14-day hassle-free exchanges and store credits, subject to terms and conditions outlined in our Returns Policy.

Delivery and Shipping

All deliveries are signature required.

North Island: 1 – 2 working days
South Island: 2 – 3 working days

Please allow an additional 1 – 2 working days for delivery to rural addresses.

Buy Now, Pay Later & Finance Options:

Description

Key Features

  • X3D Turbo Mode to unleash new era gaming performance
  • AMD Socket AM5 : Supports AMD Ryzen™ 9000/8000/ 7000 Series Processors
  • Digital 8+2+2 phases VRM solution
  • Dual Channel DDR5 : 2*DIMMs with AMD EXPO™Memory Module Support
  • WIFI EZ-Plug : Quick and easy design for Wi-Fi antenna installation
  • EZ-Latch : PCIe x16 Slot with Quick Release Design
  • Friendly UI : Multi-Theme, AIO Fan Control, and Q-Flash Auto Scan in BIOS and SW.
  • Ultra-Fast Storage : 3*M.2 slots, including 1* PCIe 5.0 x4
  • Fast Networking : 802.11ax Wi-Fi6E and 2.5GbE LAN
  • Extended Connectivity : DP, HDMI



Specifications

CPU AMD Socket AM5, support for:
AMD Ryzen™ 9000 Series Processors /
AMD Ryzen™ 8000 Series Processors /
AMD Ryzen™ 7000 Series Processors
(Go to GIGABYTE's website for the latest CPU support list.)
Chipset AMD B850
Memory Support for DDR5 9600(OC)/ 9200(OC)/ 8800(OC)/ 8600(OC)/ 8400(OC)/ 8200(OC)/ 8000(OC)/ 7800(OC)/ 7600(OC)/ 7200(OC)/ 7000(OC)/ 6800(OC)/ 6666(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5600(OC)/ 5200/ 4800/ 4400 MT/s memory modules

2 x DDR5 DIMM sockets supporting up to 128 GB (64 GB single DIMM capacity)

Dual channel memory architecture

Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 modules

Support for AMD EXPO™ and XMP memory modules

(The CPU and memory configuration may affect supported memory types, data rate, and DRAM modules. See GIGABYTE's website for more info.)
Onboard Graphics Integrated Graphics Processor with AMD Radeon™ Graphics support:

- 1 x HDMI port, max resolution 4096x2160@60 Hz
* Supports HDMI 2.1, HDCP 2.3, HDR
** Native HDMI 2.1 TMDS compatible

- 1 x DisplayPort, max resolution 3840x2160@144 Hz
* Supports DisplayPort 1.4

(Graphics specs may vary by CPU. Supports up to dual-display.)
Audio Realtek® Audio CODEC
High Definition Audio
2/4/5.1/7.1-channel
* Audio jack functionality configurable via software.
LAN Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
Wireless MediaTek Wi-Fi 6E MT7902
- WIFI a/b/g/n/ac/ax, 2.4/5/6 GHz bands
- BLUETOOTH 5.3
- 11ax 160MHz support
(Actual data rate may vary by environment.)
Expansion Slots 1 x PCI Express x16 slot (PCIEX16) from CPU:
- Ryzen™ 9000/7000: PCIe 5.0 x16
- Ryzen™ 8000 Phoenix 1: PCIe 4.0 x8
- Ryzen™ 8000 Phoenix 2: PCIe 4.0 x4
* Slot supports either GPU or NVMe SSD only

Chipset:
- 1 x PCI Express x16 slot (PCIEX4), PCIe 4.0 x4
Storage 1 x M.2 (M2A_CPU), Socket 3, M key, type 2280 SSDs:
- Ryzen™ 9000/7000: PCIe 5.0 x4/x2
- Ryzen™ 8000 Phoenix 1: PCIe 4.0 x4/x2
- Ryzen™ 8000 Phoenix 2: PCIe 4.0 x4/x2

1 x M.2 (M2B_CPU), Socket 3, M key, type 2280 SSDs:
- Ryzen™ 9000/7000: PCIe 4.0 x4/x2
- Ryzen™ 8000 Phoenix 1: PCIe 4.0 x4/x2
- Ryzen™ 8000 Phoenix 2: PCIe 4.0 x2

1 x M.2 (M2C_SB), Chipset, Socket 3, M key, type 2280 PCIe 4.0 x2 SSDs

4 x SATA 6Gb/s connectors

NVMe RAID 0/1/5/10 (RAID 5 only with Ryzen™ 9000)
SATA RAID 0/1/10
USB CPU:
- 1 x USB Type-C® (rear, USB 3.2 Gen 1)
- 1 x USB 3.2 Gen 2 Type-A (red, rear)
- 1 x USB 2.0/1.1 (rear)

Chipset:
- 1 x USB Type-C® (internal, USB 3.2 Gen 1)
- 4 x USB 3.2 Gen 1 (2 rear, 2 internal)
- 5 x USB 2.0/1.1 (1 rear, 4 internal)
Internal I/O 1 x 24-pin ATX main power
1 x 8-pin ATX 12V
1 x CPU fan header
1 x CPU fan/water pump header
1 x system fan header
1 x system fan/water pump header
3 x ARGB Gen2 headers
1 x RGB header
3 x M.2 sockets
4 x SATA 6Gb/s
1 x front panel header
1 x front panel audio
1 x USB Type-C® (USB 3.2 Gen 1)
1 x USB 3.2 Gen 1 header
2 x USB 2.0 headers
1 x TPM header
1 x reset jumper
1 x Clear CMOS jumper
1 x Q-Flash Plus button

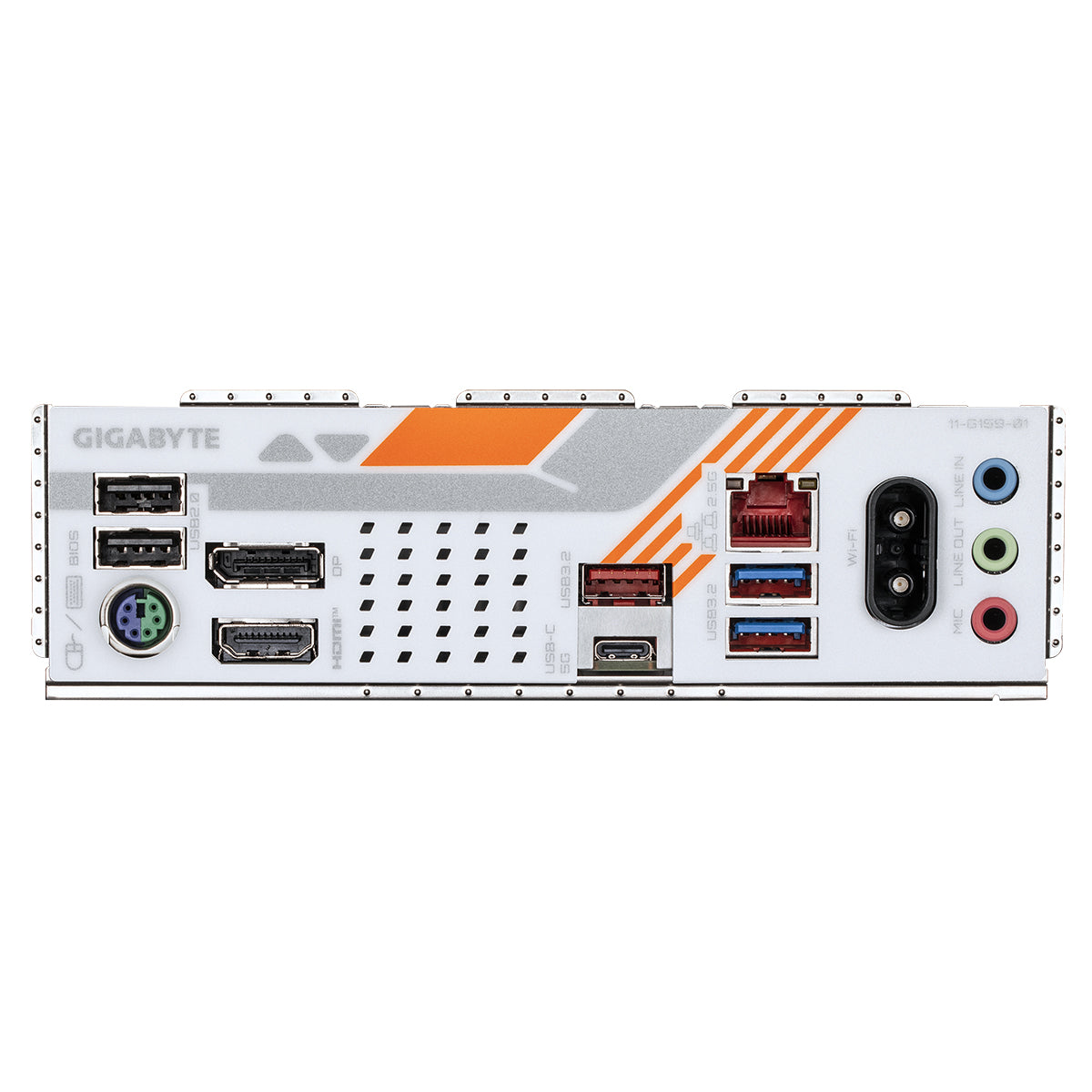

Back Panel 1 x HDMI port
1 x DisplayPort
1 x PS/2 keyboard/mouse
1 x USB Type-C® (USB 3.2 Gen 1)
2 x USB 3.2 Gen 1
1 x USB 3.2 Gen 2 Type-A (red)
2 x USB 2.0/1.1
1 x RJ-45
2 x antenna connectors (1T1R)
3 x audio jacks
I/O Controller iTE® I/O Controller Chip
H/W Monitoring Voltage detection
Temperature detection
Fan speed detection
Water cooling flow rate detection
Fan fail warning
Fan speed control
* Support depends on installed fan/pump.
BIOS 1 x 256 Mbit flash
Licensed AMI UEFI BIOS
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Unique Features Support for GIGABYTE Control Center (GCC)
Support for Q-Flash
Support for Q-Flash Plus
Support for Smart Backup
Bundled Software Norton® Internet Security (OEM version)
Operating System Windows 11 64-bit
Windows 10 64-bit
Form Factor Micro ATX; 24.4cm x 24.4cm
