Gigabyte B850M EAGLE WIFI6E mATX Motherboard
Gigabyte
| SKU
83855
$339.00
Unit price
/
Unavailable
Warranty and Support
Warranty and Support
Warranty: 3 Years Return to Base Warranty
Returns: 14-day hassle-free exchanges and store credits, subject to terms and conditions outlined in our Returns Policy.
Delivery and Shipping
Delivery and Shipping
All deliveries are signature required.
North Island: 1 – 2 working days
South Island: 2 – 3 working days
Please allow an additional 1 – 2 working days for delivery to rural addresses.
Buy Now, Pay Later & Finance Options:
Description
Description
Key Features
- X3D Turbo Mode: Unleash new era gaming performance
- DDR5 OC up to 8200MT/s
- AMD Socket AM5: Supports AMD Ryzen™ 9000 / 8000 / 7000 Series Processors
- Digital twin 8+2+2 phases VRM solution
- Dual Channel DDR5: 4*DIMMs with AMD EXPO™ Memory Module Support
- WIFI EZ-Plug: Quick and easy design for Wi-Fi antenna installation
- EZ-Latch Plus: PCIe and M.2 slots with Quick Release & Screwless Design
- EZ-Latch Click: M.2 heatsinks with screwless design
- Ultra-Fast Storage: 2*M.2 slots, including PCIe 5.0 x4
- Efficient Thermal: VRM Thermal Armor Advanced & M.2 Thermal Guard
- Fast Networking: 2.5 GbE LAN & Wi-Fi 6E with directional Ultra-high gain antenna
- Extended Connectivity: HDMI, 2*DisplayPort
- PCIe UD Slot: SMD PCIe 5.0 Armor for enhanced graphics card support
Specifications
Specifications
| CPU | AMD Socket AM5, supports AMD Ryzen™ 9000/8000/7000 Series Processors (check GIGABYTE website for latest support list) |
| Chipset | AMD B850 |
| Memory | 4 x DDR5 DIMM sockets up to 256 GB (64 GB per DIMM), DDR5 8200(O.C)–4400 MT/s, Dual channel, Non-ECC, Supports AMD EXPO™ and XMP |
| Onboard Graphics | Integrated AMD Radeon™ Graphics, 1 x HDMI (4096x2160@60Hz, HDMI 2.1/HDCP 2.3/HDR), 2 x DisplayPorts (3840x2160@144Hz, DP 1.4), Supports triple-display |
| Audio | Realtek® Audio CODEC, High Definition Audio, 2/4/5.1/7.1-channel, Configurable via software |
| LAN | Realtek® 2.5GbE LAN chip (2.5/1/0.1 Gbps) |
| Wireless | Realtek® Wi-Fi 6E RTL8852CE, 2.4/5/6 GHz, Bluetooth 5.3, Supports 11ax 160MHz |
| Expansion Slots |
1 x PCIe x16 (CPU), PCIe 5.0/4.0 depending on CPU 1 x PCIe x16 (Chipset), PCIe 3.0 x4 |
| Storage Interface |
M2A_CPU & M2B_CPU (CPU), M2C_SB (Chipset), PCIe 4.0/5.0 depending on CPU 4 x SATA 6Gb/s RAID 0, 1, 5 (9000 CPU only), 10 support |
| USB |
CPU: 1 x USB-C 3.2 Gen2, 1 x USB-A 3.2 Gen2 (red), 4 x USB 2.0/1.1 Chipset: 1 x USB-C 3.2 Gen2 (internal header), 4 x USB-A 3.2 Gen1, 4 x USB 2.0/1.1 (internal headers) |
| Internal I/O | 24-pin ATX, 8-pin ATX 12V, CPU/system fan headers, RGB headers, M.2 & SATA connectors, USB headers, TPM header, Reset/Clear CMOS jumpers/buttons |

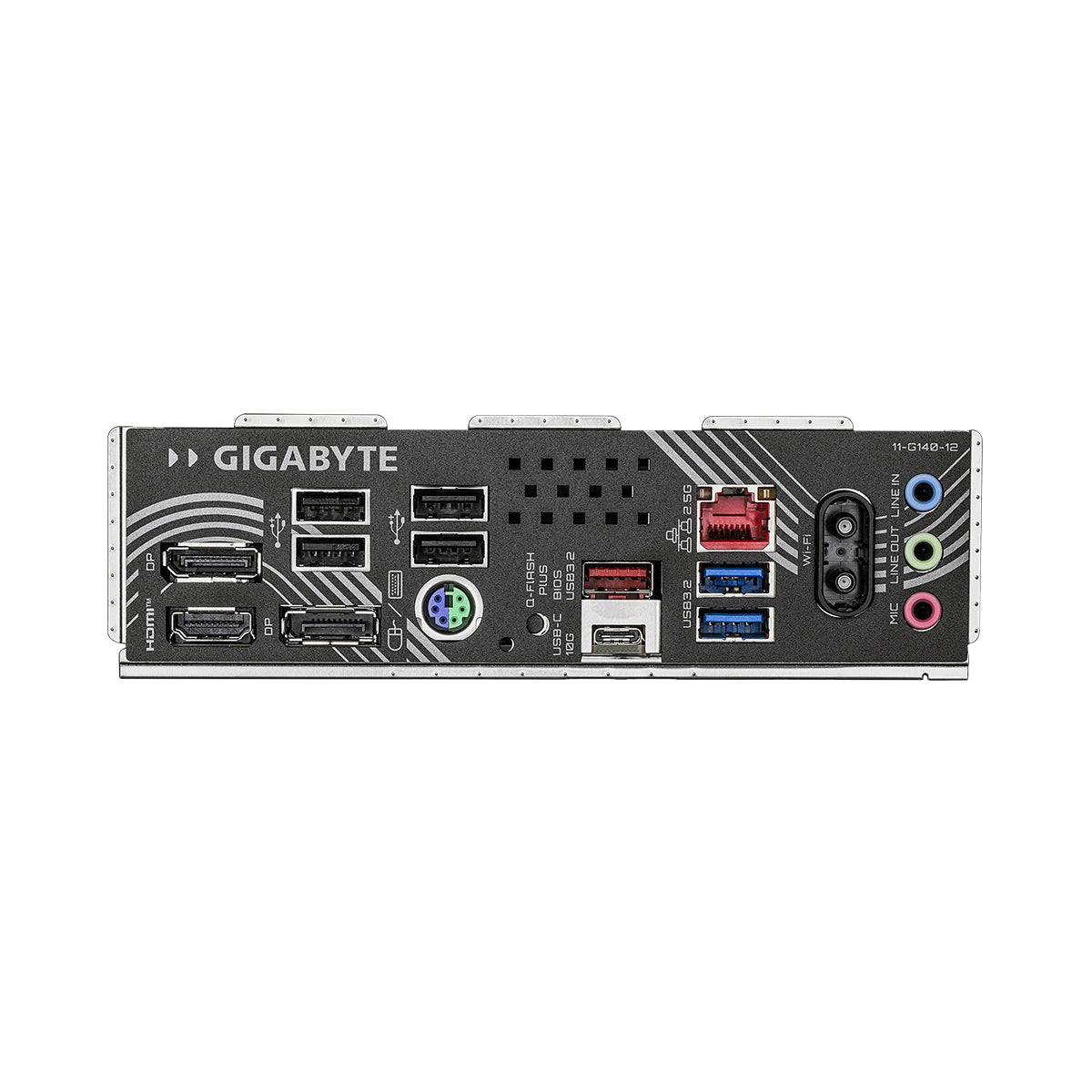

| Back Panel Connectors | 1 x HDMI, 2 x DisplayPort, Q-Flash Plus button, PS/2 port, 1 x USB-A 3.2 Gen2 (red), 1 x USB-C 3.2 Gen2, 2 x USB-A 3.2 Gen1, 4 x USB 2.0/1.1, RJ-45, 2 x antenna connectors, 3 x audio jacks |
| I/O Controller | iTE® I/O Controller Chip |
| H/W Monitoring | Voltage, Temperature, Fan speed, Water cooling flow, Fan fail warning, Fan speed control |
| BIOS | 1 x 256 Mbit flash, AMI UEFI BIOS, PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
| Unique Features | GIGABYTE Control Center, Q-Flash, Q-Flash Plus, Smart Backup |
| Bundled Software | Norton® Internet Security (OEM), LAN bandwidth management software |
| Operating System | Windows 11 64-bit, Windows 10 64-bit |
| Form Factor | Micro ATX; 24.4cm x 24.4cm |
