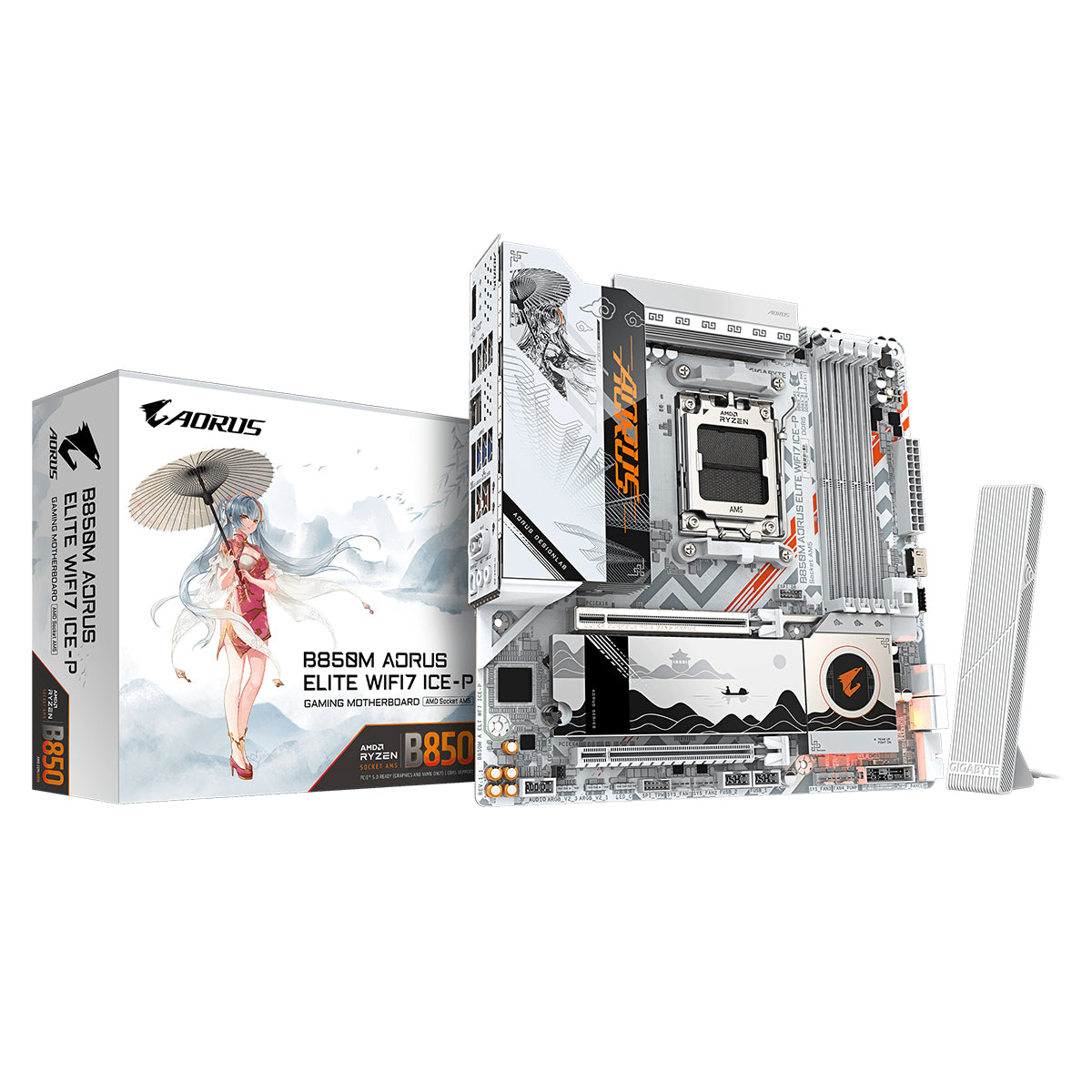

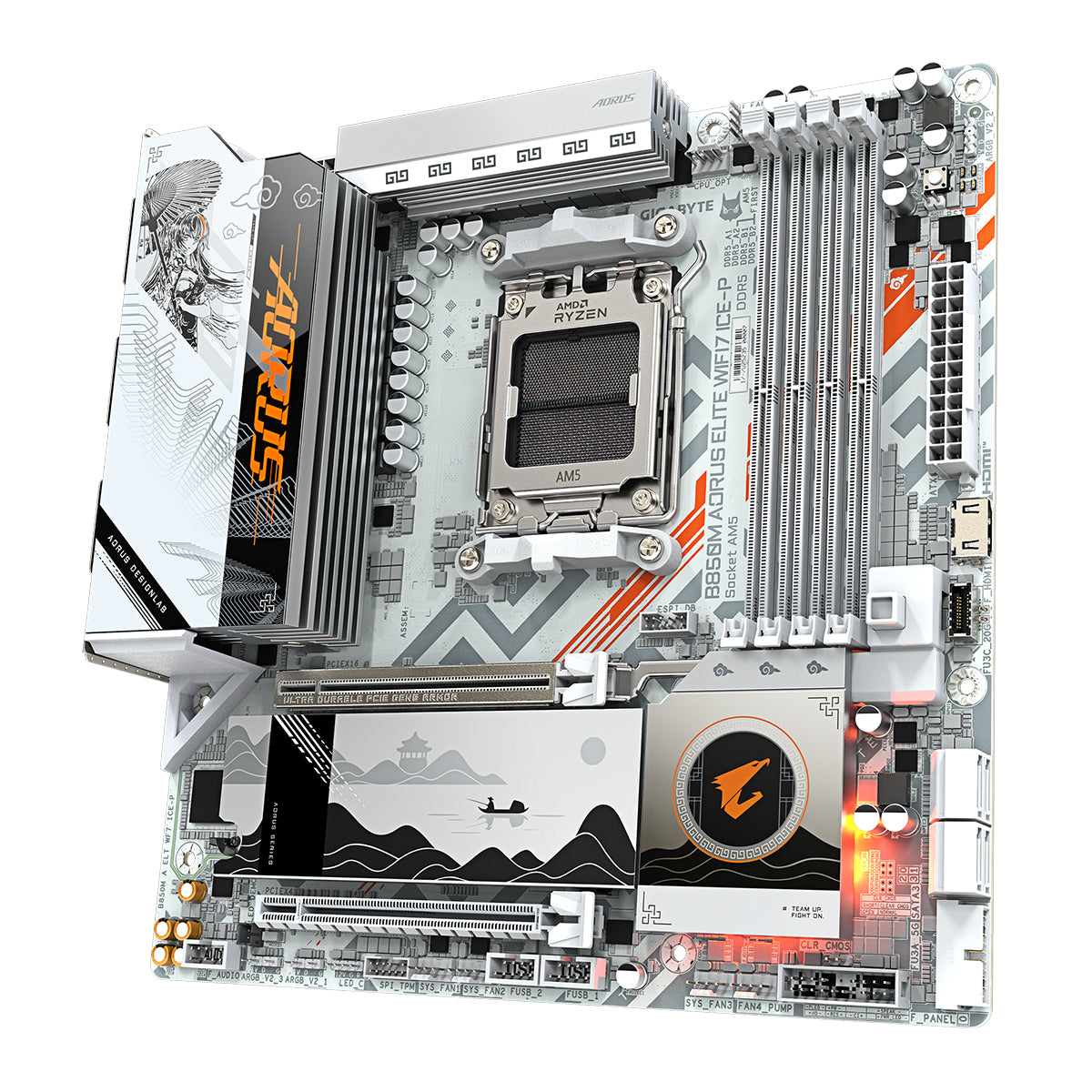

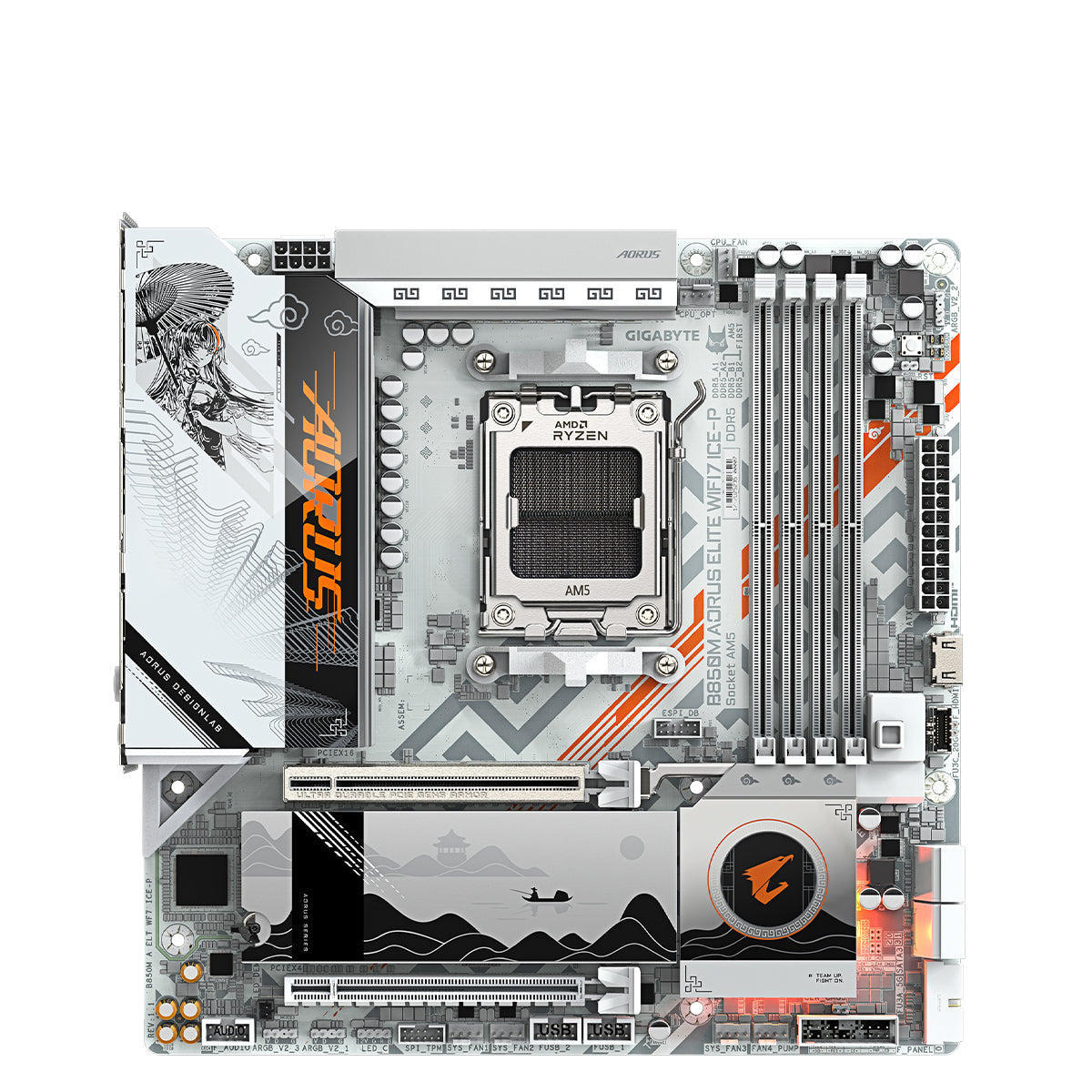

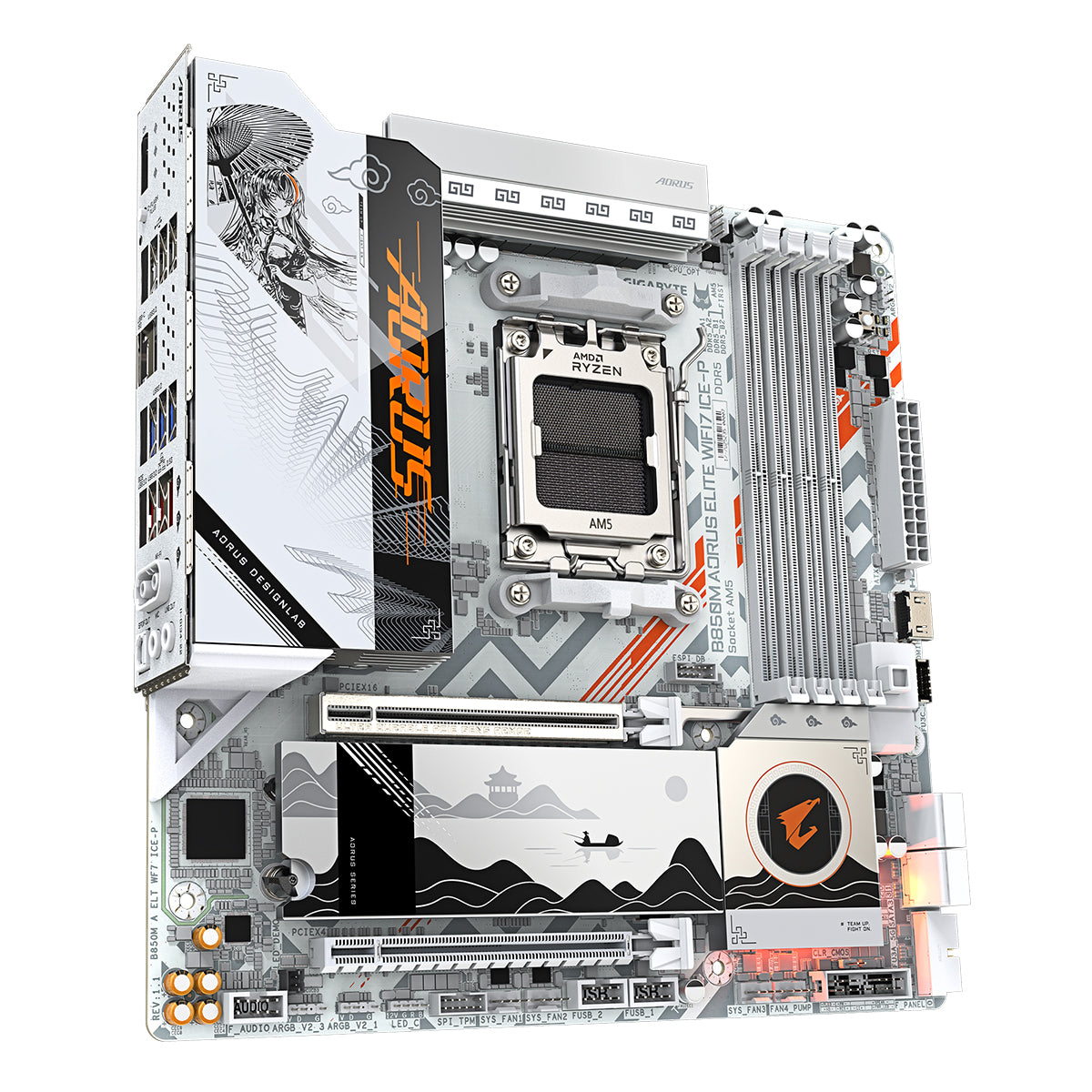

Gigabyte B850M AORUS ELITE WIFI7 ICE-P mATX Motherboard
Gigabyte
| SKU
87385
New Arrivals
$529.00
Unit price
/
Unavailable
Warranty and Support
Warranty and Support
Warranty: 3 Years Return to Base Warranty
Returns: 14-day hassle-free exchanges and store credits, subject to terms and conditions outlined in our Returns Policy.
Delivery and Shipping
Delivery and Shipping
All deliveries are signature required.
North Island: 1 – 2 working days
South Island: 2 – 3 working days
Please allow an additional 1 – 2 working days for delivery to rural addresses.
Buy Now, Pay Later & Finance Options:
Description
Description
B850M AORUS ELITE WIFI7 ICE-P Features
- X3D Turbo Mode : Unleash new era gaming performance
- DDR5 OC up to 8200MT/s
- AMD Socket AM5 : Supports AMD Ryzen™ 9000 / 8000 / 7000 Series Processors
- Digital twin 12+2+2 phases VRM solution
- Dual Channel DDR5 : 4*DIMMs with AMD EXPO™Memory Module Support
- WIFI EZ-Plug : Quick and easy design for Wi-Fi antenna installation
- EZ-Latch Plus : PCIe and M.2 slots with Quick Release & Screwless Design
- EZ-Latch Click : M.2 heatsinks with screwless design
- Sensor Panel Link : Onboard video port for hassle-free in-chassis panel setup
- Friendly UI : Multi-Theme, AIO Fan Control, and Q-Flash Auto Scan in BIOS and SW.
- Ultra-Fast Storage : 2*M.2 slots, including PCIe 5.0 x4
- Efficient Thermal : VRM Thermal Armor Advanced & M.2 Thermal Guard Ext.
- Fast Networking : 2.5GbE LAN & Wi-Fi 7 with directional Ultra-high gain antenna
- Extended Connectivity : HDMI,Displayport
- PCIe UD Slot : PCIe 5.0 x16 slots with 10X strength for graphics card & Better Heat dissipation effect
Specifications
Specifications
| CPU | AMD Socket AM5, support for AMD Ryzen™ 9000/8000/7000 Series Processors (Check GIGABYTE website for latest CPU support list) |
| Chipset | AMD B850 |
| Memory | Support for DDR5 8200(O.C) / 8000(O.C) / 7950(O.C) / 7900(O.C) / 7800(O.C) / 7600(O.C.) / 7400(O.C.) / 7200(O.C.) / 7000(O.C.) / 6800(O.C.) / 6600(O.C.) / 6400(O.C) / 6200(O.C) / 6000(O.C) / 5800(O.C) / 5600(O.C) / 5200/4800 MT/s 4 x DDR5 DIMM sockets supporting up to 256 GB (64 GB single DIMM capacity) Dual channel memory architecture Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for AMD EXPO™ and XMP memory modules |
| Onboard Graphics | Integrated Graphics Processor with AMD Radeon™ Graphics support: 1 x DisplayPort, max resolution 3840x2160@144Hz, supports DisplayPort 1.4 & HDR 1 x front HDMI port, max resolution 1920x1080@30Hz, supports HDMI 1.4 |
| Audio | Realtek® ALC1220 CODEC High Definition Audio: 2/4/5.1/7.1-channel Support for S/PDIF Out Back panel line out supports DSD audio |
| LAN | Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps) |
| Wireless LAN & Bluetooth | Realtek® Wi-Fi 7 RTL8922AE Supports 802.11 a/b/g/n/ac/ax/be, 2.4/5/6 GHz bands Bluetooth 5.4 Supports 11be 160MHz wireless standard * Wi-Fi 7 requires Windows 11 SV3. 6 GHz band availability depends on local regulations. |
| Expansion Slots | CPU: 1 x PCI Express x16 (PCIEX16) - Ryzen™ 9000/7000: PCIe 5.0 x16 - Ryzen™ 8000 Phoenix 1: PCIe 4.0 x8 - Ryzen™ 8000 Phoenix 2: PCIe 4.0 x4 Chipset: 1 x PCI Express x16, PCIe 3.0 x4 (PCIEX4) |
| Storage Interface | 1 x M.2 (M2A_CPU), PCIe 5.0/4.0 x4/x2 SSDs depending on CPU 1 x M.2 (M2B_CPU), PCIe 4.0 x4/x2 SSDs depending on CPU 4 x SATA 6Gb/s connectors RAID: 0, 1, 5, 10 support for NVMe SSDs (*RAID 5 only on Ryzen™ 9000) RAID: 0, 1, 10 support for SATA devices |
| USB | CPU: 1 x USB Type-C® (USB 3.2 Gen 2) 2 x USB 3.2 Gen 2 Type-A (red) CPU+USB 2.0 Hub: 4 x USB 2.0/1.1 Chipset+USB 3.2 Gen 1 Hub: 4 x USB 3.2 Gen 1 Chipset: 1 x USB Type-C® (USB 3.2 Gen 2x2, internal) 3 x USB 3.2 Gen 1 (1 rear, 2 internal) 4 x USB 2.0/1.1 internal |
| Internal I/O Connectors | 1 x 24-pin ATX power 1 x 8-pin ATX 12V power 1 x CPU fan header 1 x CPU fan/water pump header 3 x system fan headers 1 x system fan/water pump header 3 x addressable RGB Gen2 LED headers 1 x RGB LED header 2 x M.2 Socket 3 4 x SATA 6Gb/s 1 x front panel header 1 x front panel audio header 1 x USB Type-C® header (USB 3.2 Gen 2x2) 1 x USB 3.2 Gen 1 header 2 x USB 2.0/1.1 headers 1 x TPM header 1 x HDMI port (Note) 1 x reset button 1 x reset jumper 1 x Clear CMOS jumper |

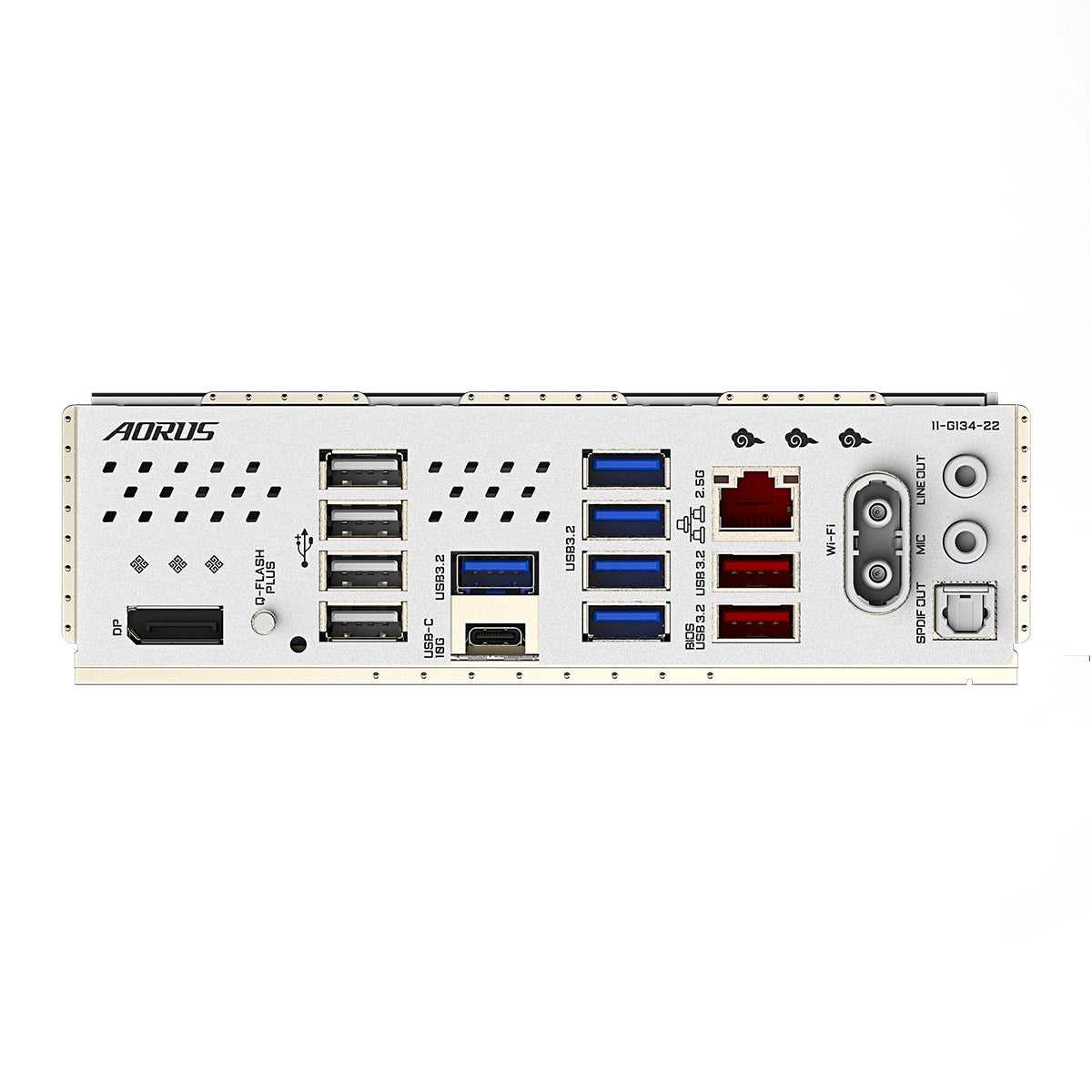

| Back Panel Connectors | 1 x DisplayPort (Note) 1 x Q-Flash Plus button 4 x USB 2.0/1.1 5 x USB 3.2 Gen 1 2 x USB 3.2 Gen 2 Type-A (red) 1 x USB Type-C® (USB 3.2 Gen 2) 1 x RJ-45 2 x antenna connectors (2T2R) 2 x audio jacks 1 x optical S/PDIF Out |
| I/O Controller | iTE® I/O Controller Chip |
| H/W Monitoring | Voltage detection Temperature detection Fan speed detection Water cooling flow rate detection Fan fail warning Fan speed control (*depends on installed fan/pump) |
| BIOS | 1 x 256 Mbit flash, AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SMBIOS 2.7, ACPI 5.0 |
| Unique Features | GIGABYTE Control Center (GCC) Support for Q-Flash, Q-Flash Plus, Smart Backup |
| Bundled Software | Norton® Internet Security (OEM version) |
| Operating System | Support for Windows 11 64-bit |
| Form Factor | Micro ATX; 24.4cm x 24.4cm |
